PEXESAT32

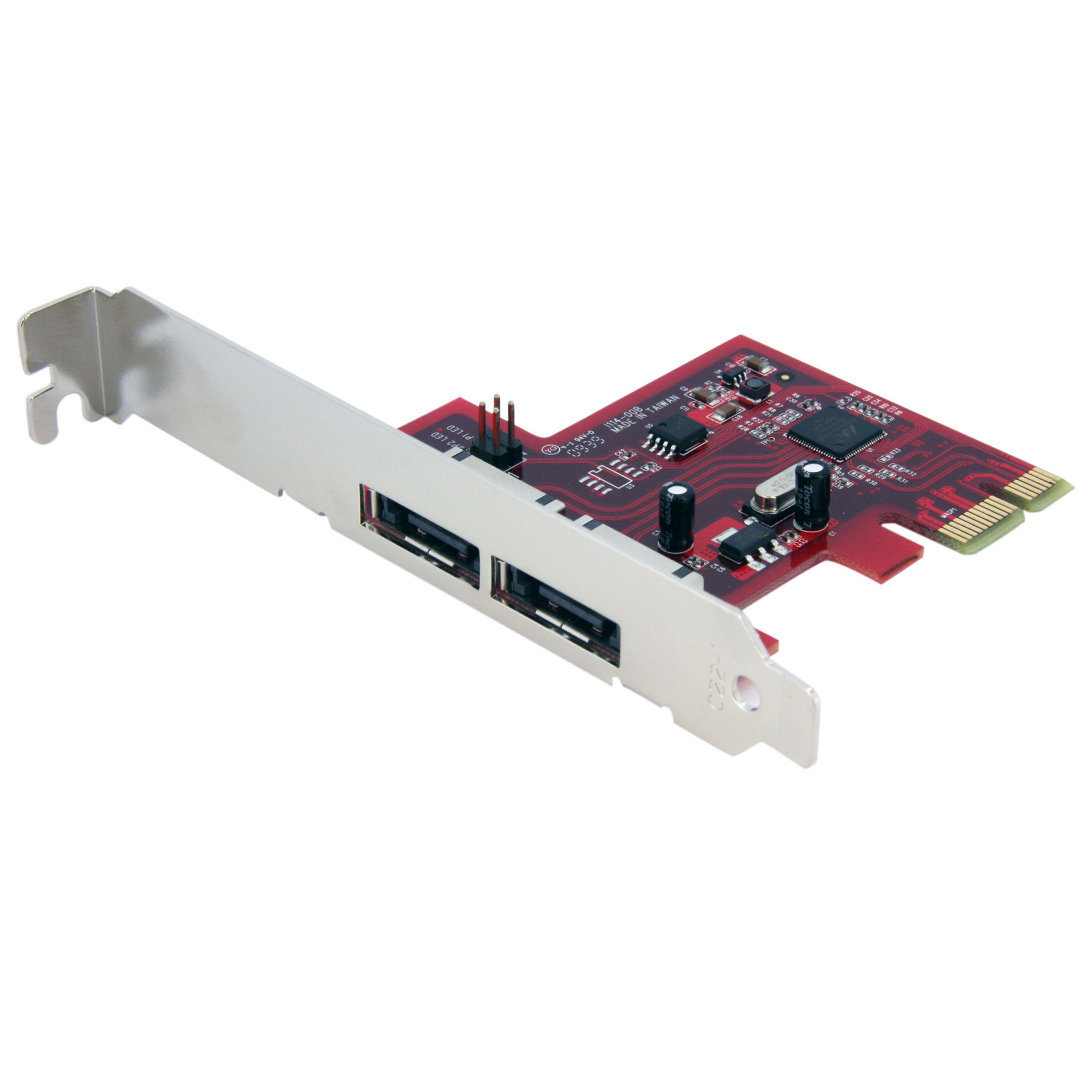

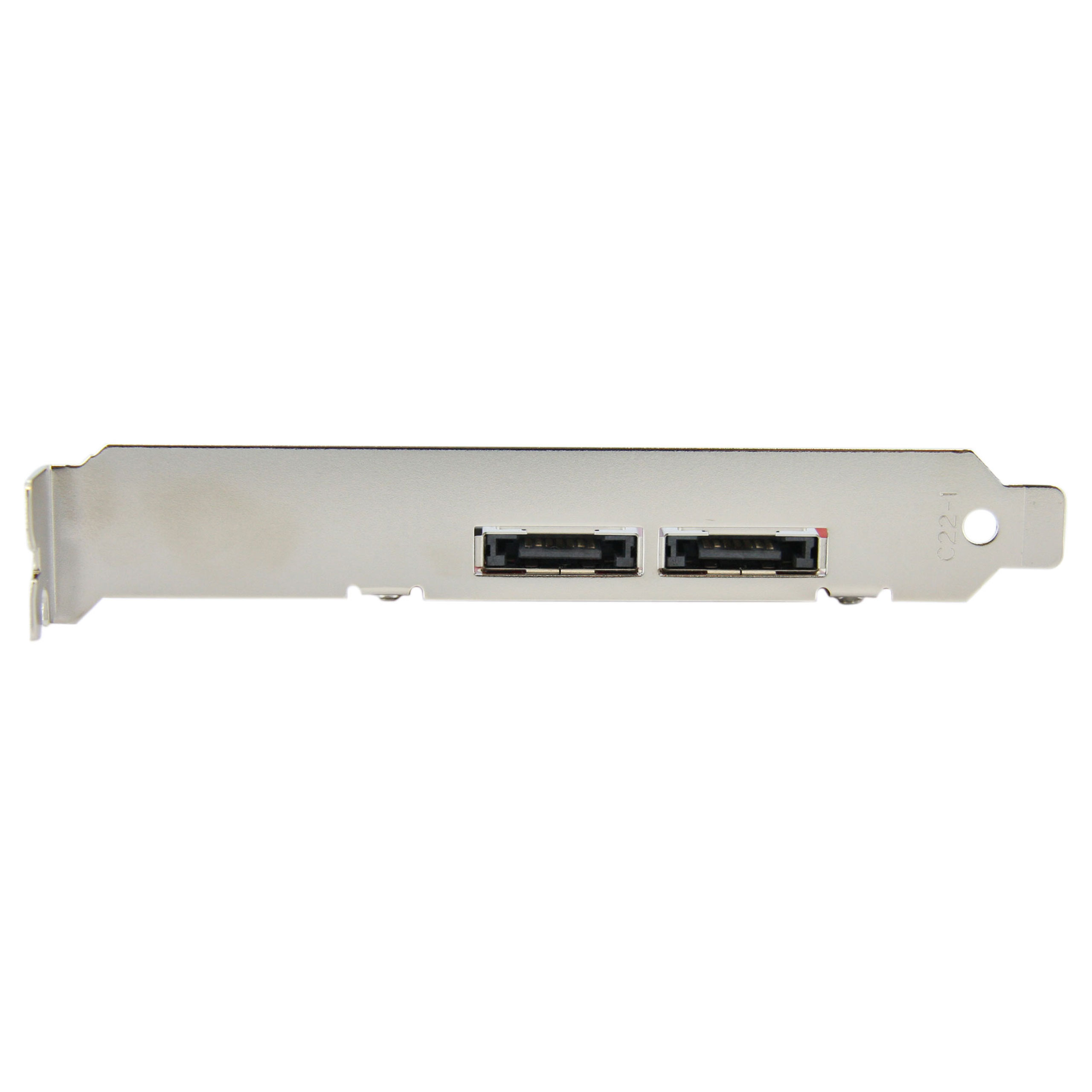

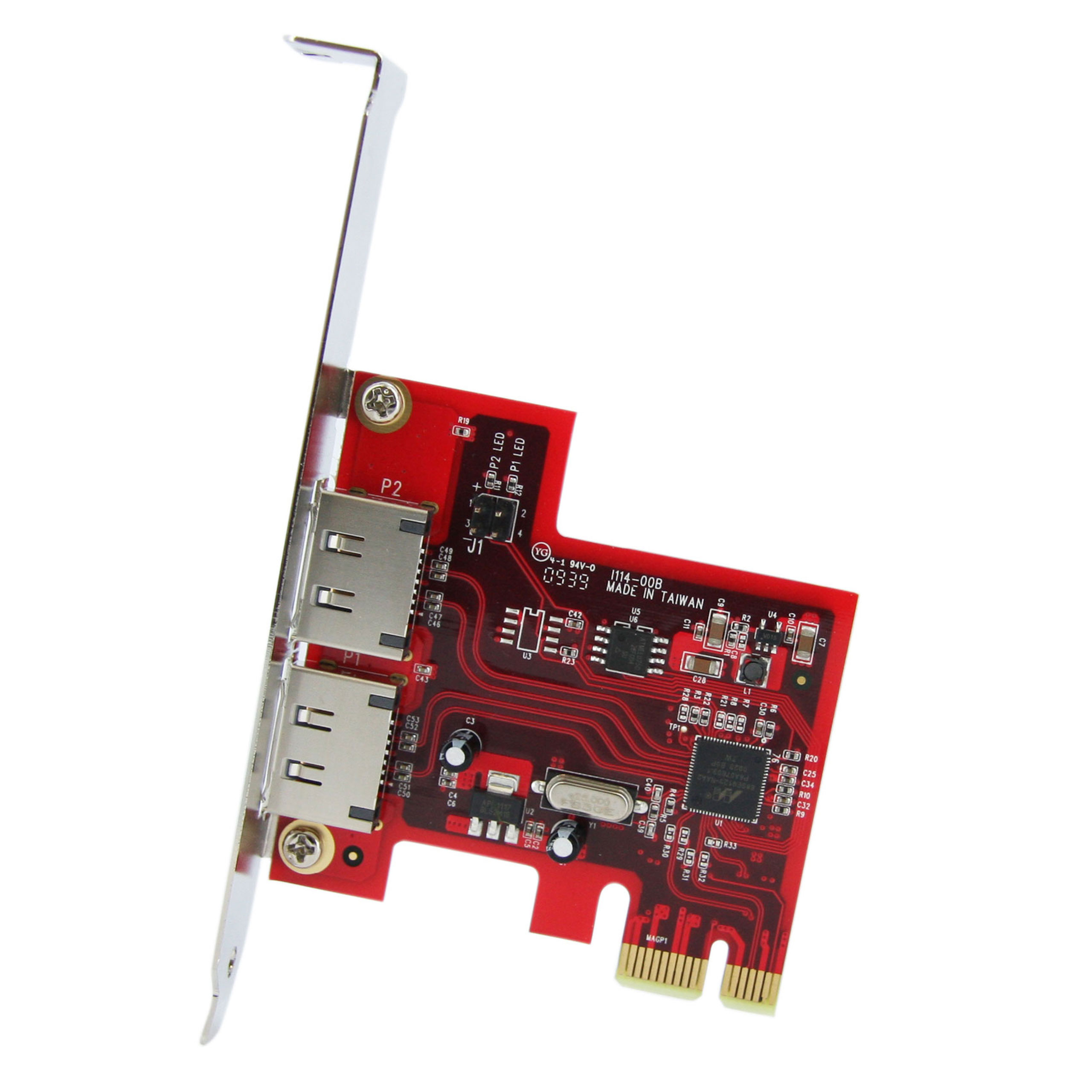

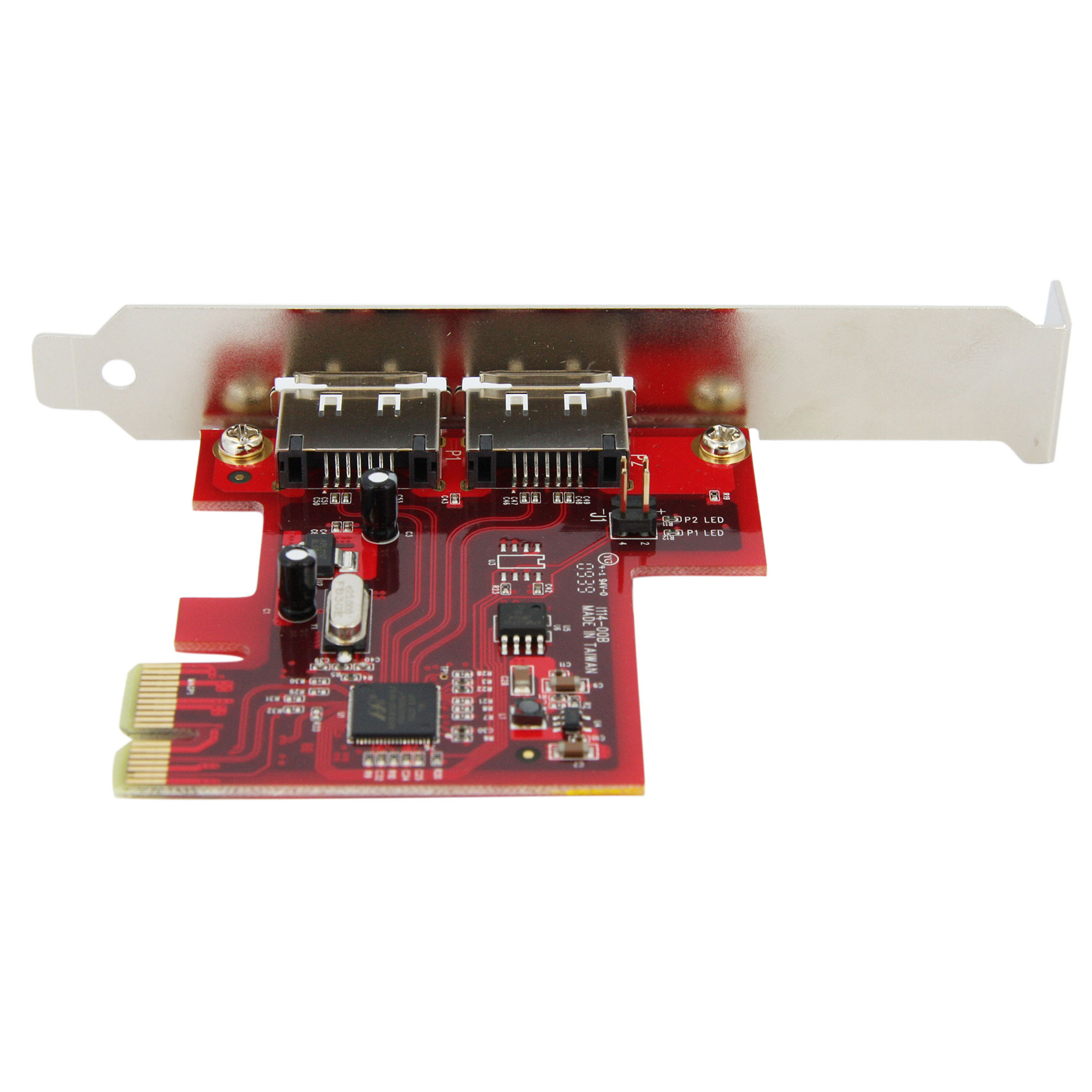

2 Port SATA Rev 3.0 600 PCIe eSATA Controller Card
Add Two eSATA 3.0 (6Gbps) Ports for High Speed Access to Large External Storage Solutions
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port SATA Rev 3.0 600 PCIe eSATA Controller Card Product Number PEXESAT32 UPC 065030838948 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Family External SATA RAID Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Short) 2 Port PCIe eSATA 6 Gbps Controller Card Product Title (Standard) 2 Port SATA 6 Gbps PCIe eSATA Controller Card Product Title (Long) 2 Port SATA 6 Gbps PCI Express eSATA Controller Card Product Title (AMZ) 2 Port SATA 6 Gbps PCI Express eSATA Controller Card - Storage controller - 2 Channel - eSATA 6Gb/s - 6 Gbit/s - PCIe (PEXESAT32) Title Ingram (Part 1) 2 Port SATA 6 Gbps PCI Express e Title Ingram (Part 2) SATA Controller Card Website Product Headline Add Two eSATA 3.0 (6Gbps) Ports for High Speed Access to Large External Storage Solutions Bullet 1 Compliant with PCI Express 2.0 standards Bullet 2 EXPAND CAPABILITIES: Add 2 SATA Rev 3.0 eSATA ports with transfer speeds up to 6.0Gbps; backward compatible with SATA I/II at 1.5/3.0Gbps Bullet 3 VERSATILE USE: This 2-port PCIE eSATA card features a dual-profile design to fit into both standard and low-profile systems, Supports JBOD, RAID 0 and 1 modes Bullet 4 Ships with a full profile bracket install, low profile included Bullet 5 COMPATIBILITY: Supports Windows (XP+), Windows Server (2003+), macOS (10.6 to 10.14), Linux 3.5.x to 4.11.x LTS Versions only; Connected drives cannot be used as System / Primary drive in Windows Server 2012, 2012 R2, 2016, 2019 Bullets (Consolidated) Add Two eSATA 3.0 (6Gbps) Ports for High Speed Access to Large External Storage Solutions - PCI Express eSATA - SATA Card - SATA 6 Gbps Controller - PCI-e Dual eSATA - 2 Port SATA 6 Gbps PCI Express eSATA Controller Card - Includes Full and Low Profile Bracket Marketing Copy Marketing Copy (No HTML) Applications - Adding multi-drive external raid storage solutions, with support for full SATA 3.0 data transfer rates of up to 6Gbps
- A cost-effective solution for streaming multimedia or archiving video, relying on the impressive speeds offered by SATA 3.0 (up to 6Gbps)
Website Search Keyword - SATA III
- SATA 3
- SATA Rev 3
- SATA 6
- SATA 6Gbps
- eSATA
- PCI Express
- PCIe
- Single Lane
- SATA 600
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes - Alarm function is not supported in MSU software.
- The Marvell Storage Utility application requires macOS 10.9 to 10.14.
Accessory Products - ESATA3
- ESATA6
- SATA2ESATA6
Related Products - ECESAT32
- PEXSAT32
- PCIESATA2I
- PEXESATA1
- PEXESATA2
- ECESATA254
- ECESATA1
- CBESATA2
- USB2ESATA
- ECESATA22
- PEXESATA2I
- ECESATUSB1
- CBESAT2
- PEXSATA24E
- PEXSATA22I
- PEXSAT2IDE2
Constrained SKU Alternatives (Limited Stock) - 2P6G-PCIE-SATA-CARD
- 2P6GR-PCIE-SATA-CARD
Color Red Humidity 15~90% RH Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 70.000 Product Width (mm) 120.000 Product Height (mm) 20.000 Product Weight (g) 35.000 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes Maximum Data Transfer Rate 6 Gbps MTBF (hours) 5,046,000 Hours OS Compatibility - Windows 8
- Linux
- Windows Server 2012
- Windows 7
- Windows 10
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

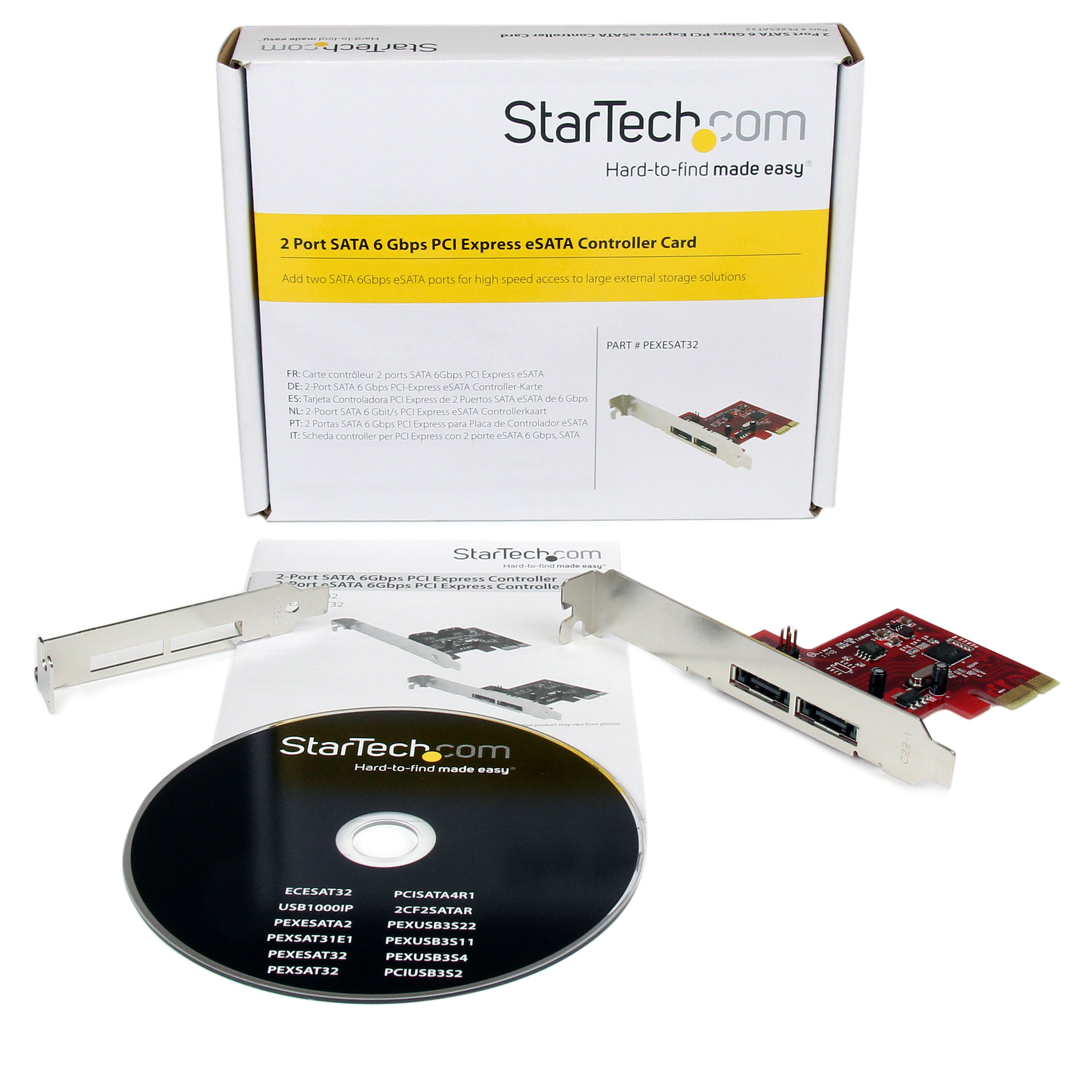

Port Multiplier Yes RAID Yes SATA Type and Rate SATA III (6 Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Marvell - 88SE9128 Interface/Bridge eSATA Carton Depth (mm) 388 Carton Height (mm) 314 Carton Quantity 60 Carton Weight Gross (g) 8464 Included in Package - 1 - eSATA 6Gbps PCI Express Card
- 1 - Low Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 144 Package Height (mm) 34 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 132 Packaging Description 2 Port SATA 6 Gbps PCI Express eSATA Controller Card Packaging Description India 2 Port SATA 6 Gbps PCI Express eSATA Controller Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 eSATA (7-Pin) Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle None
