PEXESAT322I
2x eSATA 2x SATA III 6 Gbps PCIe Controller Card
Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2x eSATA 2x SATA III 6 Gbps PCIe Controller Card Product Number PEXESAT322I UPC 065030848428 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Family SATA to PCIe Controller Card Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Country of Origin History (2) Malaysia Country of Origin Revision (2) XXXXXX156X Product Title (Short) 2Port PCIe SATA III eSATA Controller Product Title (Medium) x Product Title (Standard) 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext Product Title (Long) 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe x1 SATA III Adapter with Configurable Internal/External Connectivity Product Title (AMZ) 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe x1 SATA III Adapter with Configurable Internal/External Connectivity Title Ingram (Part 1) 2x eSATA + 2x SATA III 6 Gbps PC Title Ingram (Part 2) I Express Controller Card Website Product Headline Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot Bullet 1 IMPROVE STORAGE CAPACITY: This 2-Port PCIe SATA and eSATA Controller Card enables support of two internal SATA or external (eSATA) drives through PCI Express; A cost-effective solution to increase your system's storage capacity Bullet 2 THE IT PRO'S CHOICE: Designed and built for IT professionals, this 2-Port SATA and eSATA Controller Card is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullet 3 ASM1061 CONTROLLER: This SATA and eSATA controller card features a dedicated chipset to enable two switchable SATA and eSATA 6Gbps ports via a single x1 PCIe slot; Supports FIS-based Port Multiplier, Command-based switching, NCQ, and ATA/ ATAPI commands Bullet 4 CONVENIENT SETUP: This 2-port SATA/eSATA controller card installs in a full or low-profile PCIe slot; Compatible with PCIe x1, x4, x8, or x16 slots; Includes full-profile (pre-installed) & low-profile brackets, and 7-pin SATA cable Bullet 5 WIDE COMPATIBILITY: Supports Windows and standard SATA and eSATA SSDs (solid-state drives) and HDDs (hard drives); Supports SATA III (6 Gbps) and earlier revisions; Compliant with PCI Express 2.0 Bullets (Consolidated) Add 2 external or internal SATA 6 Gbps ports to a computer through a PCI Express slot - 2 Port PCI Express SATA 6 - PCIe SATA 6 - PCI Express SATA III Card - PCI Express eSATA - PCIe eSATA - Dual Port PCI-e Controller Card - Includes Low Profile Bracket Marketing Copy Applications - Upgrade an older PCIe-based system with SATA 6Gbps connectivity, to better utilize faster SATA drives
- Add internal and/or external SATA III ports to a computer through a single PCI Express slot, with the option to change the available connections to external/internal, as needed based on updated system requirements or applications
- Add more internal SATA ports to a computer system, for connecting additional storage drives and/or optical drives
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - LSATARND6
- SATA2ESATA6
- ESATA3
- LSATA18
- SATA18RA1
- SATA18LA1
- ESATA6
- SATARA18
Related Products - PEXSAT34
- ECESAT32
- PEXSAT32
- PEXSAT31E1
Input Voltage 12V DC Output Voltage (V) 12V DC Color Black Humidity 5% ~ 85% RH Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 121.000 Product Width (mm) 92.000 Product Height (mm) 20.000 Product Weight (g) 48.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No 4Kn Support Yes OS Compatibility - Windows 8
- Windows Server 2012
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

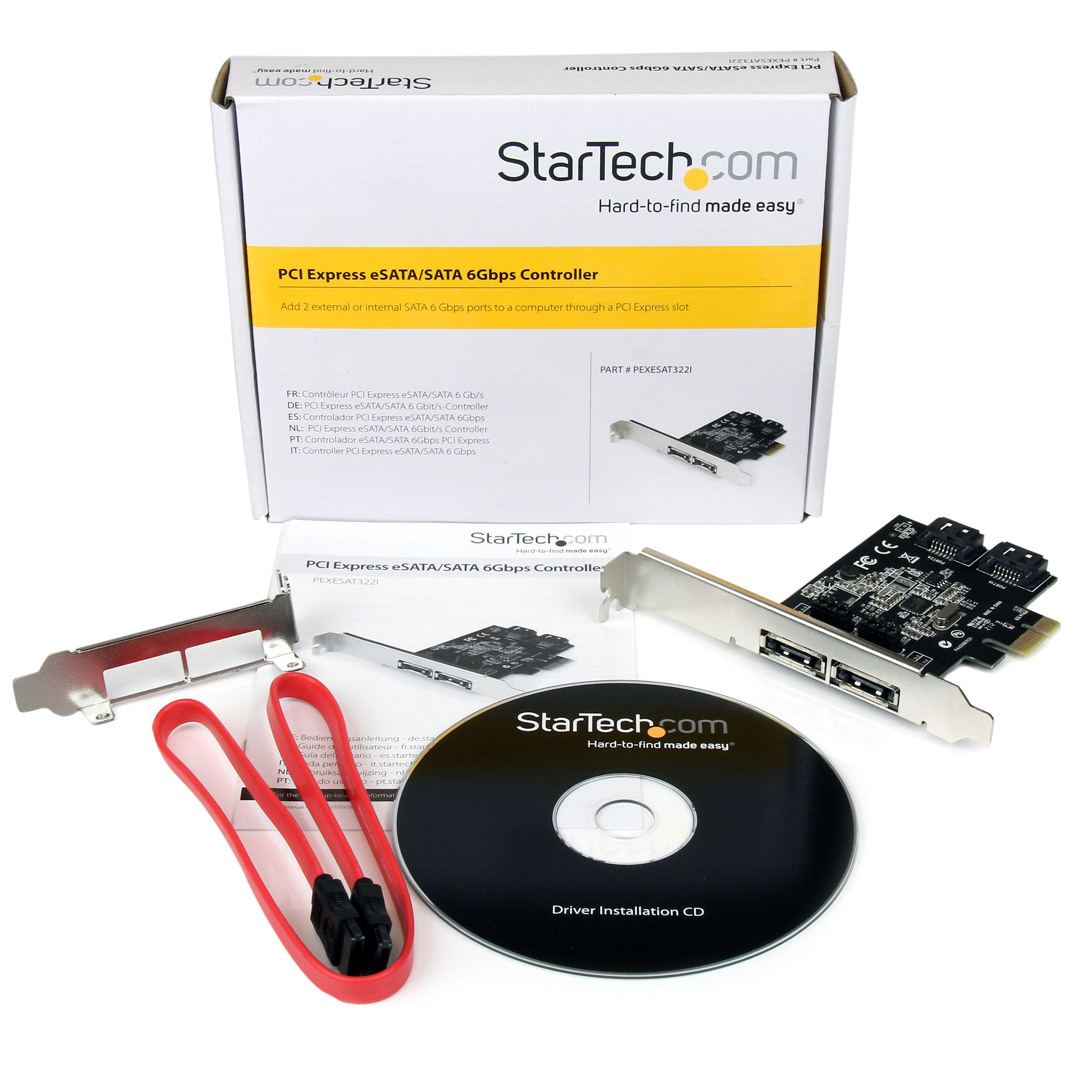

Port Multiplier Yes RAID No SATA Type and Rate SATA III (6 Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASMedia - ASM1061 Interface/Bridge eSATA & SATA IO Card Port Style Integrated on Card Carton Depth (mm) 306 Carton Height (mm) 362 Carton Quantity 80 Carton Weight Gross (g) 12702 Included in Package - 1 - Driver CD
- 1 - Instruction Manual
- 1 - SATA Cable
- 1 - PCIe SATA Controller
- 1 - Low Profile Bracket
Included In Package for Label - 1 - Driver CD
- 1 - Instruction Manual
- 1 - SATA Cable
- 1 - PCIe SATA Controller
- 1 - Low Profile Bracket
Package Depth (mm) 144 Package Height (mm) 30 Package Width (mm) 166 Package Quantity 1 Package Weight (g) 148 Packaging Description PCI Express eSATA/SATA 6Gbps Controller Packaging Description India PCI Express eSATA/SATA 6Gbps Controller Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 eSATA (7-Pin) Connector 2 (Quantity) 2 Connector 3 SATA (7-Pin) Connector 3 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle Mainstream
