PEXESATA1

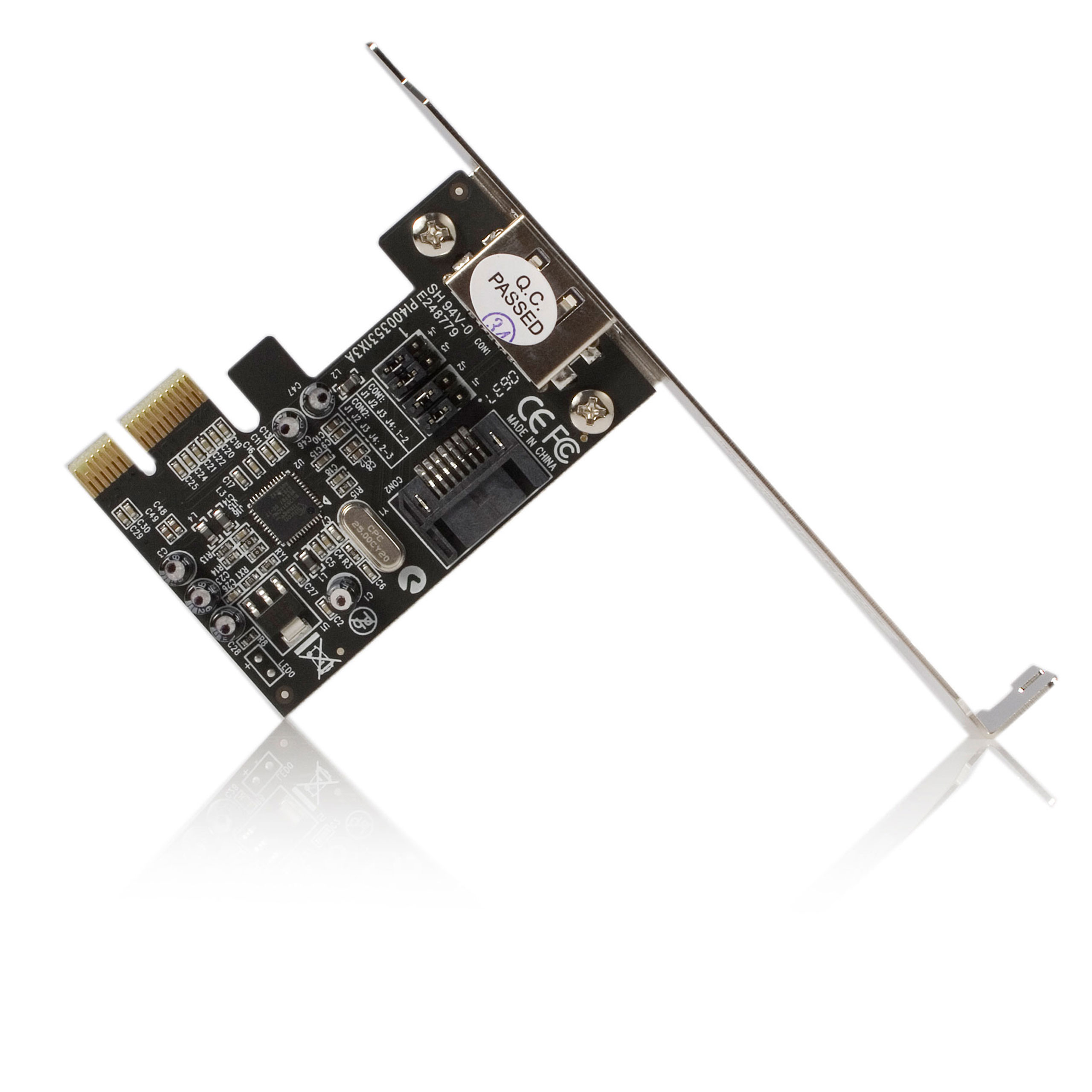

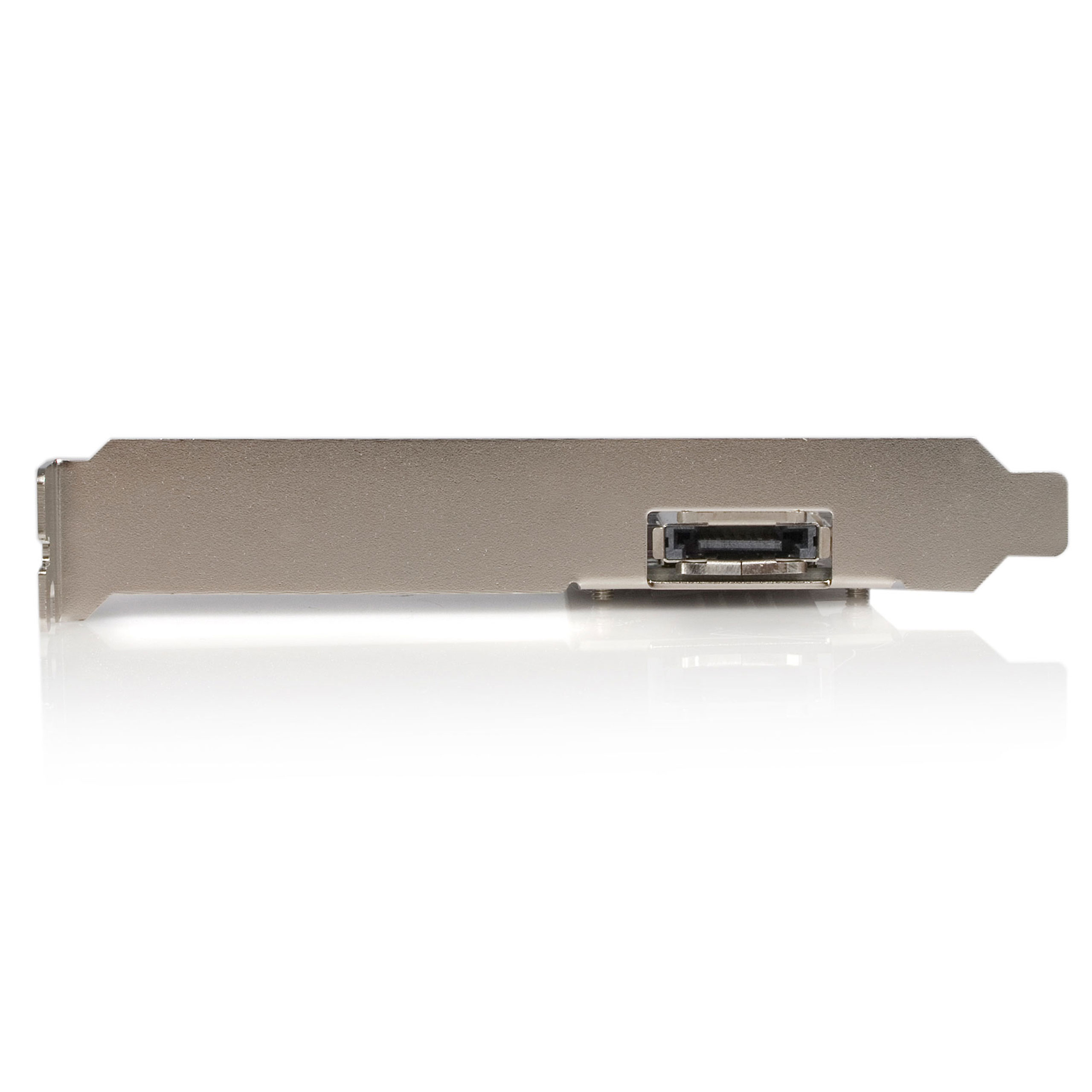

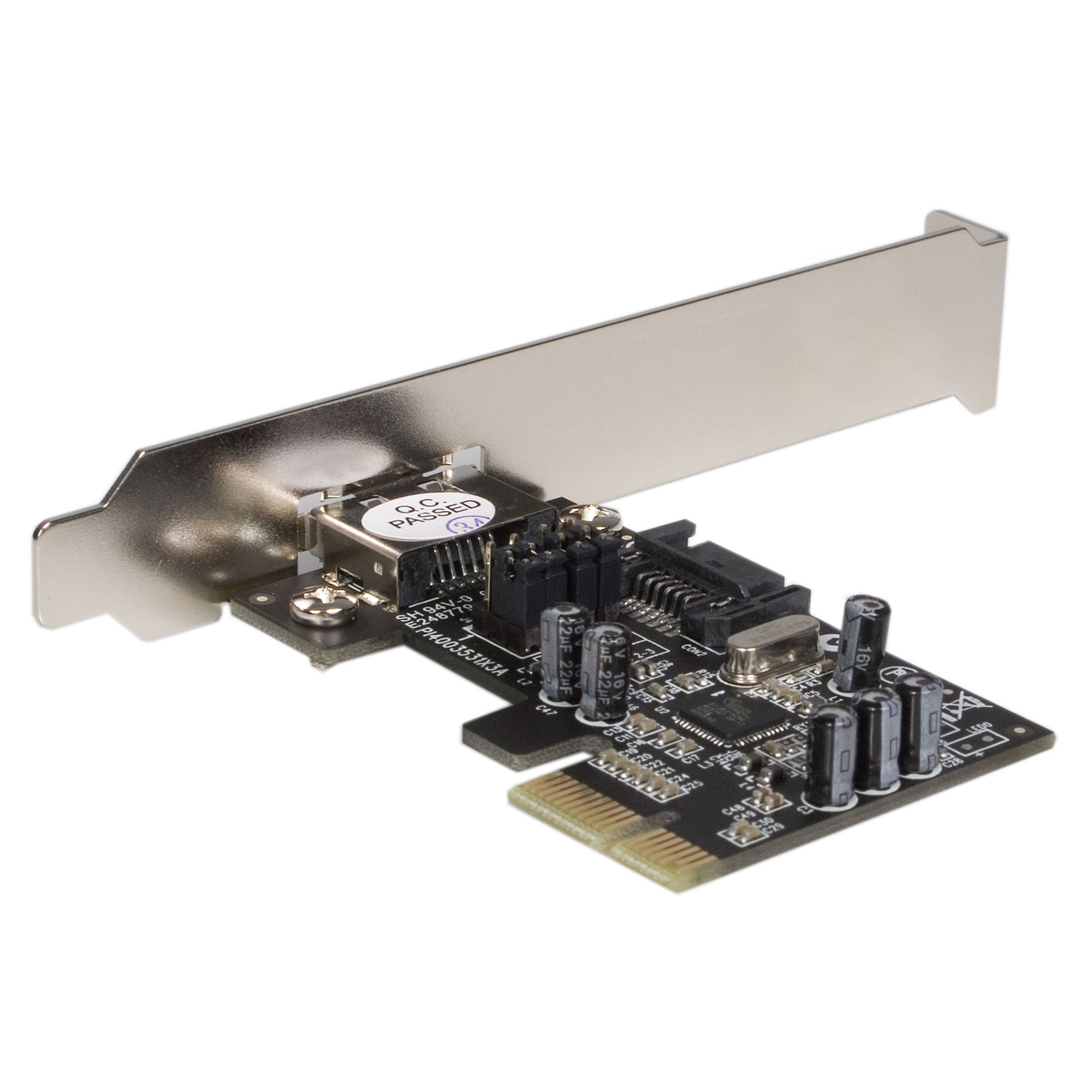

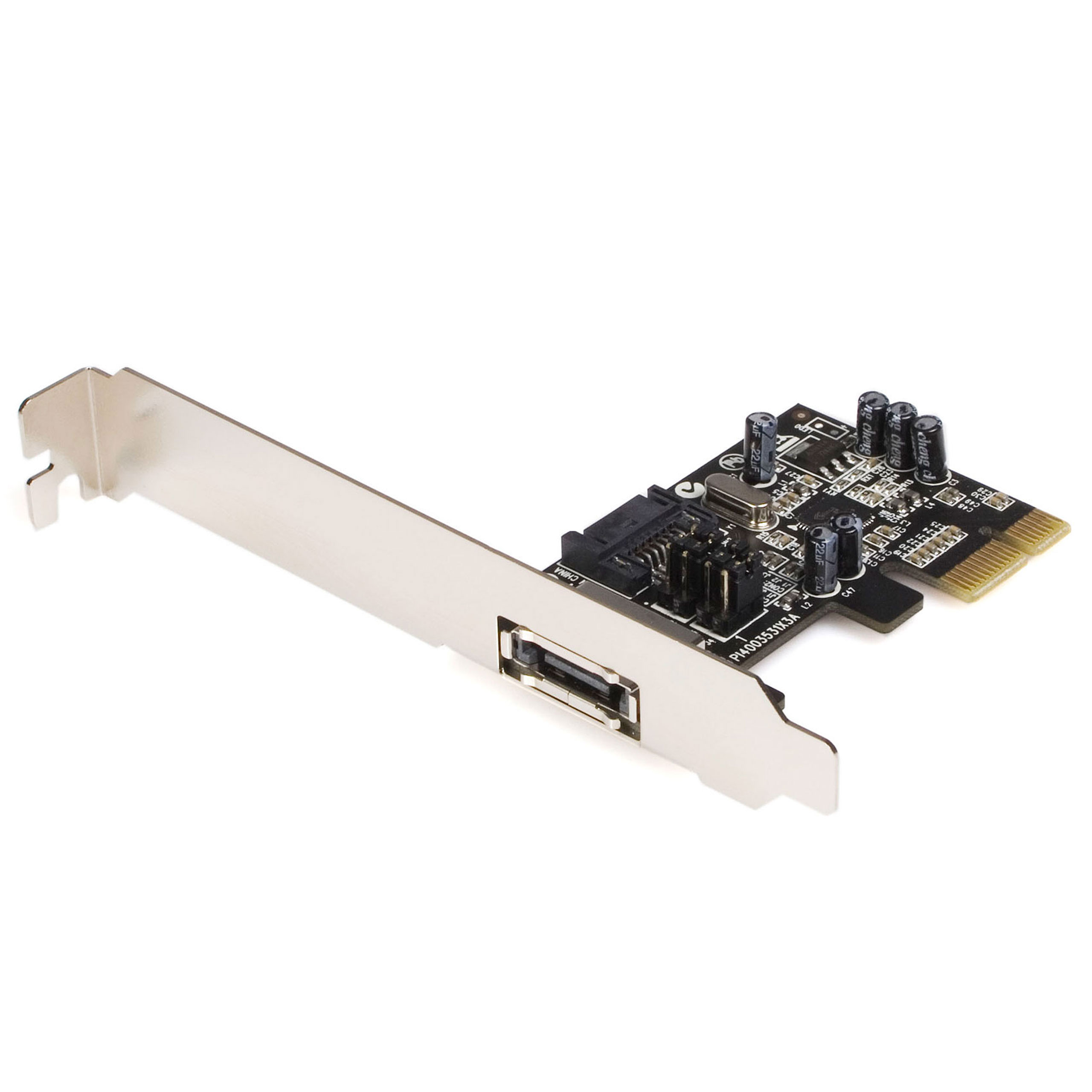

1 Port PCI-Express eSATA Card
Add an eSATA port to a desktop computer through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 1 Port PCI-Express eSATA Card Product Number PEXESATA1 UPC 065030830409 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 1 Port PCI Express eSATA Controller Card Product Title (Standard) StarTech.com 1 Port PCI-Express eSATA Card Product Title (Long) 1 Port PCI Express eSATA II Controller Card Product Title (AMZ) 1 Port PCI Express eSATA II Controller Card - eSATA Controller - PCIe eSATA - PCI Express eSATA (PEXESATA1) Title Ingram (Part 1) 1 Port PCI Express eSATA II Cont Title Ingram (Part 2) roller Card Website Product Headline Add an eSATA port to a desktop computer through a PCI Express slot Bullet 1 Selectable 1 external eSATA or 1 internal SATA port Bullet 2 Support for FIS-based Port Multiplier technology Bullet 3 Large capacity drive support with 48-bit Logical Block Addressing (LBA) Bullet 4 Drive Hot-Plugging support Bullet 5 Support for Native Command Queuing (NCQ) Bullets (Consolidated) Storage controller - SATA 3Gb/s/eSATA 3Gb/s - 300 MBps - PCIe x1 - for P/N: SAT3540ER - SAT3540ERGB Marketing Copy Applications Provides you with one external eSATA port for connecting SATA devices such as external hard drive storage Website Search Keyword - eSATA Controller
- 2 Port
- PCI Express
- PCIe
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - ESATA3
- ESATA6
Related Products - PEXESATA2
- PEXSATA22I
- PEXESATA2I
Product Length (mm) 120.000 Product Width (mm) 70.000 Product Height (mm) 20.000 Product Weight (g) 37.000 TAA Compliant No Maximum Data Transfer Rate 3 Gbps OS Compatibility - Linux
- Windows 7
- Windows Server 2012
- Windows 8

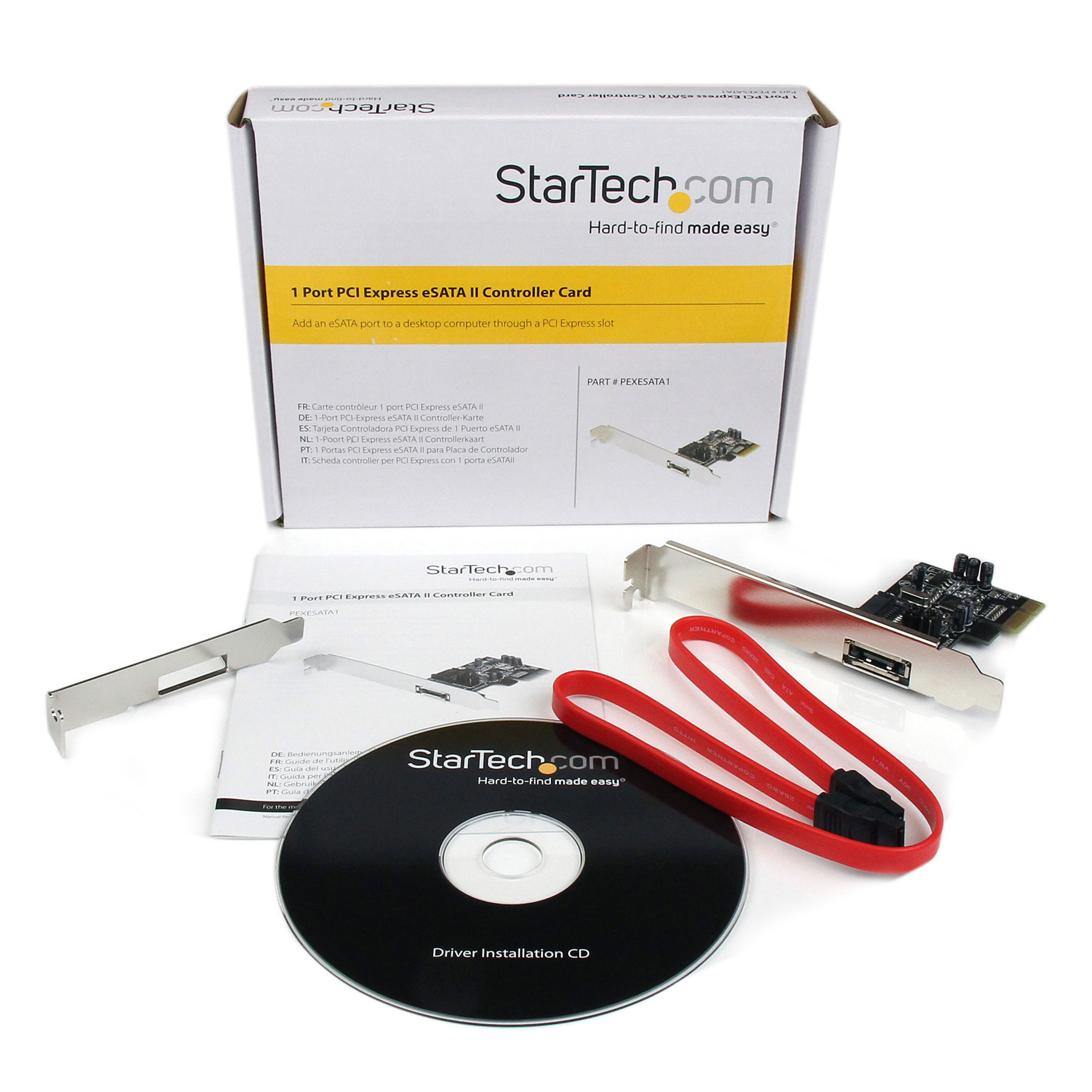

Port Multiplier Yes RAID No SATA Type and Rate SATA II (3 Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Silicon Image - SiI3531 Interface/Bridge eSATA Carton Depth (mm) 500 Carton Height (mm) 350 Carton Quantity 40 Carton Weight Gross (g) 6600 Included in Package - 1 - Driver CD
- 1 - Instruction Manual
- 1 - Low Profile Bracket
- 1 - eSATA PCI Express Card
- 1 - SATA Cable
Package Depth (mm) 140 Package Height (mm) 30 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 140 Packaging Description 1 Port PCI Express eSATA II Controller Card Packaging Description India 1 Port PCI Express eSATA II Controller Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 eSATA (7-Pin) Connector 2 (Quantity) 1 Connector 3 SATA (7-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle Legacy
