PEXESATA2
2 Port PCI-E eSATA Card
Add 2 eSATA ports to your desktop computer through a PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port PCI-E eSATA Card Product Number PEXESATA2 UPC 065030826198 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Short) 2 Port PCIe eSATA Controller Card Product Title (Medium) x Product Title (Standard) StarTech.com 2 Port PCI Express eSATA Controller Adapter Card Product Title (Long) 2 Port PCI Express eSATA Controller Adapter Card Product Title (AMZ) 2 Port PCI Express eSATA Controller Adapter Card - Dual Port PCIe eSATA Card w/ Low Profile / Half-Height Bracket (PEXESATA2) Title Ingram (Part 1) 2 Port PCI Express eSATA Control Title Ingram (Part 2) ler Adapter Card Website Product Headline Add 2 eSATA ports to your desktop computer through a PCI Express expansion slot Bullet 1 Includes a low profile/half-height installation bracket Bullet 2 2 external eSATA ports Bullet 3 Uses native PCI Express single chipset Bullet 4 Fully compliant with the Serial ATA 2.5 specifications with transfer rates up to 3.0Gbps Bullet 5 Support for Native Command Queuing (NCQ) Bullets (Consolidated) Add two eSATA ports to your desktop computer through a PCI Express expansion slot - 2 Port PCIe eSATA Controller Card Adapter - PCI Express eSATA Controller Card - PCIe eSATA Card - eSATA Controller - SATA II Hard Drive Controller - HDD Storage Controller - SATA 300 Controller - Includes a low-profile/half-height bracket for installation in small form-factor computers - Compliant with Serial ATA 2.5 specifications with transfer rates up to 3.0Gbps Marketing Copy Applications - Add eSATA capabilities for high speed external storage to a workstation or server
- Add Port Multiplier capable eSATA ports for expanded external storage capability
- Upgrade from slower external connection methods to native SATA connectivity
Website Search Keyword - eSATA Card
- PCI-Express to eSATA
- PCI-E
- PCI Express
- Port Multiplier
- PCIe
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes Accessory Products - ESATA3
- ESATA6
Related Products ECESATA22 Humidity 20~80% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 120.000 Product Width (mm) 90.000 Product Height (mm) 20.000 Product Weight (g) 67.870 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes Maximum Data Transfer Rate 300 MB/sec (3.0 Gigabits/sec) MTBF (hours) 3,141,188 hours OS Compatibility - Linux
- Mac OS X Mavericks (10.9)
- Windows Server 2012
- Windows 8
- Windows 7
- Mac OS X Yosemite (10.10)
- Windows 10
- Mac OS X El Capitan (10.11)
- Windows 11

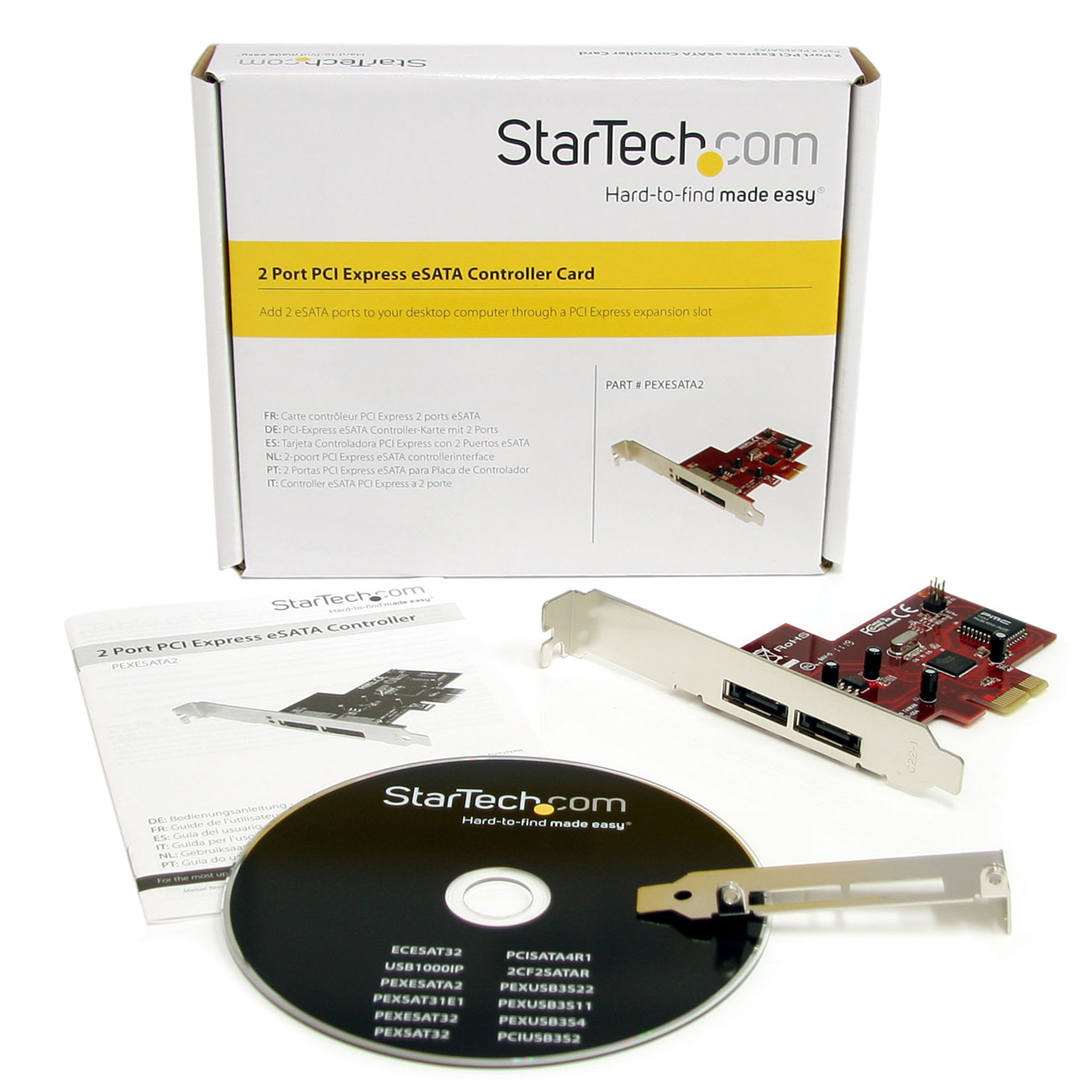

Port Multiplier Yes RAID No SATA Type and Rate SATA II (3 Gbps) Supported Protocols Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Silicon Image - SiI3132 Interface/Bridge eSATA Carton Depth (mm) 500 Carton Height (mm) 350 Carton Quantity 40 Carton Weight Gross (g) 7600 Included in Package - 1 - eSATA PCI Express Card
- 1 - Installation CD
- 1 - Instruction Manual
- 1 - Low Profile Bracket
Package Depth (mm) 160 Package Height (mm) 48 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 160 Packaging Description 2 Port PCI Express eSATA Controller Card Packaging Description India 2 Port PCI Express eSATA Controller Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 eSATA (7-Pin) Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,JP,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle Legacy
