PEXESATA2I

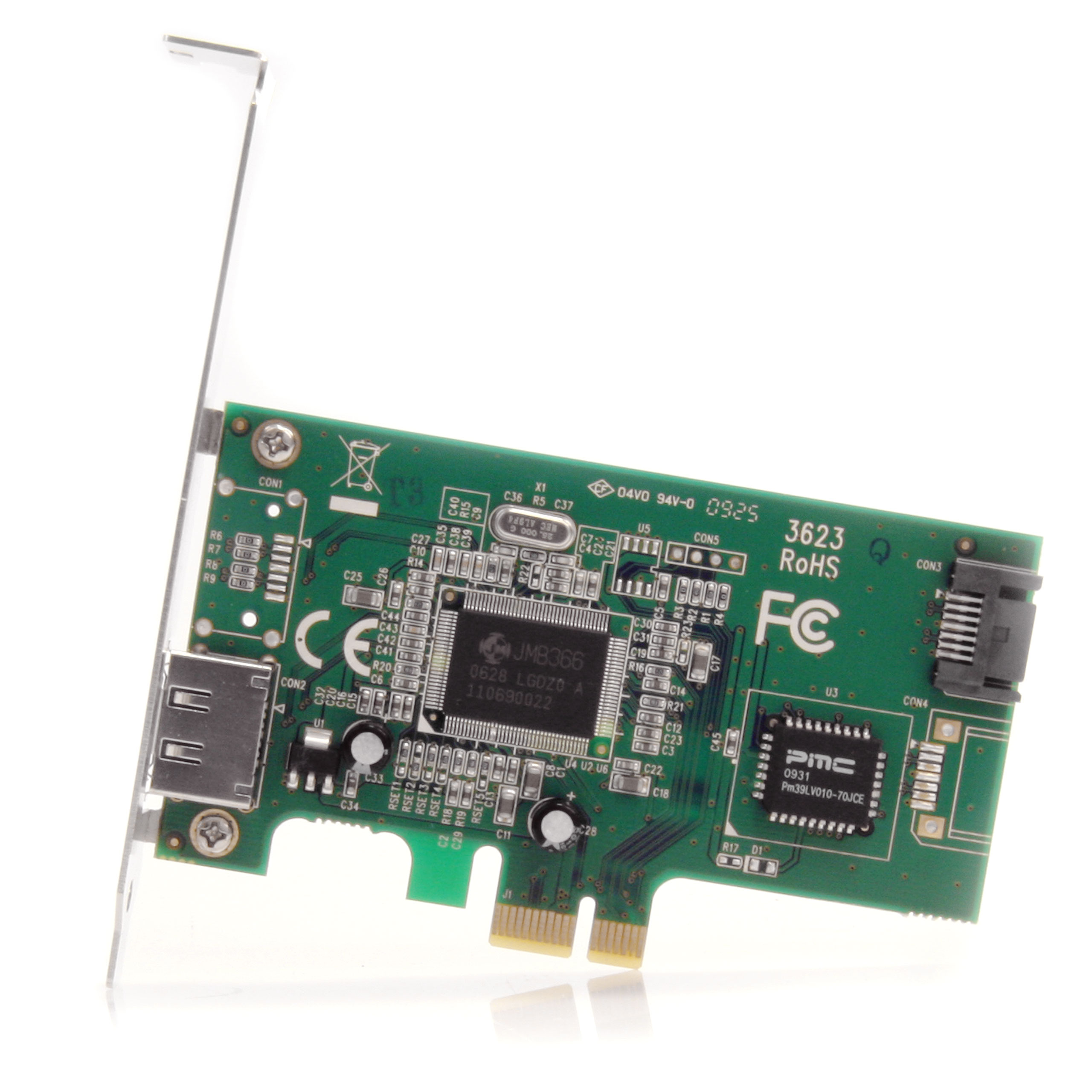

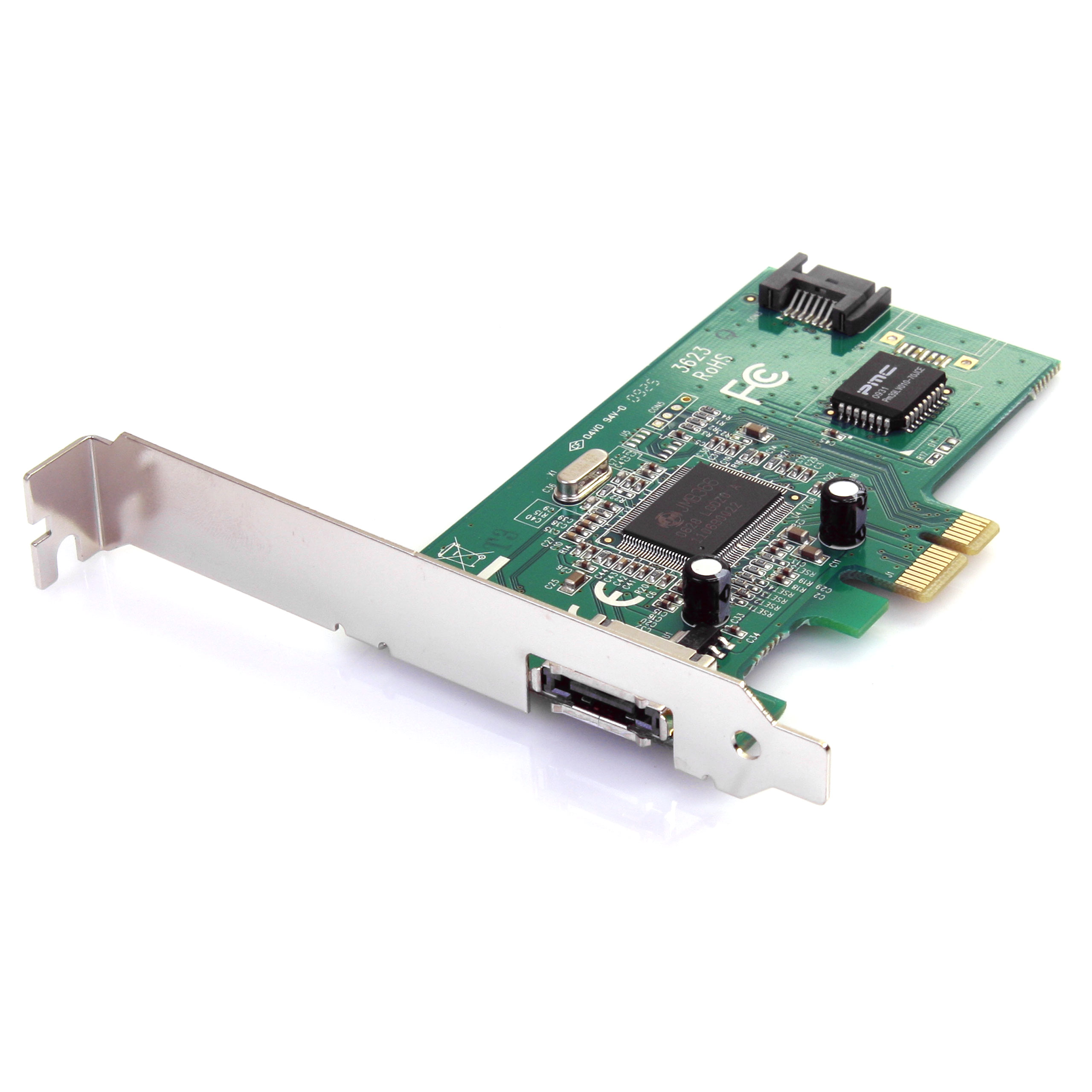

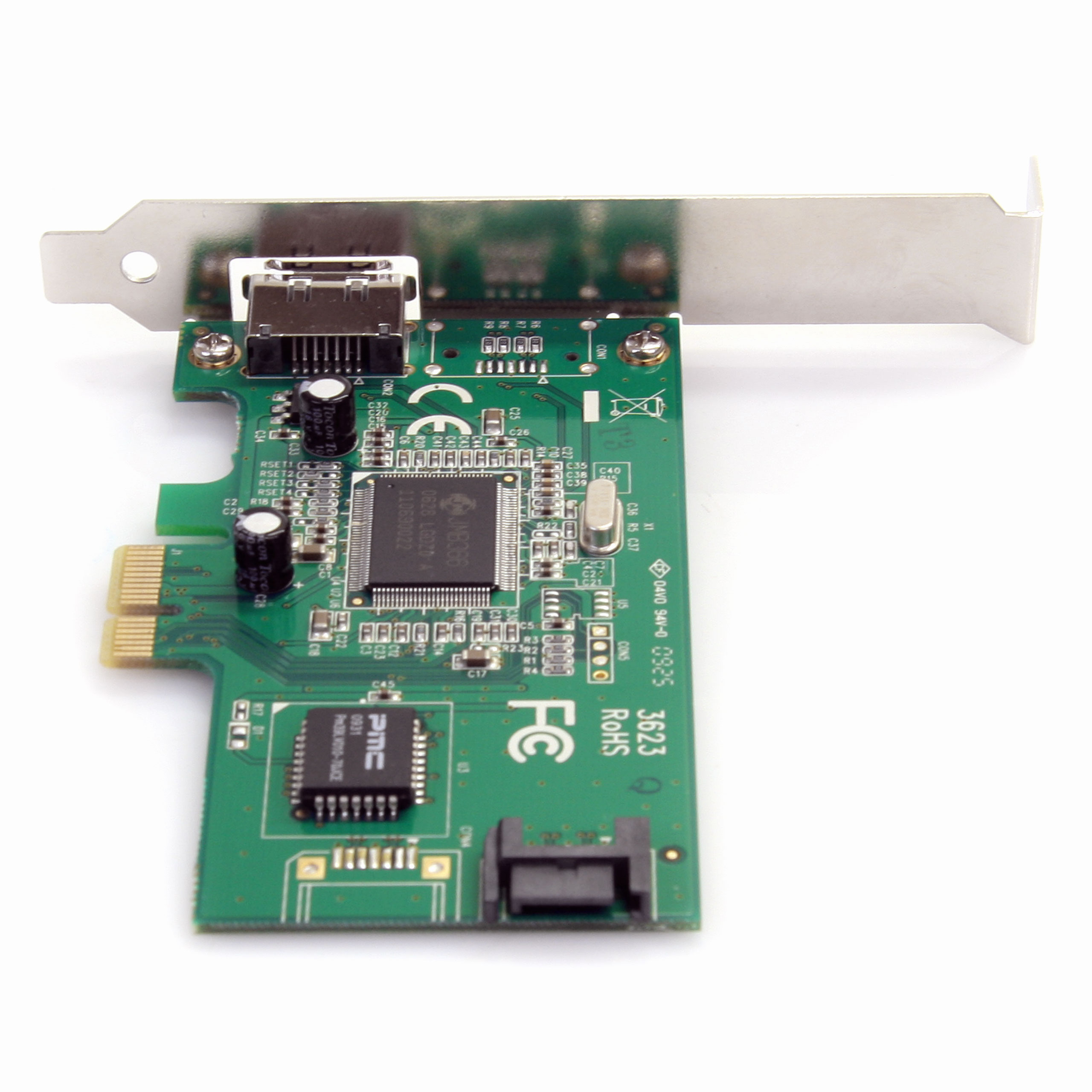

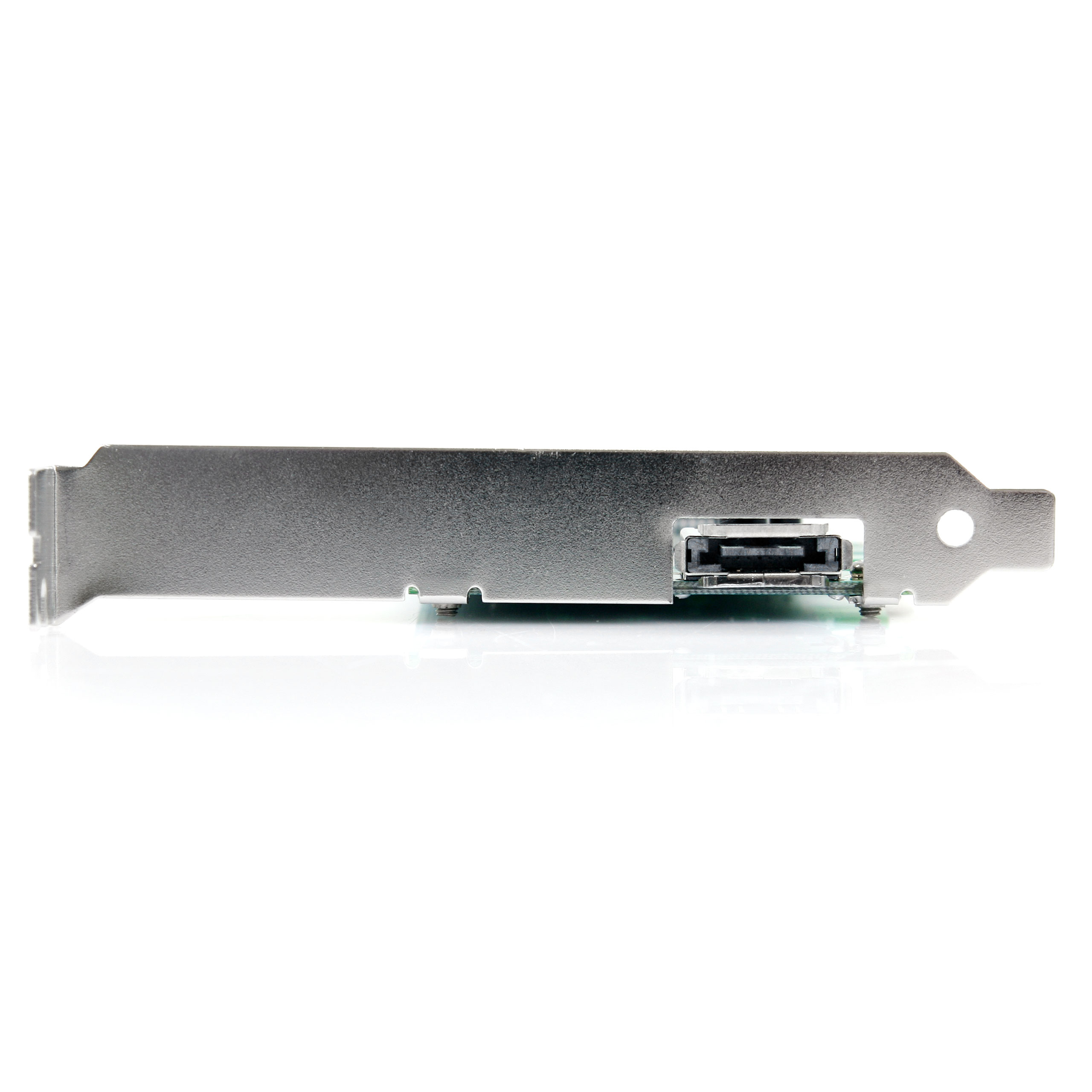

2 Port PCI-Express SATA Card 1 Int 1 Ext Port
Add an internal SATA port and an external SATA (eSATA) port to your desktop computer through a PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port PCI-Express SATA Card 1 Int 1 Ext Port Product Number PEXESATA2I UPC 065030827997 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) eSATA / SATA PCIe SATA Controller Card Product Title (Standard) StarTech.com 2 Port PCI Express SATA Controller Card Product Title (Long) 1 Port eSATA + 1 Port SATA II PCI Express SATA Controller Card Title Ingram (Part 1) 1 Port eSATA + 1 Port SATA PCI E Title Ingram (Part 2) xpress SATA Controller Card Website Product Headline Add an internal SATA port and an external SATA (eSATA) port to your desktop computer through a PCI Express expansion slot Bullet 1 1 external eSATA port and 1 internal SATA port Bullet 2 48-bit Logical Block Addressing (LBA) Bullet 3 Drive Hot-Plugging support Bullet 4 Support for Native Command Queuing Bullet 5 Fully compliant with the Serial ATA 1.0 specifications with transfer rates up to 3 Gbps Marketing Copy Applications - Add both SATA and eSATA capabilities for connecting high-speed storage to a workstation or server
- Add a Port Multiplier capable eSATA port for expanded external storage capability
- Upgrade from slower external connection methods to native SATA connectivity
- Expand on a full or low profile/small form factor (SFF) computer's storage capabilties
Website Search Keyword - 2 Port PCI Express
- SATA Card
- PCI Express to SATA
- low profile
- port multiplier
- PCIe eSATA
Special Notes 2.0 compliant/compatible with 2.0 slots for PCI Express Accessory Products - ESATA3
- ESATA6
Related Products - PEXESATA2
- PEXSATA22I
- PEXESATA1
- ECESATA22
Product Length (mm) 102 Product Width (mm) 120 Product Height (mm) 20 Product Weight (g) 44.2 TAA Compliant No Maximum Data Transfer Rate 3Gbps OS Compatibility - Linux
- Mac OS X
- Windows 2000
- Windows Vista
- Windows Server 2003
- Windows 7
- Windows Server 2008 R2
- Windows 8
Port Multiplier Yes RAID No SATA Type and Rate SATA II (3 Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID JMicron - JMB366 Interface/Bridge - eSATA
- eSATA & SATA

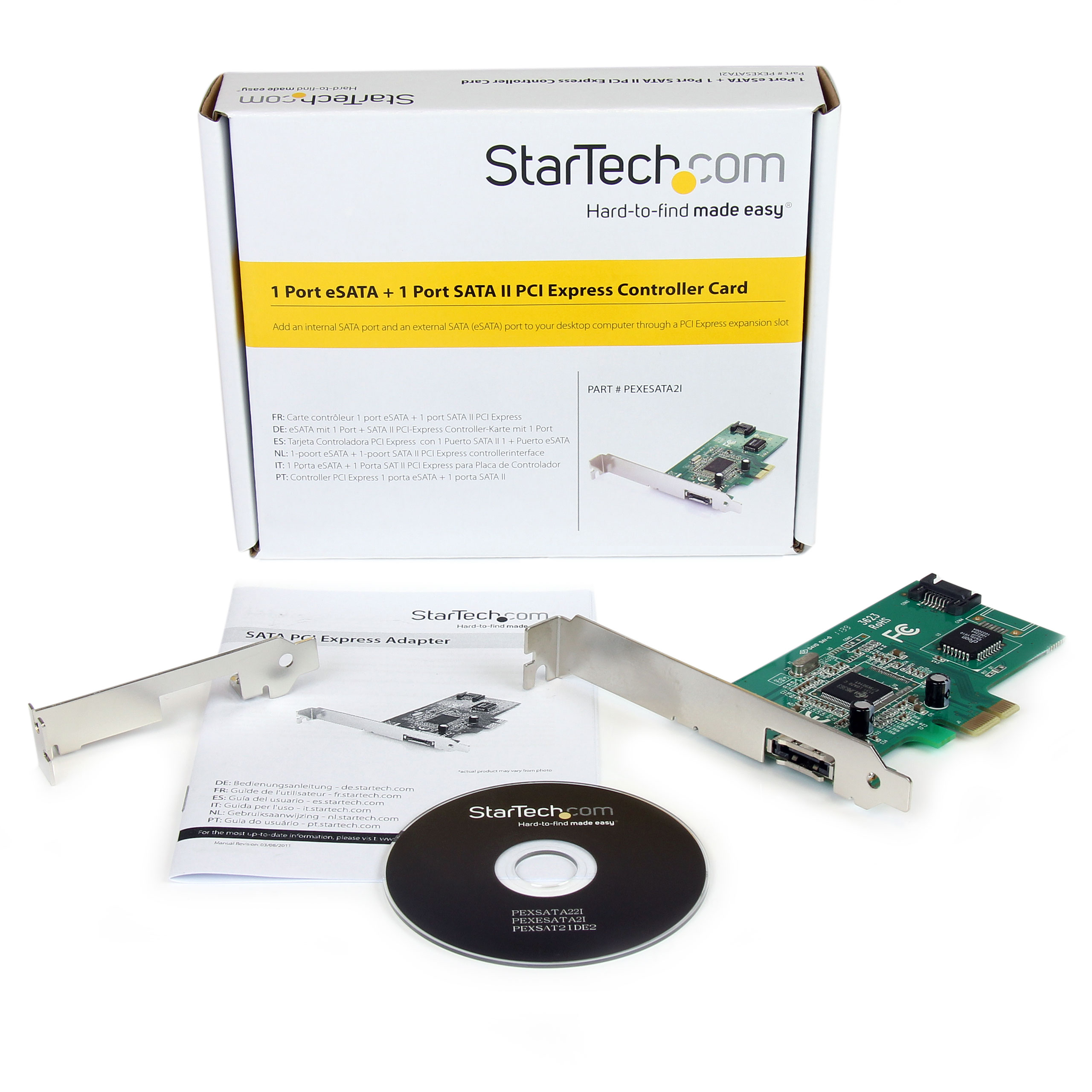

Carton Depth (mm) 500 Carton Height (mm) 350 Carton Quantity 40 Carton Weight Gross (g) 7200 Included in Package - 1 - PCI Express eSATA Card
- 1 - Instruction Manual
- 1 - Driver CD
- 1 - Low Profile Bracket
Package Depth (mm) 41 Package Height (mm) 144 Package Width (mm) 208 Package Weight (g) 120 Packaging Description eSATA/SATA PCIe SATA Controller Card Packaging Description India eSATA/SATA PCIe SATA Controller Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 eSATA (7-Pin) Connector 2 (Quantity) 1 Connector 3 SATA (7-Pin) Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
