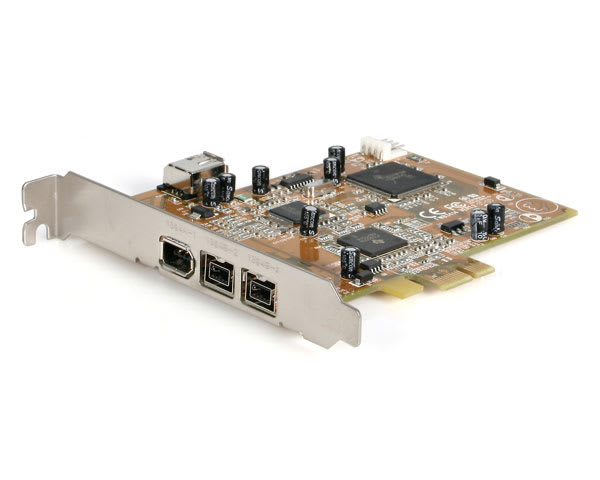

Product Name 3 Port Firewire 800 PCI Express Card Product Number PEXFW800_3 UPC 065030817714 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) 2 Port PCI Express 1394b FireWire 800 & 1 Port + 1 Internal Firewire 400 Adapter Card Bullet 1 Auto detects connected devices and automatically configures data transfer speeds Bullet 2 Fully compliant with with one lane 2.5Gb/s PCI Express specification. Bullet 3 Provides two 1394b and one 1394a (6-pin) ports for multiple 1394b/1394a device connections Bullet 4 Supports data transfer rates of up to 100, 200, 400 and 800 Mbits/sec Bullet 5 Supports IEEE-1394b and is backwards compatible with 1394a-2000 and 1394-1995 standards Marketing Copy Applications Compatible with various FireWire 800 (1394b) and 1394a devices including portable hard drives, DV camcorders, digital cameras, CD-RW/DVD-ROM drives as well as many other FireWire devices Website Search Keyword iPod System and Cable Requirements Unused PCI slot Accessory Products - 1394_94_10
- 1394_94_6
- 1394_96_10
- 1394_96_6
- 1394_99_10
- 1394_99_6
Related Products IDECASEU2FB Replacement Product PEX1394B3 TAA Compliant No General Specifications - Chipset: TI XIO2000 / TSB81BA3 / TSB82AA2
Maximum Data Transfer Rate 800000000 Mbits/Sec OS Compatibility - Mac OS 9.2
- Mac OSX 10.x
- Windows 2000
- Windows 98SE
- Windows ME
- Windows XP
- Windows Vista
Bus Type PCI Express Chipset ID Texas Instruments Industry Standards - IEEE-1394
- IEEE-1394A
- IEEE-1394B
- OHCI
Carton Depth (mm) 760 Carton Height (mm) 246 Carton Quantity 50 Carton Weight Gross (g) 9500 Package Depth (mm) 38 Package Height (mm) 143 Package Width (mm) 210 Package Weight (g) 170 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 1 (Quantity) 1 Connector 2 FireWire 800 (9-Pin, 800Mbps, Bus Power) Connector 2 (Quantity) 2 Connector 3 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Carey Cline
