PEXHDCAP2
HD PCIe capture card - HDMI VGA DVI CPNT - 1080p
Capture an HD audio-video source, through a low-profile or full-profile PCI Express slot
Main Image
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name HD PCIe capture card - HDMI VGA DVI CPNT - 1080p Product Number PEXHDCAP2 UPC 065030862387 Lifecycle status Active Warranty 2 Years Taxonomy Product > Other > Video Capture Devices Category Level 1 Computer Cards and Adapters Category Level 2 Video Capture Devices Category Level 3 PCI Express Capture Family PCI Express Capture Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX096X Product Title (Ultra-Short) PCIe Capture Card Product Title (Short) PCIe HD Capture Card - HDMI VGA DVI CPNT Product Title (Medium) High-Definition PCIe Capture Card - HDMI VGA DVI & Component - 1080P Product Title (Standard) PCIe Video Capture Card – HDMI / DVI / VGA / Component – 1080p – Game Capture Card – HDMI Video Capture Card, TAA Product Title (Long) High-Definition PCIe Capture Card - HDMI VGA DVI & Component - 1080P - TAA Product Title (AMZ) PCIe Video Capture Card - PCIe Capture Card - 1080P - HDMI, VGA, DVI, & Component - Capture Card , TAA (PEXHDCAP2) Title Ingram (Part 1) HD PCIe capture card – HDMI VGA Title Ingram (Part 2) DVI component - 1080P at 30 FPS Website Product Headline Capture an HD audio-video source, through a low-profile or full-profile PCI Express slot Bullet 1 CAPTURE FROM VIRTUALLY ANY SOURCE: Supports HDMI, DVI, VGA, and component video inputs; Perfect for recording content from a wide range of AV equipment, legacy systems, or camera feeds Bullet 2 APPLICATIONS: DirectShow compatibility ensures reliable performance with OBS Studio and other popular streaming or recording platforms; Driver installation required; Windows only Bullet 3 THE IT PRO’s CHOICE: Our video capture devices are lab-tested for DirectShow compatibility, ensuring broad software support and integration in professional AV and IT environments; Backed by free lifetime 24/5 multi-lingual technical assistance Bullet 4 1080P VIDEO AT 30FPS: Delivers clear, high-quality recordings with support for full HD (1920x1080) resolution at 30 frames per second: Ideal for streaming, training, or documentation Bullet 5 FLEXIBLE FORM FACTOR: Includes both low-profile and full-profile brackets to fit standard or compact PCIe slots; Supports NTSC and PAL formats for broad global compatibility Bullets (Consolidated) HDMI, DVI, VGA, and component video inputs; Record content from a wide range of AV equipment, legacy systems, or camera feeds - DirectShow compatibility for reliable performance with OBS Studio and other popular streaming or recording platforms - High-quality recordings with support for full HD (1920x1080) resolution at 30 frames per second, ideal for streaming, training, or documentation - Includes low-profile and full-profile brackets - Supports NTSC and PAL for global compatibility Marketing Copy Marketing Copy (No HTML) Applications - Record video for training and tutorial purposes from a variety of video output technologies
- Stream live video feeds online, with streaming services such as Twitch.tv
- Capture HD video game play at 30 frames per second, while playing on a different display using the ST122HD4KU HDMI splitter
- Convert analog video to digital, in professional video archiving applications
Website Search Keyword - HDMI capture
- VGA capture
- DVI capture
- component capture
- cpnt capture
- capture card
- pcie capture card
- pci express capture card
- hd capture
- 1080p capture
- 30 frames per second
- 30fps
- 30 fps
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Accessory Products - HDMIMM6
- HDMIMM10
- CPNTHQ6
- CPNTHQ12
- MXT101MMHQ10
- MXT101MMHQ
- DVIISMM15
- MXT105MMHQ
- DVIMM6
- DVIDSMM10
- DVIDSMM15
- HDMM6
- HDMM10
- HDMM15
- AUDIORCA15
- MU6MMRCA
Related Products - ECHDCAP
- SVID2USB23
- SVID2USB2NS
- PEXHDCAP
- SVID2USBM
- USB2HDCAP
- USB3HDCAP
- USB2HDCAPS
- PEXHDCAP60L
Color Green Humidity 20~80% (non-condensing) Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 120 Product Width (mm) 120 Product Height (mm) 20 Product Weight (g) 58 Storage Temperature -5°C to 40°C (23°F to 104°F) TAA Compliant Yes Maximum Digital Resolutions 1080p30 MTBF (hours) 1,757,807 Hours OS Compatibility - Windows 8
- Windows 10
- Windows 11
Supported Resolutions Audio Yes AV Input - Component
- DVI
- HDMI
- VGA
Chipset ID Mstar - MST3367CMK-IF-170 Converter Type Format Converter Industry Standards - NTSC, PAL-M, PAL-60, PAL
- Video Encoding: MPEG4/H.264
- DirectShow Compatible

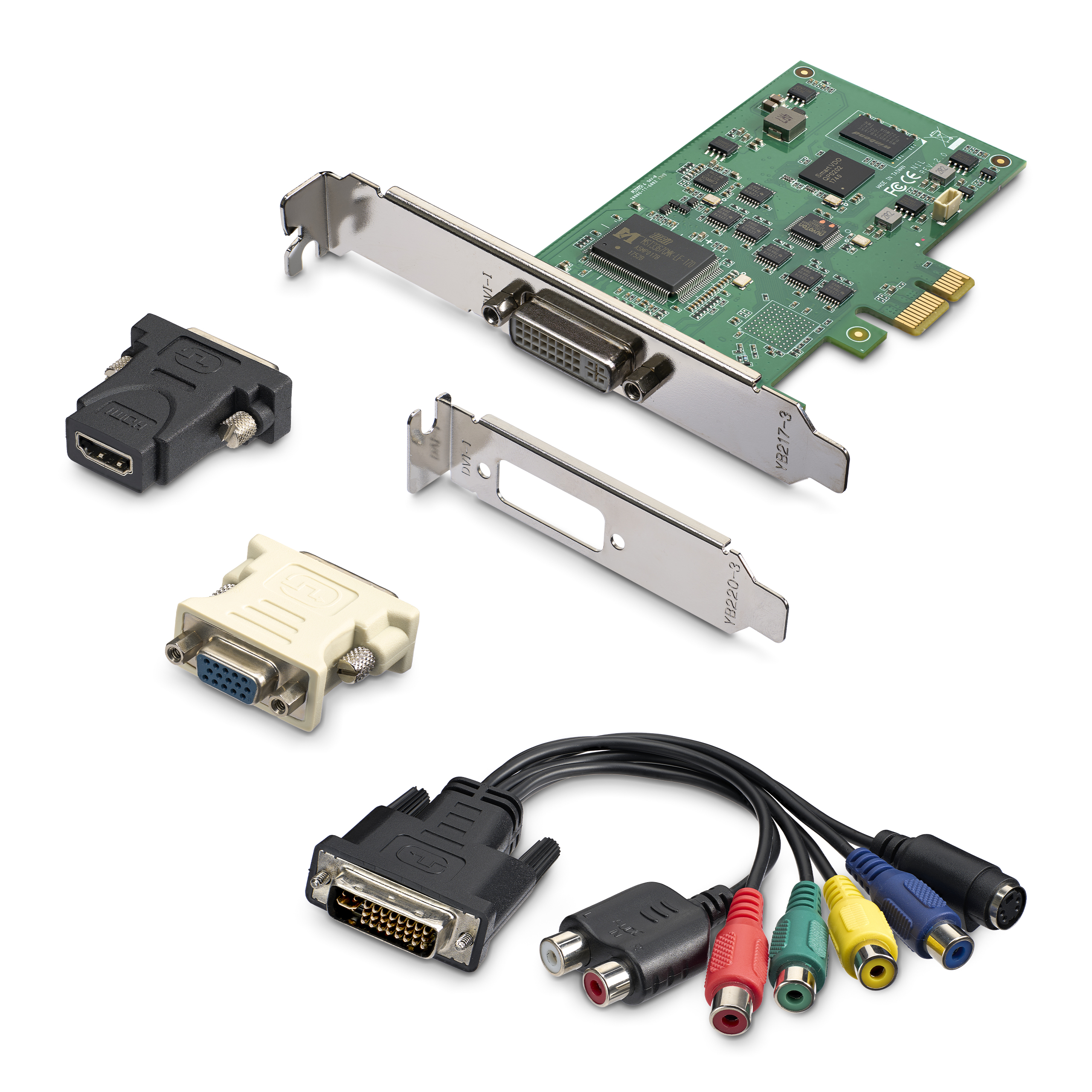

Carton Depth (mm) 466 Carton Height (mm) 474 Carton Quantity 72 Carton Weight Gross (g) 24214 Included in Package - 1 - PCIe video capture card

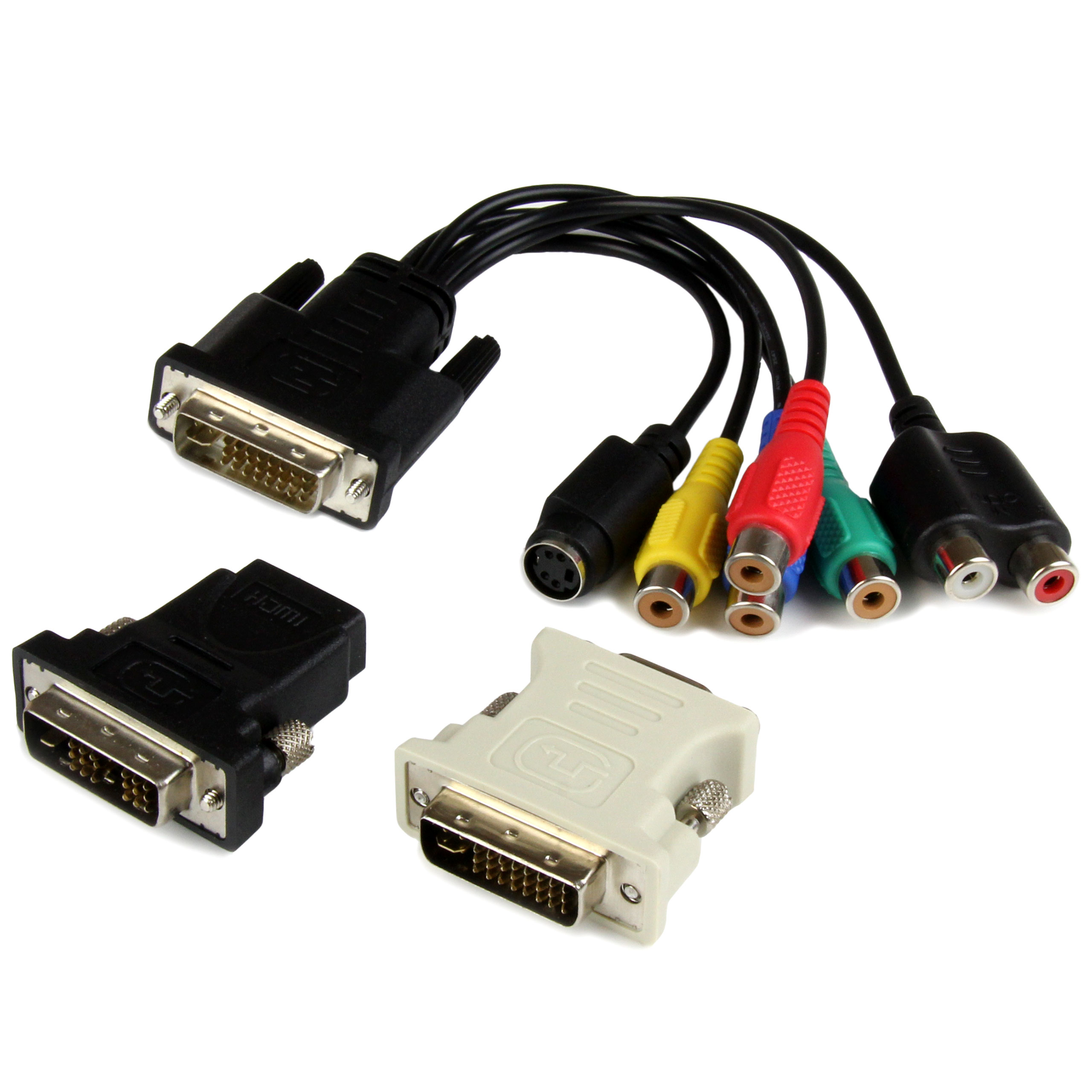

- 1 - DVI-D to HDMI adapter
- 1 - DVI-I to VGA adapter
- 1 - DVI-I breakout cable
- 1 - quick install guide
- 1 - low profile bracket
Included In Package for Label - 1 - Low Profile Bracket
- 1 - Product Documentation
- 3 - DVI Breakout Cables
- 1 - PCIe Video Capture Card
Package Depth (mm) 147 Package Height (mm) 43 Package Width (mm) 209 Package Quantity 1 Package Weight (g) 310 Packaging Description PCIe video capture card - 1080p Packaging Description India PCIe video capture card - 1080p Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DVI-I Dual-Link (29-Pin) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Natalie Goodale Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Production Release 2015-07-29 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle None
