PEXHDCAP60L
HD PCIe capture card - HDMI VGA DVI CPNT - 1080p
Capture a 1080p HDMI, DVI, VGA or Component Audio-Video source at 60 frames per second, through a low-profile or full-profile PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name HD PCIe capture card - HDMI VGA DVI CPNT - 1080p Product Number PEXHDCAP60L UPC 065030858373 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Video Capture Devices Category Level 3 PCI Express Capture Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX096X Product Title (Ultra-Short) PCIe Capture Card Product Title (Short) PCIe HD capture card - HDMI VGA DVI CPNT Product Title (Medium) High-definition PCIe Capture Card - HDMI VGA DVI & Component - 1080P at 60 FPS Product Title (Standard) PCIe Video Capture Card – HDMI / DVID / VGA / Component – 60fps Game Capture Card – 1080p – HDMI Video Capture Card Product Title (Long) High-definition PCIe Capture Card - HDMI VGA DVI & Component - 1080P at 60 FPS Product Title (AMZ) PCIe Video Capture Card - HDMI / DVID / VGA / Component - 60fps Game Capture Card - 1080p - HDMI Video Capture Card (PEXHDCAP60L) Title Ingram (Part 1) HD PCIe capture card – HDMI VGA Title Ingram (Part 2) DVI component – 1080P at 60 FPS Website Product Headline Capture a 1080p HDMI, DVI, VGA or Component Audio-Video source at 60 frames per second, through a low-profile or full-profile PCI Express slot Bullet 1 Seamless picture quality with 1080p video capture at 60fps Bullet 2 Support for HDMI, DVI, VGA, and component input sources, lets you record from virtually any device Bullet 3 H.264 encoding ensures wide device compatibility with exported video files Bullet 4 PRODUCT ALERT: Latest Streamcatcher Pro software (included & available for download), with refreshed GUI, now adds simultaneous connection of multiple capture devices; Streamcatcher Pro is compatible with Windows 10 (Windows 8 and up) Bullet 5 Compatible with third party DirectShow software titles; NTSC and PAL systems supported Bullets (Compact) Capture a 1080p HDMI DVI VGA or component audio-video source at 60 frames per second through a low-profile or full-profile PCI Express slot - Works with PCI express-enabled computer systems and HDMI DVI VGA & component video source devices Bullets (Consolidated) Capture a 1080p HDMI DVI VGA or component audio-video source at 60 frames per second through a low-profile or full-profile PCI Express slot - Works with PCI express-enabled computer systems and HDMI DVI VGA and component video source devices such as the video output from computer systems - HDMI Capture Card/low-profile and full-profile PC recording/High-definition video grabber/HD capture card - Record video for training and tutorial purposes from a variety of video output technologies Marketing Copy Applications - Record video for training and tutorial purposes from a variety of video output technologies
- Stream live video feeds online with streaming services such as Twitch.tv
- Capture HD video game play at 60 frames per second, while playing on a different display using the ST122HDMILE HDMI splitter
- Convert analog video to digital, in professional video archiving applications
Website Product Alert Website Search Keyword - HDMI capture
- VGA capture
- DVI capture
- component capture
- cpnt capture
- capture card
- pcie capture card
- pci express capture card
- hd capture
- 1080p capture
- 60 frames per second
- 60fps
- 60 fps
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - HDMIMM6
- HDMIMM10
- CPNTHQ6
- CPNTHQ12
- MXT101MMHQ10
- MXT101MMHQ
- DVIISMM15
- MXT105MMHQ
- DVIMM6
- DVIDSMM10
- DVIDSMM15
- HDMM6
- HDMM10
- HDMM15
- AUDIORCA15
- MU6MMRCA
Related Products - ECHDCAP
- SVID2USB23
- SVID2USB2NS
- PEXHDCAP
- SVID2USBM
- USB2HDCAP
- USB3HDCAP
- USB2HDCAPS
Replacement Product PEXHDCAP60L2 Humidity 20~80% (non-condensing) Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 141.000 Product Width (mm) 120.000 Product Height (mm) 18.000 Product Weight (g) 71.000 Storage Temperature -5°C to 40°C (23°F to 104°F) TAA Compliant Yes Maximum Analog Resolutions 1920x1080 (1080p/30/50/60) Maximum Digital Resolutions MTBF (hours) 1,780,641 Hours OS Compatibility - Windows 8
- Windows 10
- Windows 11
Supported Resolutions 1080i/p, 720p, 576i/p, 480i/p Wide Screen Supported Yes Audio Yes AV Input - HDMI
- DVI
- Component YCbCr
- VGA
Chipset ID Mstar - MST3367CMK-IF-170 Converter Type Format Converter Industry Standards - NTSC, PAL-M, PAL-60, PAL
- Video Encoding: MPEG4/H.264
- DirectShow Compatible

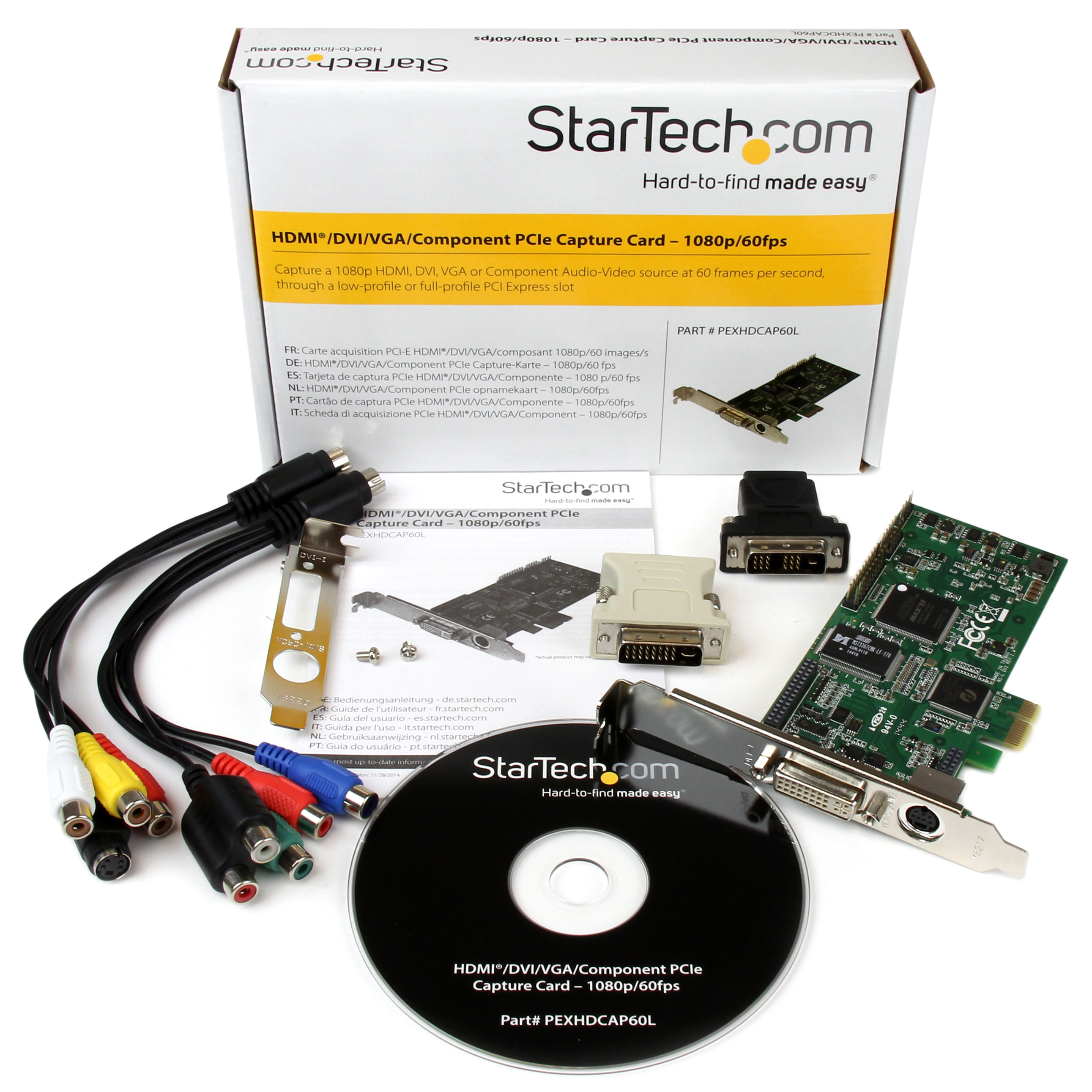

Carton Depth (mm) 462 Carton Height (mm) 462 Carton Quantity 72 Carton Weight Gross (g) 24700 Included in Package - 1 - PCI Express Capture Card
- 1 - Component breakout cable
- 1 - S-Video breakout cable
- 1 - HDMI to DVI adapter
- 1 - VGA to DVI adapter
- 1 - Software installation disc
- 1 - Instruction manual
- 1 - Full-profile bracket (Attached)
- 1 - Low-profile bracket
Package Depth (mm) 145 Package Height (mm) 40 Package Width (mm) 206 Package Quantity 1 Package Weight (g) 315 Packaging Description HDMI®/DVI/VGA/Component PCIe Capture Card – 1080p/60FPS Packaging Description India HDMI®/DVI/VGA/Component PCIe Capture Card – 1080p/60FPS Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DVI-I Dual-Link (29-Pin) Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 1 Connector 4 RCA (Component Video, YPbPr) Connector 4 (Quantity) 1 Connector 5 VGA Connector 5 (Quantity) 1 Connector 6 S-Video (Y/C) Connector 6 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-05-22 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,JP,NZ,UK,US Primary Technology None Product Development Specialist Greg Visser Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Production Release 2015-02-28 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle Legacy
