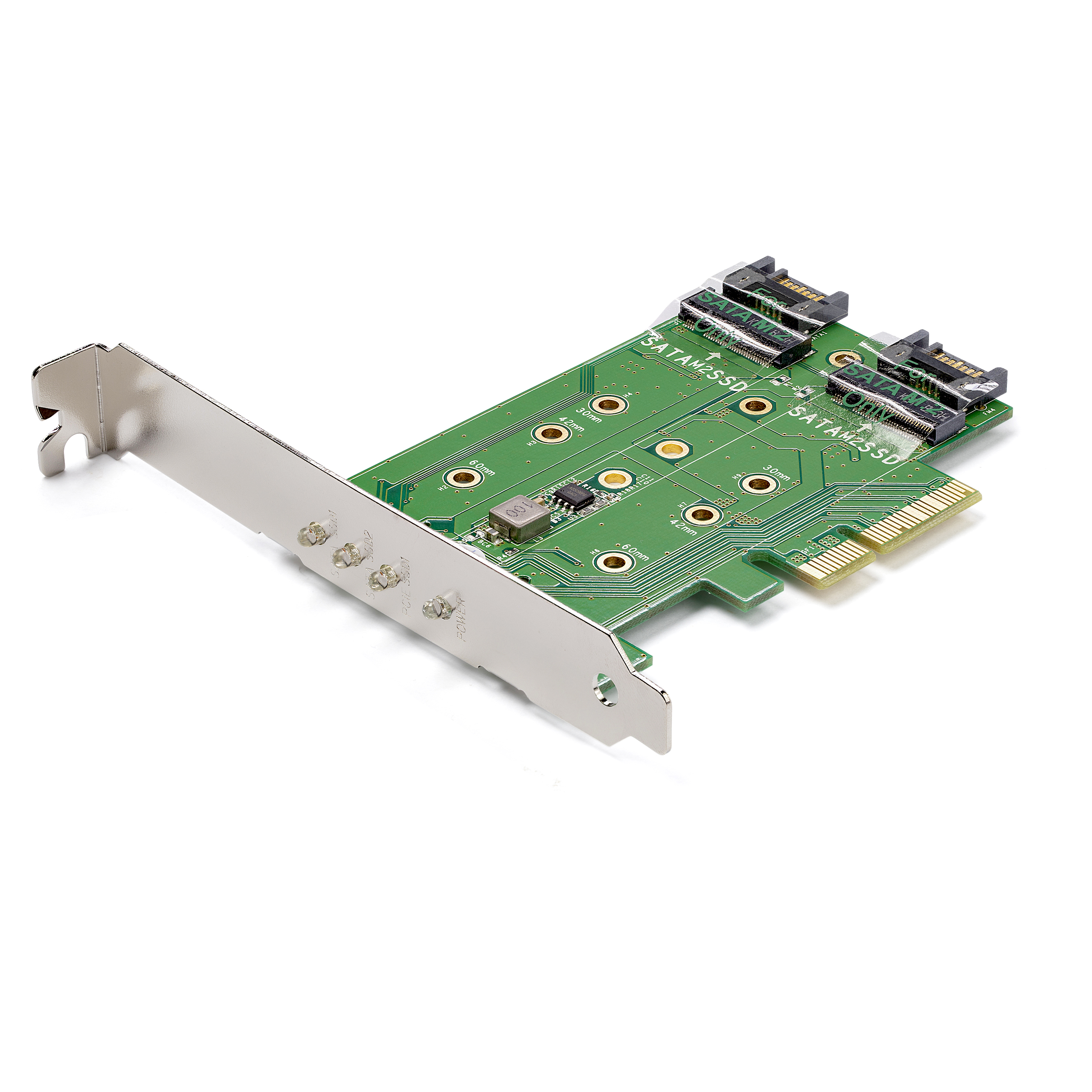

Main Image
PEXM2SAT32N1
3Port M 2 NGFF SSD Card Adapter PCIe 3 0 M 2 Card
Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card

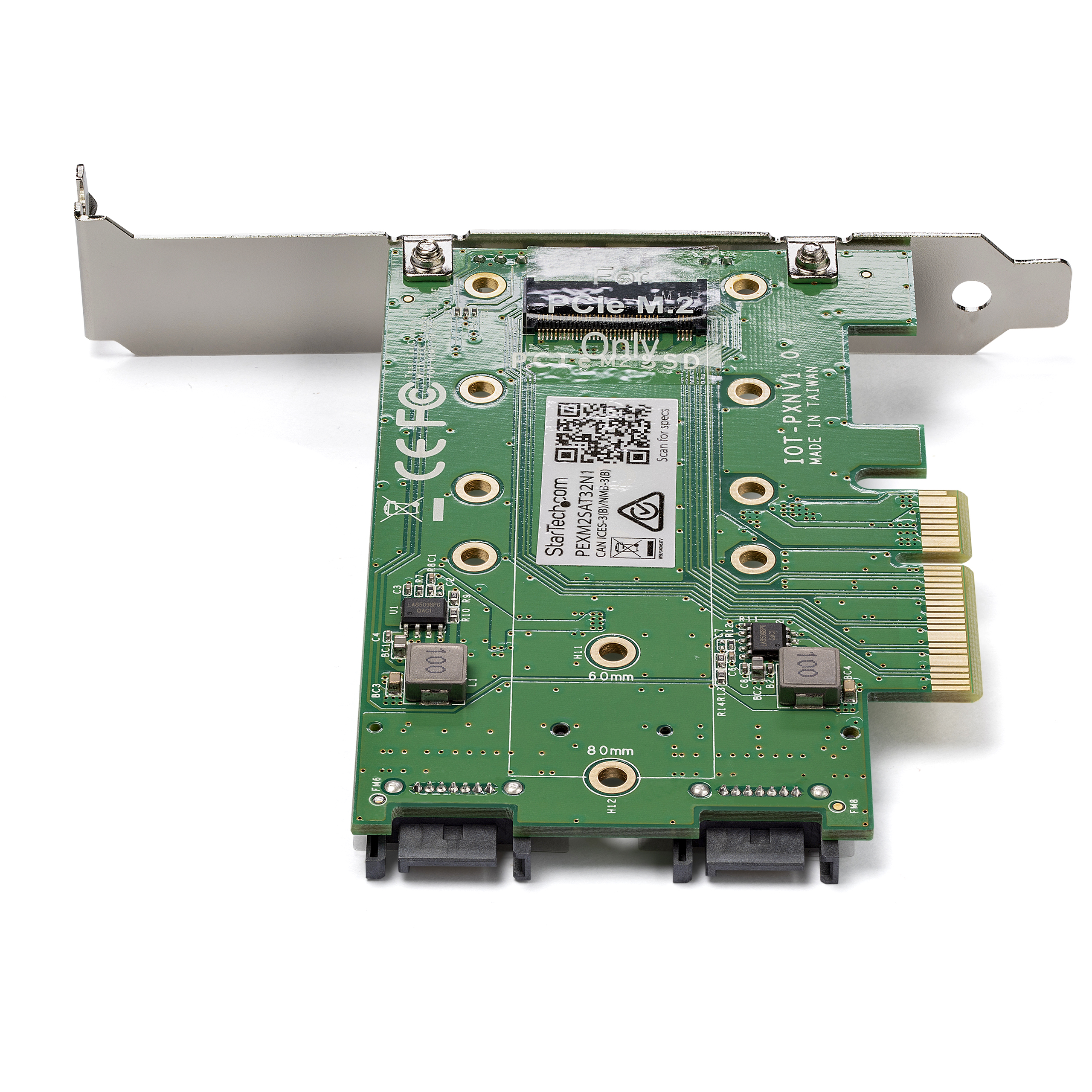

Main Image

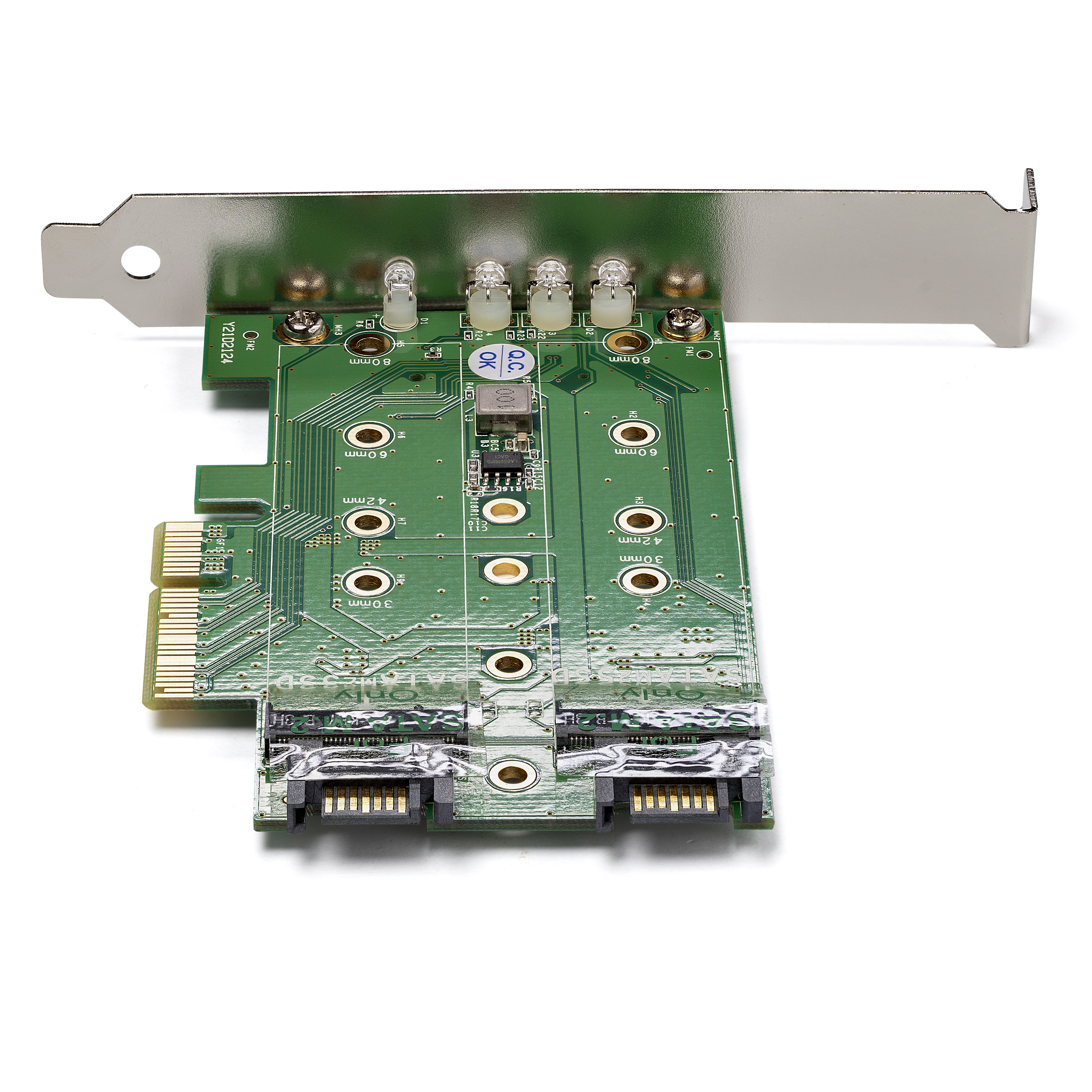

Product Images
Product Images
Product Images
BOM Image
Product Name 3Port M 2 NGFF SSD Card Adapter PCIe 3 0 M 2 Card Product Number PEXM2SAT32N1 UPC 065030865708 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 M.2 NVMe/SATA Card Adapters/Controllers Family M.2 SATA/PCIE to PCIe Adapter Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Product Title (Ultra-Short) 3 Port M.2 SSD Card Product Title (Short) M.2 SSD Card 1x PCIe (NVMe) 2x SATA M.2 Product Title (Medium) 3-Port M.2 SSD (NGFF) Adapter Card - 1 x PCIe (NVMe), 2 x SATA III M.2 -PCIe 3.0 Product Title (Standard) M.2 Adapter – 3 Port – 1 x PCIe (NVMe) M.2 – 2 x SATA III M.2 – SSD PCIE M.2 Adapter – M2 SSD – PCI Express SSD, TAA Product Title (Long) 3-Port M.2 SSD (NGFF) Adapter Card - 1 x PCIe (NVMe) M.2, 2 x SATA III M.2 - PCIe 3.0 - TAA Product Title (AMZ) 3-port M.2 SSD (NGFF) Adapter Card - Supports 1x PCIe (NVMe) M.2 SSD, 2x SATA III M.2 SSDs - PCIe 3.0 Adapter , TAA (PEXM2SAT32N1) Title Ingram (Part 1) 3Port M.2 NGFF SSD Card Adapter Title Ingram (Part 2) - PCI Express 3.0 M.2 NGFF Card Website Product Headline Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card Bullet 1 INCREASED PRODUCTIVITY: The M.2 NVME card provides a platform for up to 3x M.2 SSDs (solid-state drives) to any computer that has a PCIe slot. It supports common M.2 SATA SSDs and newer high-performance M.2 PCIe drives Bullet 2 BETTER PERFORMANCE: This 3-port PCIe M.2 adapter card works two M.2 SATA drives and a single NVMe M.2 drive with support for PCIe 3.0 x4 (40Gbps); Includes standard and low-profile brackets; Power and Activity LED Indicators Bullet 3 MAXIMUM COMPATIBILITY: This PCIe M.2 adapter card features compatibility with M.2 SATA (B-Key) and M.2 NVMe (M-Key) drives; Supported drive sizes: 2280, 2260, 2242 and 2230; Compatible with PCIe x4 slot or greater Bullet 4 HELPS WITH DATA RECOVERY: For your failed laptop with functioning M.2 drive, plug this M.2 SATA card to your desktop/workstation to recover your data; A pass-through SATA port connects to an additional drive for convenient data transfer or drive recovery Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT professionals, this TAA compliant 3-port PCIe M.2 adapter card is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card - 3-Port M.2 SSD (NGFF) Adapter Card - PCI Express 3.0 - Easily expand the storage and improve the overall performance of your desktop or server Bullets (Consolidated) Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card - 3 Port M.2 SSD (NGFF) Adapter Card/1 x PCIe (NVMe) M.2/2 x SATA III M.2/PCIe 3.0 - PCI Express 3.0 M.2 NGFF Card - Easily expand the storage and improve the overall performance of your desktop or server - Supports PCI Express 3.0 (x4) ideal for a high-performance M.2 PCIe SSD (NVMe) - OS independent with no drivers required for a fast hassle-free set up - Includes a low-profile bracket Marketing Copy Marketing Copy (No HTML) This 3-port M.2 PCIe SSD adapter card is one of the only cards that supports both PCIe and SATA-based M.2 SSDs (solid-state drives). Plus, because it supports a high-speed PCIe M.2 drive, you can increase the speed and performance of your computer. The M.2 PCIe adapter card provides a platform for adding up to three M.2 SSDs to virtually any computer that has a PCIe slot. The M.2 adapter supports common M.2 SATA SSDs, as well as newer high-performance M.2 PCIe drives. When you couple this card with a PCI Express based M.2 drive, you can give your computer's performance a noticeable speed boost. With support for PCI Express 3.0, you can install the latest high-performance M.2 PCIe SSDs inside your computer. Due to their performance and size advantages, M.2 NVME drives are commonly used in laptops. If your laptop has failed, but its M.2 drive is still functional, then this card can help with data recovery. Once the M.2 drive is installed and the data recovery is complete, you can continue to use the drive for storage and backup purposes. This M.2 SATA card lets you take advantage of the size and performance benefits of NGFF M.2 SSDs. M.2 drives are smaller than typical platter drives or mSATA-based SSDs. It supports the most common drive sizes, including, 2280, 2260, 2242 and 2230. The M.2 SATA SSD card is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Increase the internal storage capacity of your standard or small form-factor computer
- Access and recover data from almost any M.2 SSD, such as drives pulled from laptops and other computers
- Optimize your system for I/O intensive applications such as office suites, photo and video editing, and media players
- Install the card as a vital hardware component when upgrading or building your computer
Website Search Keyword - m.2 ssd
- pcie ssd
- nvme ssd
- pci express ssd
- m.2 nvme
- m.2 ngff
- m2 solid state drive
- sata m2 ssd
- sata m2 ssd card
- pcie m.2 passthrough card
- PCIe M.2 SSD Passthrough Card
- nvme ssd card
- nvme ssd controller card
- pci express m.2 passthrough card
- M.2 SSD Passthrough Card
- m.2 ssd adapter card
- m.2 adapter card
- ssd adapter card
- ssd card
- ssd adapter
- m.2 card
- m.2 adapter
- ngff card
- PCIE ssd
- PCIe SATA Card
- SATA 3 card
- SATA card
- SATA III card
- PCIe M.2 Card
- PCI Express M.2 Card
- M.2 SSD Card
- M.2 SATA Card
- M.2 SATA PCIe
- M.2 NGFF SATA
- M.2 NGFF SATA PCIe
- sata adapter card
- hard drive card
- hard drive adapter
- nvme card
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
Special Notes The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5Gbps per lane. System and Cable Requirements - A computer enabled with PCI Express (PCIe), and an available PCI Express x4, x8, or x16 slot
- One or two SATA host ports on the host computer (for example, the SATA controller card, or the motherboard SATA ports inside of your computer)
Accessory Products - SATA24
- LSATA12
- SATA18LA1
Related Products - PEXM2SAT3422
- PEX2M2
- PEXMSATA3422
- PEXMSATA343
- PEXSAT34RH
- SM2NGFFMBU33
- SAT32M225
- PEX4M2E1
- 35S24M2NGFF
- SM21BMU31C3
Input Voltage 12V DC Output Voltage (V) 12V DC Color Green Humidity 20%~80% RH (Non-condensing) Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 120 Product Width (mm) 20 Product Height (mm) 120 Product Weight (g) 65 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes MTBF (hours) 50,000 Hours OS Compatibility OS Independent Port Multiplier No RAID No SATA Type and Rate SATA III (6 Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Industry Standards - Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
- PCI Express 3.0
Interface/Bridge - M.2 SATA
- SATA
- M.2 PCIe

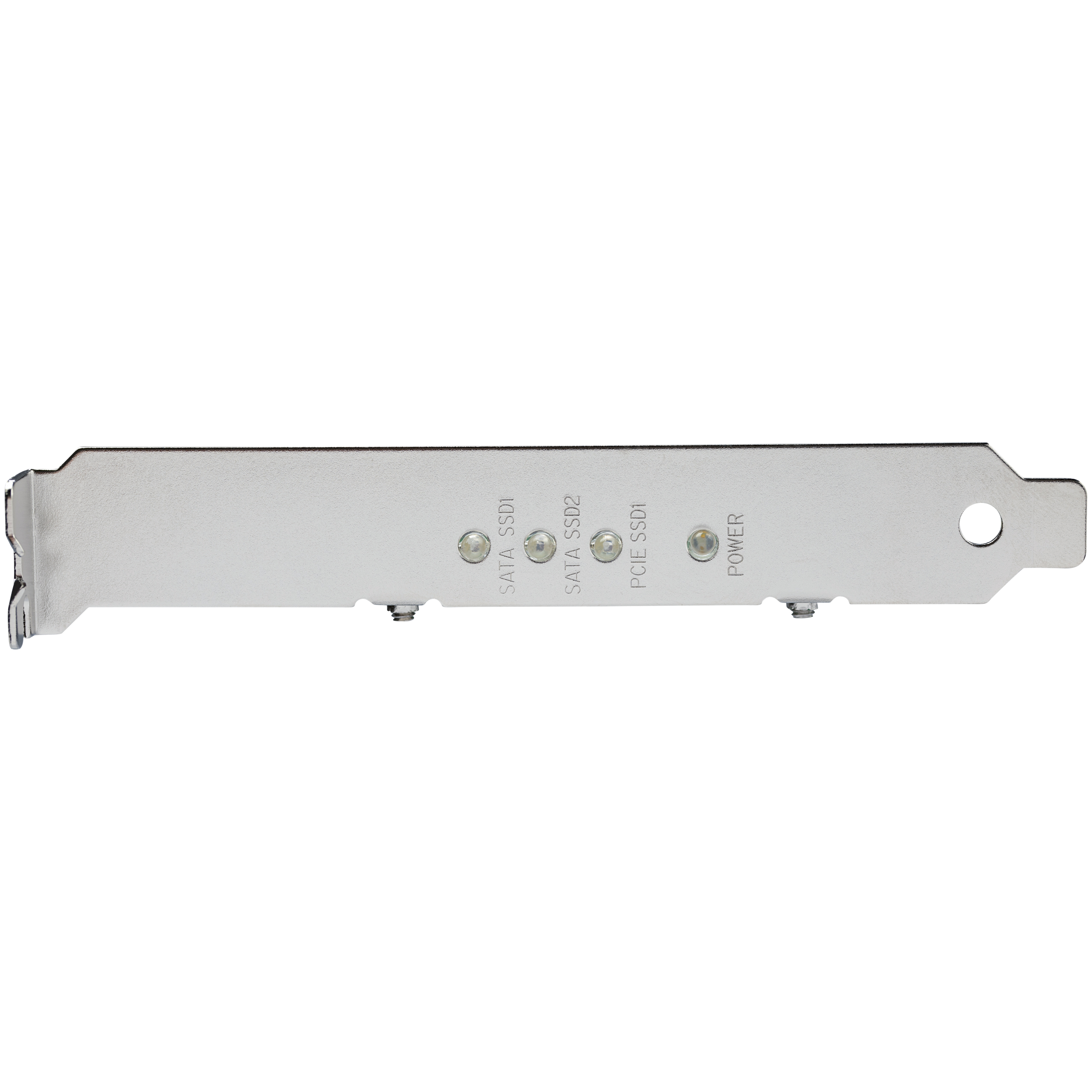

IO Card Port Style Integrated on Card LED Indicators - 3 - M.2 drive status/activity
- 1 - Power

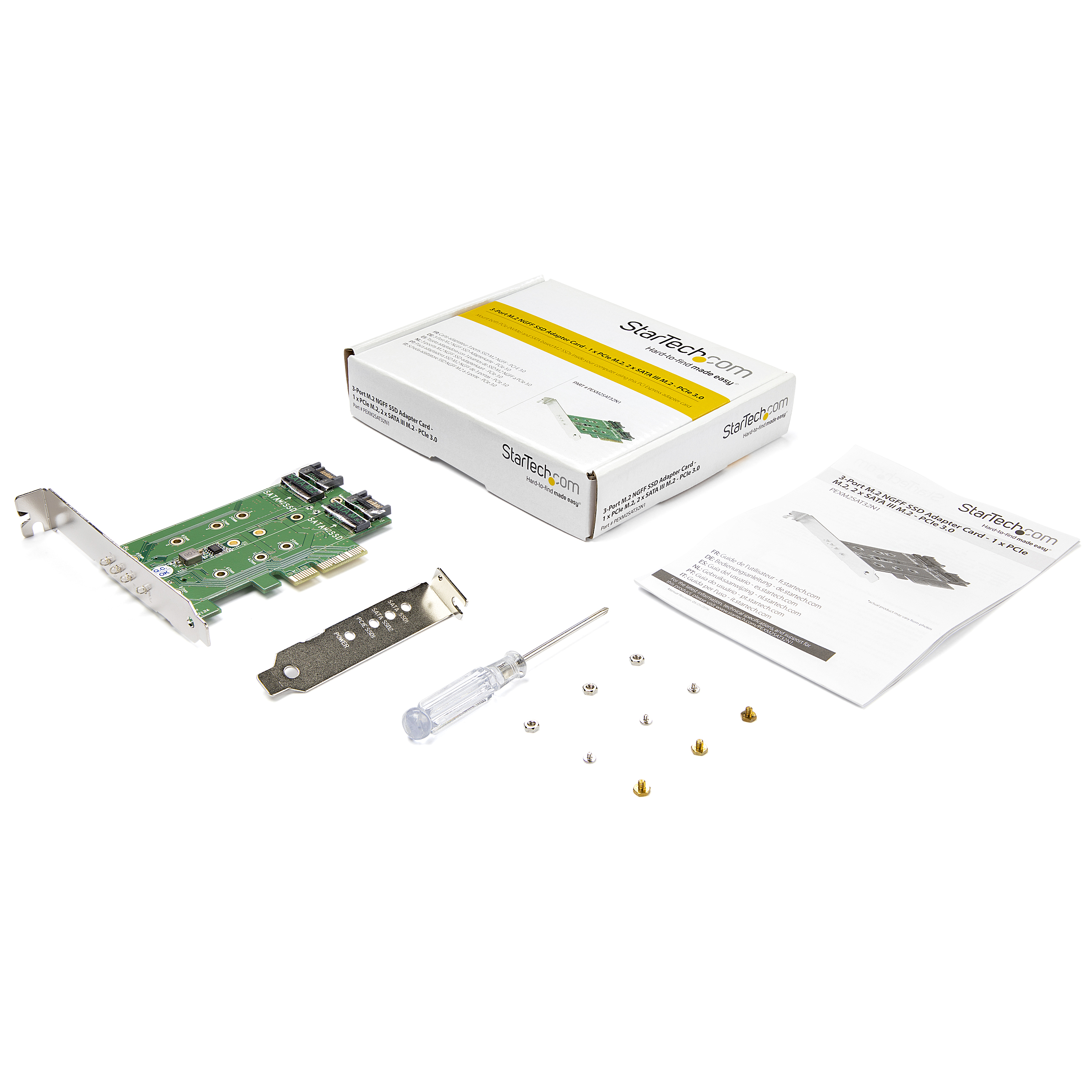

Carton Depth (mm) 485 Carton Height (mm) 335 Carton Quantity 100 Carton Weight Gross (g) 13700 Included in Package - 1 - 3-port M.2 NGFF SSD adapter card
- 1 - low-profile bracket
- 3 - M.2 mounting screws
- 1 - quick-start guide
- 3 - M.2 mounting standoffs
- 3 - M.2 mounting nuts
- 1 - screwdriver
Included In Package for Label - 3 - M.2 Nuts
- 1 - Screwdriver
- 3 - Standoffs
- 1 - Product Documentation
- 3 - M.2 Screws
- 1 - Low-Profile Bracket
- 1 - M.2 Ngff Ssd Converter Card
Package Depth (mm) 129 Package Height (mm) 33 Package Width (mm) 162 Package Quantity 1 Package Weight (g) 126 Packaging Description 3-Port M.2 NGFF SSD Adapter Card - PCIe 3.0 Packaging Description India 3-Port M.2 NGFF SSD Converter Card - PCIe 3.0 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 M.2 B-Key (SATA, AHCI) Connector 2 (Quantity) 2 Connector 3 SATA (7-Pin) Connector 3 (Quantity) 2 Connector 4 M.2 M-Key (PCIe, AHCI / NVMe) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2016-05-16 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2016-06-13 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-04-27 Target Production Release 2016-05-20 Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle Mainstream
