PEXM2SAT3422

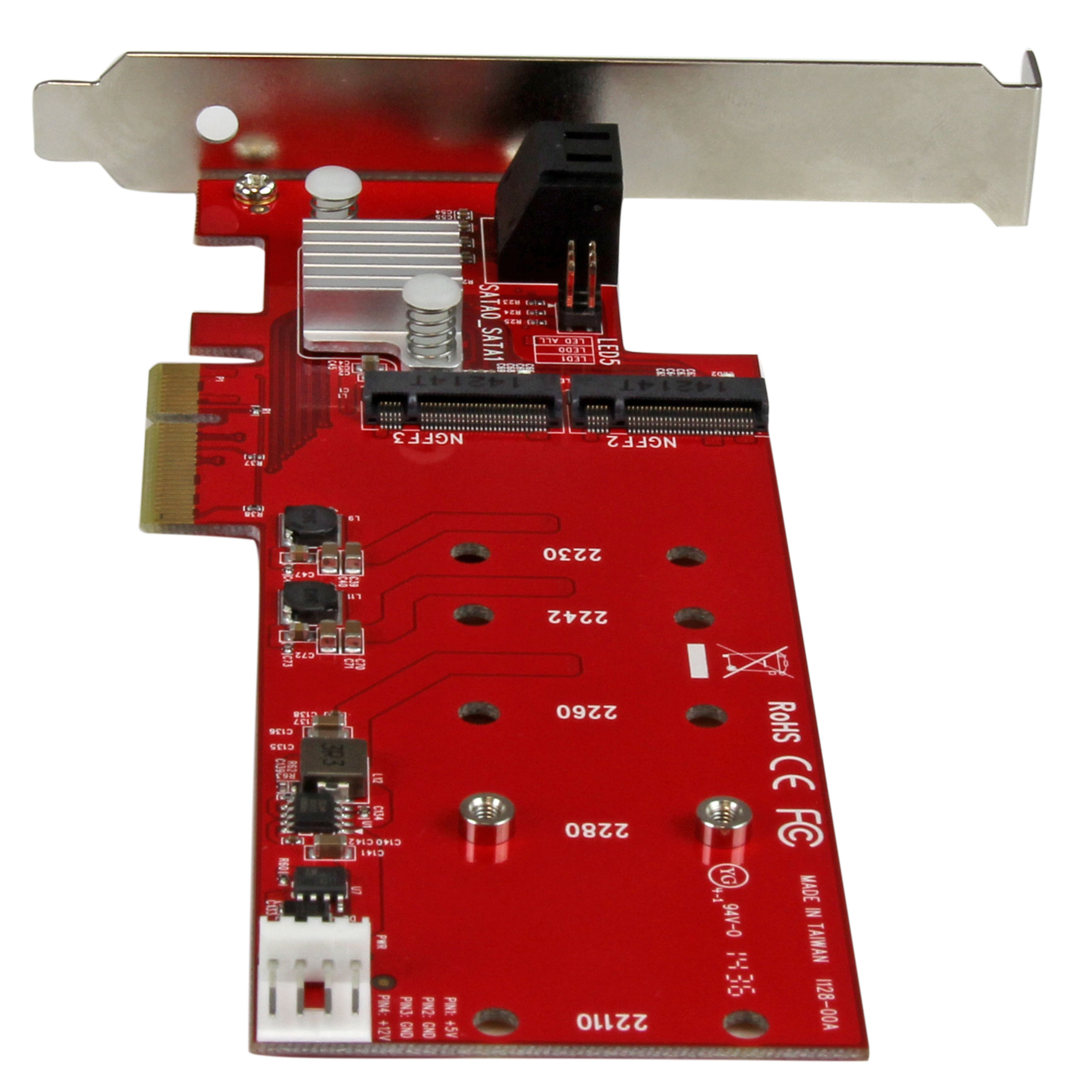

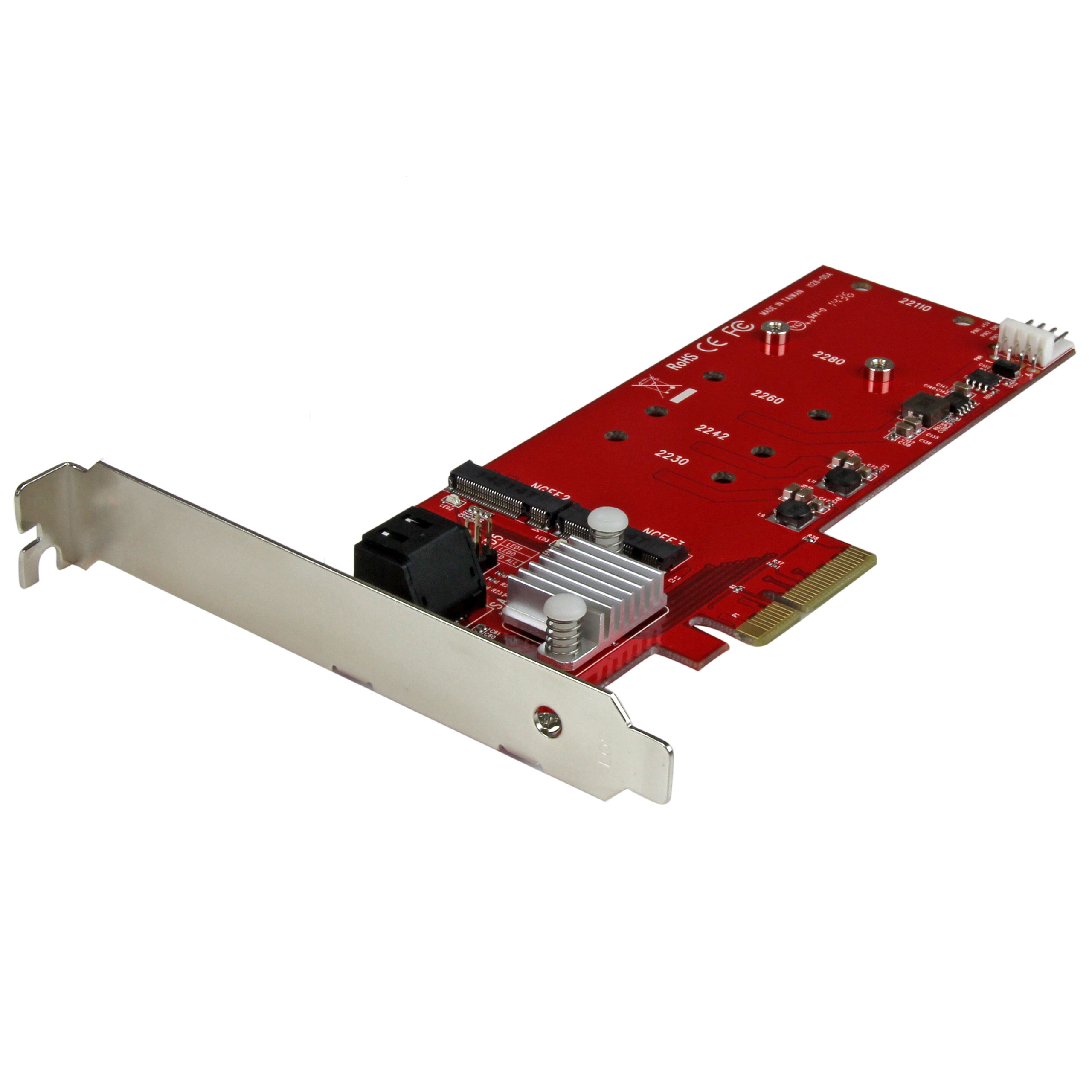

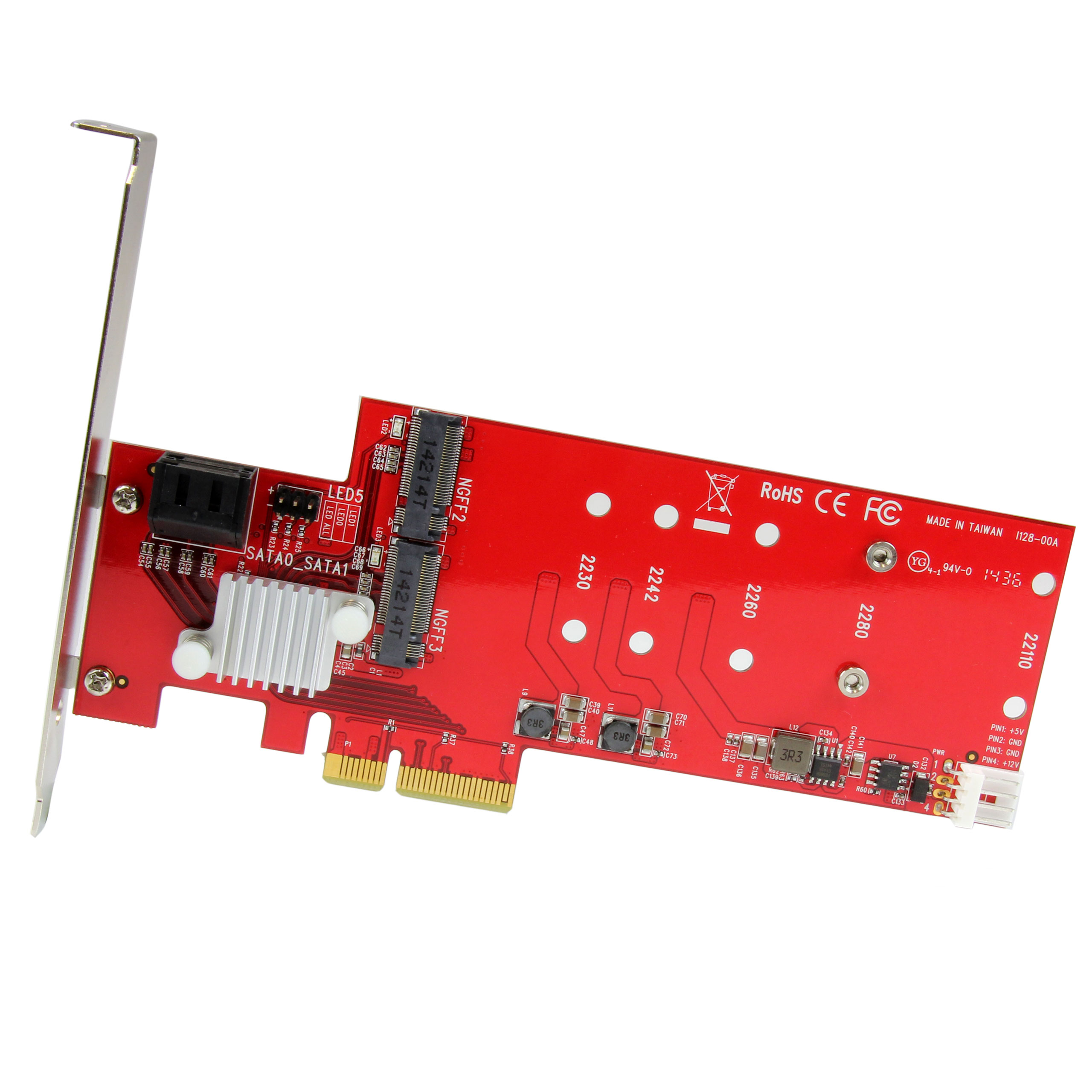

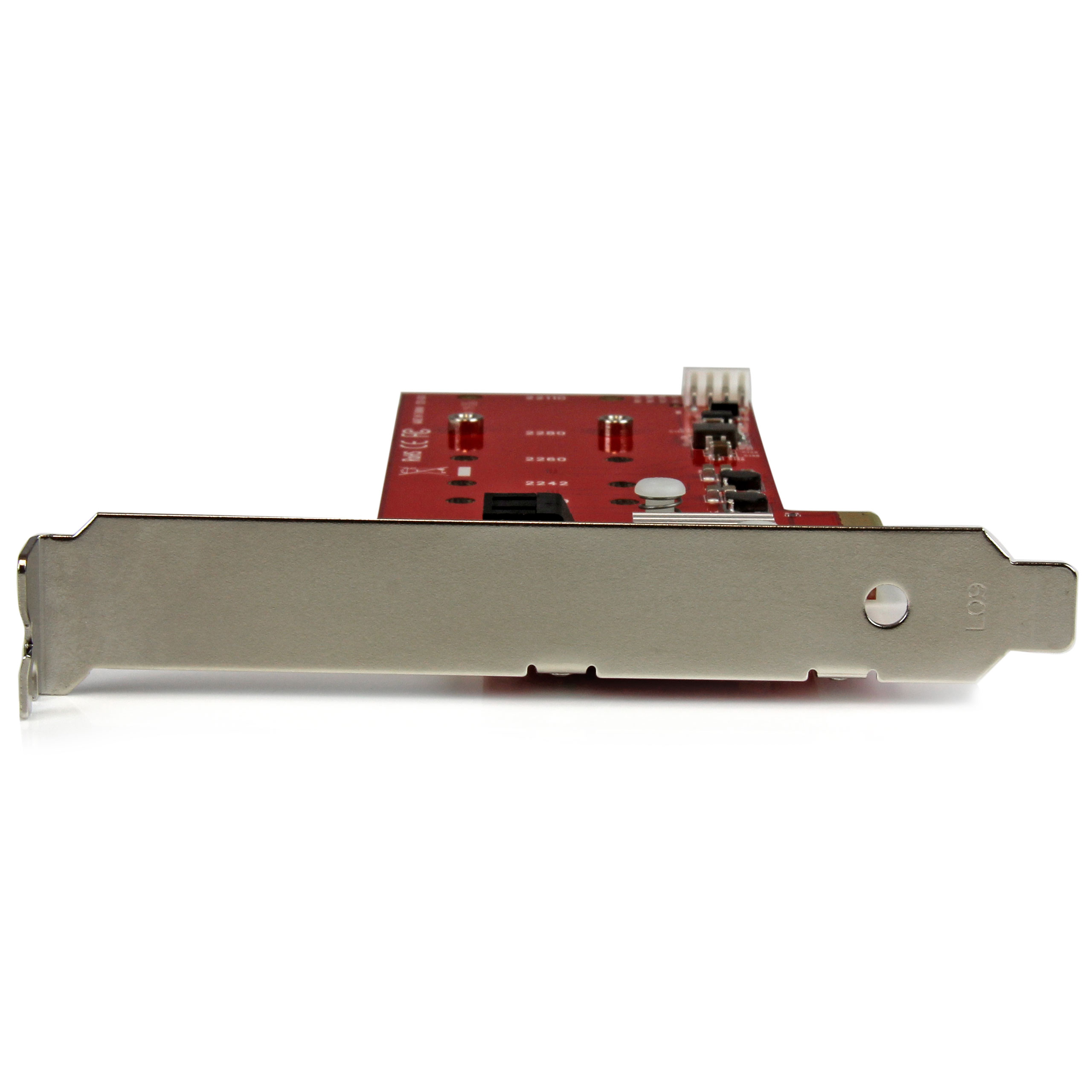

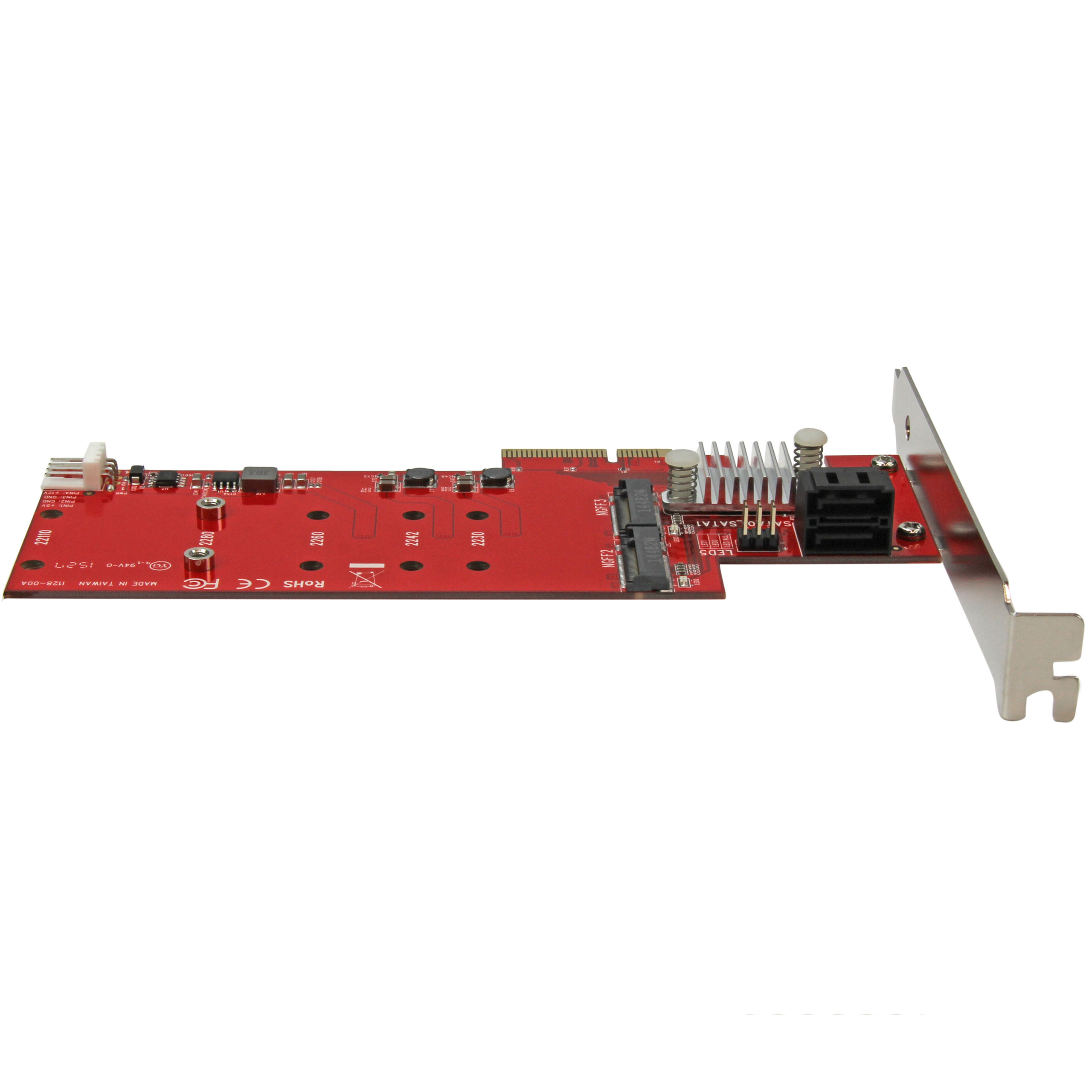

2Slot PCI Express M 2 RAID Card 2x SATA3 Ports
Add two Next Generation Form Factor M.2 SSDs and two SATA ports to your computer through PCI Express
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2Slot PCI Express M 2 RAID Card 2x SATA3 Ports Product Number PEXM2SAT3422 UPC 065030863766 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 M.2 NVMe/SATA Card Adapters/Controllers Family M.2 SATA to PCIe Controller Card with RAID Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Manual Driver https://images.salsify.com/raw/upload/s--YIxBlFIA--/46650416067110ec2ce5454e080359ea3f142ef0.zip Firmware Software Product Title (Ultra-Short) M.2 RAID Controller Product Title (Short) M.2 RAID Controller Card + 2x SATA Ports Product Title (Medium) 2x M.2 NGFF SSD RAID Controller Card plus 2x SATA III Ports - PCIe M.2 RAID Card Product Title (Standard) 2x M.2 NGFF SSD RAID Controller Card plus 2x SATA III Ports, PCIe, Two Slot PCI Express M.2 RAID Card w/Two SATA Ports, TAA Product Title (Long) 2x M.2 NGFF SSD RAID Controller Card plus 2x SATA III Ports - PCIe - TAA Product Title (AMZ) 2x M.2 NGFF SSD RAID Controller Card plus 2x SATA III Ports - PCIe - Two Slot PCI Express M.2 RAID Card plus Two SATA Ports , TAA (PEXM2SAT3422) Title Ingram (Part 1) 2Slot PCI Express M.2 RAID Card Title Ingram (Part 2) - 2 SATA3 Ports -PCIe SATA Card Website Product Headline Add two Next Generation Form Factor M.2 SSDs and two SATA ports to your computer through PCI Express Bullet 1 EXPAND STORAGE CAPABILITIES: This M.2 SATA RAID Controller Card adds two internal M.2 SATA ports and two 7-pin SATA ports through PCIe, for convenient setup of hardware RAID configurations or additional storage drives; Supports Windows, Mac, and Linux Bullet 2 VERSATILE HARDWARE RAID: Supports Hardware RAID 0, 1, 10 (1+0), and JBOD (Just a Bunch of Disks); Port Multiplier supports up to four SATA drives on a single SATA host port; Supports up to seven total drives (2x M.2 SSDs, 5x SATA drives) Bullet 3 WIDE COMPATIBILITY: Supports all standard SATA and M.2 NGFF drive sizes (22110, 2280, 2260, 2242, 2230); Adjustable stand-offs and mounting holes; Compatible with PCIe x4, x8, or x16 slots; Includes full & low-profile brackets and M.2 mounting screws Bullet 4 INCREASED PRODUCTIVITY: This M.2 SATA RAID Controller Card is the ideal solution for creating a high-performance hardware RAID array to protect and back up your data, or expand your system's storage capabilities to improve overall performance Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT professionals, this TAA compliant M.2 SATA SSD RAID Controller Card is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Add two Next Generation Form Factor M.2 SSDs and two SATA ports to your computer through PCI Express - M.2 NGFF SSD RAID Controller Card plus 2x SATA III Ports - Ideal for data recovery, and improving the performance and capacity of your desktop PC Bullets (Consolidated) Add two Next Generation Form Factor M.2 SSDs and two SATA ports to your computer through PCIe - 2x M.2 NGFF SSD RAID Controller Card plus 2x SATA III Ports/PCIe - 2-Slot PCI Express SATA M.2 RAID Card/SATA 3 Controller Host Card Adapter - PCIe SATA Card for almost all SATA M.2 solid-state drives plus port multiplier up to 7 drives - Storage controller supports hardware RAID/NCQ/HybridDrives/SATA3 6Gbps - Perfect for data recovery and backup/Improves the storage and performance of a PC Marketing Copy Marketing Copy (No HTML) Applications - Increase the internal storage capacity of your standard or small form-factor computer
- Create a RAID array and add the security of data redundancy and increased storage to your PC
- Access and recover data from almost any M.2 SSD, such as drives pulled from laptops and other computers
- Optimize your system for I/O intensive applications such as office suites, photo and video editing, and media players
Website Search Keyword - M.2 Controller Card
- PCIe SATA Card
- SATA 3 card
- PCI Express SATA Controller
- SATA card
- SATA III card
- PCIe M.2 Controller Card
- PCI Express M.2 Controller Card
- PCIe M.2 Card
- PCI Express M.2 Card
- SATA Controller
- M.2 SSD Controller
- M.2 SSD Card
- M.2 SATA Controller
- M.2 SATA Card
- PCIe SATA Controller
- pci express controller card
- M.2 SATA PCIe
- pcie hard drive controller
- M.2 controller
- pcie sata controller card
- M.2 NGFF SATA
- M.2 NGFF SATA PCIe
- M.2 PCIe host controller card
- 2 port M.2 M.2 SATA
- 2 Port M.2 NGFF PCIe host controller card
- 2 port M.2 NGFF SATA
- 2 Port M.2 NGFF SATA PCIe
- sata adapter card
- 2 Port M.2 PCIe host controller card
- sata card adapter
- 2 Port M.2 SATA PCIe
- ssd controller
- 2 Port NGFF PCIe host controller card
- NGFF controller
- NGFF PCIe host controller card
- hard drive card
- PCi express m.2 controller
- hard drive adapter
- pci express m.2 sata controller
- PCIe M.2 controller
- PCIe M.2 SATA controller
- raid controller
- raid controller card
- raid card
- pci express raid controller
- pci express raid controller card
- pci express raid card
- PCIe raid controller
- PCIe raid controller card
- PCIe raid card
- host card
- host controller
- host controller card
- pcie host card
- pcie host controller
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5Gbps per lane.
- The card's two SATA ports support port multiplier, up to seven drives total (including two M.2 drives). Only one SATA port can use port multiplier at a time, with up to four drives total connected through PM (in a non-RAID configuration)
System and Cable Requirements PCI Express x4 slot (backward compatible with x8, and x16 slots) Accessory Products - PYO2S
- LP4SATAFMD
Related Products - SAT32M225
- 35S24M2NGFF
- S32M2NGFFPEX
- SM2NGFFMBU33
- SAT2M2NGFF25
- PEXMSATA3422
- PEXMSATA343
- PEXSAT34RH
- PEX2M2
Color Red Humidity 20%~80% RH (Non-condensing) Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 180 Product Width (mm) 20 Product Height (mm) 120 Product Weight (g) 64 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes OS Compatibility - Windows 10
- Windows 8
- Windows 7
- Windows Server 2012
- Linux
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- Windows 11
- Windows Server 2022
Port Multiplier Yes RAID Yes SATA Type and Rate SATA III (6 Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Marvell - 88SE9230 Industry Standards - Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
- PCI Express 2.0
- Hardware RAID 0, RAID 1, RAID 10
Interface/Bridge - M.2 SATA
- SATA
IO Card Port Style Integrated on Card LED Indicators - 2 - M.2 drive LEDs (Green)
- 3 - Pin headers for LEDs

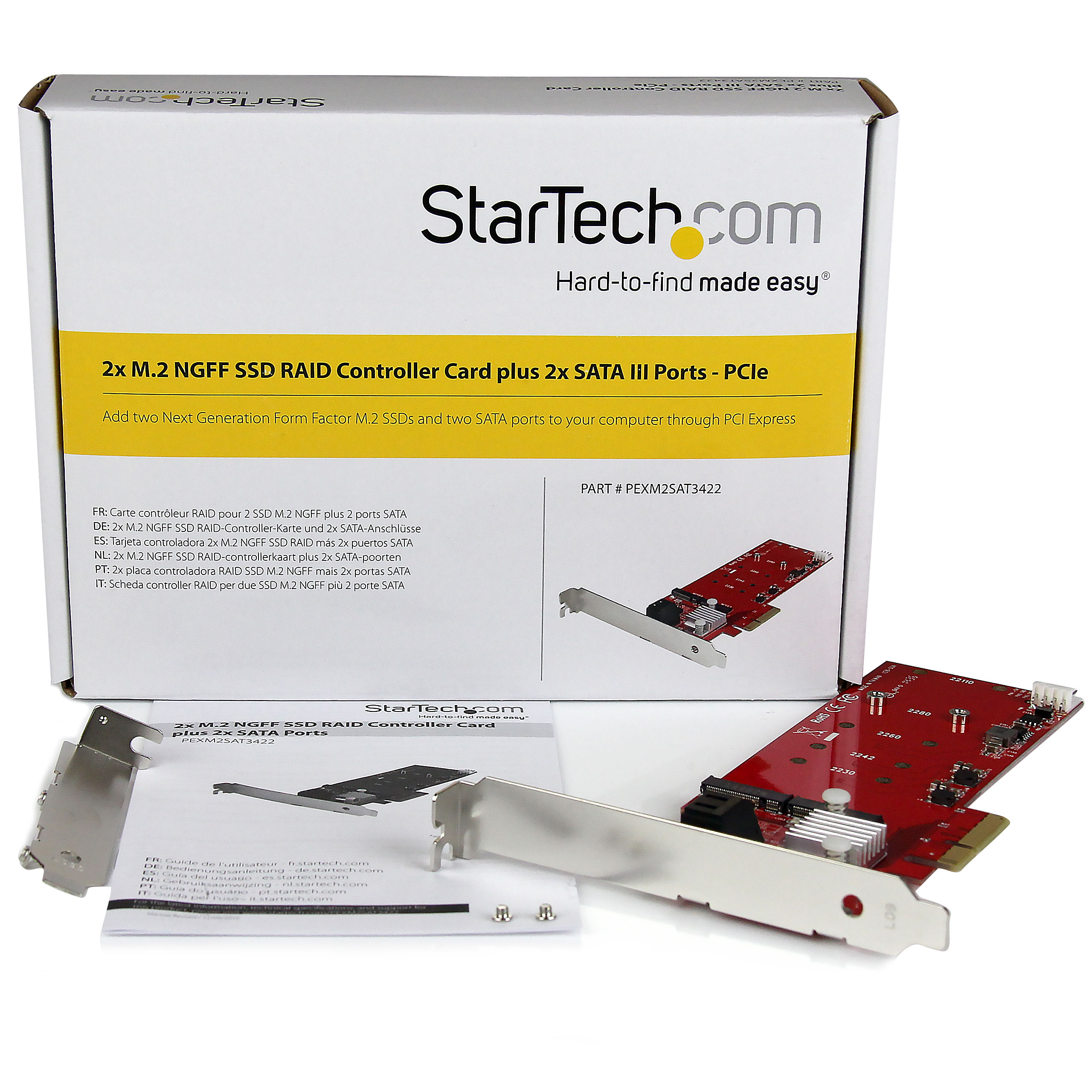

Carton Depth (mm) 348 Carton Height (mm) 500 Carton Quantity 40 Carton Weight Gross (g) 8178 Included in Package - 1 - low-profile bracket
- 1 - quick-start guide
- 1 - M.2 SSD RAID controller card
- 2 - M.2 mounting screws
Package Depth (mm) 160 Package Height (mm) 48 Package Width (mm) 218 Package Quantity 1 Package Weight (g) 178 Packaging Description 2x M.2 NGFF SSD RAID Controller Card plus 2x SATA Ports Packaging Description India 2x M.2 NGFF SSD RAID Controller Card plus 2x SATA Ports Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 M.2 B-Key (SATA, AHCI) Connector 2 (Quantity) 2 Connector 3 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 SATA (7-Pin) Connector 4 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2015-09-21 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-12-18 Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle Legacy
