PEXMSATA3422
PCIe 2xmSATA and 2xSATA controller card
Combine SSD performance with HDD capacity to create a HyperDuo array with 2 x mSATA and 2 x SATA drives through a single PCI Express slot

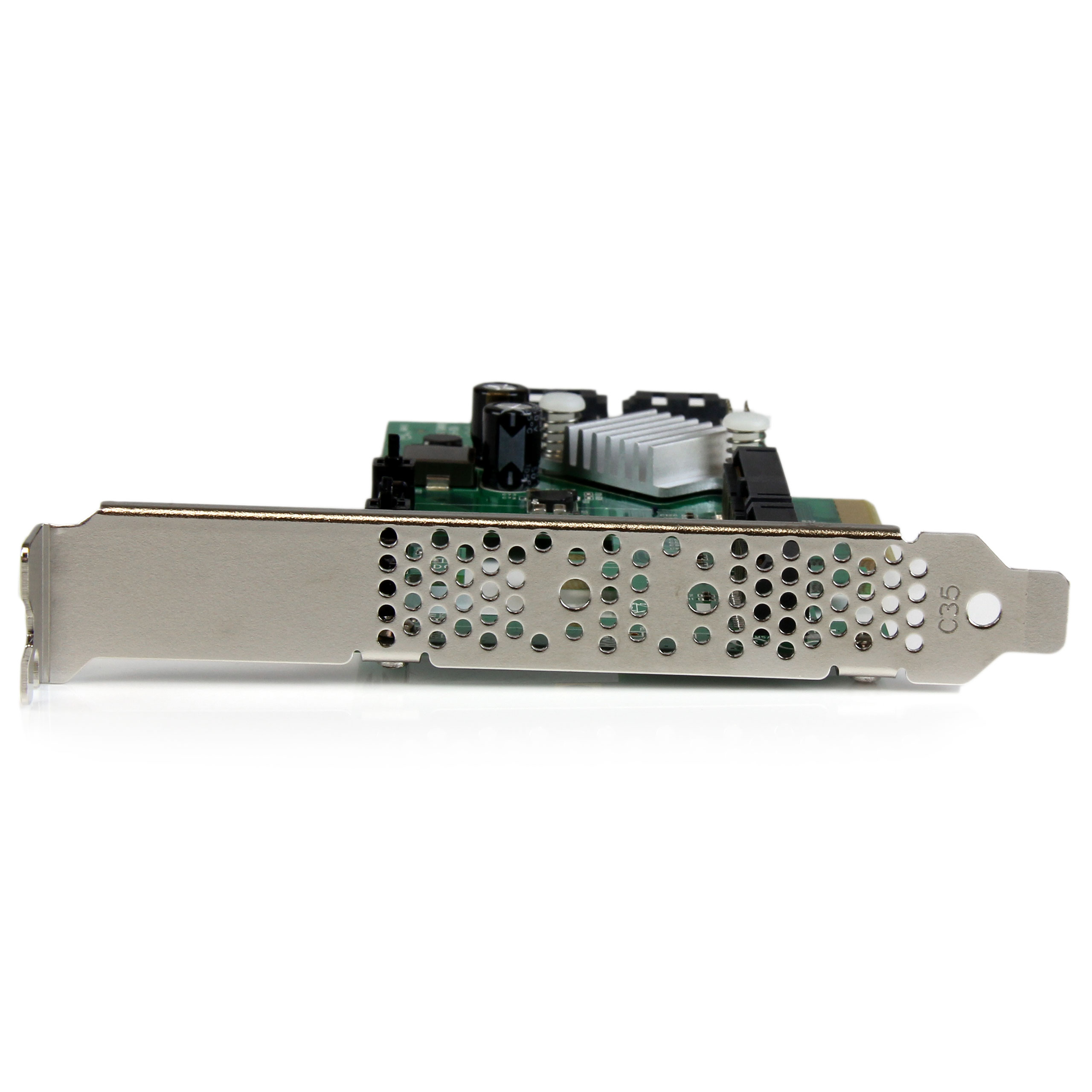

Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name PCIe 2xmSATA and 2xSATA controller card Product Number PEXMSATA3422 UPC 065030859394 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) 2 Pt PCIe SATA Card Product Title (Short) 2 Port PCIe SATA III Card- 2 mSATA Slots Product Title (Medium) 2 Port PCIe SATA III RAID Controller Card w/ 2 mSATA Slots HyperDuo SSD Tiering Product Title (Standard) 2 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card w/ 2 mSATA Slots and HyperDuo SSD Tiering Product Title (Long) 2-Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with 2 mSATA Slots and HyperDuo SSD Tiering Product Title (AMZ) 2 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card w/ 2 mSATA Slots & HyperDuo SSD Tiering - PCIe SATA 3 Controller (PEXMSATA3422) Title Ingram (Part 1) 2Port PCIe SATA III Card w/ 2 Title Ingram (Part 2) mSATA Slots & HyperDuo Tiering Website Product Headline Combine SSD performance with HDD capacity to create a HyperDuo array with 2 x mSATA and 2 x SATA drives through a single PCI Express slot Bullet 1 Supports HyperDuo SSD auto-tiering, merging SSD performance with HDD capacity Bullet 2 Supports hardware RAID 0 and 1 modes Bullet 3 Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps) drives Bullet 4 Port Multiplier FIS-based and Command-based switching supported Bullet 5 Compliant with PCI Express 2.0 standards Bullets (Compact) Combine SSD performance w/ HDD capacity and create a HyperDuo array with 2 mSATA + 2 SATA drives through your computers PCIe slot - 2 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card w/ 2 mSATA Slots & HyperDuo SSD Tiering - mSATA Adapter Bullets (Consolidated) Combine SSD performance w/ HDD capacity and create a HyperDuo array with 2 mSATA + 2 SATA drives through your computers PCIe slot - 2 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card w/ 2 mSATA Slots and HyperDuo SSD Tiering/mSATA Adapter - PCIe SATA 3 Controller - SATA Adapter Card - RAID Card - mSATA Hyperduo Controller Adapter/Two internal mSATA SSD Slots - HyperDuo SSD Auto-Tiering - Supports Port Multiplier and SSD TRIM - Optimize your system for I/O intensive applications Marketing Copy Applications - Use SSD tiering to optimize your system for I/O intensive applications such as office suites, photo/video editing and media players
- Upgrade an older PCIe-based system to SATA 6Gbps capability, to better utilize faster SATA drives
- Add more internal SATA ports to your computer, for connecting additional storage drives and/or optical drives
- Provide optimized off-site back-ups/vaulting, through built-in RAID 1 capability
- Perfect for multi-drive internal RAID storage solutions

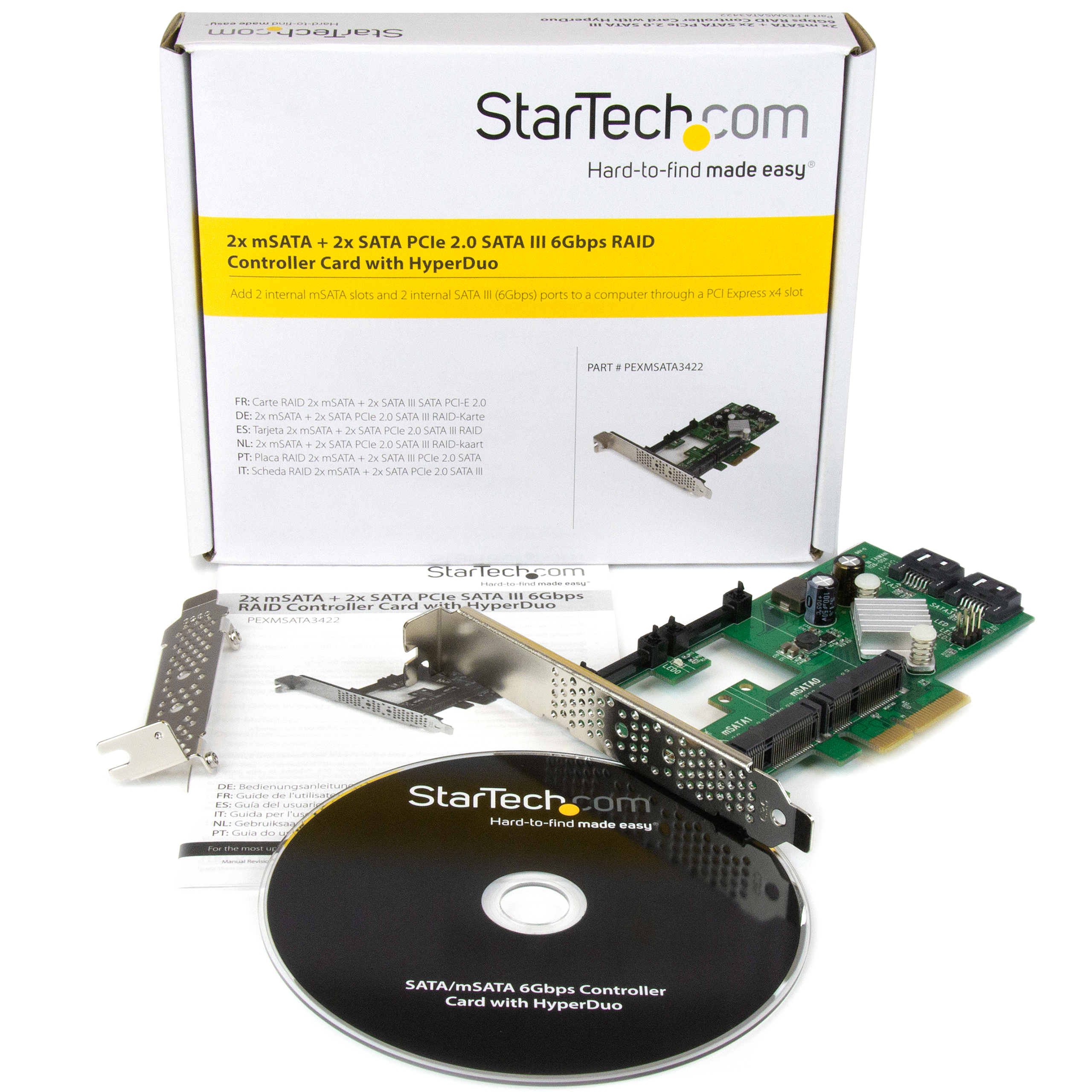

- Install 2 internal SSDs directly to the card, for a simple and discreet solution that improves overall system performance
Website Search Keyword - mSATA adapter
- PCIe SATA Card
- PCIe SATA Controller
- SATA 3 card
- PCI Express SATA Controller
- SATA card
- SATA III card
- hyperduo
- ssd auto tiering
- pcie msata card
- pcie msata adapter
- pcie msata controller
- RAID controller
- msata controller
- pci express controller card
- pcie hard drive controller
- pcie sata controller card
- SATA Raid card
- capacity mode
- hyperduo tiering
- msata slot
- dual msata
- msata to pcie adapter
- sata adapter card
- sata card adapter
- ssd controller
- msata ssd
- msata ssd controller
- hard drive card
- hard drive adapter
- msata adapter
- msata card
- RAID card
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes - The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps per lane. Only one port can use the Port Multiplier feature at a time. Supports up to 4 drives connected via Port Multiplier, 7 drives total. Port Multiplier not supported in Mac OS.
- The Marvell Storage Utility application requires macOS 10.9 to 10.14.
System and Cable Requirements Available PCI Express x4 slot (backward compatible with x8, and x16 slots Accessory Products - LSATA8
- LSATA12
- LSATA18
- SATA18RA1
- SATARA18
- HSB2535SATBK
- HSB320SATBK
- HSB3SATSASBA
- HSB225SATBK
- HSB430SATBK
- DRW115SATBK
Related Products - PEXMSATA343
- PEXSAT34RH
- PEXSAT34SFF
- PEXESAT322I
- PEXSAT31E1
- PEXSAT32
- ECESAT32
- CBESAT2
Color Green Humidity 20~80% RH Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 125.000 Product Width (mm) 20.000 Product Height (mm) 120.000 Product Weight (g) 60.000 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes Max Drive Capacity Currently tested up to 4TB per drive OS Compatibility - Windows 8
- Windows 7
- Linux
- Windows Server 2012
- Windows 10
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- Windows 11
- Windows Server 2022

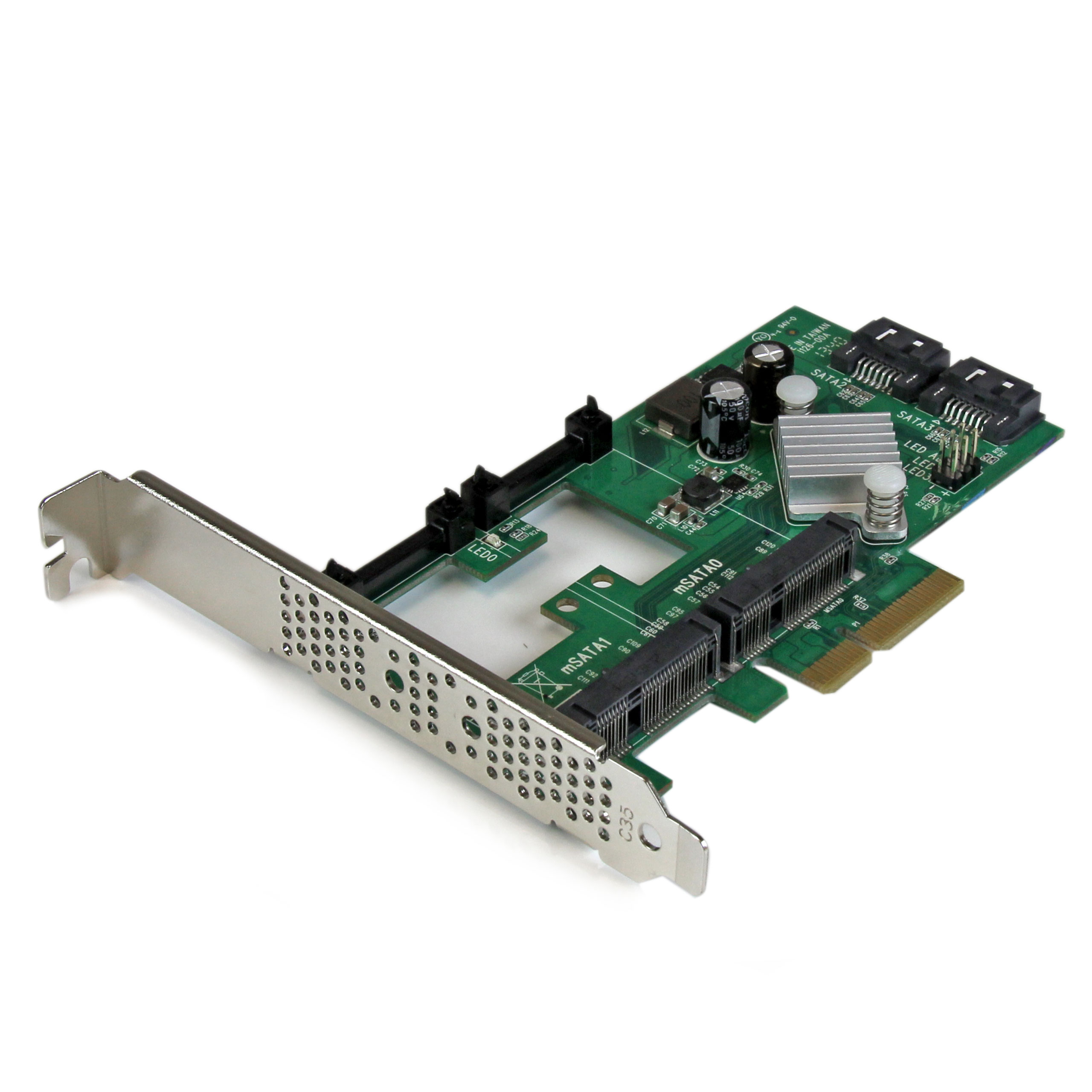

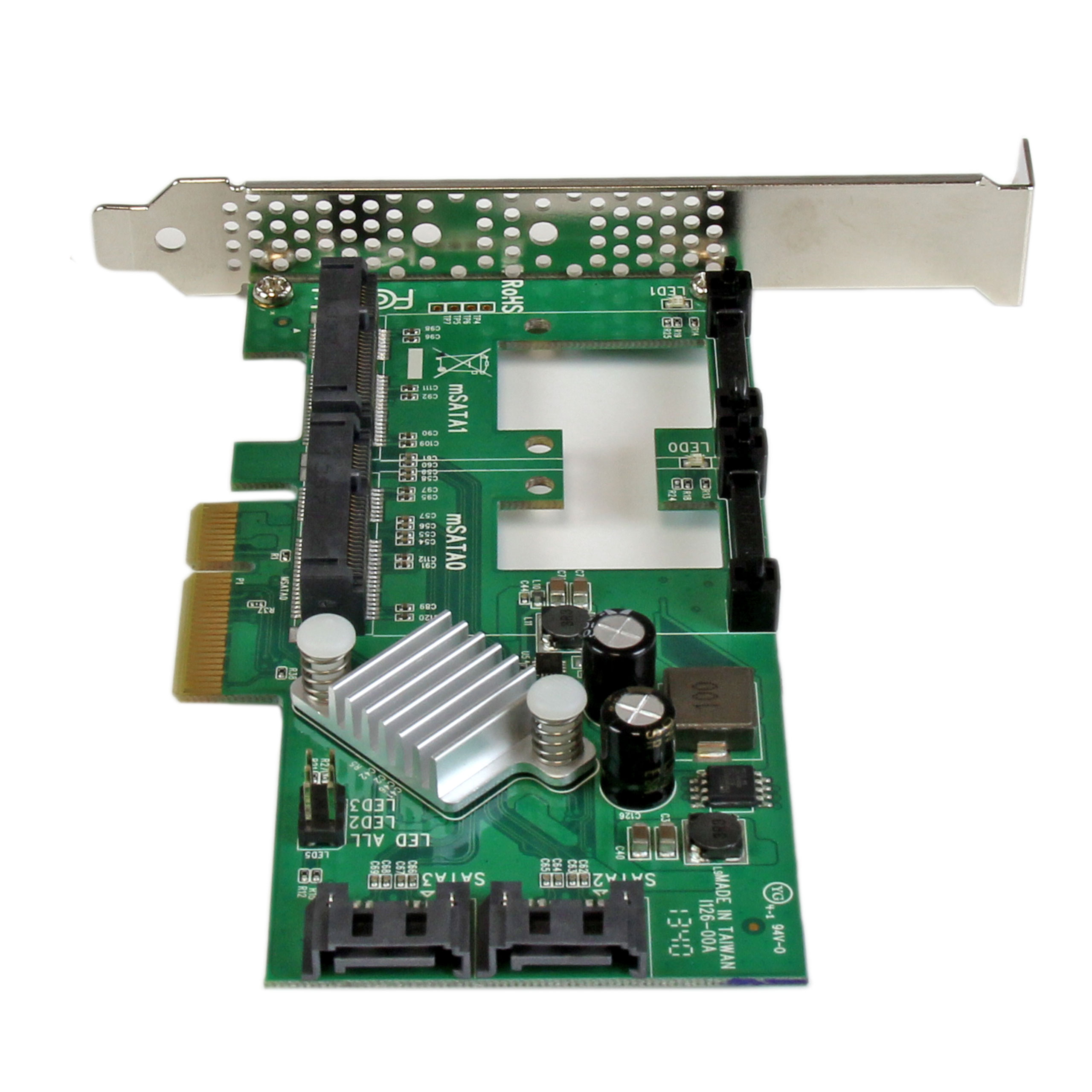

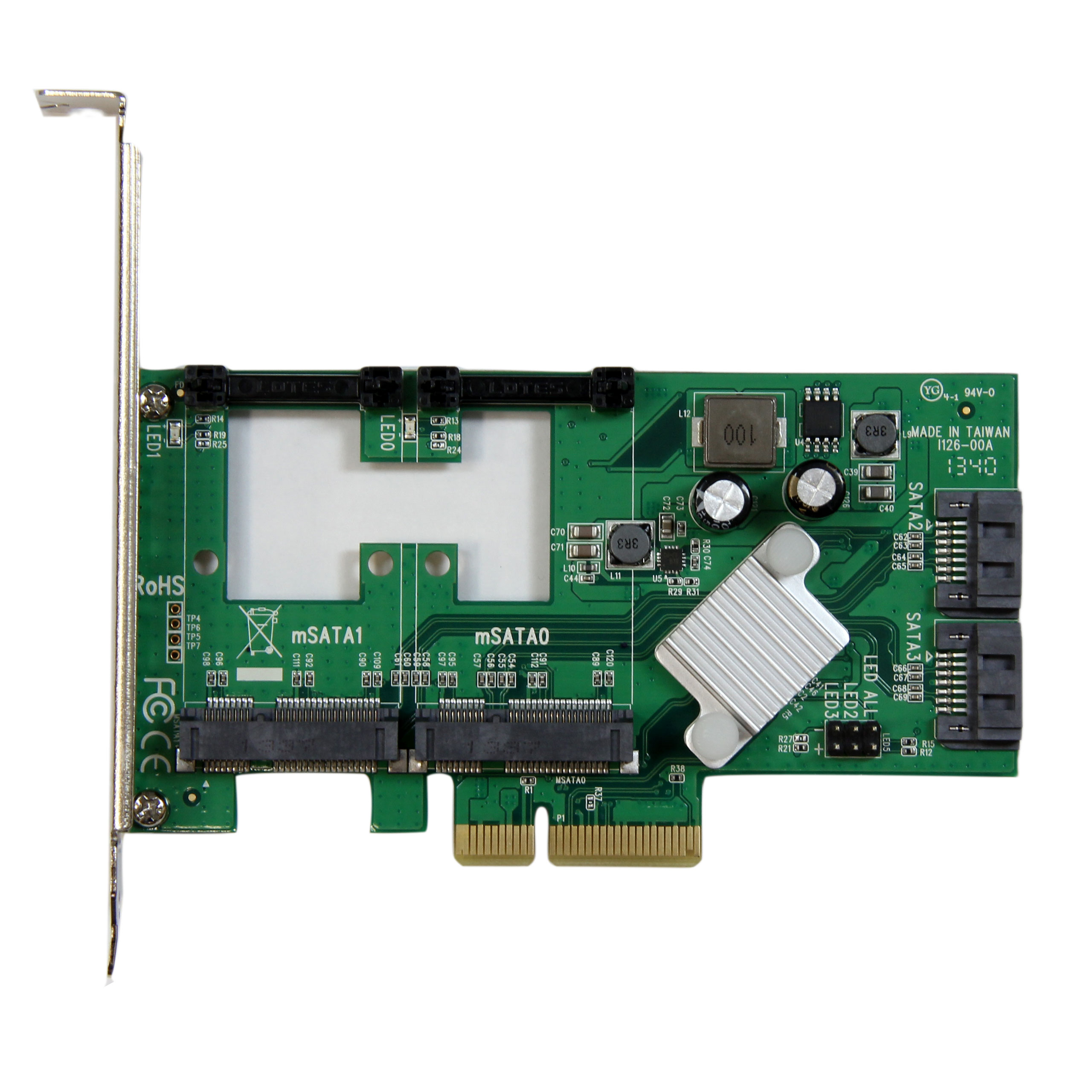

Port Multiplier Yes RAID Yes SATA Type and Rate SATA III (6 Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Marvell - 88SE9230 Industry Standards - Serial ATA 3.0 specification
- PCI Express 2.0
Interface/Bridge - Mini SATA
- SATA
IO Card Port Style Integrated on Card Carton Depth (mm) 378 Carton Height (mm) 318 Carton Quantity 60 Carton Weight Gross (g) 10370 Included in Package - 1 - PCIe mSATA/SATA Controller Card
- 1 - Low Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 144 Package Height (mm) 32 Package Width (mm) 172 Package Quantity 1 Package Weight (g) 166 Packaging Description 2x mSATA + 2x SATA PCIe 2.0 SATA III RAID Card Packaging Description India 2x mSATA + 2x SATA PCIe 2.0 SATA III RAID Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 mSATA (52-Pin) Connector 2 (Quantity) 2 Connector 3 SATA (7-Pin) Connector 3 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-07-31 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle None
