PEXMSATA343

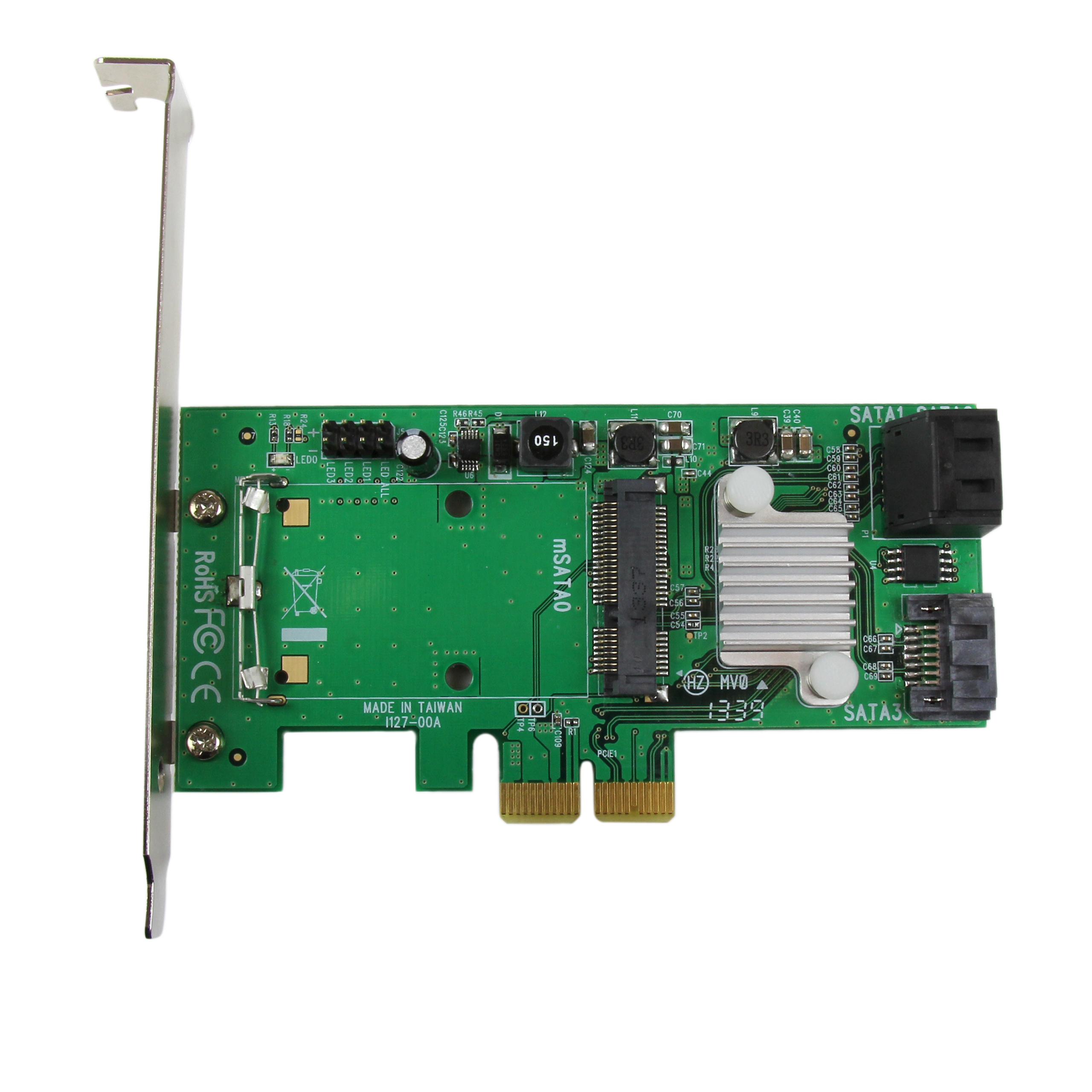

3Port PCIe SATA Card w/ mSATA Slot and HyperDuo
Add 1 internal mSATA slot and 3 internal SATA III (6Gbps) ports to a computer through a PCI Express x2 slot

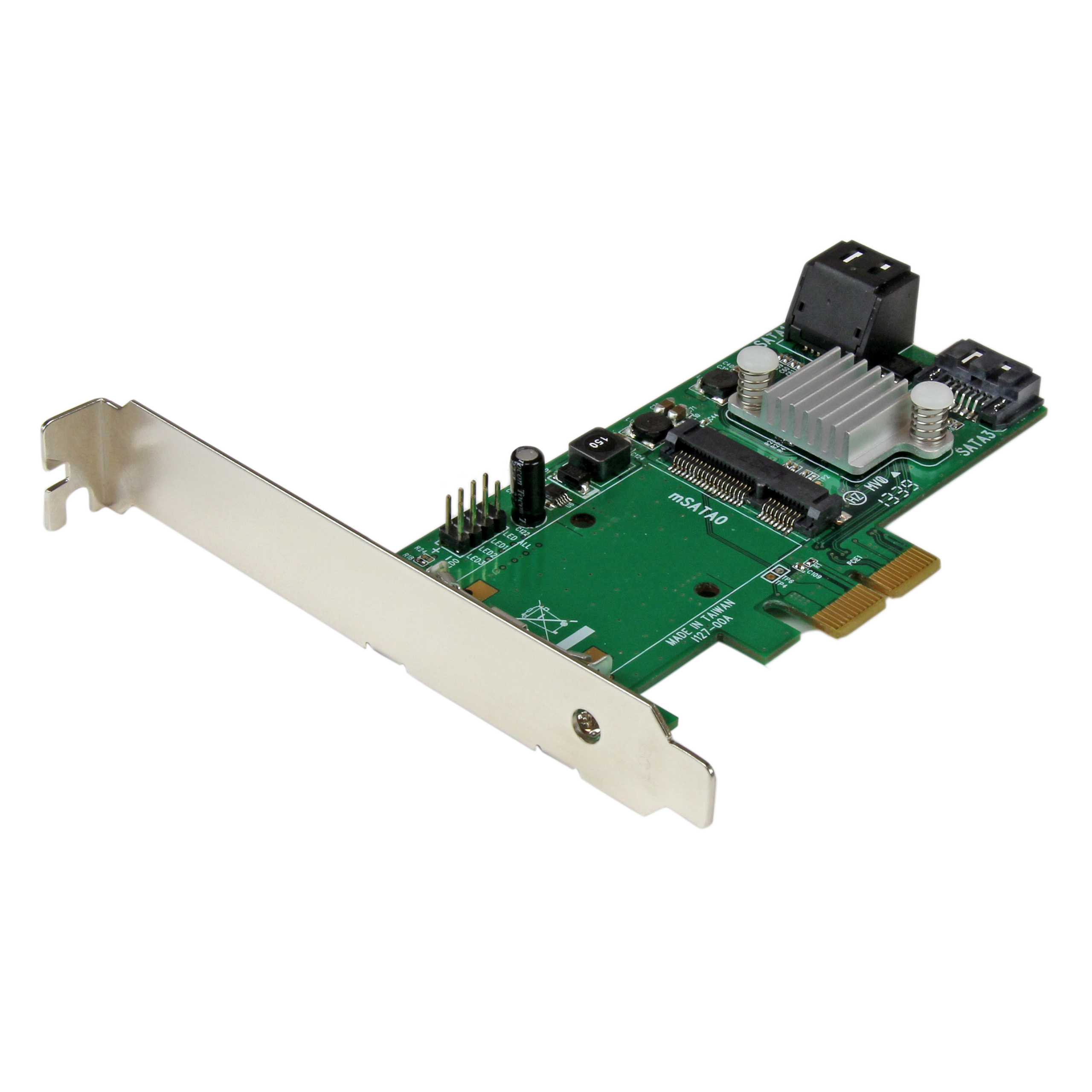

Main Image

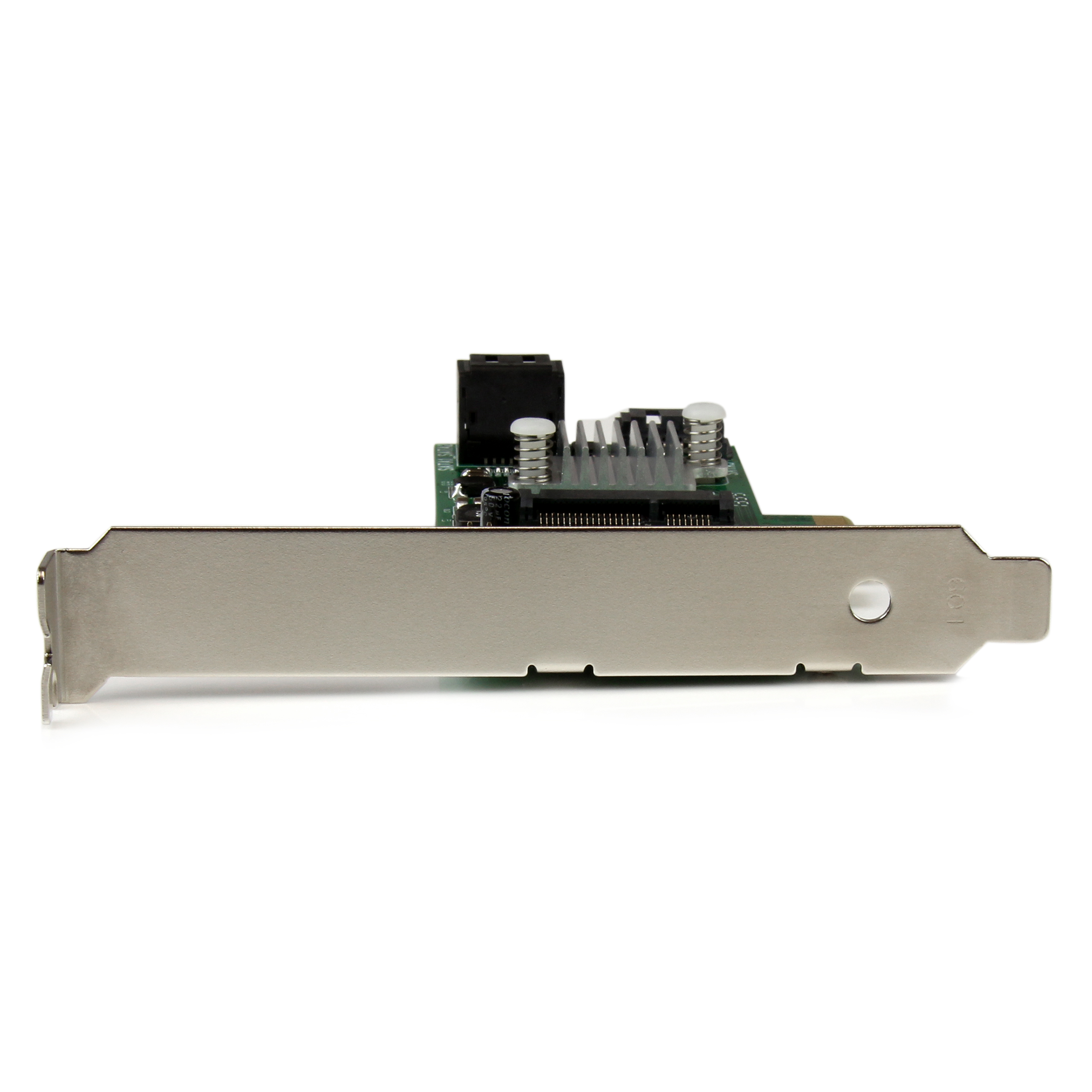

Product Images

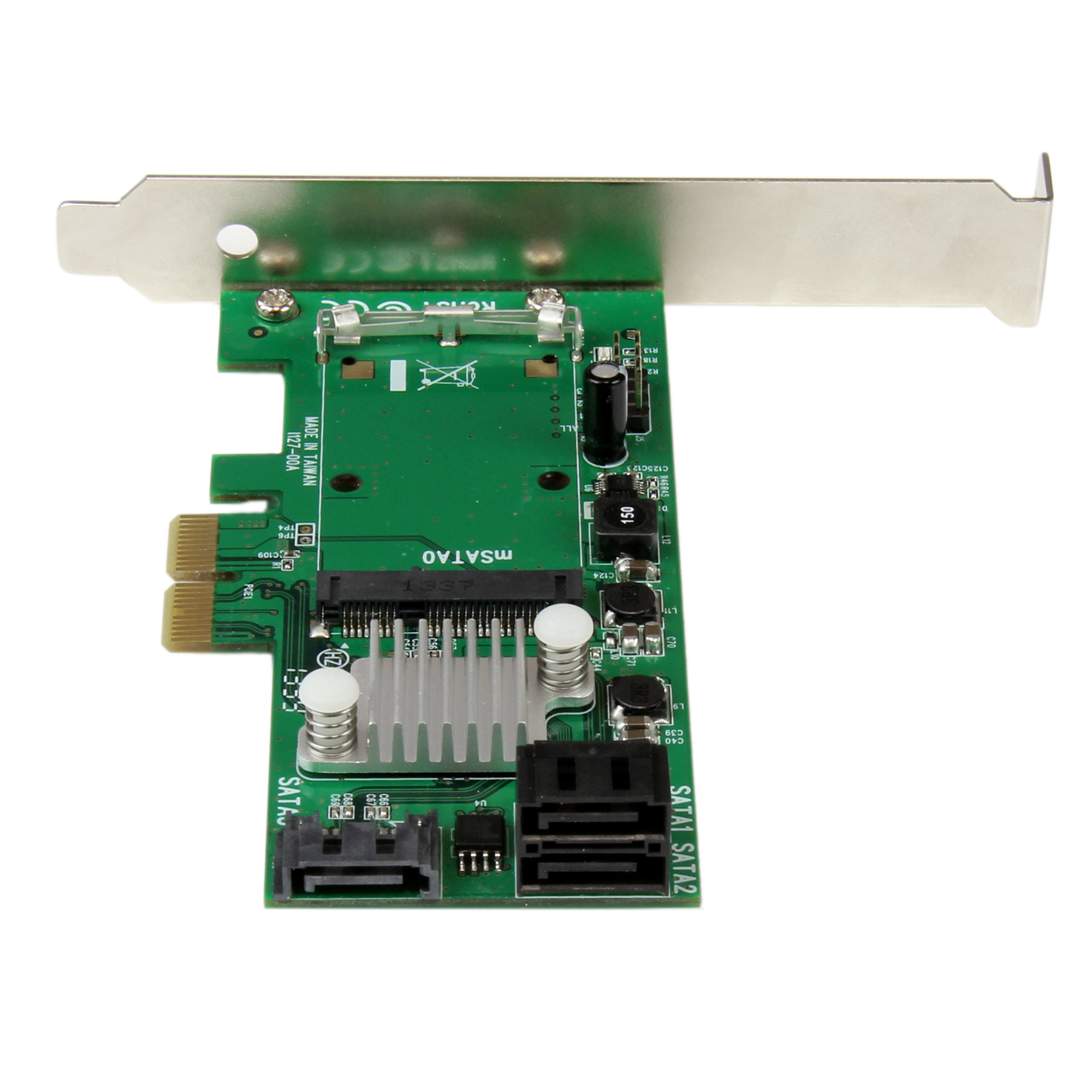

Product Images
Product Images
BOM Image
Product Name 3Port PCIe SATA Card w/ mSATA Slot and HyperDuo Product Number PEXMSATA343 UPC 065030856058 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) 3 Pt PCIe SATA Card Product Title (Short) 3 Port PCIe SATA III Card w/ mSATA Slot Product Title (Medium) 3 Port PCIe SATA III RAID Controller Card w/ mSATA Slot and HyperDuo SSD Tiering Product Title (Standard) 3 Port PCI Express 2.0 SATA III 6 Gbps RAID Controller Card w/ mSATA Slot and HyperDuo SSD Tiering Product Title (Long) 3 Port PCI Express 2.0 SATA III 6 Gbps RAID Controller Card w/ mSATA Slot and HyperDuo SSD Tiering Product Title (AMZ) 3 Port PCI Express 2.0 SATA III 6 Gbps RAID Controller Card w/ mSATA Slot and HyperDuo SSD Tiering - PCIe SATA 3 / mSATA Card (PEXMSATA343) Title Ingram (Part 1) 3Port PCIe SATA Card w/ mSATA Title Ingram (Part 2) Slot and HyperDuo SSD Tiering Website Product Headline Add 1 internal mSATA slot and 3 internal SATA III (6Gbps) ports to a computer through a PCI Express x2 slot Bullet 1 Supports HyperDuo SSD auto-tiering Bullet 2 1 mSATA SSD slot and 3 AHCI SATA III (6Gbps) ports through PCI Express x2 Bullet 3 Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps) drives Bullet 4 Supports hardware RAID 0 and 1 modes configured through BIOS Bullet 5 Compliant with PCI Express 2.0 standards Bullets (Consolidated) Add 1 internal mSATA slot and 3 internal SATA III (6Gbps) ports to a computer through a PCI Express x2 slot - 3 Port PCIe 2.0 SATA III RAID Controller Card w/ mSATA Slot and HyperDuo SSD Tiering - PCIe SATA 3/mSATA Hyperduo Controller Adapter - Internal mSATA SSD Slot - Supports HyperDuo SSD Auto-Tiering - Supports Port Multiplier and SSD TRIM Marketing Copy Applications - Use SSD tiering to optimize your system for I/O intensive applications such as office suites, photo/video editing and media players
- Upgrade an older PCIe-based system to SATA 6Gbps capability, to better utilize faster SATA drives
- Add more internal SATA ports to your computer, for connecting additional storage drives and/or optical drives
- Provide optimized off-site back-ups/vaulting, through built-in RAID 1 capability
- Perfect for multi-drive internal RAID storage solutions
- Install an internal SSD directly to the card for a simple and discreet solution for improving overall computer system performance
Website Search Keyword - mSATA adapter
- hyperduo
- ssd auto tiering
- pcie msata card
- pcie msata adapter
- pcie msata controller
- PCIe SATA Card
- PCIe SATA Controller
- SATA 3 card
- PCI Express SATA Controller
- SATA card
- SATA III card
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes - The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps per lane. Only one port can use the Port Multiplier feature at a time. Supports up to 4 drives connected via Port Multiplier, 7 drives total. Port Multiplier not supported in Mac OS.
- The Marvell Storage Utility application requires macOS 10.9 to 10.14.
System and Cable Requirements Available PCI Express x2 slot (backward compatible with x4, x8, and x16 slots) Accessory Products - HSB2535SATBK
- HSB3SATSASBA
- SATSASBAY425
- HSB430SATBK
- HSB320SATBK
- DRW115SATBK
- HSB225SATBK
- LSATA8
- LSATA12
- LSATA18
- SATA18RA1
- SATARA18
Related Products - PEXSAT34RH
- PEXSAT31E1
- PEXSAT32
- PEXSATA22I
- PEXSAT34SFF
Replacement Product PEXMSATA3422 Humidity 20-80% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 115.000 Product Width (mm) 18.000 Product Height (mm) 120.000 Product Weight (g) 57.000 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes Max Drive Capacity Currently tested up to 4TB per drive OS Compatibility - Windows 8
- Linux
- Windows 7
- Windows Server 2012
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows 11
- Windows Server 2022
- Windows Server 2019
Port Multiplier Yes RAID Yes SATA Type and Rate SATA III (6 Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Marvell - 88SE9230 Industry Standards - Serial ATA 3.0 specification
- PCI Express 2.0
Interface/Bridge - Mini SATA
- SATA

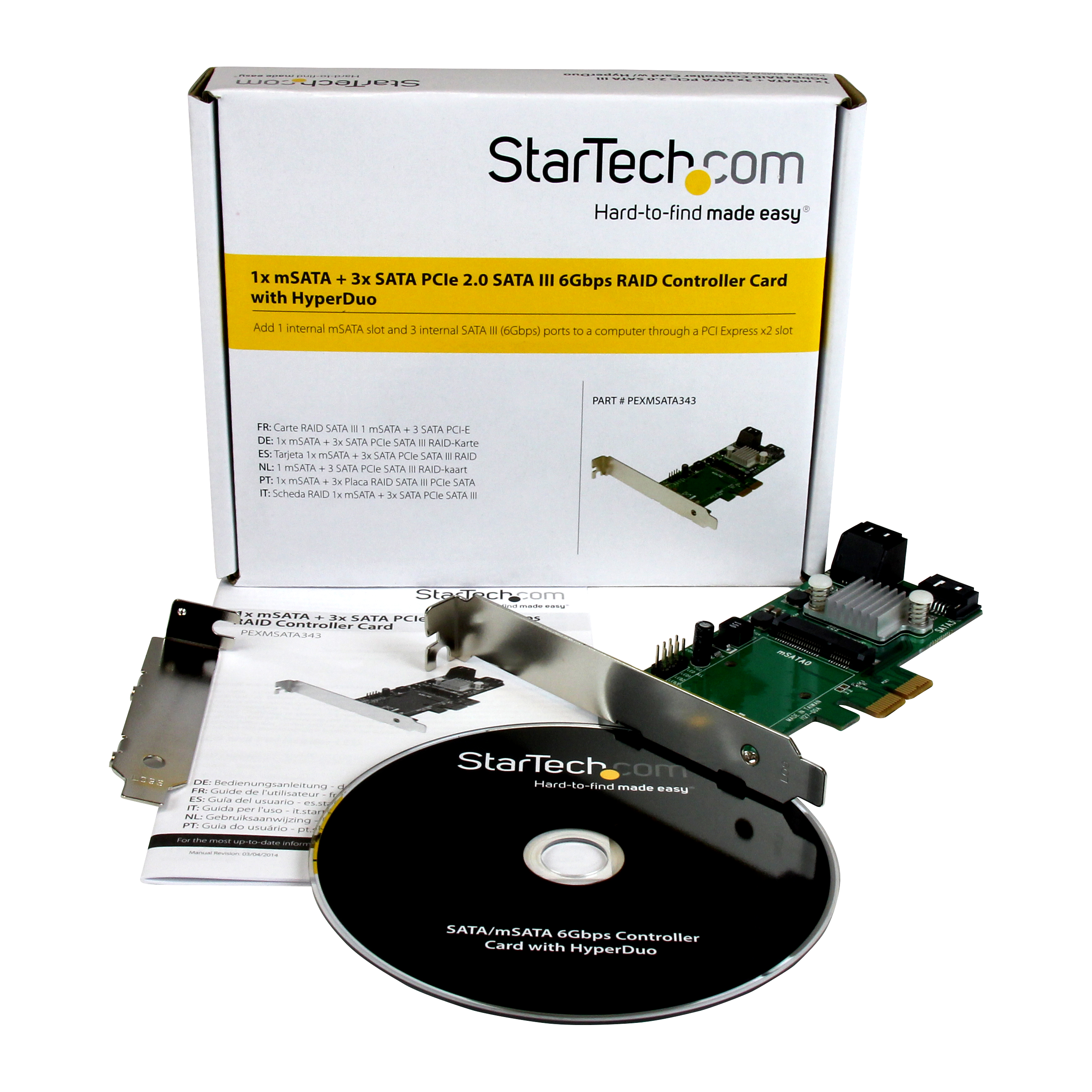

IO Card Port Style Integrated on Card Carton Depth (mm) 380 Carton Height (mm) 315 Carton Quantity 60 Carton Weight Gross (g) 10112 Included in Package - 1 - PCIe SATA Controller Card
- 1 - Instruction Manual
- 1 - Driver CD
- 1 - Low Profile Bracket
Package Depth (mm) 140 Package Height (mm) 30 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 151 Packaging Description 1x mSATA + 3x SATA PCIe SATA III RAID Card Packaging Description India 1x mSATA + 3x SATA PCIe SATA III RAID Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x2 Connector 1 (Quantity) 1 Connector 2 SATA (7-Pin) Connector 2 (Quantity) 3 Connector 3 mSATA (52-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-01-24 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle None
