PEXSAT2IDE2

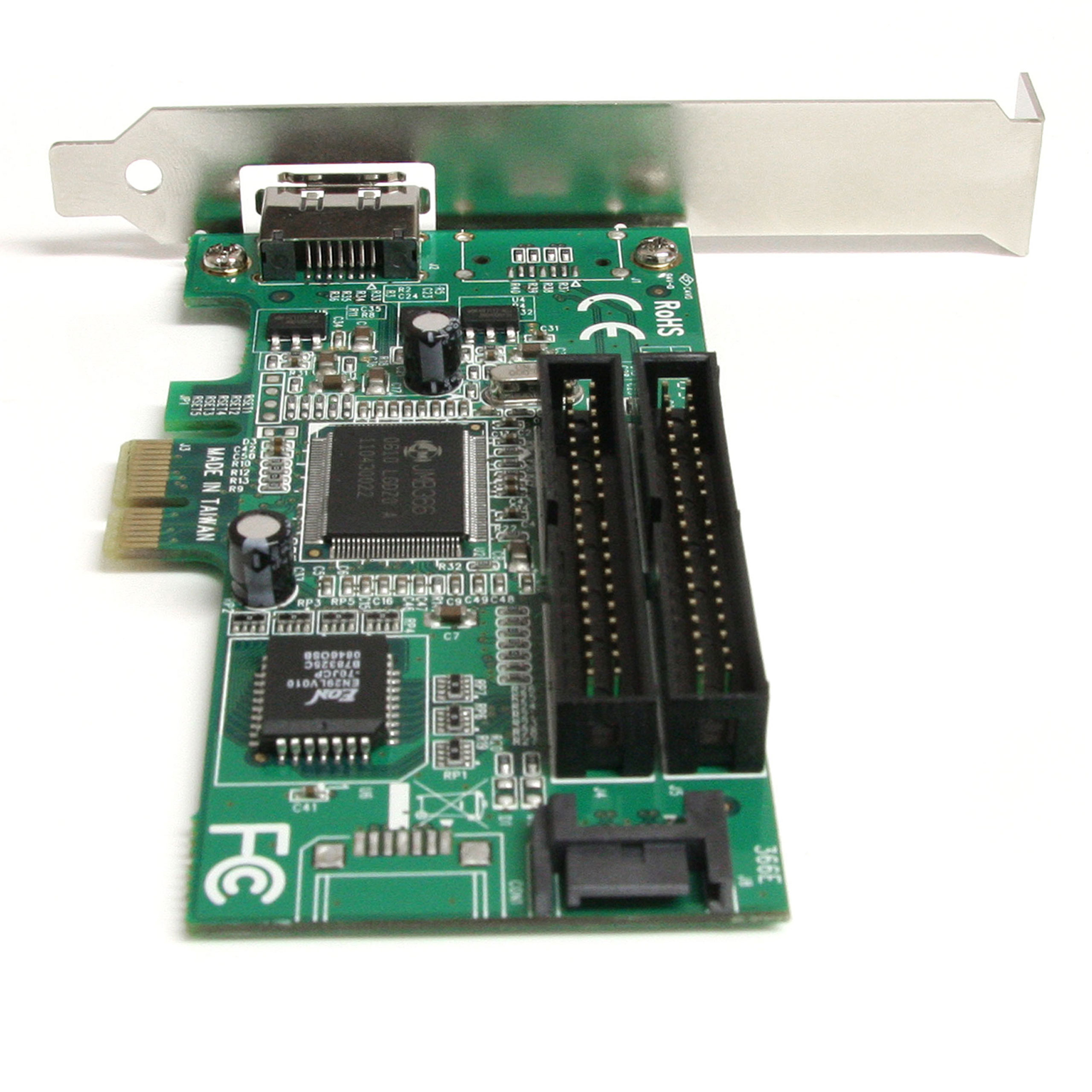

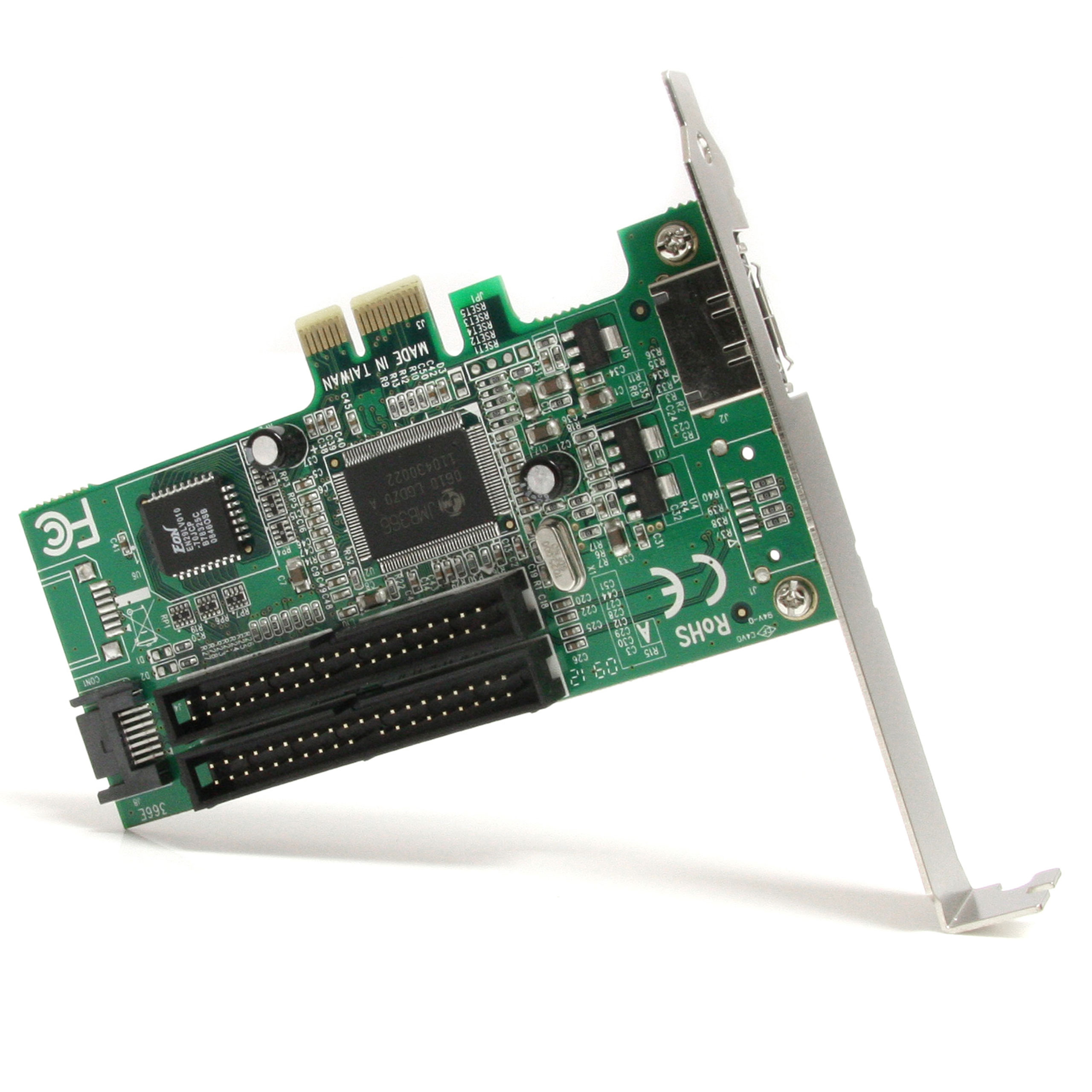

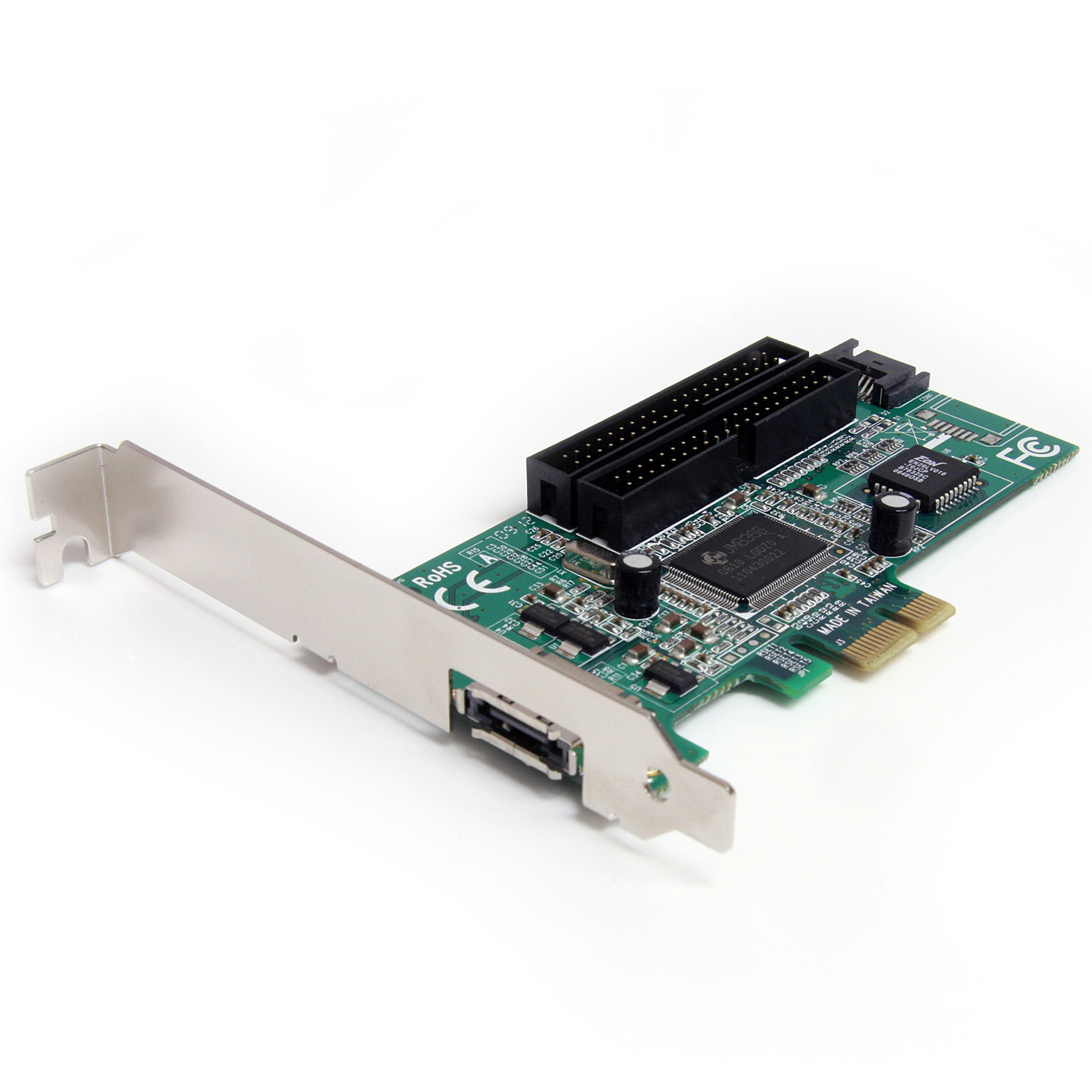

2S2I PCIe SATA II IDE Combo Adapter Card
Add SATA and eSATA and IDE to a computer through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2S2I PCIe SATA II IDE Combo Adapter Card Product Number PEXSAT2IDE2 UPC 065030824156 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) PCIe Combo SATA II IDE Controller Card Product Title (Standard) StarTech.com PCIe Combo SATA II IDE Controller Card Product Title (Long) 1x eSATA + 1x SATA II + 2x IDE PCI Express Controller Adapter Card Title Ingram (Part 1) 1x eSATA + 1x SATA II + 2x IDE P Title Ingram (Part 2) CIe Controller Adapter Card Website Product Headline Add SATA and eSATA and IDE to a computer through a PCI Express slot Bullet 1 Connect two SATA drives on independent channels and up to four IDE devices using two channels Bullet 2 Supports SATA II data transfer rate up to 300Mbps Bullet 3 Ultra ATA-133 / IDE interface with data transfer rate up to 133Mbps Bullet 4 Supports RAID 0, RAID 1, and JBOD Bullet 5 Supports Native Command Queue (NCQ) on SATA II ports Marketing Copy Applications - Ideal for institutions and individuals using both IDE and Serial ATA drives on the same system
- Great for use with Serial ATA, ATAPI devices, ATA/133, ATA/100, ATA/66, ATA/33, EIDE and IDE storage devices (DVD CD-ROM, CD-RW, hard drives)
Website Search Keyword - PCI Express
- PCIe
- SATA IDE
- Controller
Accessory Products - SATA18
- SATA18POW
- SATA24
- SATA36
- IDE_
- IDE100RND18
- IDE100RND24
- IDE100RND36
- IDE44
- IDE66
- IDE66_36
TAA Compliant No Maximum Data Transfer Rate 300 Mbps (SATA2/SATA300), 133 Mbps (IDE) OS Compatibility - Windows XP
- Windows Vista
- Windows Server 2003
- Windows 7
- Windows Server 2008 R2
- Linux
- Mac OS X
- Windows 8

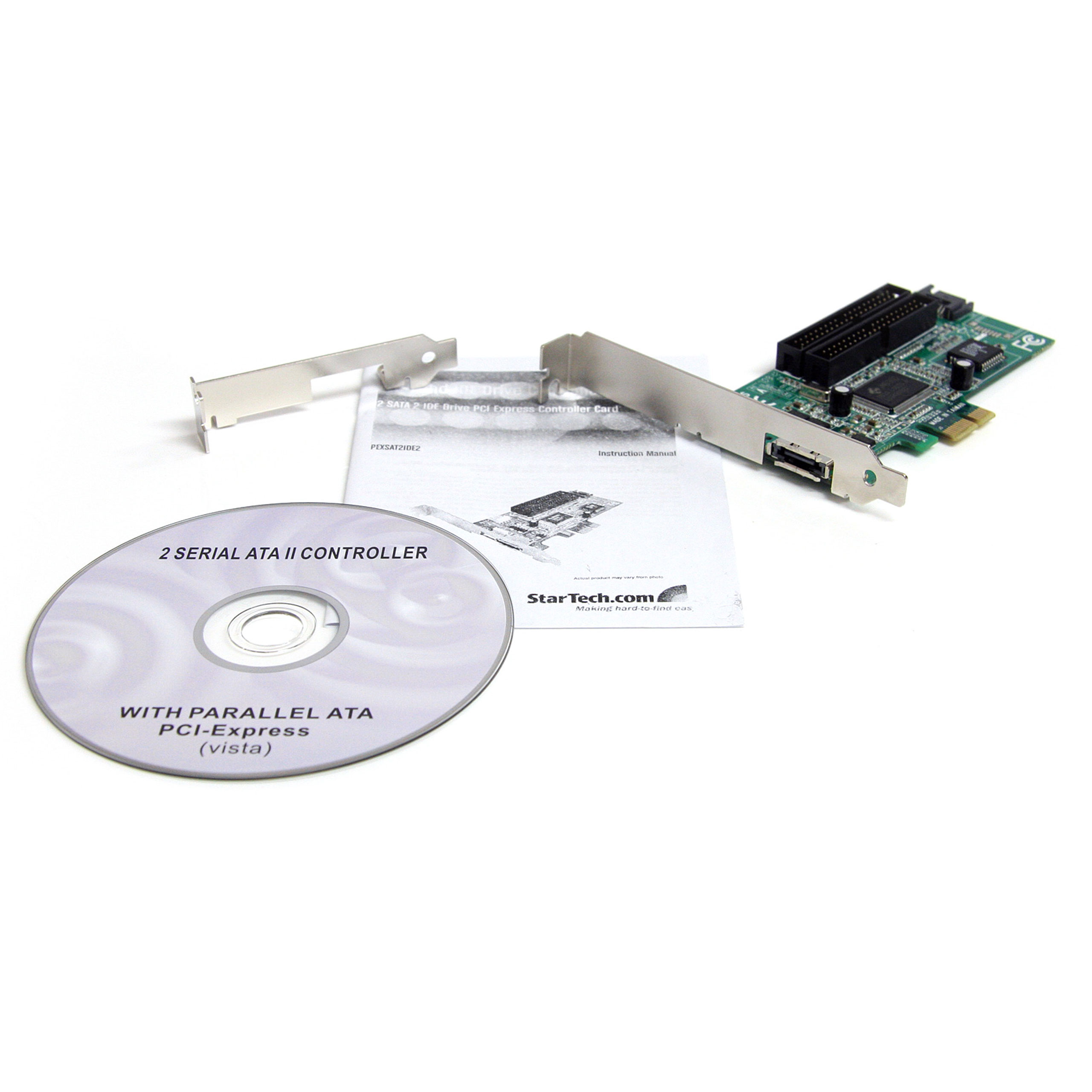

Port Multiplier No RAID Yes SATA Type and Rate SATA II (3 Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID JMicron - JMB366 Interface/Bridge eSATA & SATA & IDE Carton Depth (mm) 500 Carton Height (mm) 350 Carton Quantity 40 Carton Weight Gross (g) 9200 Included in Package - 1 - PCI Express SATA/IDE Card
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - Low Profile Bracket

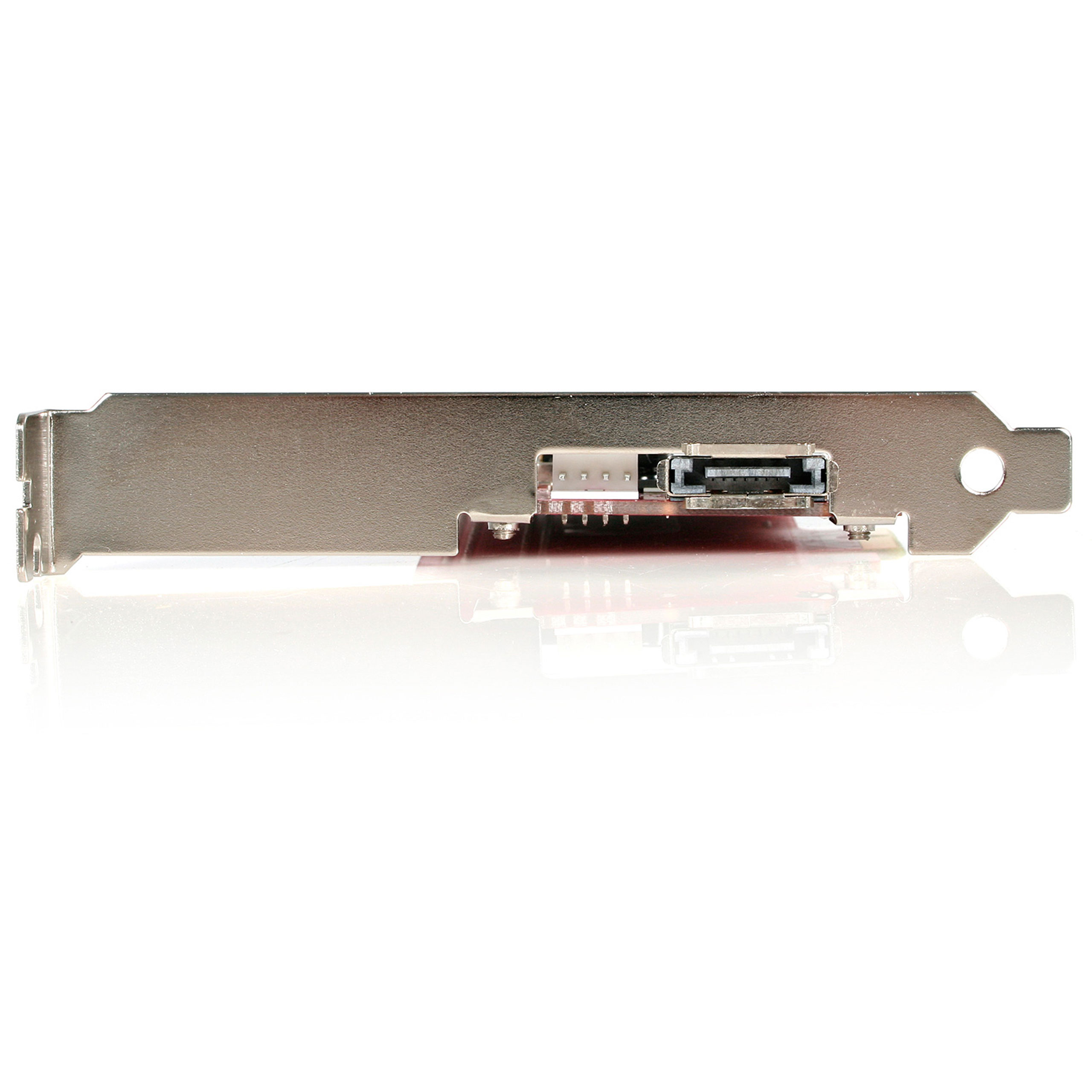

Package Depth (mm) 40 Package Height (mm) 149 Package Width (mm) 210 Package Weight (g) 160 Packaging Description PCI Express SATA/IDE Combo Controller Packaging Description India PCI Express SATA/IDE Combo Controller Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 eSATA (7-Pin) Connector 2 (Quantity) 1 Connector 3 IDE / PATA (ATA/133) Connector 3 (Quantity) 2 Connector 4 SATA (7-Pin) Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
