PEXSAT31E1

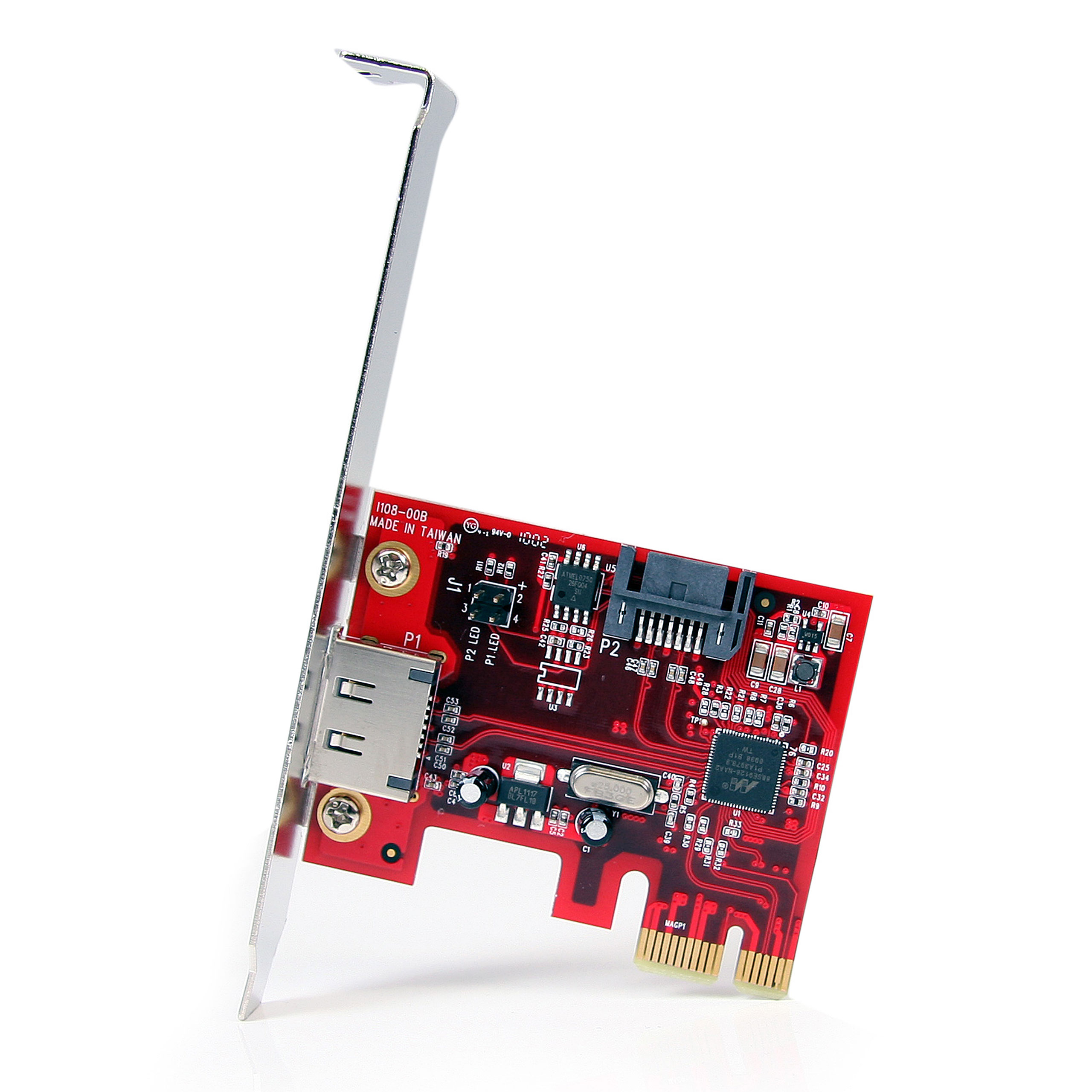

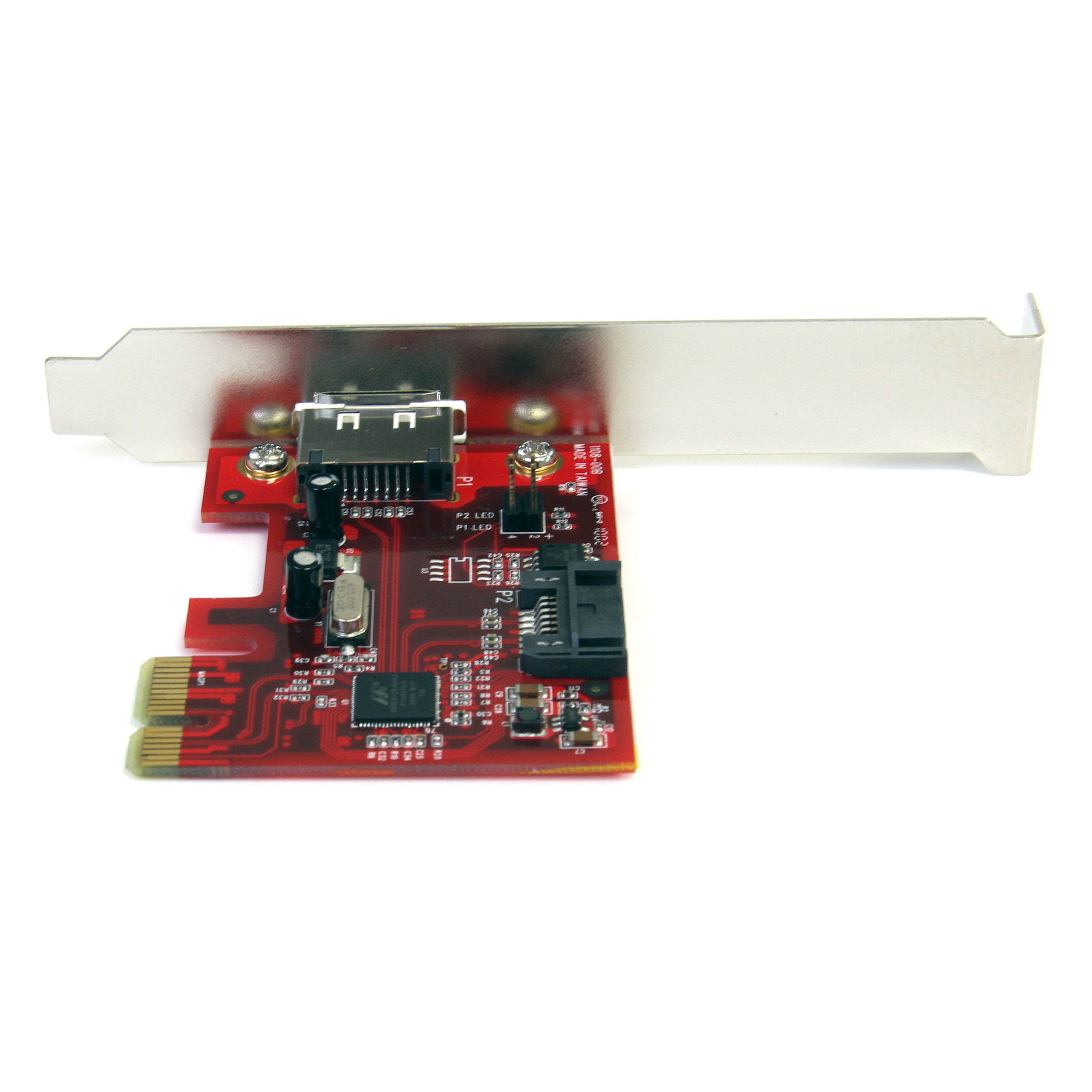

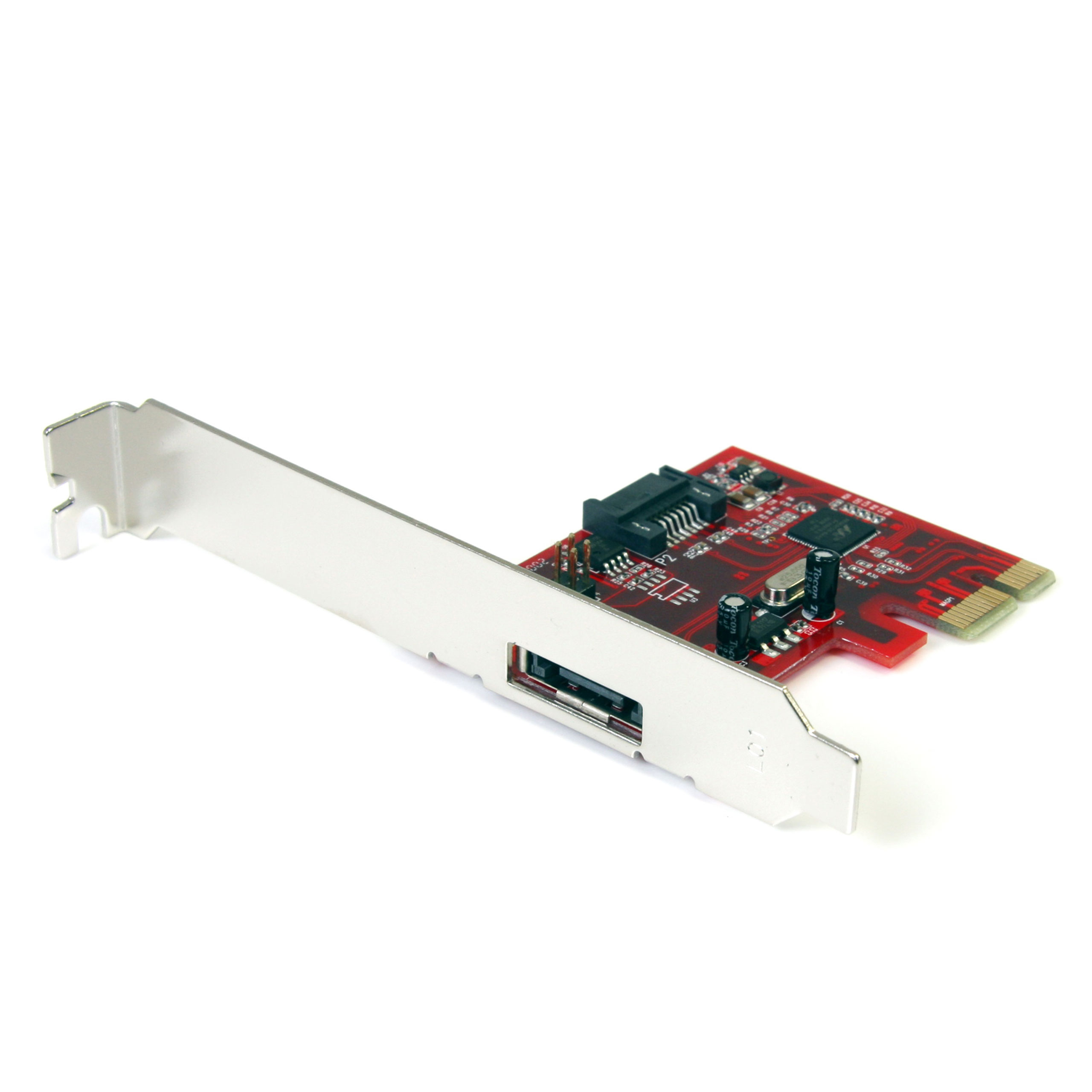

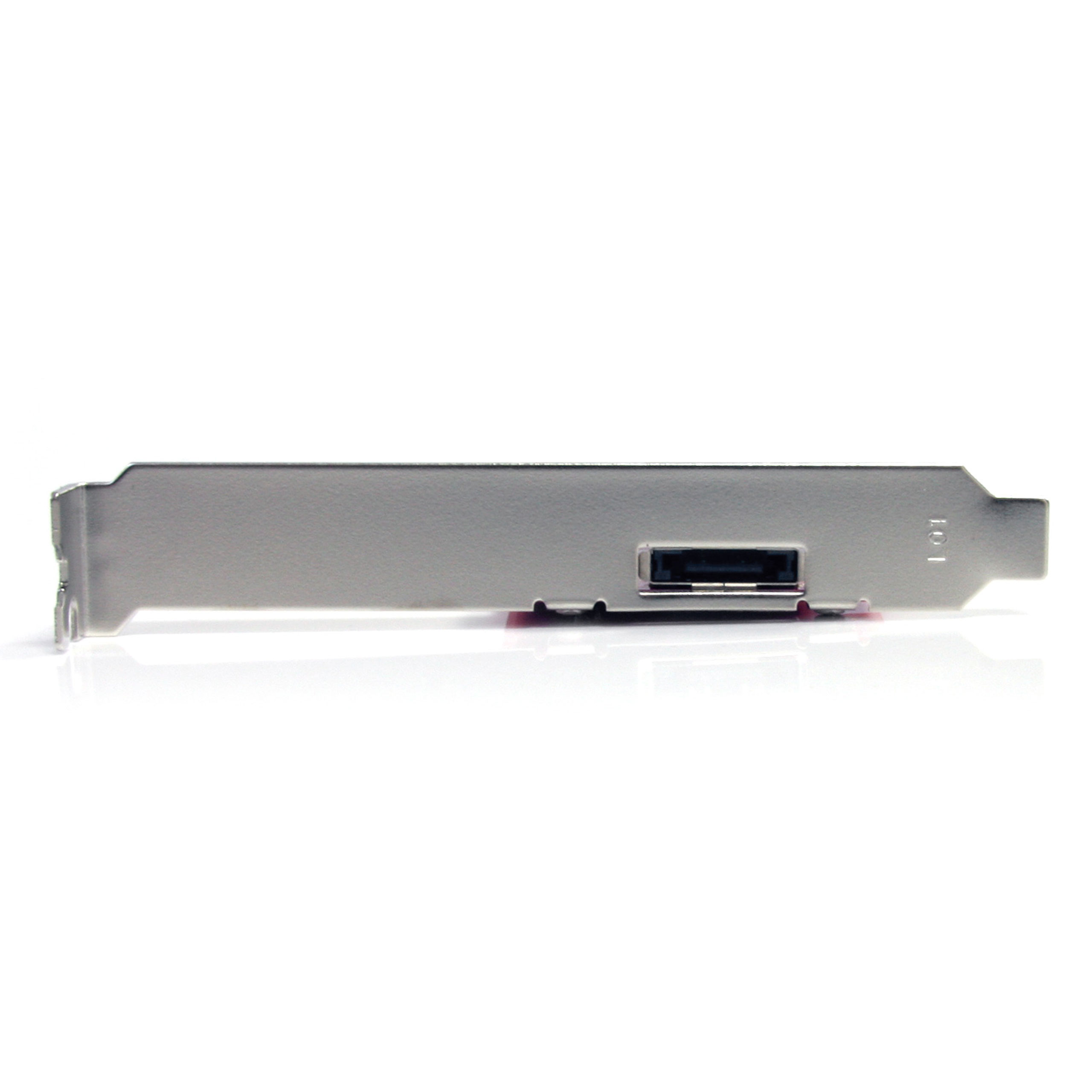

eSATA SATA Revision 3.0 PCIe SATA Controller Card
Add external and internal 6 Gbps SATA 3.0 ports for high speed storage access
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name eSATA SATA Revision 3.0 PCIe SATA Controller Card Product Number PEXSAT31E1 UPC 065030839693 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Short) eSATA 6 Gbps PCIe SATA Controller Card Product Title (Standard) 1x eSATA 1x SATA 6 Gbps PCIe SATA Controller Card Product Title (Long) 1x eSATA + 1x SATA 6 Gbps PCI Express SATA Controller Card Adapter Product Title (AMZ) 1x eSATA + 1x SATA 6 Gbps PCI Express SATA Controller Card Adapter - eSATA Controller - PCIe eSATA (PEXSAT31E1) Title Ingram (Part 1) 1x eSATA 1x SATA 6 Gbps PCI Expr Title Ingram (Part 2) ess SATA Controller Card Website Product Headline Add external and internal 6 Gbps SATA 3.0 ports for high speed storage access Bullet 1 Compliant with PCI Express 2.0 standards Bullet 2 LED headers for HDD activity LED indicators Bullet 3 Port Multiplier FIS-based and Command-based switching supported Bullet 4 Ships with a full profile bracket installed, low profile included Bullet 5 Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands Bullets (Consolidated) Storage controller (RAID) - SATA 6Gb/s/eSATA 6Gb/s low profile - 600 MBps - RAID 0 - 1 - JBOD - PCIe 2.0 x1 - red Marketing Copy Applications - Add one internal SATA and one external eSATA 6Gbps port for connecting SATA rev 3.0 (6Gbps) Hard Drives
- High performance internal and external SATA storage solutions
- Multimedia streaming or video editing
- Perfect for multi-drive internal raid storage solutions
- Optimized for offsite backups, this RAID controller can be configure in RAID 1 (Mirrored) so that all information on the internal drive will be immediately copied up to an externally connected eSATA drive
Website Search Keyword - eSATA
- PCI Express
- PCIe
- SATA 3
- SATA 6
- SATA 6Gbps
- SATA III
- SATA Rev 3
- Single Lane
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes - Alarm function is not supported in MSU software.
Accessory Products - LSATA12
- LSATA12RA1
- LSATA12RA2
- LSATA18
- LSATA18RA1
- LSATA18RA2
- LSATA24
- LSATA24RA1
- LSATA24RA2
- SATA18
- SATA24
- SATA36
- ESATA3
- ESATA6
- GCESATAFF
Related Products - CBESAT2
- CBESATA2
- ECESAT32
- PCIESATA2I
- PEXESAT32
- PEXESATA1
- PEXESATA2
- PEXESATA2I
- PEXSAT2IDE2
- PEXSATA22I
- PEXSATA24E
- USB2ESATA
- PEXSAT32
Color Red Humidity 15~90% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 67.000 Product Width (mm) 53.000 Product Height (mm) 18.000 Product Weight (g) 30.000 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes Maximum Data Transfer Rate 6 Gbps OS Compatibility - Windows 8
- Linux
- Windows Server 2012
- Windows 7
- Windows 10
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Port Multiplier Yes RAID Yes SATA Type and Rate SATA III (6 Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Marvell - 88SE9128 Interface/Bridge - SATA
- eSATA & SATA

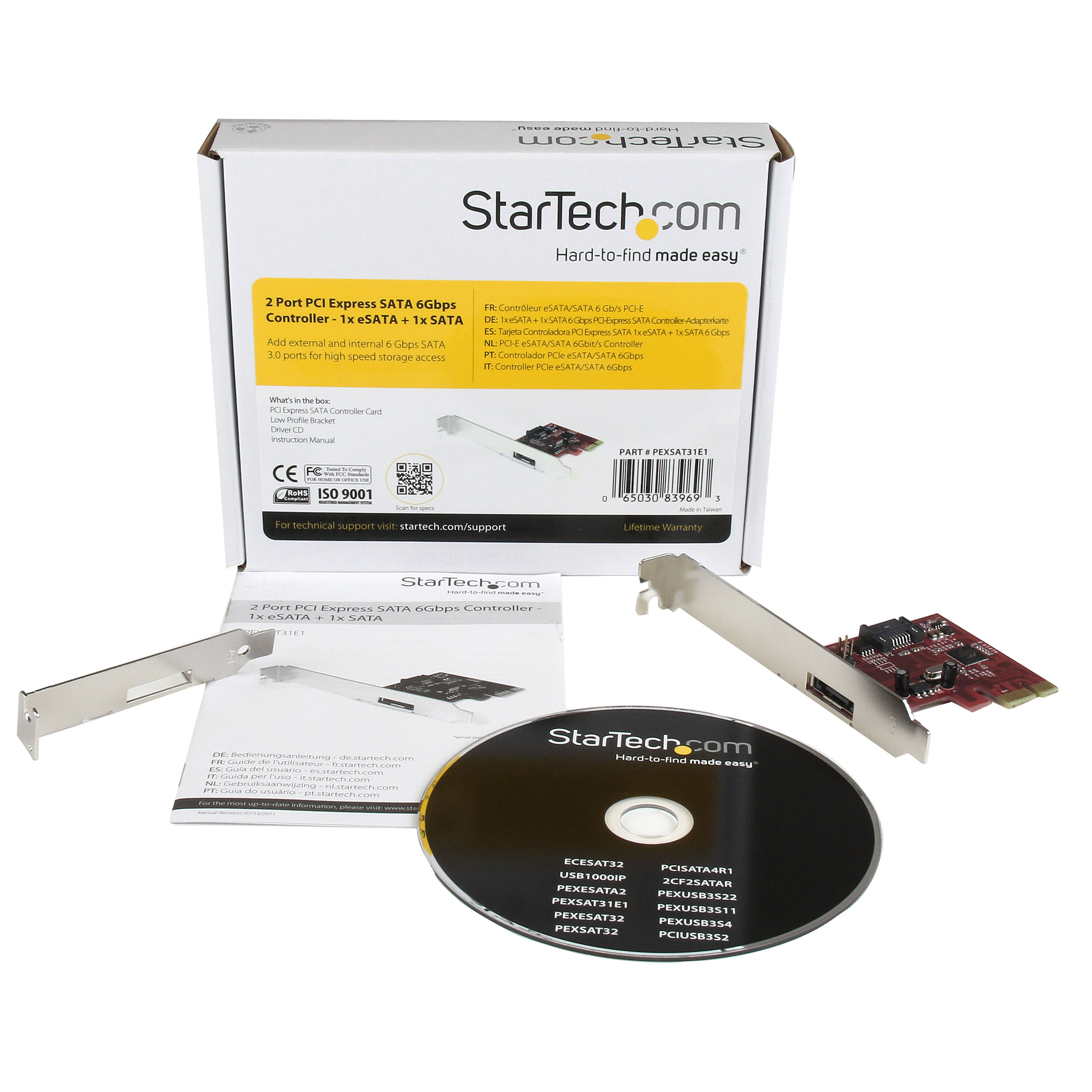

Carton Depth (mm) 385 Carton Height (mm) 320 Carton Quantity 60 Carton Weight Gross (g) 8400 Included in Package - 1 - PCI Express SATA Controller Card
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - Low Profile Bracket
Package Depth (mm) 174 Package Height (mm) 33 Package Width (mm) 144 Package Quantity 1 Package Weight (g) 123 Packaging Description PCIe eSATA/SATA 6Gbps Controller Packaging Description India PCIe eSATA/SATA 6Gbps Controller Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 eSATA (7-Pin) Connector 2 (Quantity) 1 Connector 3 SATA (7-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,CL,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle Legacy
