PEXSAT32

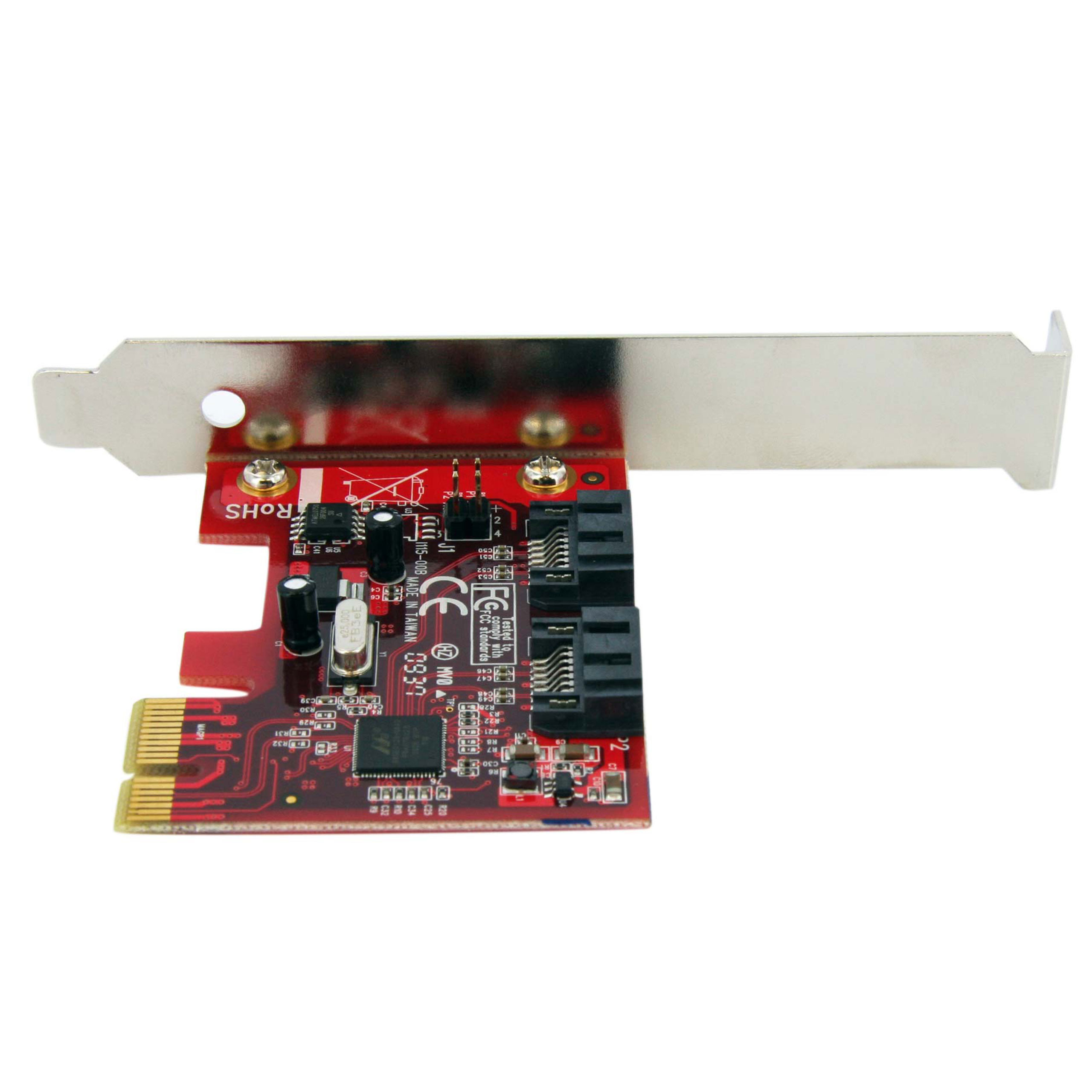

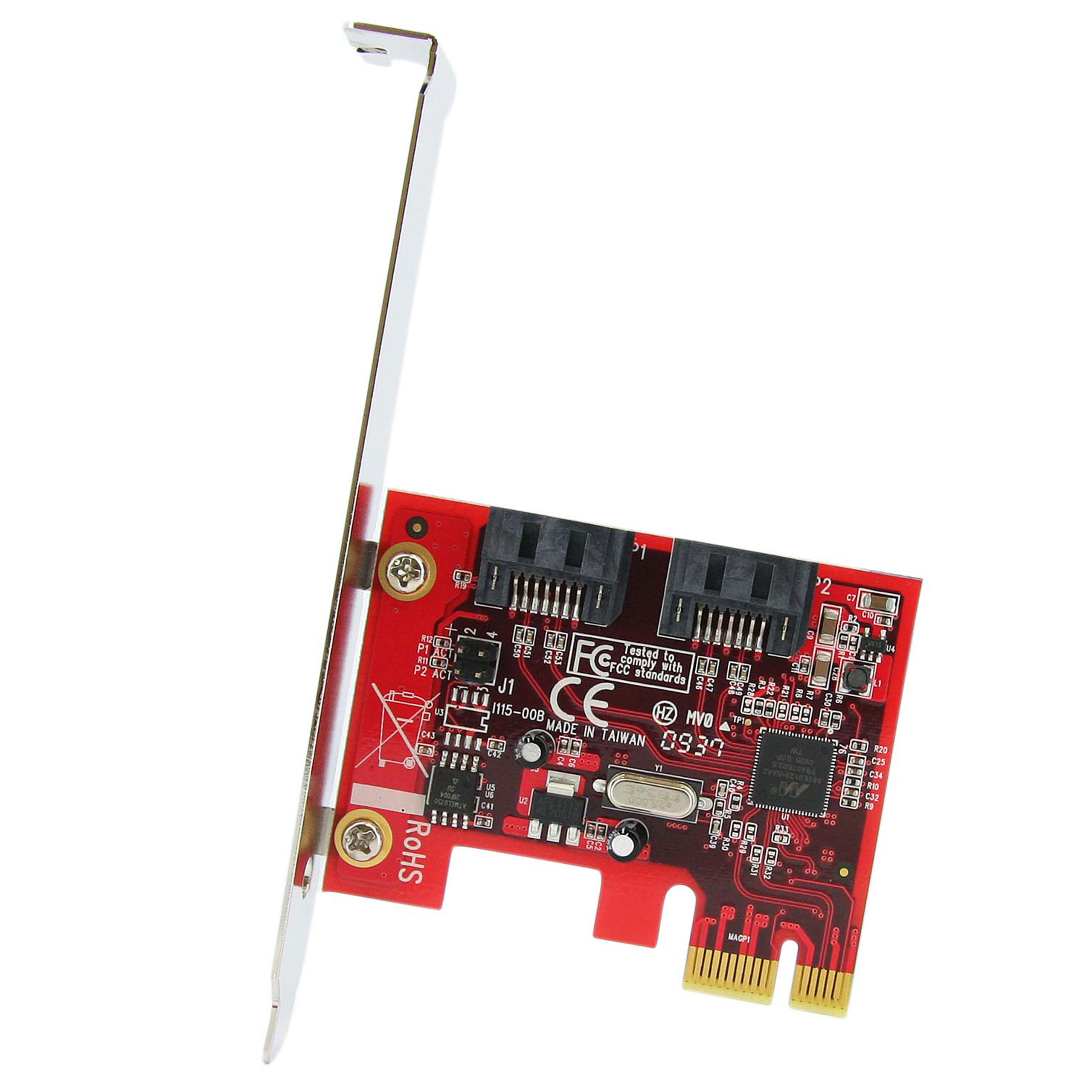

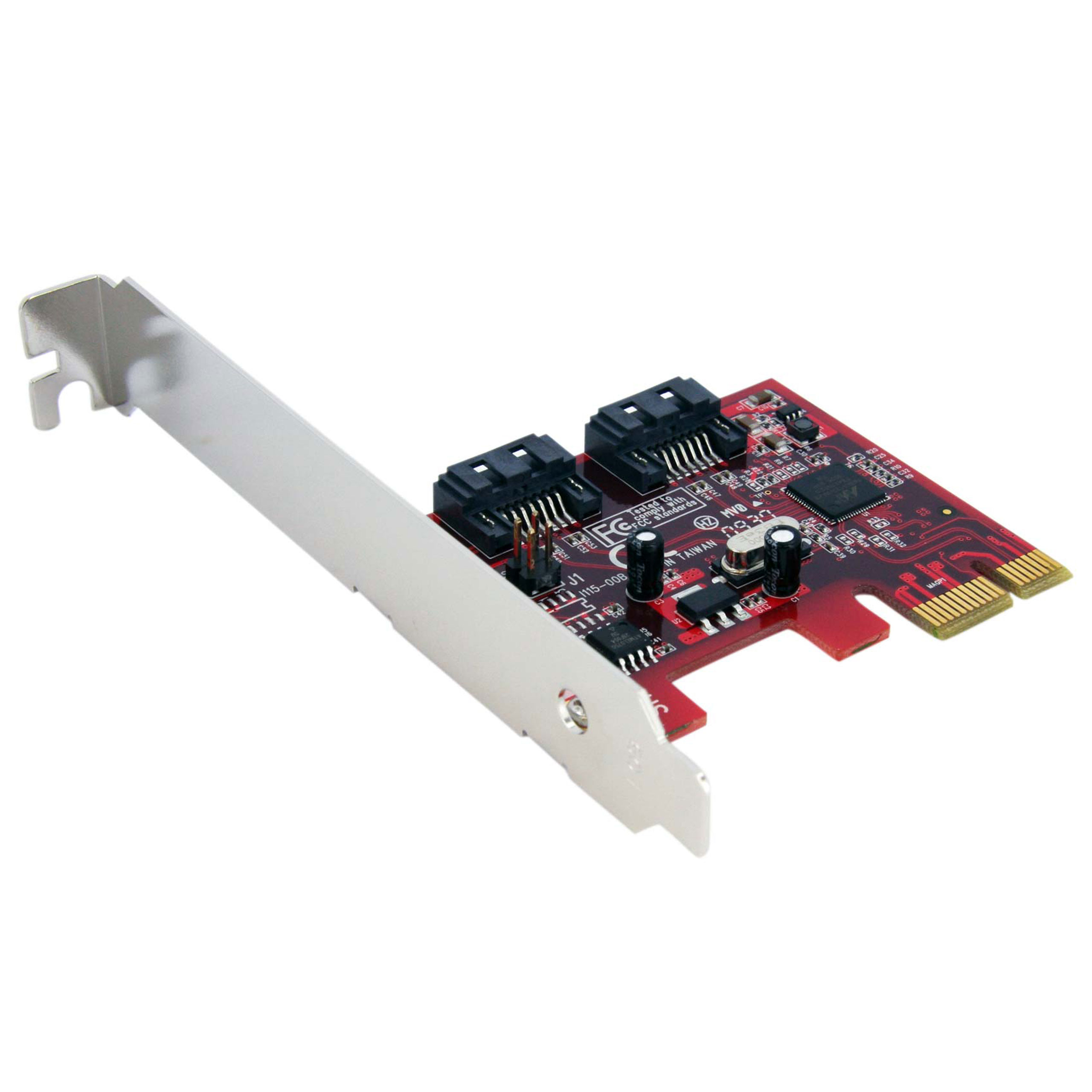

2 Port SATA Rev 3.0 PCIe SATA Controller Card
Add two SATA 6Gbps ports for high speed access to large internal storage solutions
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port SATA Rev 3.0 PCIe SATA Controller Card Product Number PEXSAT32 UPC 065030838955 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Family SATA Card RAID Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Short) 2 Port PCIe SATA 6 Gbps Controller Card Product Title (Medium) x Product Title (Standard) 2 Port SATA 6 Gbps PCI Express SATA Controller Card Product Title (Long) 2 Port SATA 6 Gbps PCI Express SATA Controller Card Product Title (AMZ) 2 Port SATA 6 Gbps PCI Express SATA Controller Card - Dual Port PCIe SATA III Card Adapter (PEXSAT32) Title Ingram (Part 1) 2 Port SATA 6 Gbps PCI Express S Title Ingram (Part 2) ATA Controller Card Website Product Headline Add two SATA 6Gbps ports for high speed access to large internal storage solutions Bullet 1 LED headers for HDD activity LED indicators Bullet 2 Compliant with PCI Express 2.0 standards Bullet 3 Port Multiplier FIS-based and Command-based switching supported Bullet 4 Ships with a full profile bracket install, low profile included Bullet 5 Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands Bullets (Consolidated) Add two SATA 6Gbps ports for high speed access to large internal storage solutions - 2-Port SATA 6 Gbps PCIe SATA Controller Card - 2-Port PCI Express SATA III 6Gbps RAID Controller Card - Dual Port PCIe SATA Card Adapter/SATA 3 Controller/SATA Adapter Card/RAID Card/Hard Drive Controller Adapter - Configured with a standard profile bracket and low-profile/half-height bracket included - Supports RAID 0 and 1 as well as port multiplier/Backward compatible with SATA I/II at 1.5/3.0Gbps Marketing Copy Applications - Add two internal SATA 6Gbps port for connecting SATA rev 3.0 (6Gbps) Hard Drives
- High performance internal SATA storage solution
- Multimedia streaming or video editing
- Perfect for multi-drive internal raid storage solutions
Website Search Keyword - eSATA
- PCI Express
- PCIe
- SATA 3
- SATA 6
- SATA 6Gbps
- SATA III
- SATA Rev 3
- Single Lane
- PEXSATA22I
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes - Alarm function is not supported in MSU software.
- Port Multiplier not supported in Mac OS®️
- The Marvell Storage Utility application requires macOS 10.9 to 10.14.
Accessory Products - LSATA12
- LSATA18
- LSATA24
- SATA18
- SATA24
- SATA36
- LSATA12RA1
- LSATA18RA1
- LSATA24RA1
- LSATA12RA2
- LSATA18RA2
- LSATA24RA2
Related Products - CBESAT2
- CBESATA2
- ECESAT32
- ECESATA1
- ECESATA22
- ECESATA254
- ECESATUSB1
- PCIESATA2I
- PEXESATA1
- PEXESATA2
- PEXESATA2I
- PEXSAT2IDE2
- PEXESAT32
- PEXSATA22I
- PEXSATA24E
- USB2ESATA
Constrained SKU Alternatives (Limited Stock) 2P6GR-PCIE-SATA-CARD Input Voltage 12V DC Output Voltage (V) 12V DC Humidity 15~90% RH Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 67.650 Product Width (mm) 64.500 Product Height (mm) 21.300 Product Weight (g) 33.000 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes Maximum Data Transfer Rate 6 Gbps OS Compatibility - Windows 8
- Linux
- Windows Server 2012
- Windows 7
- Windows 10
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- Windows Server 2022

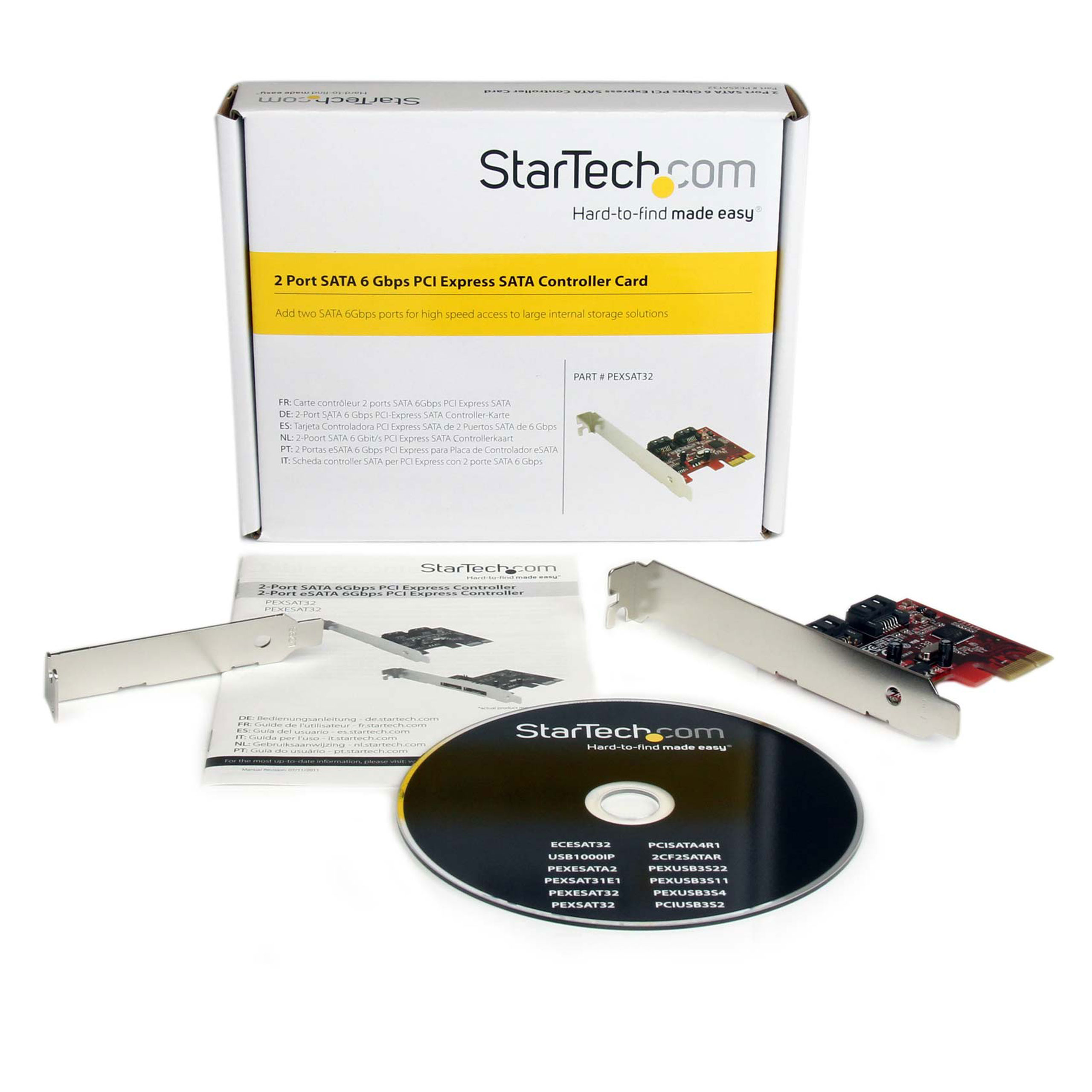

Port Multiplier Yes RAID Yes SATA Type and Rate SATA III (6 Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Marvell - 88SE9128 Interface/Bridge SATA Carton Depth (mm) 375 Carton Height (mm) 320 Carton Quantity 60 Carton Weight Gross (g) 8425 Included in Package - 1 - SATA 6Gbps PCI Express Card
- 1 - Driver CD
- 1 - Instruction Manual

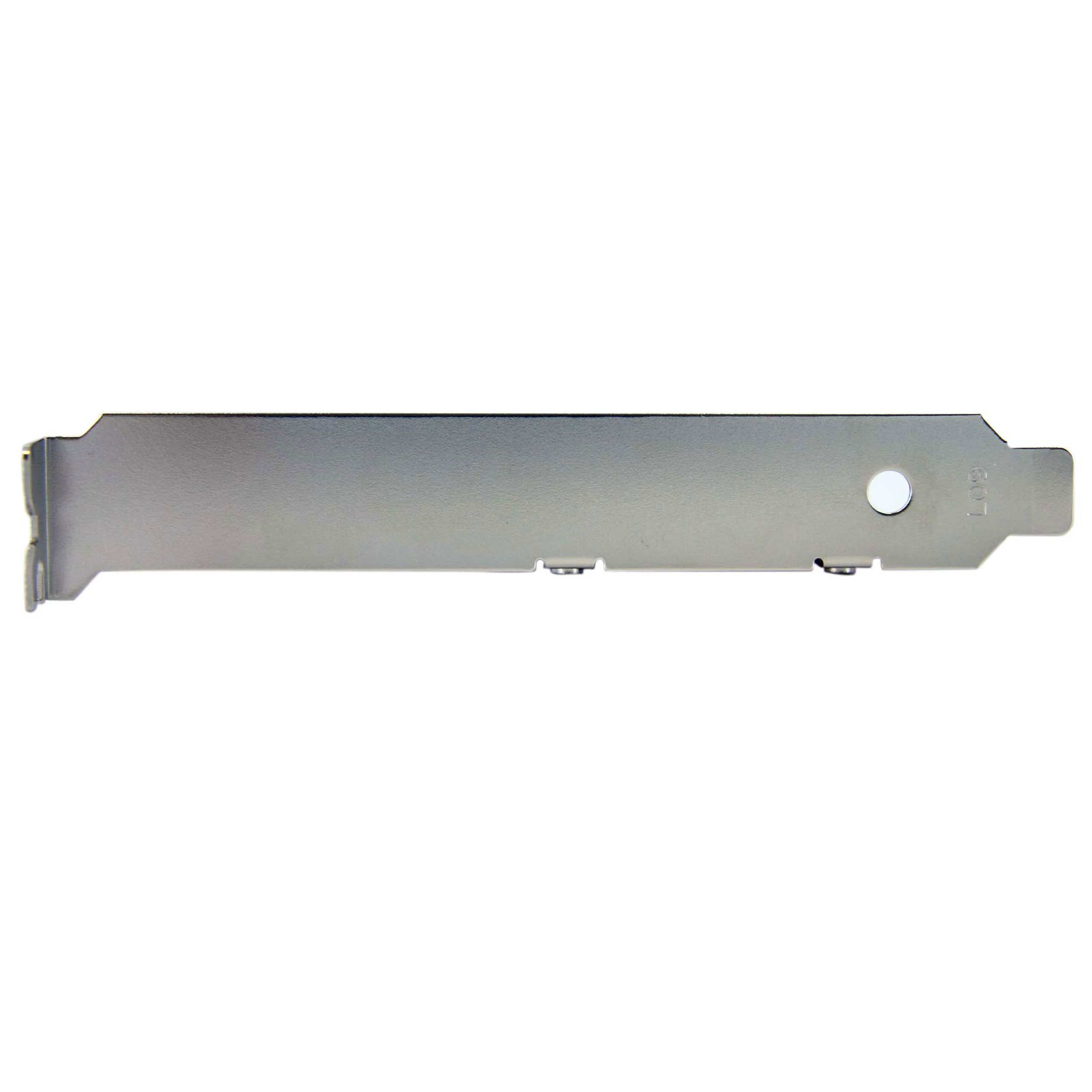

- 1 - Low Profile Bracket
Package Depth (mm) 145 Package Height (mm) 32 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 126 Packaging Description 2 Port SATA 6 Gbps PCI Express SATA Controller Card Packaging Description India 2 Port SATA 6 Gbps PCI Express SATA Controller Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 SATA (7-Pin) Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle None
