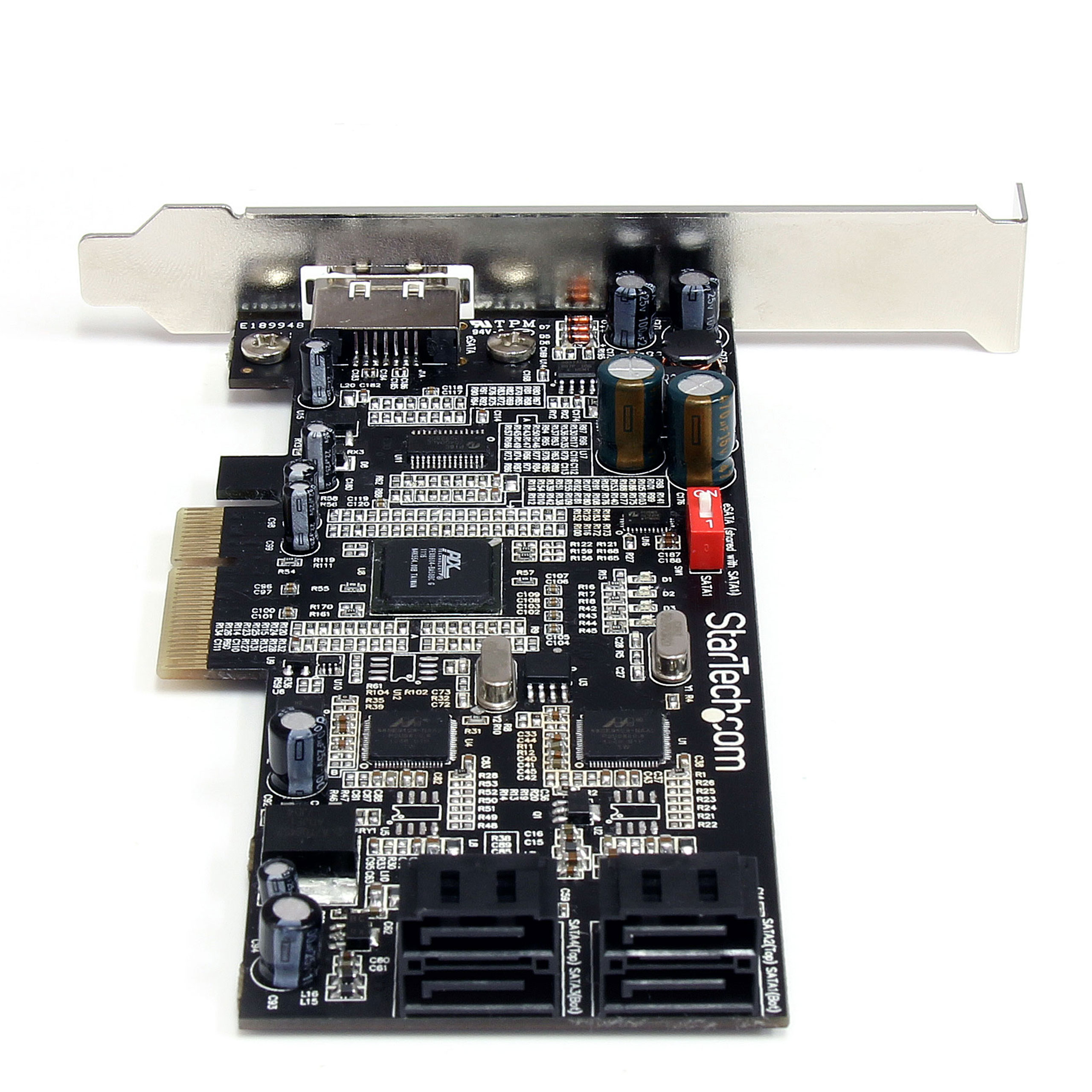

Main Image
PEXSAT34
PCI Express SATA III Controller - eSATA -6 Gbps - 4 Ports
Add 4 SATA 6Gbps ports to a computer through a PCI Express x4 slot
Main Image

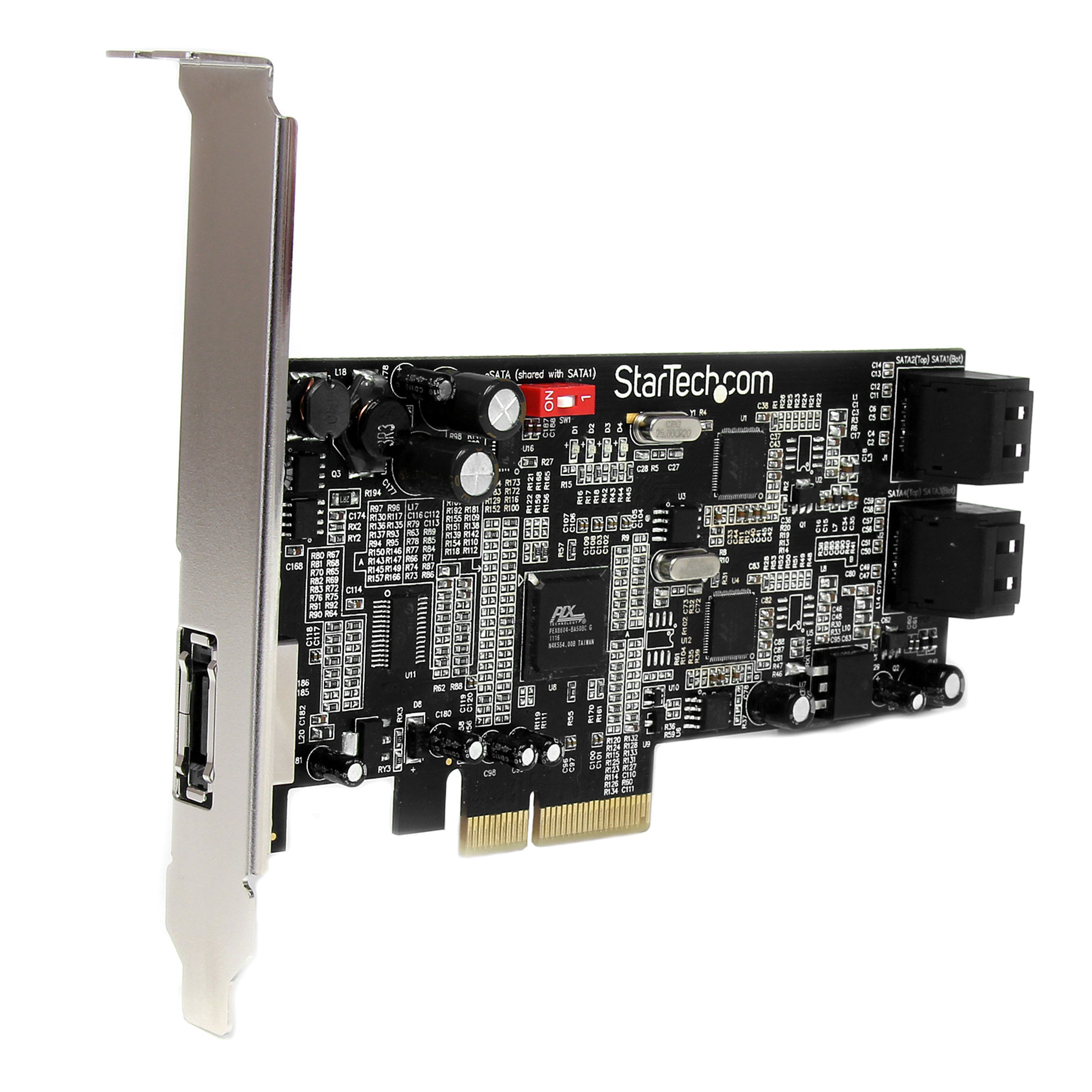

Product Images

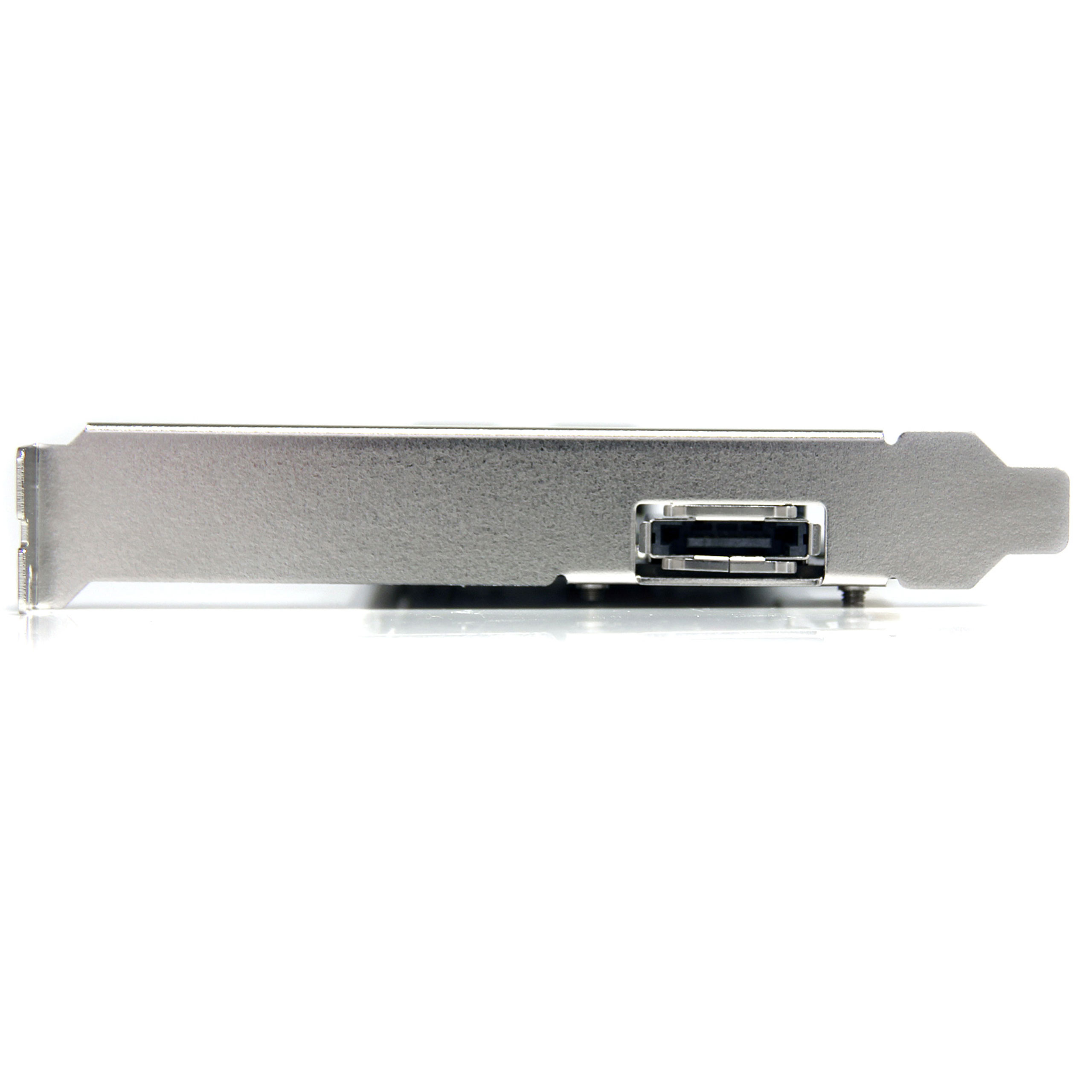

Product Images

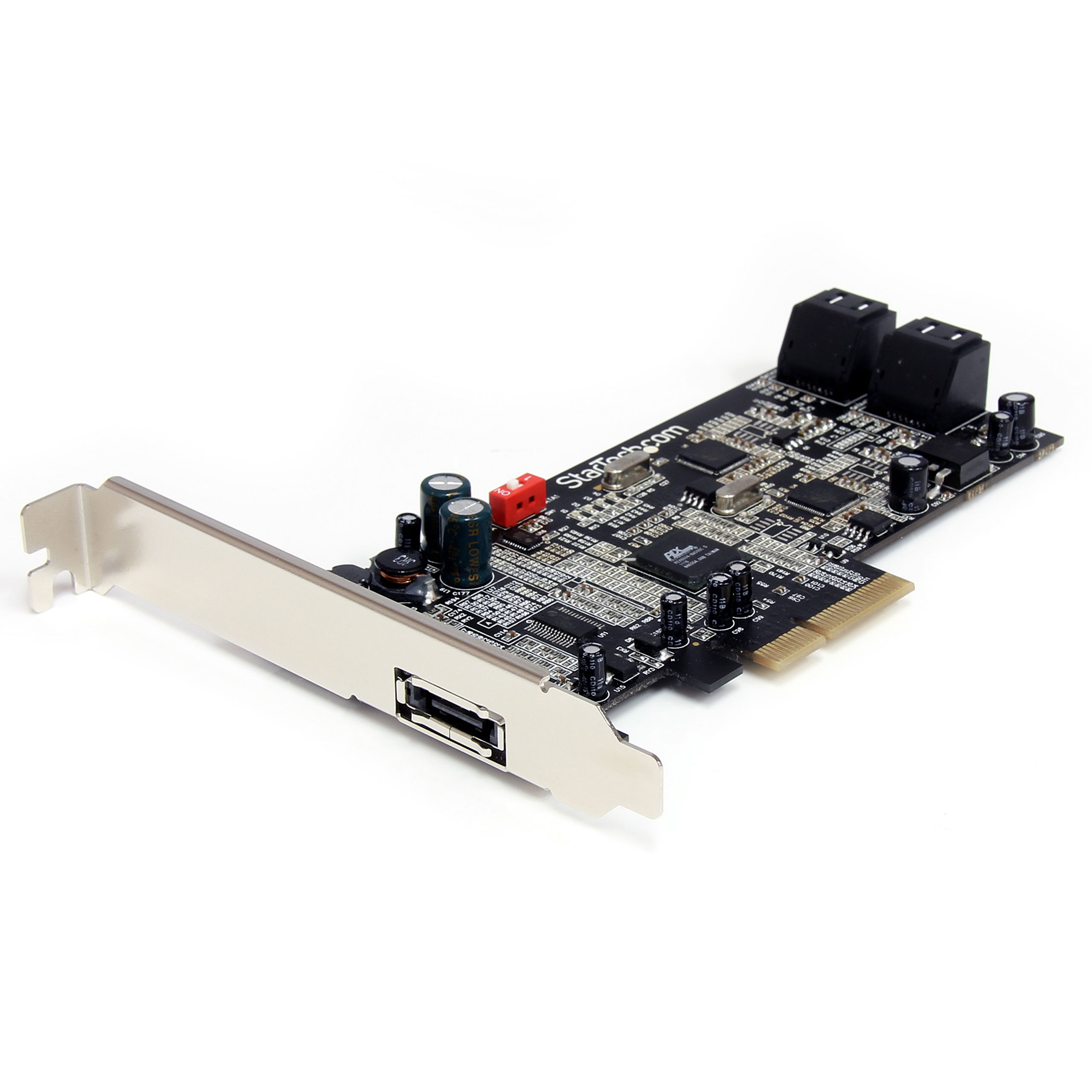

Product Images
BOM Image
Product Name PCI Express SATA III Controller - eSATA -6 Gbps - 4 Ports Product Number PEXSAT34 UPC 065030846790 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 4 Port PCIe SATA III Controller Card Product Title (Standard) 4 Port PCI Express SATA III (6Gbps) Controller Card w/ eSATA - PCIe x4 Product Title (Long) 4 Port PCI Express SATA III (6Gbps) Controller Card w/ eSATA - PCIe x4 Product Title (AMZ) 4 Port PCI Express SATA III (6Gbps) Controller Card w/ eSATA - PCIe x4 (PEXSAT34) Title Ingram (Part 1) 4 Port PCI Express PCIe SATA III Title Ingram (Part 2) Controller Card w/eSATA Website Product Headline Add 4 SATA 6Gbps ports to a computer through a PCI Express x4 slot Bullet 1 4 internal SATA ports with 1 shared eSATA port Bullet 2 Includes Low Profile/Half-Height installation bracket Bullet 3 Compliant with PCI Express 2.0 standards Bullet 4 Compliant with SATA revision 3.0, which can support up to 6Gbps of bandwidth Bullet 5 Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands Marketing Copy Applications - Upgrade an older PCIe-based system with SATA 6Gbps connectivity, to better utilize faster SATA drives
- Add more internal SATA ports to a computer system to connect additional storage drives and/or optical drives
- Add both internal and an external SATA port to a computer through a single PCI Express x4 slot
Website Search Keyword - SATA 6Gbps
- SATA 3.0
- SATA III
- eSATA
- SATA 600
Special Notes System and Cable Requirements x4 PCI Express slot Accessory Products - LSATA8
- LSATA18
- ESATA6
- SATARA18
- LSATA12
- SATA18LA1
- SATA18RA1
- ESATA3
Related Products - PEXSAT32
- PEXSAT31E1
- PEXESAT32
Replacement Product PEXSAT34RH Humidity 5% ~ 85% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 140 Product Width (mm) 68.5 Product Height (mm) 16 Product Weight (g) 72 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No OS Compatibility - Linux
- Windows 8
- Windows 7
- Windows Server 2012
- Mac OS X Mavericks (10.9)
- Mac OS X Yosemite (10.10)

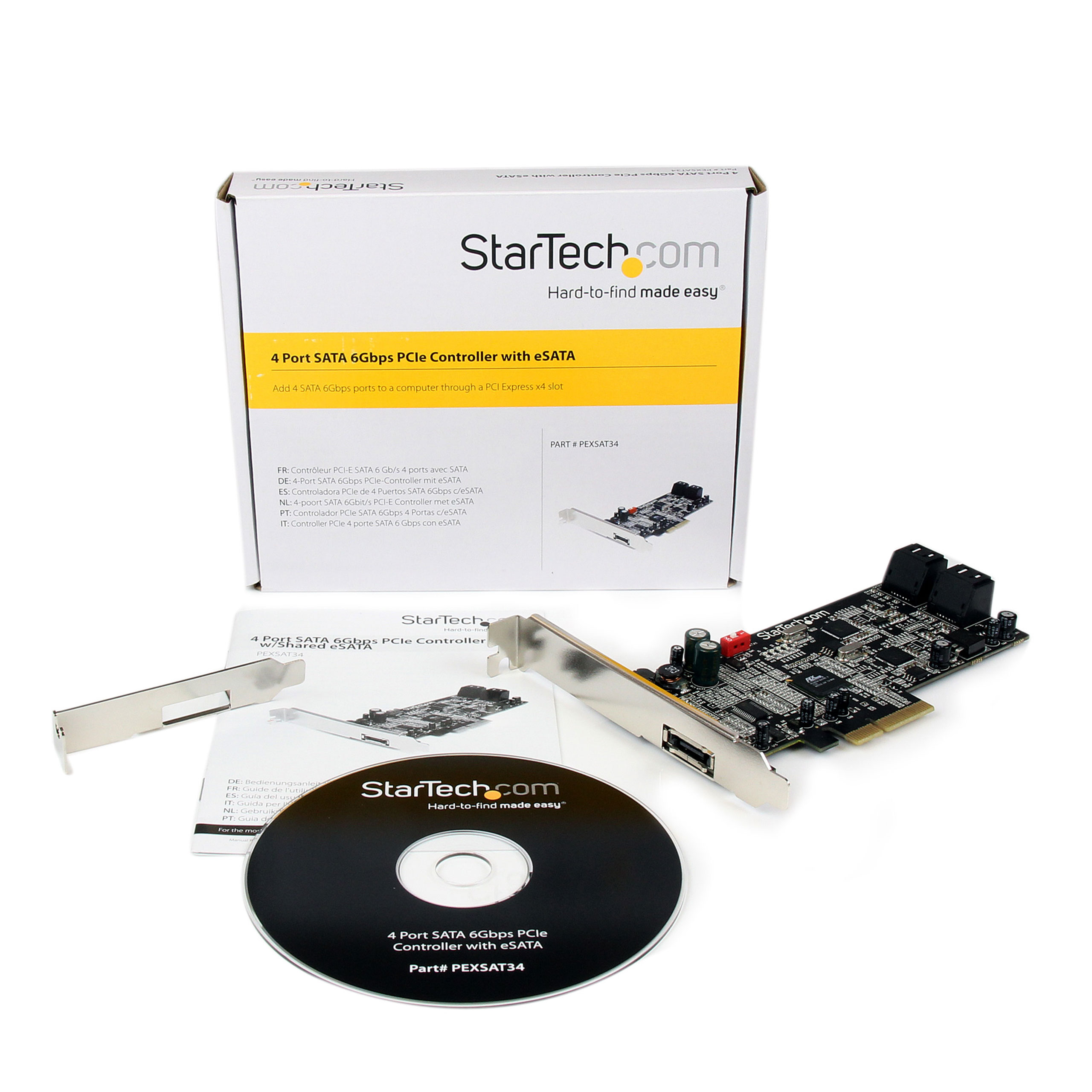

Port Multiplier Yes RAID No SATA Type and Rate SATA III (6 Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Interface/Bridge eSATA & SATA IO Card Port Style Integrated on Card Carton Depth (mm) 325 Carton Height (mm) 385 Carton Quantity 80 Carton Weight Gross (g) 13800 Included in Package - 1 - Instruction Manual
- 1 - PCI Express SATA Card
- 1 - Low Profile Bracket
- 1 - Driver CD
Package Depth (mm) 142 Package Height (mm) 30 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 160 Packaging Description 4 Port SATA 6Gbps PCIe Controller w/eSATA Packaging Description India 4 Port SATA 6Gbps PCIe Controller w/eSATA Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 eSATA (7-Pin) Connector 2 (Quantity) 1 Connector 3 SATA (7-Pin) Connector 3 (Quantity) 4 en-US Content Approved Yes Product Manager Rafal Gwozdz
