PEXSAT34SFF

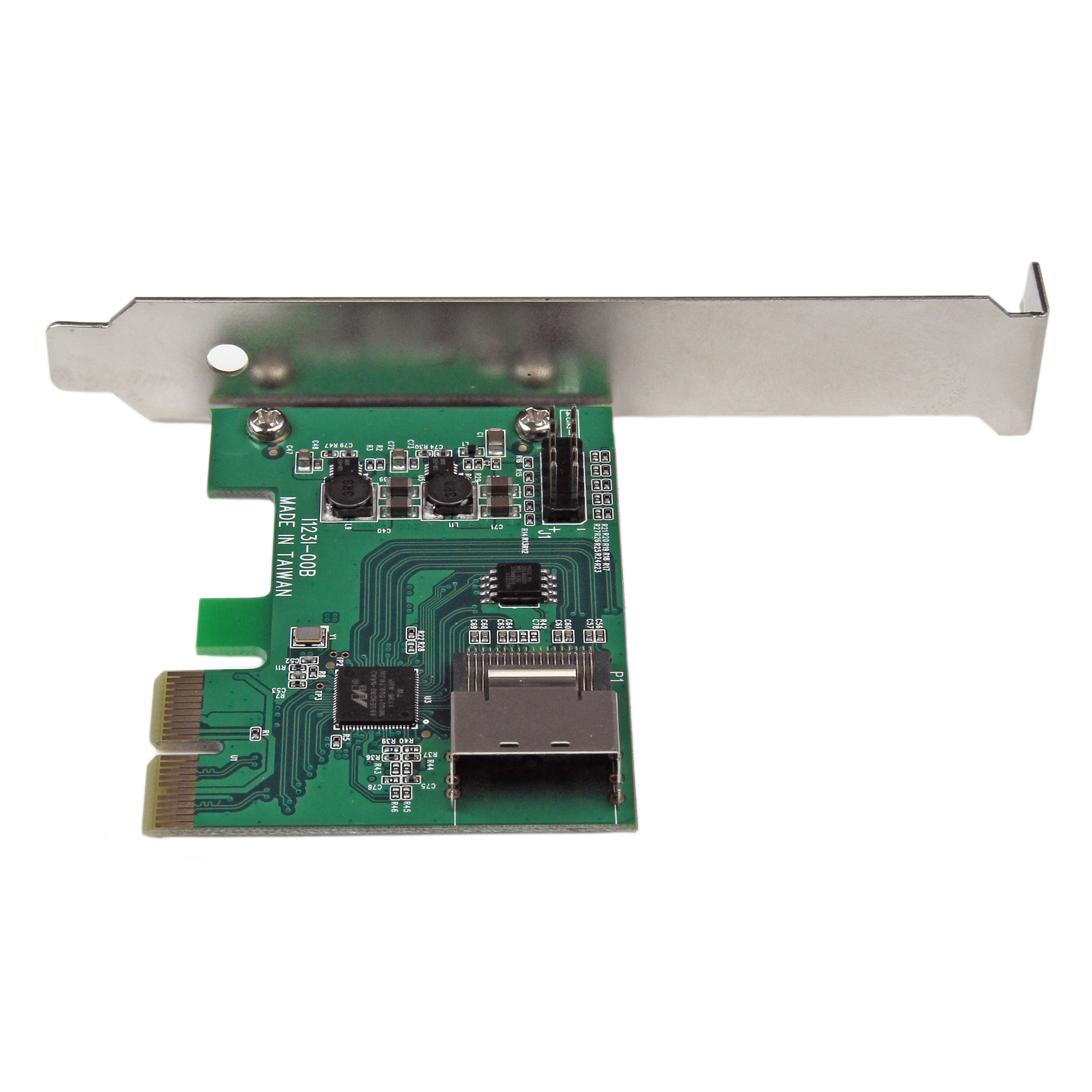

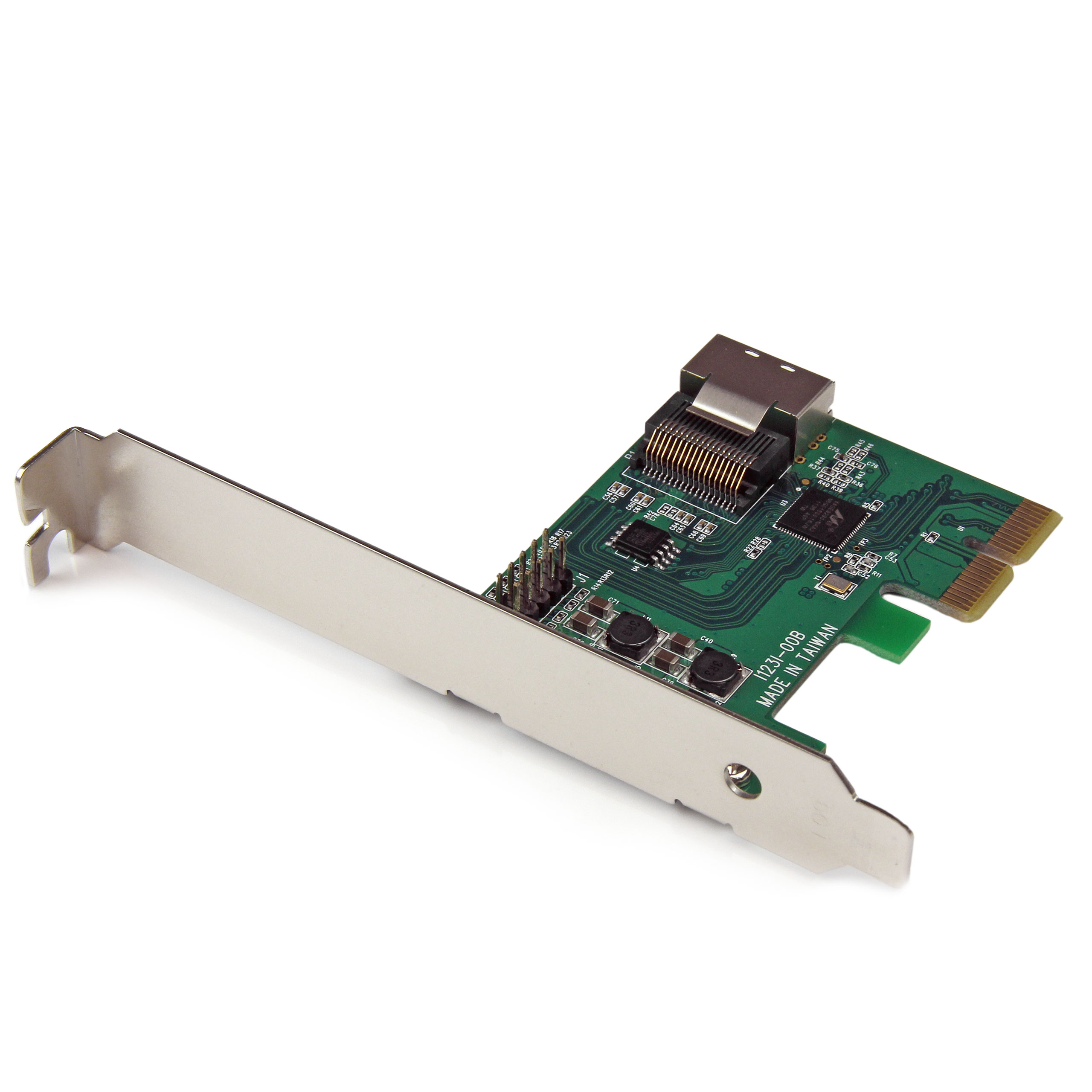

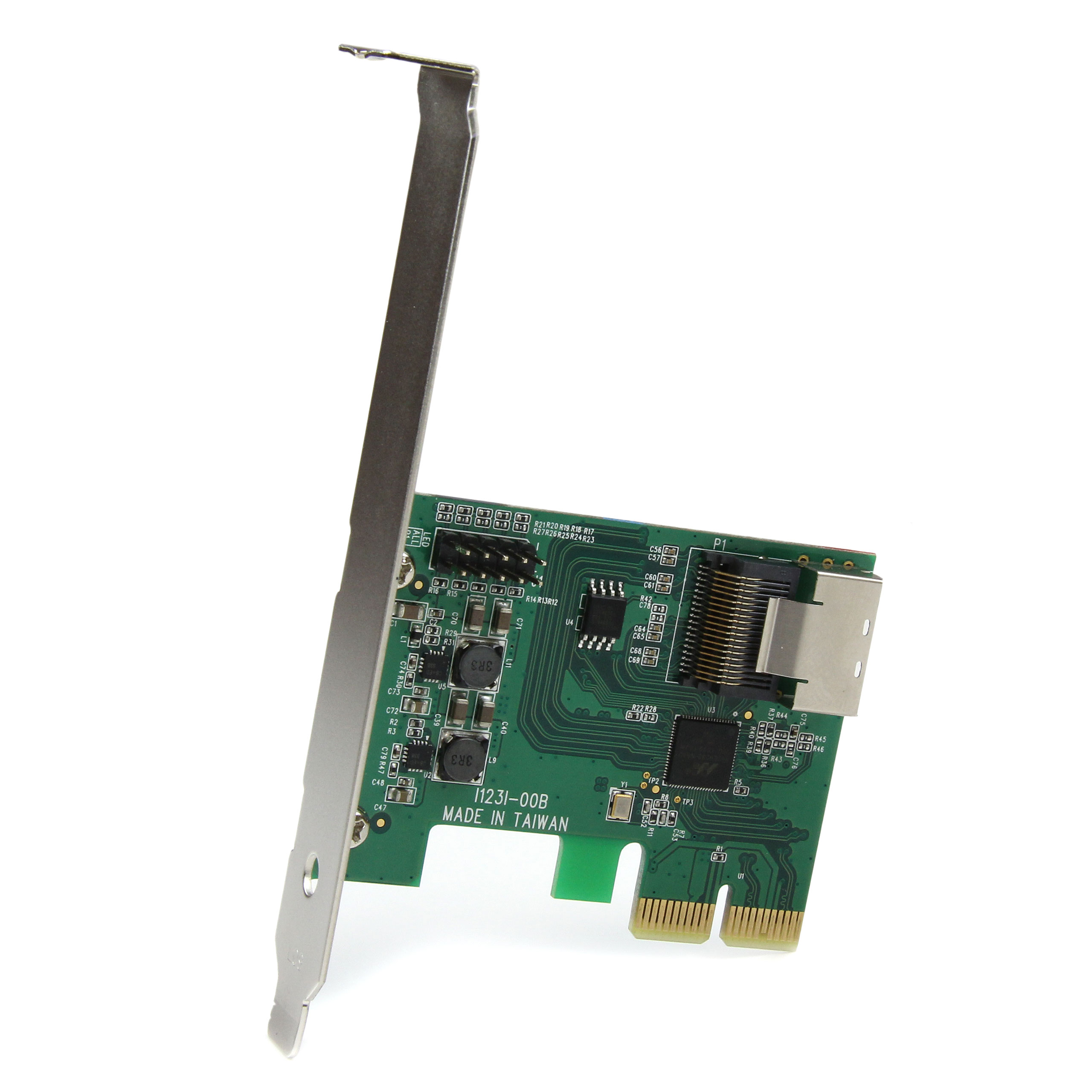

PCIe SATA 3 Controller Card with Mini-SAS SFF-8087
Add Internal SATA III (6Gbps) support to a computer through a single Mini SAS (SFF-8087) port
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name PCIe SATA 3 Controller Card with Mini-SAS SFF-8087 Product Number PEXSAT34SFF UPC 065030849975 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) PCIe SATA SAS Card Product Title (Short) PCIe 2.0 SATA III RAID Card w/ Mini-SAS Product Title (Medium) PCIe SATA III RAID Controller -Mini-SAS Connector SFF-8087 -HyperDuo SSD Tiering Product Title (Standard) PCI Express SATA III RAID Controller Card with Mini-SAS Connector (SFF-8087) - HyperDuo SSD Tiering Product Title (Long) PCI Express SATA III RAID Controller Card with Mini-SAS Connector (SFF-8087) - HyperDuo SSD Tiering Product Title (AMZ) PCI Express SATA III RAID Controller Card with Mini-SAS Connector (SFF-8087) - HyperDuo SSD Tiering - PCIe SATA 6Gb RAID Card (PEXSAT34SFF) Title Ingram (Part 1) PCI Express SATA 3 Title Ingram (Part 2) Card with Mini-SAS SFF-8087 Website Product Headline Add Internal SATA III (6Gbps) support to a computer through a single Mini SAS (SFF-8087) port Bullet 1 Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps) drives Bullet 2 Supports HDDs/SSDs/Optical/Blu-Ray drives Bullet 3 Compliant with PCI Express 2.0 standards Bullet 4 Port Multiplier FIS-based and Command-based switching supported Bullet 5 Supports Native Command Queuing (NCQ) and ATA/ATAPI commands Bullets (Consolidated) Add Internal SATA III (6Gbps) support to a computer through a single Mini SAS (SFF-8087) connector - PCI Express SATA Controller with HyperDuo SSD Tiering - PCIe SATA 6Gb - PCI Express SATA RAID Card - SATA III - Storage Controller (RAID) - Full/Low Profile Bracket Marketing Copy Applications - Upgrade a PCIe-based system with SATA 6Gbps connectivity (through a Mini SAS connector), to better utilize faster SATA drives
- Add more internal SATA ports to a computer system to connect additional storage drives and/or optical drives through an appropriate Mini-SAS adapter (listed under Accessories)
- Optimized for off-site backups, this RAID controller can be configured in RAID 1 (Mirrored) so that all information on the primary drive is copied to the secondary drive
- Perfect for multi-drive internal RAID storage solutions
- Use SSD tiering to optimize your system for I/O intensive applications such as Office Suites, Photo/Video Editing and Media Players
Website Search Keyword - pci express sata controller
- pci express sata raid card
- pci express sata 6gb
- pcie sata 6g
- 4 port pci express sata iii
- mini-sas
- sff-8087
- mini sas
- hyperduo
- ssd auto tiering
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Special Notes System and Cable Requirements - Available PCI Express x2 slot (backward compatible with x4, x8, and x16 slots)
- Mini-SAS SFF-8087 to SATA cable (not included)
Accessory Products - SAS8087S450
- SAS878750
- SAS8087S4100
- SATSAS425BK
- HSB430SATBK
- DRW115SATBK
- HSB320SATBK
Related Products - PEXSAT34RH
- PEXESAT322I
- PEXSATA24E
- PEXSAT31E1
- PEXSAT32
- PEXSAT34
Humidity 20% ~ 80% RH Operating Temperature 5°C ~ 50°C (41°F ~ 122°F) Product Length (mm) 70 Product Width (mm) 120 Product Height (mm) 20 Product Weight (g) 40 Storage Temperature -25°C ~ 70°C (-13°F ~ 158°F) TAA Compliant No Max Drive Capacity Currently tested up to 4TB per drive OS Compatibility - Windows 8
- Linux
- Mac OS X Mavericks (10.9)
- Windows Server 2012
- Windows 7
- Mac OS X Yosemite (10.10)
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Windows Server 2016
- Windows 11
- Windows Server 2022
- Windows Server 2019
Port Multiplier Yes RAID Yes SATA Type and Rate SATA III (6 Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Marvell - 88SE9230 Industry Standards - Serial ATA 3.0 specification
- PCI Express 2.0

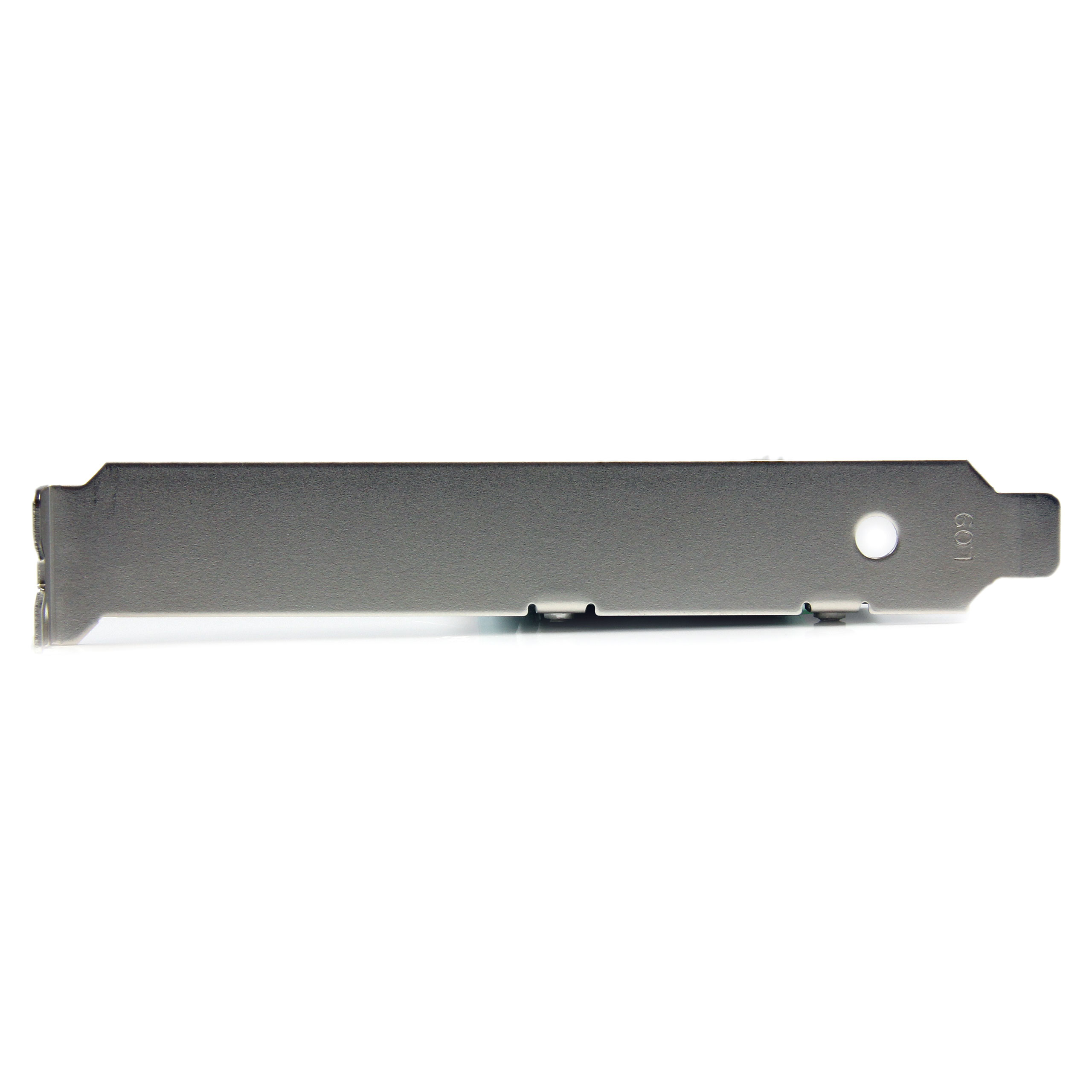

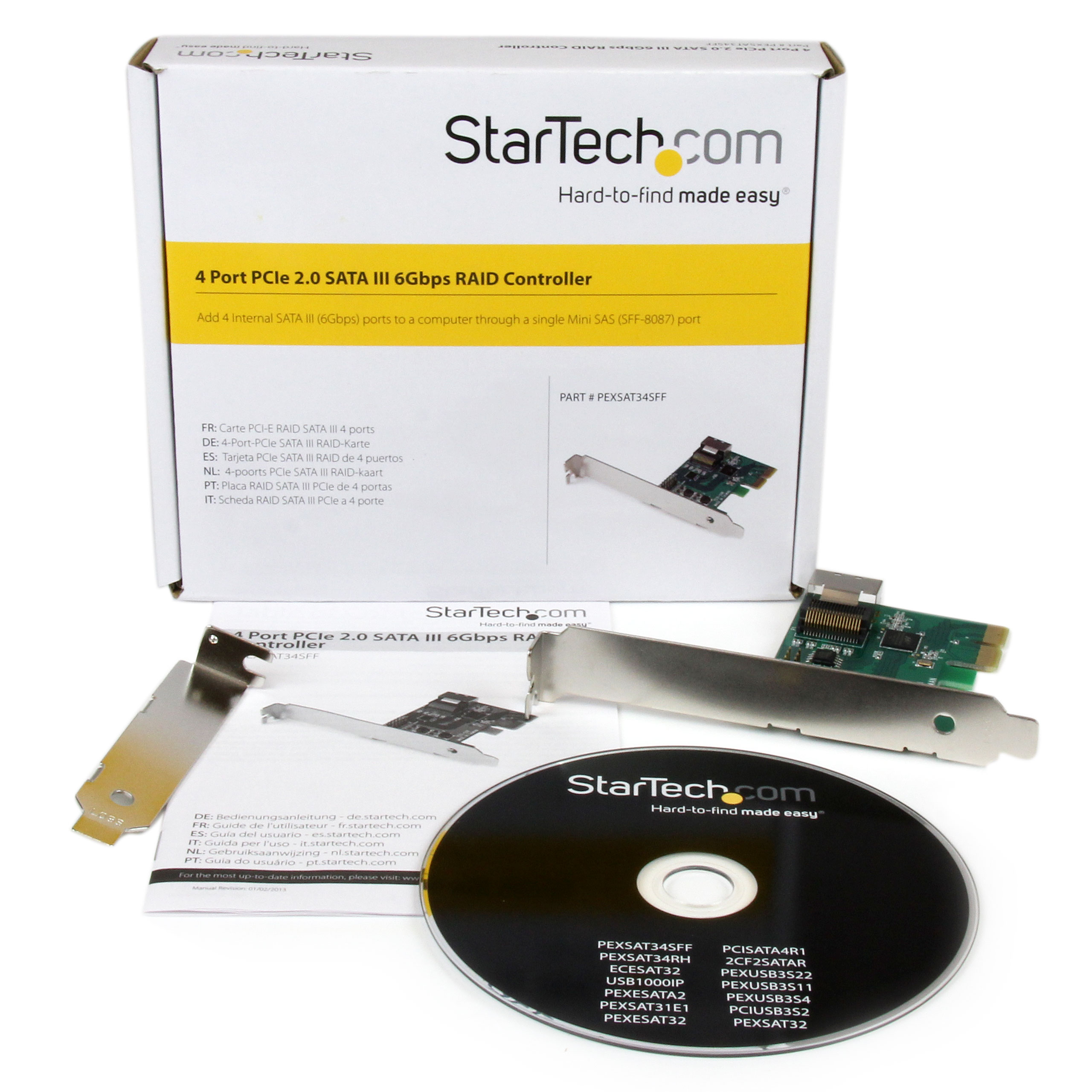

Interface/Bridge Mini-SAS IO Card Port Style Integrated on Card Carton Depth (mm) 330 Carton Height (mm) 250 Carton Quantity 30 Carton Weight Gross (g) 4644 Included in Package - 1 - Low Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - PCIe SATA Controller Card
Package Depth (mm) 145 Package Height (mm) 30 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 131 Packaging Description PCIe SATA III (SFF-8087) RAID Card w/ HyperDuo Packaging Description India PCIe SATA III (SFF-8087) RAID Card w/ HyperDuo Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x2 Connector 1 (Quantity) 1 Connector 2 SFF-8087 (36-Pin, SAS) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-02-13 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle Legacy
