PEXSATA22I

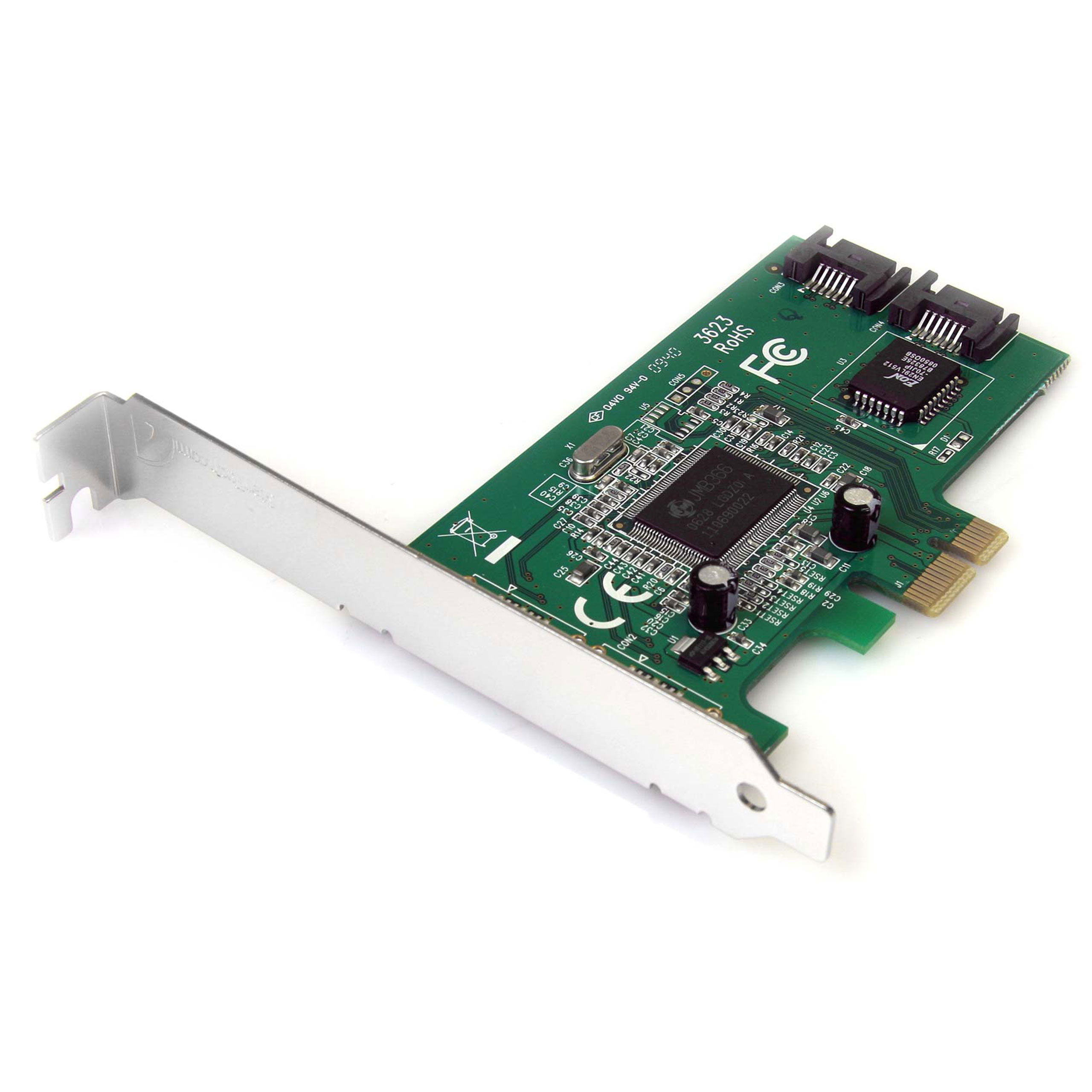

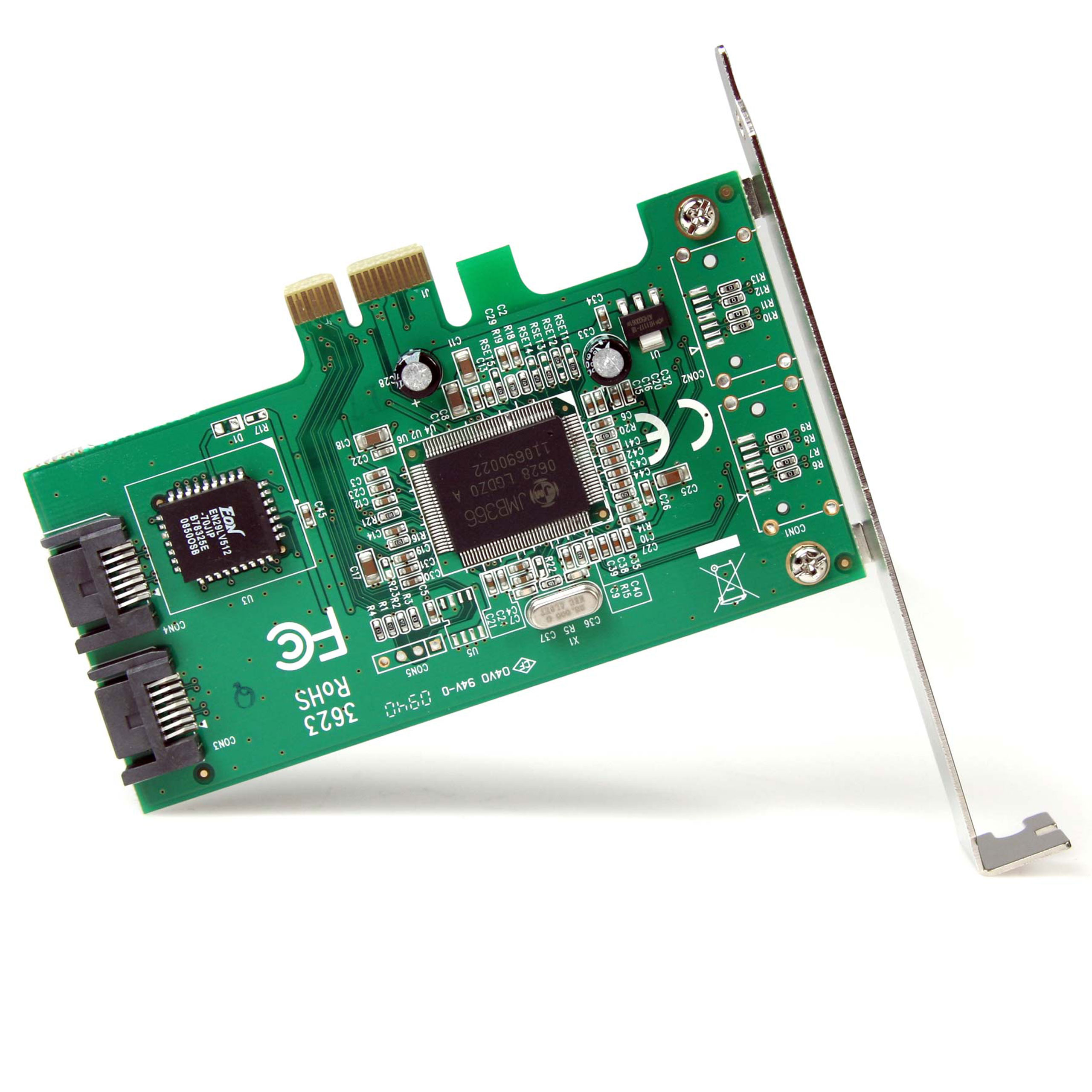

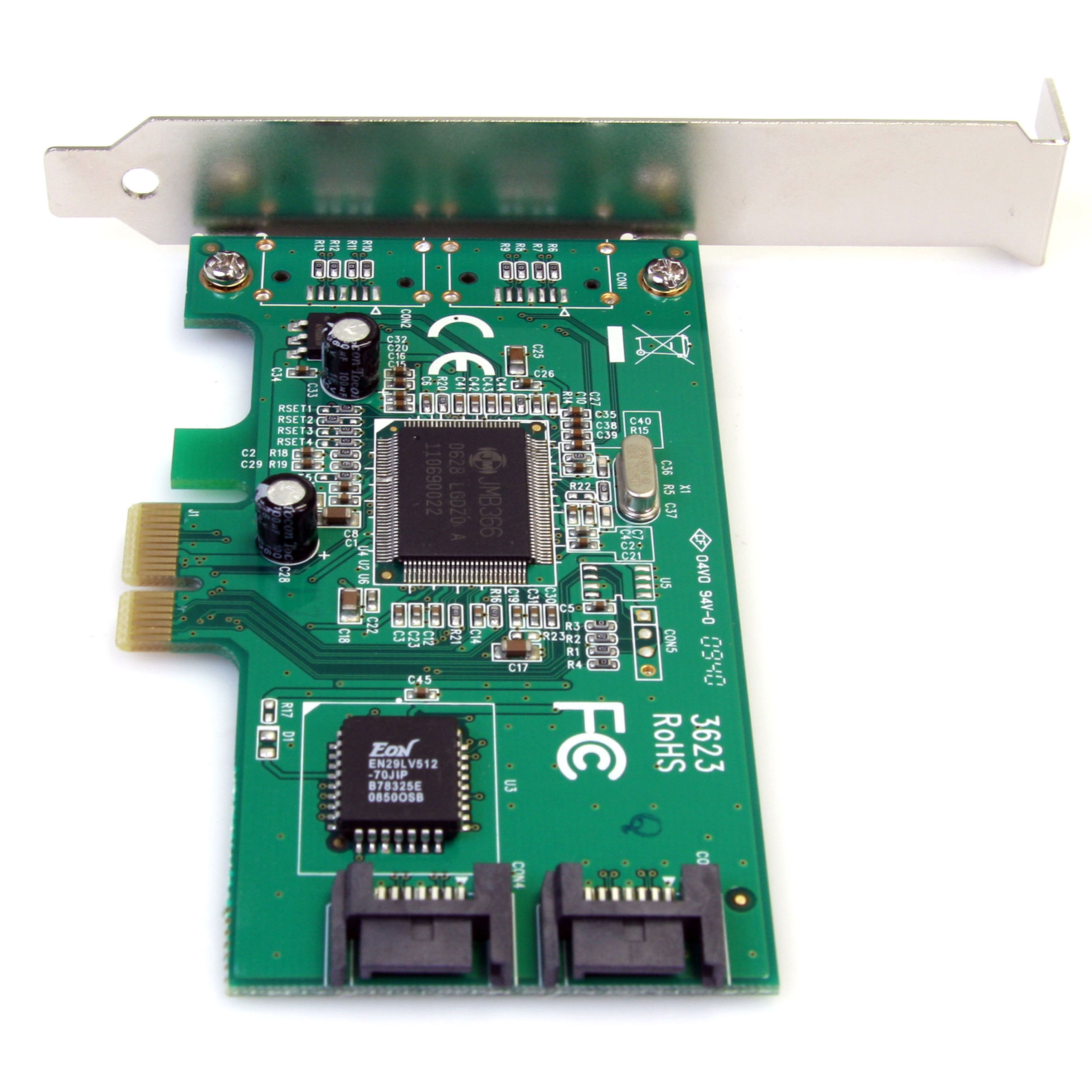

2 Port PCI-Express SATA Card
Add 2 internal SATA 2.0 ports to your desktop computer through a PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port PCI-Express SATA Card Product Number PEXSATA22I UPC 065030828000 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2 Port PCIe Internal SATA Card Product Title (Standard) StarTech.com 2-port PCI Serial ATA RAID Controller Product Title (Long) 2 Port PCI Express Internal SATA II Controller Card Product Title (AMZ) 2 Port PCI Express Internal SATA II Controller Card - SATA Controller - PCIe SATA - PCI Express SATA (PEXSATA22I) Title Ingram (Part 1) 2 Port PCI Express Internal SATA Title Ingram (Part 2) II Controller Card Website Product Headline Add 2 internal SATA 2.0 ports to your desktop computer through a PCI Express expansion slot Bullet 1 2 internal SATA ports Bullet 2 48-bit Logical Block Addressing (LBA) Bullet 3 Boot ROM enabled Bullet 4 Drive Hot-Plugging support Bullet 5 Support for Native Command Queuing Marketing Copy Applications - Add internal SATA capabilities for high speed storage to a workstation or server
- Upgrade from slower external connection methods to native SATA connectivity
- Expand on a full or low profile/small form factor (SFF) computer's storage capabilities
Website Search Keyword - SATA Controller
- 2 Port
- PCI Express
- Internal
- PCIe SATA
Special Notes 2.0 compliant/compatible with 2.0 slots for PCI Express Accessory Products - SATA18
- SATA24
- SATA36
Related Products - PEXESATA2I
- PEXESATA2
- PEXSATA24E
- PEXESATA1
Replacement Product PEXSAT32 Product Length (mm) 102.000 Product Width (mm) 120.000 Product Height (mm) 20.000 Product Weight (g) 44.200 TAA Compliant No Maximum Data Transfer Rate 3Gbps OS Compatibility - Linux
- Windows Server 2012
- Windows 8
- Windows 7

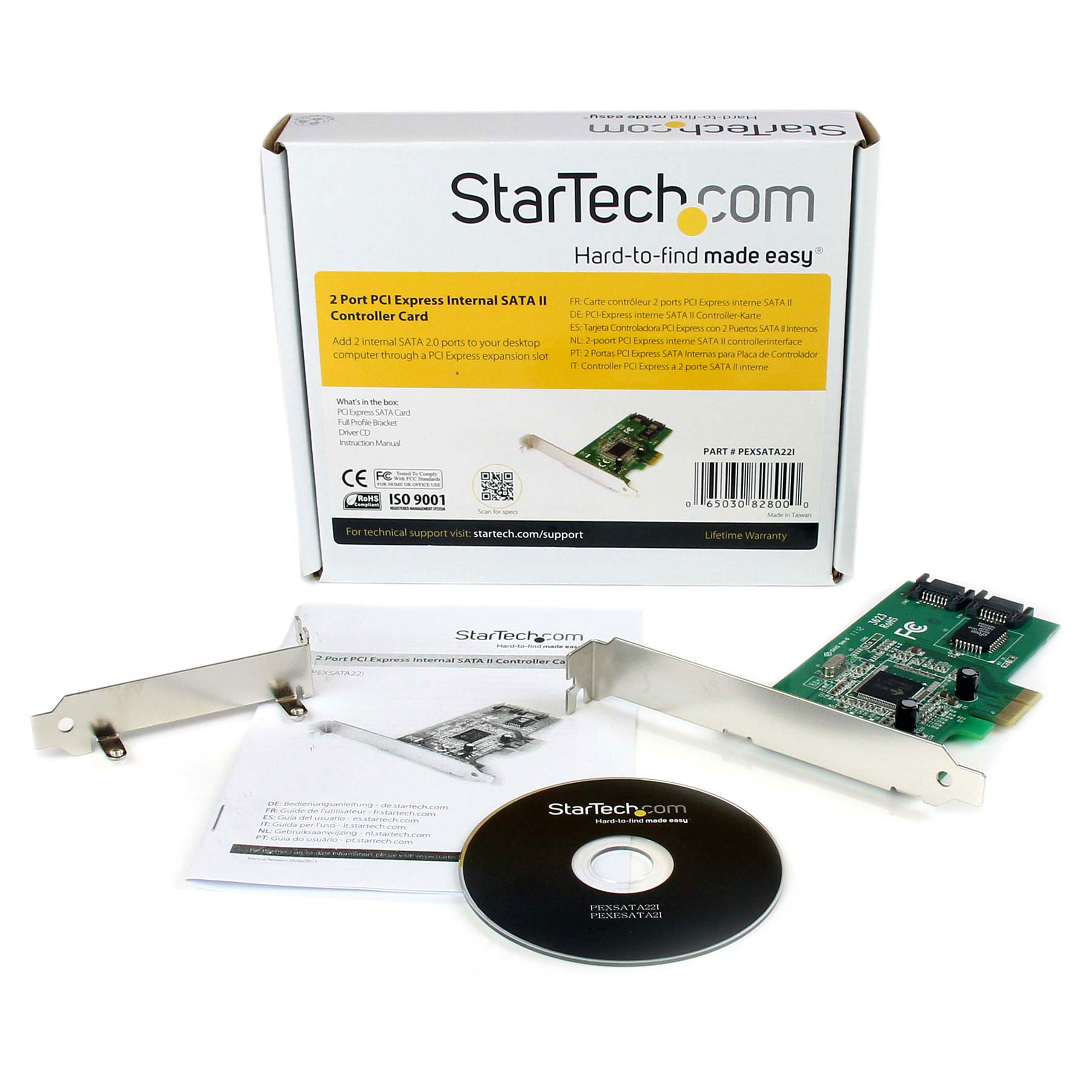

Port Multiplier No RAID Yes SATA Type and Rate SATA II (3 Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID JMicron - JMB363 Interface/Bridge SATA Carton Depth (mm) 500 Carton Height (mm) 350 Carton Quantity 40 Carton Weight Gross (g) 7200 Included in Package - 1 - PCI Express SATA Card
- 1 - Instruction Manual
- 1 - Driver CD

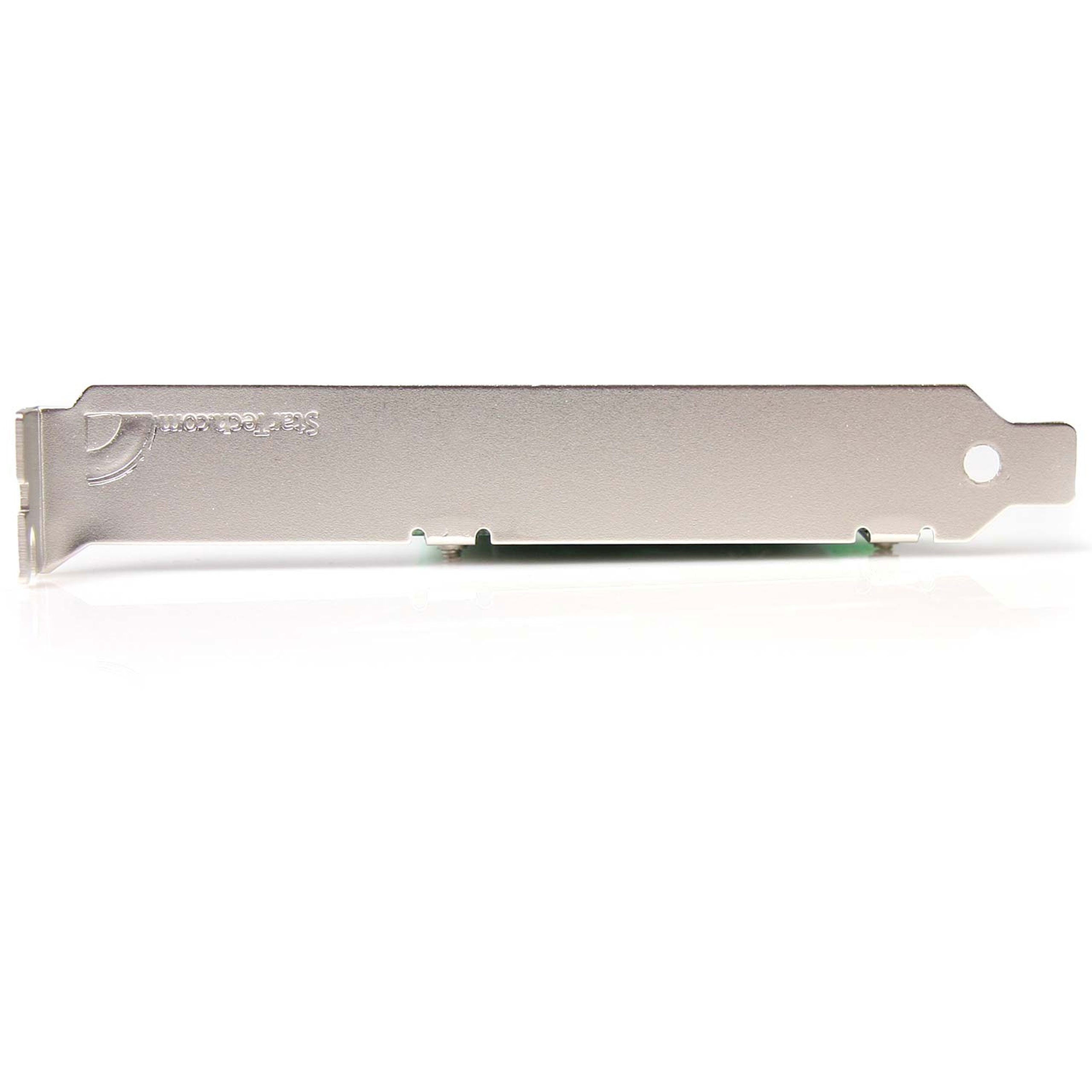

- 1 - Low Profile Bracket
Package Depth (mm) 41 Package Height (mm) 144 Package Width (mm) 208 Package Quantity 1 Package Weight (g) 120 Packaging Description 2 Port PCI Express Internal SATA II Controller Card Packaging Description India 2 Port PCI Express Internal SATA II Controller Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 SATA (7-Pin) Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-20 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle Legacy
