PEXSATA24E
4 Port PCI-E SATA Card (inc LP bracket)
Add 2 external SATA (eSATA) and 4 internal SATA ports to your desktop computer through a PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port PCI-E SATA Card (inc LP bracket) Product Number PEXSATA24E UPC 065030826105 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 2x eSATA 4x SATA PCIe Controller Card Product Title (Standard) StarTech.com 2 Port eSATA 4 Port SATA II PCI Express x4 SATA Controller Adapter Card - Storage controller - 4 Channel - SATA-300 - 300 MBps - PCI Express x4 Product Title (Long) 2 Port eSATA + 4 Port SATA II PCI Express x4 SATA Controller Adapter Card Product Title (AMZ) 2 Port eSATA + 4 Port SATA II PCI Express x4 SATA Controller Adapter Card - eSATA Controller - PCIe eSATA (PEXSATA24E) Title Ingram (Part 1) 2 Port eSATA 4 Port SATA PCIe SA Title Ingram (Part 2) TA Controller Adapter Card Website Product Headline Add 2 external SATA (eSATA) and 4 internal SATA ports to your desktop computer through a PCI Express expansion slot Bullet 1 Four independent SATA channels Bullet 2 Two permanent internal SATA ports, with two switchable internal/external SATA ports Bullet 3 Fully Compliant with Serial ATA 1.0a specifications with transfer rates up to 3.0 Gbps Bullet 4 Support for Native Command Queuing Bullet 5 Support for Port Multiplier technology Marketing Copy Applications - Upgrade an older IDE system with SATA capabilities
- Add additional SATA ports to an existing system for expandability
- Upgrade from connecting external storage devices with USB 2.0 to faster eSATA
Website Search Keyword - PCI-E
- SATA
- PCI-E to SATA
- SATA Card
- Port Multiplier
- eSATA SATA Serial ATA controller
- PCIe
Accessory Products - SATA18
- SATA24
- SATA18RA1
- SATA24RA1
- SATA36RA1
- SATARA24
- SATARA36
Related Products - PEXSATA22
- PEXSAT2IDE2
- PCISAT2IDE1
Product Length (mm) 100 Product Width (mm) 18 Product Height (mm) 68 Product Weight (g) 59 TAA Compliant No Maximum Data Transfer Rate 300 Mbps OS Compatibility - Windows 2000
- Windows XP
- Windows Vista
- Linux
- Windows Server 2003
- Windows 7
- Windows Server 2008 R2
- Windows 8

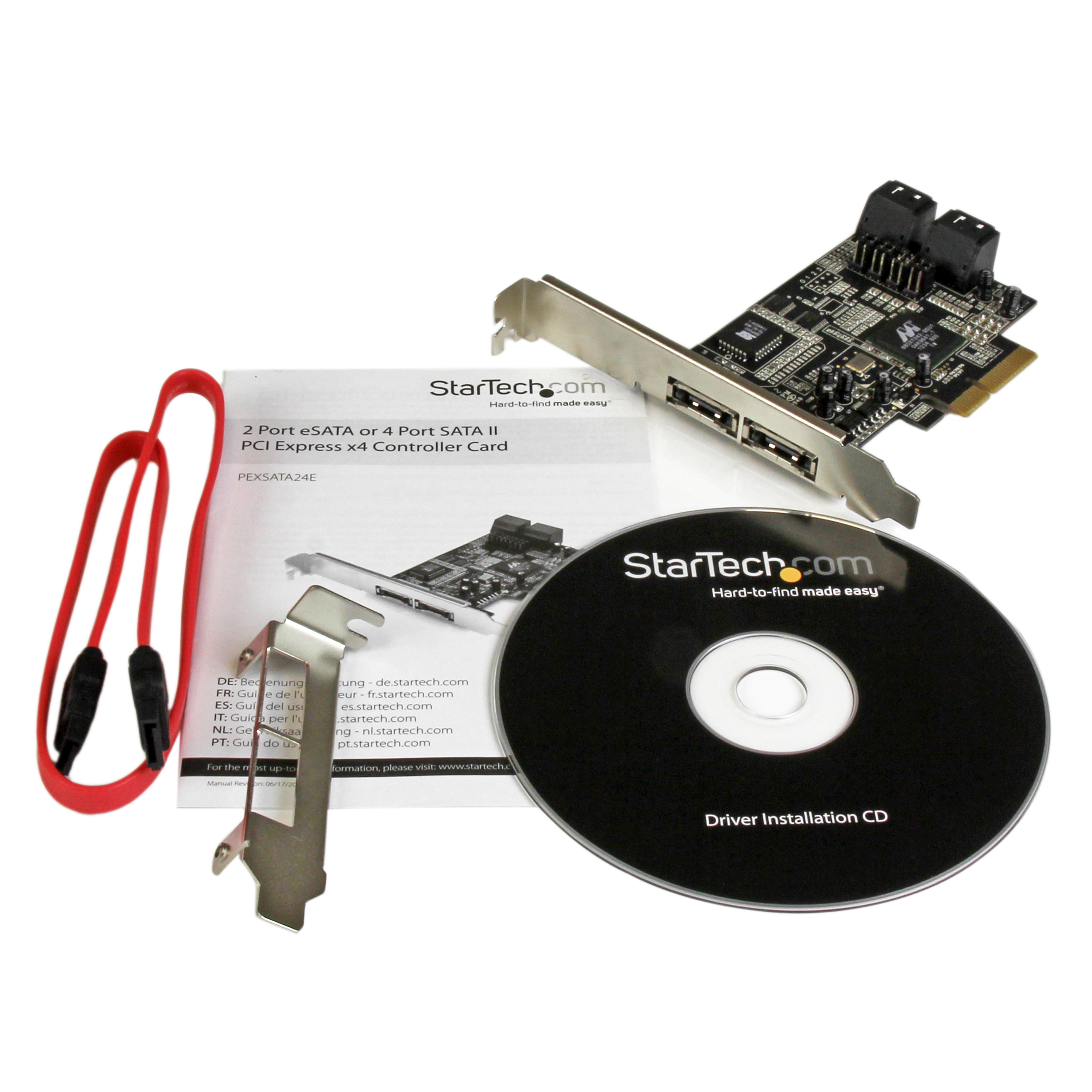

Port Multiplier Yes RAID No SATA Type and Rate SATA II (3 Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Marvell - 88SX7042 Interface/Bridge eSATA & SATA Carton Depth (mm) 500 Carton Height (mm) 350 Carton Quantity 40 Carton Weight Gross (g) 15600 Included in Package - 1 - PCI Express SATA Controller Card
- 1 - Driver CD
- 1 - SATA Cable
- 1 - Instruction Manual
- 1 - Low Profile bracket
Package Depth (mm) 142 Package Height (mm) 28 Package Width (mm) 172 Package Weight (g) 180 Packaging Description 2x eSATA or 4x SATA PCIe Controller Packaging Description India 2x eSATA or 4x SATA PCIe Controller Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 eSATA (7-Pin) Connector 2 (Quantity) 2 Connector 3 SATA (7-Pin) Connector 3 (Quantity) 4 en-US Content Approved Yes Product Manager Rafal Gwozdz
