PEXUS313AC2V
4 Port PCI Express USB 3 1 Gen 2 Controller Card 3xA 1xC

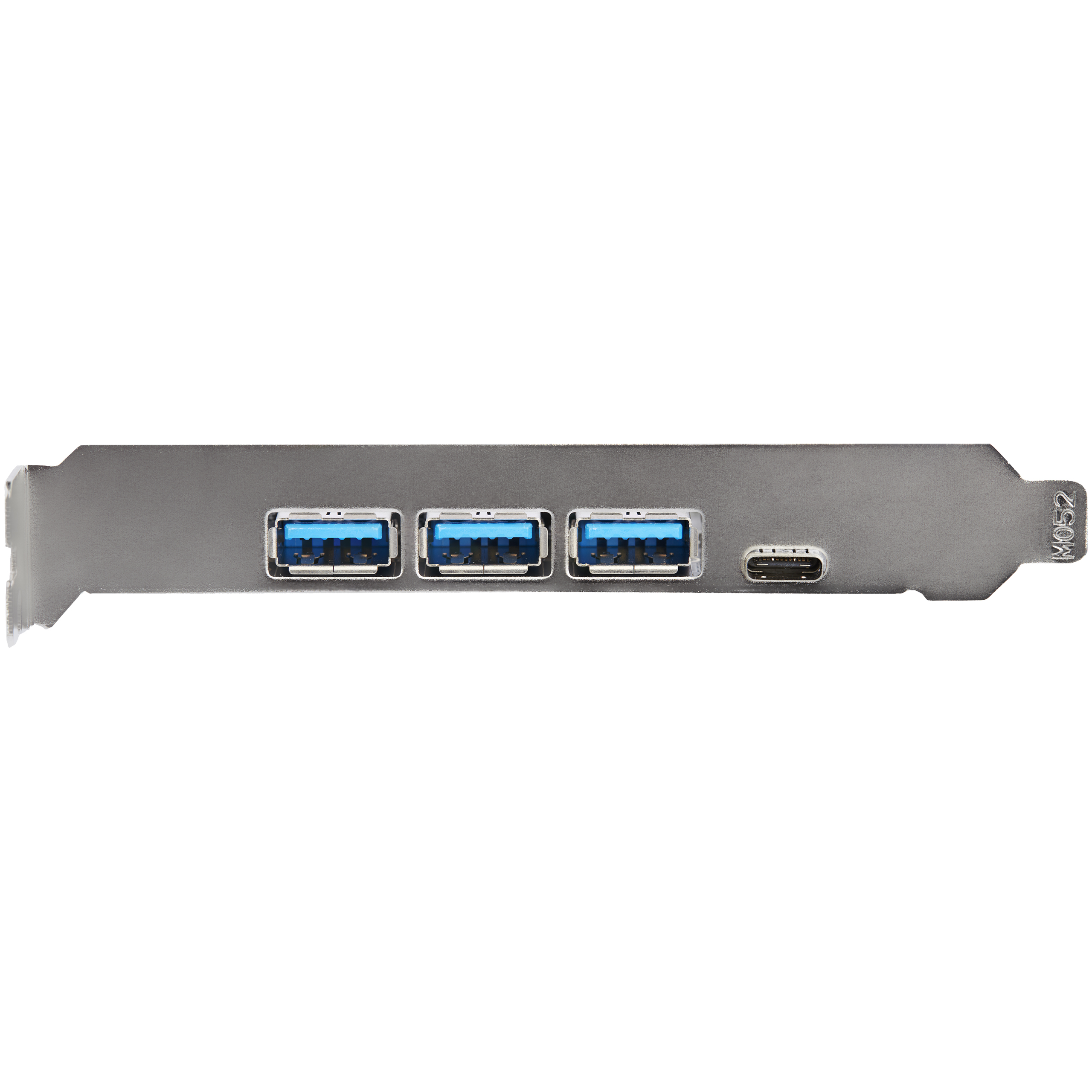

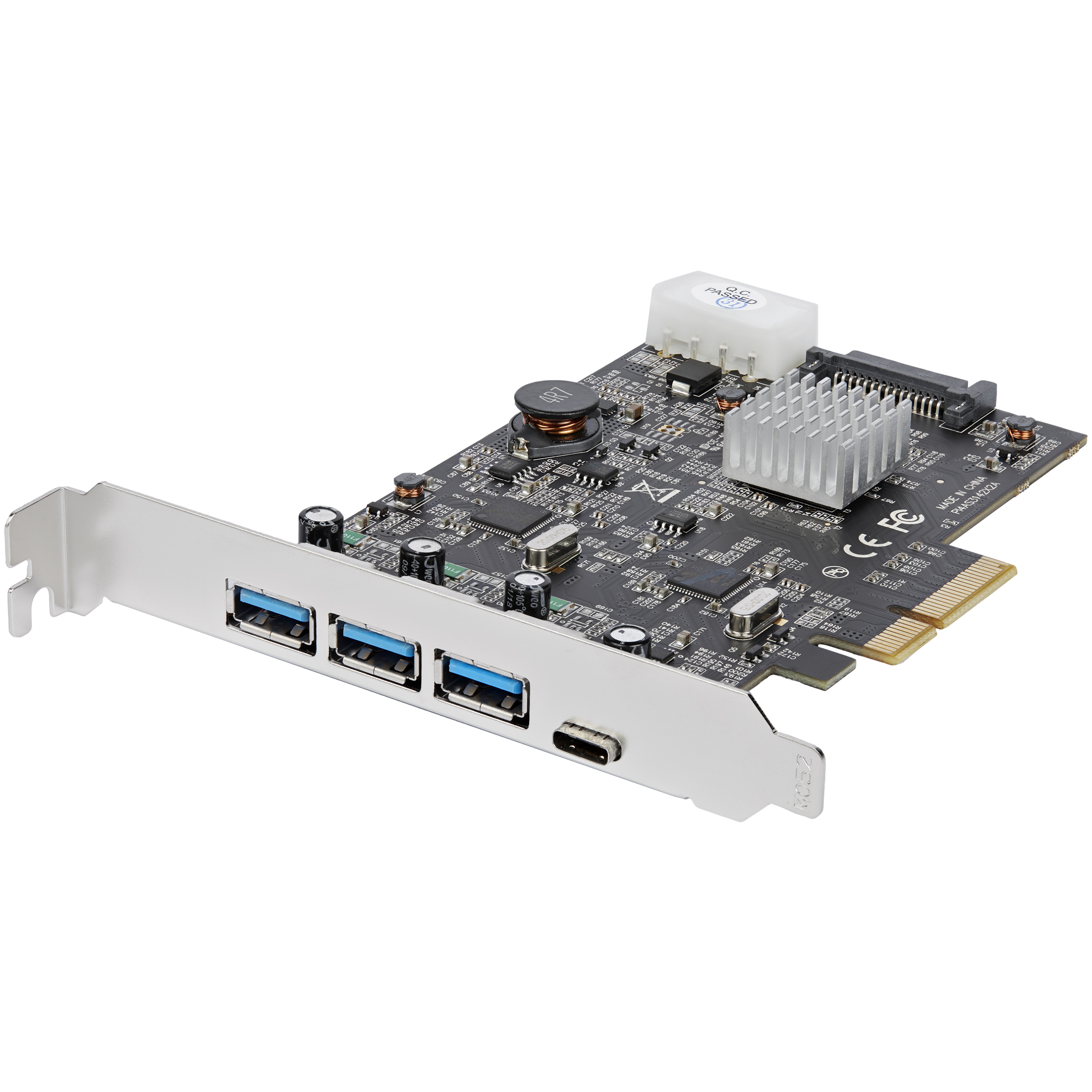

Add three USB-A ports and one USB-C port, via two host controllers, through a standard PCI Express slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 4 Port PCI Express USB 3 1 Gen 2 Controller Card 3xA 1xC Product Number PEXUS313AC2V UPC 065030878012 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 10Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Ultra-Short) USB 3.1 Card-10Gbps Product Title (Short) USB 3.1 Card 4 Pt PCIe USB A & C - 2 CH Product Title (Medium) 4-Port USB 3.1 PCIe Card - 10Gbps - 3x USB-A and 1x USB-C - 2 Dedicated Channels Product Title (Standard) 4 Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels - USB C PCIe Card - USB 3.1 - 10Gbps - USB 3.1 TypeC Product Title (Long) 4-Port USB 3.1 PCIe Card - 10Gbps - 3x USB-A and 1x USB-C - 2x Dedicated Channels Product Title (AMZ) USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels - USB C PCIe Card - USB 3.1 Controller Card - 10Gbps (PEXUS313AC2V) Title Ingram (Part 1) 4Port USB 3.1 PCIe Card - 3x Title Ingram (Part 2) USB A & 1x USB C - 2 10Gbps CH Website Product Headline Add three USB-A ports and one USB-C port, via two host controllers, through a standard PCI Express slot Bullet 1 Add three USB-A and one USB-C external USB 3.2 Gen 2 ports on two independent bus channels Bullet 2 Transfer files and access USB 3.2 Gen 2 devices faster, with up to 10Gbps throughput Bullet 3 Connect large external storage solutions: optional LP4 or SATA power connector provides up to 900mA per USB port Bullet 4 Add room for more devices on your current system Bullet 5 Compatible with older USB 3.2 Gen 1 and USB 2.0 devices Bullets (Compact) Add three USB-A ports and one USB-C port, via two host controllers, through a standard PCI Express slot - USB C PCI-E controller card with optional LP4 or SATA power connector provides up to 900mA per port - USB 3.1 Type C PCIe Card with UASP Bullets (Consolidated) Add three USB-A ports and one USB-C port via two host controllers through a standard PCI Express slot - PCIe to USB 3.2 Gen 2 card is perfect for PC upgrades or builds - Expand the USB capabilities of your system with four new USB ports - Works with older USB 3.2 Gen 1 and 2.0 devices - USB C PCI-E controller card w/ optional LP4 or SATA power connector provides up to 900mA per port - USB 3.2 Gen 2 Type C PCIe Card with UASP - USB C PCI-E card/4 Port USB 3.2 Gen 2 Card/USBC Expansion Card/USB 3.2 Gen 2 PCIe Card Marketing Copy Applications - Upgrade an older PCIe equipped desktop from USB 3.0/2.0 to USB 3.2 Gen 2 (10Gbps)
- Expand the USB capabilities of your system with four additional USB ports, or add the card to a new PC build
- Ideal for file backups, video editing, and data recovery, using high-bandwidth USB 3.2 Gen 2 external storage solutions
Website Search Keyword - 4 port usb 3.1 card
- pci express usb 3.1 card
- pcie to usb
- pcie to usb 3.1
- pcie to usb c
- pcie to usb type c
- pcie usb hub
- usb 3.0 gen 2
- usb 3.1 adapter card
- usb 3.1 add on card
- usb 3.1 card
- usb 3.1 controller
- usb 3.1 controller card
- usb 3.1 gen 2 card
- usb 3.1 gen 2 controller
- usb 3.1 gen 2 hub controller
- usb 3.1 gen 2 pcie
- usb 3.1 gen 2 pcie card
- usb 3.1 hub controller
- usb 3.1 pci express
- usb 3.1 pci express card
- usb 3.1 pcie adapter
- usb 3.1 pcie card
- usb 3.1 to pcie adapter
- usb 3.1 type a card
- usb 3.1 type c card
- usb 3.1 type c pcie card
- usb c expansion card
- usb c pcie
- usb c pcie card
- usb c to pcie
- usb c to pcie adapter
- usb to pcie
- usb type c expansion card
- usb type c pci express
- usb type c pcie
- usb type c to pcie
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps per lane. PCI Express Gen 2.0 max throughput is 5Gbps per lane.
- The available bandwidth (10Gbps) is shared equally between the two ports.
System and Cable Requirements - PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
- Optional SATA power or LP4 Molex connector
Accessory Products - USB31AC1M
- LP4LSATAADAP
- SATAPOWADAP
- USB3SAB10
- S251BPU313
- S351BU313
- S251BMU313
- USB3SAA6
- USB3SAUB1
- USB3SAB6
- USB3AUB2MS
- ST7300USB3B
- ST7300U3M
- USB2CC1M
- USB315CC2M
Related Products - PEXUSB311A1C
- PEXUSB311EI
- PEXUSB3S42
- PEXUSB3S7
- PEXUSB3S2EI
- PEXUSB3S44V
- PEXUSB3S3GE
- ECUSB3S11
- PEXUSB314A2V
Replacement Product PEXUSB312A2C2V Humidity 5% ~ 90% RH Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 126.000 Product Width (mm) 85.000 Product Height (mm) 20.000 Product Weight (g) 81.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Maximum Data Transfer Rate 10Gbps per 2 ports - 20Gbps Total OS Compatibility - Linux
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2012
- Mac OS X Mavericks (10.9)
- Mac OS X Yosemite (10.10)
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

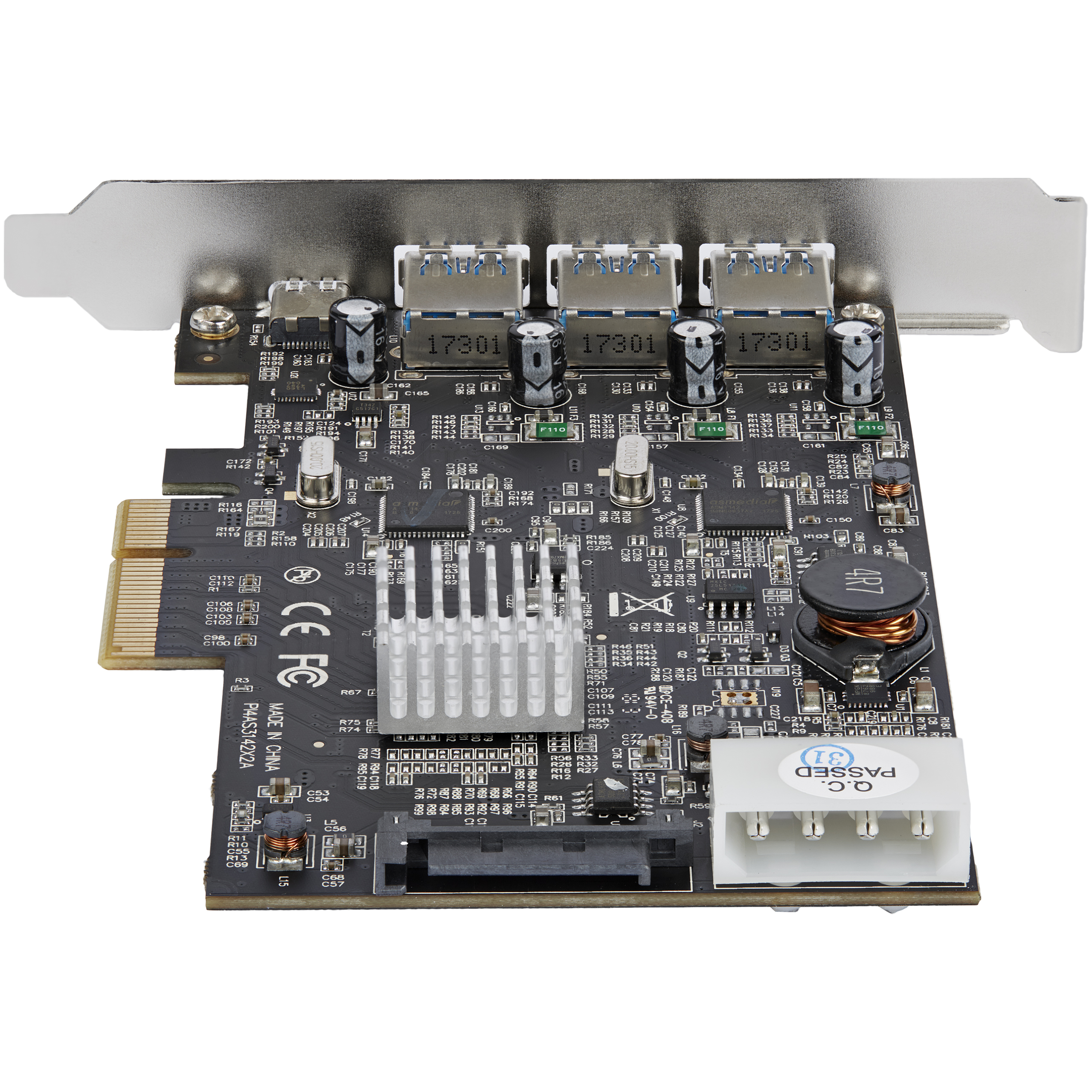

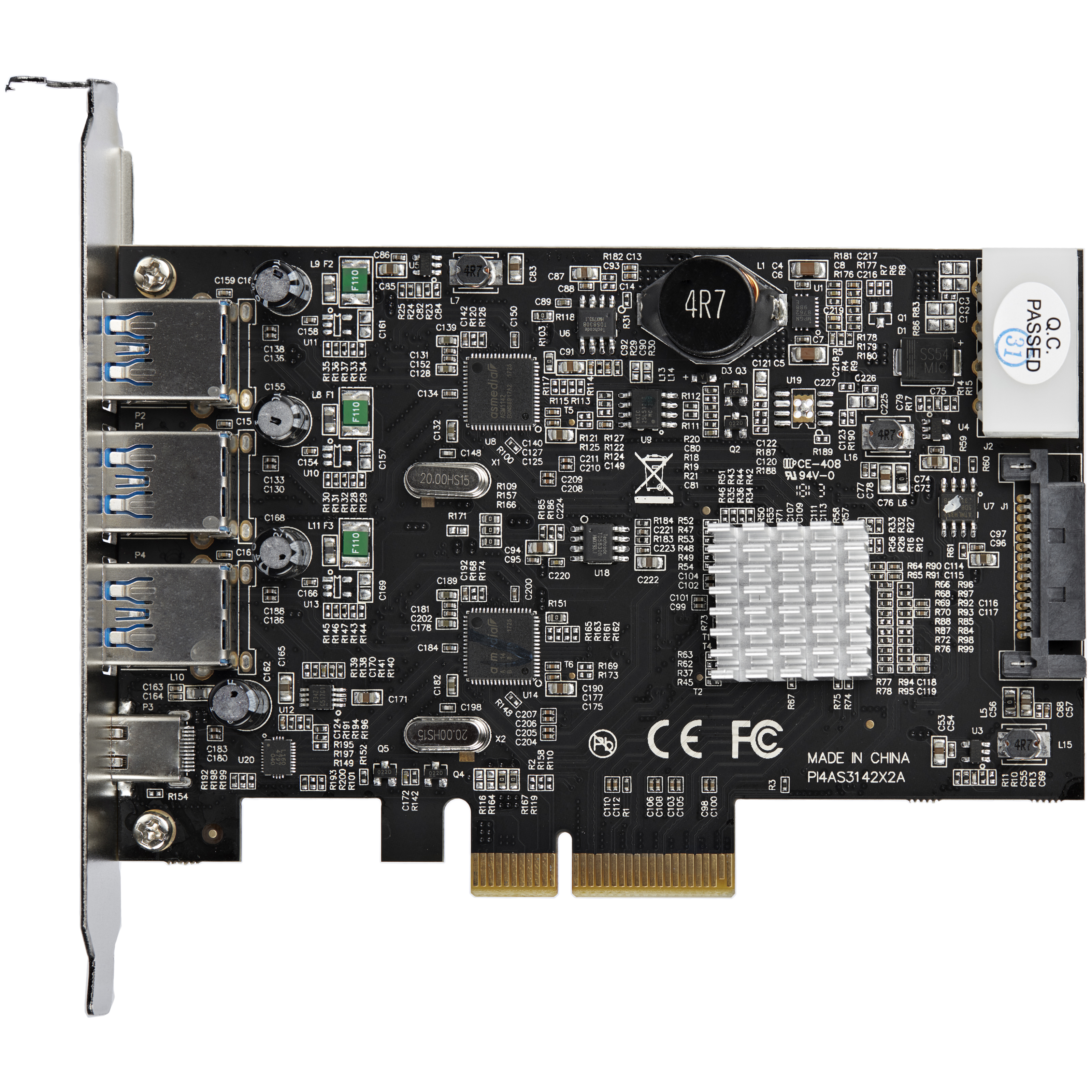

UASP Support Yes USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate USB 10Gbps Bus Type PCI Express Card Type Standard Profile Chipset ID ASMedia - ASM1142</br>Pericom PI7C9X2G308GP Industry Standards Interface/Bridge USB 3.2 Gen 2 IO Card Port Style Integrated on Card USB Port Type USB-A, USB-C Carton Depth (mm) 300 Carton Height (mm) 355 Carton Quantity 80 Carton Weight Gross (g) 11396 Included in Package - 1 - controller card

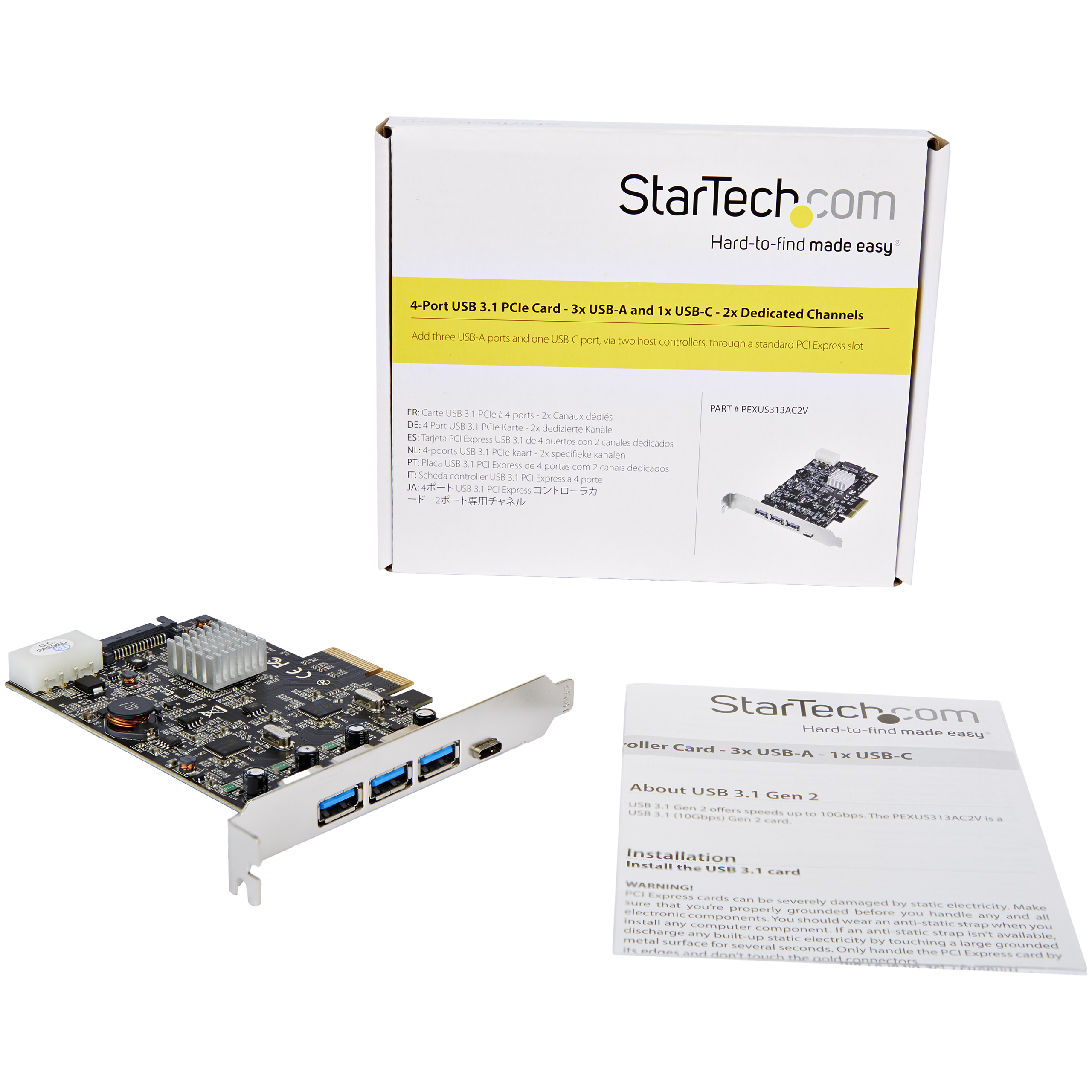

- 1 - instruction manual
Package Depth (mm) 144 Package Height (mm) 30 Package Width (mm) 171 Package Quantity 1 Package Weight (g) 134 Packaging Description 4-Port USB 3.1 PCIe Card - 2x Dedicated Channels Packaging Description India 4-Port USB 3.1 PCIe Card - 2x Dedicated Channels Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 USB-A (10Gbps, 4.5W) Connector 2 (Quantity) 3 Connector 3 USB-C (10Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 Connector 5 SATA (15-Pin) Connector 5 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2018-02-09 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2018-03-02 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,HK,IE,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2018-01-19 Target Production Release 2018-02-09 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
