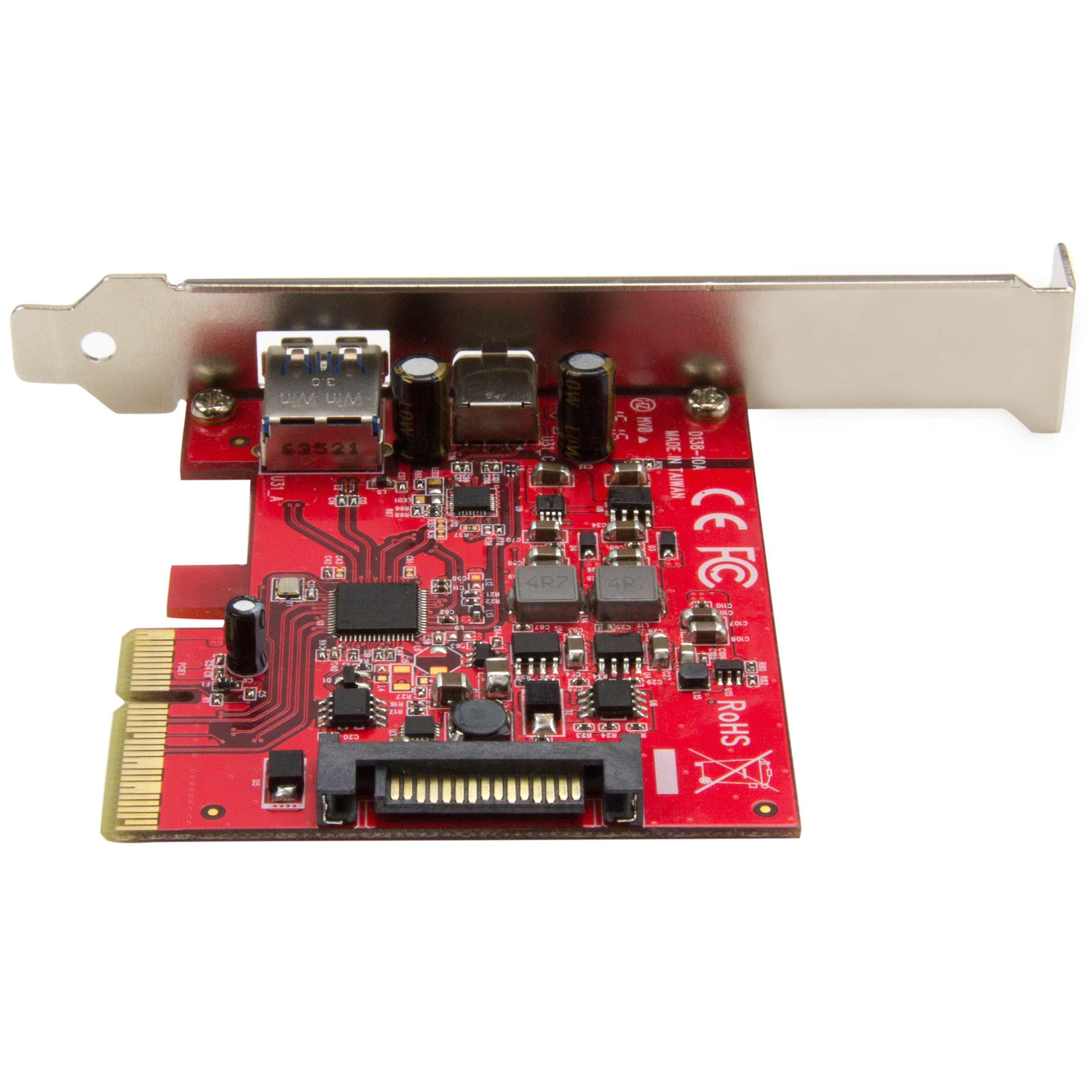

Main Image
PEXUSB311A1C
2 Port USB 3.1 Gen 2 Controller - 10Gbps USB Card
Upgrade your computer to the 10Gbps speed of USB 3.1 Gen 2, by adding both USB Type-C and USB Type-A ports

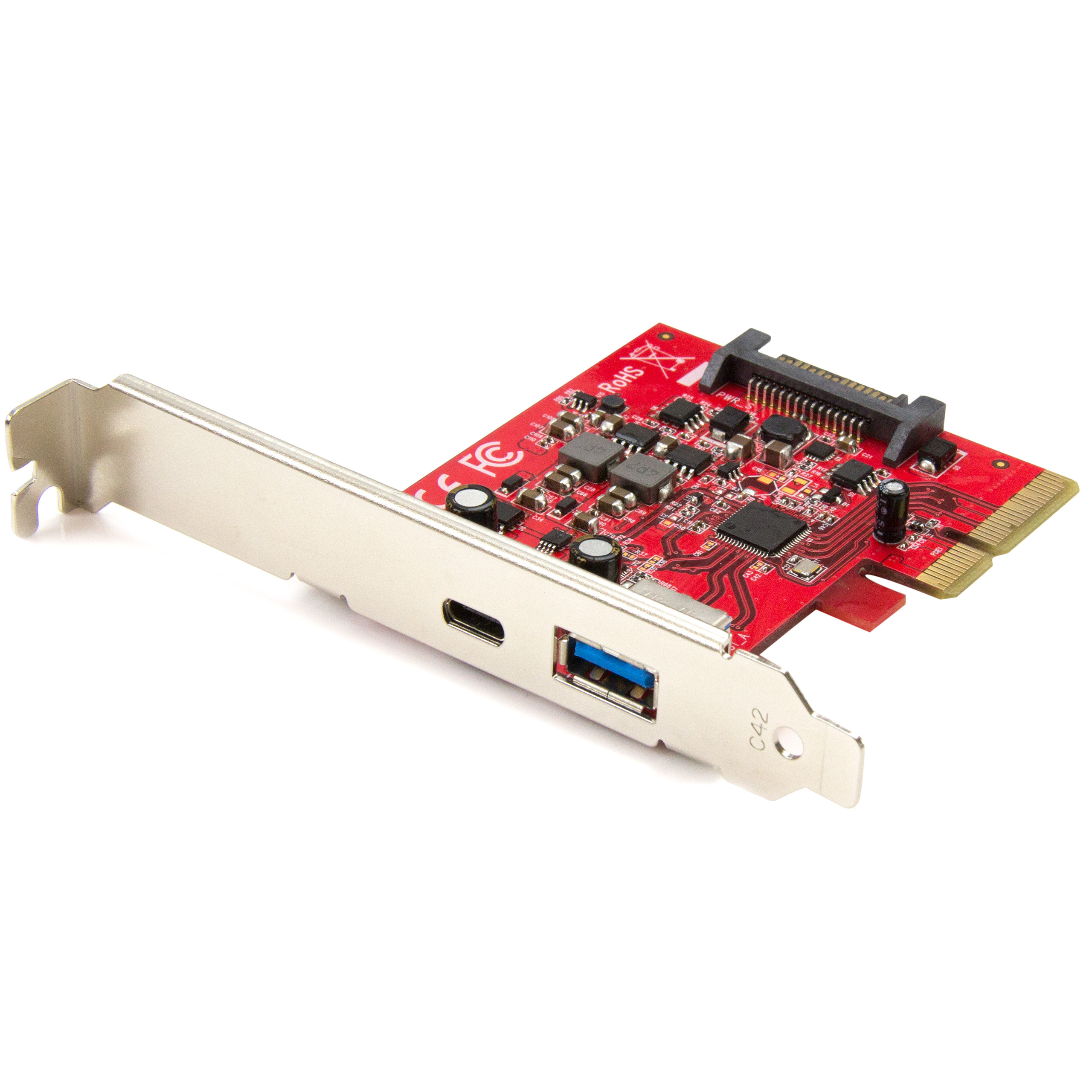

Main Image

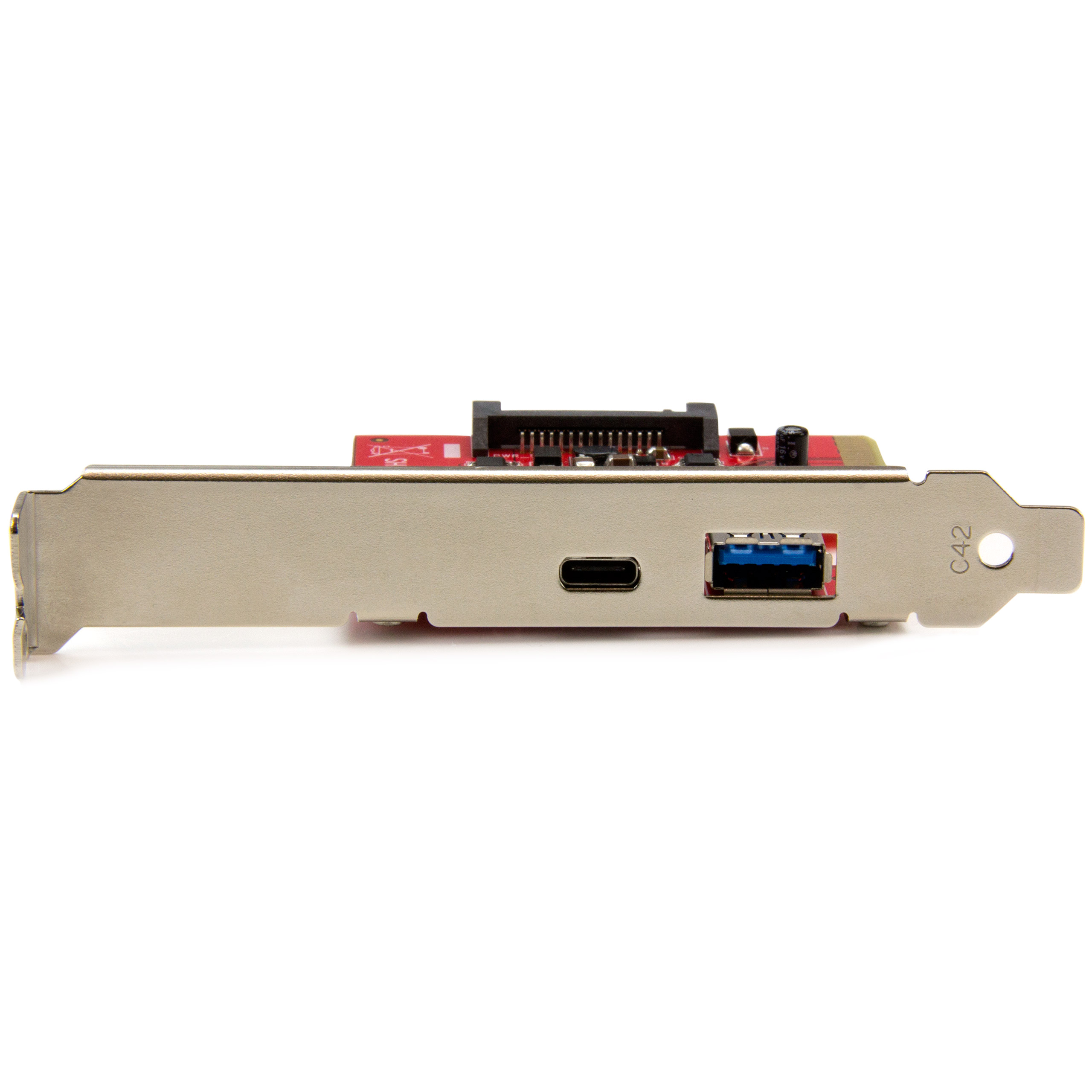

Product Images

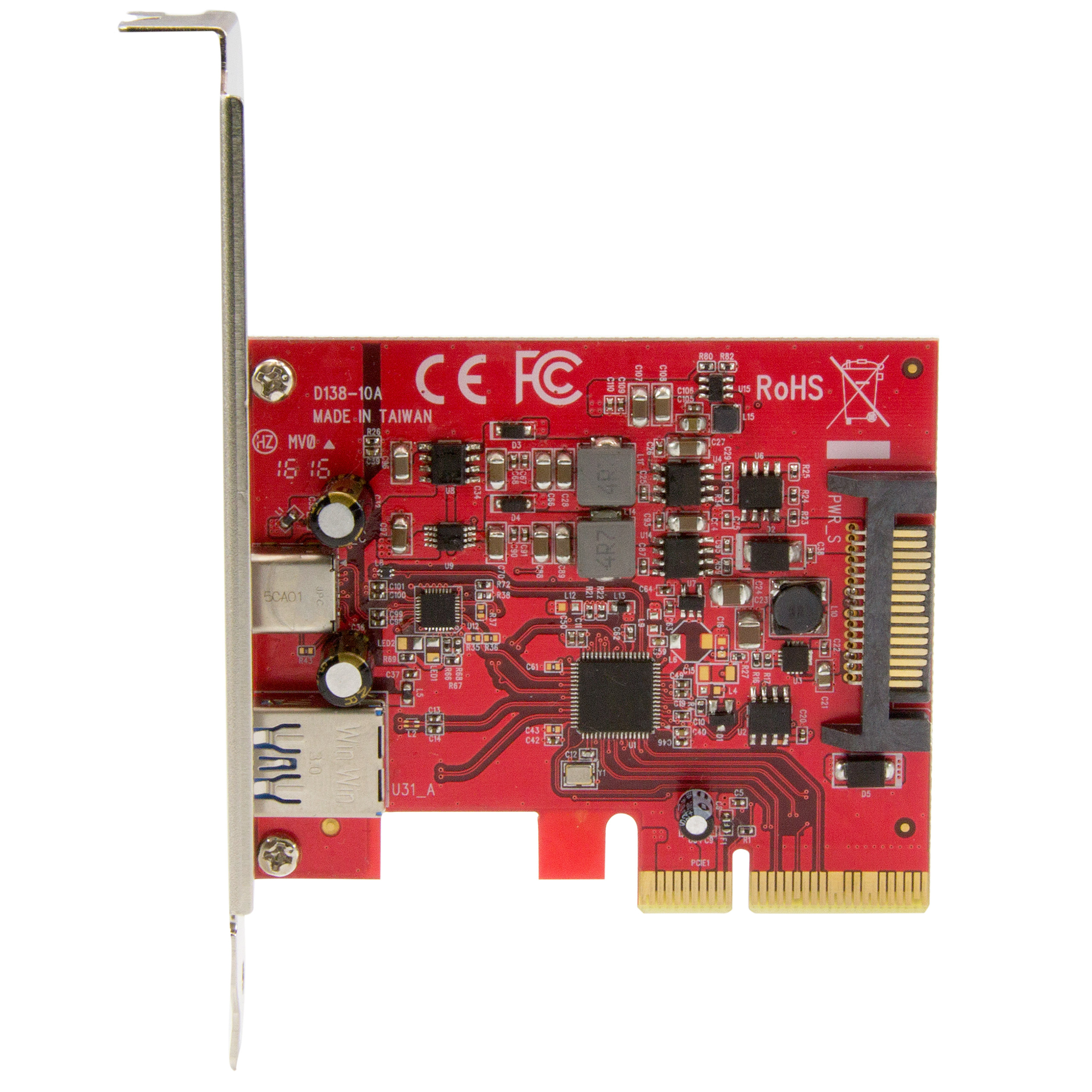

Product Images
Product Images
BOM Image
Product Name 2 Port USB 3.1 Gen 2 Controller - 10Gbps USB Card Product Number PEXUSB311A1C UPC 065030863568 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-C Cards - 10Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) 2PT USB 3.1 10G Card Product Title (Short) 2 Port USB C PCIe Card - USB 3.1 10Gbps Product Title (Medium) 2 Port USB 3.1 (10Gbps) Card - 1x USB-C, 1x USB-A - PCIe USB Type-C Card - USB C Product Title (Standard) USB C PCIe Card – 2 Port – 1x USB-C – 1x USB-A – UASP – 10Gbps – USB Type C PCIe Adapter – PCI Express Card Product Title (Long) 2-Port USB 3.1 (10Gbps) Card - 1x USB-C, 1x USB-A - PCIe Product Title (AMZ) USB C PCIe Card - 2 Port - 1x USB-C - 1x USB-A - UASP - 10Gbps - USB Type C PCIe Adapter - PCI Express Card (PEXUSB311A1C) Title Ingram (Part 1) 2Port USB 3.1 Gen 2 Controller Title Ingram (Part 2) - 10Gbps USB Card w/ USB-C USB-A Website Product Headline Upgrade your computer to the 10Gbps speed of USB 3.1 Gen 2, by adding both USB Type-C and USB Type-A ports Bullet 1 Enjoy the faster speed of USB 3.1 devices, with up to 10Gbps throughput Bullet 2 Diversify the overall USB capabilities of your computer by adding USB Type-C and USB Type-A ports Bullet 3 Connect high-powered devices using the integrated ports and onboard SATA power connector Bullet 4 Fits into standard or low-profile systems with a dual-profile design Bullet 5 Fast, hassle-free setup Bullets (Compact) Upgrade your computer to the 10Gbps speed of USB 3.1 Gen 2 by adding both USB Type-C and USB Type-A ports - 2 port USB 3.1 (10Gbps) Card with USB-C and USB-A ports - PCIe host card includes low-profile bracket - Connect modern and future USB devices Bullets (Consolidated) Upgrade your computer to the 10Gbps speed of USB 3.1 Gen 2 by adding both USB Type-C and USB Type-A ports - 2 Port USB 3.1 (10Gbps) Card with USB-C and USB-A Ports - PCIe USB C Gen 2/PCI Express USB Type C Host Controller - Includes low-profile bracket - Easily connect legacy or modern USB devices to one card regardless of connector type/Fast file transfers up to 10 Gbps - SATA power connector lets you connect high-powered devices - Ideal for upgrading or building your computer/Supports UASP Marketing Copy Applications - Deploy at home or in the office, and connect the latest USB-C devices, such as HDD enclosures
- Install the card as a vital hardware component when building a PC, or upgrade an older PCIe based desktop from USB 3.0 or 2.0 to USB 3.1 Gen 2 (10Gbps)
- Ideal for backing up files, video editing, and data recovery using high-bandwidth USB 3.1 Gen 2 external storage solutions
- Connect your legacy USB devices to your computer
Website Search Keyword - USB 3.1 Card
- USB 3.1 Gen 2 Card
- PCIe USB 3.1 Card
- PCI Express USB 3.1 Gen 2 Card
- USB-A Card
- USB Type-A Card
- 2-Port USB 3.1 Gen 2 (10Gbps) Card
- USB 3.1 Gen 2 (10Gbps) Card
- 2 Port USB 3.1 Gen 2 Card
- USB 3.1 Card with Type-A
- USB 3.1 Card with USB-A
- 10Gbps USB 3.1 Card
- USB 3.1 10Gbps
- USB 3.1 Gen 2 10Gbps
- 2 port usb 3.1 gen 2 add on card
- USB 3.1 Gen 2 host controller
- pci express usb 3.1 card
- PCIe USB 3.1 Gen 2
- pcie usb 3.1 gen 2 card
- USB 3.1 Gen 2 10 Gbps Card
- USB 3.1 controller
- usb 3.1 controller card
- usb 3.1 adapter card
- USB-C Card
- USB Type-C Card
- USB 3.1 Card with Type-C
- USB 3.1 Card with USB-C
- USB-A and USB-C Card
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - The card's USB-C port is a standard data throughput port. It does not support DP Alt Mode or USB Power Delivery.
- The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.
- The available bandwidth (10Gbps) is shared equally between the two ports.
System and Cable Requirements - PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
- SATA power connector
Accessory Products - USB31CAADP
- USB31AC1M
- USB31CB1M
- USB31CUB1M
- USB31CC1M
- S251BMU313
- S252BU313R
- SATAPOWADAP
- S251BPU313
Related Products - PEXUSB312A
- PEXUSB311EI
- PEXUSB3S44V
- PEXUSB3S24
- PEXUSB3S2EI
- PEXUSB3S7
- PEXUSB3S42
- PEXUSB3S3GE
Replacement Product PEXUSB311AC2 Humidity 15~90% RH (Non-condensing) Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 92 Product Width (mm) 18 Product Height (mm) 120 Product Weight (g) 48 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes Maximum Data Transfer Rate 10Gbps OS Compatibility - Linux
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2012
- Mac OS X Mavericks (10.9)
- Mac OS X Yosemite (10.10)
- Windows Server 2016
- Windows 11
- Windows Server 2022
- Windows Server 2019
UASP Support Yes USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate USB 10Gbps Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASMedia - ASM1142 Industry Standards Interface/Bridge USB 3.2 Gen 2 IO Card Port Style Integrated on Card USB Port Type - USB-A, USB-C
- USB-A
- USB-C

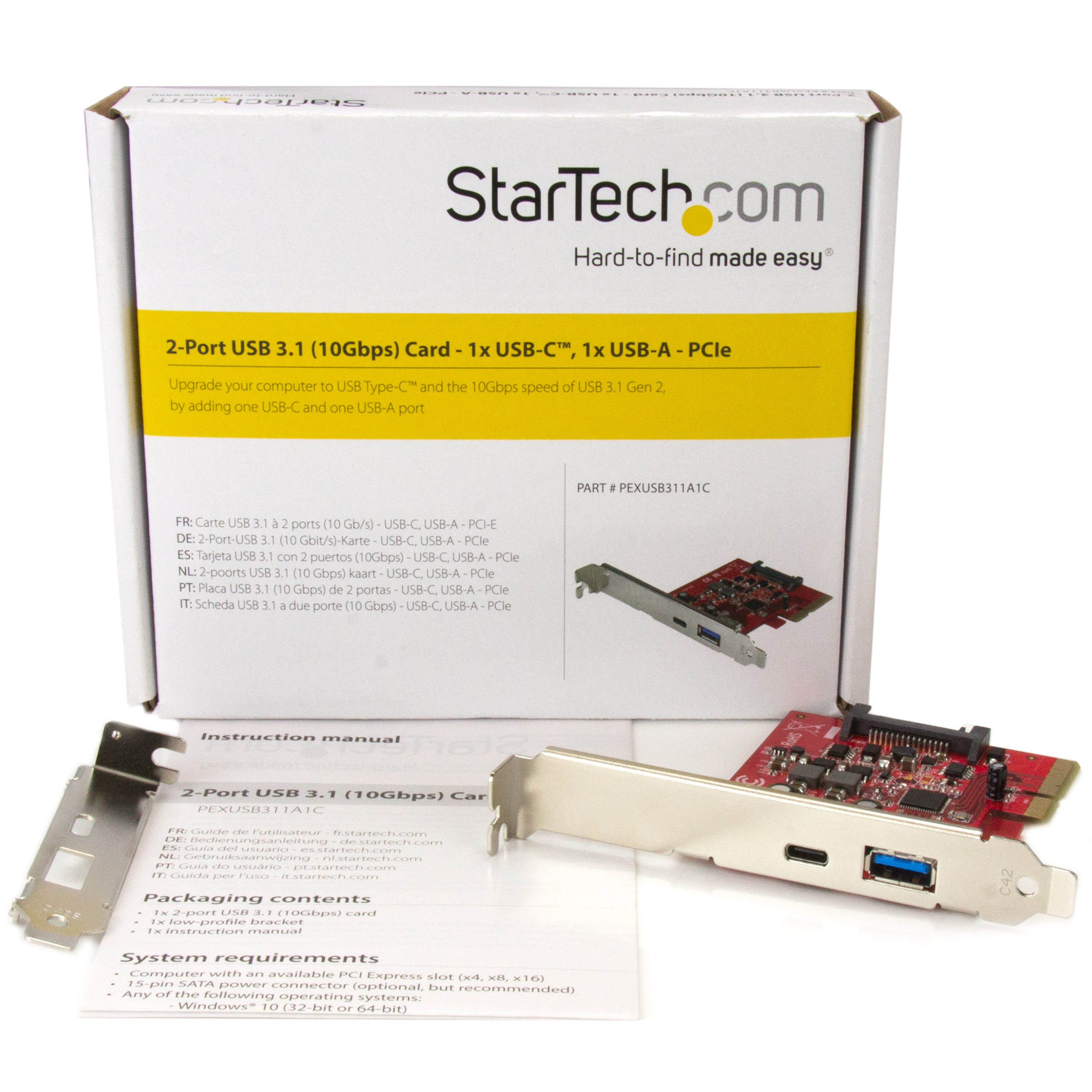

Carton Depth (mm) 384 Carton Height (mm) 314 Carton Quantity 60 Carton Weight Gross (g) 8200 Included in Package - 1 - 2-port USB 3.1 (10Gbps) card
- 1 - low-profile bracket
- 1 - instruction manual
Package Depth (mm) 142 Package Height (mm) 41 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 131 Packaging Description 2-Port USB 3.1 (10Gbps) Card - USB-C, USB-A - PCIe Packaging Description India 2-Port USB 3.1 (10Gbps) Card - USB-C, USB-A - PCIe Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 USB-C (5Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 USB-A (10Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2015-09-09 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology USB-C Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Production Release 2015-11-20 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
