PEXUSB311AC2

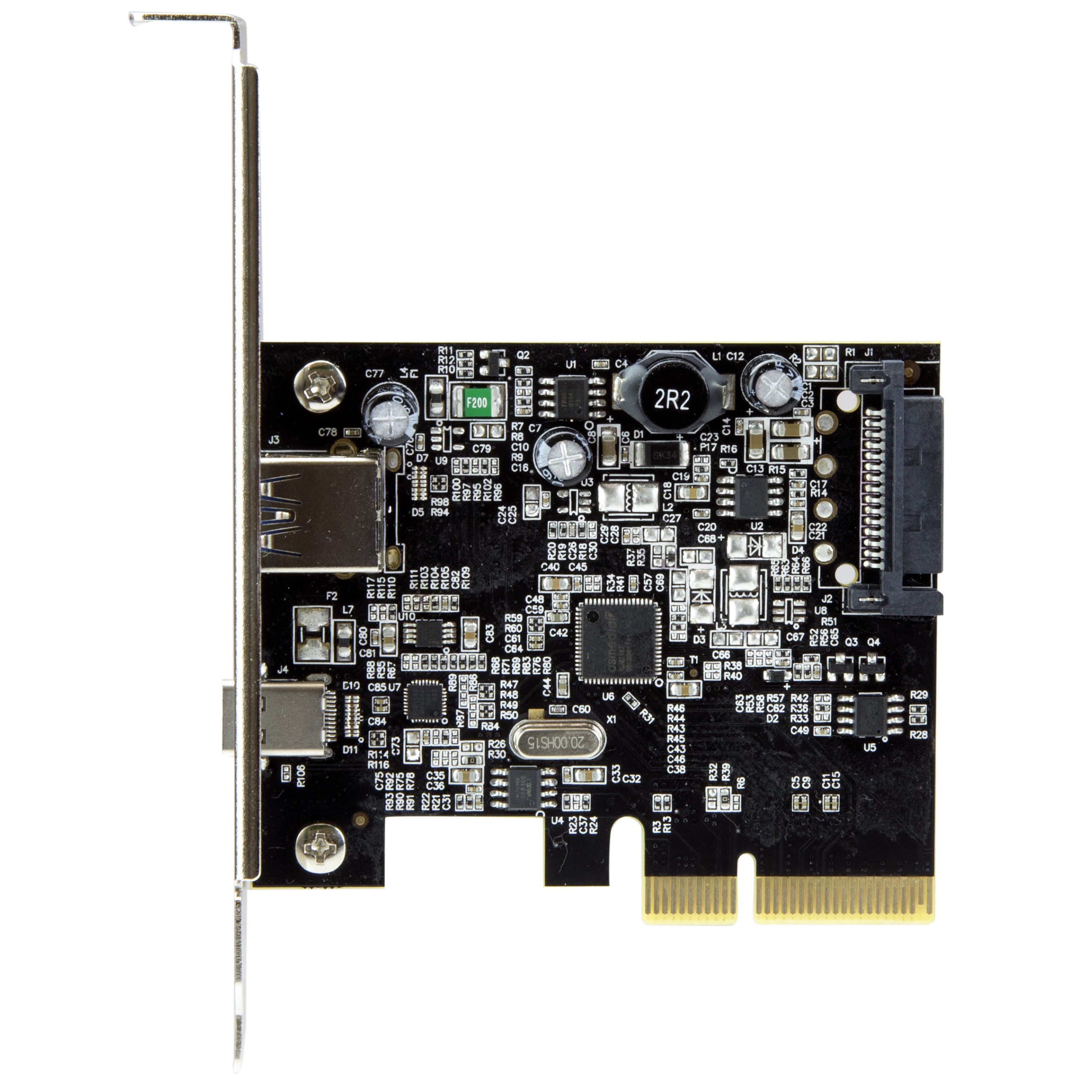

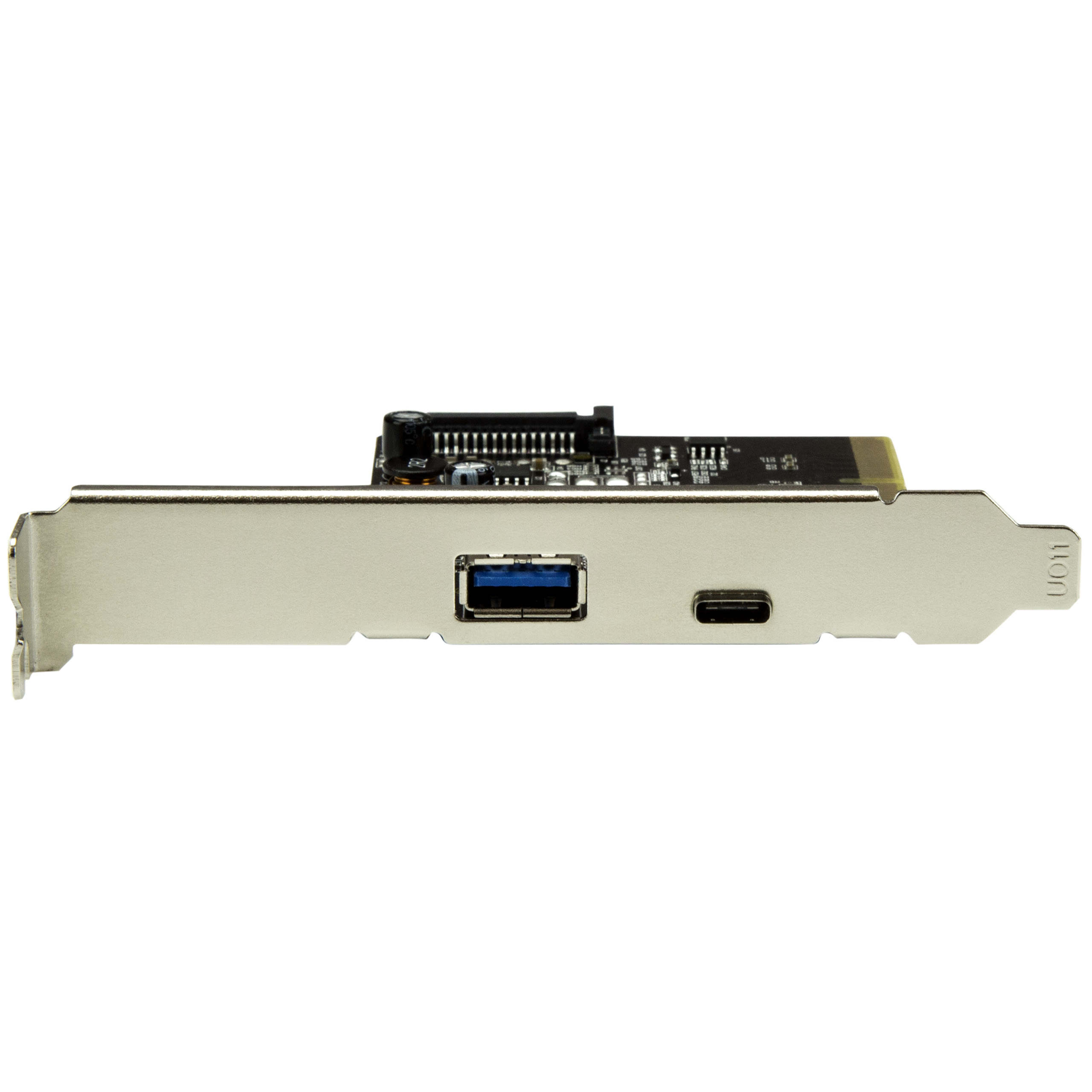

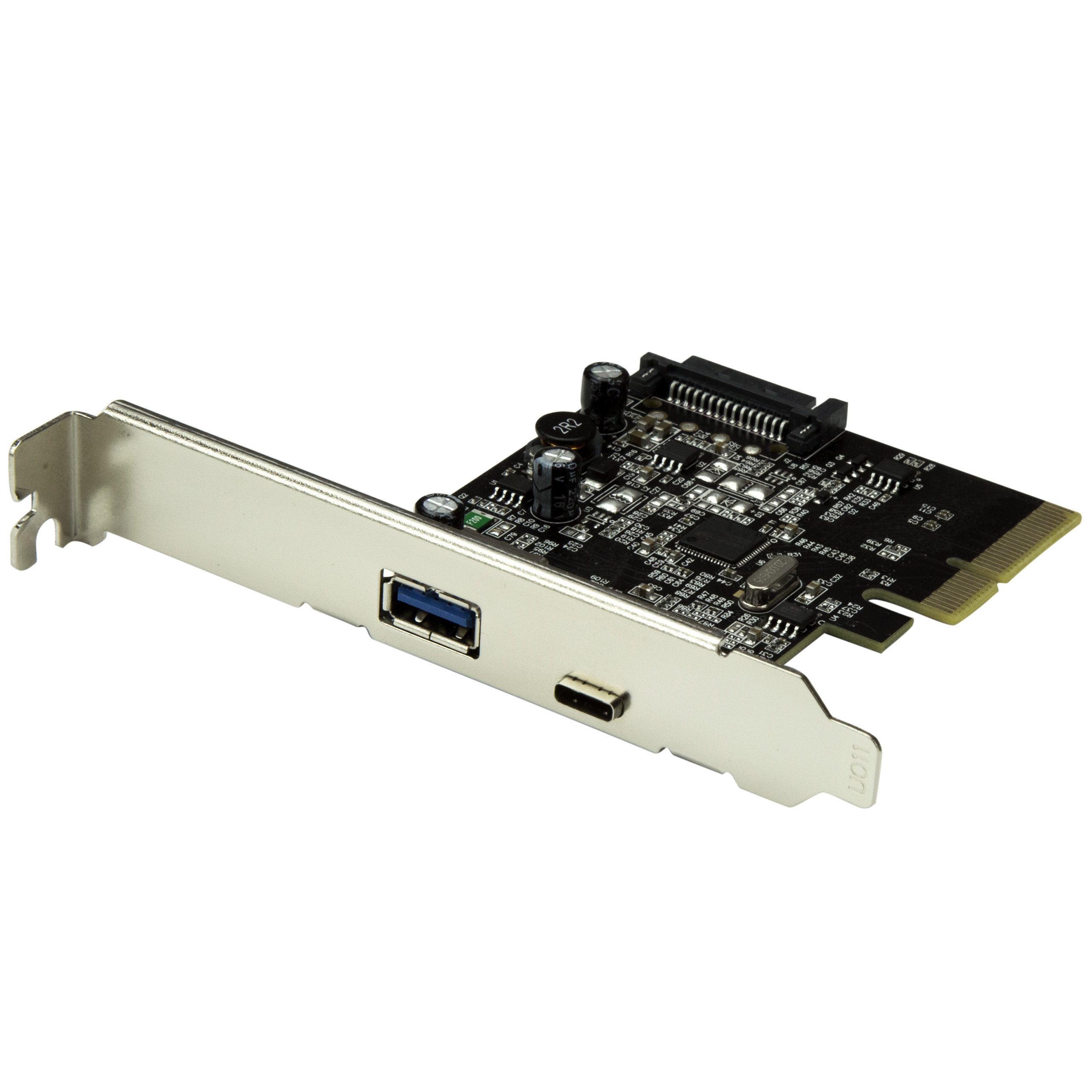

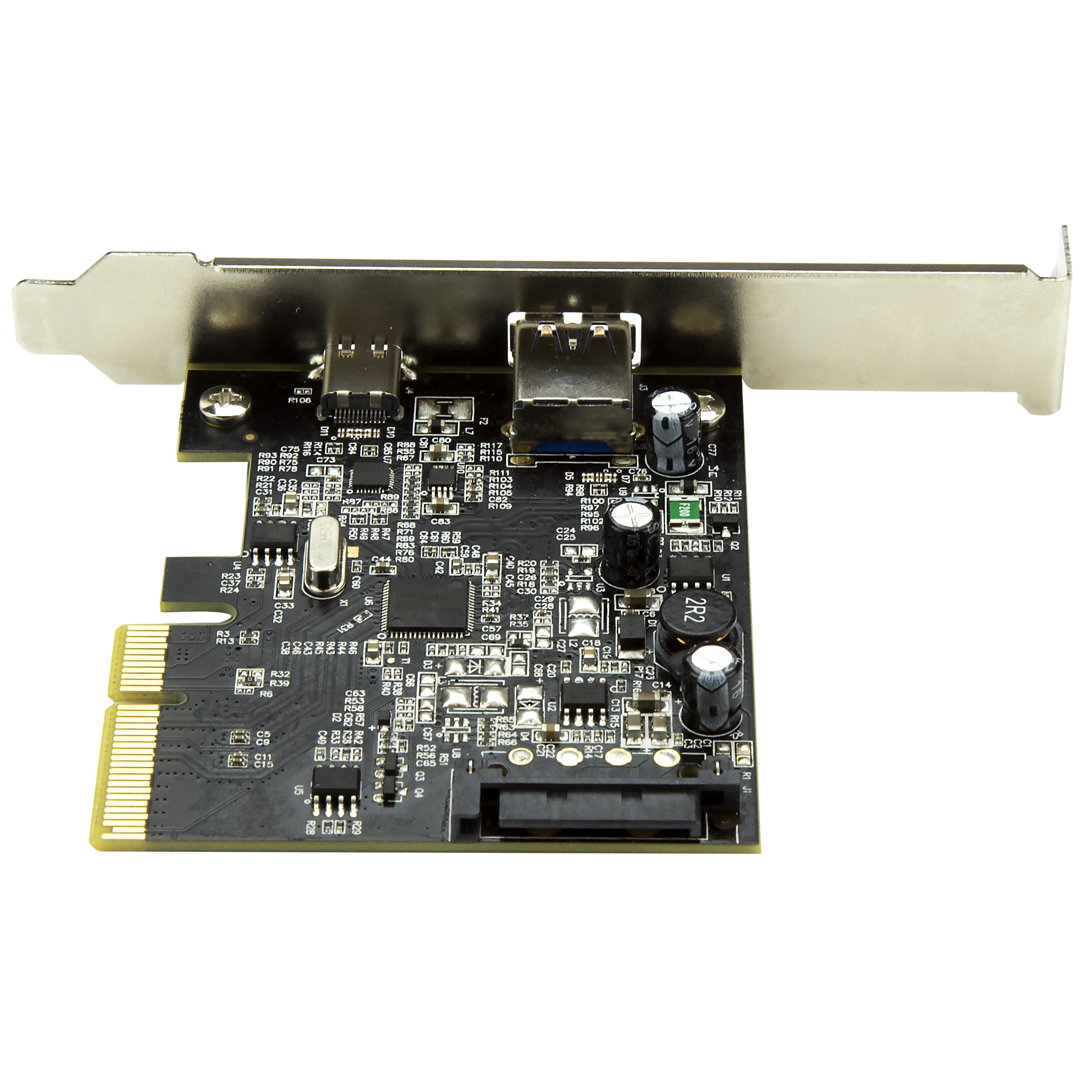

2Port USB 3.1 PCI-e Card - C, A - 10Gbps PCIe Card
Add one USB Type-C and one USB Type-A port (10Gbps) to your computer, through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name 2Port USB 3.1 PCI-e Card - C, A - 10Gbps PCIe Card Product Number PEXUSB311AC2 UPC 065030871181 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-C Cards - 10Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Ultra-Short) 2 Port USB 3.1 Card Product Title (Short) USB 3.1 Card - 2-Port PCIe USB C&A Product Title (Medium) Dual Port USB 3.1 Card - 10Gbps per port - 1x USB C, 1x USB A - PCIe Product Title (Standard) Replaced by PEXUSB311AC3 - Dual Port USB 3.1 Card - 1xUSB-C / 1xUSB-A - 10Gbps per port - Expansion Card - USB 3.1 PCI-E Card Product Title (Long) Discontinued and replaced by PEXUSB311AC3 - Dual Port USB 3.1 Card - 1x USB-C - 1x USB-A - 10Gbps per port - Expansion Card - USB 3.1 PCI-E Card - USB 3 PCI Product Title (AMZ) Discontinued and replaced by PEXUSB311AC3 - Dual Port USB 3.1 Card - 1x USB-C - 1x USB-A - 10Gbps per port - Expansion Card - USB 3.1 PCI-E Card - USB 3 PCI (PEXUSB311AC2) Title Ingram (Part 1) 2Port USB 3.1 PCI-e Card - Title Ingram (Part 2) 1x C, 1x A - 10Gbps PCI e Card Website Product Headline Add one USB Type-C and one USB Type-A port (10Gbps) to your computer, through a PCI Express slot Bullet 1 Diversify the overall USB capabilities of your computer by adding USB Type-C and USB Type-A ports Bullet 2 Transfer files and access USB 3.1 devices faster, with up to 10Gbps throughput Bullet 3 Optional SATA power connector provides up to 900mA per USB port Bullet 4 Cost-effective backward compatibility, works with USB 3.0 and 2.0 devices Bullet 5 PCIe x4 interface compliant with PCI Express Base Specification Revision 3.0 Bullets (Compact) Add 1x USB Type C & 1x USB Type A port to a computer, through a PCI Express slot - 10Gbps per port - USB 3.1 PCI-e card perfect for PC upgrades or builds - PCI-e to USB card with SATA power connector provides up to 900mA per port - 10Gbps PCI e Card Bullets (Consolidated) REPLACED BY PEXUSB311AC3: Add 1x USB Type C and 1x USB Type A port to a computer through a PCI Express slot - USB 3.1 PCI-e card perfect for PC upgrades or builds - Expand the USB capabilities of your system by adding one USB-C and one USB-A port - Works with USB 3.0 and 2.0 devices - PCI-e to USB card w/ SATA power connector provides up to 900mA per port - USB 3.1 Expansion Card with UASP - PCI Express USB Card/2 Port USB Expansion Card/PCI-e USB 3.1 Card/PCI to USB Adapter/10Gbps PCI e Card Marketing Copy Applications - Upgrade an older PCIe equipped desktop from USB 3.0/2.0 to USB 3.1 Gen 2 (10Gbps)
- Expand the USB capabilities of your system by adding one USB-C port and one USB-A port, or install the card as a vital hardware component when building a new PC
- Ideal for file backups, video editing, and data recovery, using high-bandwidth USB 3.1 Gen 2 external storage solutions
Website Search Keyword - 10Gbps PCI e adapter
- 10Gbps PCI e card
- 10Gbps usb adapter card
- 10Gbps usb c adapter card
- 10Gbps usb c card
- 10Gbps usb card
- 2 port usb 3 adapter
- 2 port usb adapter card
- 2 port usb c adapter card
- 2 port usb c expansion
- 2 port usb c expansion adapter
- 2 port usb c pci adapter
- 2 port usb card
- 2 port usb expansion
- 2 port usb expansion adapter
- 2 port usb expansion card
- 2 port usb pci adapter
- 2 port usb pci card
- 2 port usb-c expansion card
- 2 port usb-c pci card
- dual port usb 3.1 card
- dual port usb adapter card
- dual port usb c card
- dual port usb c pci adapter
- dual port usb card
- dual port usb pci adapter
- dual port usb-c adapter card
- expander card
- expansion card
- pci card usb 3.1
- pci express to usb
- pci express to usb 3.1
- pci express to usb adapter
- pci express to usb c
- pci express usb
- PCI Express usb adapter
- PCI Express usb c card
- PCI Express usb card
- pci to usb
- pci to usb 3.1
- pci to usb adapter
- pci to usb-c
- pci to usb-c adapter
- pci usb
- pci usb 3
- pci usb 3 card
- pci usb 3.1
- pci usb 3.1 adapter card
- pci usb 3.1 card
- pci usb adapter
- pci usb c card
- pci usb card
- pci usb hub
- pci usb type c
- pci-e to usb
- pci-e to usb-c
- pci-e usb 3.1
- pci-e usb 3.1 card
- pcie usb adapter
- pcie usb c card
- pcie usb card
- pcie usb-c adapter
- usb 3 adapter card
- usb 3 expansion card
- usb 3 pci
- usb 3 pci card
- usb 3 pci express card
- usb 3.1 adapter card
- usb 3.1 card
- usb 3.1 card pci
- usb 3.1 expansion card
- usb 3.1 gen 2 expansion adapter
- usb 3.1 gen 2 expansion card
- usb 3.1 pci
- usb 3.1 pci adapter
- usb 3.1 pci card
- usb 3.1 pci express
- usb 3.1 pci express card
- usb 3.1 pci-e
- usb 3.1 pci-e card
- usb 3.1 to pcie
- usb c card
- usb c pci adapter
- usb c to pci
- usb c to pci adapter
- usb c to pci express adapter
- usb card
- usb pci adapter
- usb pci card
- usb pci express
- usb pci express card
- usb to pci
- usb to pci adapter
- usb to pci converter
- usb to pci express
- usb to pci express adapter
- usb-c pci card
- usb-c pci express
- usb-c pci express card
- usb-c to pci converter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - The card's USB-C port is a standard data throughput port. It does not support DP Alt Mode or USB Power Delivery.
- The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.
- The available bandwidth (10Gbps) is shared equally between the two ports.
System and Cable Requirements - PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
- Optional SATA power connector
Accessory Products - USB31CAADP
- USB31AC1M
- USB31CB1M
- USB31CUB1M
- USB31CC1M
- S251BMU313
- S252BU313R
- S251BPU313
- SATAPOWADAP
Related Products - PEXUSB312A
- PEXUSB311EI
- PEXUSB3S44V
- PEXUSB3S24
- PEXUSB3S2EI
- PEXUSB3S7
- PEXUSB3S42
- PEXUSB3S3GE
Humidity 20~80% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 122.000 Product Width (mm) 108.000 Product Height (mm) 21.000 Product Weight (g) 50.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Maximum Data Transfer Rate 10Gbps OS Compatibility - Linux
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2012
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
UASP Support Yes USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate USB 10Gbps Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASMedia - ASM2142 Industry Standards Interface/Bridge USB 3.2 Gen 2 IO Card Port Style Integrated on Card USB Port Type - USB-A, USB-C
- USB-A
- USB-C

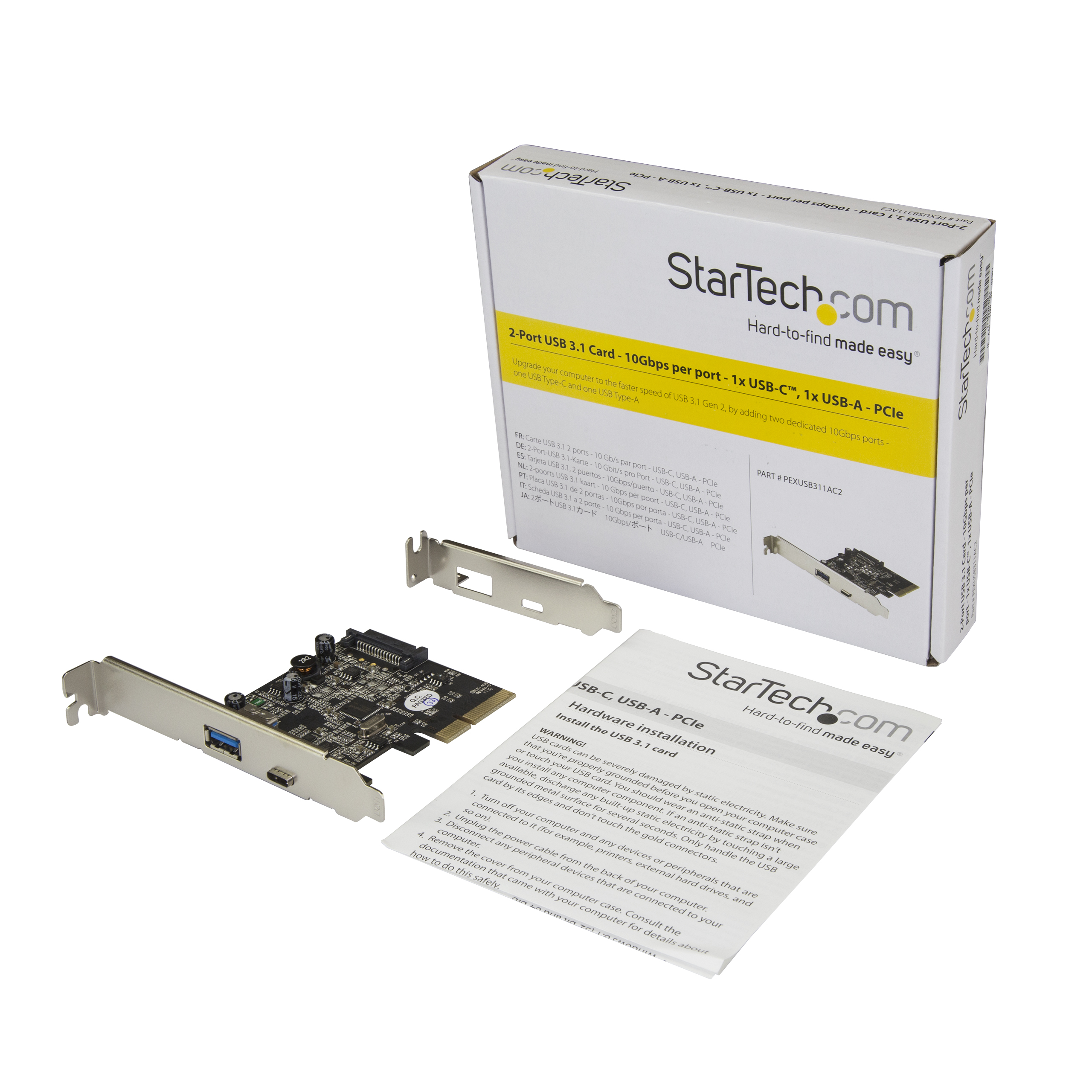

Carton Depth (mm) 355 Carton Height (mm) 310 Carton Quantity 80 Carton Weight Gross (g) 10350 Included in Package - 1 - USB 3.1 card
- 1 - low-profile bracket
- 1 - quick-start guide
Package Depth (mm) 142 Package Height (mm) 30 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 120 Packaging Description 2-Port USB 3.1 Card - 10Gbps per port - USB-C, USB-A - PCIe Packaging Description India 2-Port USB 3.1 Card - 10Gbps per port - USB-C, USB-A - PCIe Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 USB-C (10Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 USB-A (10Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2017-03-03 Digital Content Due Date 2017-04-07 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FR,IE,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2017-03-03 Target Production Release 2017-03-17 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
