PEXUSB311EI
2Port PCI Express USB 3 1 Gen 2 Card Ext and Int
Upgrade your computer to the faster speed of USB 3.2 Gen 2, by adding one external and one internal 10Gbps USB Type-A ports
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2Port PCI Express USB 3 1 Gen 2 Card Ext and Int Product Number PEXUSB311EI UPC 065030863698 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 10Gbps Family USB-A Cards - 10Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Ultra-Short) USB 3.1 Card 10Gbps Product Title (Short) 2 Port USB 3.1 10Gbps Card 1x Ext 1x Int Product Title (Medium) 2 Port USB 3.1 (10Gbps) Card - USB-A 1x External 1x Internal - PCIe USB 3.1 Card Product Title (Standard) 2 Port USB 3.1 (10Gbps) Card - USB-A 1x External 1x Internal - PCIe USB 3.1 Card with Type-A - PCI Express - Supports UASP Product Title (Long) 2-Port USB 3.1 (10Gbps) Card - USB-A, 1x External, 1x Internal - PCIe Product Title (AMZ) 2 Port USB 3.1 (10Gbps) Card - USB-A 1x External 1x Internal - PCIe USB 3.1 Card with Type-A - USB 3.2 Gen 2 - PCI Express (PEXUSB311EI) Title Ingram (Part 1) 2Port PCI Express USB 3.1 Gen 2 Title Ingram (Part 2) Card w/ Ext & Int Ports 10Gbps Website Product Headline Upgrade your computer to the faster speed of USB 3.2 Gen 2, by adding one external and one internal 10Gbps USB Type-A ports Bullet 1 Fast, hassle-free setup, and natively supported by many operating systems Bullet 2 Fits into standard or low-profile systems, with its dual-profile design Bullet 3 Cost-effective backward compatibility Bullet 4 Compatible with high-powered USB devices, with an integrated SATA power connector Bullet 5 Compliant with UASP (USB Attached SCSI Protocol) Revision 1.0 Bullets (Compact) Upgrade your computer to the faster speed of USB 3.2 Gen 2 - Add one external and one internal 10Gbps USB-A ports to your PC - Ideal for high-bandwidth external hard drives & faster file transfers - Easy install - Works w/ USB 3.2 Gen 1/2.0 devices Bullets (Consolidated) Upgrade your computer to the faster speed of USB 3.2 Gen 2 by adding one external and one internal 10Gbps USB Type-A ports - 2 Port USB 3.2 Gen 2 (10Gbps) Card - USB-A, 1x External, 1x Internal - PCIe USB 3.2 Gen 2 Card with Type-A/PCI Express Host Controller - Easily connect and secure a USB 3.2 Gen 2 device inside your computer case/Transfer files faster/up to 10Gbps - Standard and low-profile brackets included/Works with your older USB 3.2 Gen 1 and 2.0 devices/Ideal for high-bandwidth storage solutions Marketing Copy Marketing Copy (No HTML) Applications - Upgrade an older PCIe equipped desktop from USB 3.0/2.0 to USB 3.2 Gen 2 (10Gbps)
- Expand the USB capabilities of your system, or install the card as a vital hardware component when building a new PC
- Ideal for file backups, video editing, and data recovery, using high-bandwidth USB 3.2 Gen 2 external storage solutions
- Connect a USB device inside your computer case for added security and convenience
Website Search Keyword - USB 3.1 Card
- USB 3.1 Gen 2 Card
- PCIe USB 3.1 Card
- PCI Express USB 3.1 Gen 2 Card
- USB-A Card
- USB Type-A Card
- 2-Port USB 3.1 Gen 2 (10Gbps) Card
- USB 3.1 Gen 2 (10Gbps) Card
- 2 Port USB 3.1 Gen 2 Card
- USB 3.1 Card with Type-A
- USB 3.1 Card with USB-A
- 10Gbps USB 3.1 Card
- 10gbps
- USB 3.1 10Gbps
- USB 3.1 Gen 2 10Gbps
- 2 port type a usb 3.1 card
- 2 port usb 3.1 gen 2 add on card
- USB 3.1 Gen 2 host controller
- pci express usb 3.1 card
- PCIe USB 3.1 Gen 2
- pcie usb 3.1 gen 2 card
- USB 3.1 Gen 2 10 Gbps Card
- USB 3.1 controller
- usb 3.1 controller card
- usb 3.1 adapter card
- USB card with internal port
- USB 3.1 card with internal ports
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.
- The available bandwidth (10Gbps) is shared equally between the two ports.
System and Cable Requirements - PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
- SATA power connector
Accessory Products - USB31AC1M
- LP4LSATAADAP
- SATAPOWADAP
- USB3SAB10
- S251BPU313
- S351BU313
- S251BMU313
- USB3SAA6
- USB3SAUB1
- USB3SAB6
- USB3AUB2MS
- ST7300USB3B
- ST7300U3M
Related Products - PEXUSB311A1C
- PEXUSB3S42
- PEXUSB3S7
- PEXUSB3S2EI
- PEXUSB3S44V
- PEXUSB3S3GE
- ECUSB3S11
- PEXUSB312A
Input Voltage 12V DC Output Voltage (V) 12V DC Color Black Humidity 20~80% RH (Non-condensing) Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 90.000 Product Width (mm) 18.000 Product Height (mm) 120.000 Product Weight (g) 51.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Maximum Data Transfer Rate 10Gbps OS Compatibility - Linux
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2012
- Mac OS X Mavericks (10.9)
- Mac OS X Yosemite (10.10)
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

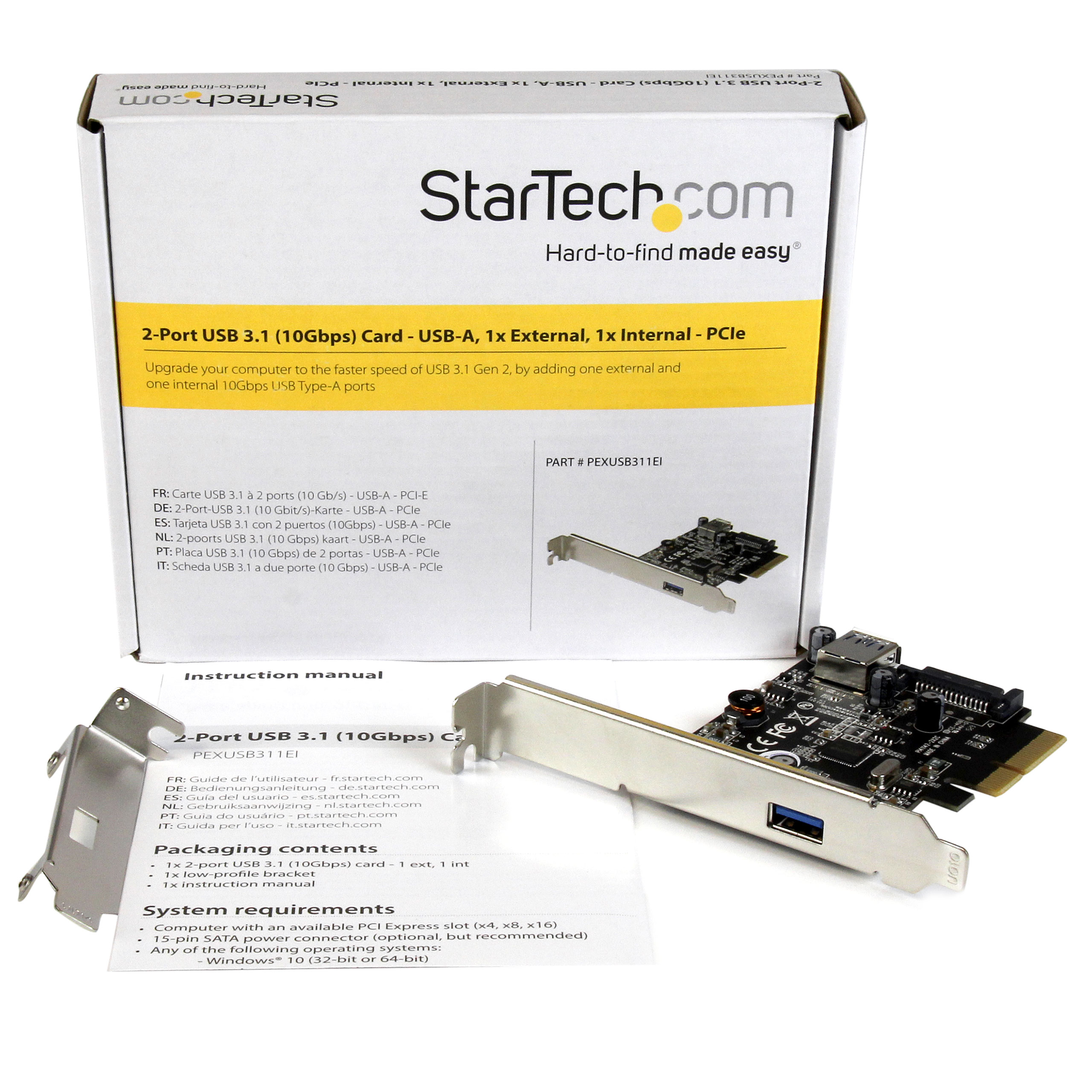

UASP Support Yes USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate USB 10Gbps Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASMedia - ASM1142 Industry Standards Interface/Bridge USB 3.2 Gen 2 IO Card Port Style Integrated on Card USB Port Type USB-A Carton Depth (mm) 308 Carton Height (mm) 362 Carton Quantity 80 Carton Weight Gross (g) 10090 Included in Package - 1 - 2-port USB 3.1 (10Gbps) card - 1 ext, 1 int
- 1 - low-profile bracket
- 1 - instruction manual
Package Depth (mm) 144 Package Height (mm) 30 Package Width (mm) 171 Package Quantity 1 Package Weight (g) 116 Packaging Description 2-Port USB 3.1 (10Gbps) Card - USB-A - PCIe Packaging Description India 2-Port USB 3.1 (10Gbps) Card - USB-A - PCIe Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 USB-A (10Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 USB-A (10Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2015-08-04 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Production Release 2015-11-20 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
