PEXUSB312A
2-Port USB 3.1 (10Gbps) Card - 2x USB-A - PCIe
Upgrade your computer to the faster speed of USB 3.1, by adding two 10Gbps USB Type-A ports
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2-Port USB 3.1 (10Gbps) Card - 2x USB-A - PCIe Product Number PEXUSB312A UPC 065030862417 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Product Title (Ultra-Short) USB 3.1 Card -10Gbps Product Title (Short) 2 Port USB 3.1 (10Gbps) PCIe Card -USB-A Product Title (Medium) 2 Port USB 3.1 (10Gbps) Card - 2x USB-A - PCIe USB 3.1 Card with Type-A - UASP Product Title (Standard) 2 Port USB 3.1 (10Gbps) Card - 2x USB-A - PCIe USB 3.1 Card with Type-A - PCI Express - Supports UASP Product Title (Long) 2-Port USB 3.1 (10Gbps) Card - 2x USB-A - PCIe Product Title (AMZ) 2 Port USB 3.1 (10Gbps) Card - 2x USB-A - PCIe USB 3.1 Card with Type-A - PCI Express - Supports UASP (PEXUSB312A) Title Ingram (Part 1) 2Port PCI Express USB 3.1 Gen 2 Title Ingram (Part 2) Card w/ Two 10Gbps USB-A Ports Website Product Headline Upgrade your computer to the faster speed of USB 3.1, by adding two 10Gbps USB Type-A ports Bullet 1 Transfer files and access USB 3.1 devices faster, with up to 10Gbps throughput Bullet 2 Expand the overall USB capabilities of your computer by adding two 10Gb USB-A ports Bullet 3 Fast, hassle-free setup with native support in Windows 10 and 8 Bullet 4 Fits into standard or low-profile systems with a dual-profile design Bullet 5 Cost-effective backward compatibility Bullets (Compact) Upgrade your computer to the faster speed of USB 3.1 by adding two 10Gbps USB-A ports - 2 Port USB 3.1 Gen 2 (10Gbps) Card - 2x USB-A - PCIe USB 3.1 Card with Type-A - PCI Express USB 3.1 10 Gbps Adapter Card w/ UASP - Standard & Low-Profile Brackets Bullets (Consolidated) Upgrade your computer to the faster speed of USB 3.1 by adding two 10Gbps USB Type-A ports - 2 Port USB 3.1 Gen 2(10Gbps)Card - 2x USB-A - PCIe USB 3.1 Card with Type-A/PCI Express USB 3.1 10 Gbps Adapter Card w/UASP - Transfer files and access USB 3.1 devices faster - Fast hassle-free setup with Windows 10 and 8 native OS support - Install in standard or low-profile systems - Backward compatibility with USB 3.0/2.0 devices - Ideal for high-bandwidth external hard drives and storage solutions Marketing Copy Applications - Upgrade an older PCIe based desktop from USB 3.0/2.0 to USB 3.1 Gen 2 (10Gbps)
- Expand the USB capabilities of your system, or install the card as a vital hardware component when building a new PC
- Ideal for backing up files, video editing, and data recovery using high-bandwidth USB 3.1 Gen 2 external storage solutions
- Connect your legacy USB devices to your computer
Website Search Keyword - USB 3.1 Card
- USB 3.1 Gen 2 Card
- PCIe USB 3.1 Card
- PCI Express USB 3.1 Gen 2 Card
- USB-A Card
- USB Type-A Card
- 2-Port USB 3.1 Gen 2 (10Gbps) Card
- USB 3.1 Gen 2 (10Gbps) Card
- 2 Port USB 3.1 Gen 2 Card
- USB 3.1 Card with Type-A
- USB 3.1 Card with USB-A
- 10Gbps USB 3.1 Card
- 10gbps
- USB 3.1 10Gbps
- USB 3.1 Gen 2 10Gbps
- 2 port type a usb 3.1 card
- 2 port usb 3.1 gen 2 add on card
- USB 3.1 Gen 2 host controller
- pci express usb 3.1 card
- pci express usb 3.1 gen 2 card
- pcie usb 3.1 card
- PCIe USB 3.1 Gen 2
- pcie usb 3.1 gen 2 card
- USB 3.1 Gen 2 10 Gbps Card
- USB 3.1 controller
- usb 3.1 controller card
- usb 3.1 adapter card
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.
- The available bandwidth (10Gbps) is shared equally between the two ports.
System and Cable Requirements - PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
- SATA power connector
Accessory Products - USB31AC1M
- LP4LSATAADAP
- SATAPOWADAP
- USB3SAB10
- S251BPU313
- S351BU313
- S251BMU313
- USB3SAA6
- USB3SAUB1
- USB3SAB6
- USB3AUB2MS
- ST7300USB3B
- ST7300U3M
Related Products - PEXUSB3S42
- PEXUSB3S7
- PEXUSB3S2EI
- PEXUSB3S44V
- PEXUSB3S3GE
- ECUSB3S11
- PEXUSB311A1C
- PEXUSB311EI
Replacement Product PEXUSB312A2 Humidity 5~95% RH (Non-condensing) Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 90 Product Width (mm) 18 Product Height (mm) 120 Product Weight (g) 50 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant Yes Maximum Data Transfer Rate 10Gbps MTBF (hours) 50,000 Hours OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Windows Server 2012
- Linux
- Mac OS X Mavericks (10.9)
- Mac OS X Yosemite (10.10)
- Windows Server 2016
- Windows 11
- Windows Server 2022
- Windows Server 2019

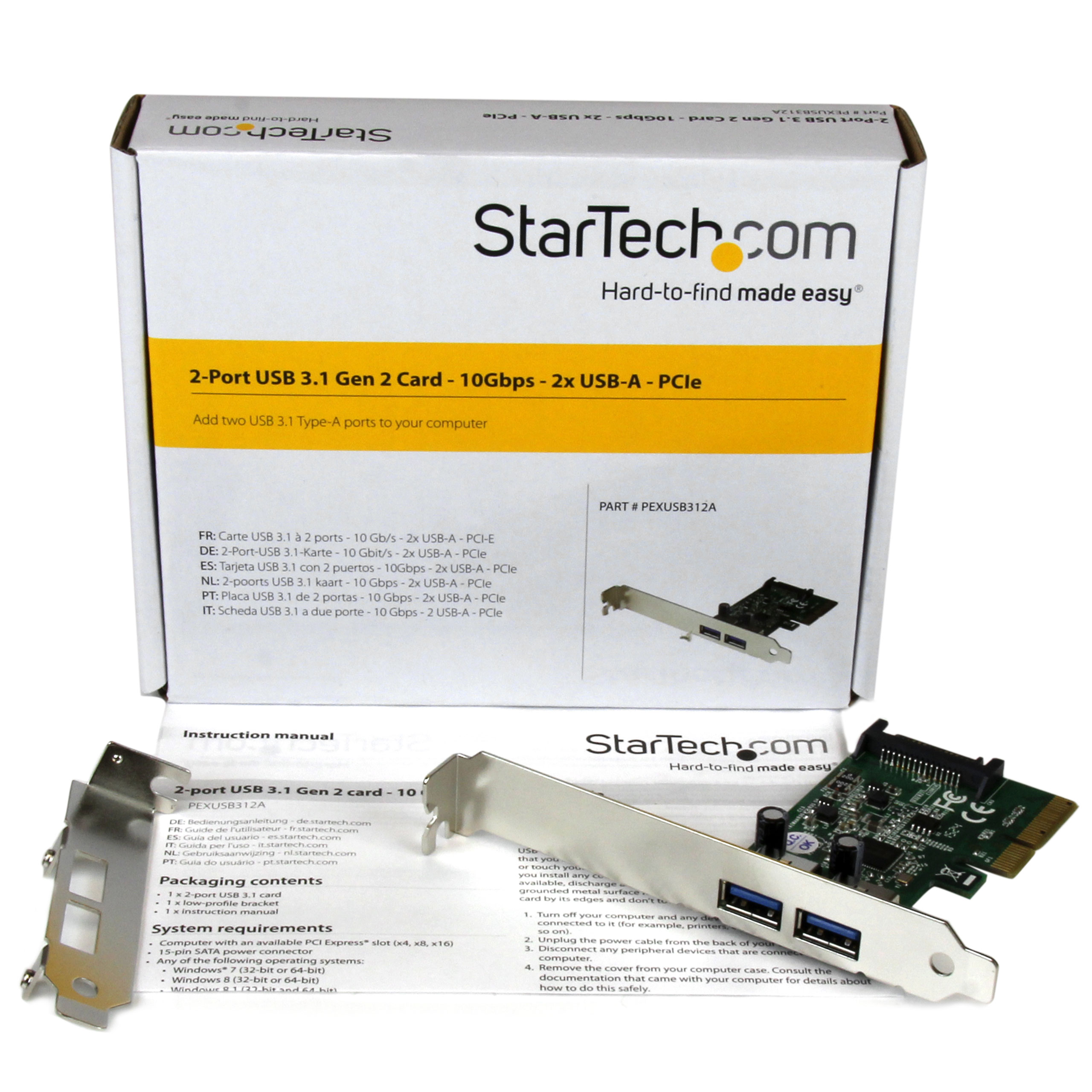

UASP Support Yes USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate USB 10Gbps Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASMedia - ASM1142 Industry Standards Interface/Bridge USB 3.2 Gen 2 IO Card Port Style Integrated on Card USB Port Type USB-A Carton Depth (mm) 485 Carton Height (mm) 330 Carton Quantity 100 Carton Weight Gross (g) 11376 Included in Package - 1 - 2-port USB 3.1 gen 2 card
- 1 - low-profile bracket
- 1 - instruction manual
Package Depth (mm) 130 Package Height (mm) 30 Package Width (mm) 160 Package Quantity 1 Package Weight (g) 100 Packaging Description 2-Port USB 3.1 Card - 10Gbps - 2x USB-A - PCIe Packaging Description India 2-Port USB 3.1 Card - 10Gbps - 2x USB-A - PCIe Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 USB-A (10Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2015-11-17 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist kfarid Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Production Release 2015-07-10 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
