PEXUSB312C

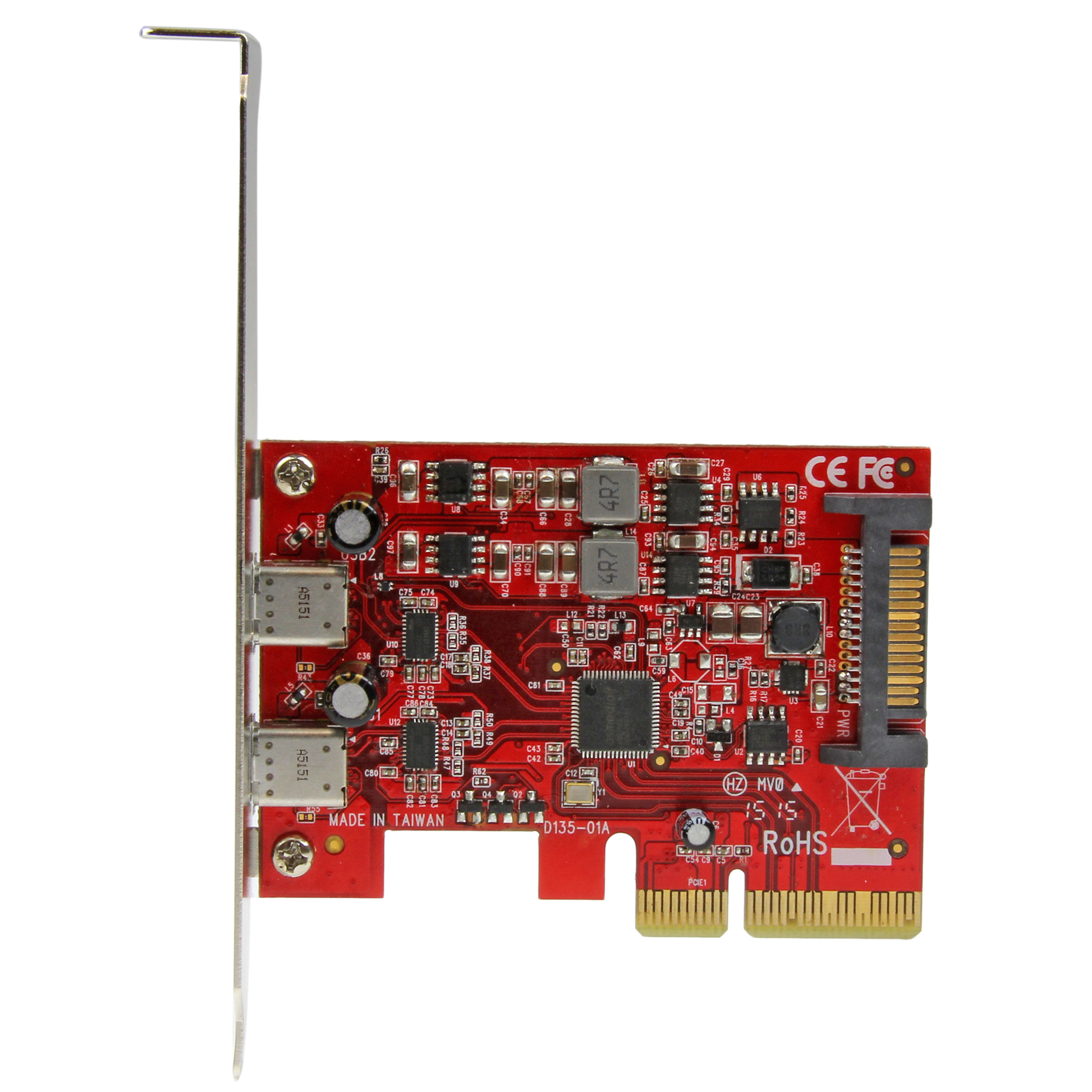

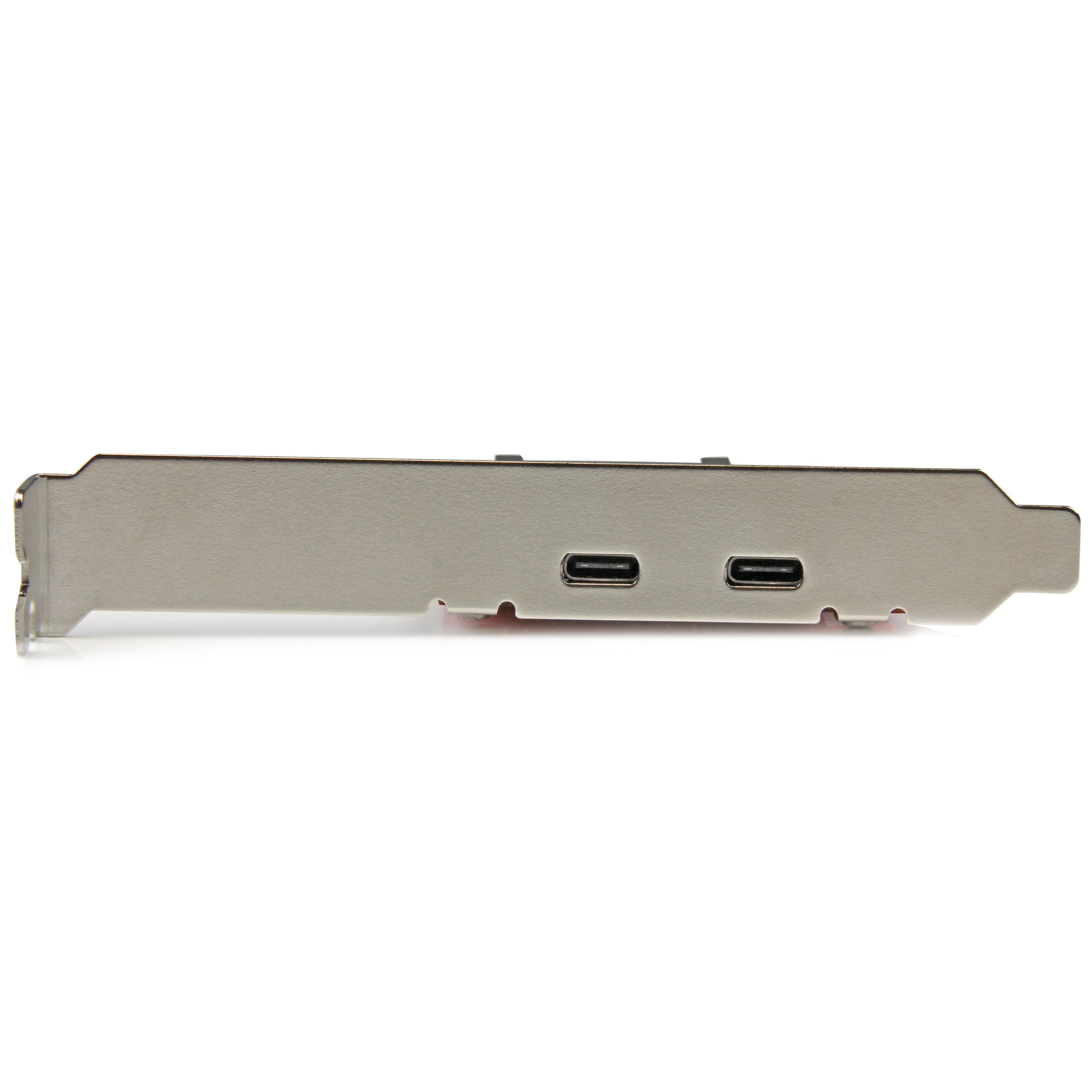

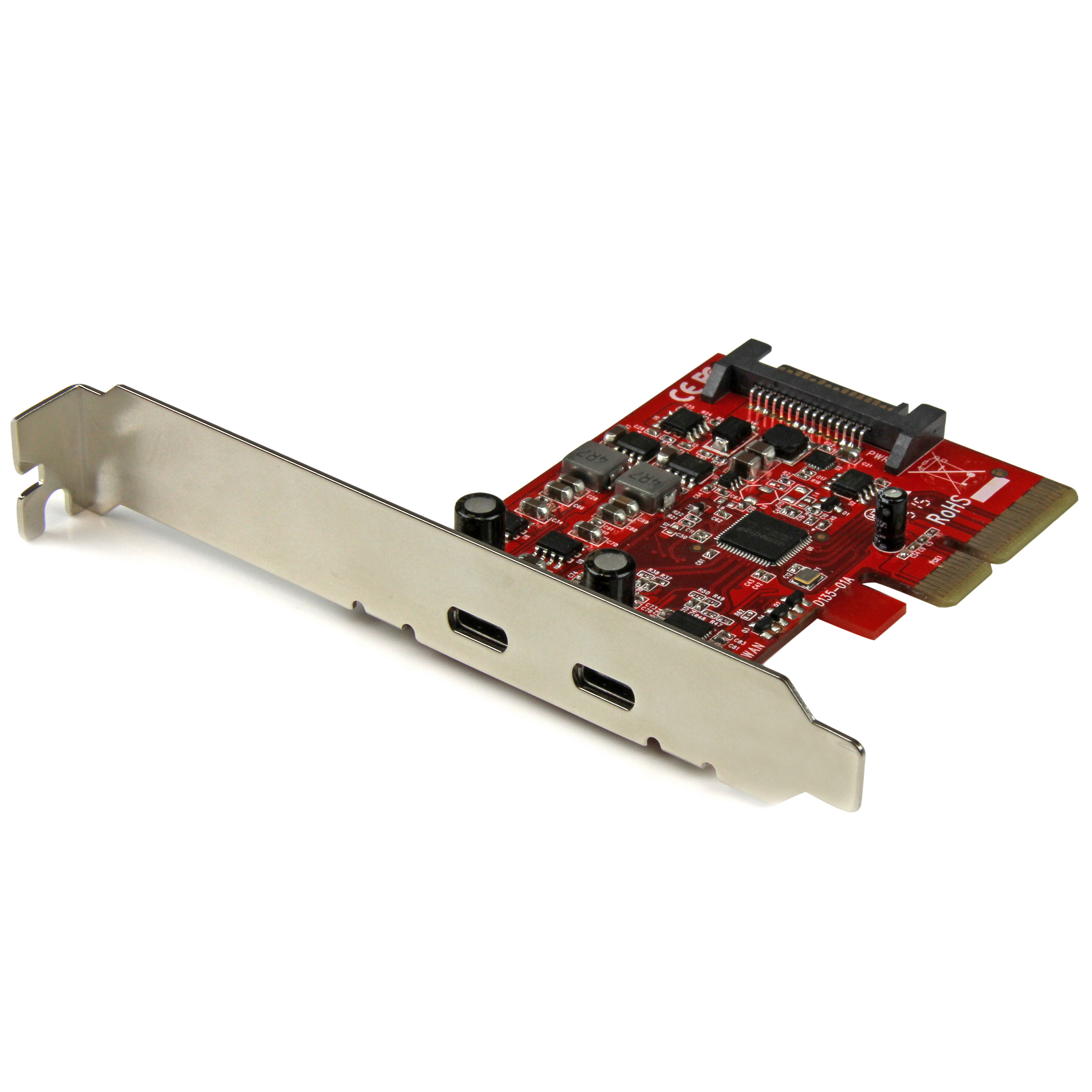

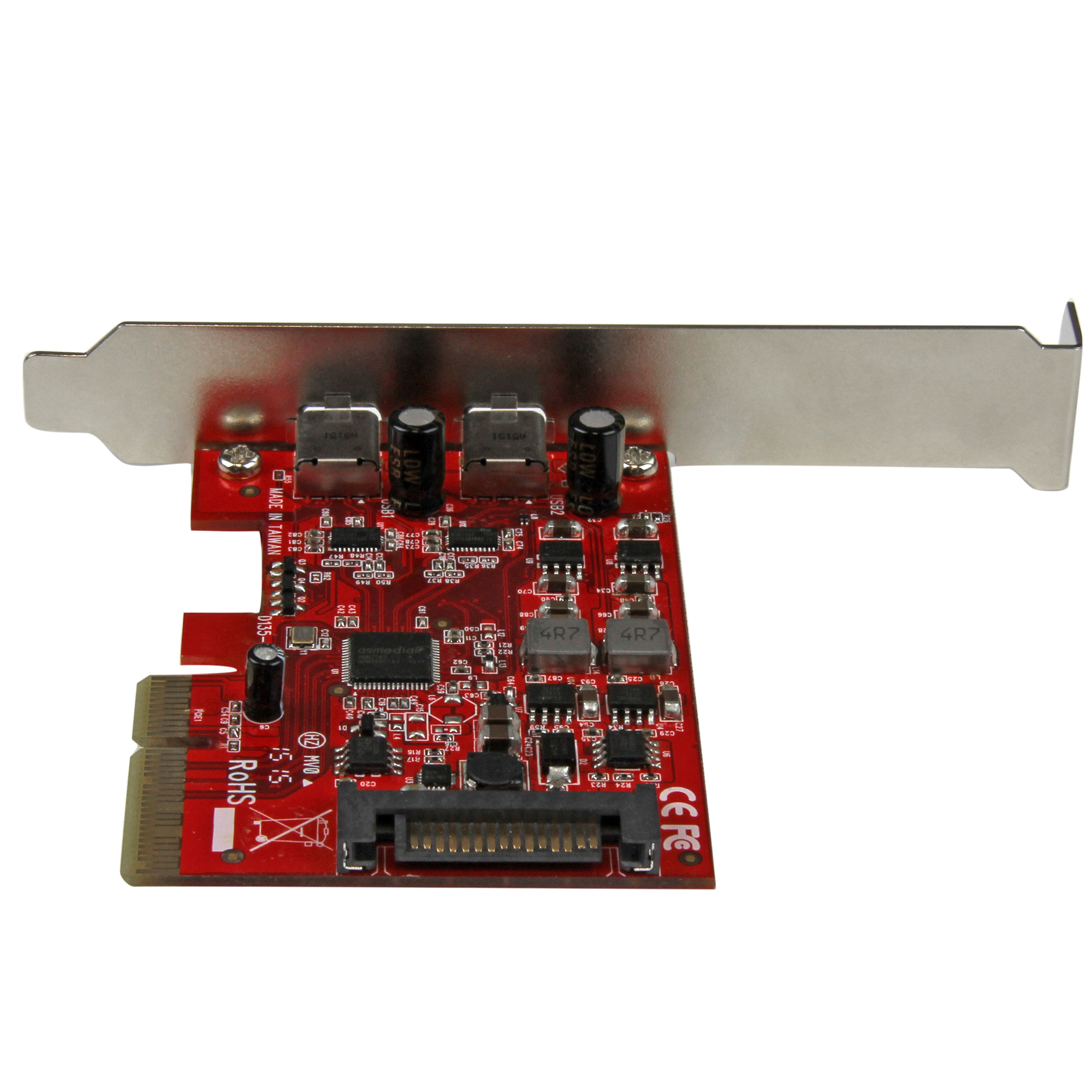

2-Port USB 3.1 (10Gbps) Card - 2x USB-C - PCIe
Upgrade your computer to the 10Gbps speed of USB 3.1 Gen 2, by adding two USB Type-C ports
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2-Port USB 3.1 (10Gbps) Card - 2x USB-C - PCIe Product Number PEXUSB312C UPC 065030863681 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-C Cards - 10Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) USB 3.1 Card - USB-C Product Title (Short) 2 Port USB 3.1 (10Gbps) Card - 2x USB-C Product Title (Medium) 2 Port USB 3.1 (10Gbps) Card - 2x USB-C - PCIe - USB C Gen 2 - USB Type-C Card Product Title (Standard) USB C PCIe Card – 2 Port USB-C – UASP – SATA Power Connector – 10Gbps – USB Type C PCIe Card – UBC Expansion Card Product Title (Long) 2-Port USB 3.1 (10Gbps) Card - 2x USB-C - PCIe Product Title (AMZ) USB C PCIe Card - 2 Port USB-C - UASP - SATA Power Connector - 10Gbps - USB Type C PCIe Card - UBC Expansion Card (PEXUSB312C) Title Ingram (Part 1) 2Port USB 3.1 Gen 2 Controller Title Ingram (Part 2) - 10Gbps USB Card with 2x USB-C Website Product Headline Upgrade your computer to the 10Gbps speed of USB 3.1 Gen 2, by adding two USB Type-C ports Bullet 1 Transfer files and access USB 3.1 devices faster, with up to 10Gbps throughput Bullet 2 Get set for the future of universal connectivity, by adding two USB-C ports to your computer Bullet 3 Connect high-powered devices using the integrated ports and onboard SATA power connector Bullet 4 Works with your existing USB 3.0 (5Gbps) and USB 2.0 (480Mbps) devices, for cost-effective backward compatibility Bullet 5 Each USB Type-C port delivers up to 3A of power Bullets (Compact) Upgrade your computer to the 10Gbps speed of USB 3.1 Gen 2 by adding two USB Type-C ports - 2 port USB 3.1 (10Gbps) Card with 2x USB-C ports - PCIe USB 3.1 host card prepares you for future USB-C devices - Works w/ USB 3.0 (5Gbps) & USB 2.0 (480Mbps) Bullets (Consolidated) Upgrade your computer to the 10Gbps speed of USB 3.1 Gen 2 by adding two USB Type-C ports - 2 Port USB 3.1 (10Gbps) Card with 2x USB-C Ports - PCIe USB C Gen 2/PCI Express USB 3.1 Controller - Includes low-profile bracket/Connect high-performance USB Type C devices - Fast file transfers up to 10 Gbps/SATA powered - USB-C ports ensure you're ready for the future of connectivity - Backward compatible host card w/ USB 3.0/USB 2.0 - Perfect for upgrading or building your computer/UASP Marketing Copy Applications - Deploy at home or in the office, and connect the latest USB-C devices, such as HDD enclosures
- Install the card as a vital hardware component when building a PC
- Upgrade an older PCIe based desktop from USB 3.0 or 2.0 to USB 3.1 Gen 2 (10Gbps)
- Ideal for backing up files, video editing, and data recovery using high-bandwidth USB 3.1 Gen 2 external storage solutions
Website Search Keyword - USB 3.1 Card
- USB 3.1 Gen 2 Card
- PCIe USB 3.1 Card
- PCI Express USB 3.1 Gen 2 Card
- 2-Port USB 3.1 Gen 2 (10Gbps) Card
- USB 3.1 Gen 2 (10Gbps) Card
- 2 Port USB 3.1 Gen 2 Card
- 10Gbps USB 3.1 Card
- USB 3.1 10Gbps
- USB 3.1 Gen 2 10Gbps
- 2 port usb 3.1 gen 2 add on card
- USB 3.1 Gen 2 host controller
- pci express usb 3.1 card
- PCIe USB 3.1 Gen 2
- pcie usb 3.1 gen 2 card
- USB 3.1 Gen 2 10 Gbps Card
- USB 3.1 controller
- usb 3.1 controller card
- usb 3.1 adapter card
- USB-C Card
- USB Type-C Card
- USB 3.1 Card with Type-C
- USB 3.1 Card with USB-C
- Type-c card
- type-c usb card
- 10gbps usb card
- 10 gbps usb card
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.
- The available bandwidth (10Gbps) is shared equally between the two ports.
- The card's USB-C ports are standard data throughput port. They do not support DP Alt Mode or USB Power Delivery.
System and Cable Requirements - PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
- SATA power connector
Accessory Products - USB31CAADP
- USB31AC1M
- USB31CB1M
- USB31CUB1M
- USB31CC1M
- SATAPOWADAP
- S252BU313R
Related Products - PEXUSB311A1C
- PEXUSB312A
- PEXUSB311EI
- PEXUSB3S7
- PEXUSB3S3GE
Replacement Product PEXUSB312C2 Humidity 20~80% RH (Non-condensing) Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 92.000 Product Width (mm) 18.000 Product Height (mm) 120.000 Product Weight (g) 48.000 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes Maximum Data Transfer Rate 10Gbps OS Compatibility - Linux
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2012
- Mac OS X Mavericks (10.9)
- Mac OS X Yosemite (10.10)
- Windows Server 2016
- Windows 11
- Windows Server 2022
- Windows Server 2019

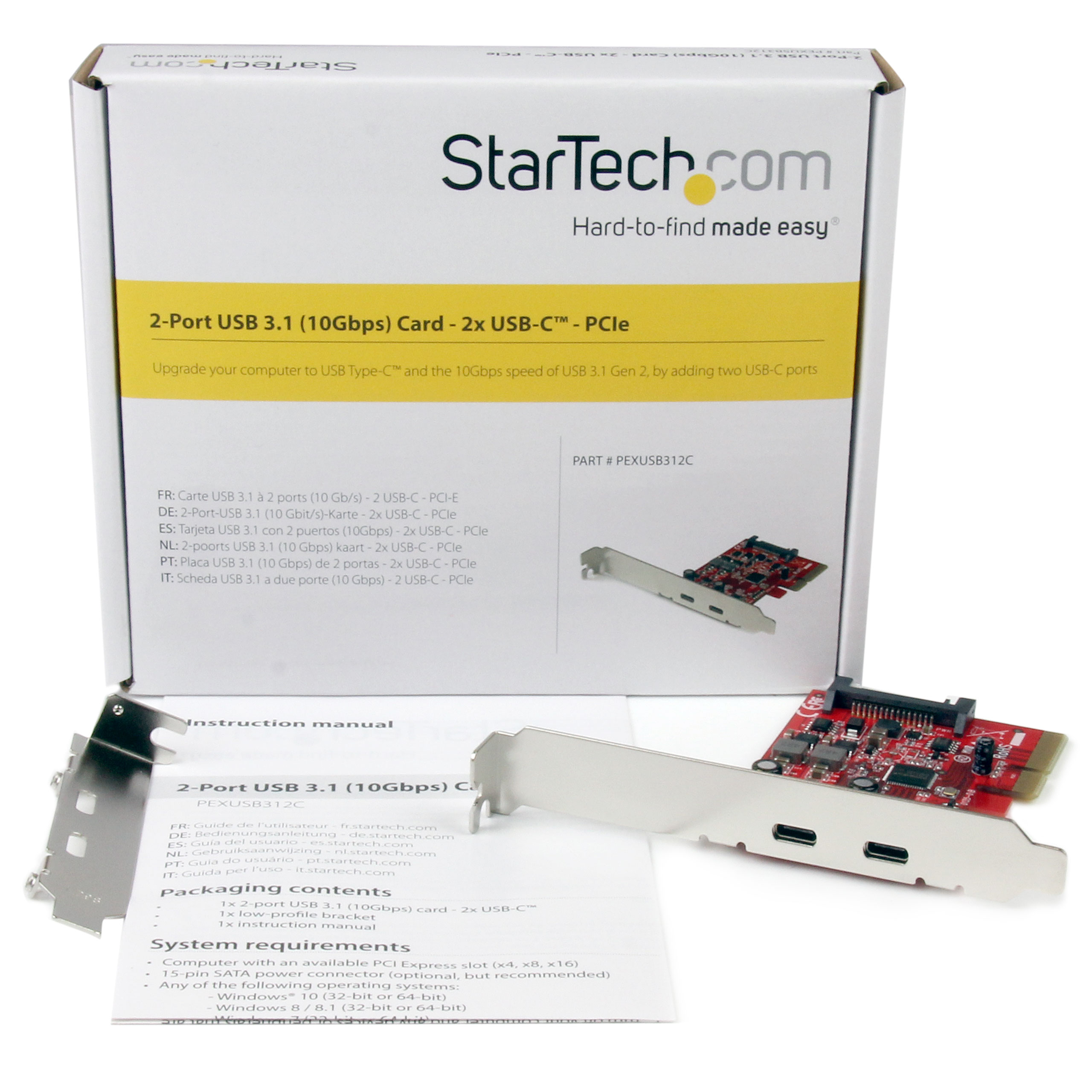

UASP Support Yes USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate USB 10Gbps Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASMedia - ASM1142 Industry Standards Interface/Bridge USB 3.2 Gen 2 IO Card Port Style Integrated on Card USB Port Type USB-C Carton Depth (mm) 380 Carton Height (mm) 310 Carton Quantity 60 Carton Weight Gross (g) 7922 Included in Package - 1 - 2-port USB 3.1 (10Gbps) card - 2x USB-C
- 1 - low-profile bracket
- 1 - instruction manual
Package Depth (mm) 142 Package Height (mm) 30 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 116 Packaging Description 2-Port USB 3.1 (10Gbps) Card - 2x USB-C - PCIe Packaging Description India 2-Port USB 3.1 (10Gbps) Card - 2x USB-C - PCIe Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 USB-C (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2015-09-09 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology USB-C Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Production Release 2015-11-20 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
