PEXUSB312C2
2Port USB 3.1 PCI-e Card - 2x C - 10Gbps PCIe Card
Add two 10Gbps USB Type-C ports to your computer, through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name 2Port USB 3.1 PCI-e Card - 2x C - 10Gbps PCIe Card Product Number PEXUSB312C2 UPC 065030871174 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-C Cards - 10Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Ultra-Short) 2 Port USB C Card Product Title (Short) USB 3.1 Card - 2-Port PCIe USB C Product Title (Medium) Dual Port USB C Card - 10Gbps per port - 2x USB-C - USB 3.1 - PCIe Product Title (Standard) Replaced by PEXUSB312A3 - 2-Port USB PCIe Card - 10Gbps USB 3.1 Gen 2 Type-A PCI Express Host Controller Expansion Card Product Title (Long) Discontinued and replaced by PEXUSB312C3 - Dual Port USB-C Card - 2x USB-C - USB 3.1 PCI-e Card with SATA - USB 3.1 Expansion Card - PCI Express USB C Card Product Title (AMZ) Discontinued and replaced by PEXUSB312C3 - Dual Port USB-C Card - 2x USB-C - USB 3.1 PCI-e Card with SATA - USB 3.1 Expansion Card - PCI Express USB C Card (PEXUSB312C2) Title Ingram (Part 1) 2Port USB 3.1 PCI-e Card - Title Ingram (Part 2) 2x USB C - 10Gbps PCI e Card Website Product Headline Add two 10Gbps USB Type-C ports to your computer, through a PCI Express slot Bullet 1 Transfer files and access USB 3.1 devices faster, with up to 10Gbps throughput Bullet 2 Get set for the future of universal connectivity, by adding two USB-C ports to your computer Bullet 3 Optional SATA power connector provides up to 900mA per USB port Bullet 4 Works with your existing USB 3.0 (5Gbps) and USB 2.0 (480Mbps) devices, for cost-effective backward compatibility Bullet 5 PCIe x4 interface compliant with PCI Express Base Specification Revision 3.0 Bullets (Compact) Add two 10Gbps USB Type-C ports to your computer, through a PCI Express slot - USB 3.1 PCI-e card perfect for PC upgrades or builds - USB PCI Card with SATA power connector provides up to 900mA per port - USB 3.1 Expansion Card - 10Gbps PCI e Card Bullets (Consolidated) REPLACED BY PEXUSB312C3: Add two 10Gbps USB Type C ports to your computer through a PCI Express slot - Dual port USB 3.1 card perfect for PC upgrades or builds - Expand the USB capabilities of your system with 2 new USB-C ports - Works with older USB 3.0 and 2.0 devices - USB 3.1 PCI-e Card with SATA power connector provides up to 900mA per port - USB C Card with UASP - USB 3.1 Expansion Card / PCI-e USB 3.1 Card / PCI Express USB Adapter /10Gbps PCI e Card /2 Port USB-C Expansion Card Marketing Copy Applications - Upgrade an older PCIe equipped desktop from USB 3.0/2.0 to USB 3.1 Gen 2 (10Gbps)
- Expand the USB capabilities of your system with two USB-C ports, or install the card as a vital hardware component when building a new PC
- Ideal for file backups, video editing, and data recovery, using high-bandwidth USB 3.1 Gen 2 external storage solutions
Website Search Keyword - 10Gbps PCI e adapter
- 10Gbps PCI e card
- 10Gbps usb c adapter card
- 10Gbps usb c card
- 2 port usb 3 adapter
- 2 port usb c adapter card
- 2 port usb c expansion
- 2 port usb c expansion adapter
- 2 port usb c pci adapter
- 2 port usb card
- 2 port usb-c expansion card
- 2 port usb-c pci card
- dual port usb 3.1 card
- dual port usb c card
- dual port usb c pci adapter
- dual port usb-c card
- expander card
- expansion card
- pci card usb 3.1
- pci express to usb 3.1
- pci express to usb adapter
- pci express to usb c
- pci express usb
- PCI Express usb adapter
- PCI Express usb c card
- pci to usb 3.1
- pci to usb-c
- pci to usb-c adapter
- pci usb 3
- pci usb 3 card
- pci usb 3.1
- pci usb 3.1 adapter card
- pci usb 3.1 card
- pci usb adapter
- pci usb c card
- pci usb hub
- pci usb type c
- pci-e to usb-c
- pci-e usb 3.1
- pci-e usb 3.1 card
- pcie usb c card
- pcie usb-c adapter
- usb 3 adapter card
- usb 3 card
- usb 3 expansion card
- usb 3 pci
- usb 3 pci card
- usb 3 pci express card
- usb 3.1 adapter card
- usb 3.1 card
- usb 3.1 card pci
- usb 3.1 expansion card
- usb 3.1 gen 2 expansion adapter
- usb 3.1 gen 2 expansion card
- usb 3.1 pci
- usb 3.1 pci adapter
- usb 3.1 pci card
- usb 3.1 pci express
- usb 3.1 pci express card
- usb 3.1 pci-e
- usb 3.1 pci-e card
- usb 3.1 to pcie
- usb c card
- usb c pci adapter
- usb c to pci
- usb c to pci adapter
- usb c to pci express adapter
- usb to pci express
- usb-c pci card
- usb-c pci express
- usb-c pci express card
- usb-c to pci converter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - The card's USB-C ports are standard data throughput port. They do not support DP Alt Mode or USB Power Delivery.
- The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.
- The available bandwidth (10Gbps) is shared equally between the two ports.
System and Cable Requirements - PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
- Optional SATA power connector
Accessory Products - USB31CAADP
- USB31AC1M
- USB31CB1M
- USB31CUB1M
- USB31CC1M
- SATAPOWADAP
- S252BU313R
Related Products - PEXUSB311A1C
- PEXUSB312A
- PEXUSB311EI
- PEXUSB3S7
- PEXUSB3S3GE
Input Voltage 12V DC Output Voltage (V) 12V DC Humidity 20~80% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 122.000 Product Width (mm) 90.000 Product Height (mm) 21.000 Product Weight (g) 46.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Maximum Data Transfer Rate 10Gbps OS Compatibility - Linux
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2012
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

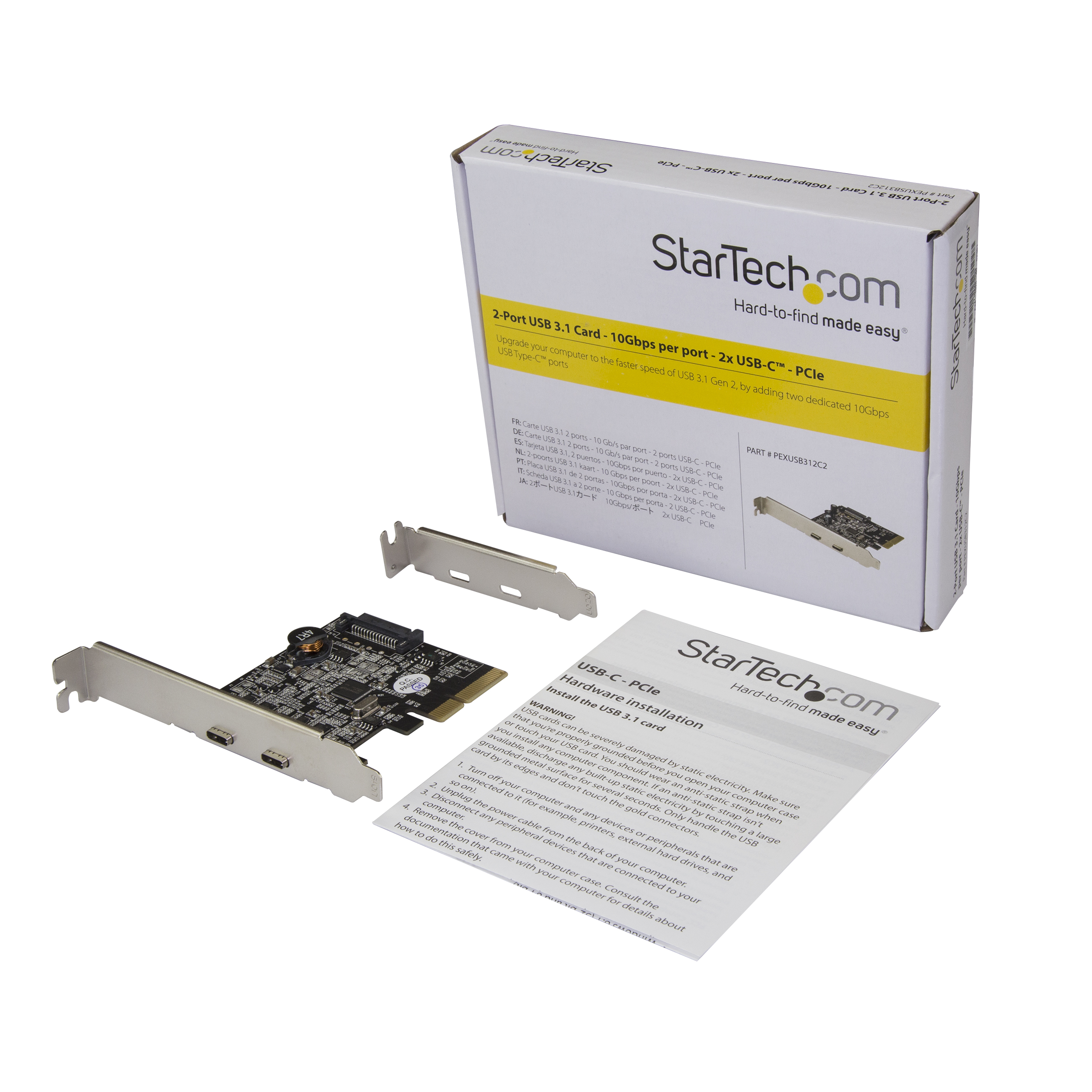

UASP Support Yes USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate USB 10Gbps Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASMedia - ASM2142 Industry Standards Interface/Bridge USB 3.2 Gen 2 IO Card Port Style Integrated on Card USB Port Type USB-C Carton Depth (mm) 305 Carton Height (mm) 360 Carton Quantity 80 Carton Weight Gross (g) 10350 Included in Package - 1 - USB 3.1 card
- 1 - low-profile bracket
- 1 - quick-start guide
Package Depth (mm) 142 Package Height (mm) 30 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 120 Packaging Description 2-Port USB 3.1 Card - 10Gbps per port - 2x USB-C - PCIe Packaging Description India 2-Port USB 3.1 Card - 10Gbps per port - 2x USB-C - PCIe Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 USB-C (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2017-03-03 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-04-07 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology USB-C Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2017-03-03 Target Production Release 2017-03-17 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
