PEXUSB312C3
2 Port USB 3 2 PCI e Card 2x C 10Gbps PCIe Card
PCI-Express USB-C Card | 10Gbps | PCIe Gen3 x4 | 2-Year Warranty
Main Image
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name 2 Port USB 3 2 PCI e Card 2x C 10Gbps PCIe Card Product Number PEXUSB312C3 UPC 065030887434 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-C Cards - 10Gbps Family USB-C Cards - 10Gbps - PCIe Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) PCIe USB 3.1 Card Product Title (Short) 2x 10Gbps USB C PCIe Card -USB 3.1 Gen 2 Product Title (Medium) 2 Port PCIe USB 3.1 Card - 2x USB 3.2 Type C Gen 2 - Up to 10Gbps - PCI Express Product Title (Standard) 2-Port USB 3.2 Gen 2 PCIe Card, USB-C 10Gbps PCI Express 3.0 x4 Controller, USB Type-C, Data Only, Windows/macOS/Linux, TAA Product Title (Long) 2-Port USB 3.2 Gen 2 PCIe Card, USB-C 10Gbps SuperSpeed PCI Express 3.0 x4 Controller Card, USB Type-C Adapter Card, Data Only, Windows/macOS/Linux, TAA Product Title (AMZ) 2-Port USB 3.2 Gen 2 PCIe Card, USB-C 10Gbps PCI Express 3.0 x4 Adapter, Data Only, Windows/macOS/Linux, TAA Title Ingram (Part 1) 2 Port PCIe USB 3.1 Gen 2 Card Title Ingram (Part 2) - Up to 10Gbps - PCIe Gen 3 x4 Website Product Headline PCI-Express USB-C Card | 10Gbps | PCIe Gen3 x4 | 2-Year Warranty Bullet 1 HIGH PERFORMANCE: Add 2x USB-C SuperSpeed 10Gbps ports to your desktop PC with this USB 3.2 Gen 2x1 PCIe Card; Expansion card provides up to 5V 3A (15W) via the USB-C ports Bullet 2 USB 3.2 GEN 2X1 SPEEDS: PCI Express card features the ASMedia ASM3142 host controller using x4 lanes of PCIe 3.0; Capable of speeds up to 10Gbps enabling fast access to high-performance devices like NVMe drives and SSDs Bullet 3 MAXIMIZED USB PERFORMANCE: 2-port USB-C PCIe Card adapter supports USB Attached SCSI Protocol (UASP) optimizing USB performance; Installs in full/low-profile PCIe 3.0 x4 desktop / server slot (lower performance with PCI-e 2.0) Bullet 4 COMPATIBILITY: Add-on card installs in full or low-profile (bracket included) PCIe 3.0 x4 slot (Backward compatible with PCIe 2.0); Windows/Linux/macOS with auto-install drivers Win 8 and up; Works with USB 3.2 Gen 2/3.0/2.0 devices Bullet 5 COMPATIBILITY NOTICE: This dual port USB-C 10Gbps PCIe card supports data transfer only; It does not support DisplayPort Alt Mode for video output, USB Power Delivery, or Thunderbolt devices Bullets (Compact) USB-C 10Gbps PCIe Card; 15W (5V@3A per port) for charging - ASM3242 controller using x4 lanes - Supports Multiple INs and UASP; Full or low-profile, PCIe 3.0 x4 slot - Windows/Linux/macOS - Does not support DP Alt-Mode, Power Delivery, or Thunderbolt Bullets (Consolidated) USB 3.2 Gen 2 PCI Express Host Controller card supports Multiple INs maintaining max bandwidth | Upgraded version of our PEXUSB312C2 - Expansion adapter card w/ 2x USB Type-C ports 10Gbps per port - USB-C PCIe Card w/ UASP optimizes USB performance - SATA power provides 5V 3A (15W) /USB-C port - Install dual port USB-C add-on card in full/low-profile PCIe 3.0 x4 slot (works w/PCI-e 2.0) - Data only: This card's USB-C port does not support DP Alt-Mode (video), Power Delivery, or Thunderbolt Marketing Copy Marketing Copy (No HTML) Applications - Expand the USB capabilities of your system with two USB-C ports, or install the card as a vital hardware component when building a new PC
- Upgrade an older PCIe equipped desktop from USB 3.0/2.0 to USB 3.2 Gen 2 (10Gbps) with Type C
- Ideal for file backups, video editing, and data recovery, using high-bandwidth USB 3.2 Gen 2 external storage solutions
Website Search Keyword - 10gbps pcie card
- 2 port usb card
- pci express usb 3.1 card
- pcie usb c card
- usb 3.1 adapter card
- usb 3.1 expansion card
- usb 3.1 gen 2 pcie card
- usb 3.1 pci e card
- usb c pcie adapter
- usb type c pcie card
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes - - The card's USB-C port is standard data only port. It does not support DP Alt Mode (for video) or USB Power Delivery
- - The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.
System and Cable Requirements - PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
- Optional SATA power connector
Accessory Products - USB31CAADP
- USB31AC1M
- USB31CB1M
- USB31CUB1M
- USB31CC1M
- SATAPOWADAP
- S252BU313R
Related Products - PEXUSB311A1C
- PEXUSB312A
- PEXUSB311EI
- PEXUSB3S7
- PEXUSB3S3GE
Replacement Product PEXUSB312C2 Constrained SKU Alternatives (Limited Stock) PEXUSB312A3 Color Black Humidity 20~80% RH Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 122.000 Product Width (mm) 80.000 Product Height (mm) 18.000 Product Weight (g) 45.000 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Maximum Data Transfer Rate 10Gbps OS Compatibility - Linux
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2012
- Windows Server 2016
- Windows Server 2019
- macOS Catalina (10.15)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- macOS Big Sur (11.0)
- Windows Server 2012 R2
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
UASP Support Yes USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate USB 10Gbps Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASMedia - ASM3142 Industry Standards Interface/Bridge USB 3.2 Gen 2 IO Card Port Style Integrated on Card USB Port Type USB-C Carton Depth (mm) 376 Carton Height (mm) 320 Carton Quantity 60 Carton Weight Gross (g) 8070 Included in Package - 1 - USB 3.1 Card

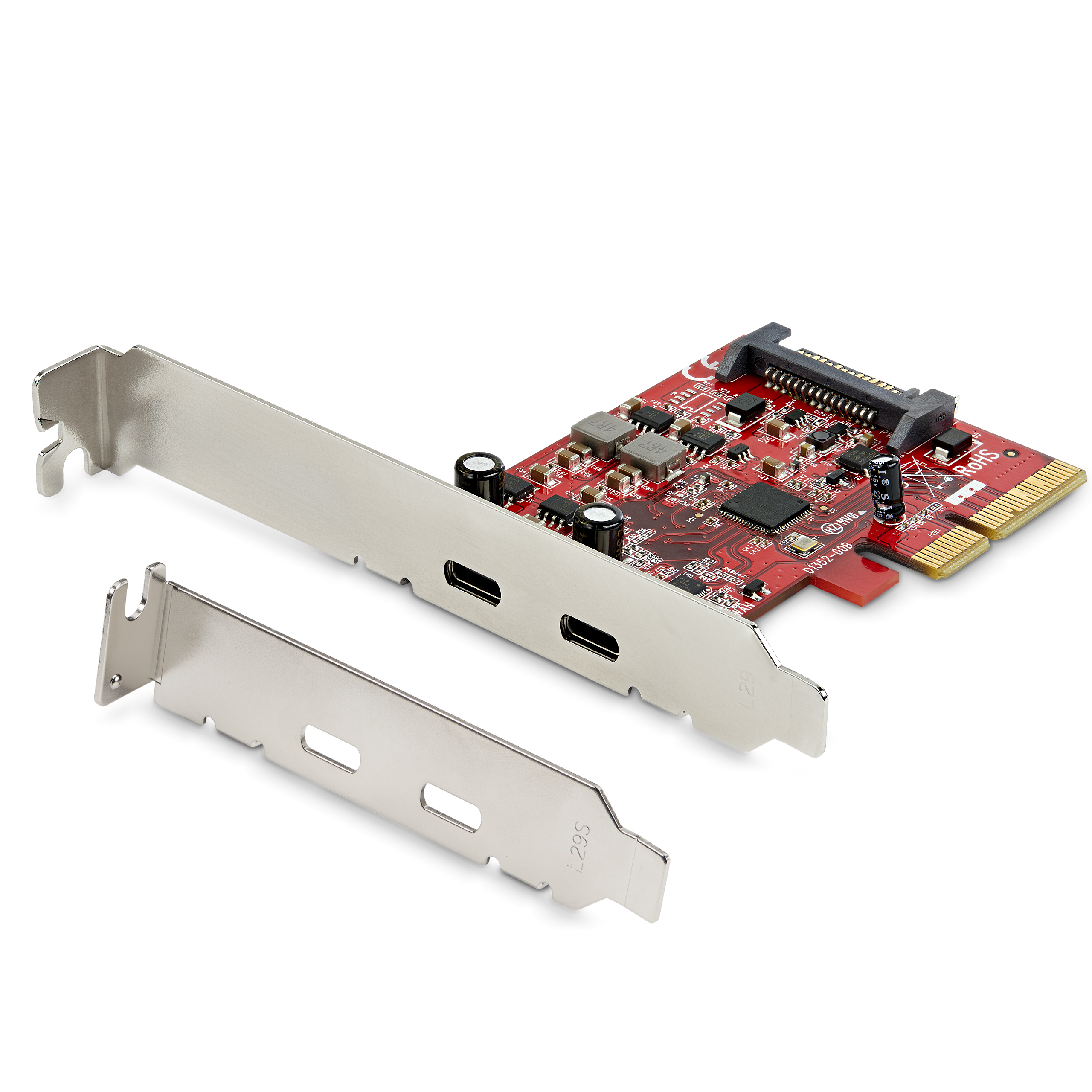

- 1 - Low Profile Bracket
- 1 - Quick Start Guide
Included In Package for Label - 1 - USB 3.1 Card
- 1 - Low Profile Bracket
- 1 - Quick Start Guide
Package Depth (mm) 142 Package Height (mm) 33 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 116 Packaging Description 2-Port USB 3.1 Card - 10Gbps per port - 2x USB-C - PCIe Packaging Description India 2-Port PCIe USB-C 10Gbps Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 USB-C (10Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2019-11-21 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2019-12-05 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Priority New Product N/A Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2019-10-18 Target Production Release 2019-11-21 Tech Lead Brian Linseman Technical Writer Evan Hanbidge Technology Lifecycle None
