PEXUSB314A2V

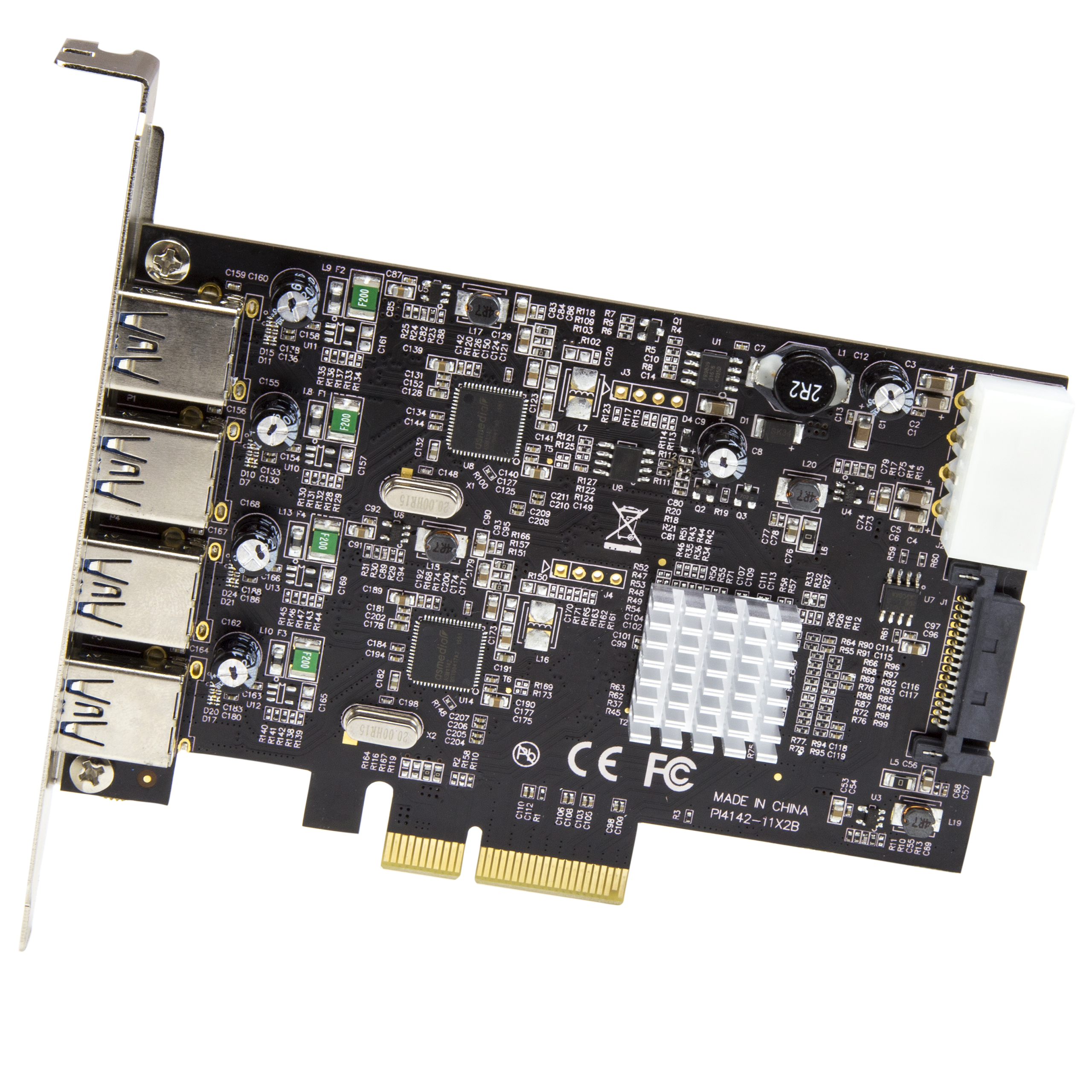

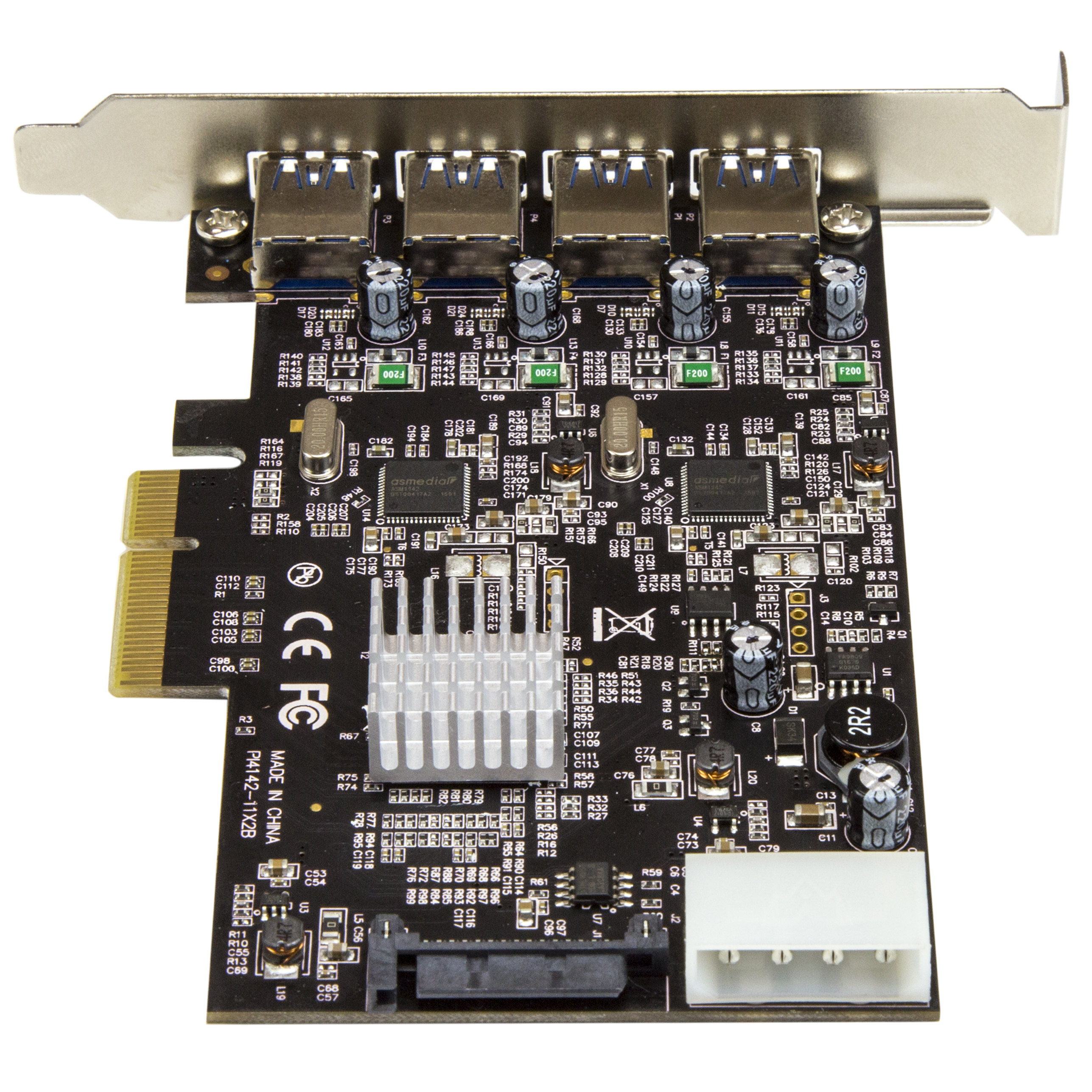

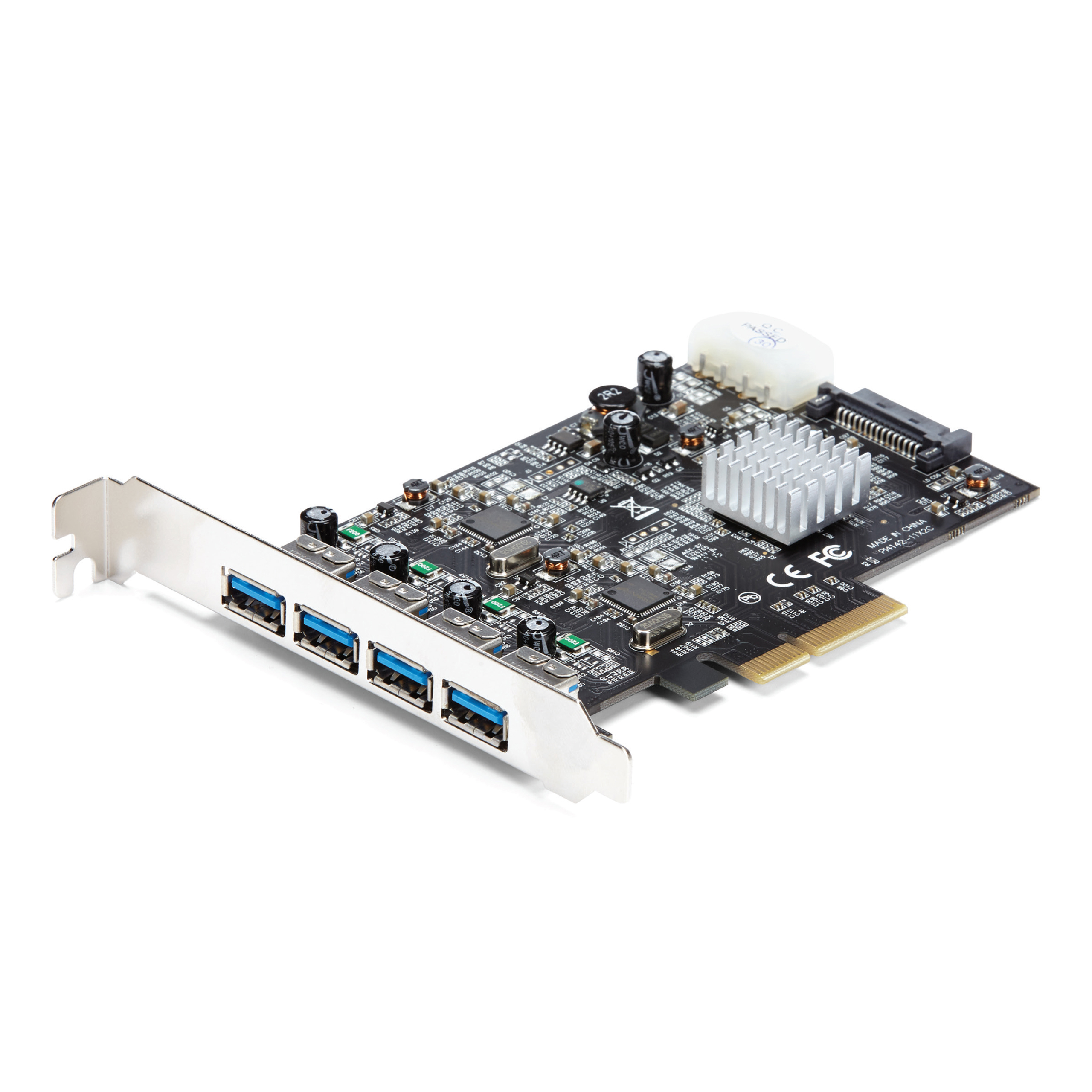

4Port USB 3.1 PCI-E Card w/ 2 Dedicated Channels
Add four USB Type-A ports with two independent 10Gbps channels to your computer, through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name 4Port USB 3.1 PCI-E Card w/ 2 Dedicated Channels Product Number PEXUSB314A2V UPC 065030868327 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 10Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Ultra-Short) USB 3.1 Card-10Gbps Product Title (Short) USB 3.1 Card - 4-Port PCIe USB A - 2 CH Product Title (Medium) 4 Port USB 3.1 (10Gbps) Card - 4x USB-A with Two Dedicated Channels - PCIe Product Title (Standard) 4-Port USB PCIe Card - 10Gbps USB 3.1/3.2 Gen 2 Type-A PCI Express Expansion Card - 2 Controllers - 4xUSB - Windows/Mac/Linux Product Title (Long) 4 Port USB 3.1 PCI-e Card - 10Gbps - 4x USB w/ Two Dedicated Channels - PCI Express Expansion Card / Adapter Product Title (AMZ) 4 Port USB 3.1 PCI-e Card - 10Gbps - 4x USB w/ Two Dedicated Channels - PCI Express Expansion Card / Adapter (PEXUSB314A2V) Title Ingram (Part 1) 4Port USB 3.1 PCI-E Card with Title Ingram (Part 2) Two 10Gbps Dedicated Channels Website Product Headline Add four USB Type-A ports with two independent 10Gbps channels to your computer, through a PCI Express slot Bullet 1 Provides four external USB 3.1 ports on two independent bus channels Bullet 2 Transfer files and access USB 3.1 devices faster, with up to 10Gbps throughput Bullet 3 Optional LP4 or SATA power connector provides up to 900mA per USB port Bullet 4 Cost-effective backward compatibility Bullet 5 Compliant with UASP (USB Attached SCSI Protocol) Revision 1.0 Bullets (Compact) Add four USB 3.1 Type-A ports with 2 independent 10Gbps channels to a computer through a PCI Express slot - USB Expansion Card with UASP - USB 3.1 PCI-E card w/ optional LP4 or SATA power connector provides up to 900mA per port - PCIe to USB Adapter Bullets (Consolidated) Add four USB 3.1 Type-A ports with two independent 10Gbps channels to your computer through a PCI Express slot - PCIe USB card perfect for PC upgrades or builds - Expand the USB capabilities of your system with 4 new USB ports - Works with older USB 3.0 and 2.0 devices - USB 3.1 PCI-E card w/ optional LP4 or SATA power connector provides up to 900mA per port - USB Expansion Card w/ UASP - USB Card/USB 3 Card/USB PCI Card/PCI-E to USB/PCI to USB Adapter Marketing Copy Marketing Copy (No HTML) Applications - Upgrade an older PCIe equipped desktop from USB 3.0/2.0 to USB 3.1 Gen 2 (10Gbps)
- Expand the USB capabilities of your system with four additional USB ports, or install the card as a vital hardware component when building a new PC
- Ideal for file backups, video editing, and data recovery, using high-bandwidth USB 3.1 Gen 2 external storage solutions
Website Search Keyword - 10Gbps PCI e adapter
- 10Gbps PCI e card
- 10Gbps usb adapter card
- 10Gbps usb card
- 4 port usb 3 adapter
- 4 port usb 3 card
- 4 port usb 3.1 card
- 4 port usb adapter card
- 4 port usb card
- 4 port usb expansion
- 4 port usb expansion adapter
- 4 port usb expansion card
- 4 port usb pci adapter
- 4 port usb pci card
- expander card
- expansion card
- pci card usb 3.1
- pci express to usb
- pci express to usb 3.1
- pci express to usb adapter
- pci express usb
- PCI Express usb adapter
- PCI Express usb card
- pci to usb
- pci to usb 3.1
- pci to usb adapter
- pci usb
- pci usb 3
- pci usb 3 card
- pci usb 3.1
- pci usb 3.1 adapter card
- pci usb 3.1 card
- pci usb adapter
- pci usb card
- pci usb hub
- pci-e to usb
- pci-e usb 3.1
- pci-e usb 3.1 card
- pcie usb adapter
- pcie usb card
- usb 3 adapter card
- usb 3 card
- usb 3 expansion card
- usb 3 pci
- usb 3 pci card
- usb 3 pci express card
- usb 3.1 adapter card
- usb 3.1 card
- usb 3.1 card pci
- usb 3.1 expansion card
- usb 3.1 gen 2 expansion adapter
- usb 3.1 gen 2 expansion card
- usb 3.1 pci
- usb 3.1 pci adapter
- usb 3.1 pci card
- usb 3.1 pci express
- usb 3.1 pci express card
- usb 3.1 pci-e
- usb 3.1 pci-e card
- usb 3.1 to pcie
- usb 4 port adapter
- usb card
- usb pci adapter
- usb pci card
- usb pci express
- usb pci express card
- usb to pci
- usb to pci adapter
- usb to pci converter
- usb to pci express
- usb to pci express adapter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.
- The available bandwidth (10Gbps) is shared equally between the two ports.
System and Cable Requirements - PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
- Optional SATA power or LP4 Molex connector
Accessory Products - USB31AC1M
- LP4LSATAADAP
- SATAPOWADAP
- USB3SAB10
- S251BPU313
- S351BU313
- S251BMU313
- USB3SAA6
- USB3SAUB1
- USB3SAB6
- USB3AUB2MS
- ST7300USB3B
- ST7300U3M
Related Products - PEXUSB311A1C
- PEXUSB311EI
- PEXUSB3S42
- PEXUSB3S7
- PEXUSB3S2EI
- PEXUSB3S44V
- PEXUSB3S3GE
- ECUSB3S11
Replacement Product PEXUSB314A2V2 Humidity 5% ~ 85% RH Operating Temperature -20°C to 60°C (-4°F to 140°F) Product Length (mm) 125.000 Product Width (mm) 20.000 Product Height (mm) 85.000 Product Weight (g) 79.000 Storage Temperature 0°C to 50°C (32°F to 122°F) TAA Compliant No Maximum Data Transfer Rate 10Gbps per 2 ports - 20Gbps Total OS Compatibility - Linux
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2012
- Mac OS X Mavericks (10.9)
- Mac OS X Yosemite (10.10)
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

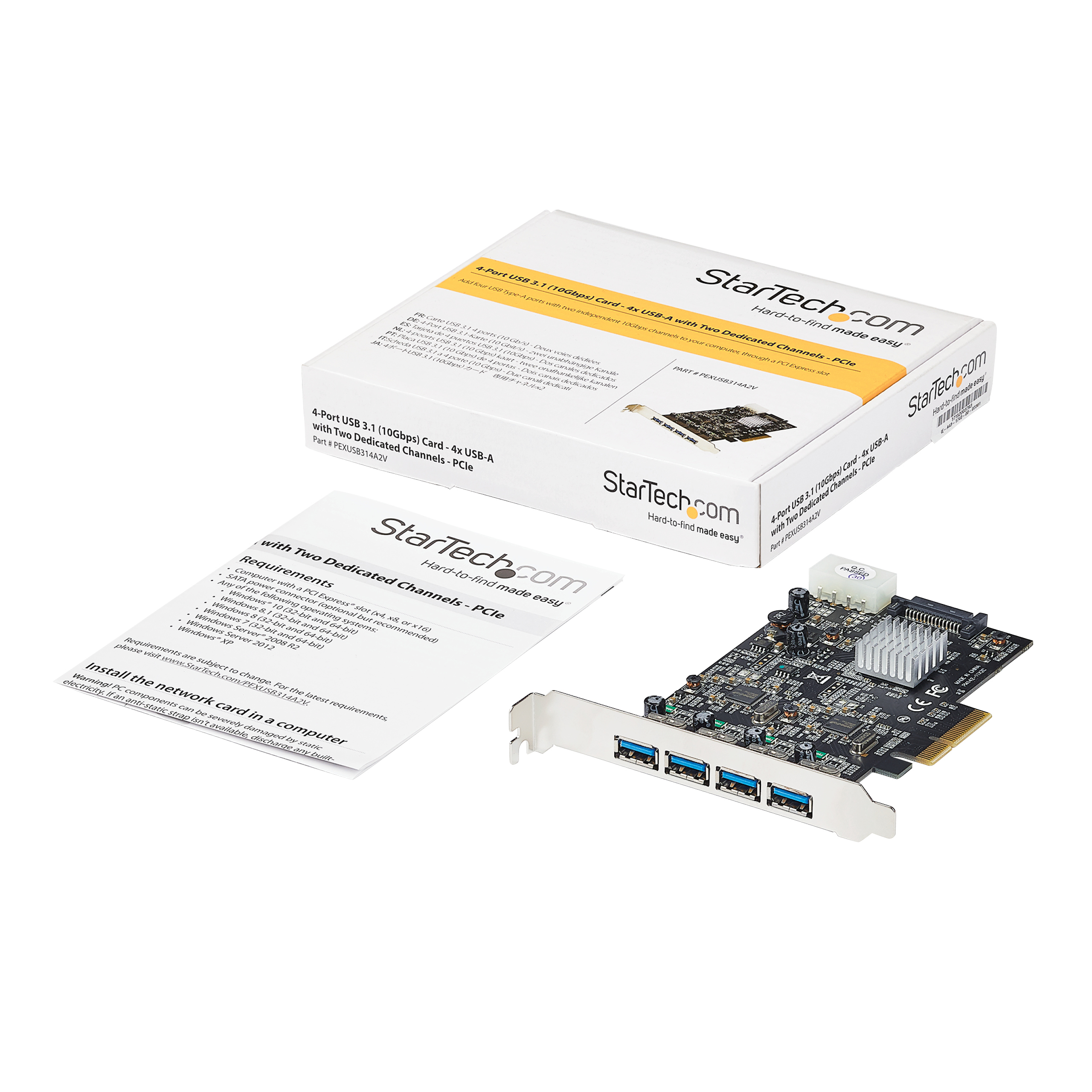

UASP Support Yes USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate USB 10Gbps Bus Type PCI Express Card Type Standard Profile Chipset ID ASMedia - ASM1142 Industry Standards Interface/Bridge USB 3.2 Gen 2 IO Card Port Style Integrated on Card USB Port Type USB-A Carton Depth (mm) 300 Carton Height (mm) 355 Carton Quantity 80 Carton Weight Gross (g) 11505 Included in Package - 1 - 4-port USB 3.1 card
- 1 - quick-start guide
Package Depth (mm) 142 Package Height (mm) 30 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 135 Packaging Description 4-Port USB 3.1 (10Gbps) Card - Two Dedicated Channels Packaging Description India 4-Port USB 3.1 (10Gbps) Card - Two Dedicated Channels Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 USB-A (10Gbps, 4.5W) Connector 2 (Quantity) 4 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2017-01-06 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-03-24 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FR,HK,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2017-03-03 Target Production Release 2019-09-26 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
