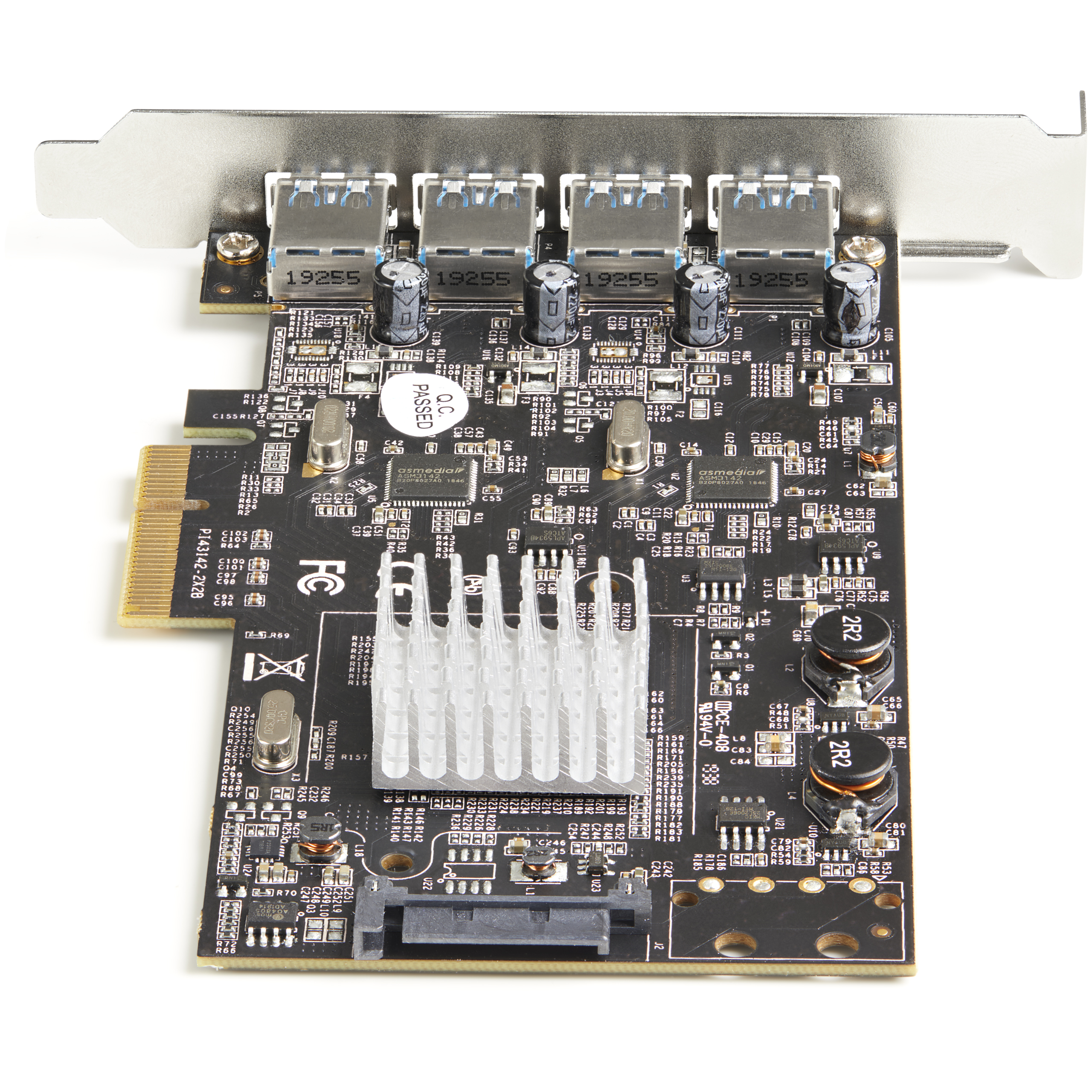

Main Image
PEXUSB314A2V2
4 Port USB 3 1 PCI E Card w 2 Dedicated Channels
USB 3.2 Gen 2 (10 Gbps) | PCI-Express 3.0 | PCIe x4 Slot | USB Type-A

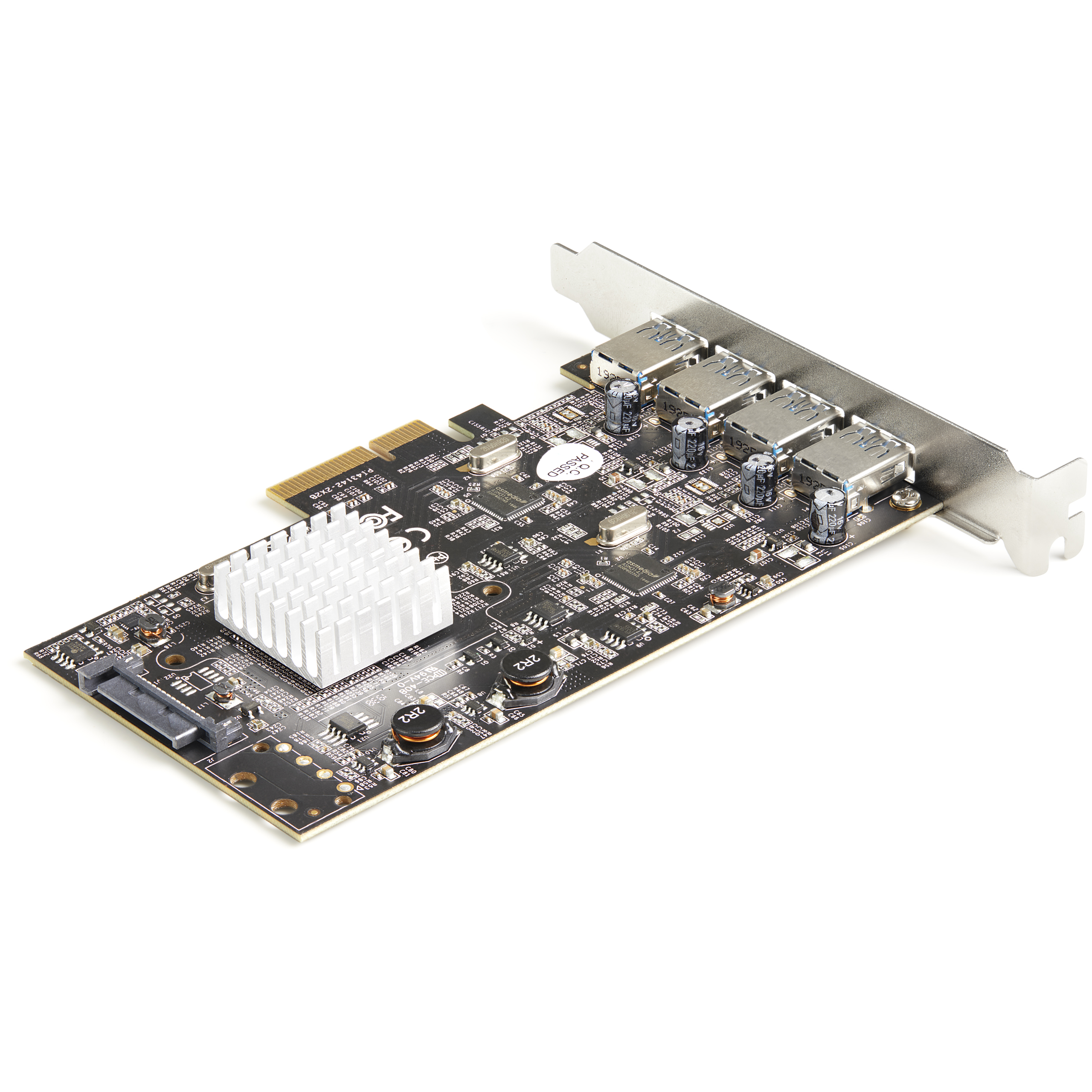

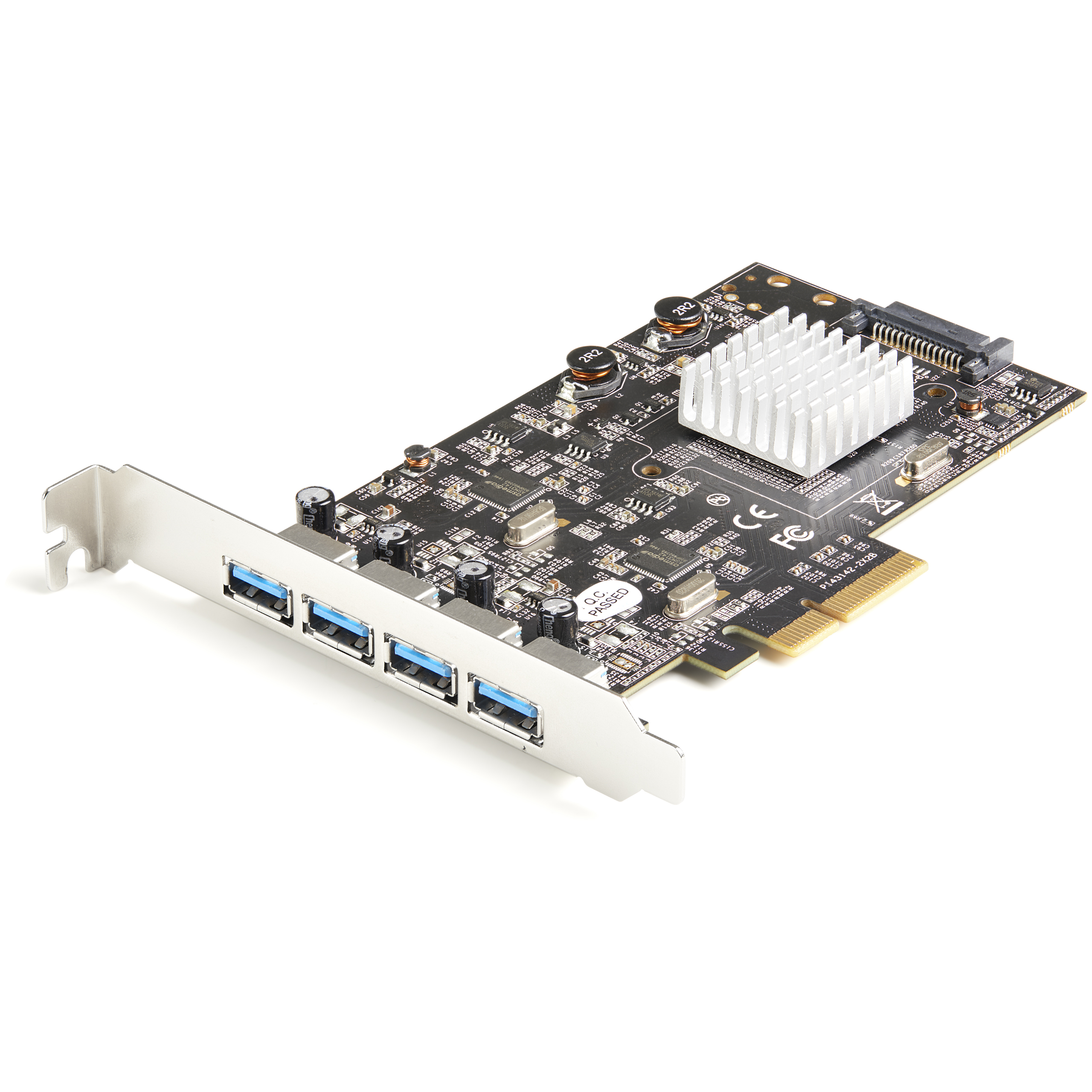

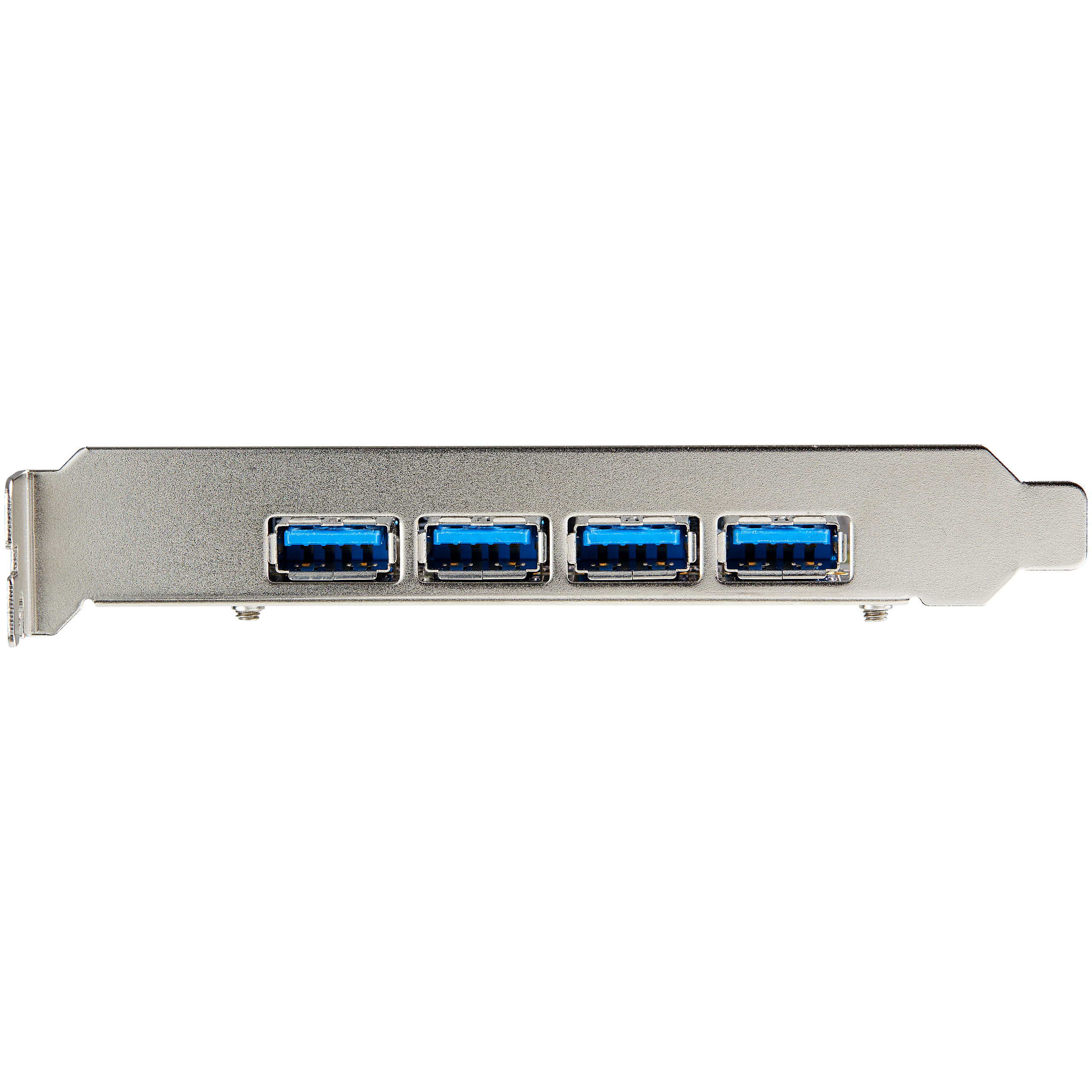

Main Image
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name 4 Port USB 3 1 PCI E Card w 2 Dedicated Channels Product Number PEXUSB314A2V2 UPC 065030887410 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 10Gbps Family USB-A Cards - 10Gbps Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Country of Origin History (2) Malaysia Country of Origin Revision (2) XXXXXX156X Product Title (Ultra-Short) USB 3.2 Gen 2 Card Product Title (Short) 4-Port USB PCIe Card 3.2 Gen 2 - 2 Chips Product Title (Medium) 4-Port USB 3.2 Gen 2 PCIe Card - USB-A SuperSpeed 10Gbps PCI Express 3.0 x4 Product Title (Standard) 4-Port USB PCIe Card - 10Gbps USB 3.2 Gen 2 Type-A PCI Express Expansion Card - 2 Controllers - 4xUSB - Windows/Mac/Linux Product Title (Long) 4-Port USB PCIe Card - 10Gbps USB 3.2 Gen 2 Type-A PCI Express Expansion Card with 2 Controllers - 4x USB-A - USB PCIe Add-On Adapter Card - Windows/Mac/Linux Product Title (AMZ) 4-Port USB PCIe Card, USB 10Gbps, PCI Express Expansion Card with 2 Controllers, 4x Type-A Ports, PCIe Add-On Adapter Card, Windows/Mac/Linux Title Ingram (Part 1) USB 3.2 Gen 2 PCIe Card - Title Ingram (Part 2) USB Type-A 10Gbps PCI Express x4 Website Product Headline USB 3.2 Gen 2 (10 Gbps) | PCI-Express 3.0 | PCIe x4 Slot | USB Type-A Bullet 1 HIGH PERFORMANCE: USB PCIe card with 4x USB-A ports up to SuperSpeed 10Gbps per port; Dual ASM3142 controllers with up to 20Gbps total bandwidth across 4 ports; USB 3.2 Gen 2; Upgraded version of our popular USB card PEXUSB314A2V Bullet 2 MAXIMIZED USB PERFORMANCE: Multiple INs support for max bandwidth when using mixed-speed devices; USB Attached SCSI Protocol (UASP) for storage device, like SSDs, HDDs, NVMe drives and thumb drives Bullet 3 POWER: USB PCI Express expansion card with SATA power header has the option to provide supplemental power to the USB ports (if motherboard power is insufficient) providing up to 4.5W (5V@0.9A) per USB-A port Bullet 4 COMPATIBILITY: USB PCIe adapter card for desktop PC installs in standard profile PCI-e 2.0 x4 slot; Supports Windows/Linux/macOS with auto driver install on Windows 8 & up; Works w/USB 3.2 Gen 1/2.0 devices Bullet 5 STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; This USB-A PCIe add-on card is backed for life by StarTech.com, including free 24/5 North America based multi-lingual tech support Bullets (Compact) USB PCIe card - 4x USB-A up to 10Gbps per port | 2x ASM3142 (2 ports/controller) up to 20Gbps total - USB 3.2 Gen 2 PCI Express expansion add-on adapter card - Multiple INs/UASP - Opt. SATA power - Full profile PCI-e 2.0 x4 slot - Win/Linux/macOS Bullets (Consolidated) USB PCIe card w/ 4x USB-A up to SuperSpeed 10Gbps per port | 2x ASM3142 chips (2 ports/controller) w/ up to 20Gbps total bandwidth | USB 3.2 Gen 2 expansion card | Upgraded version of our popular USB card PEXUSB314A2V - USB PCI Express adapter card has Multiple INs for max bandwidth w/mixed-speed devices - Ideal for SSDs/HDDs/NVMe - Optional SATA power for up to 4.5W per port - Install add-on card in full profile PCI-e 2.0 x4 slot | Windows/Linux/macOS - StarTech.com lifetime warranty Marketing Copy Applications Connect high-performance devices like NVMe drives and SSDs Website Search Keyword - 10gbps pcie card
- 4 port usb pcie card
- pci express usb hub
- pcie add on card
- pcie usb 3.1 card
- usb 3.1 controller card
- usb 3.1 gen 2 expansion card
- usb 3.1 gen 2 pcie card
- usb 3.2 pcie card
- usb card for desktop
- usb pci e card
- usb pcie card
- usb to pci express adapter
- allegro pro usb 3.1 pcie
- pcie 3.0 usb card
- pcie usb 3.0 card
- thunderbolt 3 usb c pcie card
- usb 2.0 pcie expansion card
- usb 3 pcie card
- usb 3.0 pci card
- usb 3.0 pcie expansion card
- usb 3.1 pcie card mac pro
Required Regulatory Compliance Marks - Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - This card can share up to 20Gbps of bandwidth (up to 10Gbps, per port). However, the maximum throughput of the card is limited by the maximum throughput of the PCI-Express interface it's connected through
- The available bandwidth (10Gbps) is shared equally between the two ports.
System and Cable Requirements - PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
- Optional SATA power connector
Accessory Products - USB31AC1M
- LP4LSATAADAP
- SATAPOWADAP
- USB3SAB10
- S251BPU313
- S351BU313
- S251BMU313
- USB3SAA6
- USB3SAUB1
- USB3SAB6
- USB3AUB2MS
- ST7300USB3B
- ST7300U3M
- USB3AU1MLS
- USB3AU1MRS
- USB3AUB1MS
- USB3CAB1M
- USB3CAUB1M
- RUSB2AC1MB
Related Products - PEXUSB311A1C
- PEXUSB311EI
- PEXUSB3S42
- PEXUSB3S7
- PEXUSB3S2EI
- PEXUSB3S44V
- PEXUSB3S3GE
- ECUSB3S11
- PEXUSB312A1C1H
- PEXUSB312C3
- PEXUSB312A3
- PEXUSB312A2C2V
- PEXUSB311AC3
- PEXUSB313A1C
Constrained SKU Alternatives (Limited Stock) PEXUSB3S44V Color Black Humidity 20% ~ 80% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 120.000 Product Width (mm) 150.000 Product Height (mm) 19.000 Product Weight (g) 84.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Maximum Data Transfer Rate 10Gbps per port MTBF (hours) 40,000 Hours OS Compatibility - Linux
- Windows 8.1
- Windows 7
- Windows 10
- Windows Server 2012 R2
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2016
- Windows Server 2019
- macOS Catalina (10.15)
- Windows 8
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Total USB Power Output 4.5W (5V @ 0.9A) nominal, per port - Ports trip before 2.1A (10.5W) for Over-Current Protection UASP Support Yes USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate USB 10Gbps Bus Type PCI Express Card Type Standard Profile Chipset ID - ASMedia - ASM3142
- ASMedia - ASM1812
Industry Standards USB 3.1 Specification Rev. 1.0 USB Specification Rev. 2.0 PCI Express Base Specification Rev. 2.0 Intel xHCI Specification Rev. 1.1 UASP (USB Attached SCSI Protocol) Rev. 1.0 Interface/Bridge PCI Express IO Card Port Style Integrated on Card USB Port Type USB-A Carton Depth (mm) 454 Carton Height (mm) 325 Carton Quantity 40 Carton Weight Gross (g) 7124 Included in Package - 1 - USB 3.1 Card
- 1 - Quick-Start Guide
- 1 - Full Profile Bracket (Installed)
Included In Package for Label - 1 - USB 3.1 Card
- 1 - Quick-Start Guide
- 1 - Full Profile Bracket (Installed)
Package Depth (mm) 217 Package Height (mm) 36 Package Width (mm) 151 Package Quantity 1 Package Weight (g) 162 Packaging Description 4-Port USB 3.1 (10Gbps) Card - Two Dedicated Channels Packaging Description India 4-Port USB 10Gbps Card - Two Dedicated Channels Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 USB-A (10Gbps, 4.5W) Connector 2 (Quantity) 4 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 1 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Artwork Due Date 2020-10-01 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2021-03-22 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2020-05-01 Target Production Release 2020-10-01 Tech Lead Brian Linseman Technical Writer Evan Hanbidge Technology Lifecycle None
