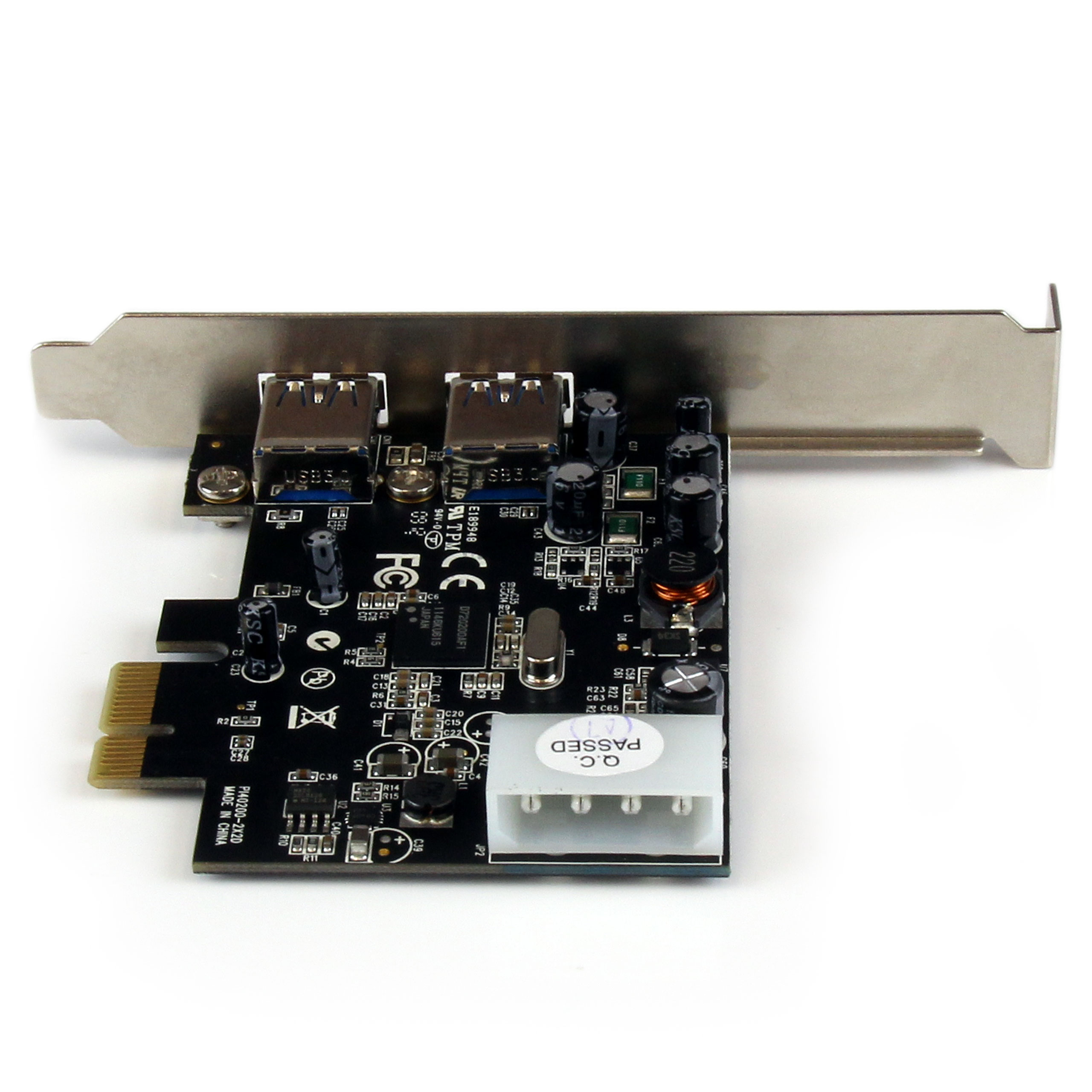

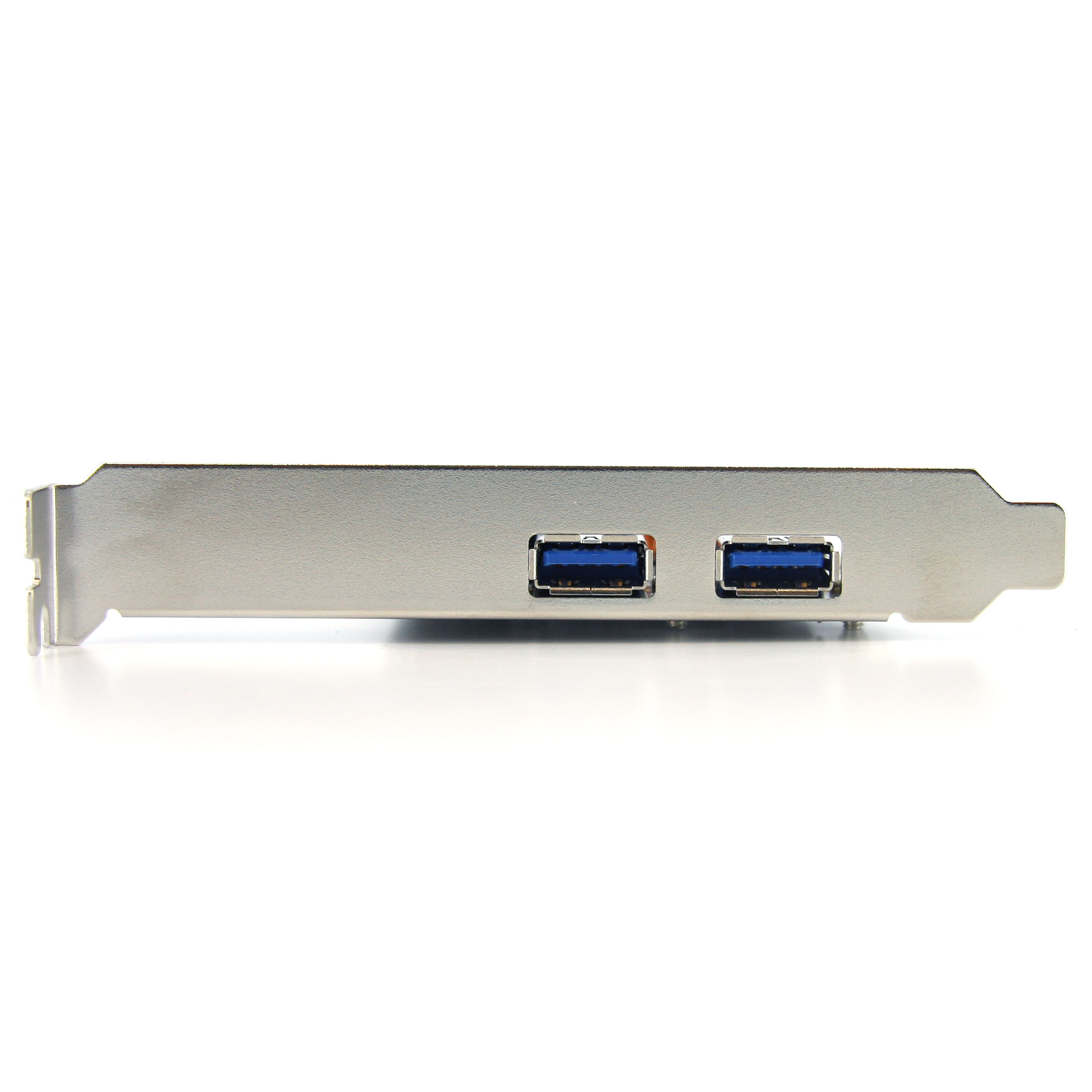

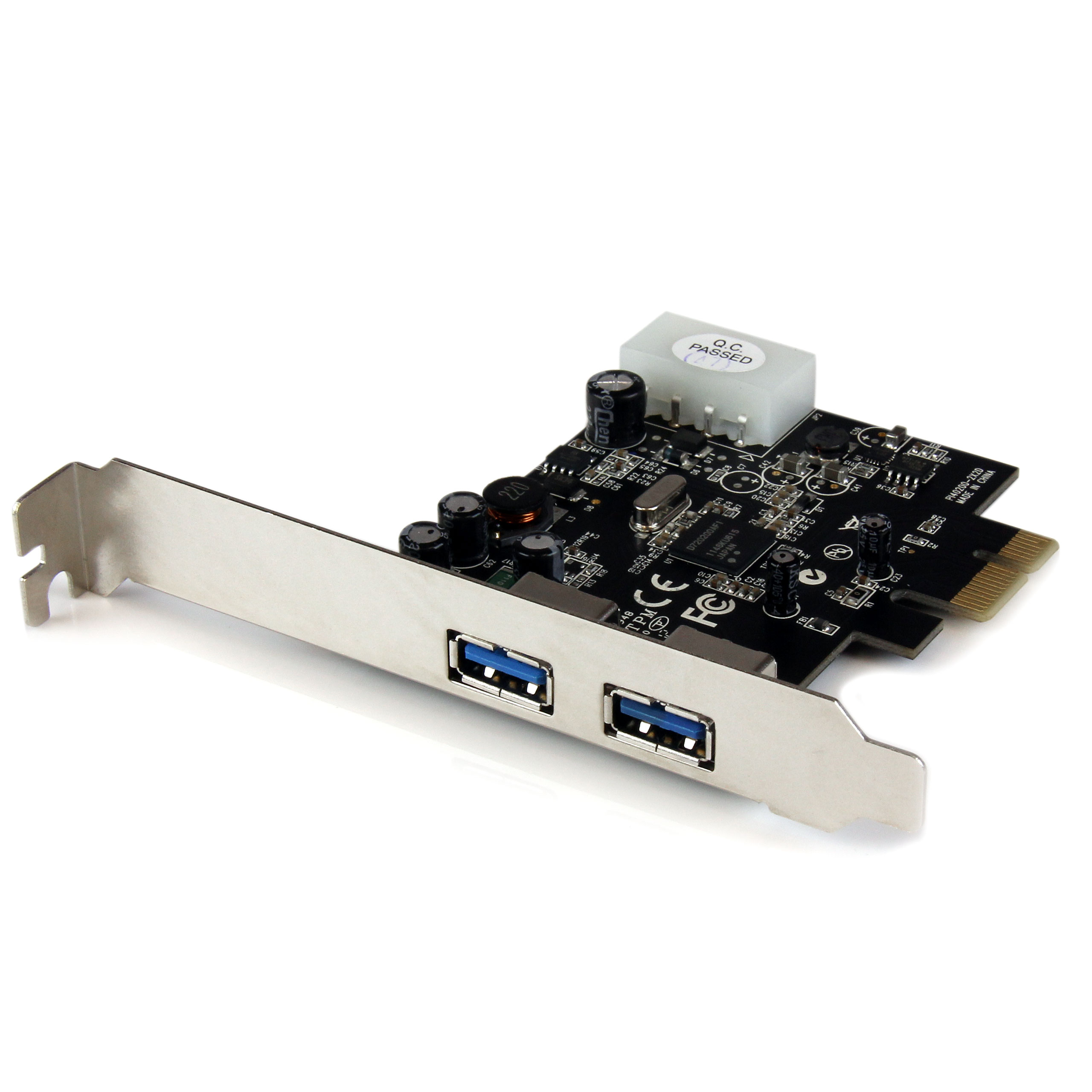

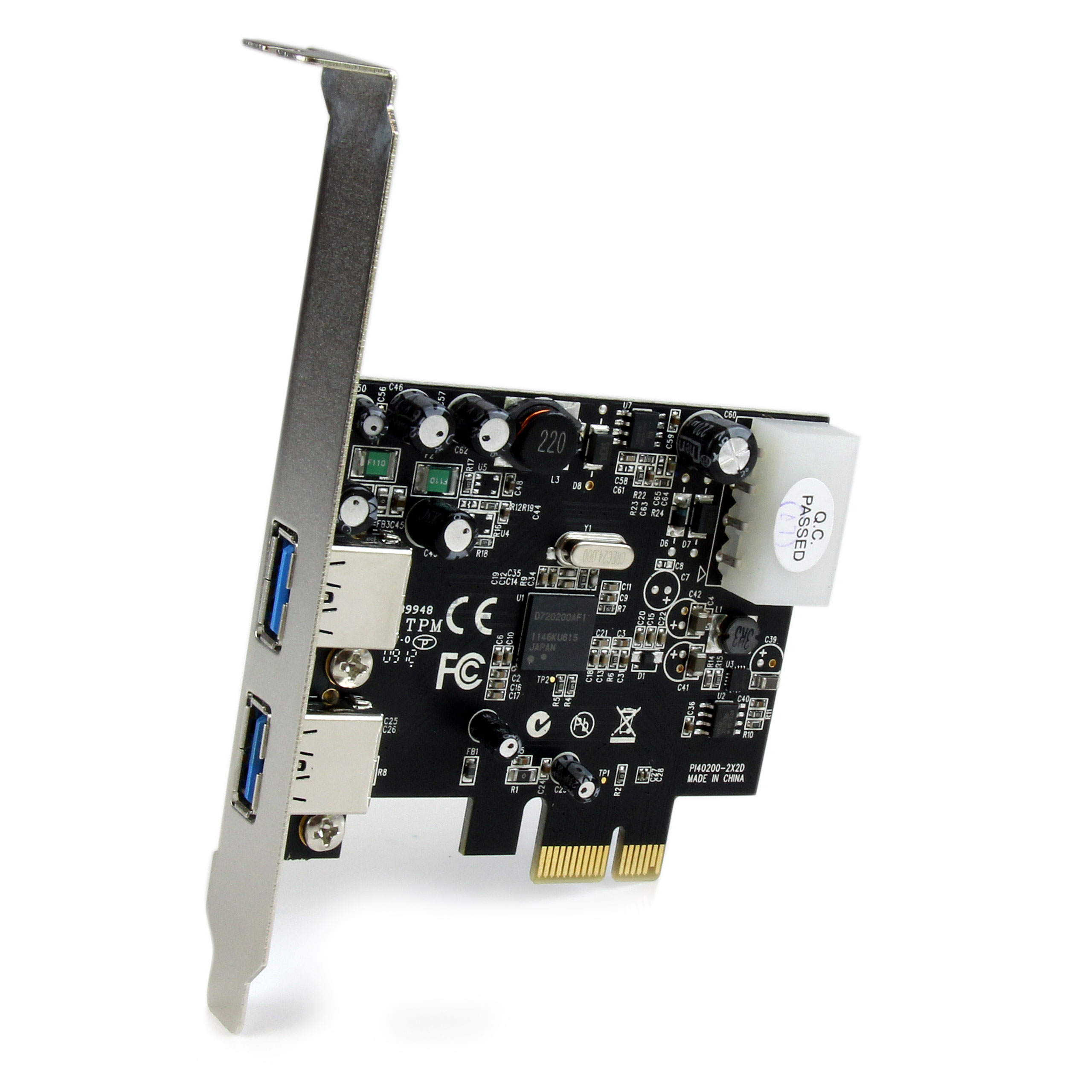

PEXUSB3S2
PCIe SuperSpeed USB 3 Card PCIe
Add 2 USB 3.0 ports to your desktop computer through a PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name PCIe SuperSpeed USB 3 Card PCIe Product Number PEXUSB3S2 UPC 065030837125 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 2 Port PCIe SuperSpeed USB 3.0 Card Product Title (Standard) 2 Port PCI Express SuperSpeed USB 3.0 Card Adapter with UASP Support Product Title (Long) 2 Port PCI Express SuperSpeed USB 3.0 Card Adapter with UASP Support Product Title (AMZ) 2 Port PCI Express SuperSpeed USB 3.0 Card Adapter with UASP Support (PEXUSB3S2) Title Ingram (Part 1) 2 Port PCI Express SuperSpeed US Title Ingram (Part 2) B 3.0 Card Adapter Website Product Headline Add 2 USB 3.0 ports to your desktop computer through a PCI Express expansion slot Bullet 1 Provides two external USB 3.0 connections Bullet 2 Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.96 specifications, with transfer rates up to 5 Gbps Bullet 3 Backward compatible with USB 2.0 and USB 1.0/1.1 devices Bullet 4 Optionally provides up to 900mA per USB port Bullet 5 Compliant with PCI Express 2.0 specifications Marketing Copy Applications - Upgrade an older PCIe-based system with USB 3.0 connectivity to fully utilize USB 3.0 devices
- Expand a system's USB capabilities with two additional external USB ports
- Connect additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc. to a computer system
Website Search Keyword - SuperSpeed USB
- Super Speed USB
- 5Gbps
- USB 3.0
- USB3
- Controller Card
- Adapter Card
- USB V3
- USB 3.0 PCI Express
- USB PCIe
- NEC USB 3.0
- USB 3 adapter
- usb 3.0
- usb 3.0 products
- usb 3.0 card
- USB 3.0 adapter
- USB 3.0 host controller
- PCI-e
Special Notes The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps. Accessory Products - USB3SAA6
- USB3SAB10
- USB3SAB3
- USB3SAB6
- LP4SATAFM
Related Products - ECUSB3S2
- PEXUSB4DP
- PEX400USB2
- PCIUSB7
- EC230USB
- EC400USB
Replacement Product PEXUSB3S25 Humidity 0~85% RH Operating Temperature -0°C to 50°C (32°F to 122°F) Product Length (mm) 121 Product Width (mm) 76 Product Height (mm) 19 Product Weight (g) 60 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No MTBF (hours) 11,914 Hours OS Compatibility - Mac OS X
- Windows XP
- Windows Vista
- Windows 7
- Windows Server 2008 R2
- Windows 8

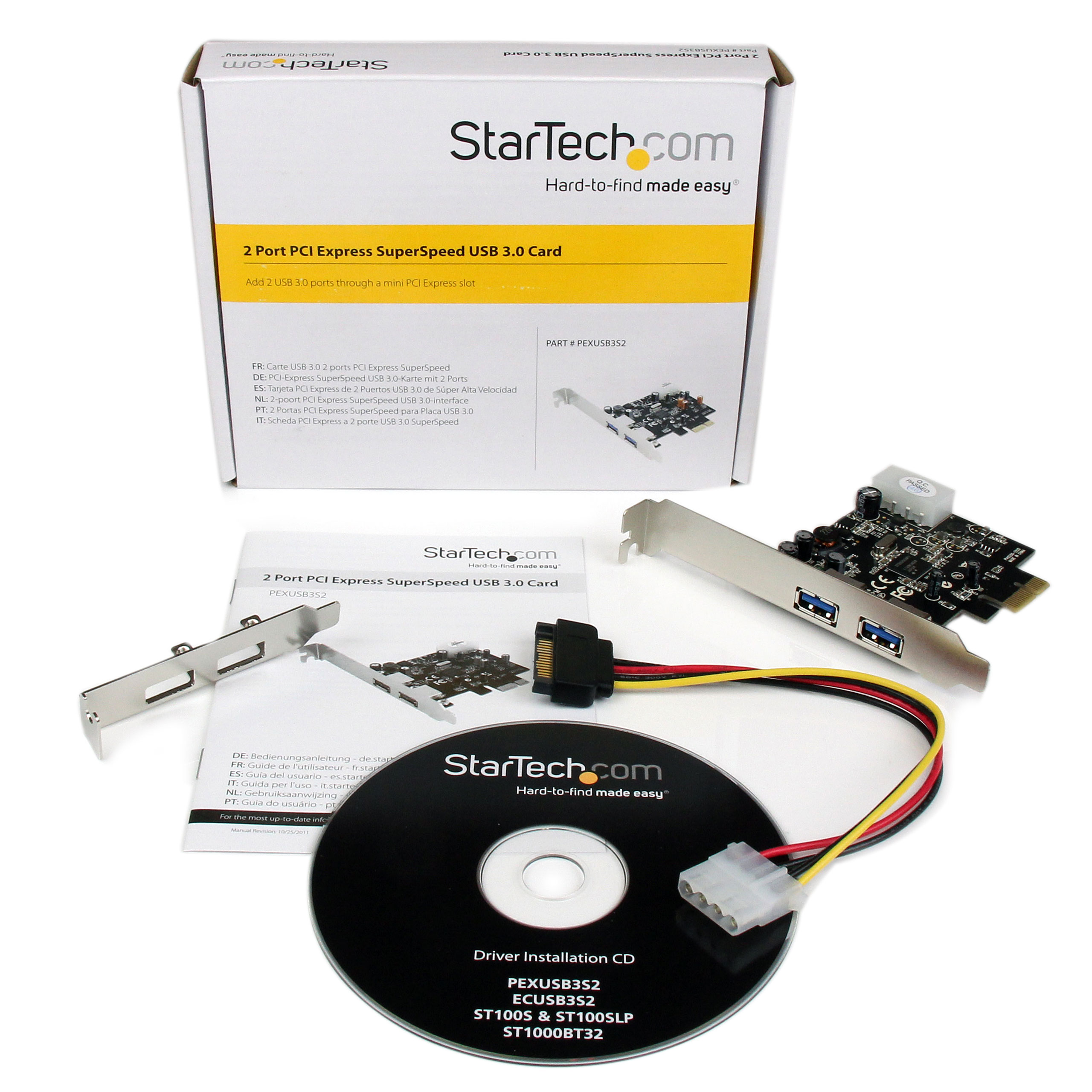

UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Renesas/NEC - µPD720200 Interface/Bridge USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 575 Carton Height (mm) 363 Carton Quantity 40 Carton Weight Gross (g) 6800 Included in Package - 1 - PCI Express USB 3.0 Card
- 1 - Instruction Manual
- 1 - Installation CD
- 1 - Low Profile bracket
- 1 - LP4 Molex to SATA Adapter
Package Depth (mm) 25 Package Height (mm) 143 Package Width (mm) 168 Package Weight (g) 140 Packaging Description 2 Port PCI Express SuperSpeed USB 3.0 Card Packaging Description India 2 Port PCI Express SuperSpeed USB 3.0 Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
