PEXUSB3S22

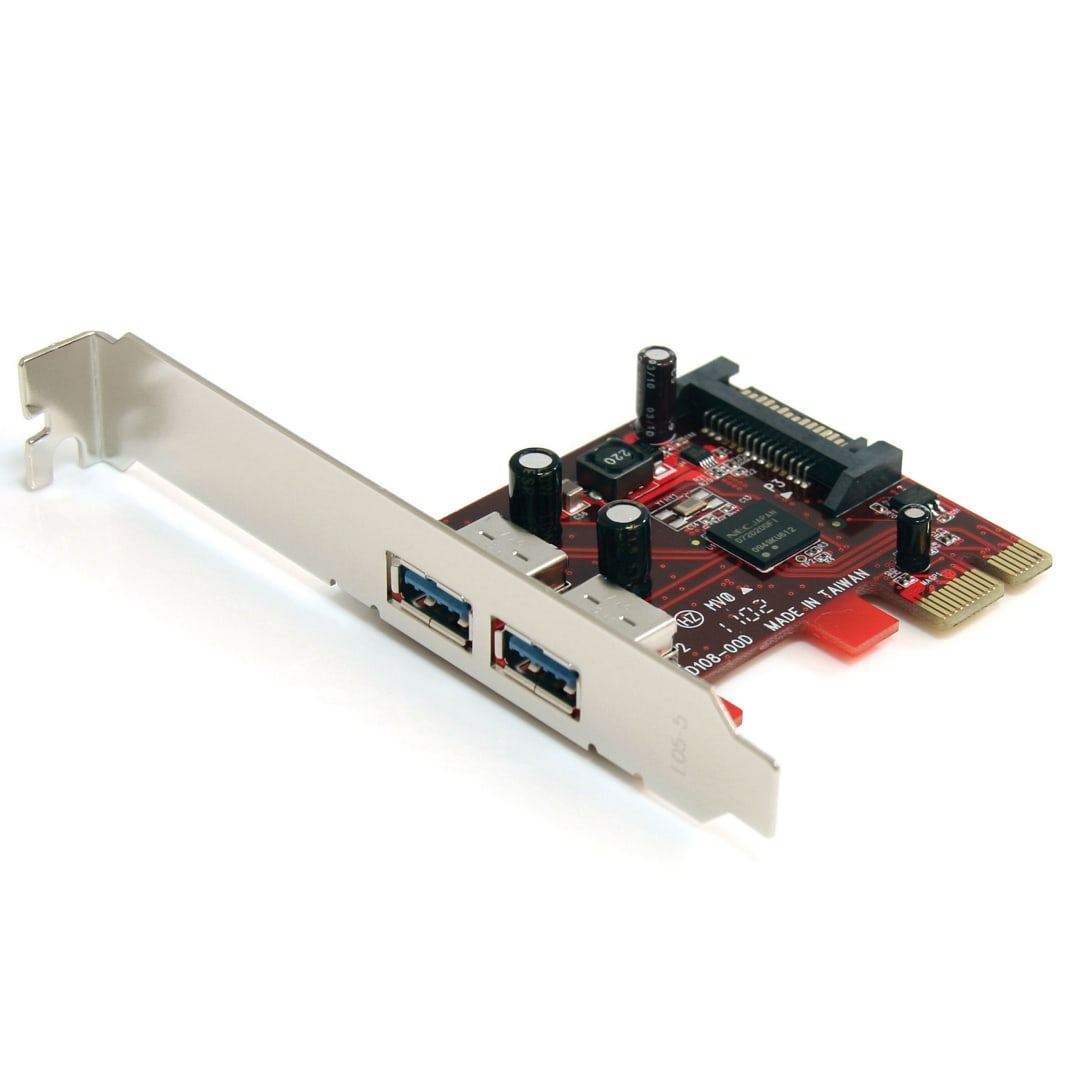

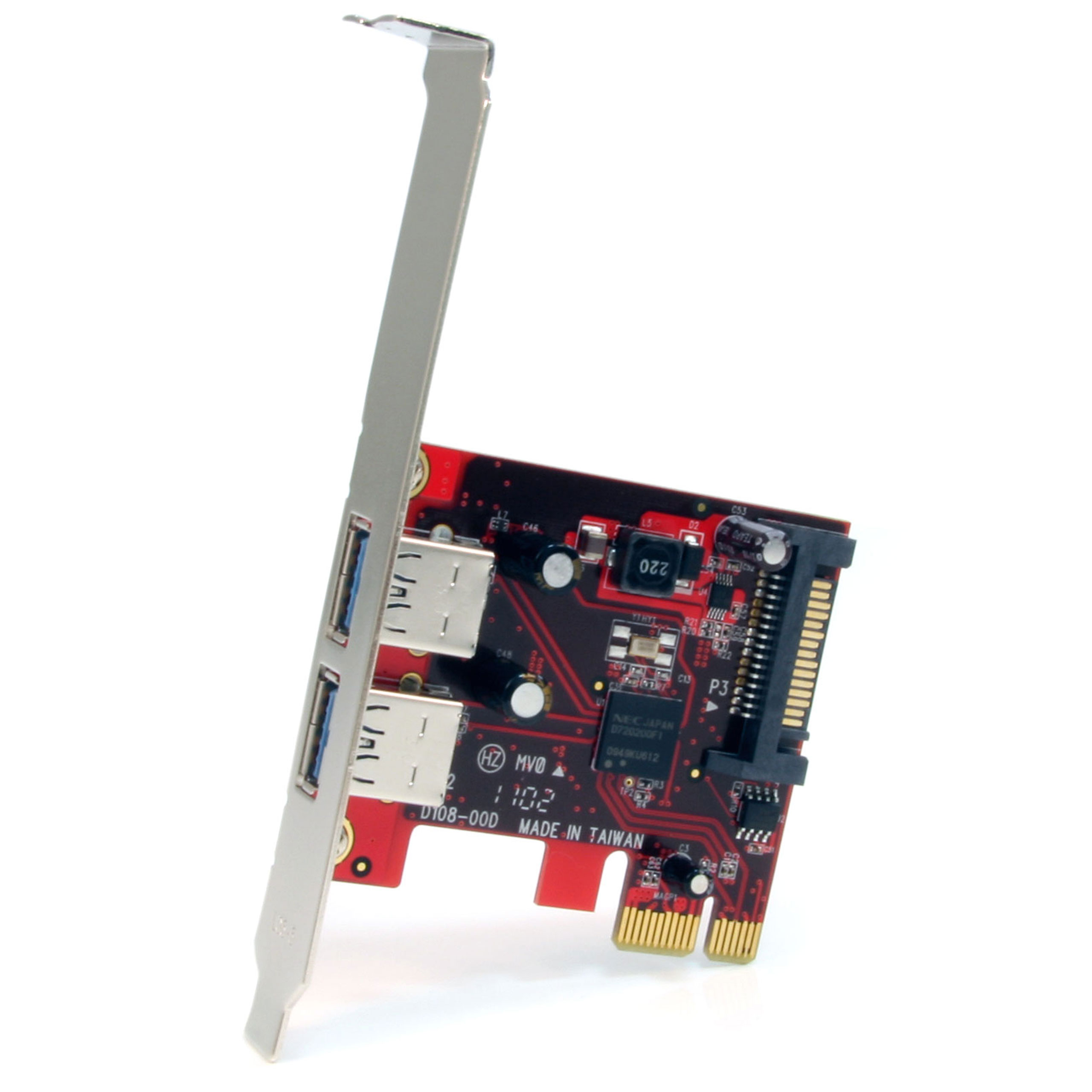

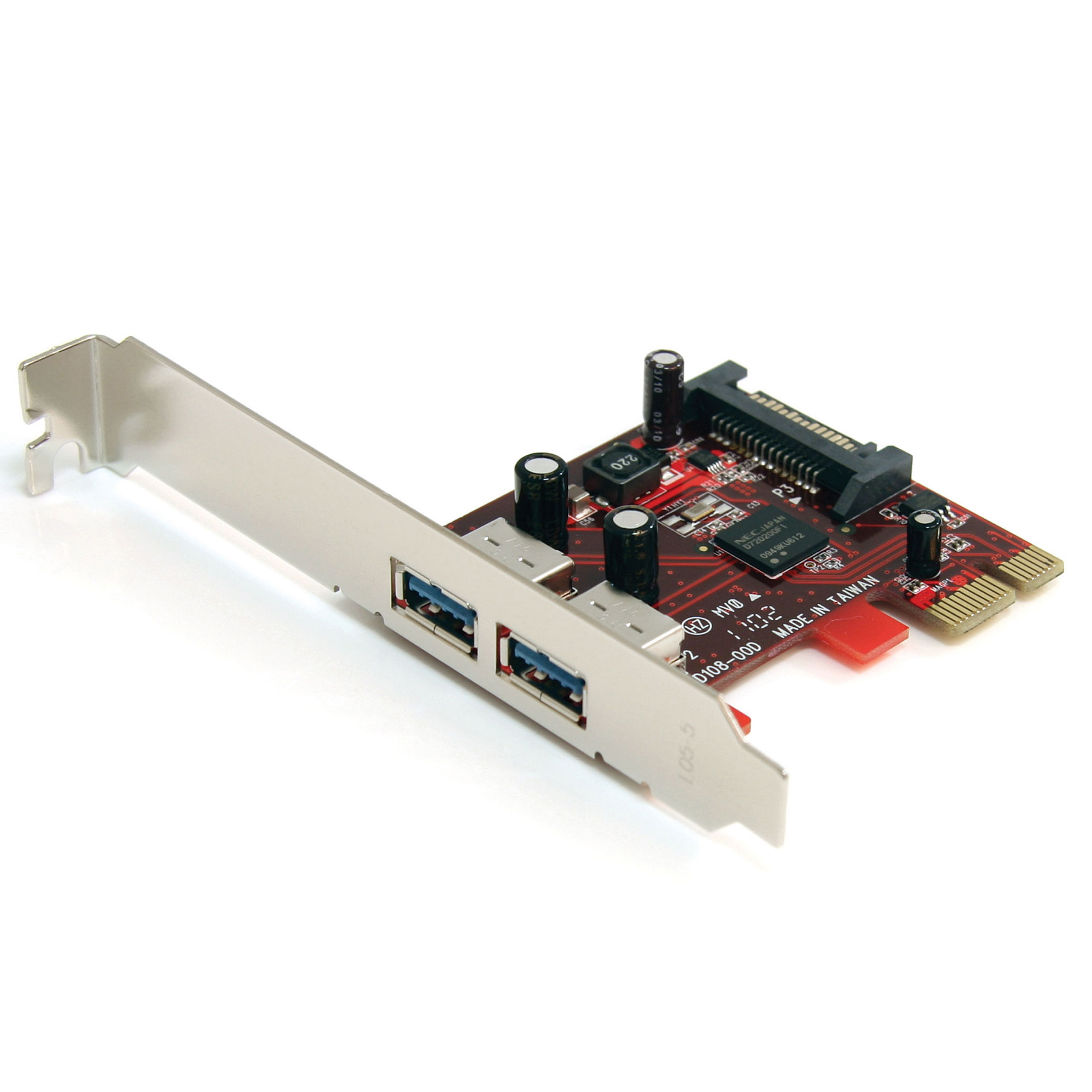

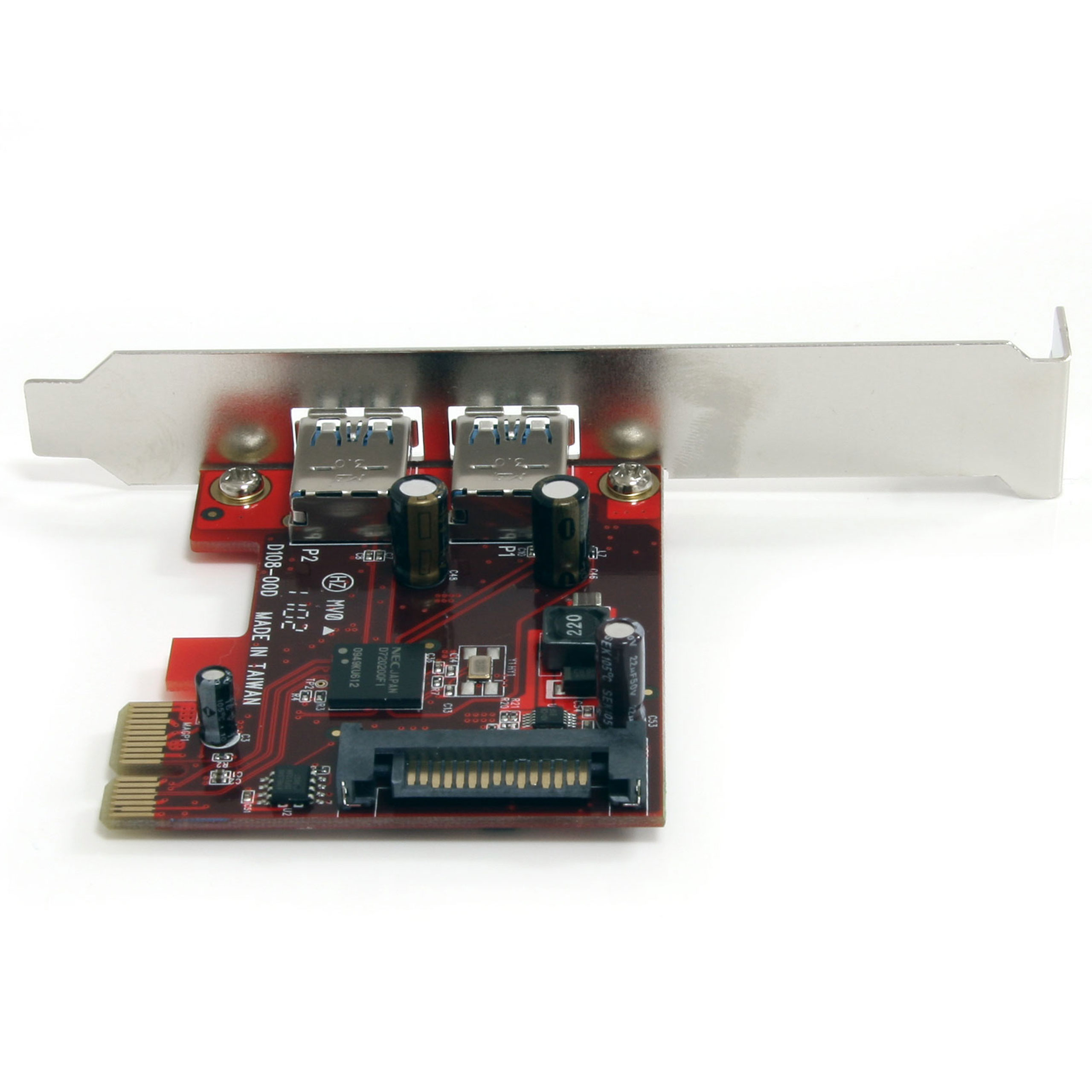

2 Port USB 3 PCIe Card with SATA Power
Add two USB 3.0 ports to your desktop computer through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port USB 3 PCIe Card with SATA Power Product Number PEXUSB3S22 UPC 065030844437 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) 2Pt PCIe USB3 Card Product Title (Short) 2 Port USB 3 PCIe Card with SATA Power Product Title (Standard) 2 Port SuperSpeed USB 3.0 PCI Express Card with UASP - SATA Power Product Title (Long) 2 Port SuperSpeed USB 3.0 PCI Express Card with UASP - SATA Power Product Title (AMZ) 2 Port SuperSpeed USB 3.0 PCI Express Card with UASP - SATA Power - PCIe USB 3.0 Card - Dual Port USB 3.0 Controller (PEXUSB3S22) Title Ingram (Part 1) 2Port USB 3 PCIe Card with SATA Title Ingram (Part 2) Power and UASP Support Website Product Headline Add two USB 3.0 ports to your desktop computer through a PCI Express slot Bullet 1 Provides two external USB 3.0 connections Bullet 2 Includes a Low Profile/half-height installation bracket Bullet 3 Backward compatible with USB 2.0 and USB 1.0/1.1 devices Bullet 4 Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.95 specifications, with transfer rates up to 5 Gbps Bullet 5 Compliant with PCI Express 2.0 specifications Marketing Copy Applications - Upgrade an older PCIe-based system with USB 3.0 connectivity to fully utilize USB 3.0 devices

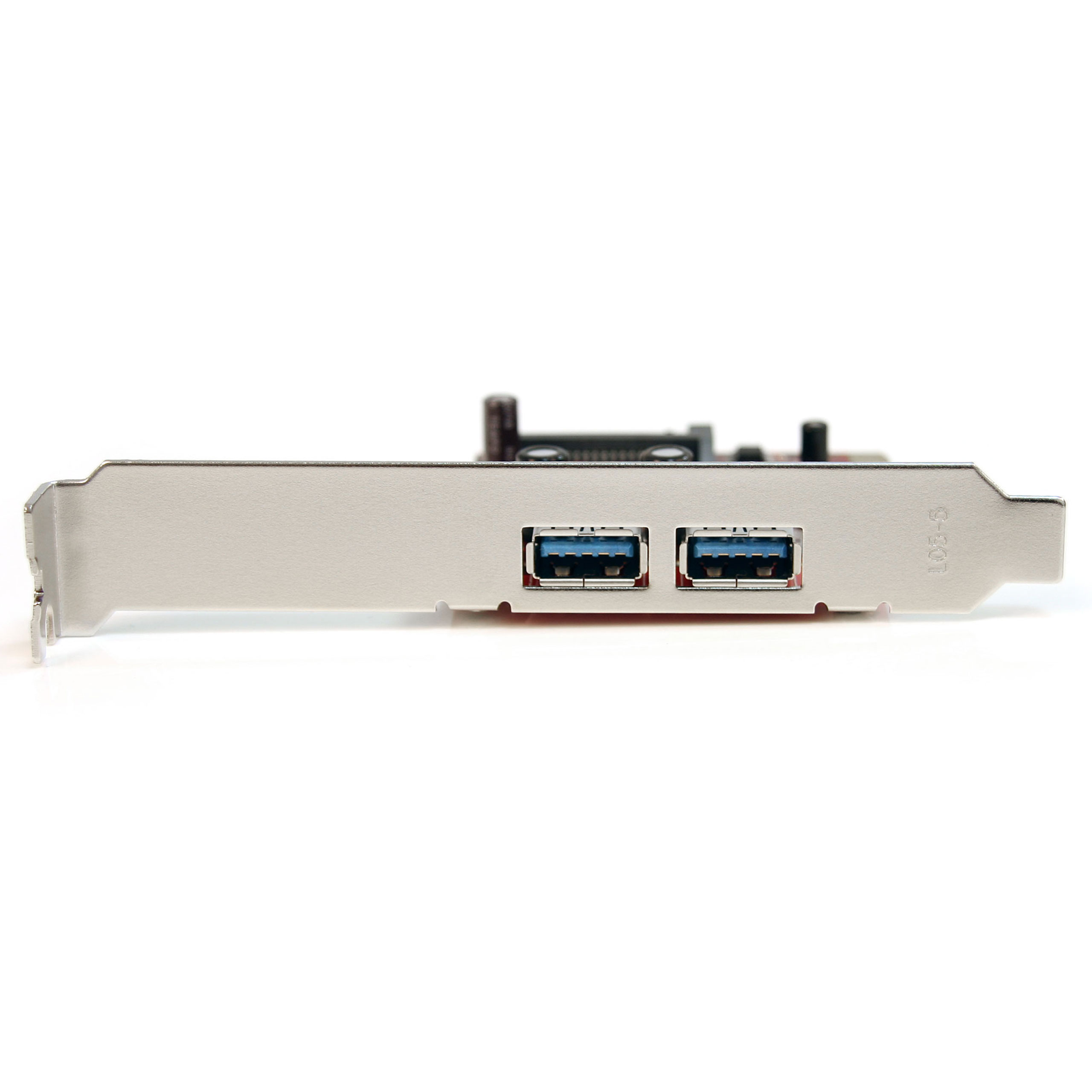

- Expand a system's USB capabilities with two additional external USB ports
- Connect additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc. to a computer system
- Ideal for newer computer systems with only SATA power connectors or limited number of older LP4 power connectors
Website Search Keyword - superspeed
- usb adapter
- usb 3.0
- usb pcie adapter card
- usb card
- usb controller
- usb 5gbps
- pci express
- usb 3.0 pci express card
- pci express card
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Special Notes The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps. System and Cable Requirements Available PCI Express expansion slot Accessory Products - LP4LSATAADAP
- USB3SAB6BK
- USB3SAB10BK
- SAT3510BU3
- ST4300USBM
- SAT2510BU3
- SATDOCKU3S
- ST4300USB3
Related Products - PEXUSB3S2
- PEXUSB3S11
- MPEXUSB3S2
- PEXUSB3S4
Replacement Product PEXUSB3S24 Humidity 20% ~ 80% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 70 Product Width (mm) 60 Product Height (mm) 15 Product Weight (g) 43 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant No Maximum Data Transfer Rate 5 Gbps OS Compatibility - Windows 7
- Windows Server 2012
- Windows 8

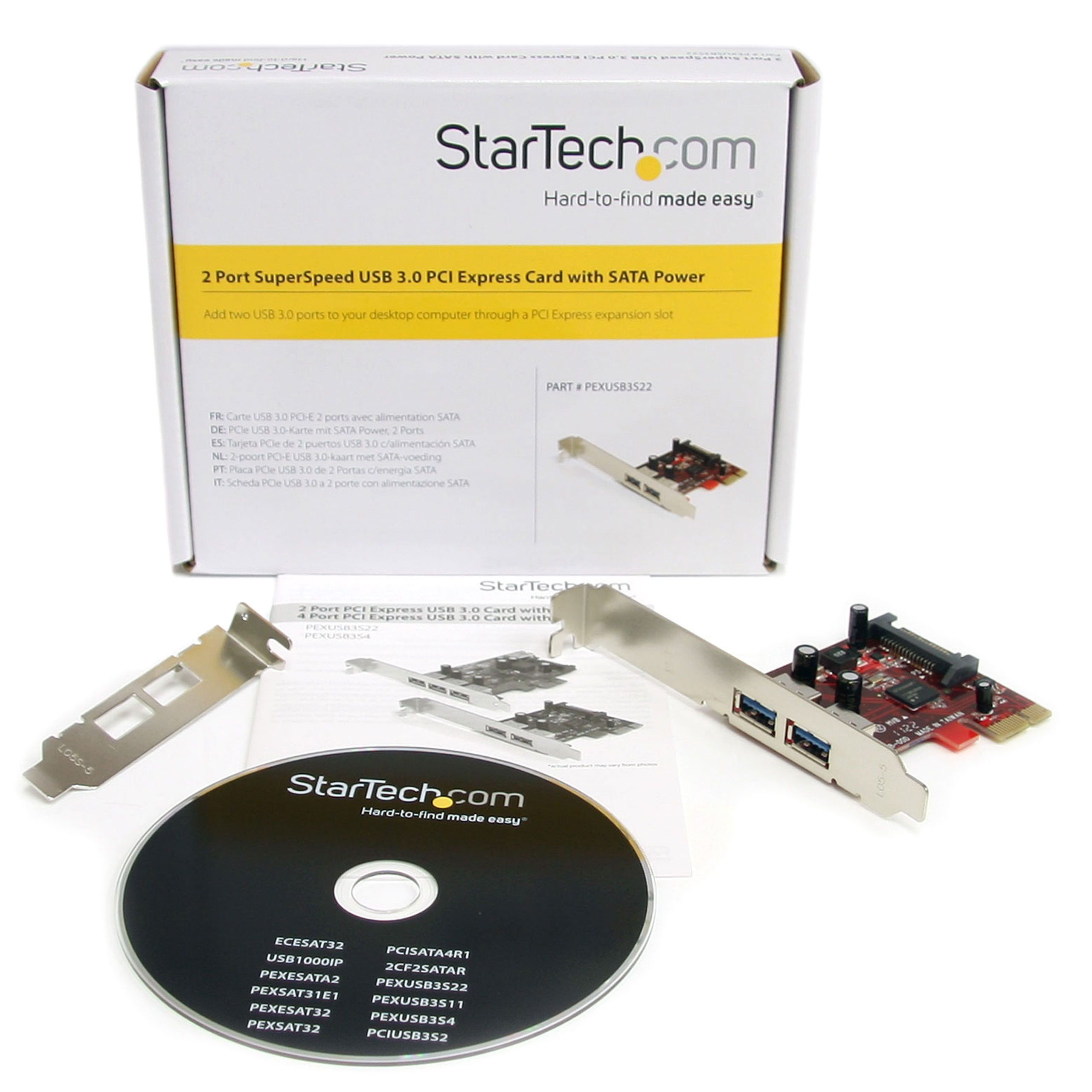

UASP Support Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Renesas/NEC - µPD720200 Interface/Bridge USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 380 Carton Height (mm) 310 Carton Quantity 60 Carton Weight Gross (g) 9021 Included in Package - 1 - PCI Express USB 3.0 card
- 1 - Instruction Manual
- 1 - Driver CD
- 1 - Low Profile Bracket
Package Depth (mm) 140 Package Height (mm) 30 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 131 Packaging Description 2 Port PCIe USB 3.0 card w/SATA power Packaging Description India 2 Port PCIe USB 3.0 card w/SATA power Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-02-25 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Yiming Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
