PEXUSB3S23
2Port 5 Gbps USB 3 0 PCI Express Adapter Card
Add two USB 3.0 (USB 3.2 Gen 1) ports to your desktop computer through a PCI Express slot

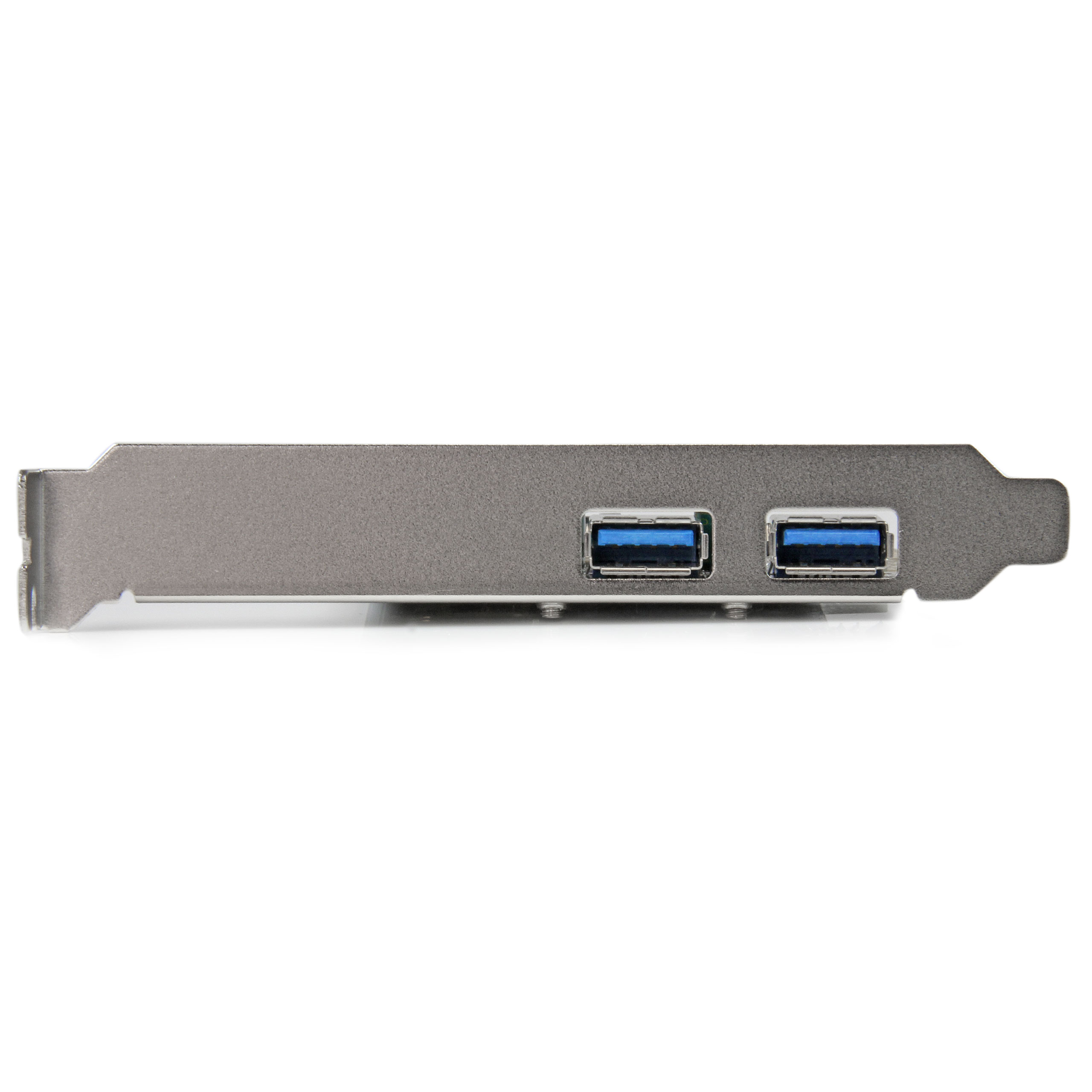

Main Image

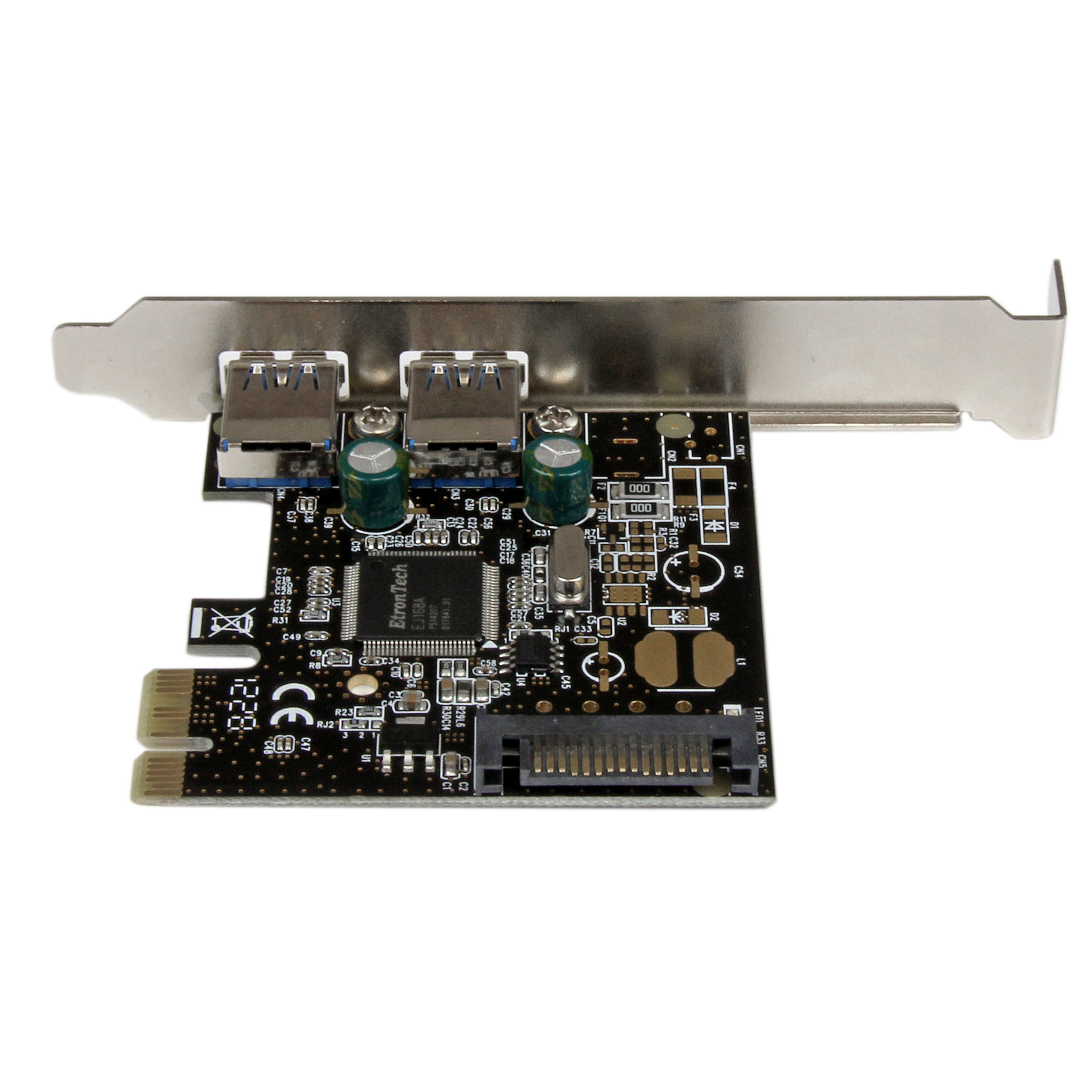

Product Images

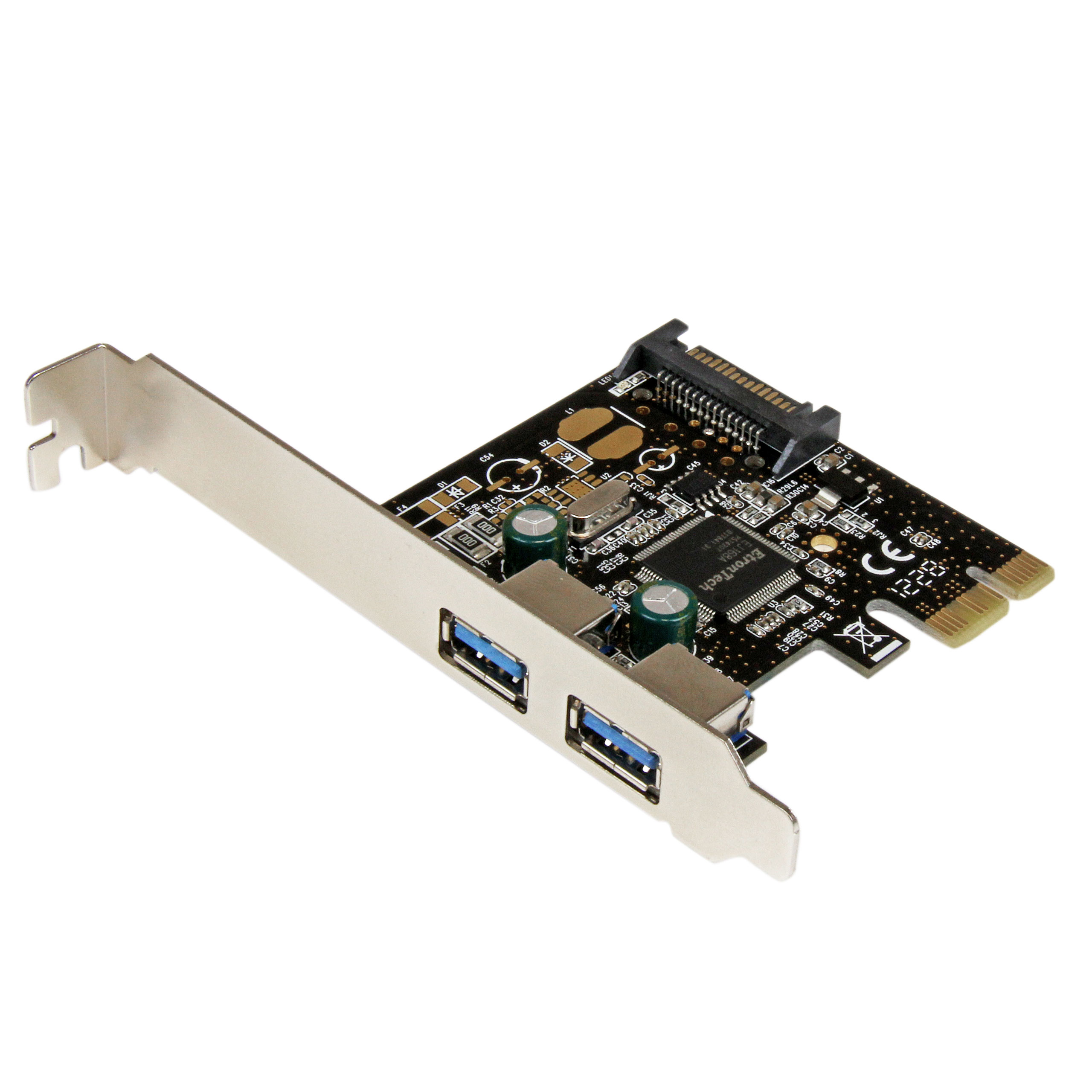

Product Images

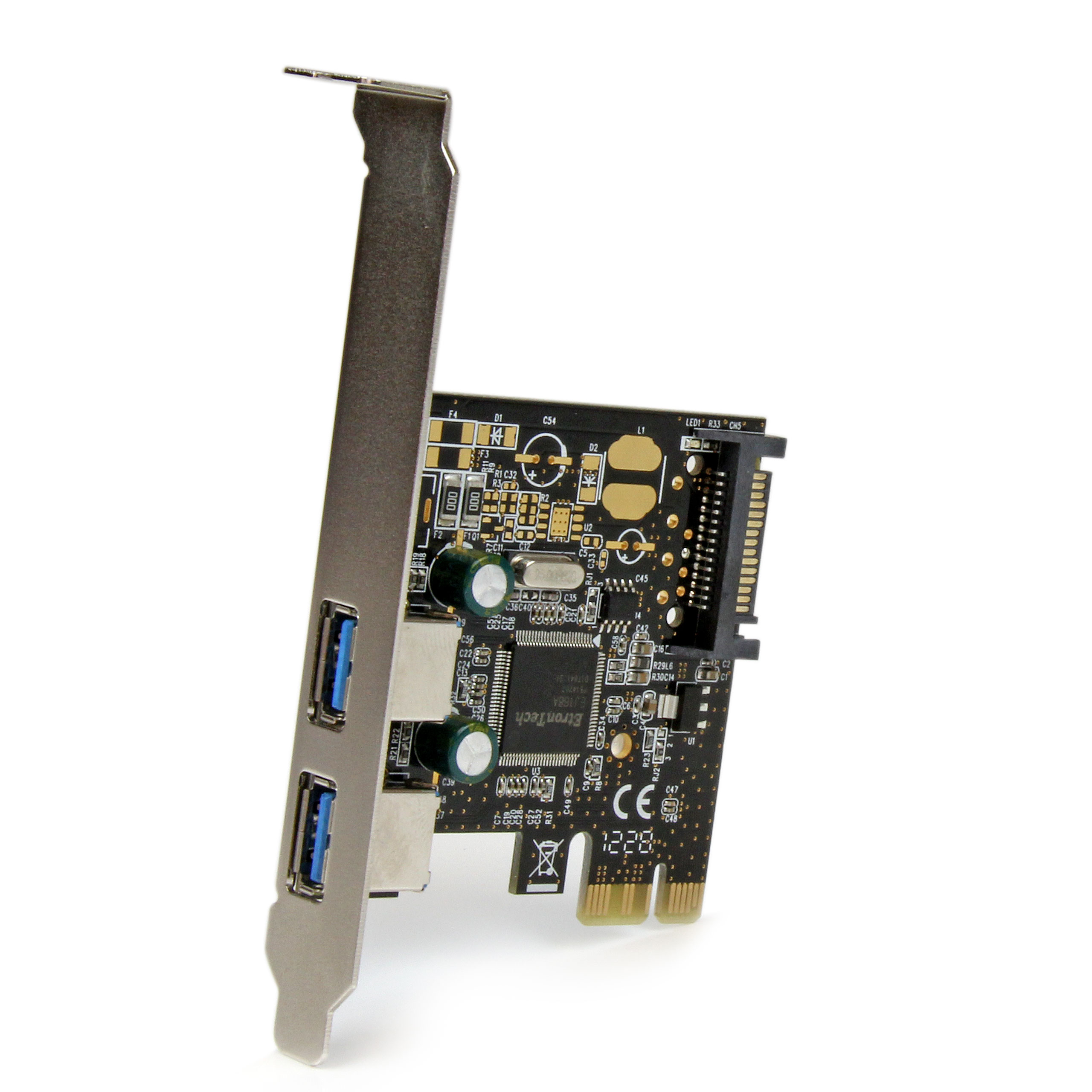

Product Images
BOM Image
Product Name 2Port 5 Gbps USB 3 0 PCI Express Adapter Card Product Number PEXUSB3S23 UPC 065030851633 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Family USB-A Cards - 5Gbps - PCIe Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Ultra-Short) 2Pt PCIe USB3.0 Card Product Title (Short) 2 Port PCIe USB 3.0 Card w/ SATA Power Product Title (Medium) x Product Title (Standard) 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power - 5Gbps Product Title (Long) 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Controller Card w/ SATA Power Product Title (AMZ) 2 Port PCI Express USB 3.0 Controller Card w/ SATA Power - USB adapter - PCIe - 5Gbps - USB 3.0 x 2 (PEXUSB3S23) Title Ingram (Part 1) 2Port 5 Gbps USB 3.0 PCI Title Ingram (Part 2) Express Adapter Card Website Product Headline Add two USB 3.0 (USB 3.2 Gen 1) ports to your desktop computer through a PCI Express slot Bullet 1 Provides two external USB 3.2 Gen 1 connections Bullet 2 Backward compatible with USB 2.0 and USB 1.0/1.1 devices Bullet 3 Compliant with PCI Express 2.0 specifications Bullet 4 Includes a Low Profile/half-height installation bracket Bullet 5 Fully compliant with USB 3.2 Gen 1 rev 1.0 and Intel xHCI rev 1.0 specifications Bullets (Consolidated) Add two USB 3.2 Gen 1 ports to your desktop computer through a PCI Express slot - Compatible with HP Pro 6300/Lenovo ThinkCentre M93p - 2 Port PCIe SuperSpeed USB 3.2 Gen 1 Card Adapter/2Port USB 3.2 Gen 1 Controller Card - USB 3.2 Gen 1 PCIe Card/PCIe USB 3.2 Gen 1 Card - SATA Powered USB 3.2 Gen 1 PCI Express Card/PCI Express USB 3.2 Gen 1 Expansion Card/Two Port 5 Gbps USB 3.2 Gen 1 Card - Desktop PCIe USB 3 Expansion Card/Add USB 3.2 Gen 1 Ports to a Desktop - Desktop USB 3.2 Gen 1 Adapter Card includes a Low Profile/half-height bracket Marketing Copy Applications - Upgrade an older PCIe-based system with USB 3.2 Gen 1 connectivity to fully utilize USB 3.2 Gen 1 devices
- Expand the USB capabilities of your system with two additional external ports
- Connect additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc. to a computer system
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
System and Cable Requirements - Available PCI Express slot
- Available 15-pin SATA power connector
Accessory Products - LP4LSATAADAP
- USB3SAB6BK
- USB3SAB10BK
- SAT3510BU3
- ST4300USBM
- SAT2510BU3
- SATDOCKU3S
- ST4300USB3
Related Products - PEXUSB3S4V
- PEXUSB3S2E2I
- PEXUSB3S22
- PEXUSB3S400
- PCIUSB3S4
Constrained SKU Alternatives (Limited Stock) PEXUSB3S2EI Input Voltage 12V DC Output Voltage (V) 12V DC Color Black Humidity 10~90% RH, Non-condensing Material Steel Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Steel Product Length (mm) 80.000 Product Width (mm) 21.000 Product Height (mm) 120.000 Product Weight (g) 43.000 Storage Temperature 0°C to 80°C (32°F to 176°F) TAA Compliant No Maximum Cable Length (mm) 3000 OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

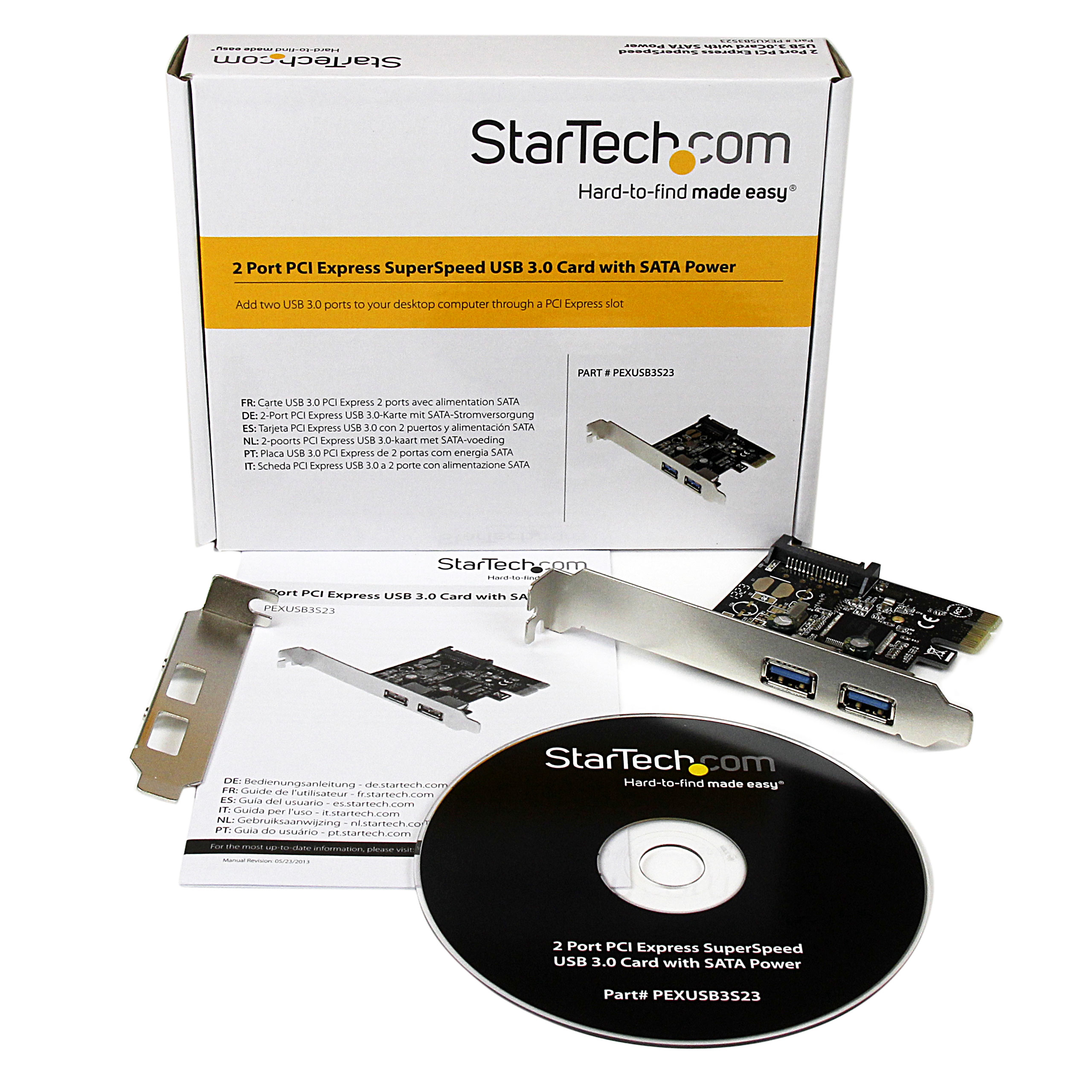

UASP Support No USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 3.0 (5Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Etron - EJ168A Interface/Bridge USB 3.2 Gen 1 (5Gbps) IO Card Port Style Integrated on Card USB Port Type USB-A Carton Depth (mm) 272 Carton Height (mm) 366 Carton Quantity 50 Carton Weight Gross (g) 7060 Included in Package - 1 - PCI Express USB 3.0 card
- 1 - Low Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 144 Package Height (mm) 32 Package Width (mm) 172 Package Quantity 1 Package Weight (g) 128 Packaging Description 2 Port PCI Express USB 3.0 Card with SATA Power Packaging Description India 2 Port PCI Express USB 3.0 Card with SATA Supply Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-05-07 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
