PEXUSB3S24

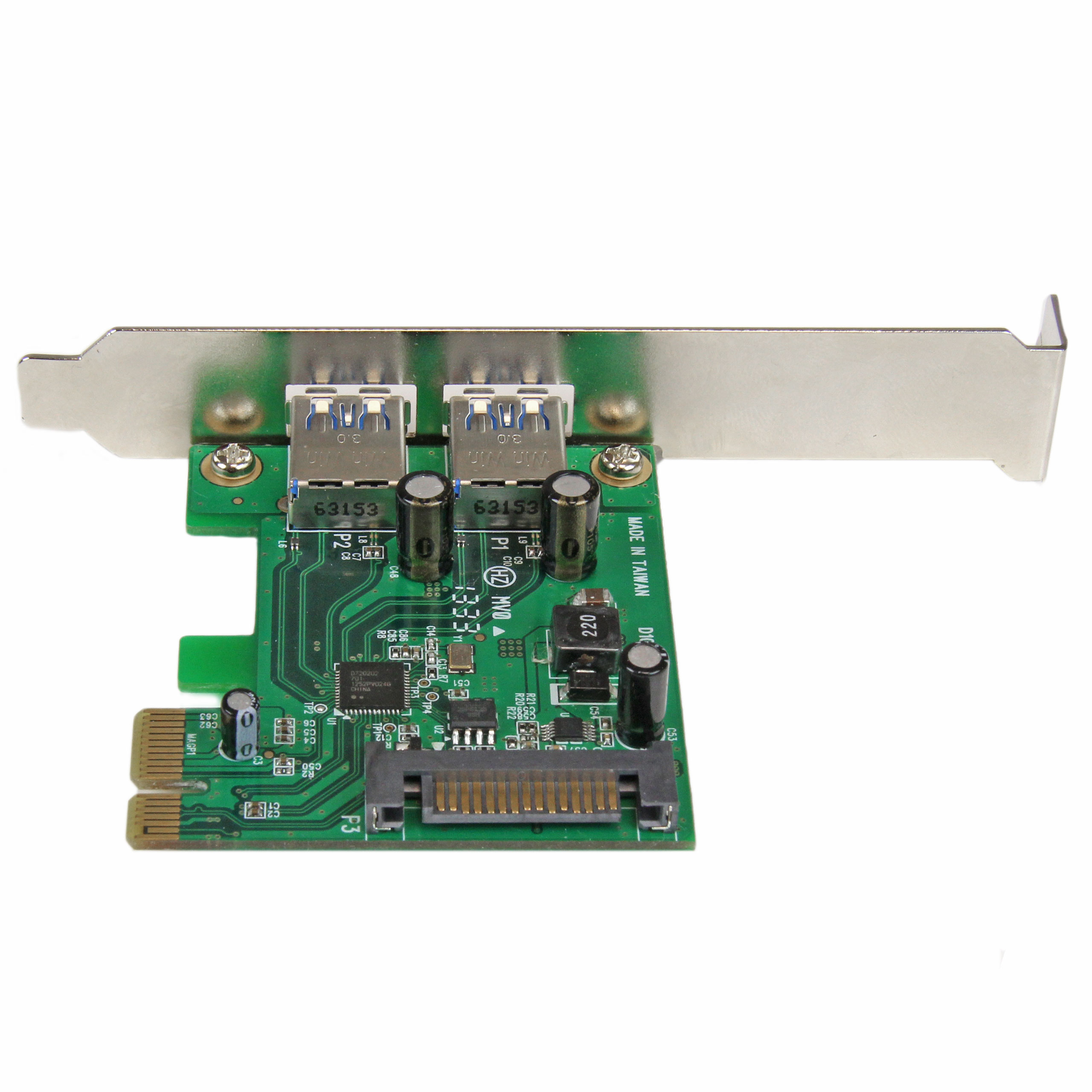

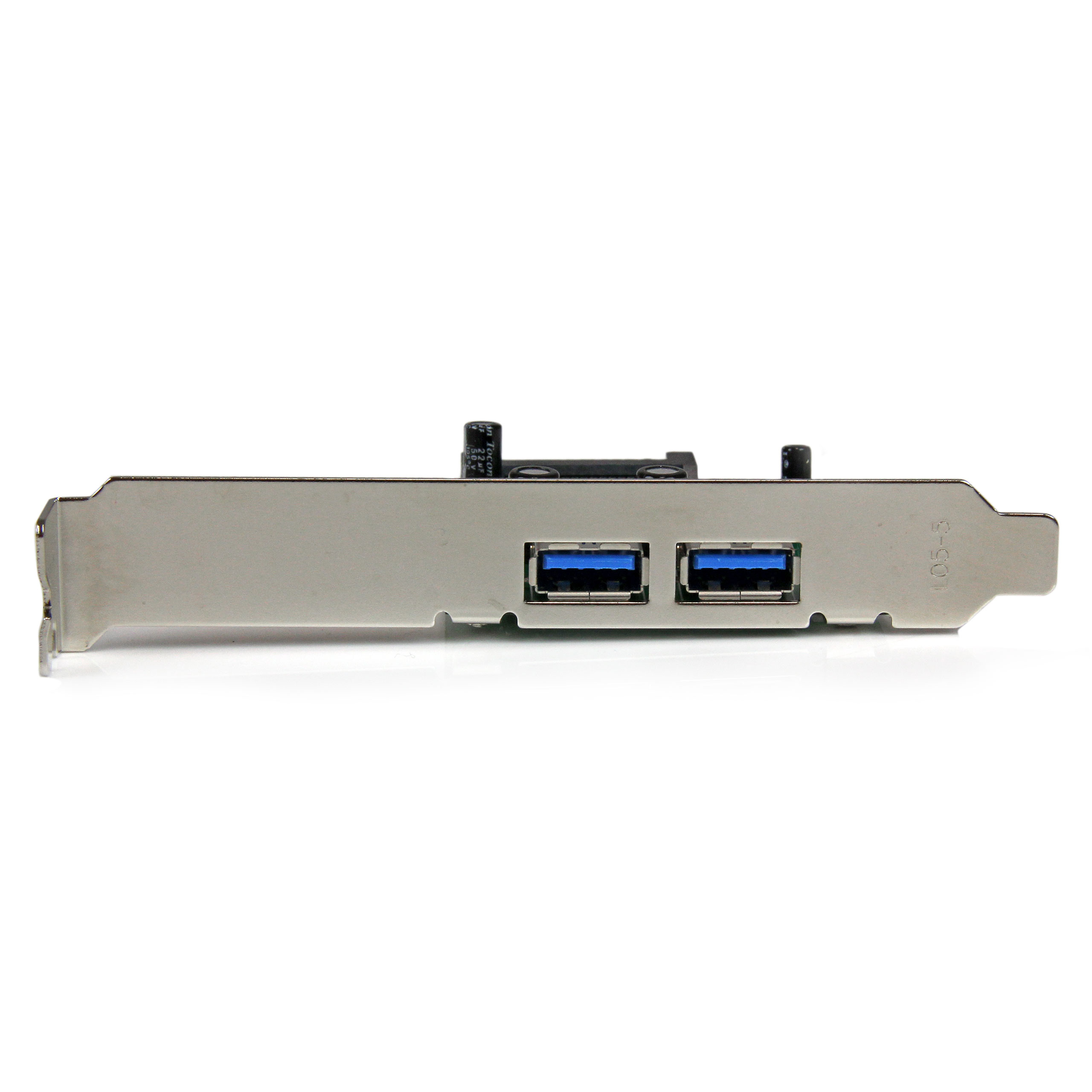

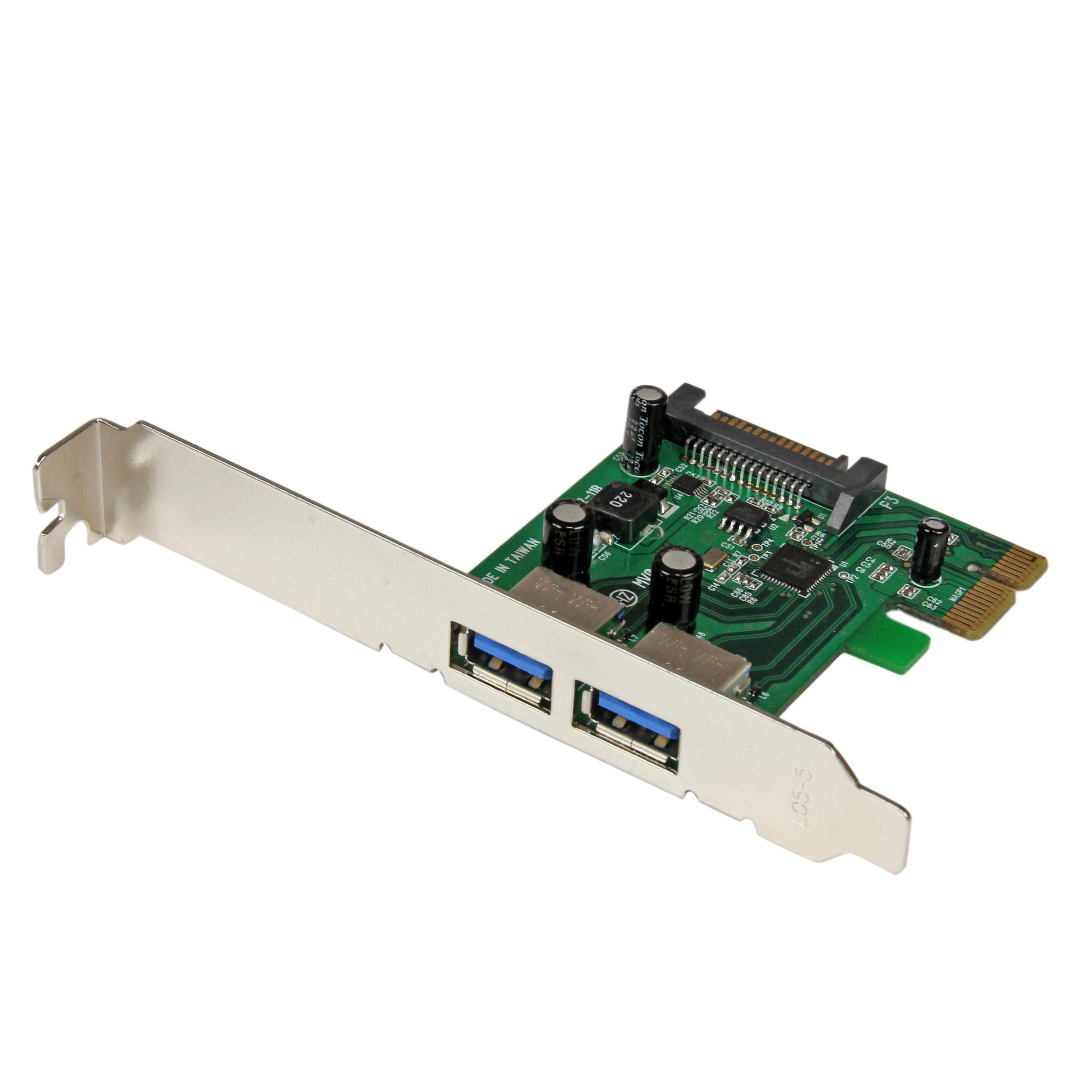

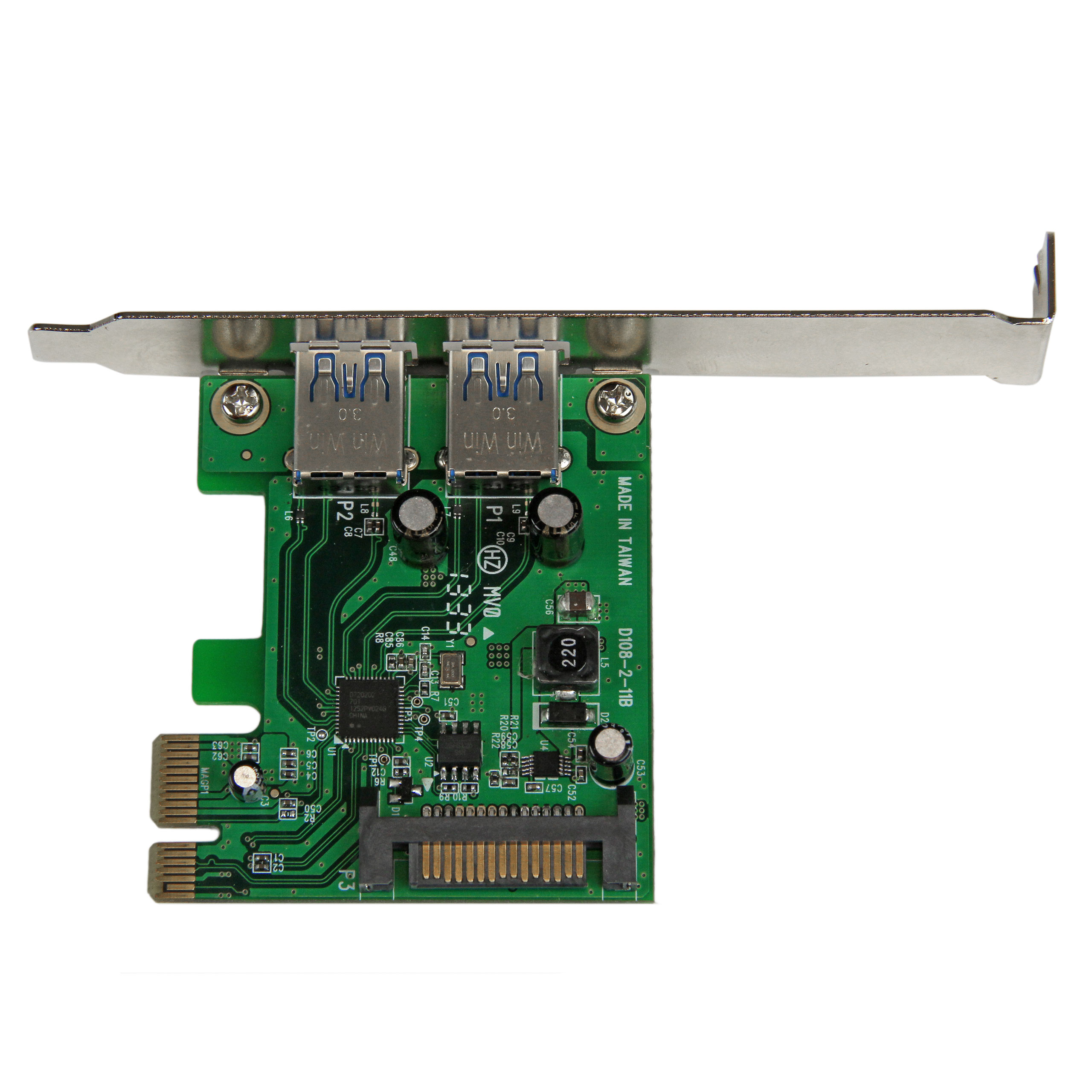

Dual Port 5Gbps USB 3 PCIe Controller Card w UASP
Add 2 SuperSpeed USB 3.0 (USB 3.2 Gen 1) ports with SATA power to your PCI Express-enabled PC
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Dual Port 5Gbps USB 3 PCIe Controller Card w UASP Product Number PEXUSB3S24 UPC 065030855587 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Family USB-A Cards - 5Gbps - PCIe Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) 2 Pt PCIe USB 3 Card Product Title (Short) 2 Port PCIe USB 3.0 Card Adapter w/ UASP Product Title (Medium) 2 Port PCI Express (PCIe) USB 3.0 Card Adapter with UASP - 5Gbps - SATA Power Product Title (Standard) 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP, SATA Power, 5Gbps, TAA Product Title (Long) 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Card Adapter with UASP - SATA Power - TAA Product Title (AMZ) 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - 5Gbps - SATA Power - Dual Port USB 3 PCIe Controller , TAA (PEXUSB3S24) Title Ingram (Part 1) 2Port USB 3 PCIe Controller Title Ingram (Part 2) Card w/ UASP - 5Gbps USB 3 Card Website Product Headline Add 2 SuperSpeed USB 3.0 (USB 3.2 Gen 1) ports with SATA power to your PCI Express-enabled PC Bullet 1 Provides two external USB 3.2 Gen 1 ports with UASP support Bullet 2 Supports data rates up to 5 Gbps Bullet 3 Compliant with PCI Express 2.0 specifications Bullet 4 Optional SATA power connector provides up to 900mA per USB port Bullet 5 Supports USB Battery Charging Specification 1.2 Bullets (Consolidated) Add 2 SuperSpeed USB 3.2 Gen 1 ports with SATA power to your PCI Express-enabled PC - Compatible with HP Pro 6300/Lenovo ThinkCentre M72e - 2 Port PCI Express USB 3.2 Gen 1 Card Adapter w/ UASP/2Port USB 3.2 Gen 1 Controller Card - USB 3 PCIe Card/PCIe USB 3.2 Gen 1 Card - SATA Powered USB 3.2 Gen 1 PCI Express Card/PCI Express USB 3.2 Gen 1 Expansion Card w/ UASP - Add USB 3.2 Gen 1 Ports to a Desktop - Two Port 5 Gbps USB 3.2 Gen 1 UASP Card includes a Low Profile/half-height bracket - Supports USB Battery Charging Specification 1.2 Marketing Copy Applications - Upgrade an older PCIe-based system from USB 2.0 to USB 3.2 Gen 1 connectivity
- Expand the USB capabilities of your system with two additional external ports
- Connect additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc. to a computer system
Website Search Keyword PEXUSB3S22 Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps. System and Cable Requirements Available PCI Express slot Accessory Products - USB3SAB6BK
- S3520BU33ER
- SAT3510BU3
- USB3SAB3BK
- SATDOCKU3S
- ST4300USBMS
- S2510SM12U33
- USB3SAB10BK
- ST4300USBM
Related Products - PEXUSB3S25
- PEXUSB3S23
- PEXUSB3S44V
- PEXUSB3S11
- PEXUSB3S42V
- PEXUSB3S4V
Constrained SKU Alternatives (Limited Stock) PEXUSB3S2EI Input Voltage 12V DC Output Voltage (V) 12V DC Color Green Humidity 20-80% RH Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 65.000 Product Width (mm) 18.000 Product Height (mm) 120.000 Product Weight (g) 40.000 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes Maximum Cable Length (mm) 3000 Maximum Data Transfer Rate 5 Gbps OS Compatibility - Linux
- Windows 8
- Windows 7
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

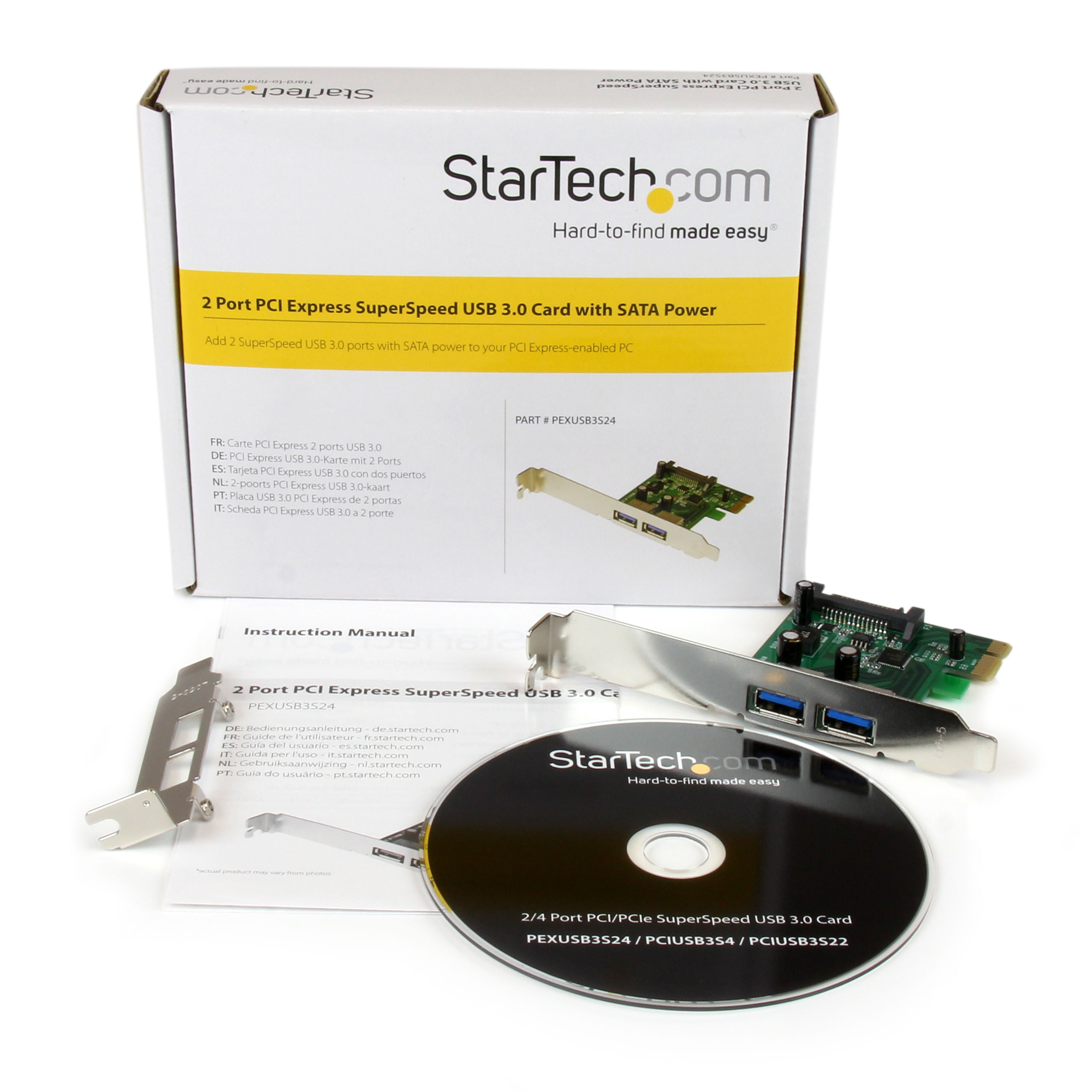

UASP Support Yes USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 3.0 (5Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Renesas/NEC - µPD720202 Industry Standards Interface/Bridge USB 3.2 Gen 1 (5Gbps) IO Card Port Style Integrated on Card USB Port Type USB-A Carton Depth (mm) 382 Carton Height (mm) 318 Carton Quantity 60 Carton Weight Gross (g) 8934 Included in Package - 1 - PCI Express USB 3.0 Card
- 1 - Instruction Manual
- 1 - Low Profile Bracket
- 1 - Driver CD
Included In Package for Label - 1 - Instruction Manual
- 1 - PCI Express USB 3.0 Card
- 1 - Low Profile Bracket
- 1 - Driver CD
Package Depth (mm) 143 Package Height (mm) 32 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 132 Packaging Description 2 Port PCI Express USB 3.0 Card Packaging Description India 2 Port PCI Express USB 3.0 Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-12-04 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist kfarid Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
