PEXUSB3S25
2 Port PCIE SuperSpeed USB 3 0 Card Adapter
Add 2 SuperSpeed USB 3.0 (USB 3.2 Gen 1) ports to your PCI Express-enabled PC

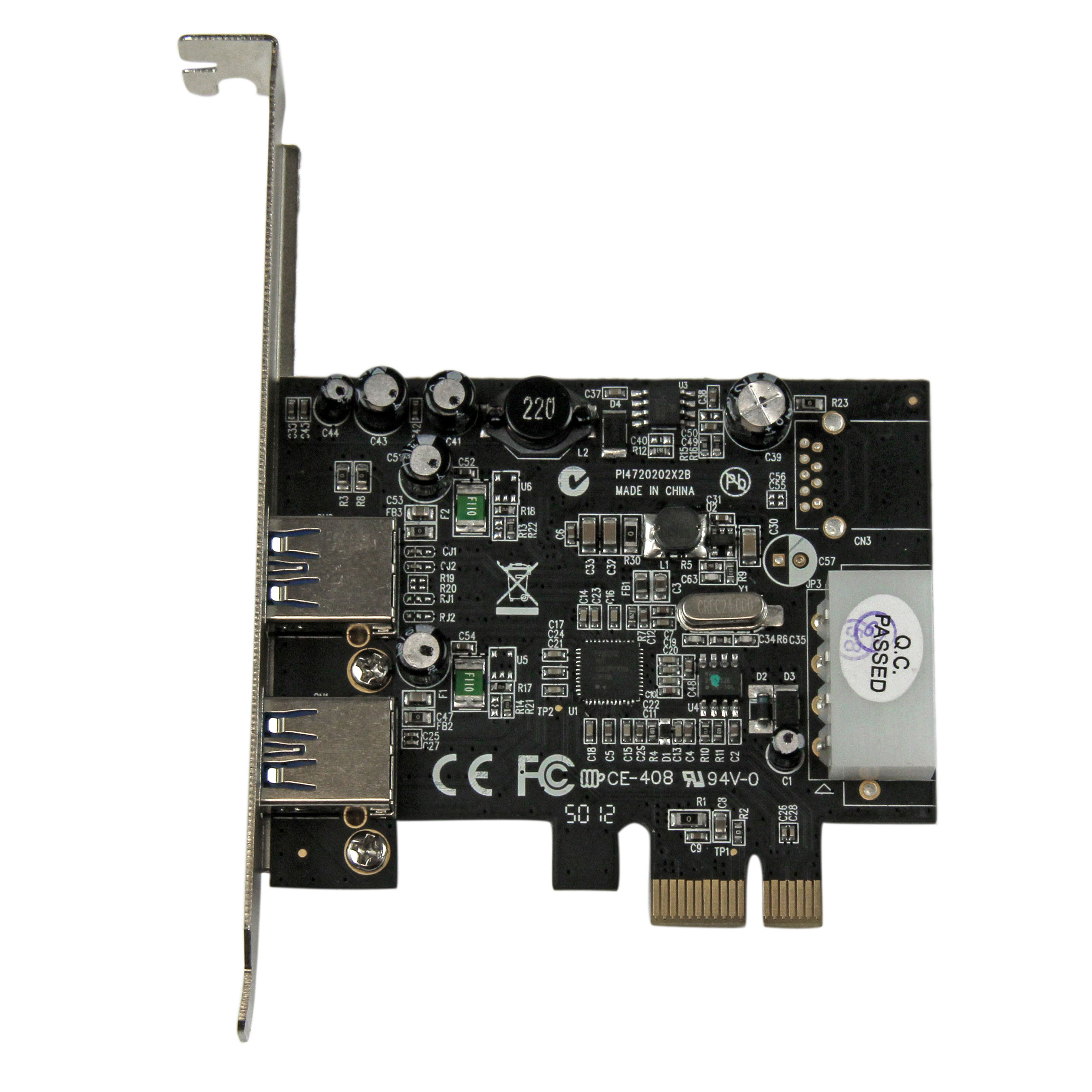

Main Image

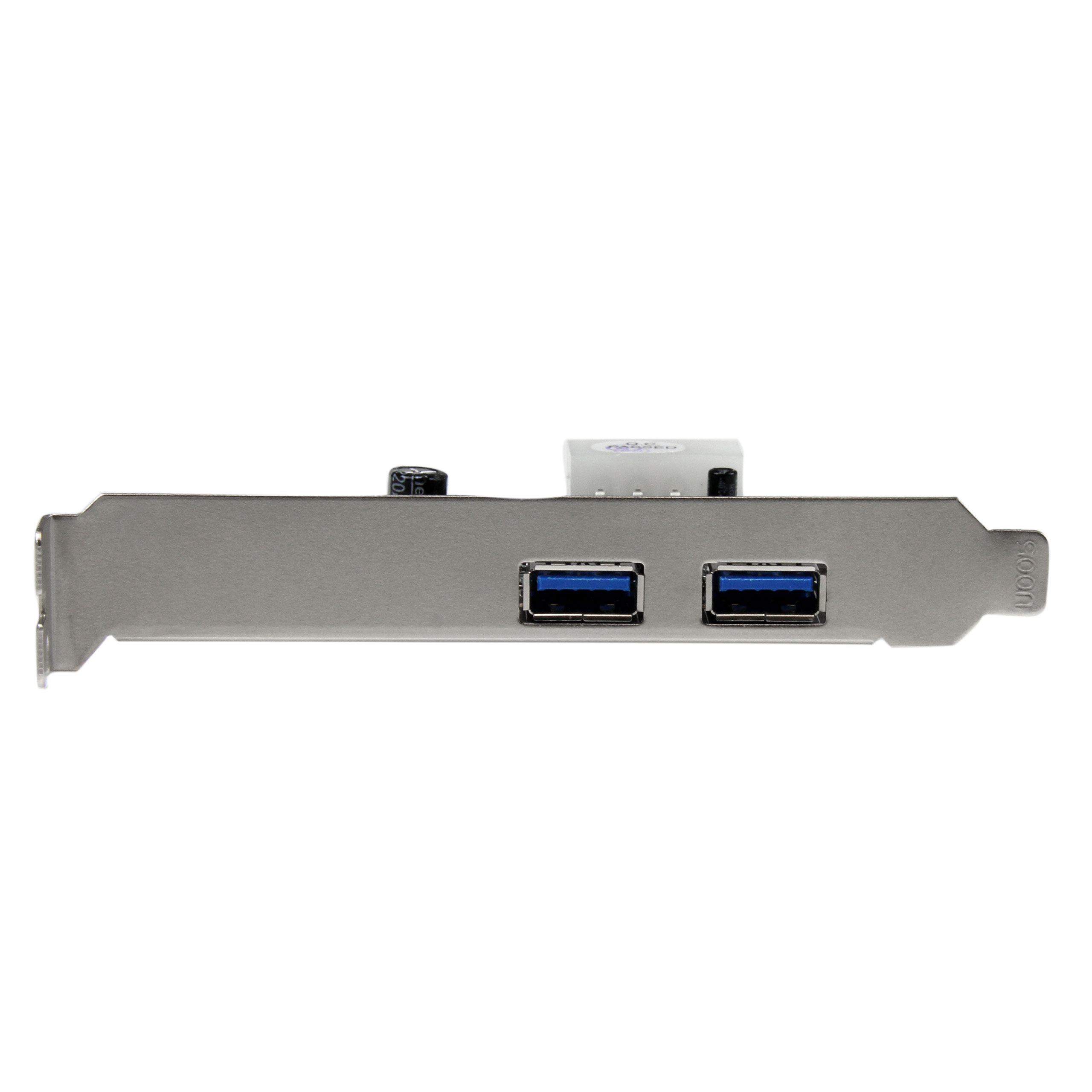

Product Images

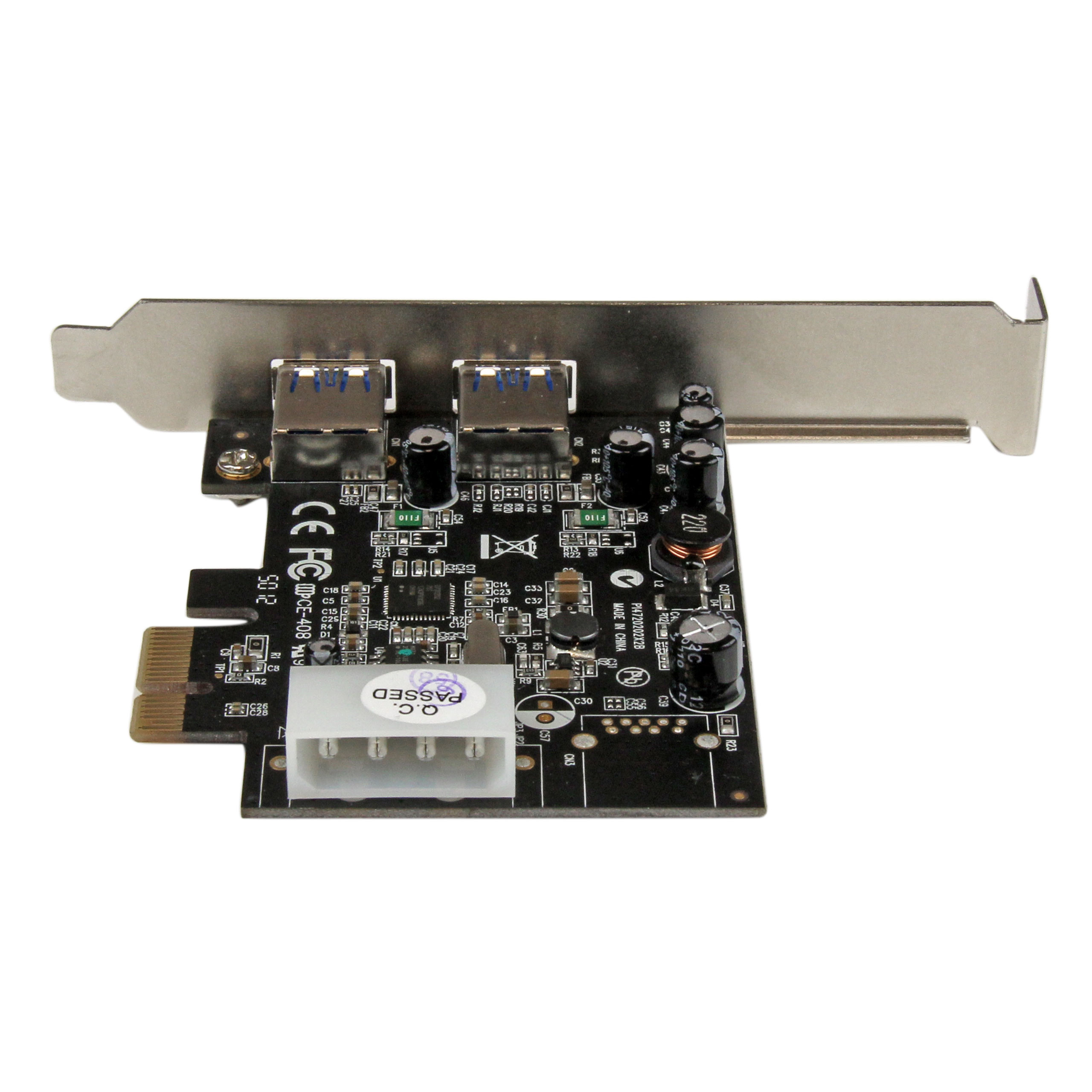

Product Images

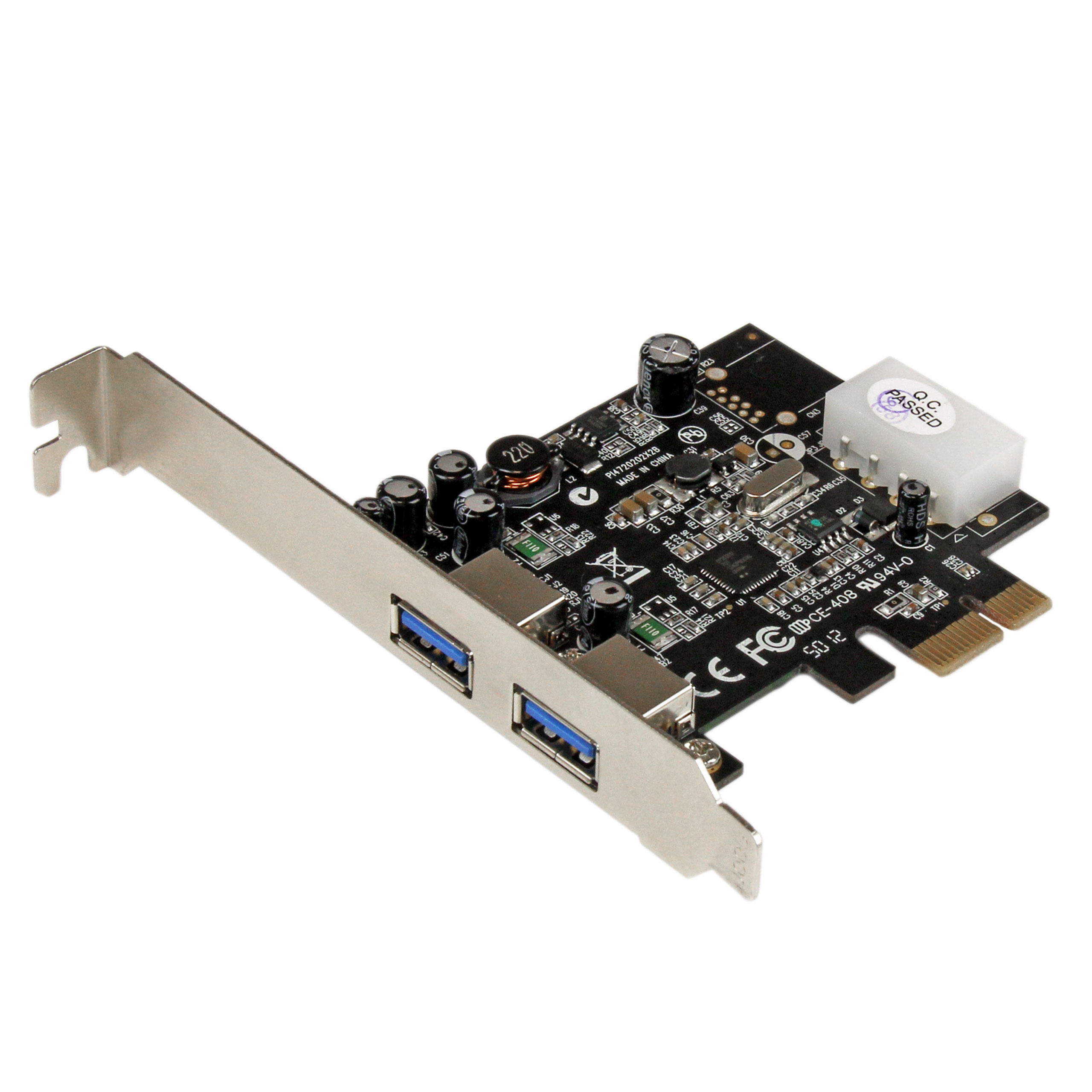

Product Images

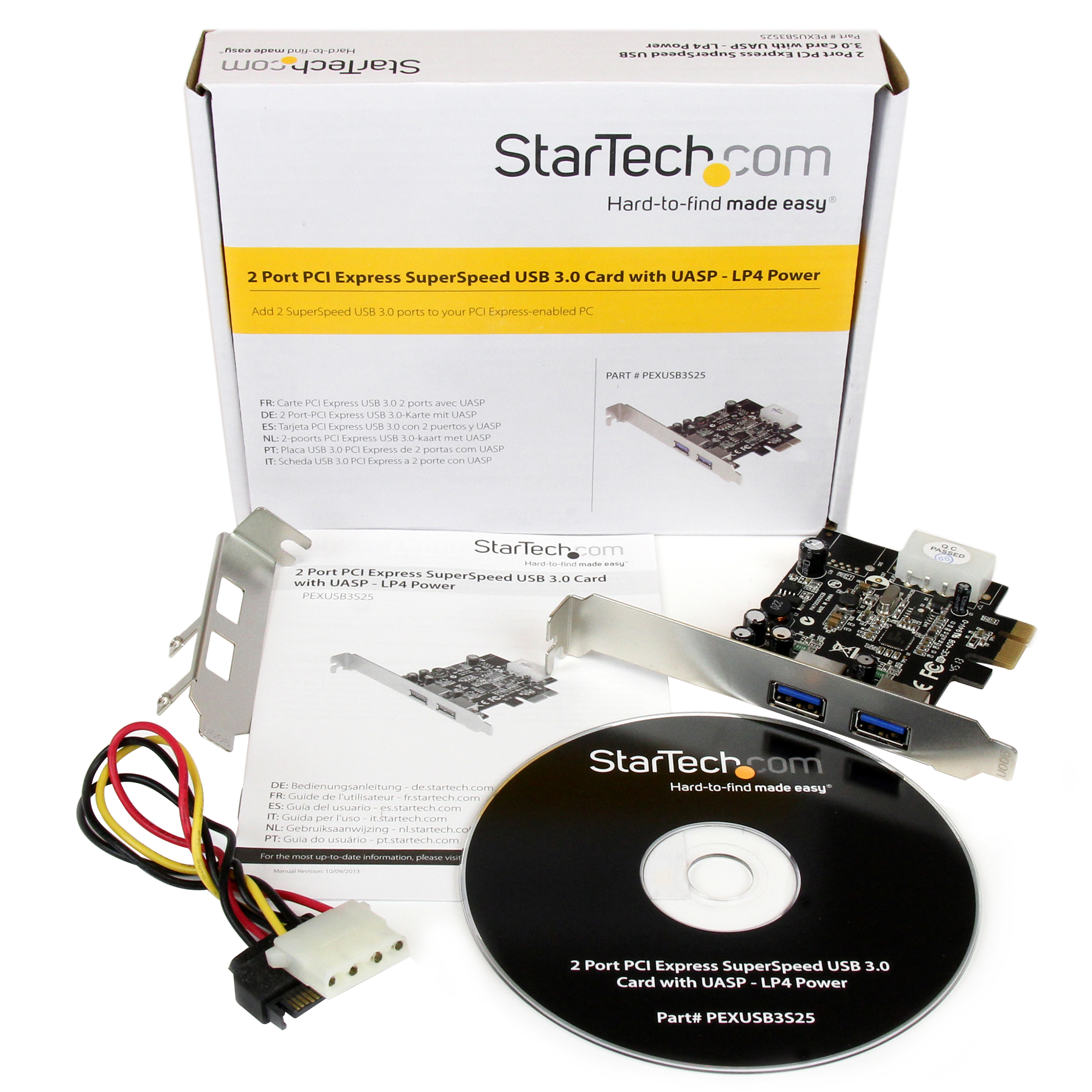

BOM Image
Product Name 2 Port PCIE SuperSpeed USB 3 0 Card Adapter Product Number PEXUSB3S25 UPC 065030854603 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Family USB-A Cards - 5Gbps - PCIe Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Country of Origin History (2) Malaysia Country of Origin Revision (2) XXXXXX156X Product Title (Ultra-Short) 2Pt PCIe USB 3 Card Product Title (Short) 2 Port PCIe USB 3.0 Card w/ UASP - 5Gbps Product Title (Medium) x Product Title (Standard) 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - 5Gbps - LP4 Power Product Title (Long) 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Card Adapter with UASP - LP4 Power Product Title (AMZ) 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - 5Gbps - LP4 Power - Dual Port USB 3 PCIe Controller (PEXUSB3S25) Title Ingram (Part 1) 2Port 5 Gbps USB 3 PCIe Title Ingram (Part 2) Controller Card w/ UASP Support Website Product Headline Add 2 SuperSpeed USB 3.0 (USB 3.2 Gen 1) ports to your PCI Express-enabled PC Bullet 1 Provides two external USB 3.2 Gen 1 ports with UASP support Bullet 2 Optional LP4 power connector provides up to 900mA per USB port Bullet 3 Supports data rates up to 5 Gbps Bullet 4 Compliant with PCI Express 2.0 specifications Bullet 5 Fully compliant with USB 3.2 Gen 1 rev 1.0 and Intel xHCI rev 1.0 specifications Bullets (Consolidated) Add 2 SuperSpeed USB 3.2 Gen 1 ports with LP4 power to your PCI Express-enabled PC - Compatible Lenovo ThinkCentre M72e/Dell OptiPlex 3010 - 2 Port PCI Express USB 3.2 Gen 1 Card Adapter w/ UASP/2Port USB 3.2 Gen 1 Controller Card - USB 3 PCIe Card/PCIe USB 3.2 Gen 1 Card - LP4 Powered USB 3.2 Gen 1 PCI Express Card/PCI Express USB 3.2 Gen 1 Expansion Card w/ UASP - Add USB 3.2 Gen 1 Ports to a Desktop - Two Port 5 Gbps USB 3.2 Gen 1 UASP Card includes a Low Profile/half-height bracket - Supports USB Battery Charging Specification 1.2 Marketing Copy Applications - Expand the USB capabilities of your system with two additional external ports
- Connect additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc. to a computer system
- Upgrade an older PCIe-based system from USB 2.0 to USB 3.2 Gen 1 connectivity
Website Search Keyword PEXUSB3S2 Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes Devices that do not comply with the USB Battery Charging Specification may only receive standard USB power. System and Cable Requirements Available PCI Express slot Accessory Products - USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- SAT3510BU3
- ST4300USBM
- SAT2510BU3
- SATDOCKU3S
- ST4300USB3
Related Products - PEXUSB3S4V
- PEXUSB3S2E2I
- PEXUSB3S22
- PEXUSB3S400
- PCIUSB3S4
Constrained SKU Alternatives (Limited Stock) PEXUSB3S2EI Input Voltage 12V DC Output Voltage (V) 12V DC Color Black Humidity 5~85% RH Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 82.000 Product Width (mm) 18.000 Product Height (mm) 120.000 Product Weight (g) 50.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Maximum Cable Length (mm) 3000 Maximum Data Transfer Rate 5 Gbps MTBF (hours) 38,400 hours OS Compatibility - Windows 8
- Linux
- Windows 7
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
UASP Support Yes USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 3.0 (5Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Renesas/NEC - µPD720202 Industry Standards Interface/Bridge USB 3.2 Gen 1 (5Gbps) IO Card Port Style Integrated on Card USB Port Type USB-A Carton Depth (mm) 599 Carton Height (mm) 366 Carton Quantity 80 Carton Weight Gross (g) 12874 Included in Package - 1 - Driver CD
- 1 - Instruction Manual
- 1 - PCIe USB 3.0 Card
- 1 - Low Profile Bracket
- 1 - SATA to LP4 Cable
Included In Package for Label - 1 - Driver CD
- 1 - Instruction Manual
- 1 - PCIe USB 3.0 Card
- 1 - Low Profile Bracket
- 1 - SATA To LP4 Cable
Package Depth (mm) 169 Package Height (mm) 30 Package Width (mm) 144 Package Quantity 1 Package Weight (g) 72 Packaging Description 2 Port PCI Express USB 3.0 Card w/ UASP Packaging Description India 2 Port PCI Express USB 3.0 Card w/ UASP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-10-09 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
