PEXUSB3S2E2I

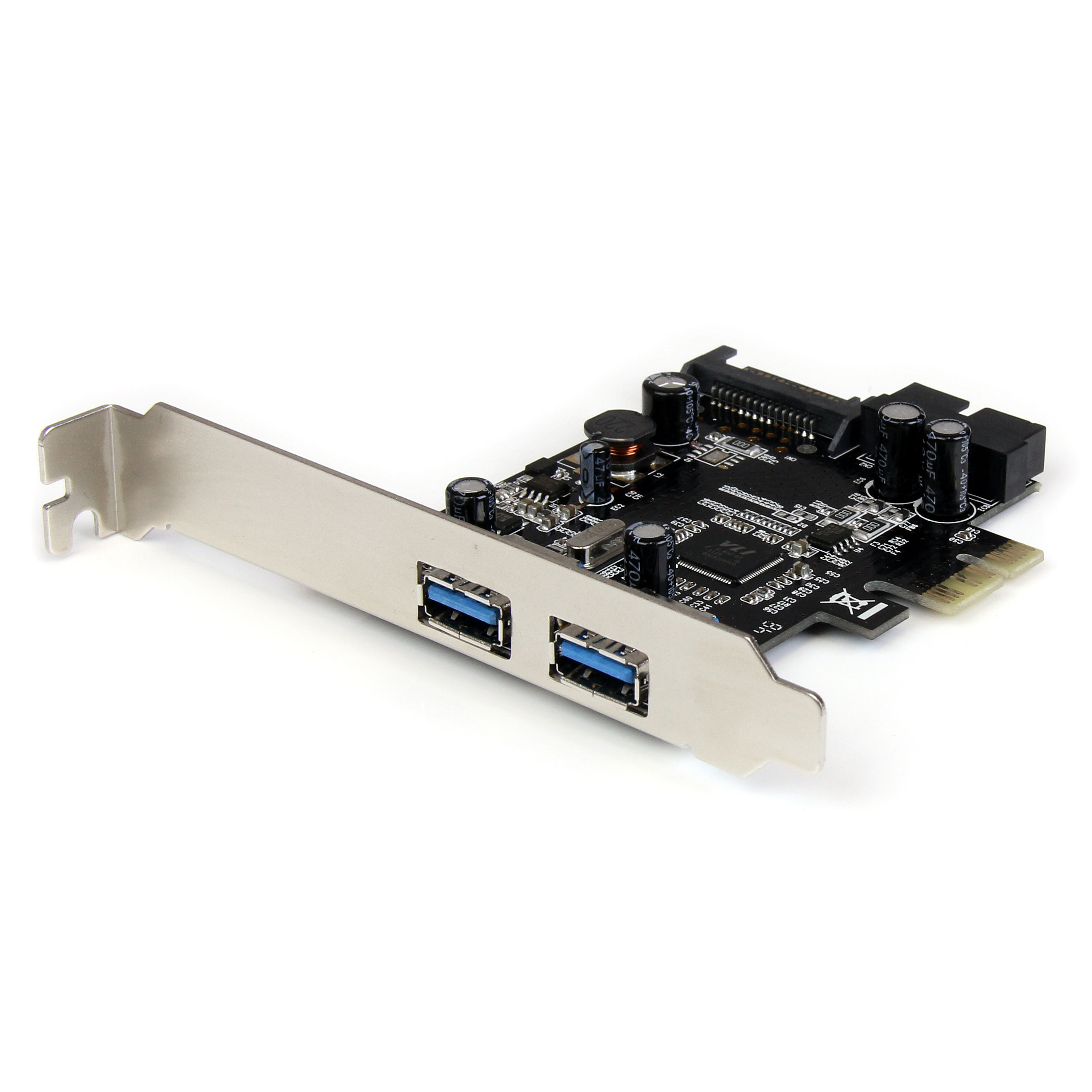

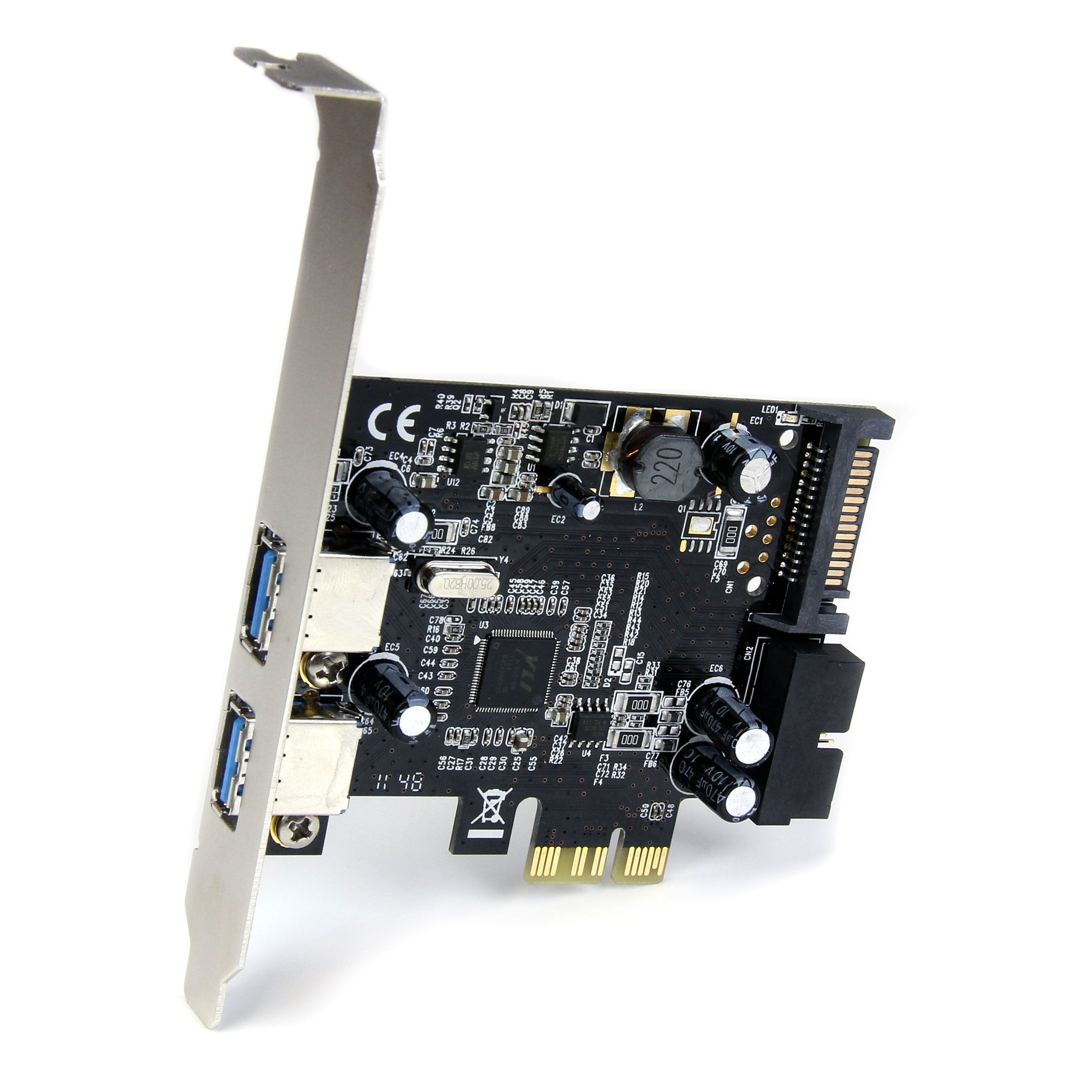

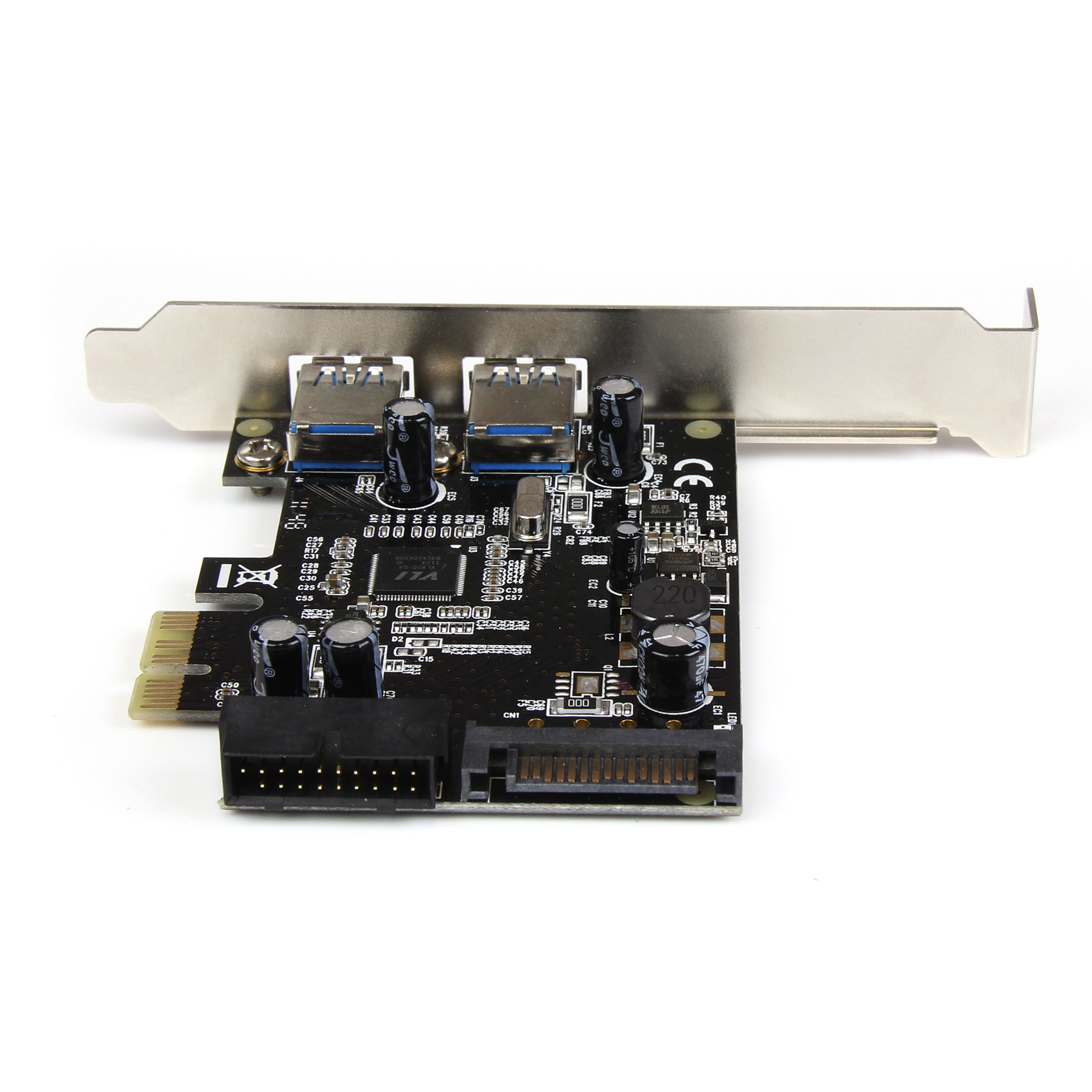

4 Port USB 3 PCIe Controller Card Adapter

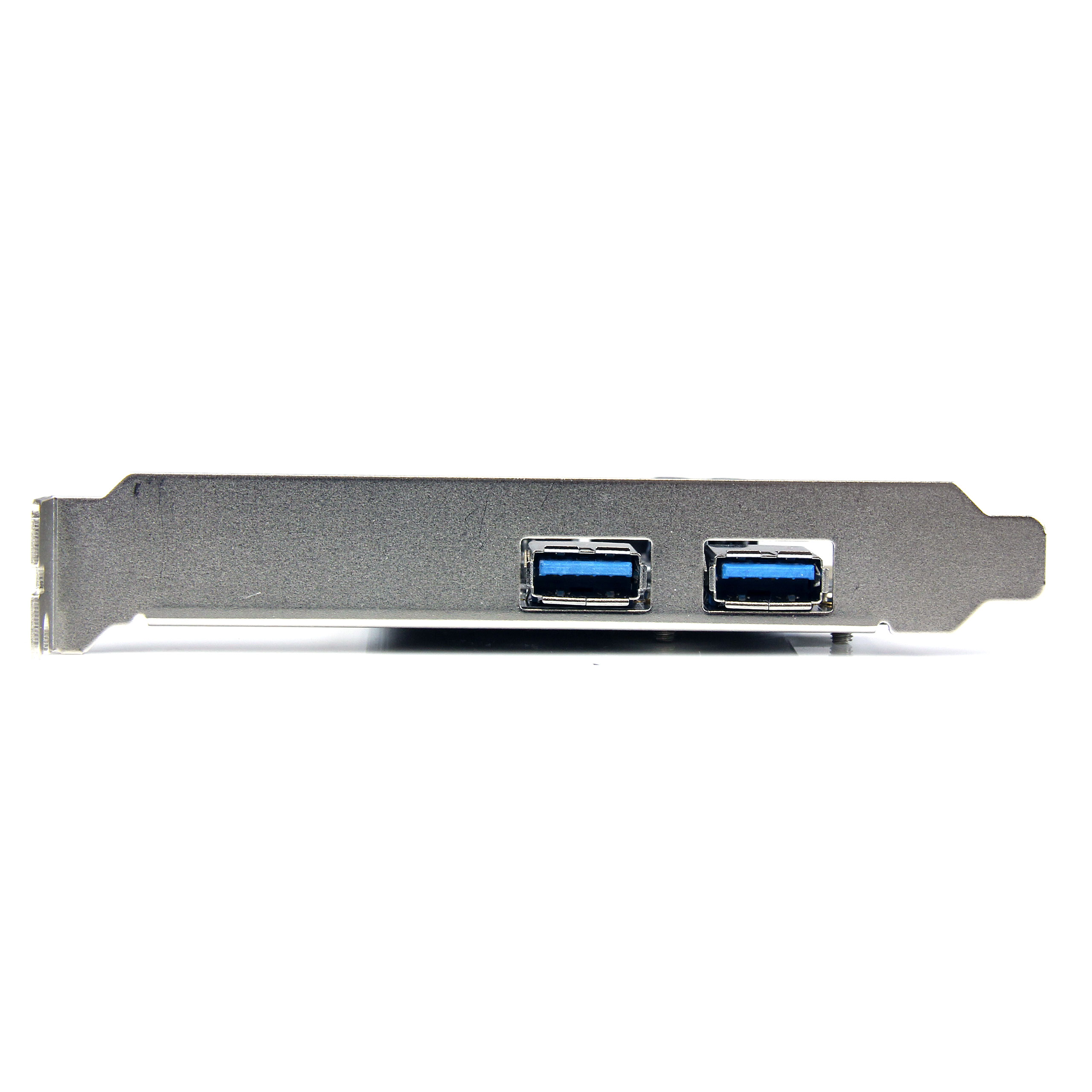

Add 4 USB 3.0 ports (2 external, 2 internal motherboard header) to a computer through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port USB 3 PCIe Controller Card Adapter Product Number PEXUSB3S2E2I UPC 065030847612 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Short) 4 Port USB 3.0 PCI Express PCIE Card Product Title (Standard) 4 Port USB 3.0 PCI Express PCIe Controller Card - 2 Ext 2 Int w/ SATA Power Product Title (Long) 4 Port USB 3.0 PCI Express PCIe Controller Card - 2 Ext 2 Int w/ SATA Power Product Title (AMZ) 4 Port USB 3.0 PCI Express PCIe Controller Card - 2 Ext 2 Int w/ SATA Power (PEXUSB3S2E2I) Title Ingram (Part 1) 4 Port USB 3.0 PCI Express Adapt Title Ingram (Part 2) er - PCIe Controller Card Website Product Headline Add 4 USB 3.0 ports (2 external, 2 internal motherboard header) to a computer through a PCI Express slot Bullet 1 4x USB 3.0 ports: 2x External USB 3.0 ports + 2x Internal (motherboard header) USB 3.0 ports Bullet 2 Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.95 specifications, with support for data transfer rates up to 5 Gbps Bullet 3 Built-on SATA power connector, which supports power delivery to USB 3.0 devices (up to 900mA per port) Bullet 4 Backward compatible with USB 2.0 and USB 1.0/1.1 devices Bullet 5 Compliant with PCI Express 2.0 specifications Marketing Copy Applications - Add USB 3.0 Connectivity to a PCIe-based system
- Connect internal or front panel mounted USB 3.0 devices that use motherboard header style connections
- Add USB 3.0 connection ports for connecting additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc. to a computer system
Website Search Keyword - SuperSpeed
- usb adapter
- USB 3.0
- usb host controller
- USB 3
- 5gbps usb
- pcie usb 3
- usb 3 mb header
- motherboard header
Special Notes The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps. System and Cable Requirements Available PCI Express slot Accessory Products - LP4LSATAADAP
- SATDOCKU3S
- USB3SAB6BK
- ST4300USB3
- USB3SAB3BK
- ST4300USBM
- SAT3510U3V
- USB3SAB10BK
- SAT3510BU3
- SAT2510BU3
- SATDOCK22U3S
- UNIDOCK3U
- SAT3520U3R
- USB3SPLATE
- USB3SPNLAFHD
- USB3SPLATELP
Related Products - MPEXUSB3S2
- PEXUSB3S11
- PEXUSB3S2
- PEXUSB3S22
- PEXUSB3S4
Replacement Product PEXUSB3S2EI Humidity 10% ~ 90% RH Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 86.5 Product Width (mm) 15 Product Height (mm) 68.5 Product Weight (g) 50 Storage Temperature 0°C to 80°C (32°F to 176°F) TAA Compliant No OS Compatibility - Windows 7
- Windows Server 2012
- Windows 8
- Linux

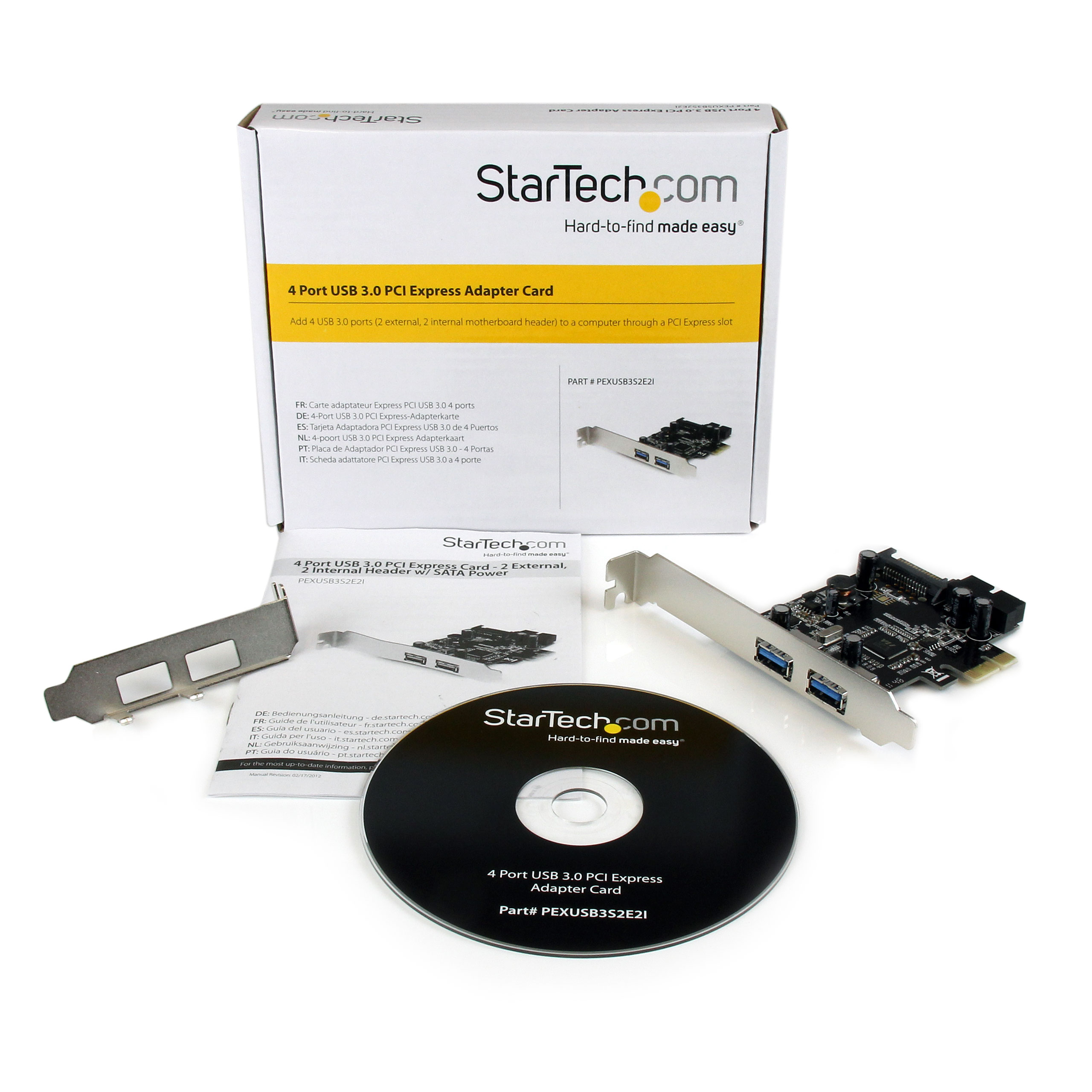

UASP Support No USB Type and Rate USB 3.0 (5Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID VIA/VLI - VL800 Interface/Bridge USB 3.2 Gen 1 (5Gbps) IO Card Port Style Integrated on Card Carton Depth (mm) 275 Carton Height (mm) 400 Carton Quantity 50 Carton Weight Gross (g) 8200 Included in Package - 1 - PCI Express USB 3.0 Card
- 1 - Low Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 170 Package Height (mm) 30 Package Width (mm) 142 Package Quantity 1 Package Weight (g) 148 Packaging Description 4 Port USB 3.0 PCI Express Adapter Card Packaging Description India 4 Port USB 3.0 PCI Express Adapter Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 IDC (20-Pin) Connector 3 (Quantity) 2 en-US Content Approved Yes Product Manager Rafal Gwozdz
