PEXUSB3S2EI
4 Port USB 3 0 PCI Express PCIe Controller Card 2 Ext 2 Int
Add front or rear panel USB 3.0 (USB 3.2 Gen 1) ports to your computer case using USB 3.0 (USB 3.2 Gen 1) motherboard-style headers

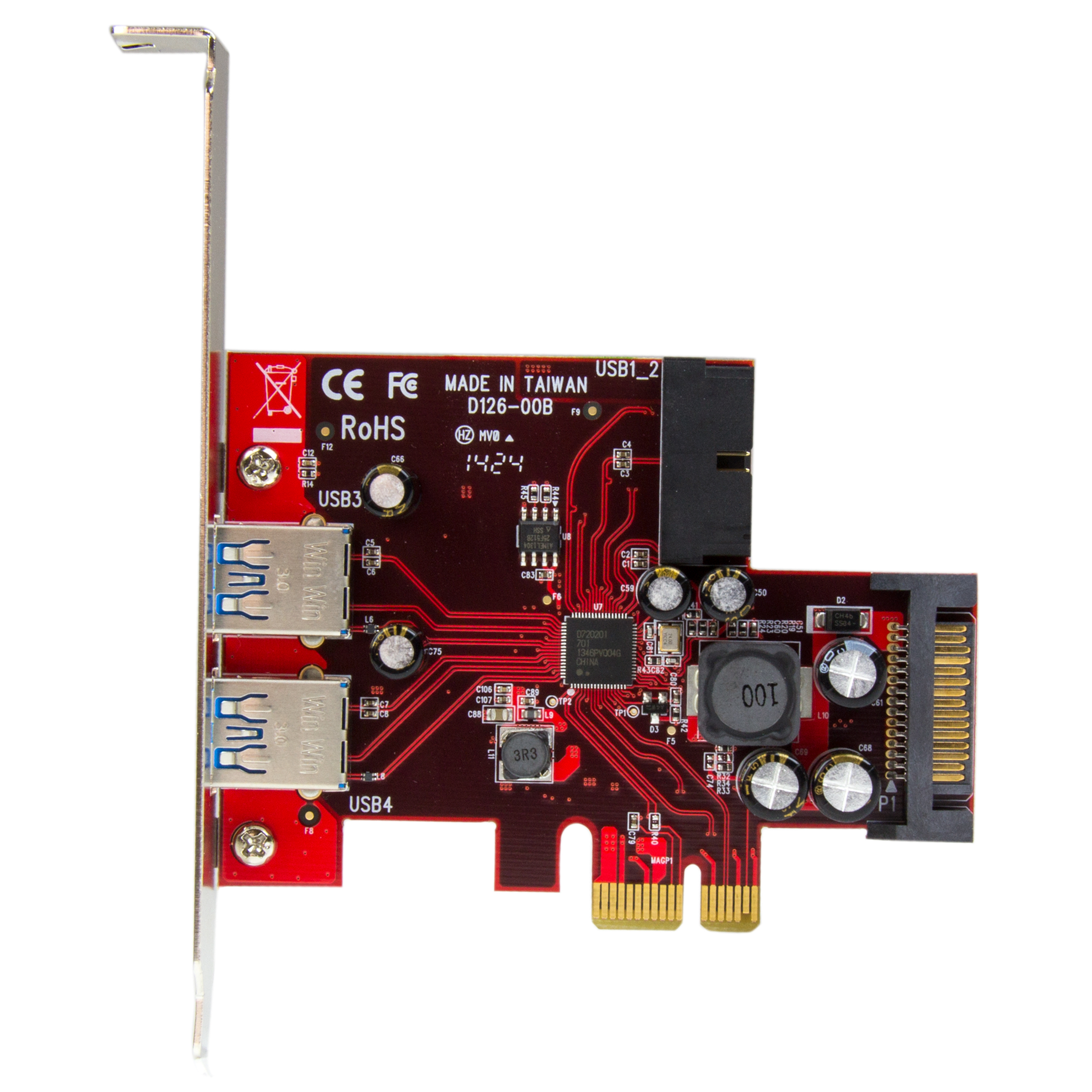

Main Image

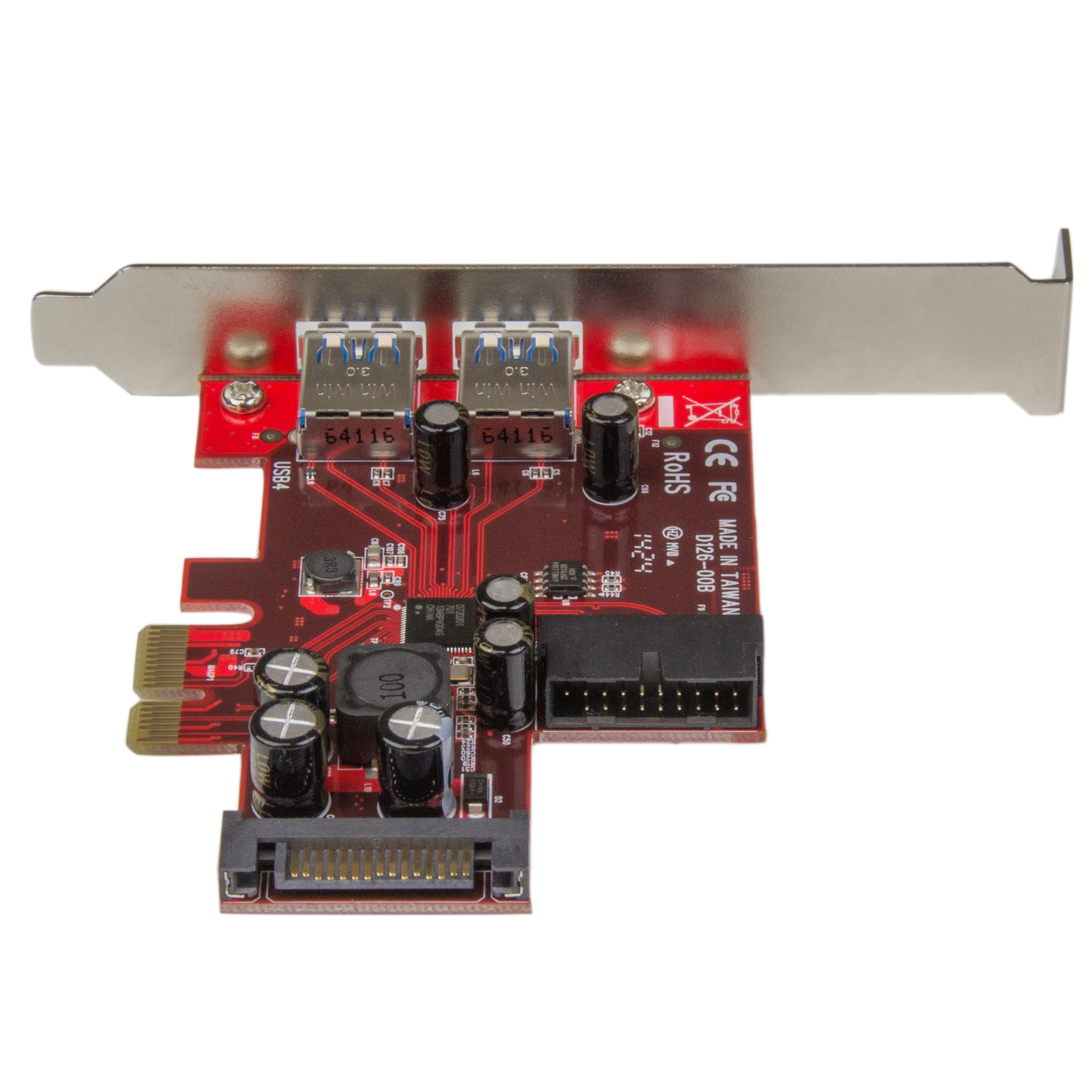

Product Images

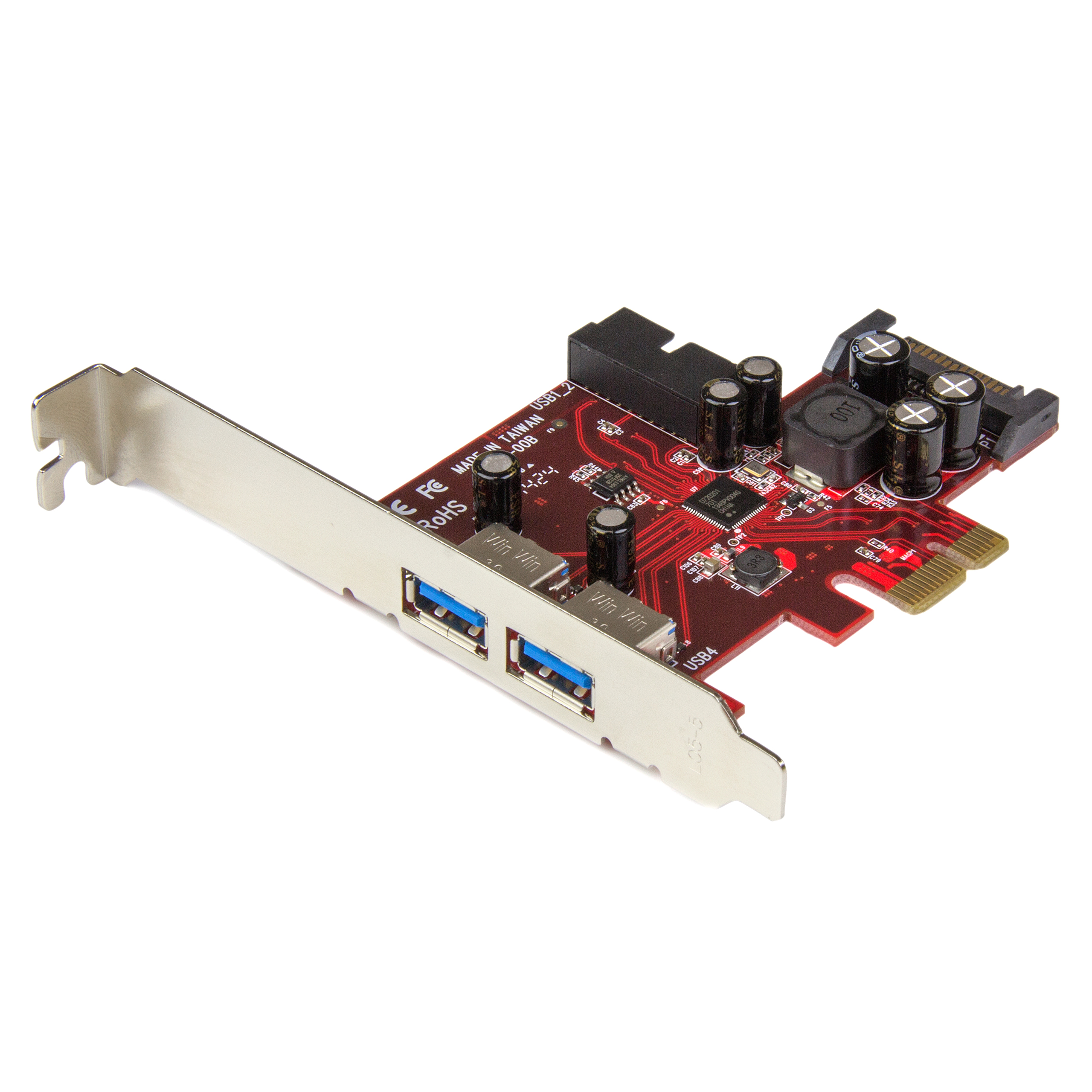

Product Images

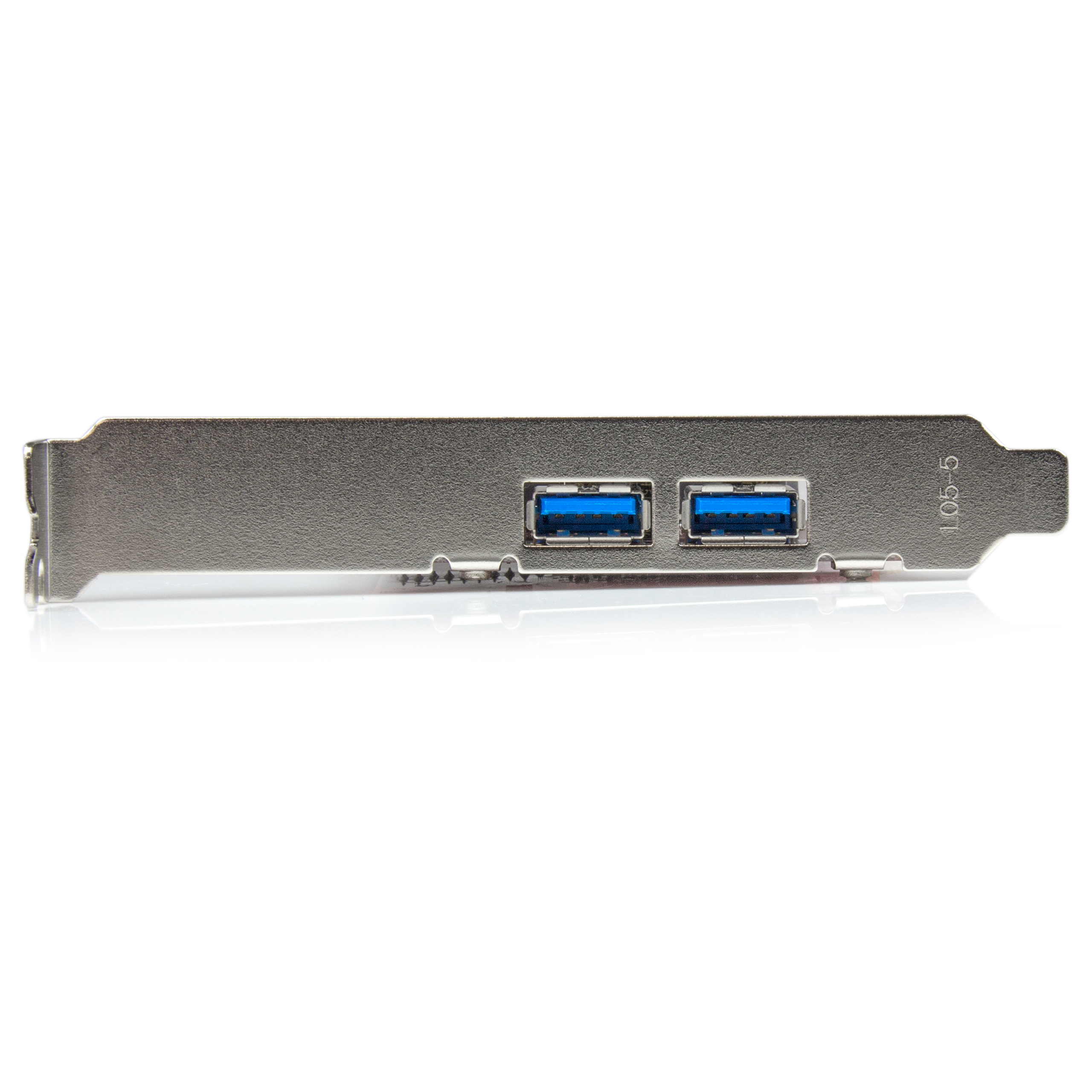

Product Images
BOM Image
Product Name 4 Port USB 3 0 PCI Express PCIe Controller Card 2 Ext 2 Int Product Number PEXUSB3S2EI UPC 065030860338 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Family USB-A Cards - 5Gbps - PCIe Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) 4Pt PCIe USB 3 Card Product Title (Short) 4 Port PCIe USB 3.0 Card - 2 Ext & 2 Int Product Title (Medium) 4 Port PCI Express USB 3.0 Card - 5Gbps - 2 External & 2 Internal - SATA Power Product Title (Standard) 4 Port PCI Express USB 3.0 Card, 5Gbps, 2 External & 2 Internal (IDC), SATA Power, TAA Product Title (Long) 4 Port PCI Express USB 3.0 Card - 5Gbps - 2 External & 2 Internal - SATA Power - UASP Support - 2x Internal (IDC) Motherboard-Style Headers - TAA Product Title (AMZ) 4 Port PCI Express USB 3.0 Card - 5Gbps - 2 External & 2 Internal - SATA Power - UASP Support - 2x Internal (IDC) Motherboard-Style Headers , TAA (PEXUSB3S2EI) Title Ingram (Part 1) 4Port PCIe USB 3.0 Adapter Card Title Ingram (Part 2) - 2 Motherboard-Style Headers Website Product Headline Add front or rear panel USB 3.0 (USB 3.2 Gen 1) ports to your computer case using USB 3.0 (USB 3.2 Gen 1) motherboard-style headers Bullet 1 Flexibility to connect external and internal USB 3.2 Gen 1 devices and supports UASP Bullet 2 Fast, hassle-free setup with Windows 8 native support, and fits into standard or low-profile systems Bullet 3 Backward compatibility lets you save money and connect existing USB 2.0 and 1.x devices Bullet 4 Transfer large files at lightning speed, with throughput support up to 5 Gbps Bullet 5 Optional SATA power connector provides up to 900mA per port for high-power USB devices Bullets (Compact) Add front or rear panel USB 3.0 ports to your computer case using USB 3.2 Gen 1 motherboard-style headers - 4 Port PCI Express Card - 2 External & 2 Internal - SATA Power - UASP Support - 2 Internal Headers - USB 3.2 Gen 1 Card (5Gbps) - Easy setup Bullets (Consolidated) Add front or rear panel USB 3.2 Gen 1 ports to your computer case using USB 3.2 Gen 1 motherboard-style headers - 4 Port PCIe USB 3.2 Gen 1 Card - 2 External and 2 Internal - SATA Power - UASP Support - USB 3.2 Gen 1 Adapter Card with 2x Int Motherboard-Style Headers - Native OS Support in Windows 8 and 8.1 and Linux kernel 2.6.31 or later for easy driver installation - Flexibility to connect external and internal USB 3.2 Gen 1 devices Marketing Copy Marketing Copy (No HTML) Applications - Connect external hard drives, tablets, smartphones, CD/DVD drives, MP3 players, printers, scanners, webcams and game controllers to your computer
- Install as a vital hardware component when building your own computer or when upgrading your case
Website Search Keyword - USB card
- USB 3.0 Card
- 4 port USB 3.0 card
- 4 port pci express usb 3.0 card
- 4 port pcie usb 3.0 card
- usb 3.0 card adapter
- usb 3.0 adapter card
- 4 port superspeed usb 3.0 card
- card adapter
- adapter card
- usb 3.0 controller
- usb 3.0 controller card adapter
- 4 port pci express superspeed usb 3.0 card
- usb 3.0 controller card
- usb 3.0 card with sata power
- 4 port usb 3.0 card with sata
- USB 3 card with UASP
- usb host controller
- usb 3 mb header
- USB 3.0 card with internal ports
- USB 3 card with 2 external and 2 internal ports
- 4 port USB 3.0 host controller add on card
- USB 3.0 card with internal header
- USB 3.0 host controller card
- USB 3.0 card with headers
- 4 port USB 3.0 card with internal header
- 4 port USB 3.0 card with header
- usb 3.0 card with motherboard header
- USB 3.0 card with 2 internal headers
- USB 3.0 motherboard header
- motherboard header
- motherboard headers
- PEXUSB3S2E2I
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps. System and Cable Requirements - PCI Express enabled computer with an available PCI Express x1 slot or higher (x4, x8, x16)
- SATA power connector (recommended, but optional)
Accessory Products - LP4LSATAADAP
- SATAPOWADAP
- USB3SAB6BK
- USB3SAB10BK
- ST7300U3M
- ST3300GU3B
- ST4300U3C1
- UNI251BMU33
- S3510BMU33B
- S3520BU33ER
- USB3AAEXT5M
Related Products - PEXUSB3S4V
- PEXUSB3S4
- PEXUSB3S24
- PEXUSB3S25
- PEXUSB3S23
- PEXUSB3S22
- PEXUSB3S11
- PEXUSB3S7
Constrained SKU Alternatives (Limited Stock) PEXUSB3S4V Color Red Humidity 20~80% RH Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 92 Product Width (mm) 18 Product Height (mm) 120 Product Weight (g) 53 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes Maximum Cable Length (mm) 3000 Maximum Data Transfer Rate 5 Gbps MTBF (hours) 1,920,042 Hours OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
UASP Support Yes USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 3.0 (5Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Renesas/NEC - µPD720201 Industry Standards Interface/Bridge USB 3.2 Gen 1 (5Gbps) IO Card Port Style Integrated on Card USB Port Type - USB-A, IDC
- USB-A
- IDC

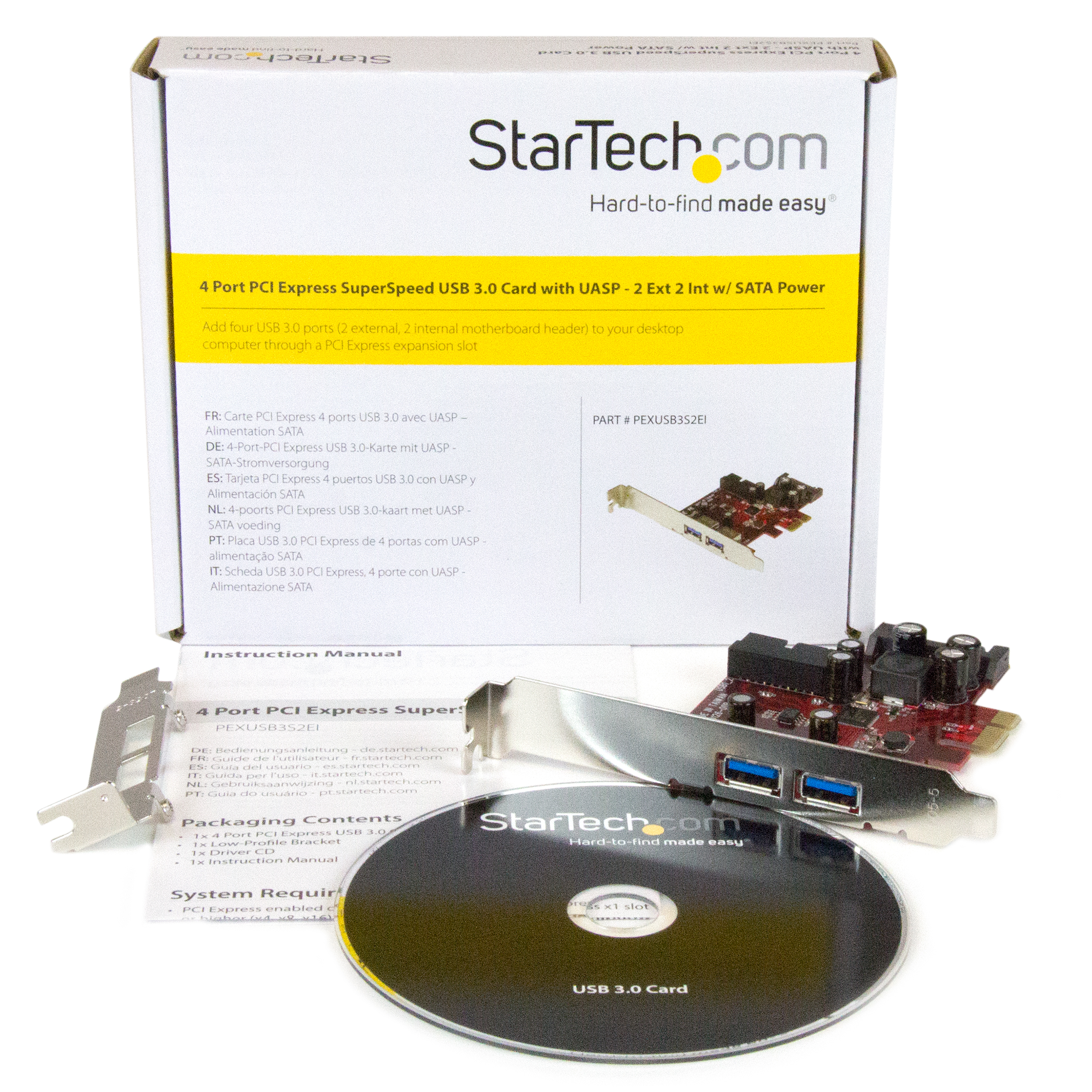

Carton Depth (mm) 382 Carton Height (mm) 318 Carton Quantity 60 Carton Weight Gross (g) 9736 Included in Package - 1 - 4 Port PCI Express USB 3.0 Card - 2 Ext 2 Int
- 1 - Low-Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
Included In Package for Label - 1 - Instruction Manual
- 1 - Driver CD
- 1 - Low-Profile Bracket
- 1 - 4 Port PCI Express USB 3.0 Card - 2 Ext 2 Int
Package Depth (mm) 143 Package Height (mm) 33 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 146 Packaging Description 4 Port PCI Express USB 3.0 Card w/ UASP - SATA Power Packaging Description India 4 Port PCI Express USB 3.0 Card w/ UASP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 1 Connector 4 IDC (20-Pin) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-02-11 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist kfarid Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Production Release 2015-01-16 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
