PEXUSB3S3GE
3Port PCIe USB 3 0 Adapter Card Standard LP
Running low on expansion slots? Merge USB 3.0 (USB 3.2 Gen 1) and GbE into a single PCIe combo card
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 3Port PCIe USB 3 0 Adapter Card Standard LP Product Number PEXUSB3S3GE UPC 065030860796 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Family USB-A Cards - 5Gbps - PCIe - with Ethernet Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) PCIe USB3 Card + GbE Product Title (Short) 3Pt PCIe USB 3.0 Card + Gigabit Ethernet Product Title (Medium) 3 Port PCI Express USB 3.0 Card + Gigabit Ethernet - 5Gbps Product Title (Standard) 3 Port PCI Express USB 3.0 Card + Gigabit Ethernet, 5Gbps, TAA Product Title (Long) 3-Port PCI Express USB 3.0 Card + Gigabit Ethernet - 5Gbps - TAA Product Title (AMZ) 3 Port PCI Express USB 3.0 Card + Gigabit Ethernet - Fits Standard & Low-Profile PCs - UASP Supported - 5Gbps - Optional SATA Power , TAA (PEXUSB3S3GE) Title Ingram (Part 1) 3Port PCIe USB 3.0 Adapter Card Title Ingram (Part 2) - USB 3 -Standard & Low-Profile Website Product Headline Running low on expansion slots? Merge USB 3.0 (USB 3.2 Gen 1) and GbE into a single PCIe combo card Bullet 1 Frees up a PCIe slot by consolidating 3x USB 3.2 Gen 1 (5Gbps) & 1x Gigabit Ethernet ports into a single card Bullet 2 Perfect for high-powered USB devices, with optional SATA power providing up to 900mA per port Bullet 3 Provides installation flexability for standard and low-profile computers, with a dual-profile design Bullet 4 Lets you save money and connect your existing devices with USB 2.0 and 1.x backward compatibility Bullet 5 PCIe x1 interface, compliant with PCI Express 2.0 specifications Bullets (Consolidated) Running low on expansion slots? Merge USB 3.2 Gen 1 and GbE into a single PCIe combo card - 3 Port PCI Express USB 3.2 Gen 1 Card + Gigabit Ethernet - Installation flexibility to fit standard and low-profile PCs - Frees up a PCIe slot by consolidating 3x USB 3.2 Gen 1 and 1x Gigabit Ethernet into a single card - UASP Support - Optional SATA Power - Save money and connect existing devices with USB 2.0 and 1.x backward compatibility - USB 3 with Network Adapter Card Marketing Copy Applications - Connect tablets, smartphones, external hard drives, printers, and other USB-based devices to your computer
- Add scalable connection options when building or upgrading your computer
- Upgrade or replace your onboard USB 3.2 Gen 1 or RJ45 ports
Website Search Keyword - 3 port pci express usb 3.0 card
- 3 port pcie usb 3.0 card
- 3 port pcie usb 3.0 card with gigabit ethernet
- 3 port usb 3.0 card
- gbe + usb 3.0
- Gigabit ethernet + usb 3.0
- PCI express to gigabit ethernet
- PCI express to Gigabit ethernet and USB 3.0
- pci express usb 3.0 card
- pci express usb 3.0 card with GbE
- pci express usb 3.0 card with gigabit ethernet
- pcie to gbe
- PCIe to GbE + USB 3
- PCIe to gigabit ethernetpcie usb 3.0 card
- pcie usb 3.0 card
- pcie usb 3.0 card with gbe
- pcie usb 3.0 card with gigabit ethernet
- pcie usb 3.0 with network adapter
- superspeed usb 3.0 card
- USB 3.0 + GbE
- usb 3.0 + gigabit ethernet
- usb 3.0 card with GbE
- usb 3.0 card
- usb 3.0 card adapter
- usb 3.0 adapter card
- USB 3.0 Adapter Card with Gigabit Ethernet
- USB 3.0 Card + Gigabit Ethernet
- PCIe USB 3.0 Card + Gigabit Ethernet
- usb 3.0 card with Gigabit Ethernet
- usb 3.0 card with gigabit ethernet adapter
- usb 3.0 card with network adapter
- usb 3.0 controller
- usb 3.0 controller card
- USB 3.0 and gigabit ethernet
- USB 3 and GbE
- USB 3.0 and GbE
- USB 3 and Gigabit Ethernet
- USB 3.0 and network
- USB 3.0 & RJ45
- USB 3.0 RJ45
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
Special Notes - The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.
- UASP (USB Attached SCSI Protocol), is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid-state drive.
System and Cable Requirements - PCI Express enabled computer with an available PCI Express x1 slot or higher (x4, x8, x16)
- SATA power connector (recommended, but optional)
Accessory Products - LP4LSATAADAP
- SATAPOWADAP
- USB3SAB6BK
- USB3SAB10
- USB3SAA6
- C6PATCH15OR
- N6PATCH25BK
- N6PATCH100BL
- RJ45PATCH10
- ST4300U3C1B
- ST4300U3C3
- ST7300U3M
- UNI251BMU33
- S352BU33HR
- USB3SAB10BK
Related Products - PEXUSB3S7
- PEXUSB3S2EI
- PEXUSB3S4
- PEXUSB3S24
- PEXUSB3S25
- ST3300GU3B
- ST3300U3S
- USB3SMDOCKV
Color Red Humidity 20~80% RH Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 77 Product Width (mm) 18 Product Height (mm) 120 Product Weight (g) 60 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes Auto MDIX Yes Auto-Negotiation Yes Compatible Networks 10/100/1000 Mbps Flow Control Full duplex flow control Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate MTBF (hours) 1,920,042 Hours OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Linux
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
- Windows Server 2025
UASP Support Yes USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 3.0 (5Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Industry Standards - IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
- IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding
Interface/Bridge - USB 3.2 Gen 1 (5Gbps)
- RJ45 (Gigabit Ethernet)
IO Card Port Style Integrated on Card LED Indicators - 1 - Link (Green)
- 1 - Activity (Amber)

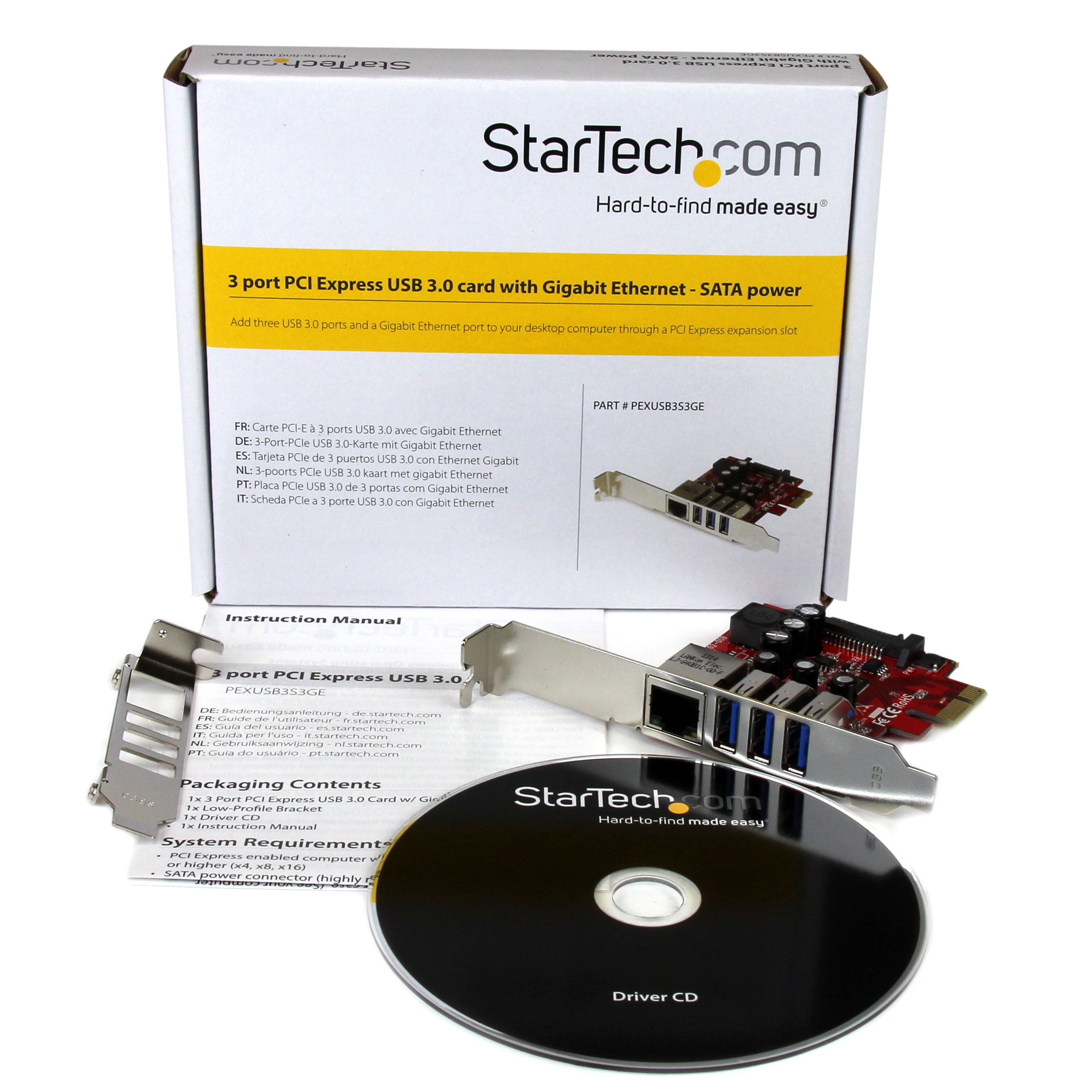

USB Port Type USB-A Carton Depth (mm) 378 Carton Height (mm) 320 Carton Quantity 60 Carton Weight Gross (g) 10014 Included in Package - 1 - 3 Port PCI Express USB 3.0 Card w/ Gigabit Ethernet
- 1 - Low-Profile Bracket
- 1 - Instruction Manual
- 1 - Driver CD
Included In Package for Label - 1 - Driver CD
- 1 - Instruction Manual
- 1 - Low-Profile Bracket
- 1 - 3 Port PCI Express USB 3.0 Card W/ Gigabit Ethernet
Package Depth (mm) 143 Package Height (mm) 33 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 148 Packaging Description 3 port PCIe USB 3.0 card with Gigabit Ethernet Packaging Description India 3 port PCIe USB 3.0 card with Gigabit Ethernet Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 3 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-12-17 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Natalie Goodale Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Production Release 2015-03-03 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
