PEXUSB3S4
4 Port USB 3 PCIe Card with SATA Power
Add 4 USB 3.0 ports to your desktop computer through a PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port USB 3 PCIe Card with SATA Power Product Number PEXUSB3S4 UPC 065030844444 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) 4Pt PCIe USB 3 Card Product Title (Short) 4 Port USB 3.0 PCIe Card with SATA Power Product Title (Standard) 4 Port SuperSpeed USB 3.0 PCI Express Card with UASP - SATA Power Product Title (Long) 4 Port SuperSpeed USB 3.0 PCI Express Card with UASP - SATA Power Product Title (AMZ) 4 Port USB 3.0 PCI Express Card with UASP - SATA Power - Dual Profile USB 3 PCIe Controller - USB 3.0 PCI Express Adapter (PEXUSB3S4) Title Ingram (Part 1) 4 Port SuperSpeed USB 3.0 PCI Ex Title Ingram (Part 2) Power and UASP Support Website Product Headline Add 4 USB 3.0 ports to your desktop computer through a PCI Express expansion slot Bullet 1 Adds four USB 3.0 ports in total; 3x External, 1x Internal Bullet 2 Optionally provides up to 900mA per USB port Bullet 3 Compliant with PCI Express 2.0 specifications Bullet 4 Built-in optional SATA power connector for bus-powered USB devices Bullet 5 Backward compatible with USB 2.0 and USB 1.0/1.1 devices Bullets (Consolidated) Add 4 USB 3.0 ports to your desktop computer through a PCI Express expansion slot - Compatible with Dell OptiPlex 3010/HP Pro 6300 - 4 Port SuperSpeed USB 3.0 PCI Express Card with UASP/4 Port USB 3.0 Controller Card - 4 Port (3 External/1 Internal) USB 3.0 Card/USB 3 PCIe Card/PCIe USB 3.0 Card - SATA Powered USB 3.0 PCI Express Card/PCI Express USB 3.0 Expansion Card w/ UASP - Desktop PCIe USB 3 Card/Add USB 3.0 Ports to a Desktop - USB 3.0 UASP Card includes a Low Profile bracket Marketing Copy Applications - Upgrade an older PCIe-based system with USB 3.0 connectivity, to fully utilize USB 3.0 devices
- Expand a system's USB capabilities with three additional external USB ports
- Connect additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc. to a computer system through USB 3.0
- Ideal for newer computer systems with only SATA power connectors, or a limited number of older LP4 power connectors
Website Search Keyword - SuperSpeed
- USB 3
- USB adapter
- USB host controller
- pci express usb card
- pcie usb 3.0
- 5gpbs USB
Special Notes The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps. System and Cable Requirements Available PCI Express expansion slot Accessory Products - USB3SAB3BK
- USB3SAB10BK
- SAT3510BU3
- SAT2510BU3
- SATDOCKU3S
- ST4300USB3
- ST4300USBM
- USB3SAB6BK
- LP4LSATAADAP
- SAT3510U3V
Related Products - MPEXUSB3S2
- PEXUSB3S11
- PEXUSB3S2
- PEXUSB3S22
Replacement Product PEXUSB3S42 Humidity 20% ~ 80% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 90 Product Width (mm) 70 Product Height (mm) 22 Product Weight (g) 60 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant No Maximum Data Transfer Rate 5 Gbps OS Compatibility - Windows 7
- Windows Server 2012
- Windows 8
- Linux

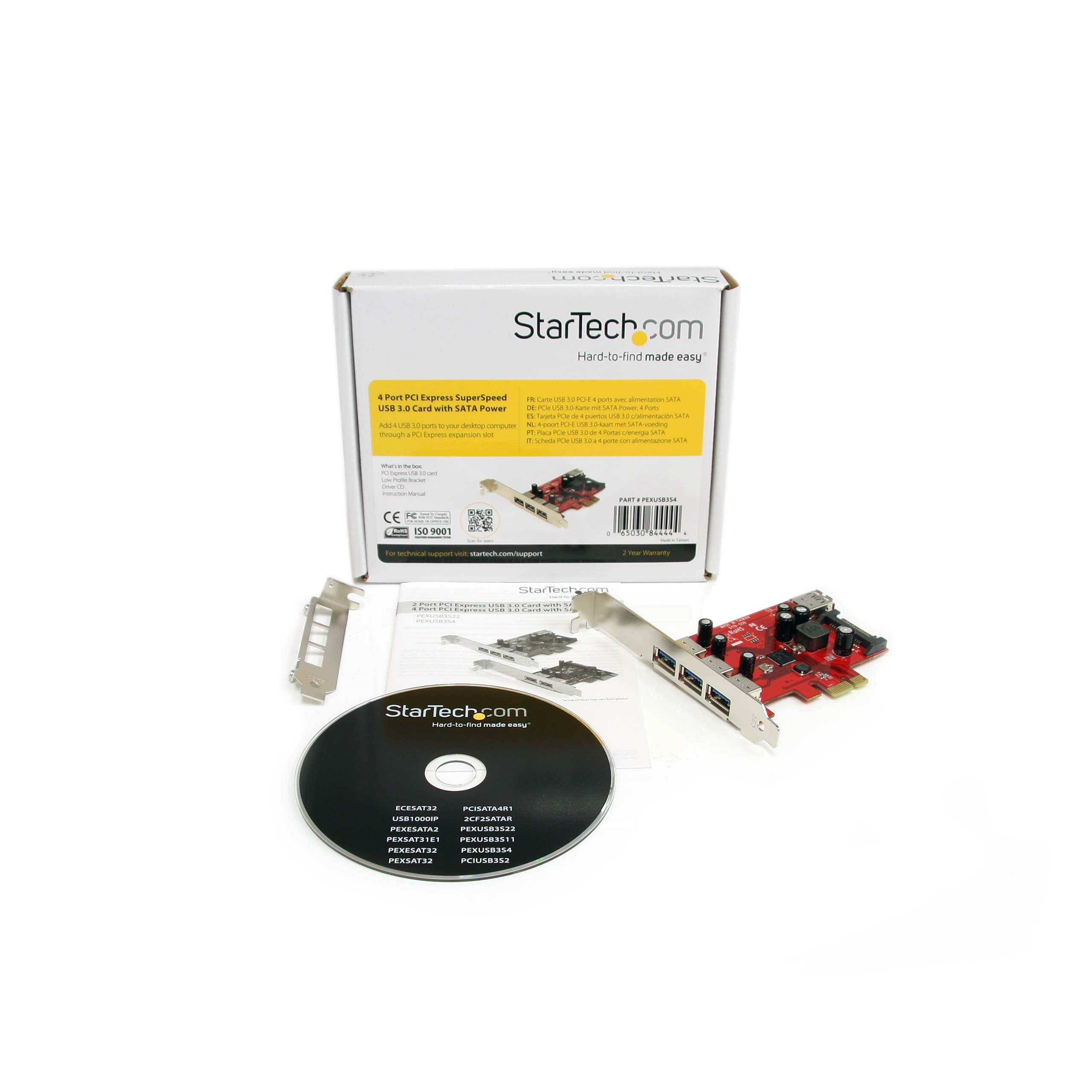

UASP Support Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Texas Instruments - TUSB7340 Interface/Bridge USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 330 Carton Height (mm) 490 Carton Quantity 40 Carton Weight Gross (g) 8600 Included in Package - 1 - PCI Express USB 3.0 card
- 1 - Low Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 155 Package Height (mm) 45 Package Width (mm) 215 Package Quantity 1 Package Weight (g) 190 Packaging Description 4 Port PCIe USB 3.0 card w/SATA power Packaging Description India 4 Port PCIe USB 3.0 card w/SATA power Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 3 Connector 3 USB-A (5Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
