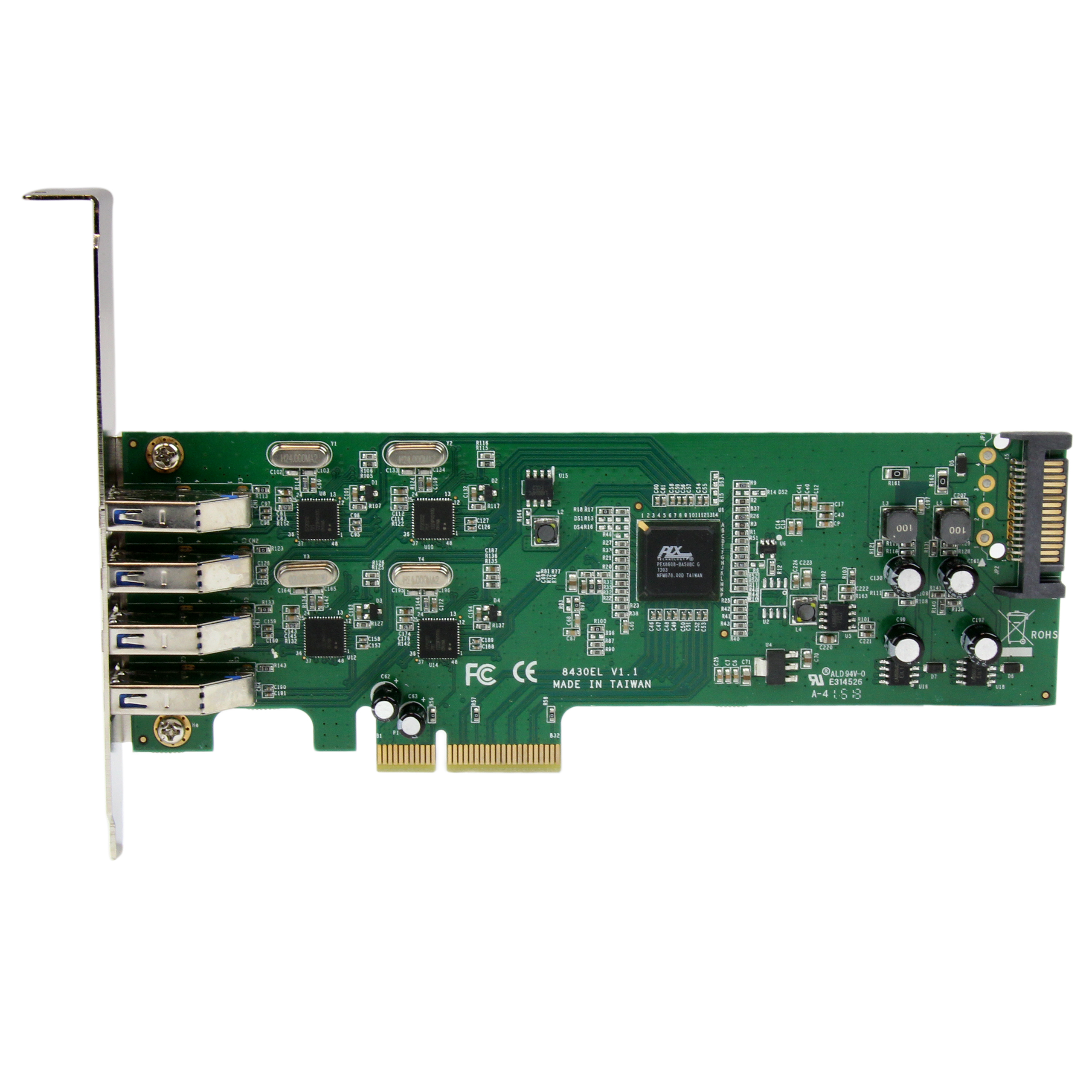

Main Image
PEXUSB3S400
4 Independent Port PCIe USB 3 Card w/ SATA Power
Add 4 Independent SuperSpeed USB 3.0 ports to your PC through a PCI Express slot
Main Image

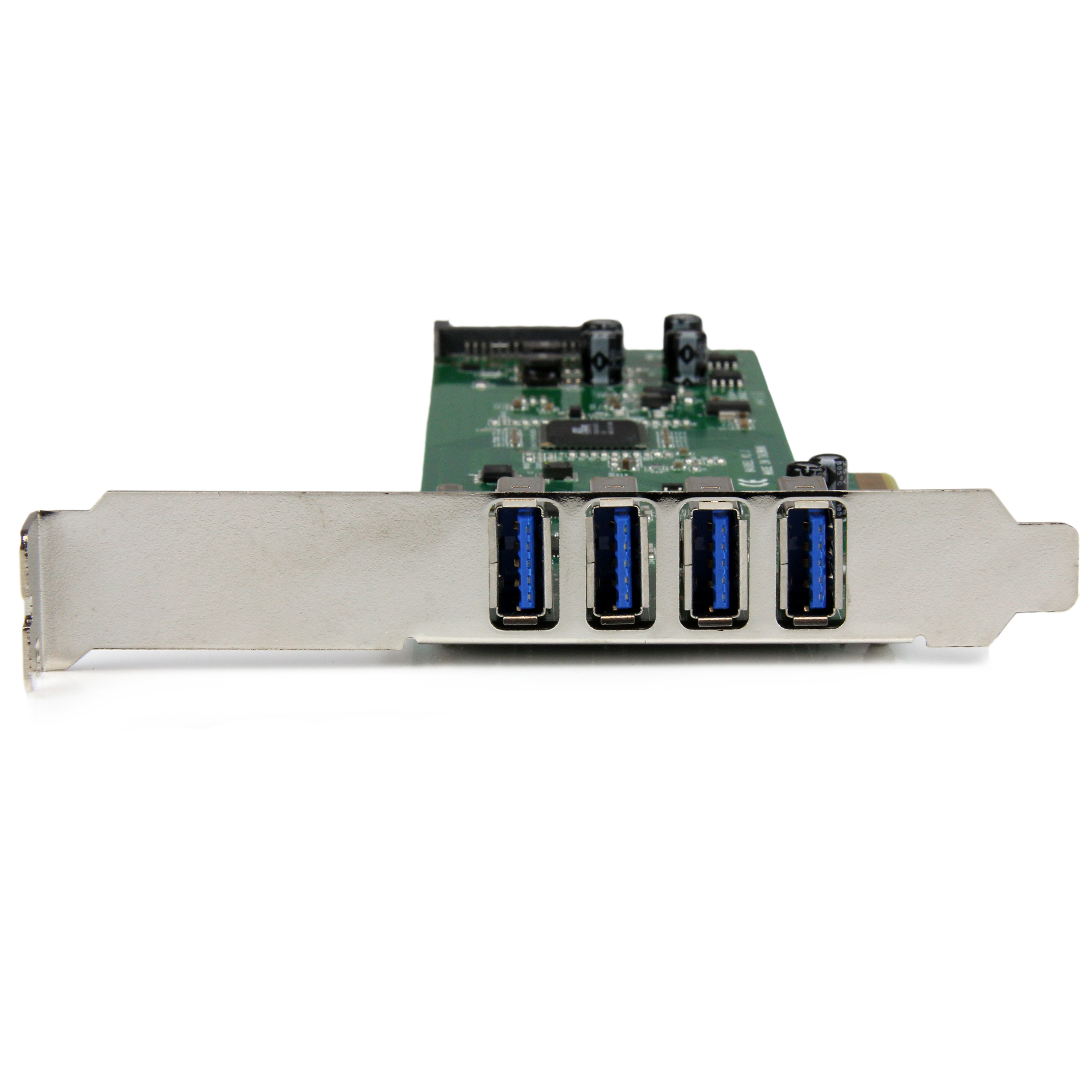

Product Images

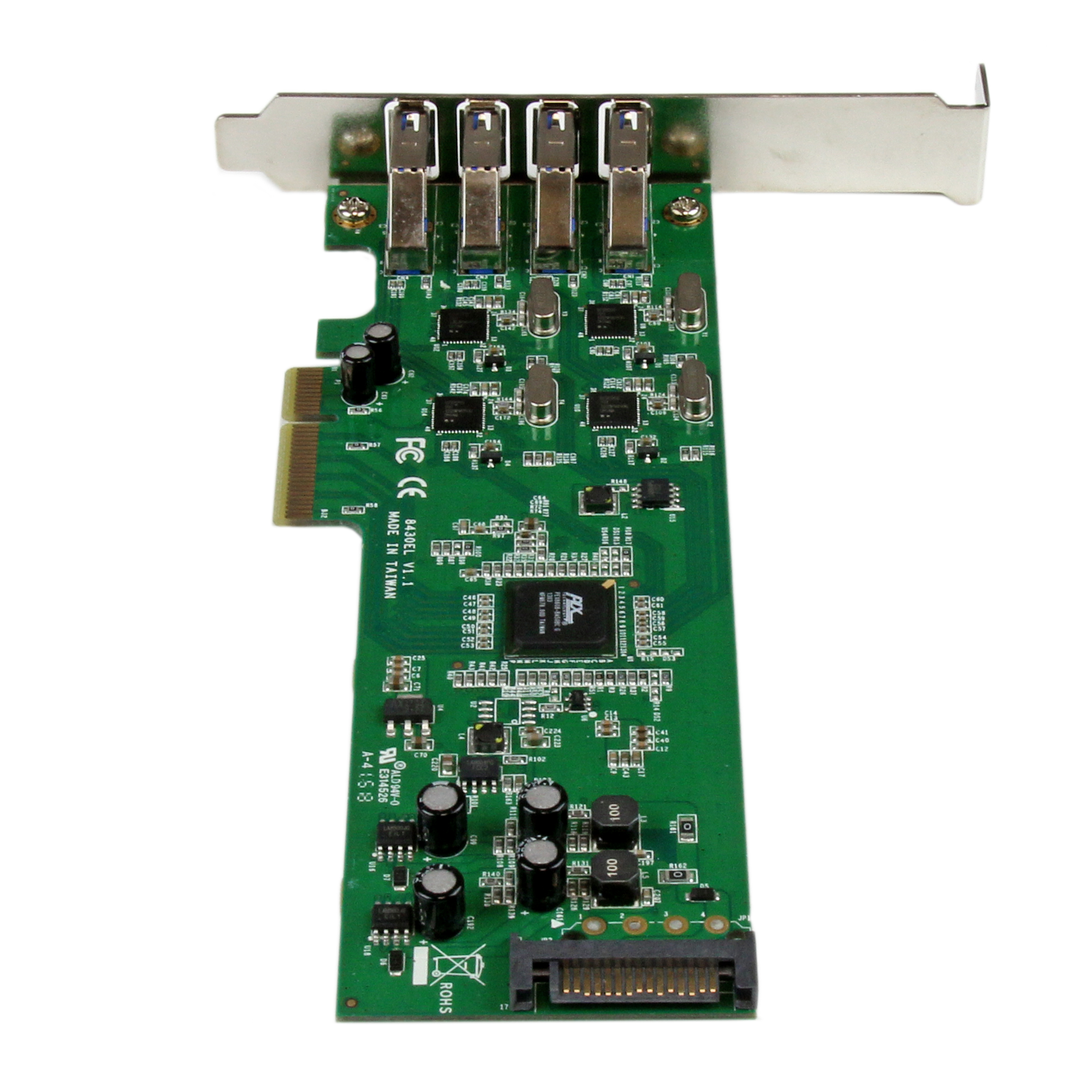

Product Images

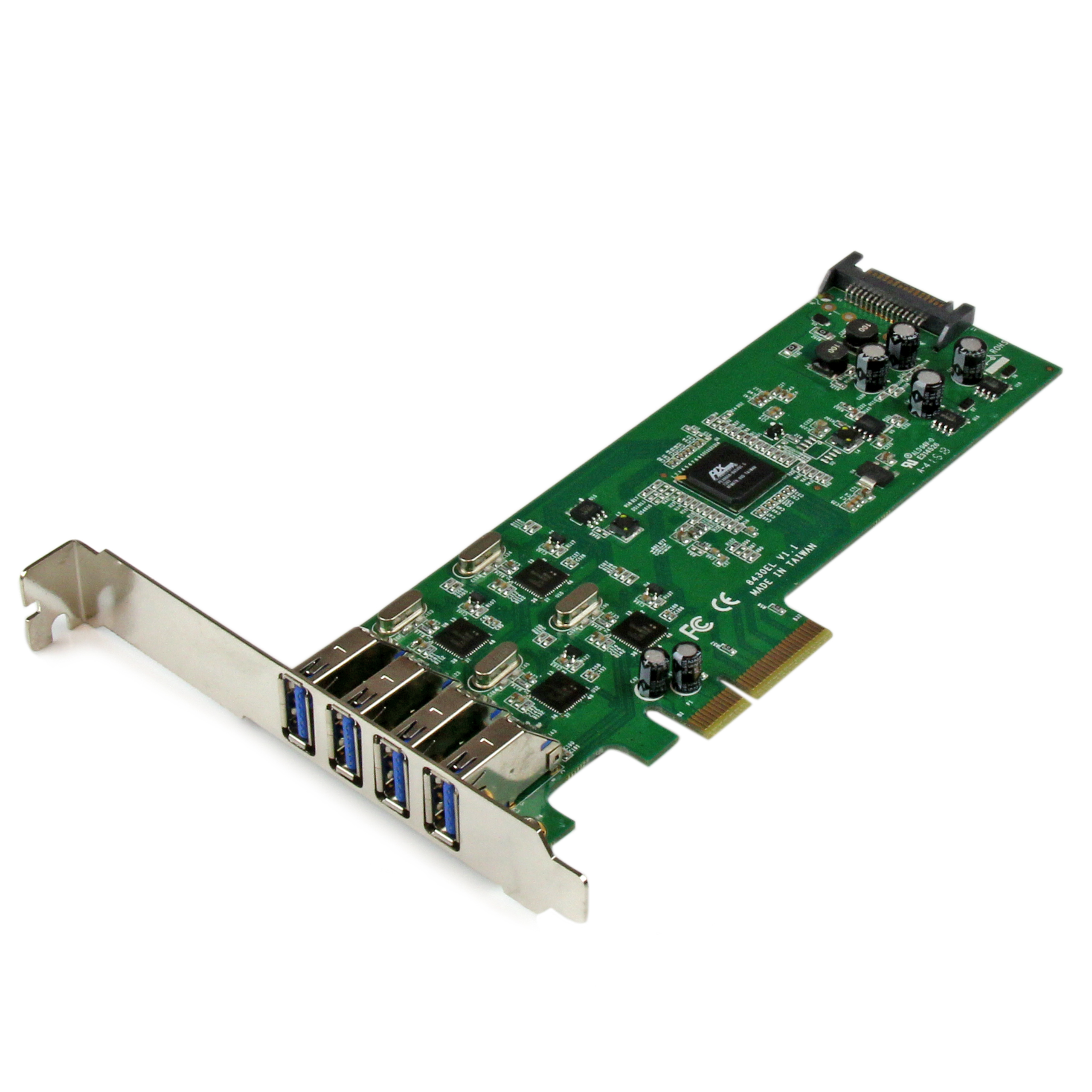

Product Images

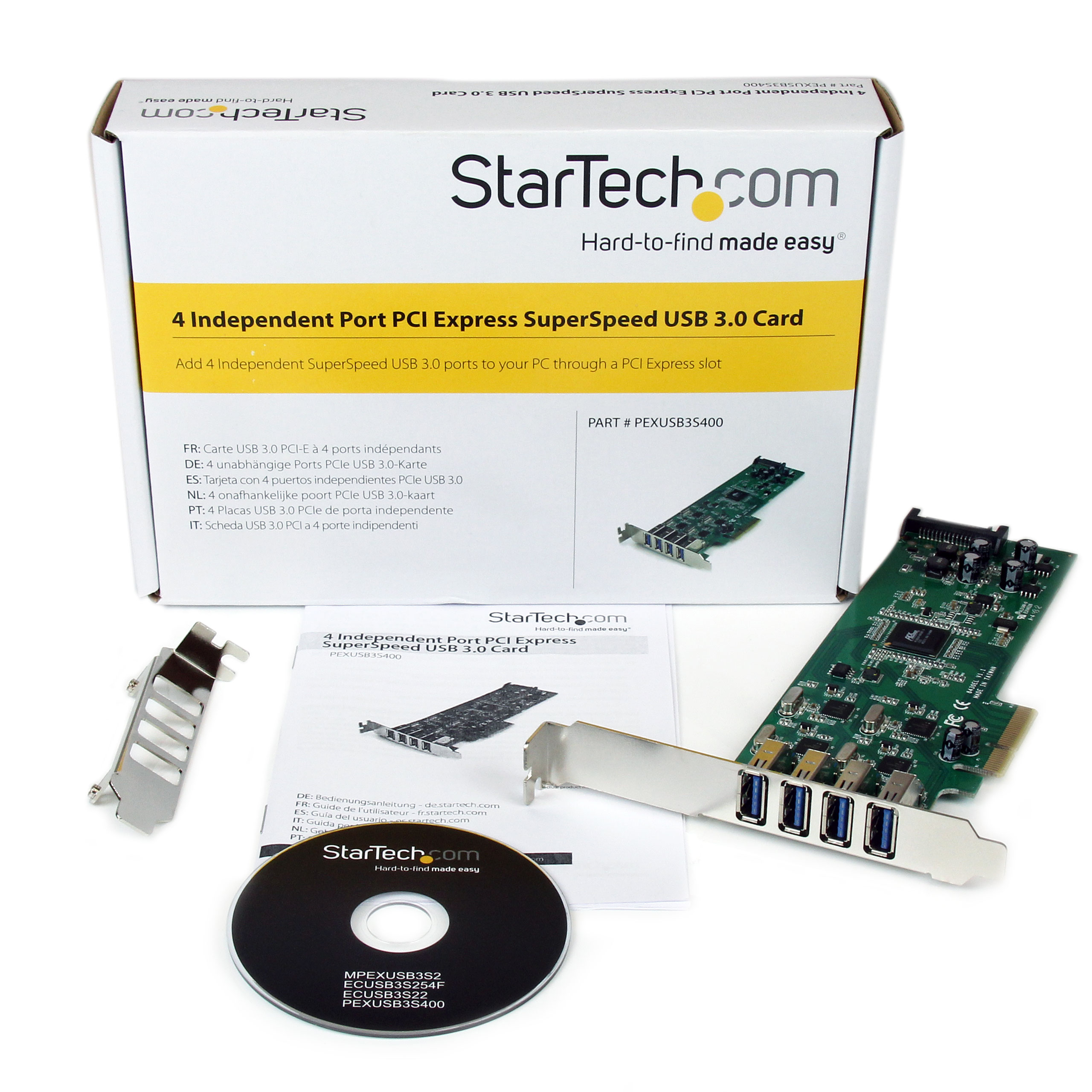

BOM Image
Product Name 4 Independent Port PCIe USB 3 Card w/ SATA Power Product Number PEXUSB3S400 UPC 065030849685 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) 4Pt PCIe USB 3 Card Product Title (Short) 4 Independent Port PCIe USB 3.0 Card Product Title (Standard) 4 Independent Port PCI Express SuperSpeed USB 3.0 Controller Card Adapter with UASP - SATA Power Product Title (Long) 4 Independent Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP - SATA Power Product Title (AMZ) 4 Independent Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter w/ UASP - SATA Power - USB 3 PCIe Card (PEXUSB3S400) Title Ingram (Part 1) 4 Independent Port USB 3.0 PCI Title Ingram (Part 2) Express PCIe Card /w SATA power Website Product Headline Add 4 Independent SuperSpeed USB 3.0 ports to your PC through a PCI Express slot Bullet 1 4 Independent USB 3.0 ports for up to 5Gbps per port Bullet 2 Fully compliant with USB 3.0 rev 1.0 and Intel xHCI rev 1.0 specifications Bullet 3 Built-in optional SATA power connector, provides up to 900mA per port for USB 3.0 devices (500mA for USB 2.0) Bullet 4 Horizontal (stacked) USB port design Bullet 5 Includes a low profile/half-height installation bracket Marketing Copy Applications - Upgrade an older PCIe-based system with USB 3.0 connectivity, to fully utilize USB 3.0 devices
- Expand a system's USB capabilities with four additional external USB ports, for connecting additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc.
Website Search Keyword - USB 3.0 Card
- PCI Express USB 3
- PCI Express USB 3.0 Card
- PCIe USB 3
- USB 3 Card
- 4 Port USB 3 Adapter Card
Microsoft WHQL Certified Yes Special Notes The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps. System and Cable Requirements Available PCI Express expansion slot Accessory Products - LP4LSATAADAP
- SAT3510BU3
- ST4300USBM
- SAT3510U3V
- SAT2510BU3
- SATDOCKU3S
- ST4300USB3
- USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
Related Products - PEXUSB3S4
- PEXUSB3S22
- PEXUSB3S2E2I
- PEXUSB3S4V
Replacement Product PEXUSB3S44V Humidity 20% ~ 80% RH Operating Temperature 5°C ~ 85°C Product Length (mm) 171 Product Width (mm) 60 Product Height (mm) 19 Product Weight (g) 84 Storage Temperature -65°C ~ 150°C TAA Compliant No Maximum Data Transfer Rate 5Gbps per port OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Windows 10
- Windows 11
UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Renesas/NEC - µPD720202 Industry Standards USB 3.0 rev 1.0 and Intel xHCI rev 1.0 specifications Interface/Bridge USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 440 Carton Height (mm) 230 Carton Quantity 50 Carton Weight Gross (g) 10100 Included in Package - 1 - Driver CD
- 1 - PCIe USB 3.0 Card
- 1 - Instruction Manual
- 1 - Low Profile Bracket
Package Depth (mm) 210 Package Height (mm) 38 Package Width (mm) 145 Package Quantity 1 Package Weight (g) 182 Packaging Description 4 Independent Port PCIe USB 3.0 Card Packaging Description India 4 Independent Port PCIe USB 3.0 Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 4 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-02-13 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Yiming Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
