PEXUSB3S42
4Port PCIe USB 3 0 Adapter Card 1 Int 3 Ext
Add four USB 3.0 (USB 3.2 Gen 1) ports – three external ports and one internal port – to your computer
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4Port PCIe USB 3 0 Adapter Card 1 Int 3 Ext Product Number PEXUSB3S42 UPC 065030860321 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Family USB-A Cards - 5Gbps - PCIe Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Country of Origin History (2) Malaysia Country of Origin Revision (2) XXXXXX156X Product Title (Ultra-Short) 4Pt PCIe USB 3 Card Product Title (Short) 4 Port PCI Express USB 3.0 Card - 3 + 1 Product Title (Medium) 4 Port PCI Express USB 3.0 Card - 3 External and 1 Internal - 5Gbps Product Title (Standard) 4 Port PCI Express USB 3.0 Card - 3 External and 1 Internal - 5Gbps Product Title (Long) 4-Port PCI Express USB 3.0 Card - 5Gbps Product Title (AMZ) 4 Port PCI Express USB 3.0 Card - 5Gbps - 3 External and 1 Internal - Native OS Support in Windows 8 and 7 - Standard and Low-Profile (PEXUSB3S42) Title Ingram (Part 1) 4Port PCIe USB 3.0 Adapter Card Title Ingram (Part 2) - 1 Internal & 3 External Ports Website Product Headline Add four USB 3.0 (USB 3.2 Gen 1) ports – three external ports and one internal port – to your computer Bullet 1 Expands your computer connectivity with four extra USB 3.2 Gen 1 ports (3 external, 1 internal) Bullet 2 Easy to install with native OS support in Windows 8.1, 8, 7, and Linux kernel 2.6.31 or later Bullet 3 Fits standard or small form-factor computers, low-profile bracket included Bullet 4 Data transfer rates up to 5 Gbps plus UASP support Bullet 5 Built-in optional SATA power connector provides up to 900mA per USB port Bullets (Consolidated) Add four USB 3.2 Gen 1 ports – three external and one internal port – to your computer - 4 Port PCIe USB 3.2 Gen 1 Card - Cost-effective USB 3.2 Gen 1 Adapter Card - Easy to install with native OS support in Windows 8.1 8 and 7 - USB card with standard and low-profile brackets - Connect 3 external devices with the flexibility to connect an internal USB device such as a flash drive Marketing Copy Applications - Enhance the connection capabilities of your PCI Express enabled computer or server
- Connect external hard drives, tablets, smartphones, CD/DVD drives, webcams or game controllers to your computer
- Connect your flash drive or other devices to the internal USB 3.2 Gen 1 port for a secure connection
Website Search Keyword - USB card
- USB 3.0 Card
- 4 port USB 3.0 card
- 4 port pci express usb 3.0 card
- 4 port pcie usb 3.0 card
- usb 3.0 card adapter
- usb 3.0 adapter card
- 4 port superspeed usb 3.0 card
- card adapter
- adapter card
- usb 3.0 controller
- usb 3.0 controller card adapter
- 4 port pci express superspeed usb 3.0 card
- usb 3.0 controller card
- usb 3.0 card with sata power
- 4 port usb 3.0 card with sata
- USB 3 card with UASP
- usb host controller
- USB 3.0 card with internal port
- USB 3 card with 3 external and 1 internal ports
- 4 port USB 3.0 host controller add on card
- USB 3.0 host controller card
- USB 3.0 card 3 external 1 internal
- four port usb card
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps. System and Cable Requirements - PCI Express enabled computer or server with an available PCI Express x1 slot or higher (x4, x8, x16)
- SATA power connector (recommended, but optional)
Accessory Products - LP4LSATAADAP
- SATAPOWADAP
- USB3SAB6BK
- USB3SAB10BK
- ST7300U3M
- ST3300GU3B
- ST4300U3C1
- ST7300USB3B
- S3510BMU33B
- S3520BU33ER
- USB3AAEXT5M
Related Products - PEXUSB3S7
- PEXUSB3S2EI
- PEXUSB3S42V
- PEXUSB3S44V
- PEXUSB3S4
- PEXUSB3S11
- PEXUSB3S22
- PEXUSB3S25
- ECUSB3S11
- MPEXUSB3S22B
- ECUSB3S2
Constrained SKU Alternatives (Limited Stock) - PEXUSB3S4V
- PEXUSB3S2EI
Input Voltage 12V DC Output Voltage (V) 12V DC Color Black Humidity 20~80% RH Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 87 Product Width (mm) 19 Product Height (mm) 120 Product Weight (g) 55 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Maximum Cable Length (mm) 3000 Maximum Data Transfer Rate 5 Gbps MTBF (hours) 24,000 hours OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Linux
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

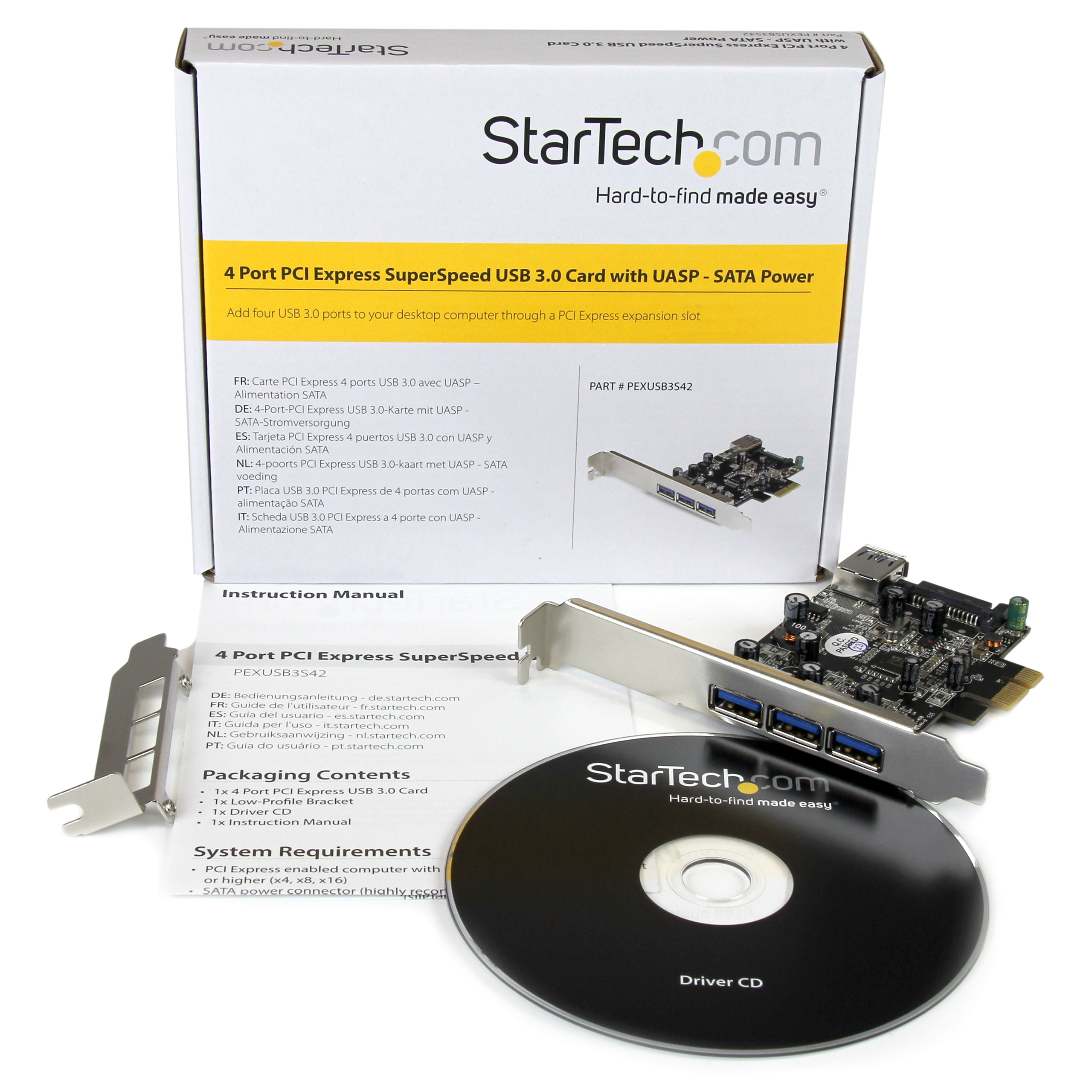

UASP Support Yes USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 3.0 (5Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID VIA/VLI - VL805 Industry Standards Interface/Bridge USB 3.2 Gen 1 (5Gbps) IO Card Port Style Integrated on Card USB Port Type USB-A Carton Depth (mm) 310 Carton Height (mm) 360 Carton Quantity 80 Carton Weight Gross (g) 11848 Included in Package - 1 - 4 Port PCI Express USB 3.0 Card
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - Low-Profile Bracket
Included In Package for Label - 1 - 4 Port PCI Express USB 3.0 Card
- 1 - Driver CD
- 1 - Low-Profile Bracket
- 1 - Instruction Manual
Package Depth (mm) 144 Package Height (mm) 30 Package Width (mm) 171 Package Quantity 1 Package Weight (g) 138 Packaging Description 4 Port PCI Express USB 3.0 Card w/ UASP - SATA Power Packaging Description India 4 Port PCI Express USB 3.0 Card w/ UASP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 3 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 1 Connector 4 USB-A (5Gbps, 4.5W) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-11-28 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Production Release 2015-03-17 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
