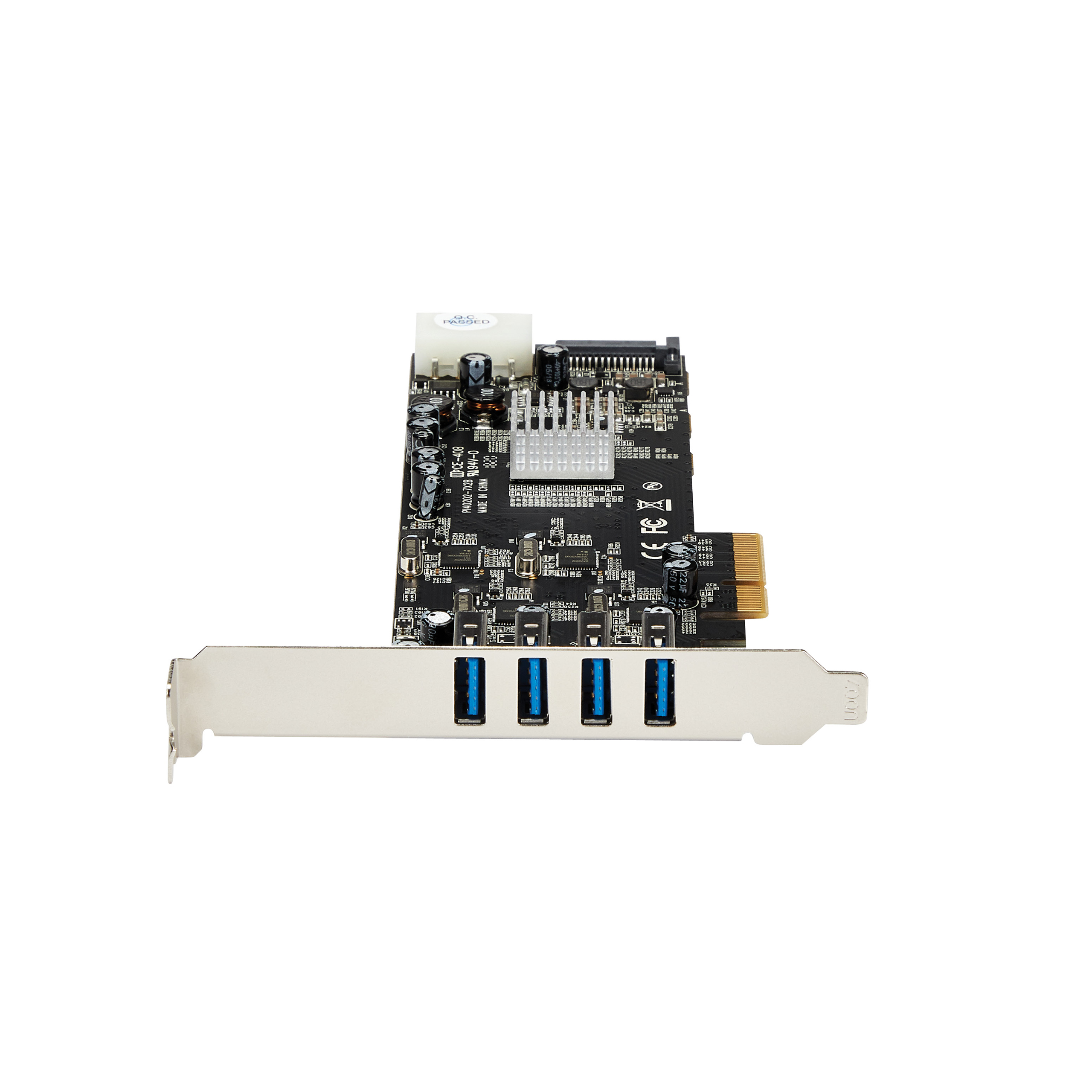

PEXUSB3S44V

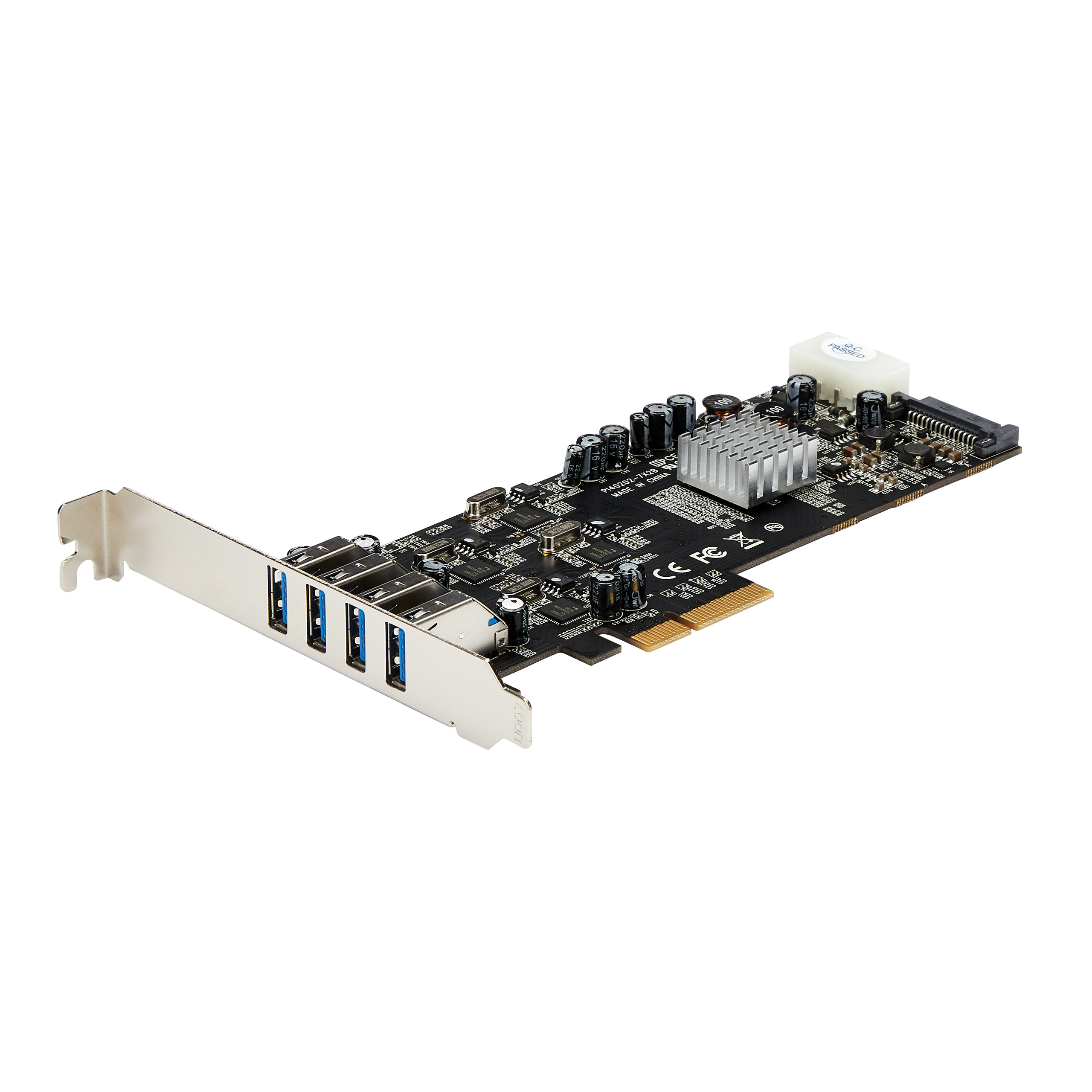

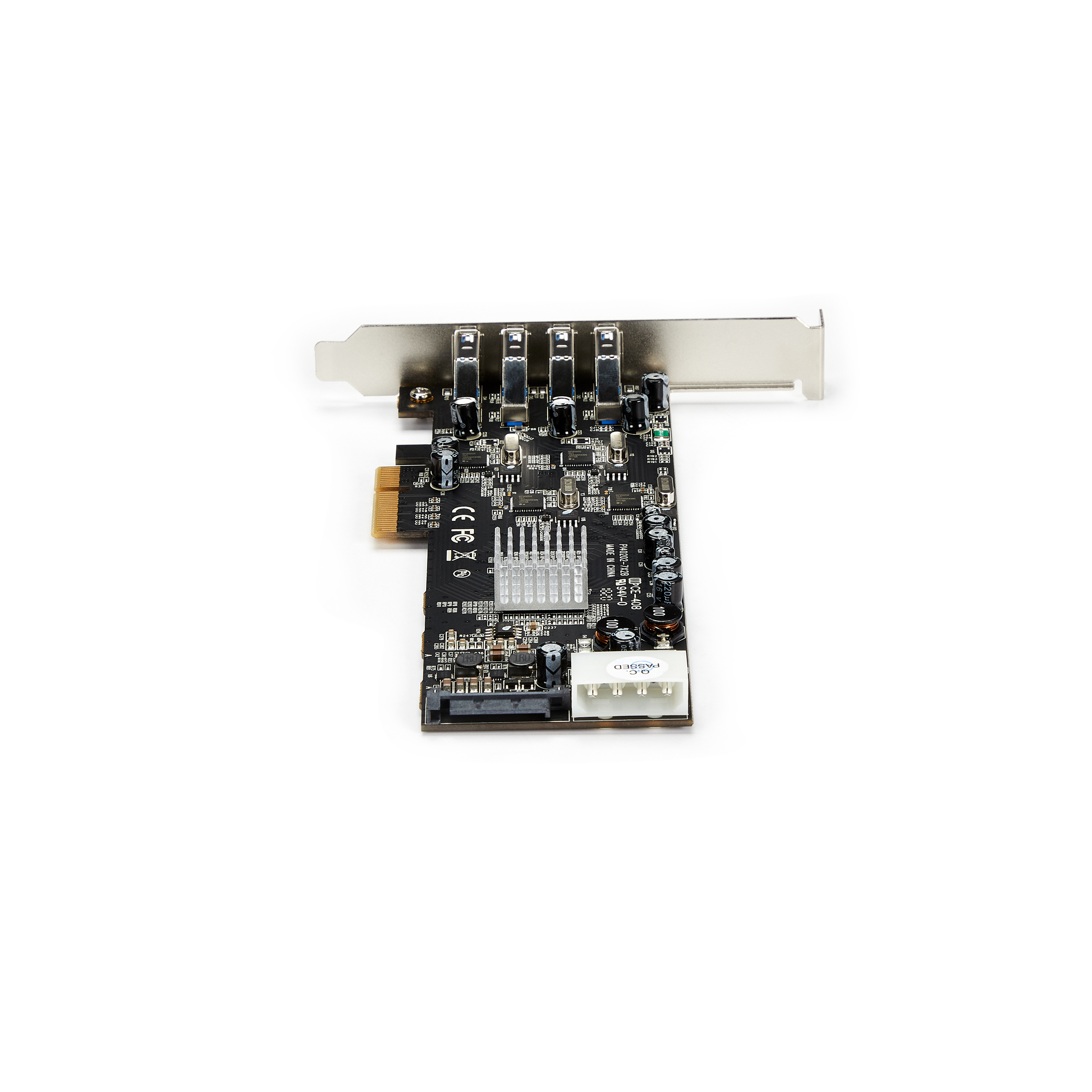

4Port PCIe USB 3 0 Controller Card w 4 Channels

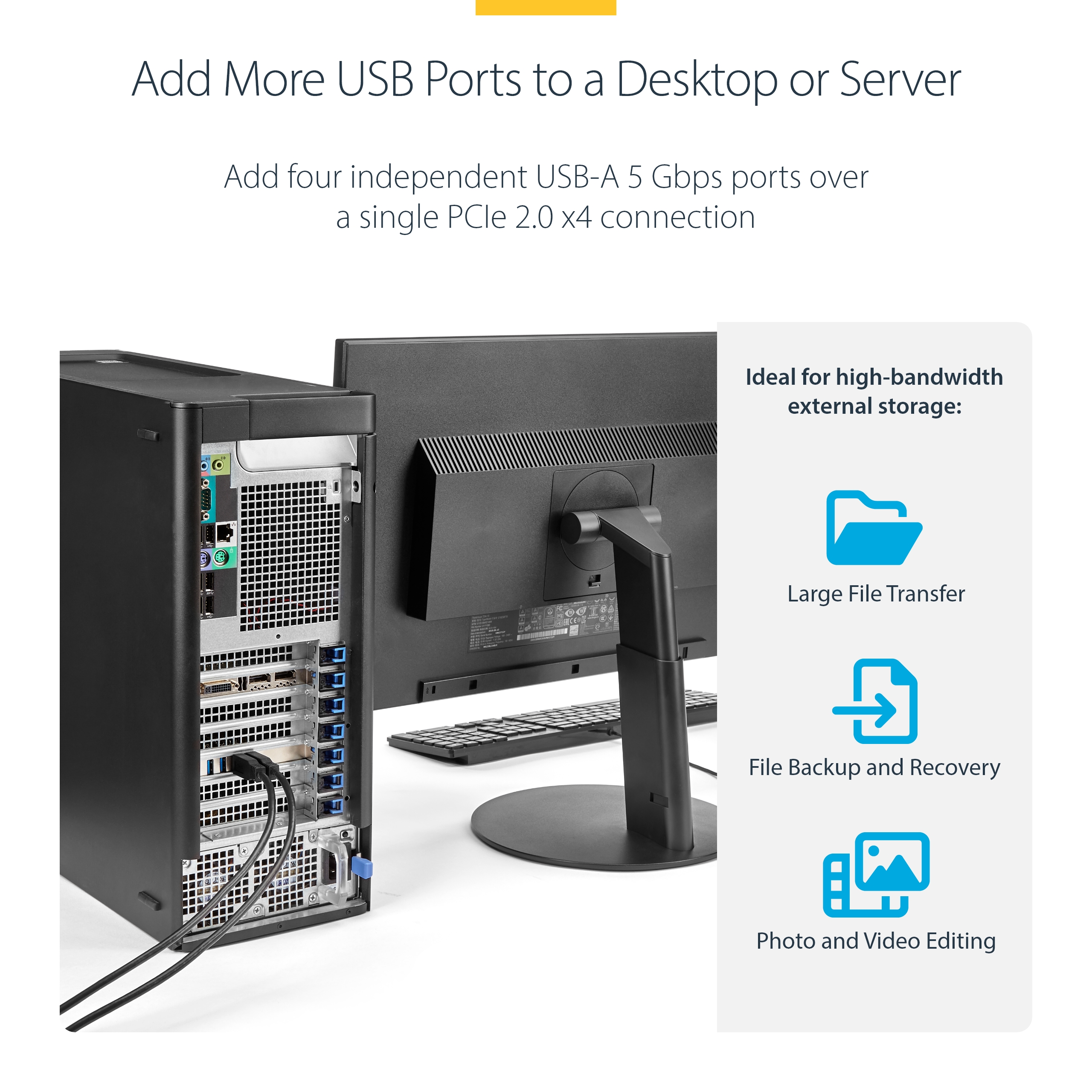

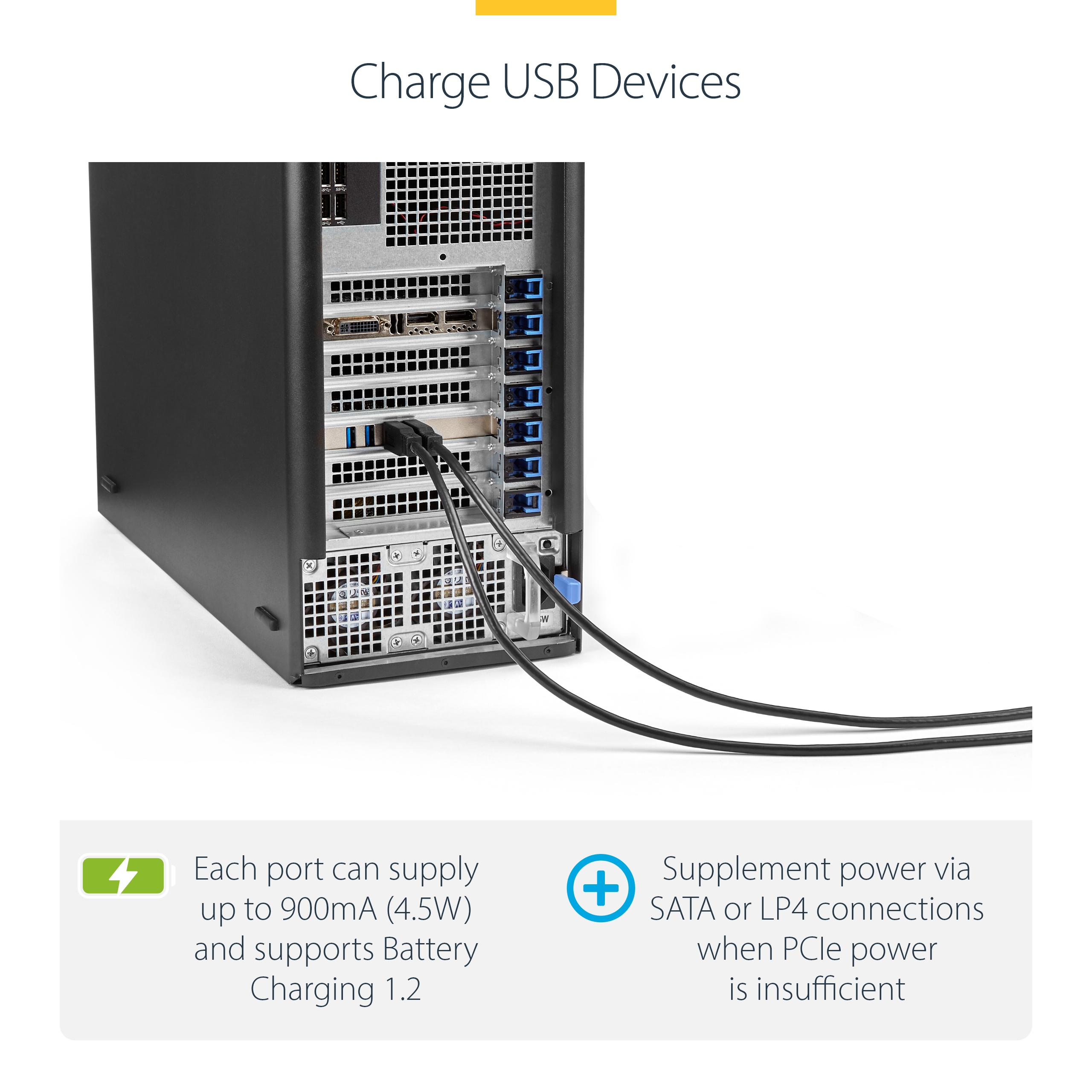

Add four USB 3.0 (USB 3.2 Gen 1) ports with four independent channels, LP/SATA power, and charging support to your PC through a PCI Express slot
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name 4Port PCIe USB 3 0 Controller Card w 4 Channels Product Number PEXUSB3S44V UPC 065030854627 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Family USB-A Cards - 5Gbps - PCIe Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX163X Product Title (Ultra-Short) 4 Pt PCIe USB 3 Card Product Title (Short) 4 Port PCIe USB 3.0 Card w/ 4 Channels Product Title (Medium) 4 Port PCI Express USB 3.0 Card w/ 4 Dedicated 5Gbps Channels - UASP - SATA/LP4 Product Title (Standard) 4 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter w/ 4 Dedicated 5Gbps Channels - UASP - SATA/LP4 Power Product Title (Long) 4 Port USB 3.0 PCIe Card w/ 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - UASP - SATA / LP4 Power - PCI Express Adapter Card Product Title (AMZ) 4 Port USB 3.0 PCIe Card w/ 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - UASP - SATA / LP4 Power - PCI Express Adapter Card (PEXUSB3S44V) Title Ingram (Part 1) 4Port PCIe USB 3.0 Controller Title Ingram (Part 2) Card w/ 4 Independent Channels Website Product Headline Add four USB 3.0 (USB 3.2 Gen 1) ports with four independent channels, LP/SATA power, and charging support to your PC through a PCI Express slot Bullet 1 HIGH-PERFORMANCE EXPANSION CARD: Increase the efficiency of your USB 3.0 devices with four dedicated USB 3.0 channels and up to 5 Gbps of bandwidth per channel with this 4 port USB 3.0 PCIe card Bullet 2 POWER & CHARGE: Use this USB 3.0 add on card to power high-powered USB devices as necessary, with the optional LP4 or SATA power connector Bullet 3 MULTI-USE USB CONNECTOR: Connect additional external hard drives, VR headsets, game controllers, digital equipment and more to your computer by connecting this USB adapter card through an internal PCI Express slot Bullet 4 USB 3.0 WITH UASP SUPPORT: This PCIe to USB adapter card lets you experience speeds up to 70% faster than traditional USB 3.0 when used with a UASP-supported enclosure Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 4 port USB 3.0 PCIe card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Consolidated) Add four USB 3.2 Gen 1 ports with four independent channels LP/SATA power and charging support to your PC through a PCI Express slot - Compatible with HP Pro 3500/Lenovo ThinkCentre M93p - 4 Port PCIe USB 3.2 Gen 1 Card w/ 4 Dedicated 5Gbps Channels/USB 3.2 Gen 1 UASP Card - PCIe USB 3.2 Gen 1 Controller - 4 Independent Port USB 3.2 Gen 1 Expansion Card w/ UASP/SATA Powered USB 3.2 Gen 1 Adapter Card w/ up to 20 Gbps total bandwidth - USB 3.2 Gen 1 PCIe Card w/ USB Battery Charging Specification 1.2 (Apple Mode device charging only) Marketing Copy Marketing Copy (No HTML) Applications - Upgrade an older PCIe-based system to USB 3.0 connectivity and UASP support to fully utilize USB 3.0 devices
- Expand the USB capabilities of your system with four external ports for connecting additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc. to a computer system
Website Search Keyword - PEXUSB400
- PEXUSB3S400
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
System and Cable Requirements Available PCI Express x4 or greater slot Accessory Products - USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- ST4300USBM
- SAT2510BU3
- SATDOCKU3S
- ST4300USB3
- USB3SSATAIDE
- SAT3510BU3
- USB3AAEXT10M
- USB3AAEXT5M
- USB3AAEXT3M
Related Products - PEXUSB3S4
- PEXUSB3S4V
- PEXUSB3S400
- PEXUSB3S2E2I
- PEXUSB3S42V

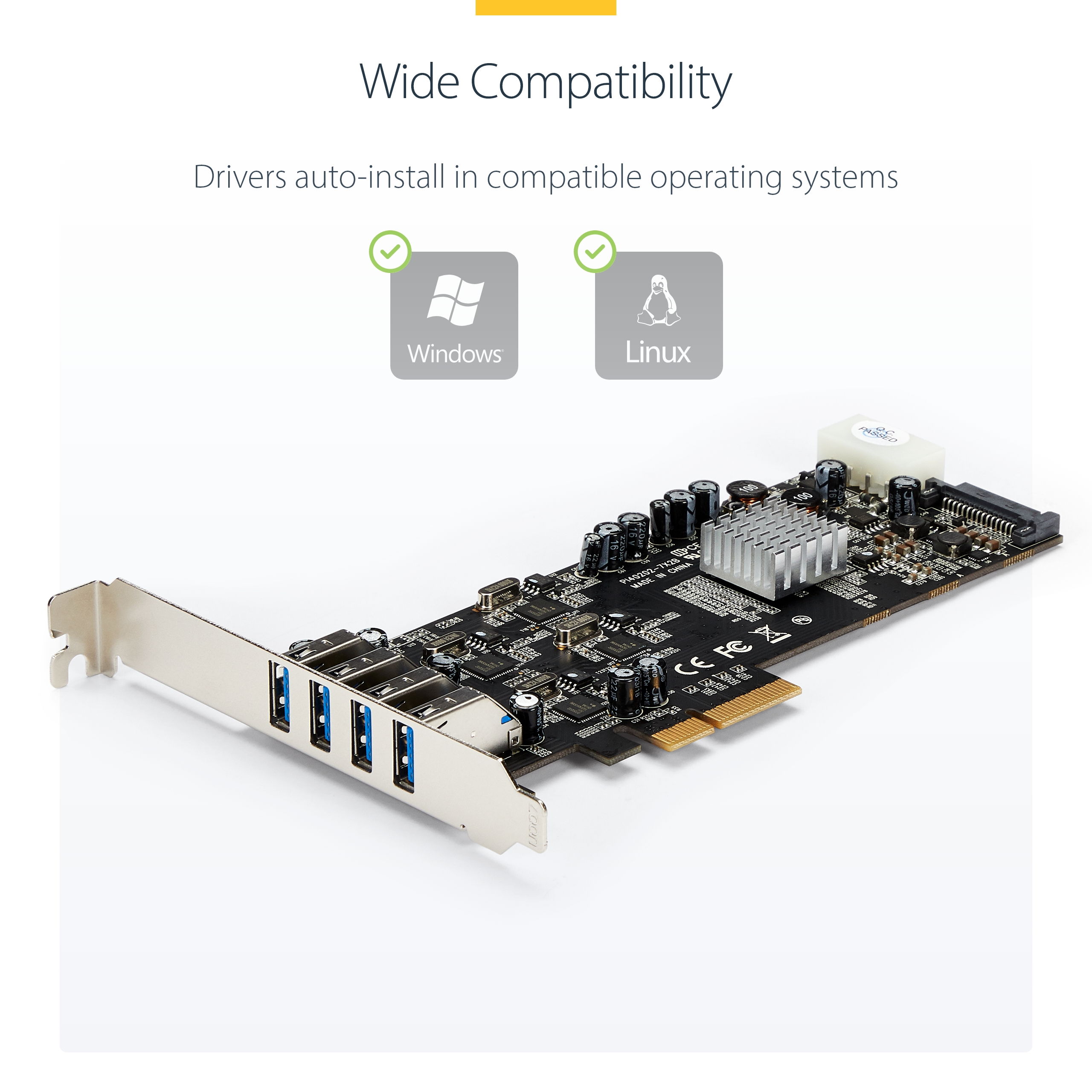

Constrained SKU Alternatives (Limited Stock) P5Q4A-USB-CARD Input Voltage 12V DC Output Voltage (V) 12V DC Color Black Humidity 5~85% RH Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 167.000 Product Width (mm) 56.000 Product Height (mm) 120.000 Product Weight (g) 92.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Maximum Cable Length (mm) 3000 Maximum Data Transfer Rate 5Gbps per port - 20Gbps Total OS Compatibility - Linux
- Windows 8
- Windows 7
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

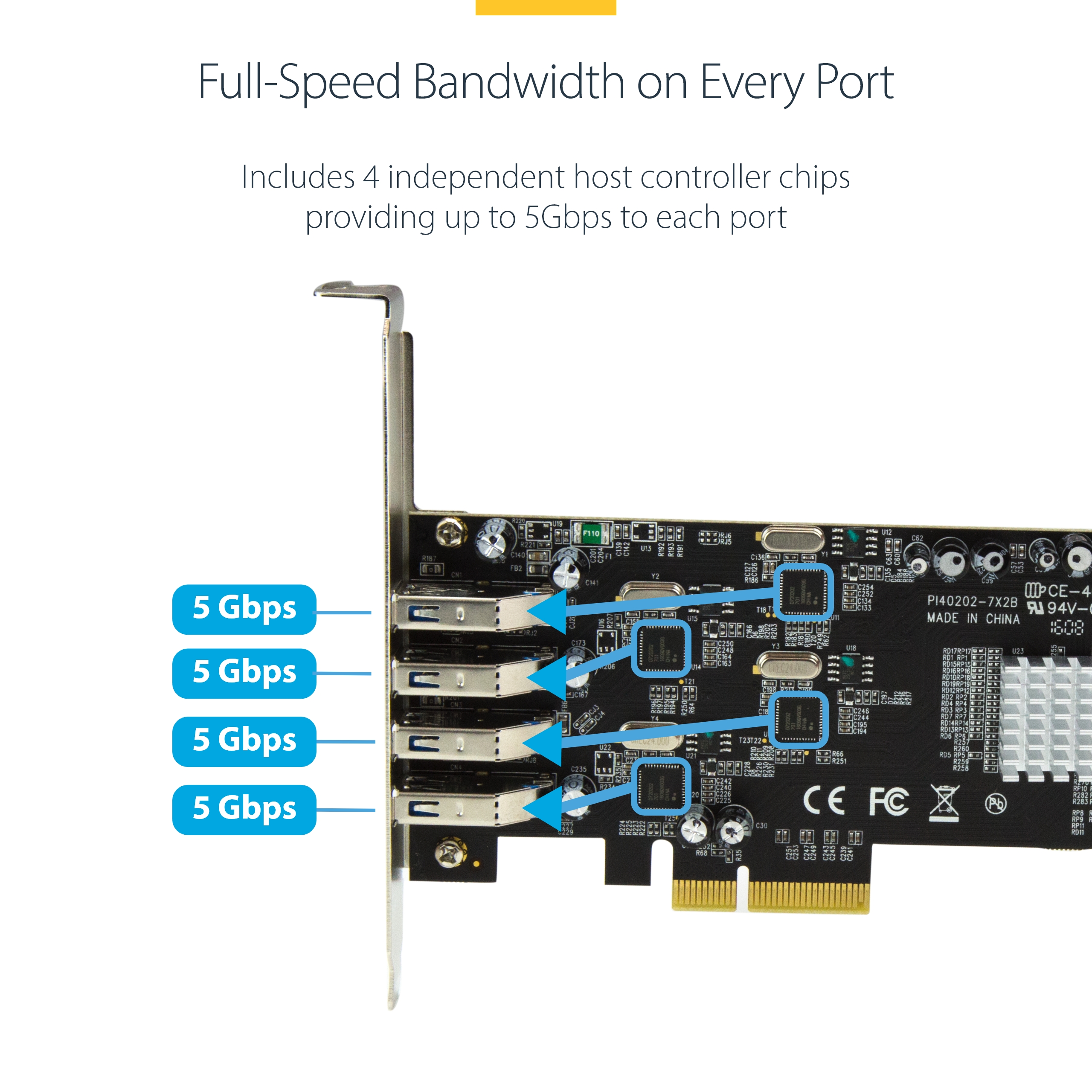

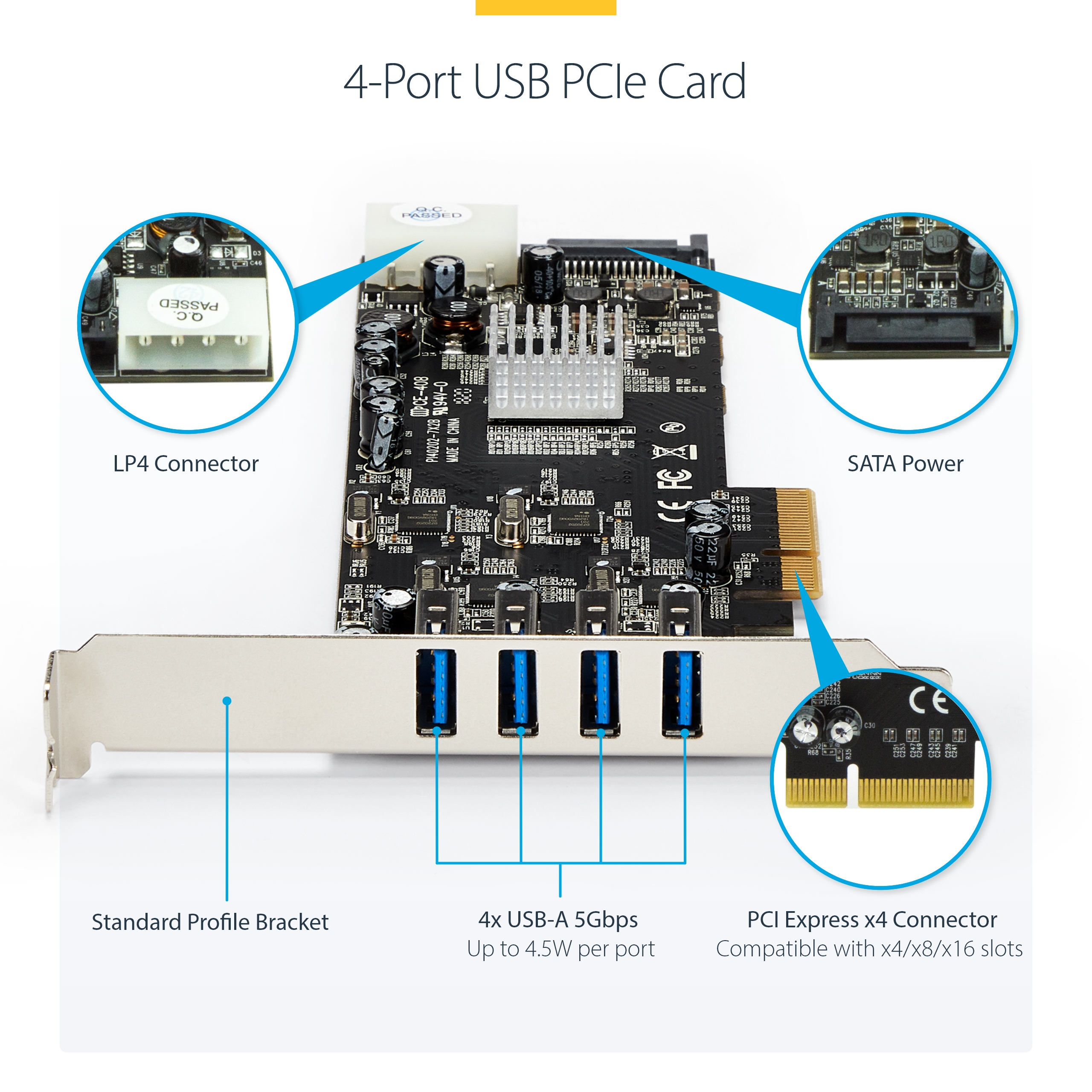

UASP Support Yes USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 3.0 (5Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Renesas/NEC - µPD720202 Industry Standards Interface/Bridge USB 3.2 Gen 1 (5Gbps) IO Card Port Style Integrated on Card USB Port Type USB-A Carton Depth (mm) 444 Carton Height (mm) 319 Carton Quantity 40 Carton Weight Gross (g) 8712 Included in Package - 1 - 4 Port PCIe USB Card

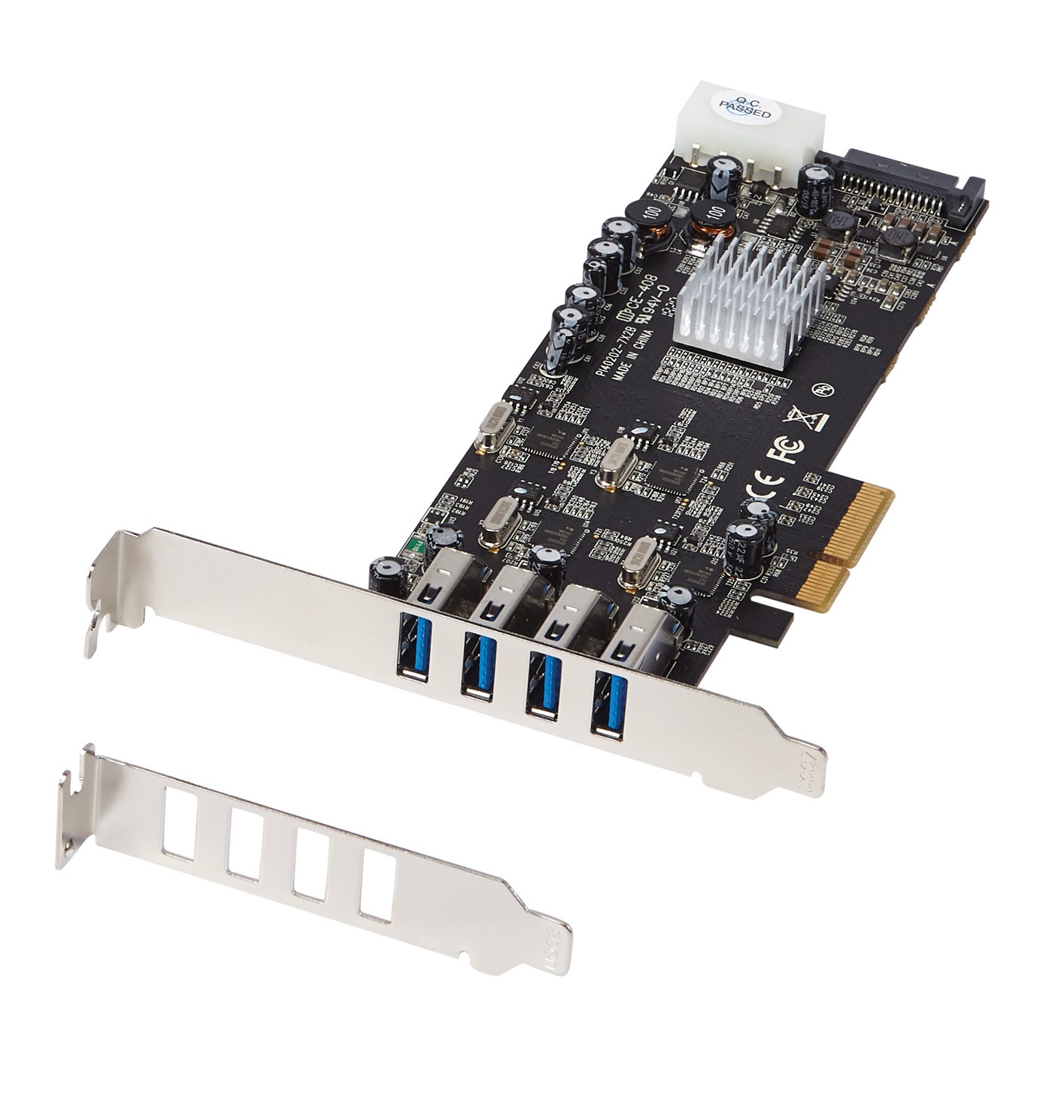

- 1 - Low Profile Bracket
Included In Package for Label - 1 - 4 Port PCIe USB Card
- 1 - Low Profile Bracket
Package Depth (mm) 211 Package Height (mm) 41 Package Width (mm) 146 Package Weight (g) 190 Packaging Description 4 Port PCIe USB 3.0 Card w/4 Dedicated Channels Packaging Description India 4-Port PCIe USB 5Gbps Card w/4 Dedicated Channels Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 4 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-11-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist kfarid Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
