PEXUSB3S4V
4 Port PCI Express USB 3 0 Card
Add 4 external USB 3.0 (USB 3.2 Gen 1) ports to a low profile or standard computer, through PCI Express

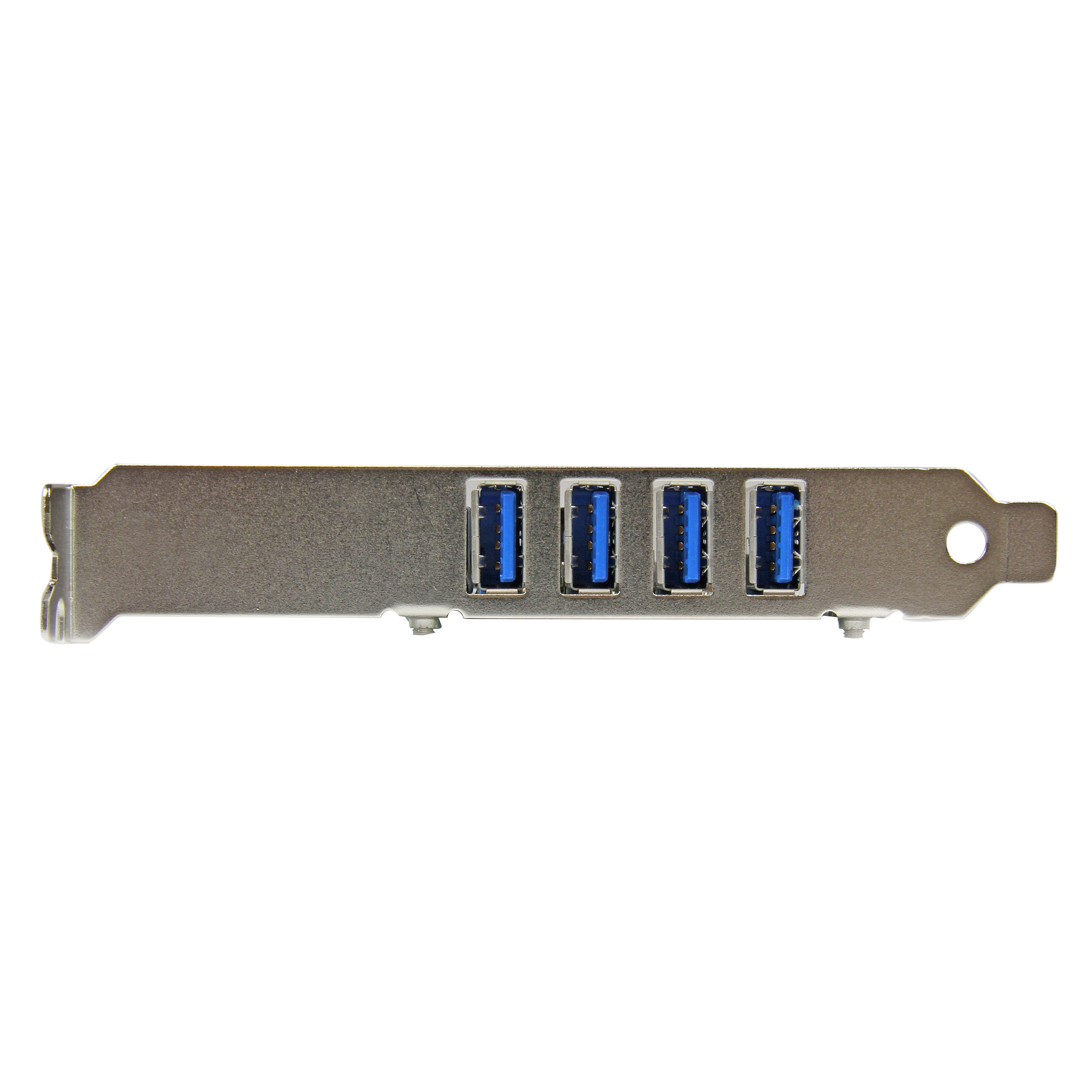

Main Image

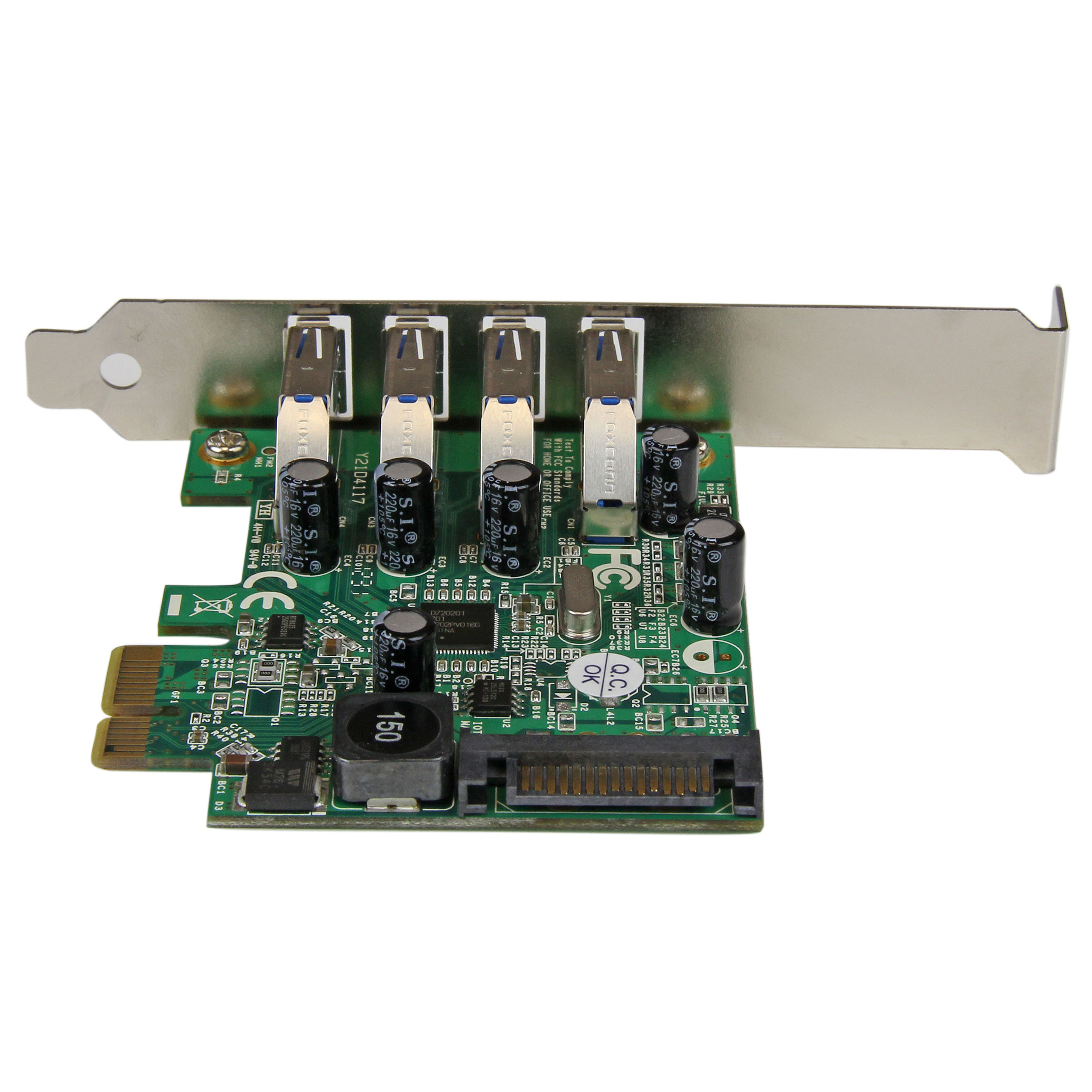

Product Images

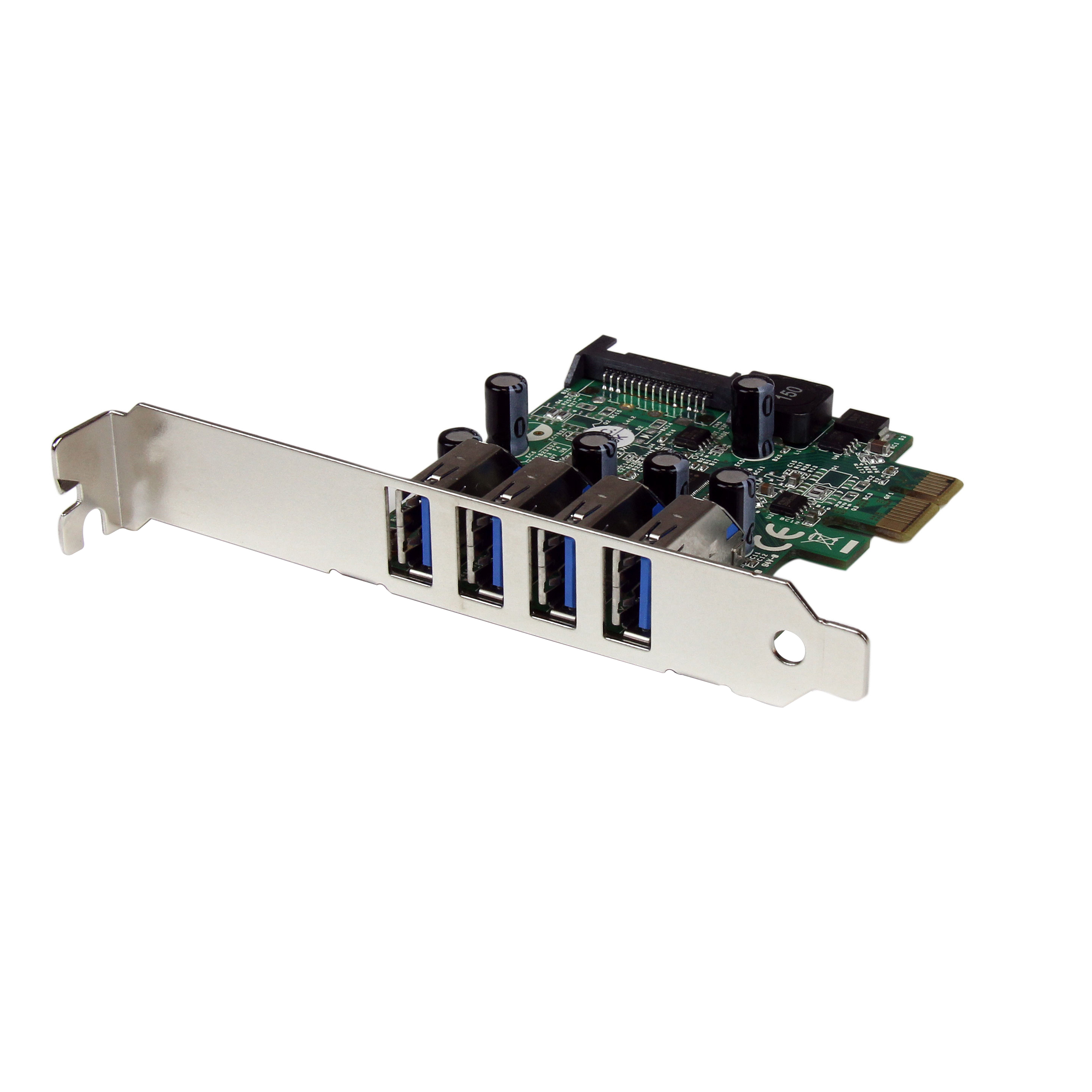

Product Images

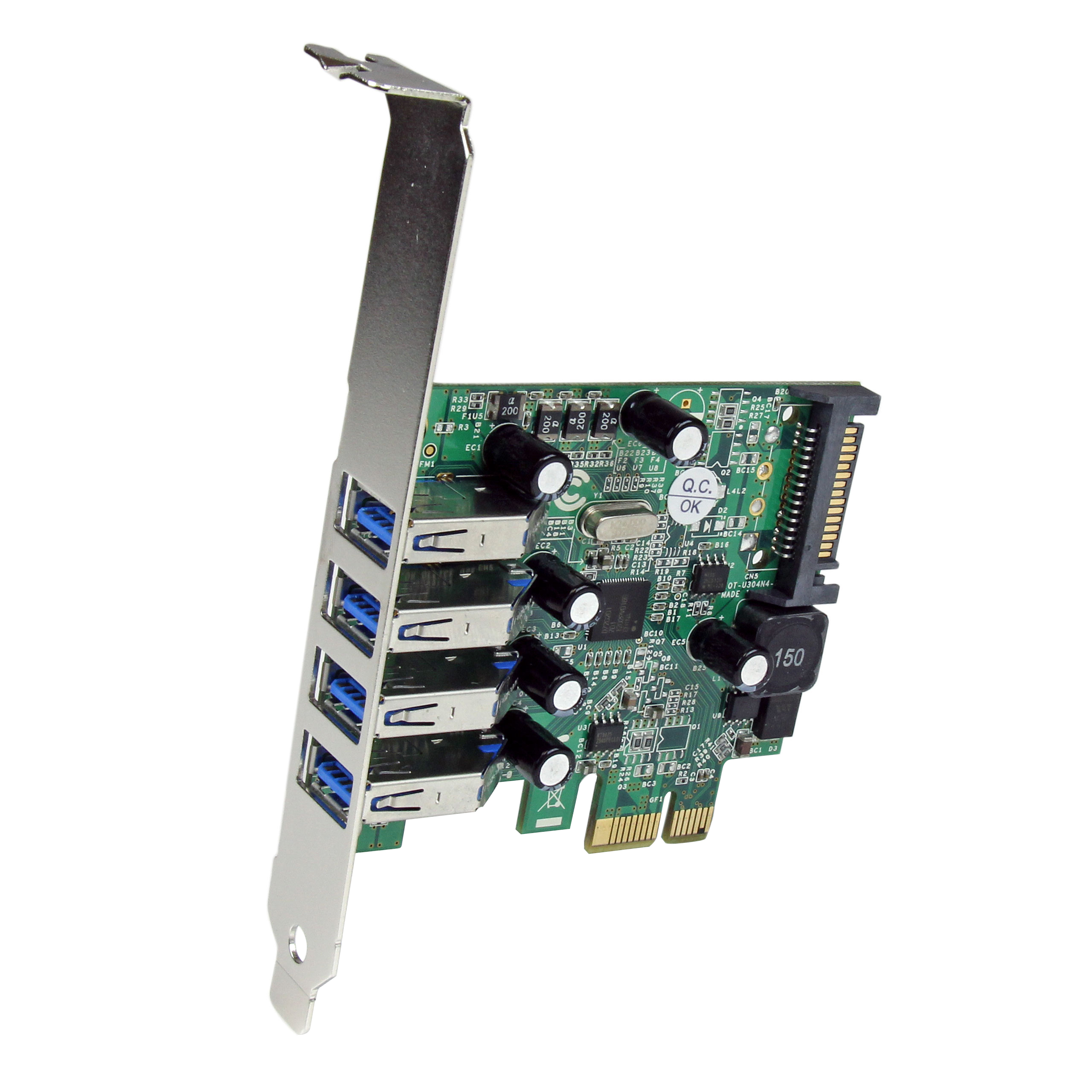

Product Images
BOM Image
Product Name 4 Port PCI Express USB 3 0 Card Product Number PEXUSB3S4V UPC 065030848961 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Family USB-A Cards - 5Gbps - PCIe Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Product Title (Ultra-Short) 4Pt PCIe USB 3 Card Product Title (Short) 4 Port PCI Express PCIe USB 3.0 Card Product Title (Medium) x Product Title (Standard) 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP, 5Gbps, SATA Power, TAA Product Title (Long) 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP - 5Gbps - SATA Power - TAA Product Title (AMZ) 4-Port PCI Express SuperSpeed USB 3.0 Controller Card with UASP - 5Gbps - USB 3.0 Expansion Card with SATA Power , TAA (PEXUSB3S4V) Title Ingram (Part 1) 4Port USB 3.0 PCI Express Title Ingram (Part 2) Card with UASP Support Website Product Headline Add 4 external USB 3.0 (USB 3.2 Gen 1) ports to a low profile or standard computer, through PCI Express Bullet 1 Fully compliant with USB 3.2 Gen 1 revision 1.0 specifications and Intel xHCI rev0.95 specifications Bullet 2 Backward compatible with USB 2.0 and USB 1.0/1.1 devices Bullet 3 Compliant with PCI Express 2.0 specifications Bullet 4 Includes a Low Profile/half-height installation bracket Bullet 5 Built-in optional SATA power connector for bus-powered USB devices Bullets (Consolidated) Add 4 external USB 3.2 Gen 1 ports to a low profile or standard computer through PCI Express - Compatible with Lenovo ThinkCentre M93p/Dell OptiPlex 3010 - 4 Port PCI Express SuperSpeed USB 3.2 Gen 1 Card Adapter with UASP/4 Port USB 3.2 Gen 1 Controller Card - USB 3 PCIe Card/PCIe USB 3.2 Gen 1 Card - SATA Powered USB 3.2 Gen 1 PCI Express Card/PCI Express USB 3.2 Gen 1 Expansion Card w/ UASP - Desktop PCIe USB 3 Expansion Card/Add USB 3.2 Gen 1 Ports to a Desktop - USB 3.2 Gen 1 UASP Card includes a Low Profile/half-height bracket Marketing Copy Marketing Copy (No HTML) The 4-port USB 3.0 PCI express card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices. Enhanced with UASP support (USB Attached SCSI Protocol), this SuperSpeed USB 3.0 PCI express card performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. The 4-port USB 3.1 PCIe card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket. Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply. This USB 3.0 expansion card is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Upgrade an older PCIe-based system with USB 3.2 Gen 1 connectivity, to fully utilize USB 3.2 Gen 1 devices
- Expand a system's USB capabilities with four additional external USB ports, for connecting additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc.
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps. System and Cable Requirements Available PCI Express expansion slot Accessory Products - LP4LSATAADAP
- USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- SAT3510BU3
- SAT2510BU3
- SATDOCKU3S
- ST4300USB3
- ST4300USBM
- SAT3510U3V
Related Products - MPEXUSB3S2
- PEXUSB3S11
- PEXUSB3S2
- PEXUSB3S22
- PEXUSB3S4
- PEXUSB3S2E2I
Constrained SKU Alternatives (Limited Stock) PEXUSB3S42 Input Voltage 12V DC Output Voltage (V) 12V DC Color Green Humidity 20% ~ 80% RH Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 75 Product Width (mm) 19 Product Height (mm) 68 Product Weight (g) 68 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes MTBF (hours) 2,952,227 hours OS Compatibility - Windows 7
- Windows 8
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

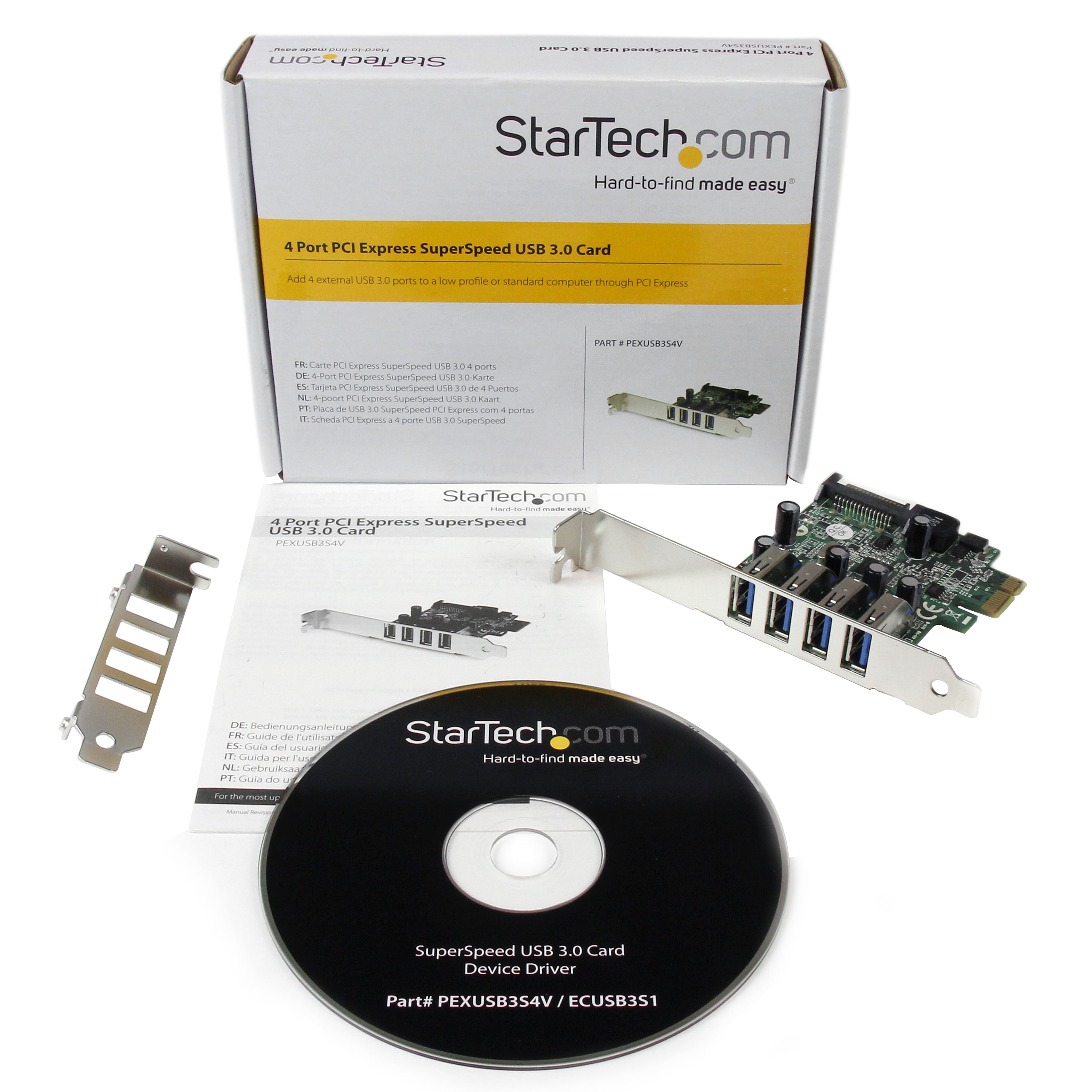

UASP Support Yes USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 3.0 (5Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Renesas/NEC - µPD720201 Interface/Bridge USB 3.2 Gen 1 (5Gbps) IO Card Port Style Integrated on Card USB Port Type USB-A Carton Depth (mm) 566 Carton Height (mm) 340 Carton Quantity 100 Carton Weight Gross (g) 15180 Included in Package - 1 - PCI Express USB 3.0 Card
- 1 - Low Profile Bracket
- 1 - Instruction Manual
- 1 - Driver CD
Included In Package for Label - 1 - PCI Express USB 3.0 Card
- 1 - Low Profile Bracket
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 131 Package Height (mm) 33 Package Width (mm) 162 Package Quantity 1 Package Weight (g) 138 Packaging Description 4 Port PCI Express SuperSpeed USB 3.0 Card Packaging Description India 4-Port PCI Express SuperSpeed USB 5Gbps Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 4 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-02-13 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Yiming Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
