PEXUSB400
4 Port PCIe USB 2.0 Adapter Card 480 Mbps per Port
Add four independent USB 2.0 ports capable of a maximum transfer rate of 480Mbps per port to a PCI Express PC
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port PCIe USB 2.0 Adapter Card 480 Mbps per Port Product Number PEXUSB400 UPC 065030840033 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - USB 2.0 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Short) 4 Independent Port PCIe USB Adapter Card Product Title (Standard) 4 Independent Port PCIe USB 2.0 Adapter Card Product Title (Long) 4 Independent Port PCI Express USB 2.0 Adapter Card Product Title (AMZ) 4 Independent Port PCI Express USB 2.0 Adapter Card (PEXUSB400) Title Ingram (Part 1) 4 Independent Port PCI Express U Title Ingram (Part 2) SB 2.0 Adapter Card Website Product Headline Add four independent USB 2.0 ports capable of a maximum transfer rate of 480Mbps per port to a PCI Express PC Bullet 1 Four independent external USB 2.0 ports and one internal shared port Bullet 2 Provides up to 500mA of power per port with dedicated power supply input Bullet 3 Complies with Open Host Controller Specification Rev. 1.0a and Enhanced Host Controller Specifications Rev. 1.0 Bullet 4 Compliant with PCI Express Specification 1.1 Bullet 5 Supports High Speed USB 2.0 data transfer rates up to 480 Mbps on each port simultaneously Bullets (Consolidated) Add four independent USB 2.0 ports capable of a maximum transfer rate of 480Mbps per port to a PCI Express PC - PCI Express USB 2.0 Card - PCI-e USB 2.0 Card - PCIe USB 2.0 card Marketing Copy Applications - Add four dedicated external USB ports to a PCI Express compatible Workstation or Server for additional high speed USB 2.0 connections
- Provide additional dedicated USB 2.0 ports for multiple high performance external storage solutions
- Add additional USB ports to a system with only one available PCI Express slot for support of multiple high speed USB devices simultaneously
Website Search Keyword - Independent channel
- Dedicated USB
- USB High Speed
- USB 2.0
- four channel
- PCI Express
- PCIe
- PCI-e
System and Cable Requirements - Pentium® II class or better CPU
- PCI Express enabled computer with an available PCI Express x1 slot or higher
- Windows® 98SE or better
Accessory Products - USB2HAB10
- USB2HAB10T
- USB2HAB15
- USB2HAB15T
- USB2HAB6
- USB2HAB6LEDB
- USB2HAB6LEDR
- USB2HAB6LEDY
- USB2HAB6T
- USBHAB6FLBG
- USBHAB6FLRY
- LP4SATAFM
Related Products - PCI220USB
- PCI420USB
- PEX400USB2
- PEXUSB4DP
- PEXUSB3S2
Replacement Product PEXUSB3S44V Humidity 5~95% RH Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 68.4 Product Width (mm) 87 Product Height (mm) 21 Product Weight (g) 50 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No OS Compatibility - Mac OS X Mavericks (10.9)
- Linux
- Windows 7
- Windows 8
- Windows Server 2012
- Mac OS X Yosemite (10.10)
- Mac OS X El Capitan (10.11)

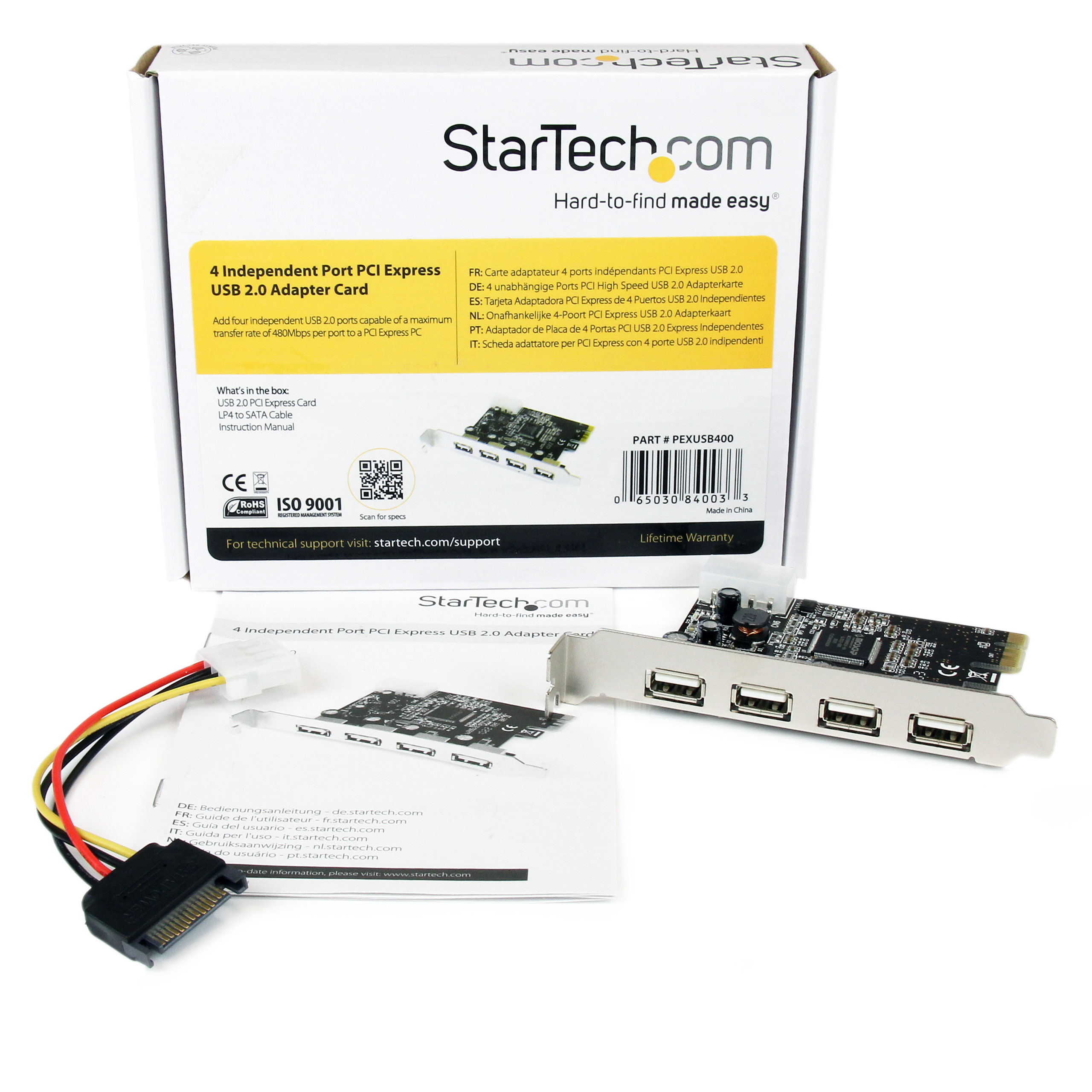

USB Type and Rate USB 2.0 (480Mbps) Bus Type PCI Express Card Type Standard Profile Chipset ID ASIX - MCS9990CV Industry Standards PCI Express One Lane 2.5Gb/s Interface/Bridge USB 2.0 Carton Depth (mm) 437.5 Carton Height (mm) 375 Carton Quantity 50 Carton Weight Gross (g) 8700 Included in Package - 1 - USB 2.0 PCI Express Card
- 1 - Instruction Manual
- 1 - LP4 to SATA Cable
Package Depth (mm) 37.5 Package Height (mm) 137.5 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 150 Packaging Description 4 Independent Port PCI Express USB 2.0 Adapter Card Packaging Description India 4 Independent Port PCI Express USB 2.0 Adapter Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 IDC (4-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
