PEXUSB4DP
Low Profile High Speed PCIE USB Card
Add 4 USB 2.0 ports to your low profile/small form factor computer through a PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Low Profile High Speed PCIE USB Card Product Number PEXUSB4DP UPC 065030836661 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - USB 2.0 Family USB-A Cards - USB 2.0 - PCIe Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 4 Port LP PCI Express USB Card Product Title (Medium) x Product Title (Standard) 4-port PCI Express LP USB Adapter Card, TAA Product Title (Long) 4 Port PCI Express Low Profile High Speed USB Card - TAA Product Title (AMZ) 4 Port PCI Express Low Profile High Speed USB Card - PCIe USB 2.0 Card - PCI-E USB 2.0 Card , TAA (PEXUSB4DP) Title Ingram (Part 1) 4 Port PCI Express Low Profile H Title Ingram (Part 2) igh Speed USB Card Website Product Headline Add 4 USB 2.0 ports to your low profile/small form factor computer through a PCI Express expansion slot Bullet 1 3 external and 1 internal USB 2.0 port Bullet 2 High Speed USB 2.0 compliant, with transfer rates up to 480Mbps Bullet 3 Backward compatible with USB 1.0/1.1 devices Bullet 4 Provide up to 500mA of power per port with dedicated power input Bullet 5 Plug-and-Play compatible Bullets (Consolidated) Add 4 USB 2.0 ports to your low profile/small form factor computer through a PCI Express expansion slot - Add USB 2.0 connectivity to any PCIe based desktop, workstation or server - Add an internal USB port to connect internal or front-bay mounted USB devices - Provide up to 500mA of power per port with dedicated power input - USB PCI-E card/4 Port USB 2.0 Card/USB Expansion Card/PCIe USB 2.0 Card - Low Profile 4 Port PCI Express USB Card Marketing Copy Applications - Add USB 2.0 connectivity to any PCIe based desktop, workstation or server
- Expand on a computers USB 2.0 capabilities with 4 additional ports for more USB device connections
- Add an internal USB port to connect internal or front-bay mounted USB devices
- Connect additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc. to a computer system
Website Search Keyword - USB 2.0
- Low Profile
- Full Profile
- Dual Profile
- PCIe
- PCI Express
- Single Lane
- PCIe x1
- WHQL certified
- PCI-e
- PEX400USB2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
System and Cable Requirements PCI Express enabled computer with an available PCI Express x1 slot or higher Accessory Products - USB2HAB10
- USB2HAB10T
- USB2HAB15
- USB2HAB15T
- USB2HAB6
- USB2HAB6LEDB
- USB2HAB6LEDR
- USB2HAB6LEDY
- USB2HAB6T
- USBHAB6FLBG
- USBHAB6FLRY
Related Products - PEX400USB2
- PCI625USB2I
- PCI420USB
- PCI3UV22F
- PCI330USB2
- PCI220USBLP
- PCI220USB
- EC400USB
- EC230USB
- EC1U2F
- CB420USB
Color Green Humidity 80% RH Material Steel Operating Temperature -0°C to 75°C (32°F to 167°F) Primary Material Steel Product Length (mm) 90.000 Product Width (mm) 80.000 Product Height (mm) 20.000 Product Weight (g) 46.000 Storage Temperature -40°C to 125°C (-40°F to 257°F) TAA Compliant Yes OS Compatibility - Mac OS X Mavericks (10.9)
- Linux
- Windows 7
- Windows Server 2012
- Windows 8
- Mac OS X Yosemite (10.10)
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

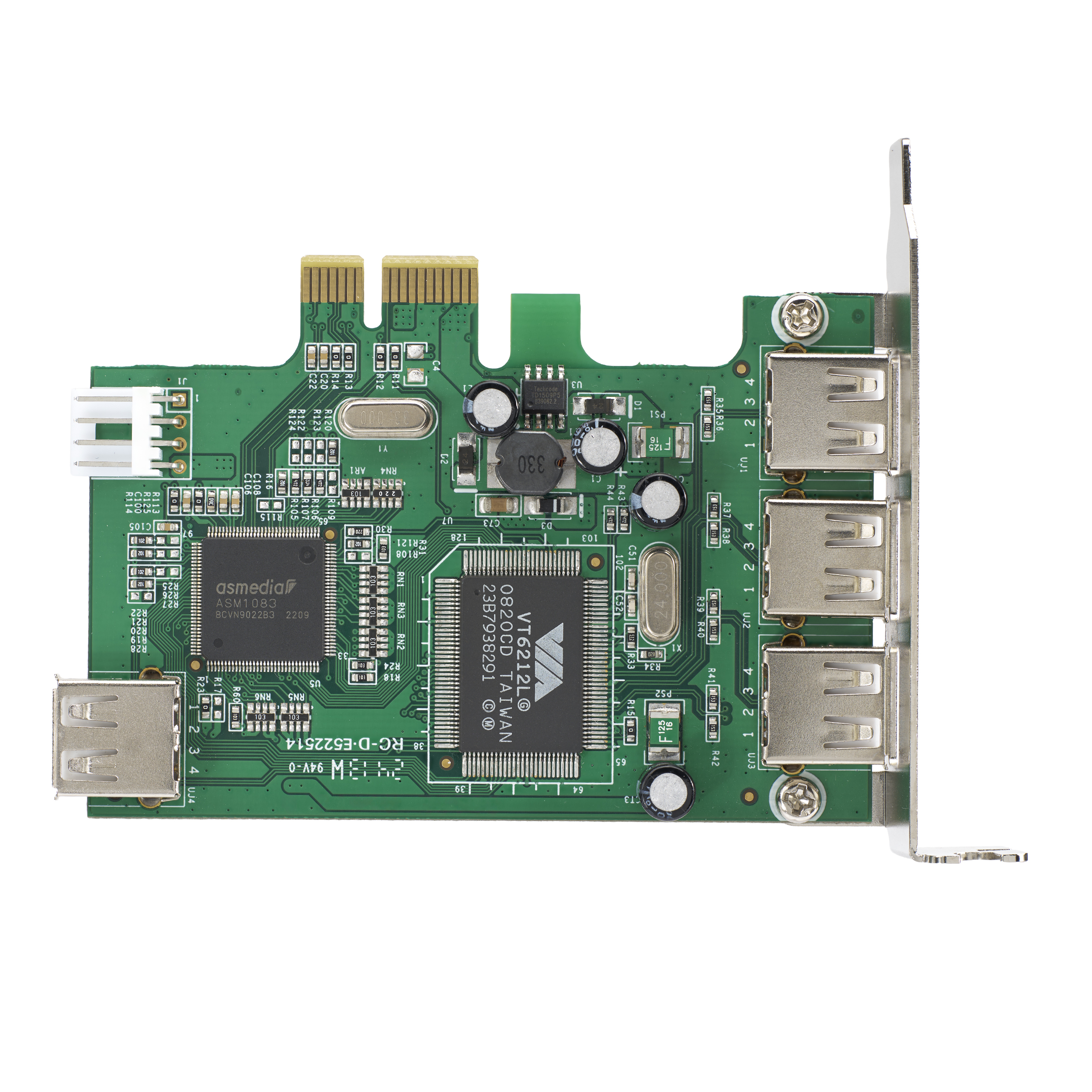

USB Type and Rate USB 2.0 (480Mbps) Bus Type PCI Express Card Type Low Profile (SP bracket incl.) Chipset ID - VIA/VLI - VT6212
- ASMedia ASM1083
Industry Standards PCI Express One Lane 2.5Gb/s Interface/Bridge USB 2.0 Carton Depth (mm) 350 Carton Height (mm) 310 Carton Quantity 75 Carton Weight Gross (g) 10000 Included in Package - 1 - PCI Express USB 2.0 Card
- 1 - Instruction Manual
- 1 - Driver CD

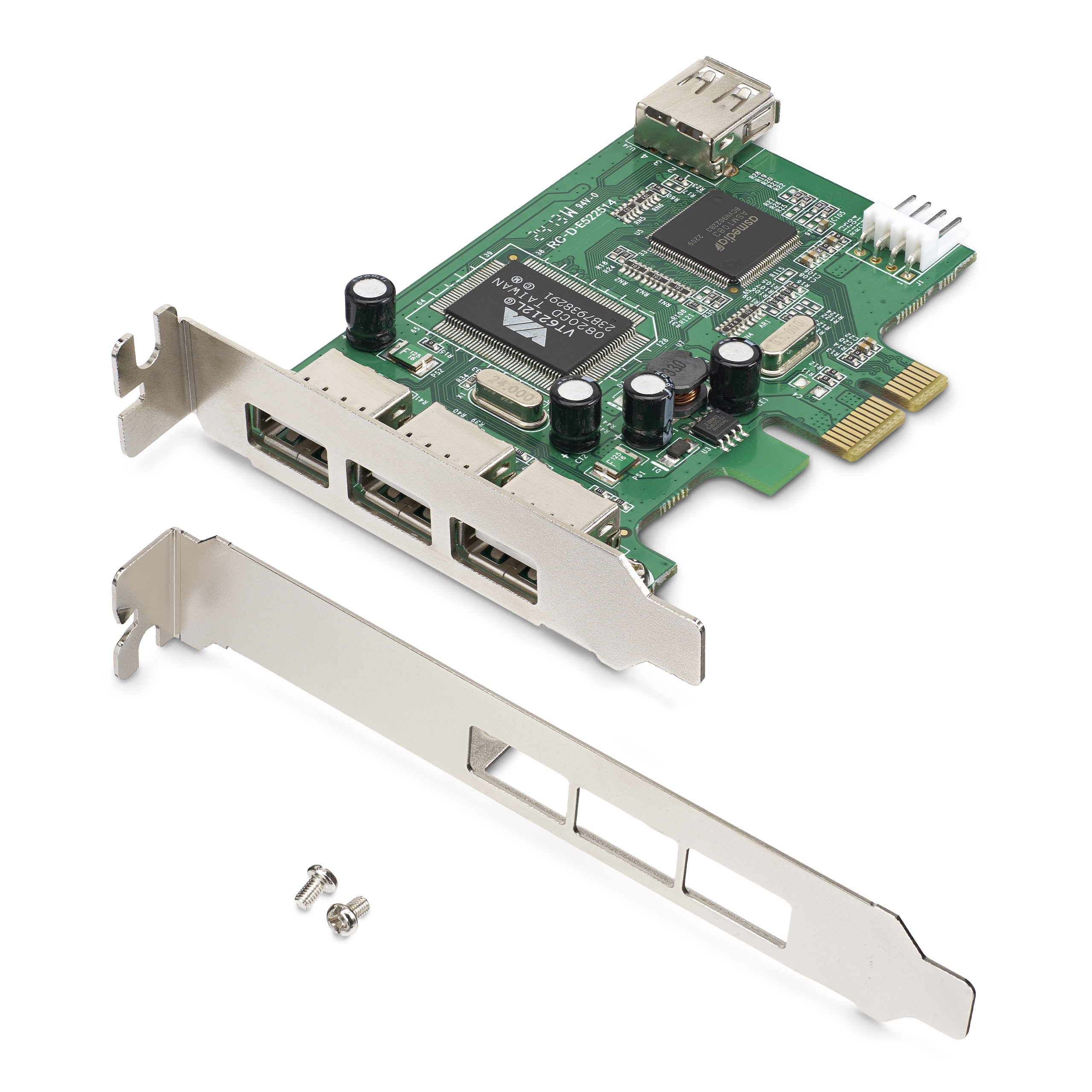

- 1 - Full Profile Bracket
Included In Package for Label - 1 - PCI Express USB 2.0 Card
- 1 - Instruction Manual
- 1 - Driver CD
- 1 - Full Profile Bracket
Package Depth (mm) 144 Package Height (mm) 32 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 120 Packaging Description 4 Port Low Profile PCI Express USB Card Packaging Description India 4 Port Low Profile PCI Express USB Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 3 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 1 Connector 4 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Priority New Product High Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
