PEXUSB7LP
Hi-Speed USB 2.0 7 Port PCIe USB Card Adapter - LP
Add six external and one internal high speed USB 2.0 ports to any PCIe compatible PC
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Hi-Speed USB 2.0 7 Port PCIe USB Card Adapter - LP Product Number PEXUSB7LP UPC 065030837408 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - USB 2.0 Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 7 Port PCIe LP USB 2.0 Adapter Card Product Title (Standard) 7 Port PCIe Low Profile USB 2.0 Adapter Card Product Title (Long) 7 Port PCI Express Low Profile High Speed USB 2.0 Adapter Card Product Title (AMZ) 7 Port PCI Express Low Profile High Speed USB 2.0 Adapter Card - PCIe USB 2.0 Card - PCI-E USB 2.0 Card (PEXUSB7LP) Title Ingram (Part 1) 7 Port PCI Express LP High Speed Title Ingram (Part 2) USB 2.0 Adapter Card Website Product Headline Add six external and one internal high speed USB 2.0 ports to any PCIe compatible PC Bullet 1 Up to 500mA of power per port with dedicated power supply input Bullet 2 Compliant with USB EHCI revision 0.95 and UHCI 1.1 specifications Bullet 3 Compliant with PCI Express revision 1.1 specification Bullet 4 6 external USB 2.0 ports and 1 internal USB 2.0 header Bullet 5 Supports up to 127 USB devices (requires addition USB hubs) Bullets (Consolidated) Add six external and one internal high speed USB 2.0 ports to any PCIe compatible PC - pci express usb 2.0 card - pci-e usb 2.0 card - pcie usb 2.0 card Marketing Copy Applications - Add 7 additional USB 2.0 ports to small/slim form factor computer system
- Add an internal USB 2.0 header for use with internal/front-bay mounted USB peripherals
- Maximize the number of available USB 2.0 ports on a computer system
Website Search Keyword - Seven Port
- 7 Port
- 6 Port
- IDC USB Header
- Motherboard Header
- PCIe USB
- PCI Express
- USB 2.0
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - USB2ABFUJI6
- USB2FAAEXT15
- USB2HAB1
- USB2HAB10
- USB2HAB10T
- USB2HAB15
- USB2HAB15T
- USB2HAB3
- USB2HAB6
- USB2HAB6T
- USB2HABM1
- USB2HABM10
- USB2HABM3
- USB2HABM6
- USB2HABMY3
- USB2HABMY6
- USB2LINK
- USBEXTAA5DSK
- UUSBHAUB1
- UUSBHAUB3RA
- UUSBHAUB6RA
Related Products - PEX400USB2
- PEXUSB4DP
- PEXUSB3S2
- ECUSB3S2
- EC1U2F
- EC230USB
- EC400USB
- ECESATUSB1
Humidity 5~95% RH Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 91 Product Width (mm) 64 Product Height (mm) 18 Product Weight (g) 53 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes OS Compatibility - Linux
- Windows 7
- Windows Server 2012
- Windows 8
- Mac OS X Yosemite (10.10)
- Windows 10
- Windows Server 2016
- Windows 11

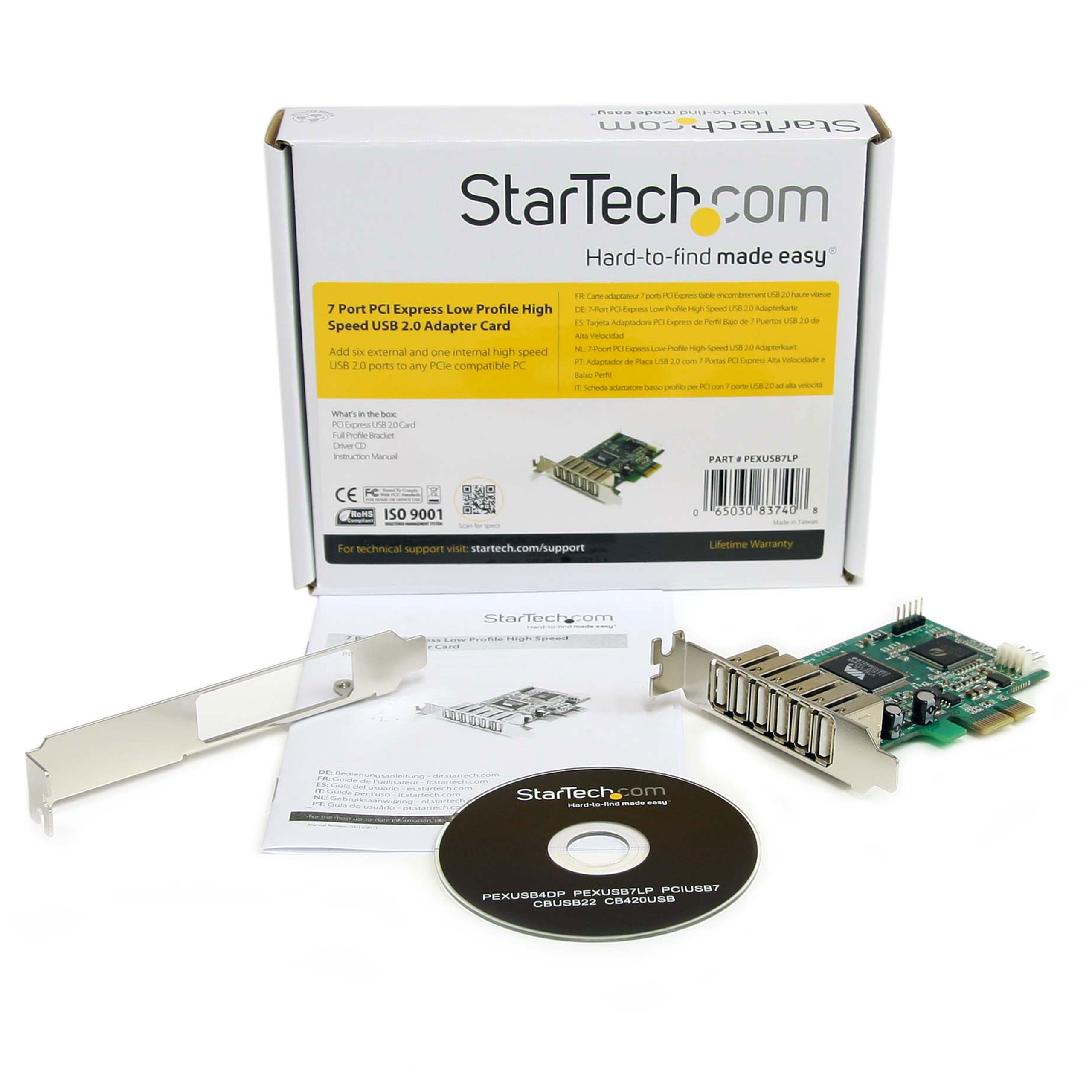

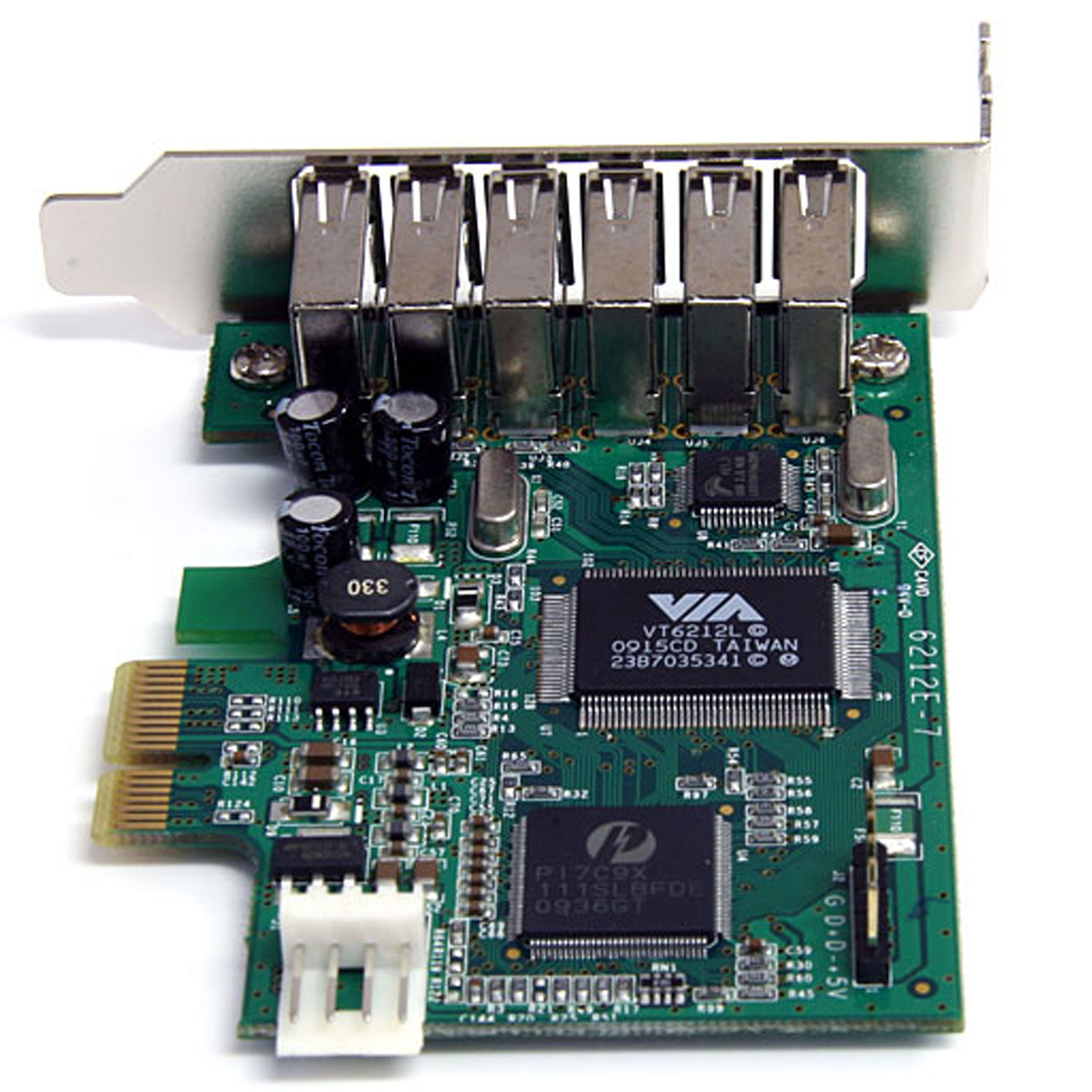

USB Type and Rate USB 2.0 (480Mbps) Bus Type PCI Express Card Type Low Profile (SP bracket incl.) Chipset ID VIA/VLI - VT6212 Interface/Bridge USB 2.0 Carton Depth (mm) 356 Carton Height (mm) 315 Carton Quantity 75 Carton Weight Gross (g) 11594 Included in Package - 1 - PCI Express USB 2.0 Card
- 1 - Full Profile Bracket
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 172 Package Height (mm) 31 Package Width (mm) 142 Package Quantity 1 Package Weight (g) 120 Packaging Description 7 Port Low Profile PCIe USB 2.0 Card Packaging Description India 7 Port Low Profile PCIe USB 2.0 Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 6 Connector 3 IDC (5-Pin) Connector 3 (Quantity) 1 Connector 4 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
