PIB2M21

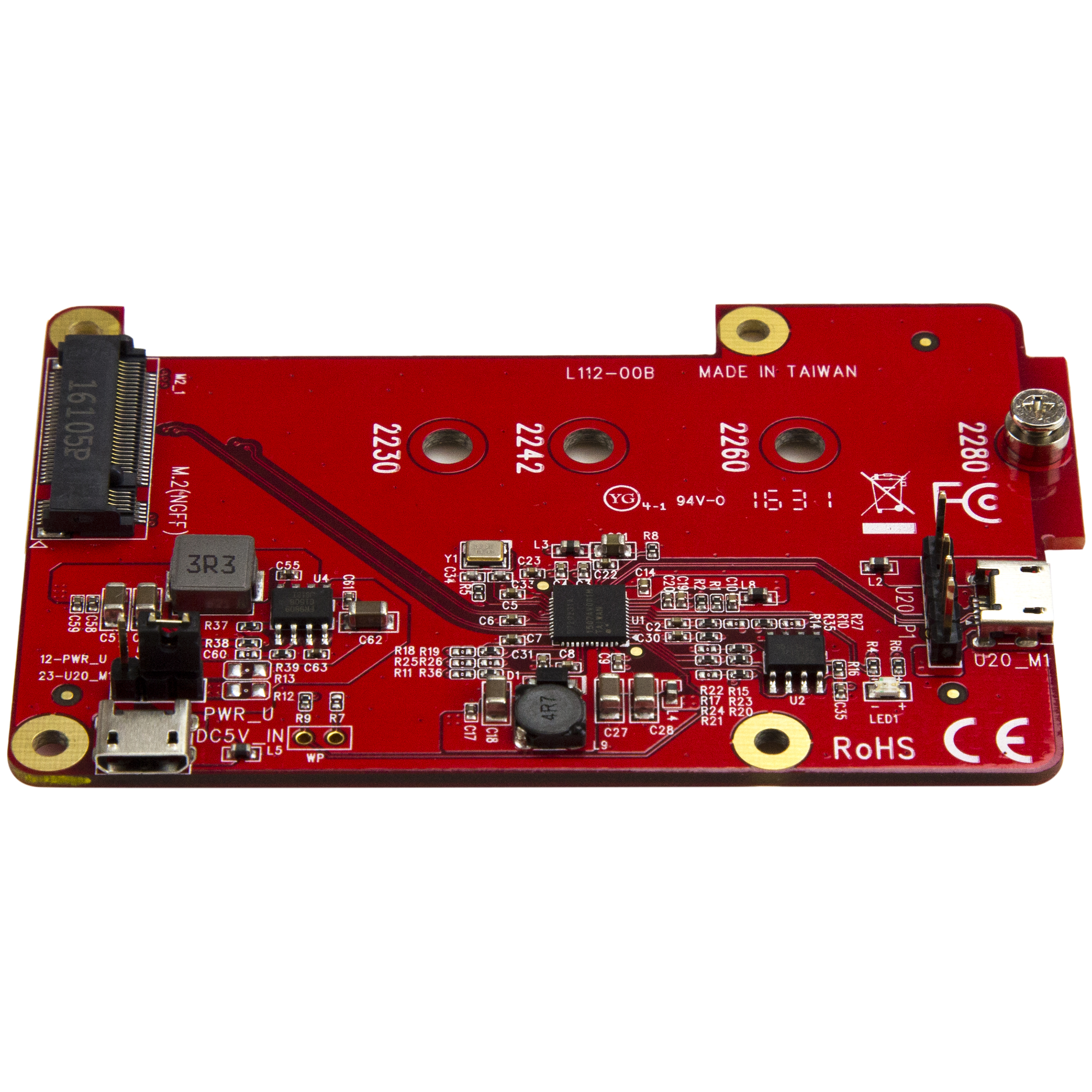

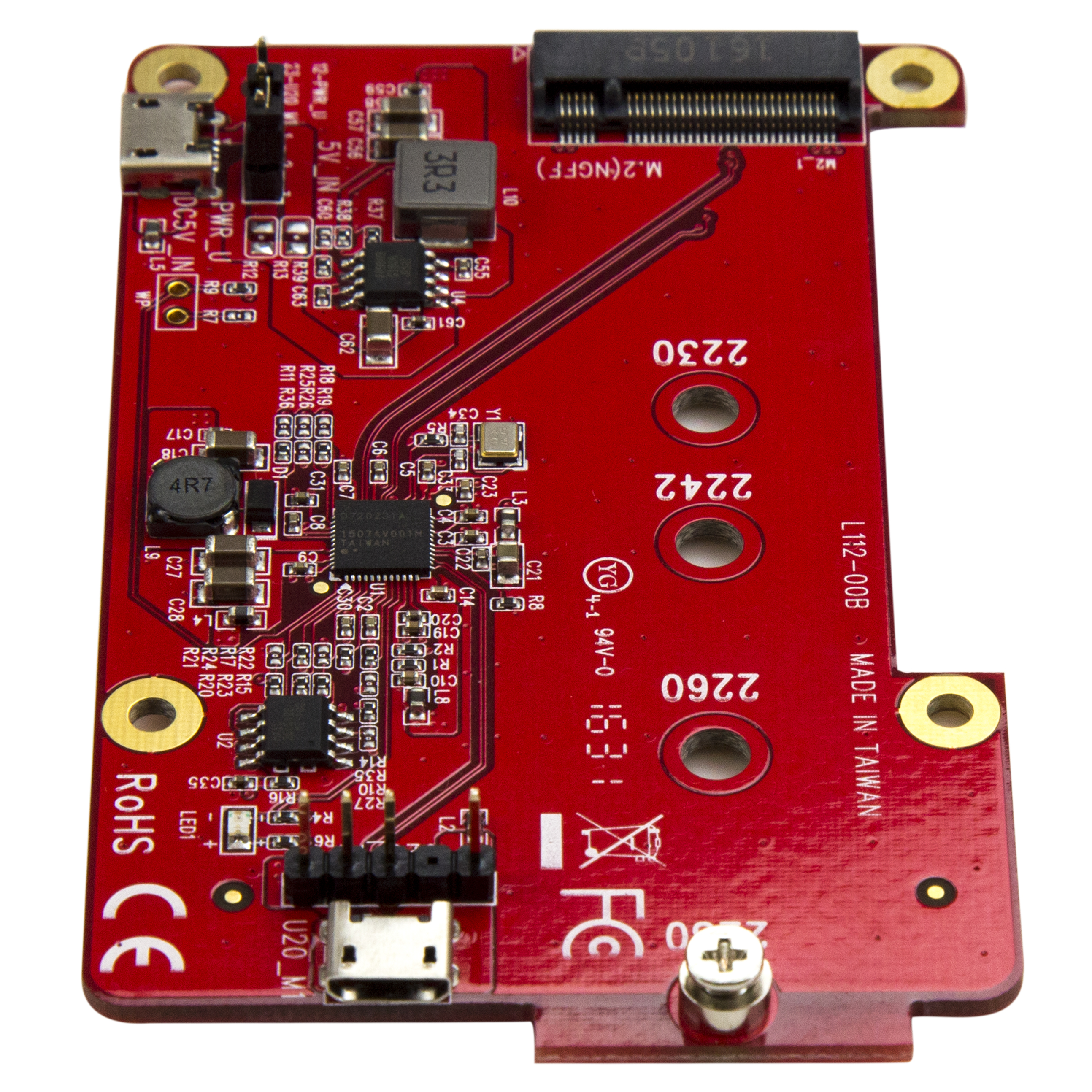

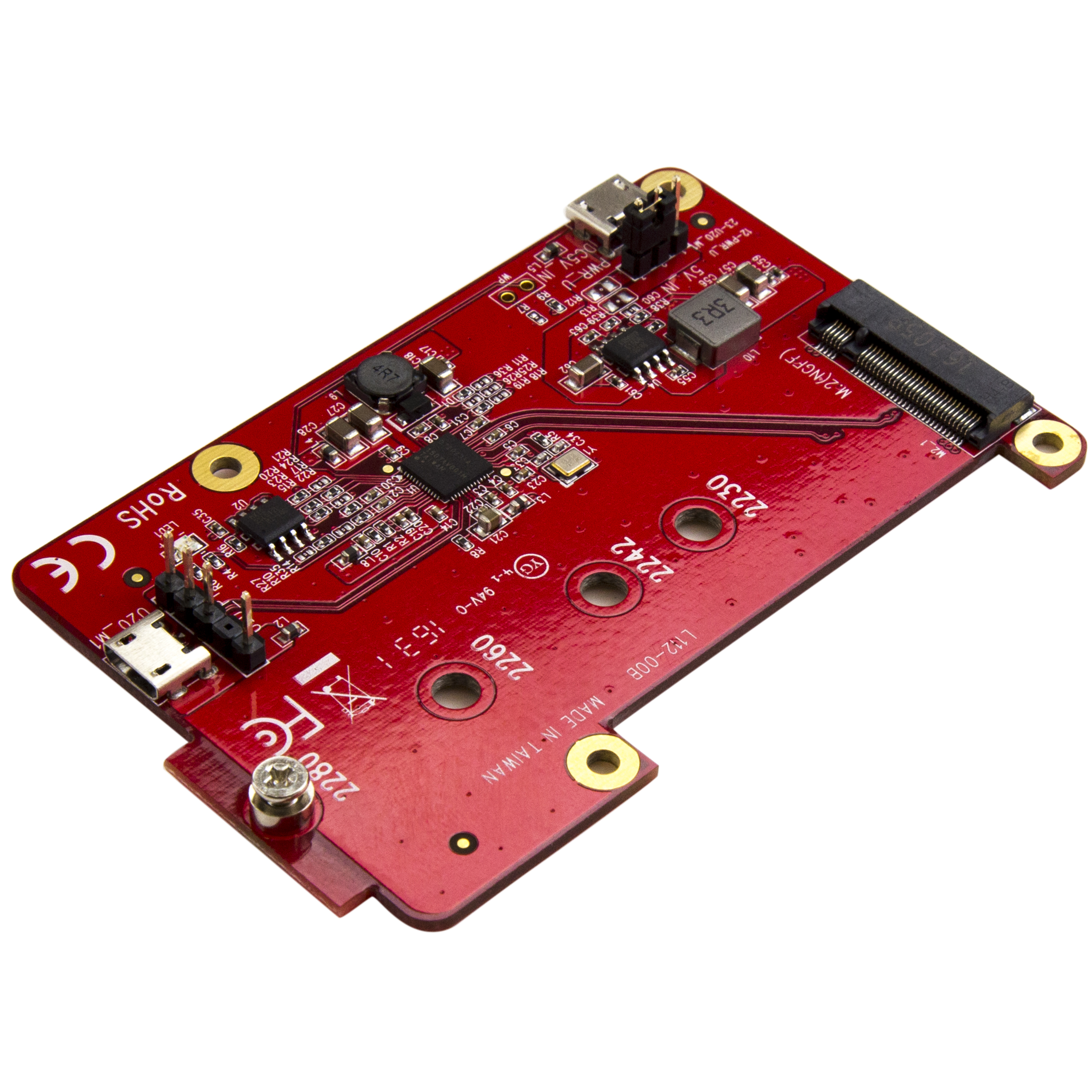

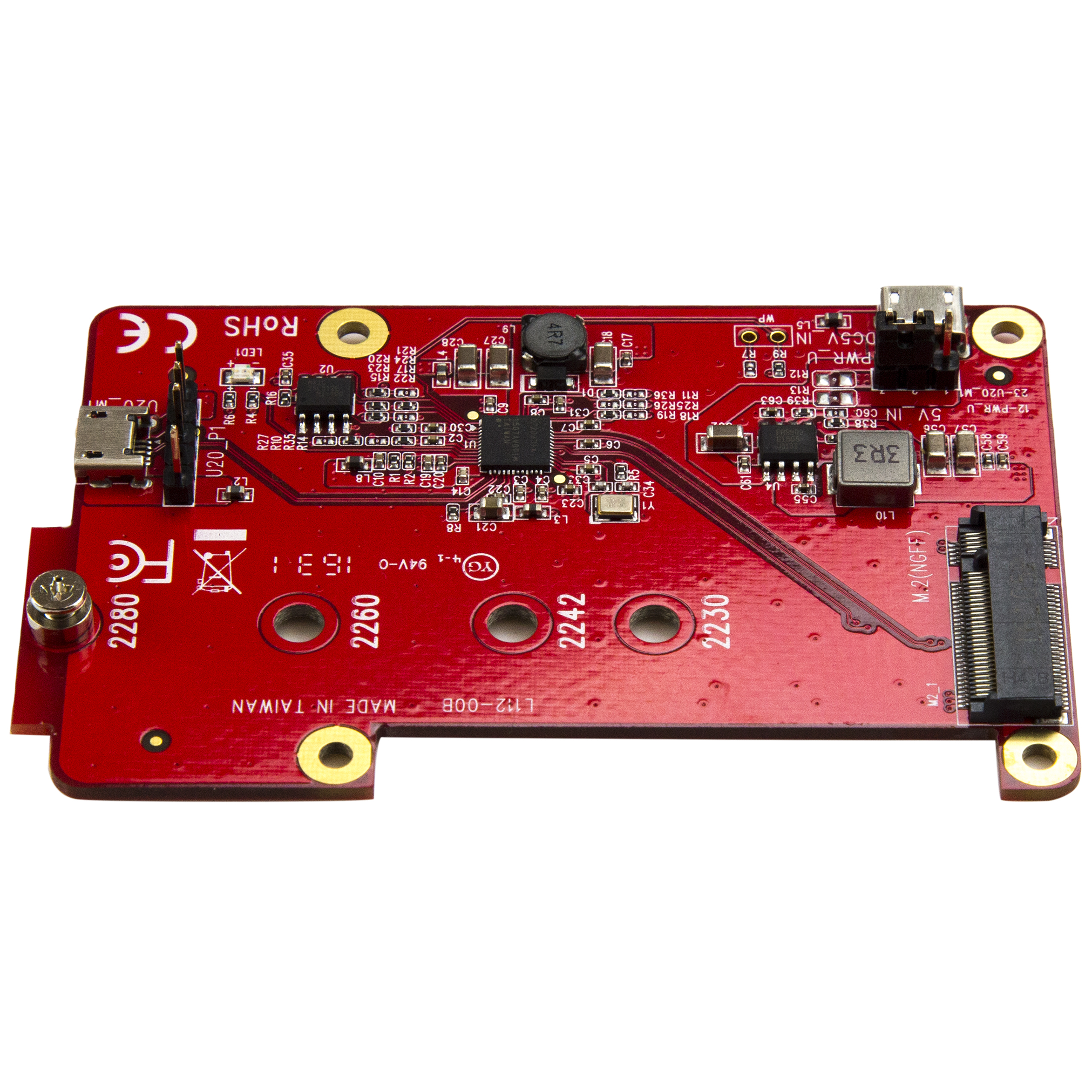

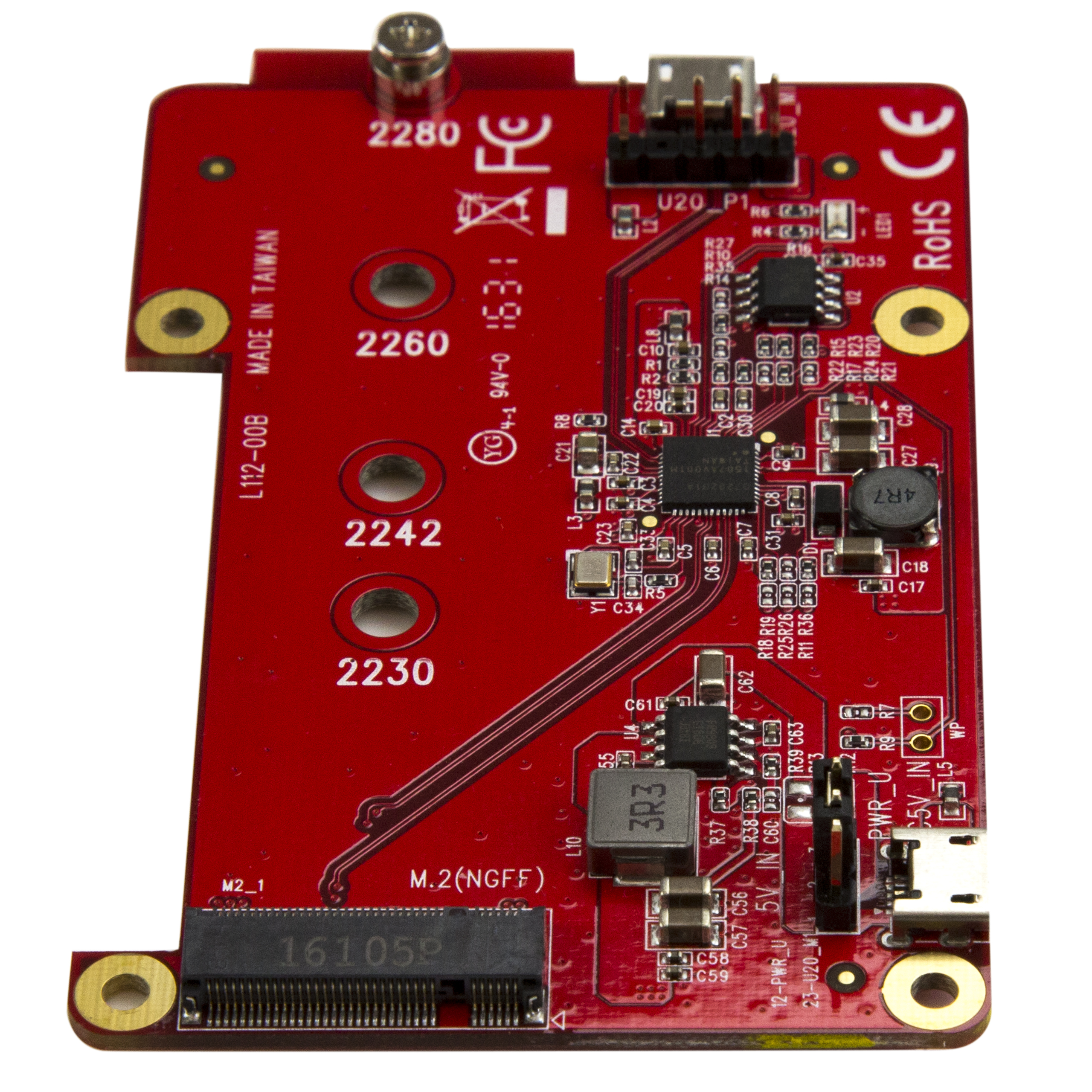

USB to M 2 SATA SSD Converter for Raspberry Pi

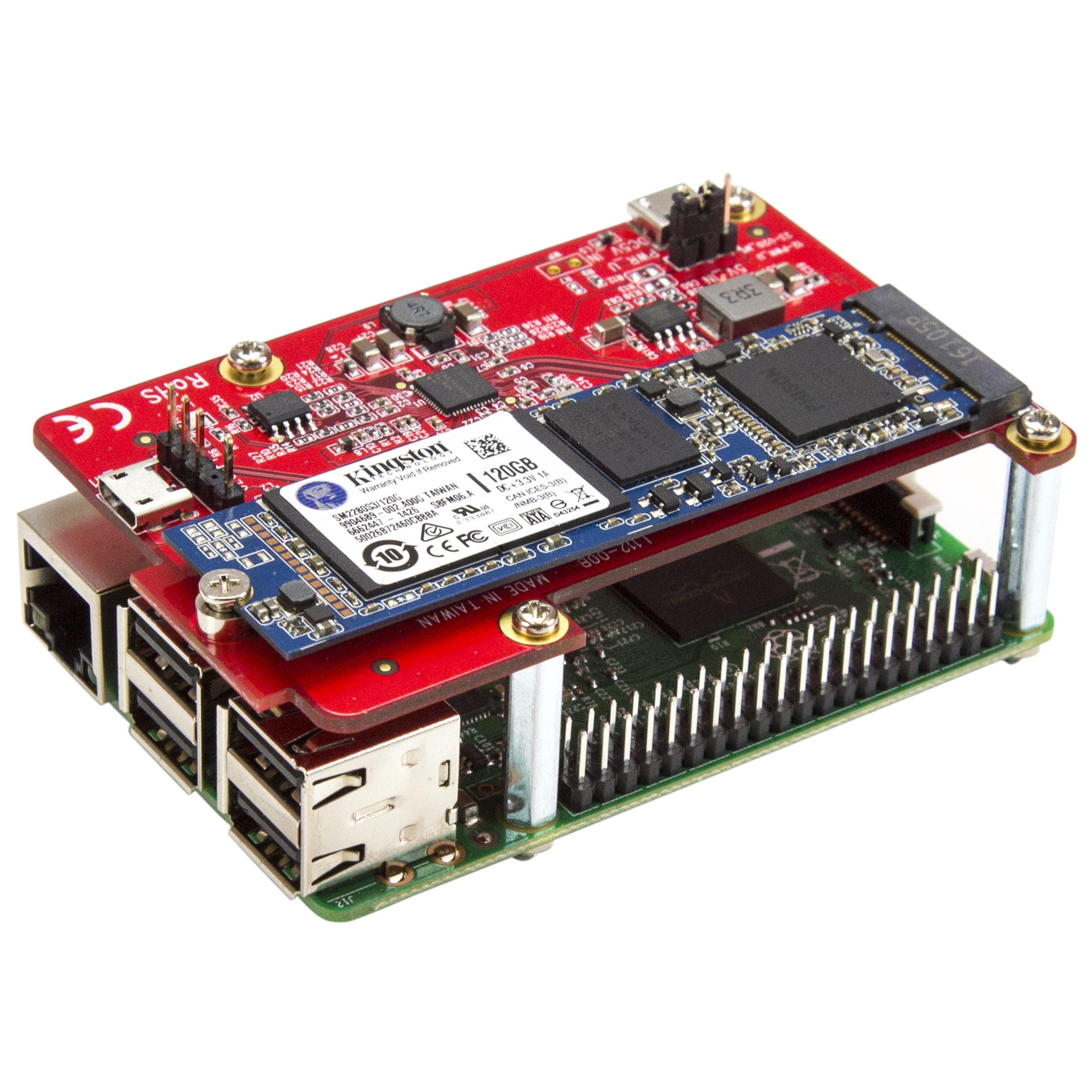

Connect an M.2 SATA drive to your development board, to increase data storage capacity
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name USB to M 2 SATA SSD Converter for Raspberry Pi Product Number PIB2M21 UPC 065030867849 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 M.2 NVMe/SATA Card Adapters/Controllers Family M.2 SATA to USB Converter Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) M.2 SATA SSD Adapter Product Title (Short) Converter, Raspberry Pi USB to M.2 SATA Product Title (Medium) USB to M.2 SATA Converter for Raspberry Pi and Development Boards Product Title (Standard) Raspberry Pi Board – USB 2.0 480Mbps – USB to M.2 SATA Converter – USB to SATA Raspberry Pi SSD, TAA Product Title (Long) USB to M.2 SATA Converter for Raspberry Pi and Development Boards - TAA Product Title (AMZ) Raspberry Pi Board - USB 2.0 480Mbps - USB to M.2 SATA Converter - USB to SATA Raspberry Pi SSD , TAA (PIB2M21) Title Ingram (Part 1) USB to M.2 SATA SSD Converter Title Ingram (Part 2) for Raspberry Pi and Dev Boards Website Product Headline Connect an M.2 SATA drive to your development board, to increase data storage capacity Bullet 1 Add an M.2 SATA SSD drive to your Raspberry Pi development board to increase data storage Bullet 2 M.2 SATA drives (including 2230, 2242, 2260 and 2280 drive heights) Bullet 3 USB 2.0 with data transfer speeds up to 480Mbps Bullet 4 OS independent with no device driver installation required Bullet 5 Includes USB cable and mounting accessories for Raspberry Pi Bullets (Compact) Connect an M.2 SATA drive to your development board to increase data storage capacity - M.2 NGFF SATA SSD adapter for Raspberry Pi board- USB 2.0 to M.2 SATA drive converter for dev boards - SATA I, II, III - Includes cable and mounting accessories Bullets (Consolidated) Connect an M.2 SATA drive to your development board to increase data storage capacity - USB to M.2 SATA converter for Raspberry Pi and development boards - M.2 NGFF SATA SSD adapter for Raspberry Pi board supports SATA I/II/III - USB 2.0 to M.2 SATA drive converter for dev boards includes cable and mounting accessories - OS independent with no device driver installation required - M.2 NGFF SATA SSD adapter for Raspberry Pi board/USB to SATA M.2 adapter for dev board Marketing Copy Applications - Increase data storage for Raspberry Pi and other development boards to create custom applications
- Develop solutions for business applications such as surveillance, media applications such as news boards, simple servers to host a website or video, and IoT/automation solutions such as lighting and temperature control
- Create custom development-board based applications for home use
Website Search Keyword - USB to M.2 SATA Converter
- USB to M.2 SATA Converter for Raspberry Pi
- USB to M. 2 SATA Raspberry Pi adapter
- Raspberry Pi adapter
- Raspberry Pi converter
- Dev board adapter
- Development board adapter
- Dev board converter
- M.2 SATA adapter
- M.2 SATA SSD adapter
- M.2 SATA SSD converter
- M.2 SATA adapter converter
- USB M.2 SATA adapter
- Dev board
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Accessory Products - UUSBHAUB6IN
- UUSBHAUB1
Related Products - PIB2S31
- PIB2MS1
- PEXM2SAT32N1
- PEXM2SAT3422
- PEX2M2
- 25S22M2NGFFR
- SM2NGFFMBU33
- SM21BMU31C3
- SAT32M225
- PEX4M2E1
- 35S24M2NGFF
- SAT2M2NGFF25
Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Color Red Humidity 15% ~ 90% RH Max Drive Height (mm) 80 Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 88 Product Width (mm) 56 Product Height (mm) 11 Product Weight (g) 21 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes MTBF (hours) 5,839,751 hrs RAID No SATA Type and Rate SATA III (6 Gbps) USB Type and Rate USB 2.0 (480Mbps) Bus Type USB 2.0 Chipset ID Renesas/NEC - µPD720231A Compatible Drive Types M.2 (SATA, B-Key, NGFF) Interface/Bridge USB 2.0 LED Indicators 1 - Activity Number of Drives 1 Supported Drive Height(s) - 2230
- 2242
- 2260
- 2280

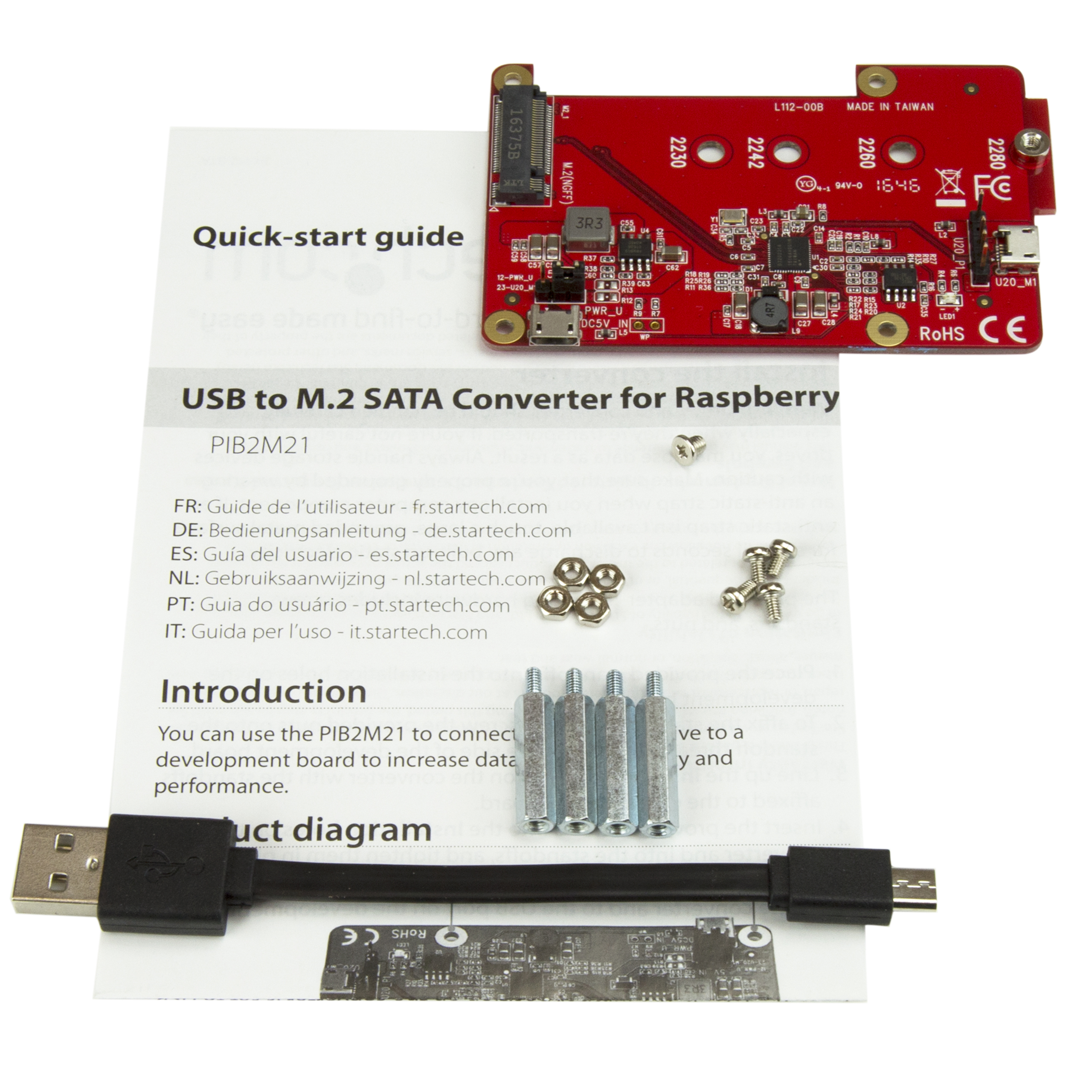

Carton Depth (mm) 380 Carton Height (mm) 320 Carton Quantity 60 Carton Weight Gross (g) 7458 Included in Package - 1 - USB to M.2 SATA converter
- 1 - USB-A to Micro-B cable
- 1 - set of converter-mounting hardware
- 1 - set of drive-mounting hardware
- 1 - quick-start guide
Included In Package for Label - 1 - Set Of Converter-Mounting Hardware
- 1 - USB Cable
- 1 - Drive-Mounting Hardware Kit
- 1 - Product Documentation
- 1 - USB To M.2 SATA Converter
Package Depth (mm) 143 Package Height (mm) 33 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 106 Packaging Description USB to M.2 SATA Converter for Development Boards Packaging Description India USB to M.2 SATA Converter for Development Boards Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB Micro-B (2.5W Power Only) Connector 1 (Quantity) 1 Connector 2 M.2 B-Key (SATA, AHCI) Connector 2 (Quantity) 1 Host Connector 1 USB Micro-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2016-10-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2016-12-16 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-09-27 Target Production Release 2016-10-21 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
