PIB2MS1

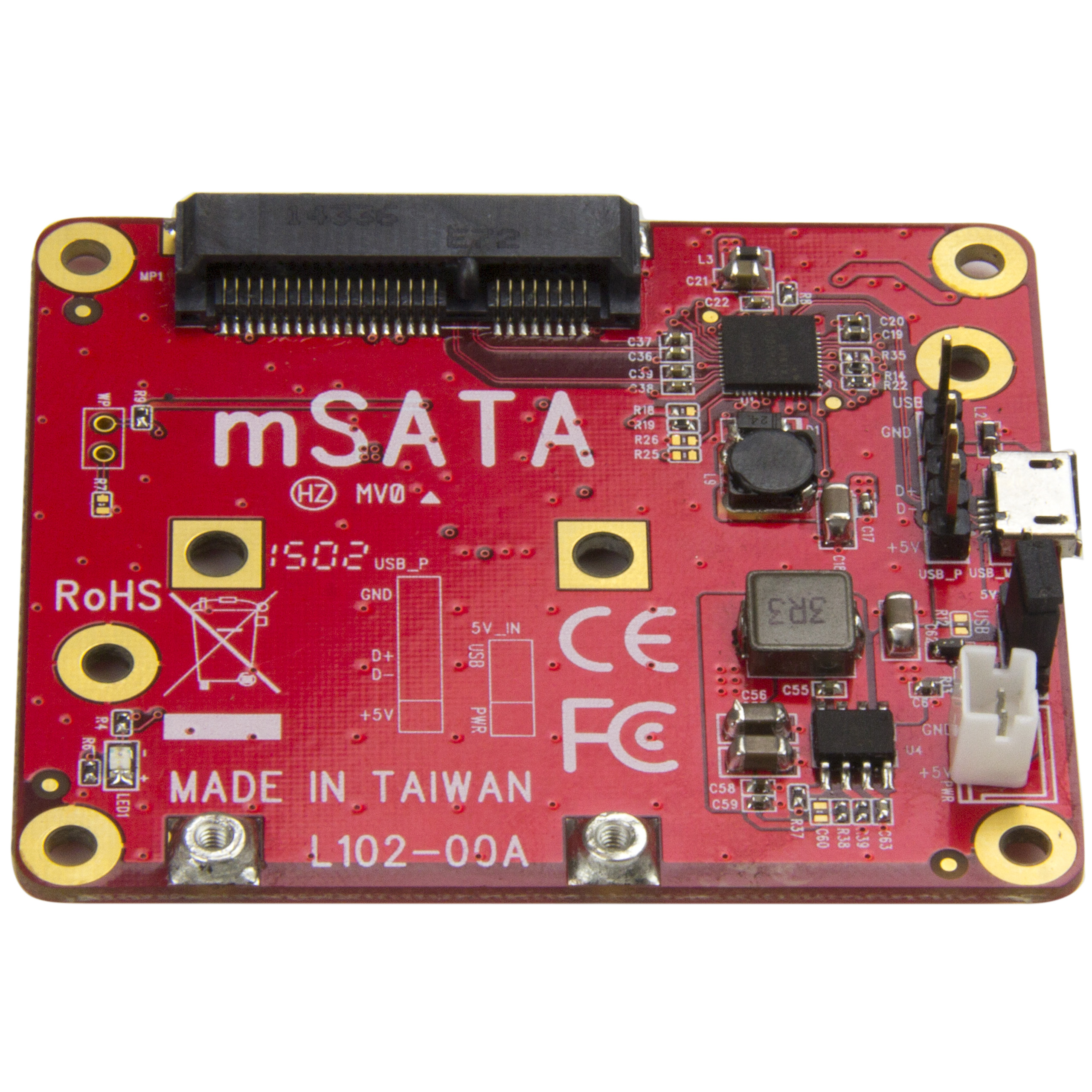

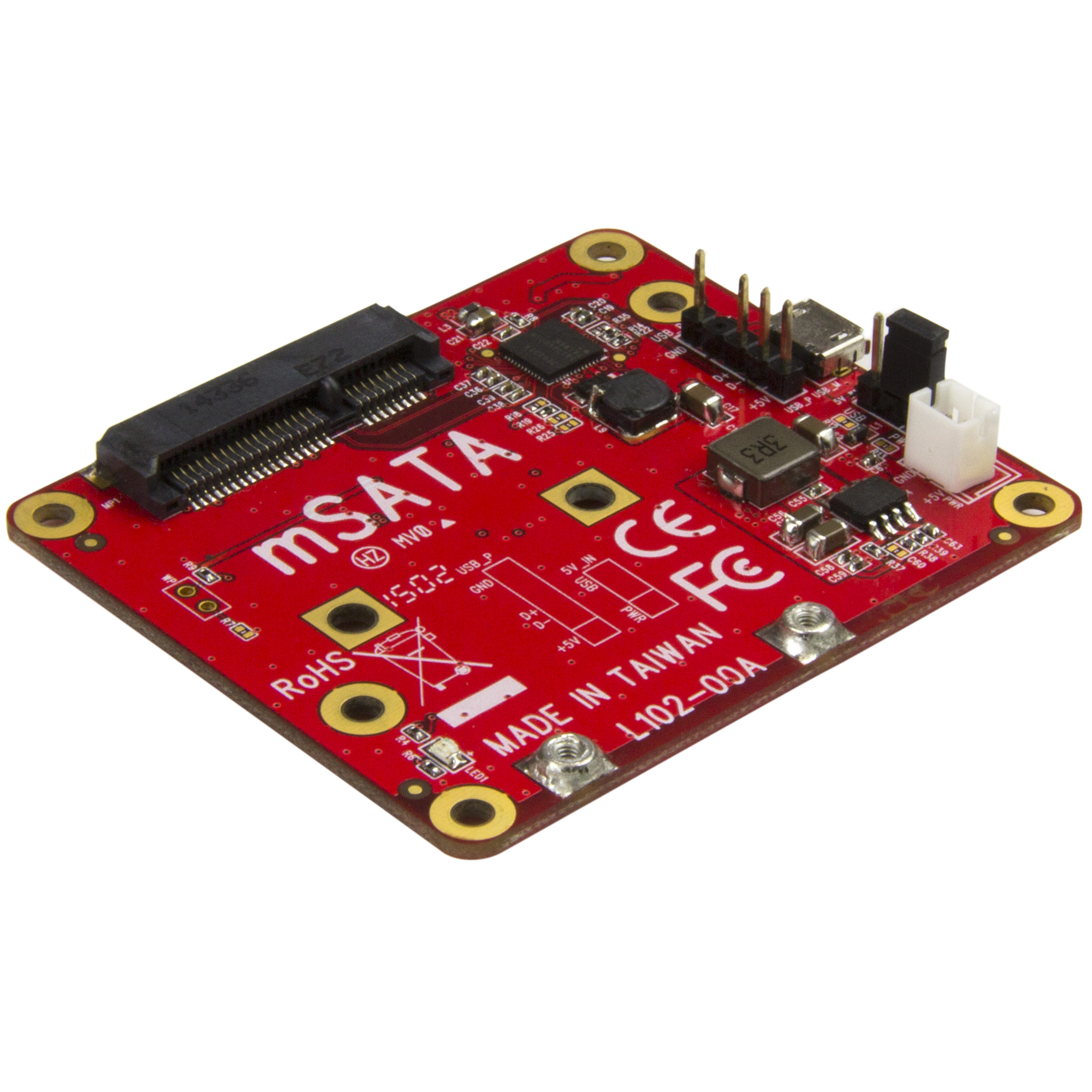

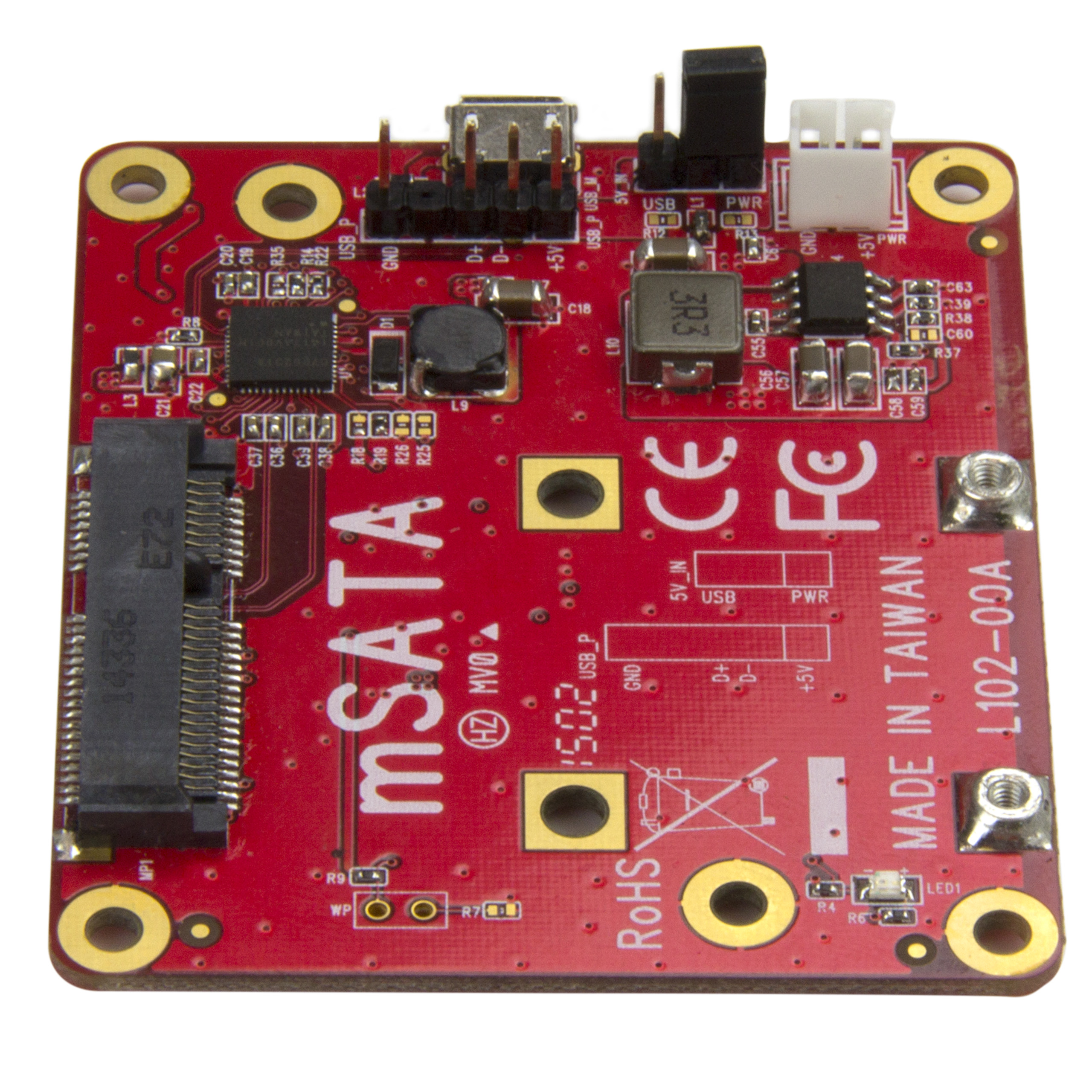

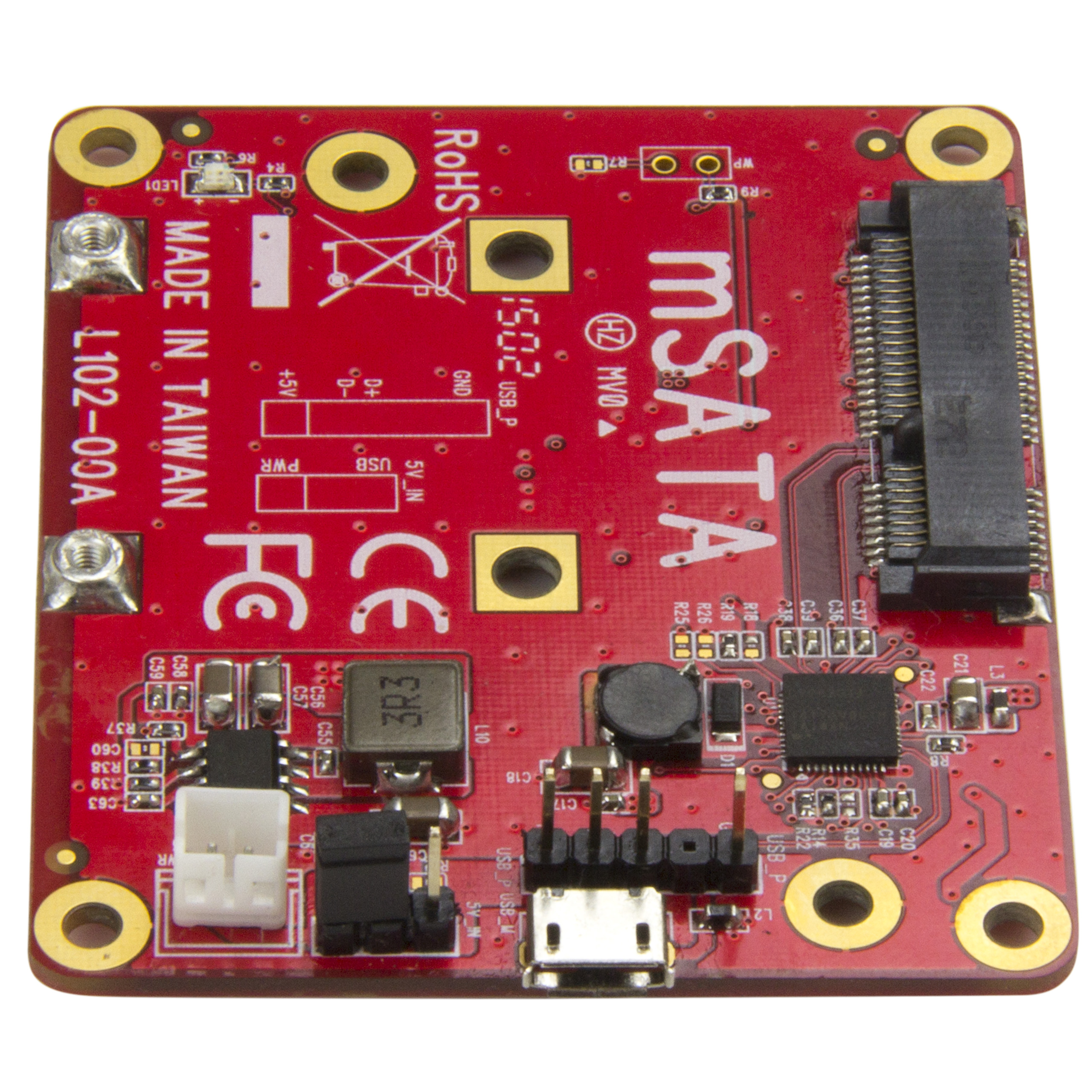

USB to mSATA Converter for Raspberry Pi Dev Boards

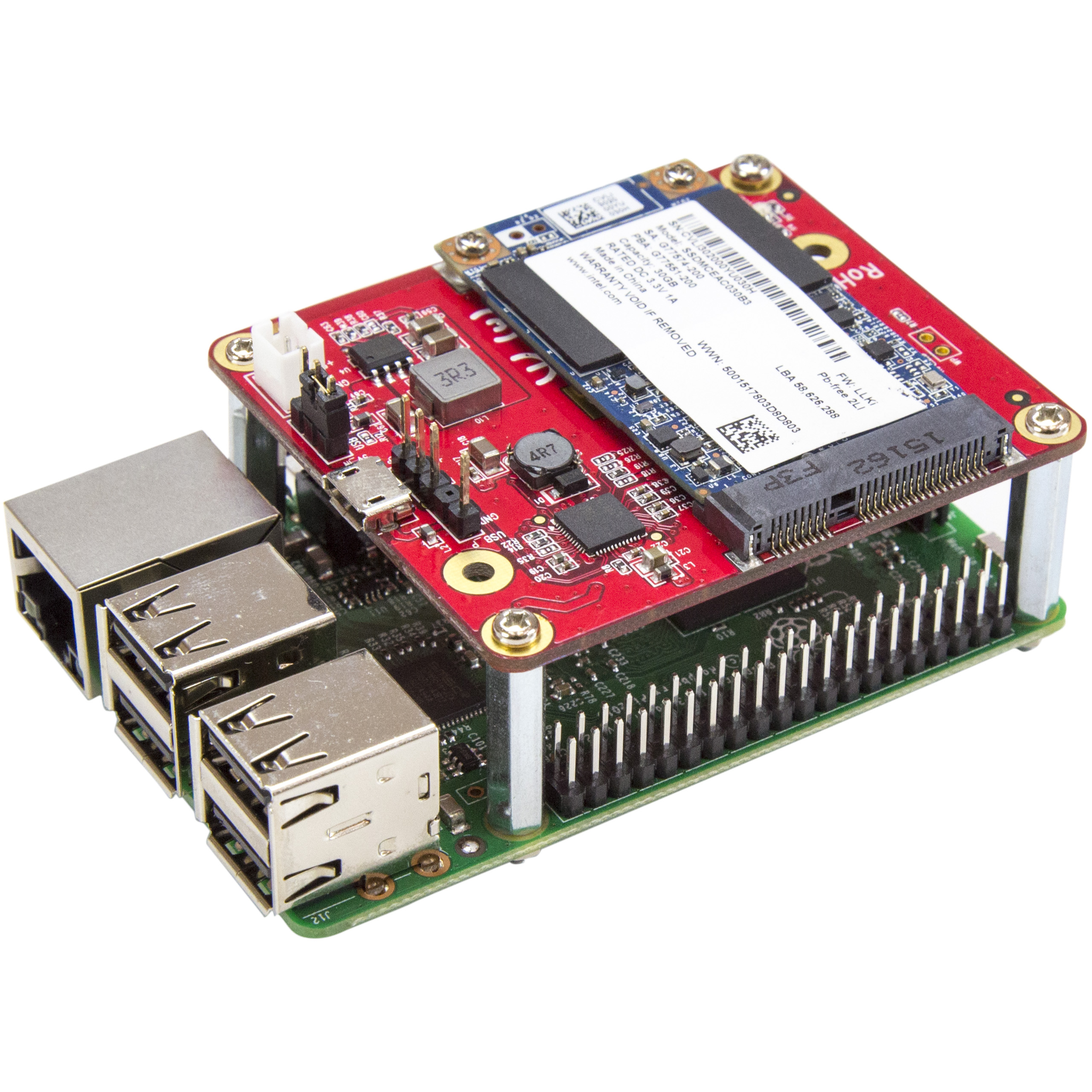

Connect an mSATA drive to your development board, to increase its data storage capacity
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name USB to mSATA Converter for Raspberry Pi Dev Boards Product Number PIB2MS1 UPC 065030866804 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 Other Cards And Adapters - mSATA/CF/IDE Family mSATA to USB Converter Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) USB to mSATA Adapter Product Title (Short) Converter, Raspberry Pi - USB to mSATA Product Title (Medium) USB to mSATA Converter for Raspberry Pi and Development Boards Product Title (Standard) USB to mSATA Converter for Raspberry Pi and Development Boards - USB to mini SATA Adapter for Raspberry Pi Product Title (Long) USB to mSATA Converter for Raspberry Pi and Development Boards - TAA Product Title (AMZ) USB to mSATA Converter for Raspberry Pi and Development Boards - USB to mini SATA Adapter for Raspberry Pi (PIB2MS1) Title Ingram (Part 1) USB to mini-SATA Converter for Title Ingram (Part 2) Raspberry Pi and Development Boards Website Product Headline Connect an mSATA drive to your development board, to increase its data storage capacity Bullet 1 Add an mSATA SSD drive to your Raspberry Pi development board to increase data storage Bullet 2 Supports SATA I, II and III mSATA SSD drives Bullet 3 USB 2.0 with data transfer speeds up to 480Mbps Bullet 4 OS independent with no device driver installation required Bullet 5 Includes USB cable and mounting accessories for Raspberry Pi Bullets (Compact) Connect an mSATA drive to your development board to add increased data storage capacity - USB to mSATA adapter for Raspberry Pi & development boards - Supports SATA I, II & III mSATA SSD Drives - Incl USB cable mounting accessories for Raspberry Pi Bullets (Consolidated) Connect an mSATA drive to your development board to add increased data storage capacity - USB to mSATA converter for Raspberry Pi and development boards - USB to mini SATA Adapter for Raspberry Pi - Supports SATA I, II and III mSATA SSD Drives - Includes USB cable and mounting accessories for Raspberry Pi - Dev board mini-SATA adapter lets you connect an mSATA SSD directly through your dev board’s USB-A port Marketing Copy Applications - Increase data storage for Raspberry Pi and other development boards to create custom applications
- Develop solutions for business applications such as: surveillance; media applications, like news boards; simple servers to host a website or video; and IoT/automation solutions such as lighting and temperature control
- Create custom development-board based applications for home use
Website Search Keyword - USB to mSATA Converter
- USB to mSATA Converter for Raspberry Pi
- USB to mSATA Raspberry Pi adapter
- Raspberry Pi adapter
- Raspberry Pi converter
- Dev board adapter
- Development board adapter
- Dev board converter
- mSATA adapter
- mini SATA adapter
- mSATA converter
- mini SATA converter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - UUSBHAUB6IN
- UUSBHAUB1
Related Products - PIB2S31
- PIB2M21
- SAT32MSAT257
- SMS1BMU313
- 25SAT22MSAT
- MSAT2SAT3
- SAT32MSATM
- SAT2MSAT25
- PEXM2SAT32N1
- PEXM2SAT3422
- PEX2M2
- SAT32MSATPEX

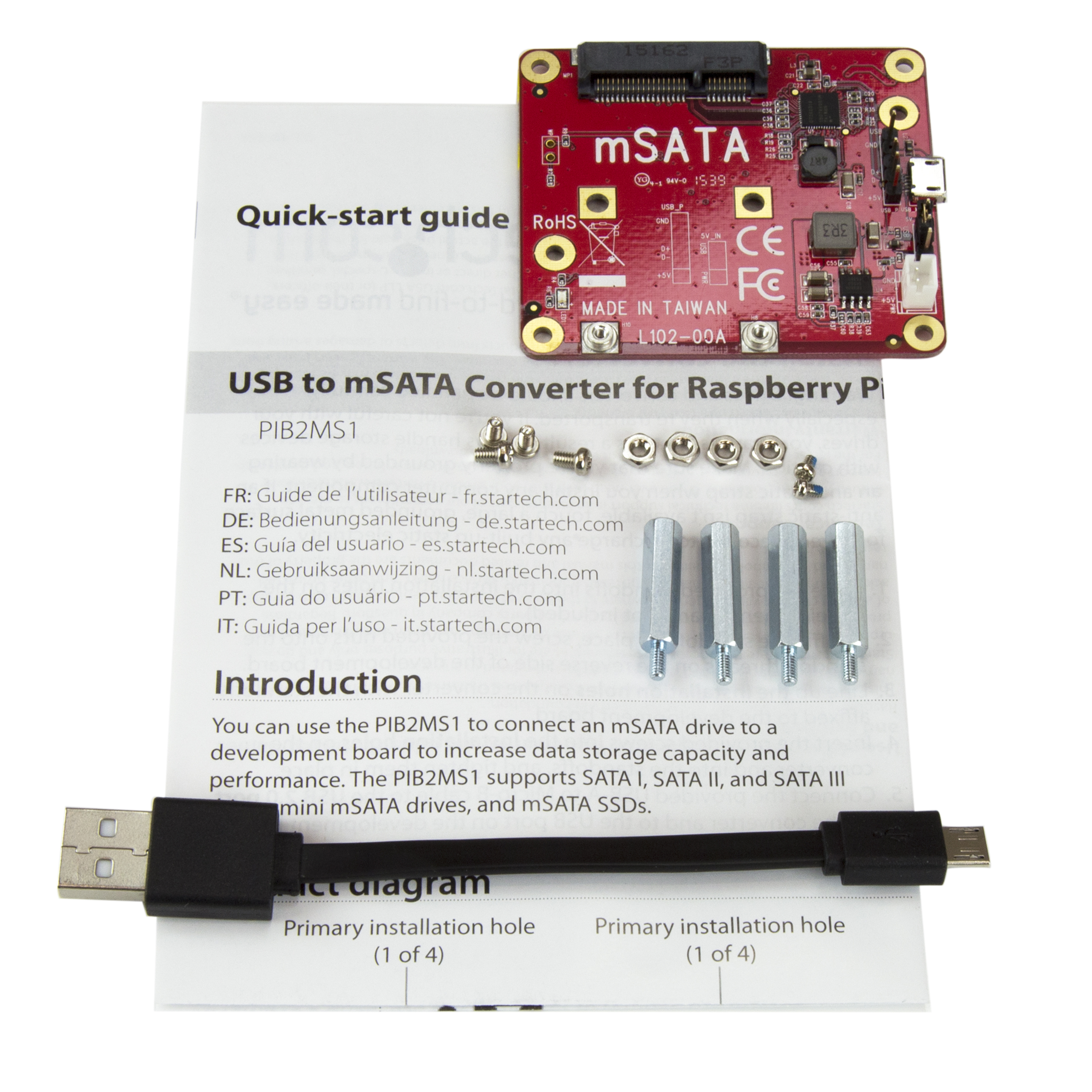

Power Source USB-Powered Color Red Humidity 15% ~ 90% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 65.000 Product Width (mm) 55.000 Product Height (mm) 11.000 Product Weight (g) 18.200 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes Maximum Data Transfer Rate 480 Mbps MTBF (hours) 5,077,966 hrs OS Compatibility OS Independent RAID No SATA Type and Rate SATA III (6 Gbps) USB Type and Rate USB 2.0 (480Mbps) Bus Type USB 2.0 Chipset ID Renesas/NEC - µPD720231A Compatible Drive Types mSATA (Mini SATA) Interface/Bridge USB 2.0 Number of Drives 1 Carton Depth (mm) 380 Carton Height (mm) 324 Carton Quantity 60 Carton Weight Gross (g) 6870 Included in Package - 1 - USB to mSATA converter
- 1 - USB-A to Micro-B cable
- 4 - standoffs
- 4 - nuts
- 4 - screws
- 1 - quick-start guide
- 2 - mSATA mounting screws
Package Depth (mm) 144 Package Height (mm) 32 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 100 Packaging Description USB to mSATA Converter for Development Boards Packaging Description India USB to mSATA Converter for Development Boards Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 mSATA (52-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB Micro-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2016-09-01 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2016-10-19 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-08-25 Target Production Release 2016-09-01 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
