PIB2S31

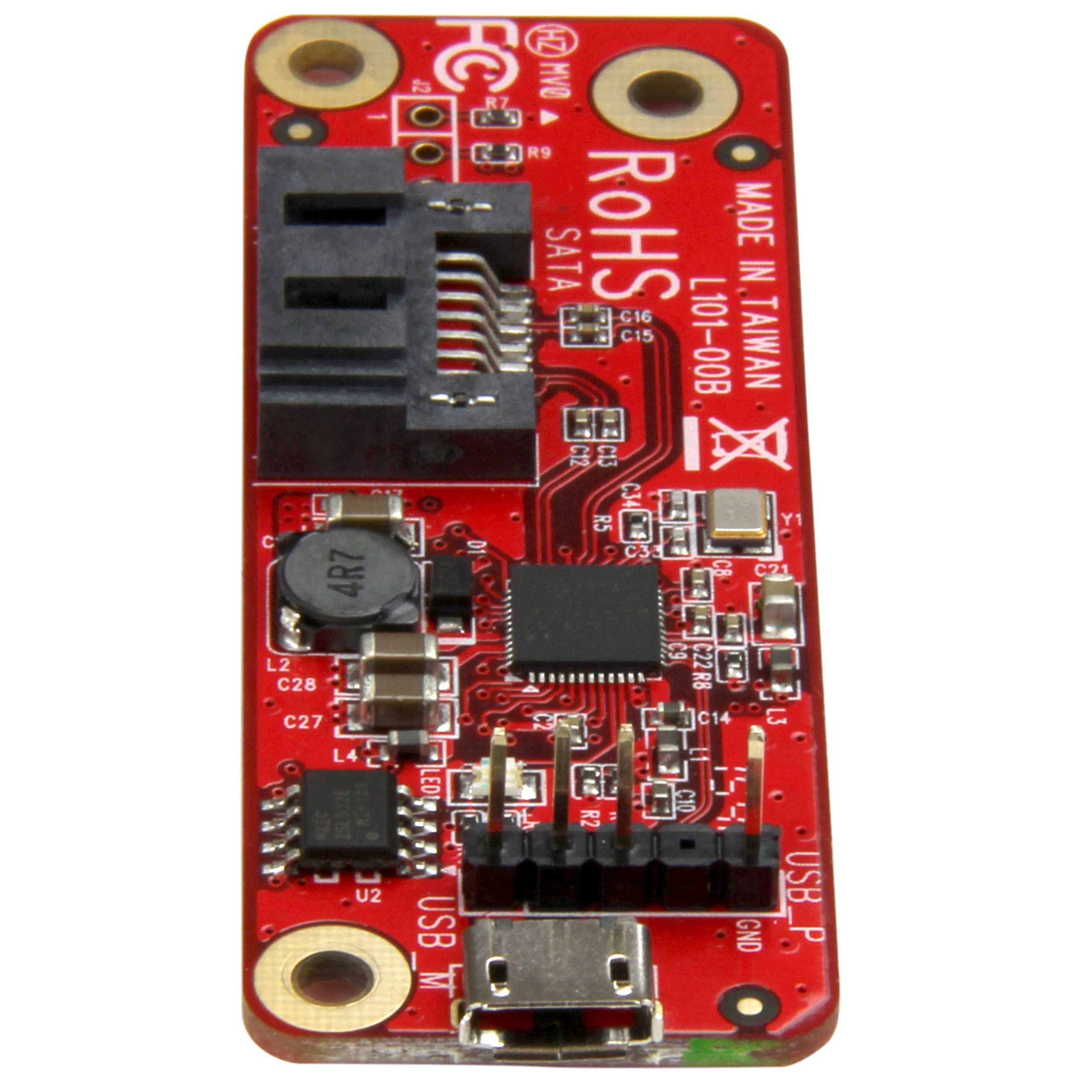

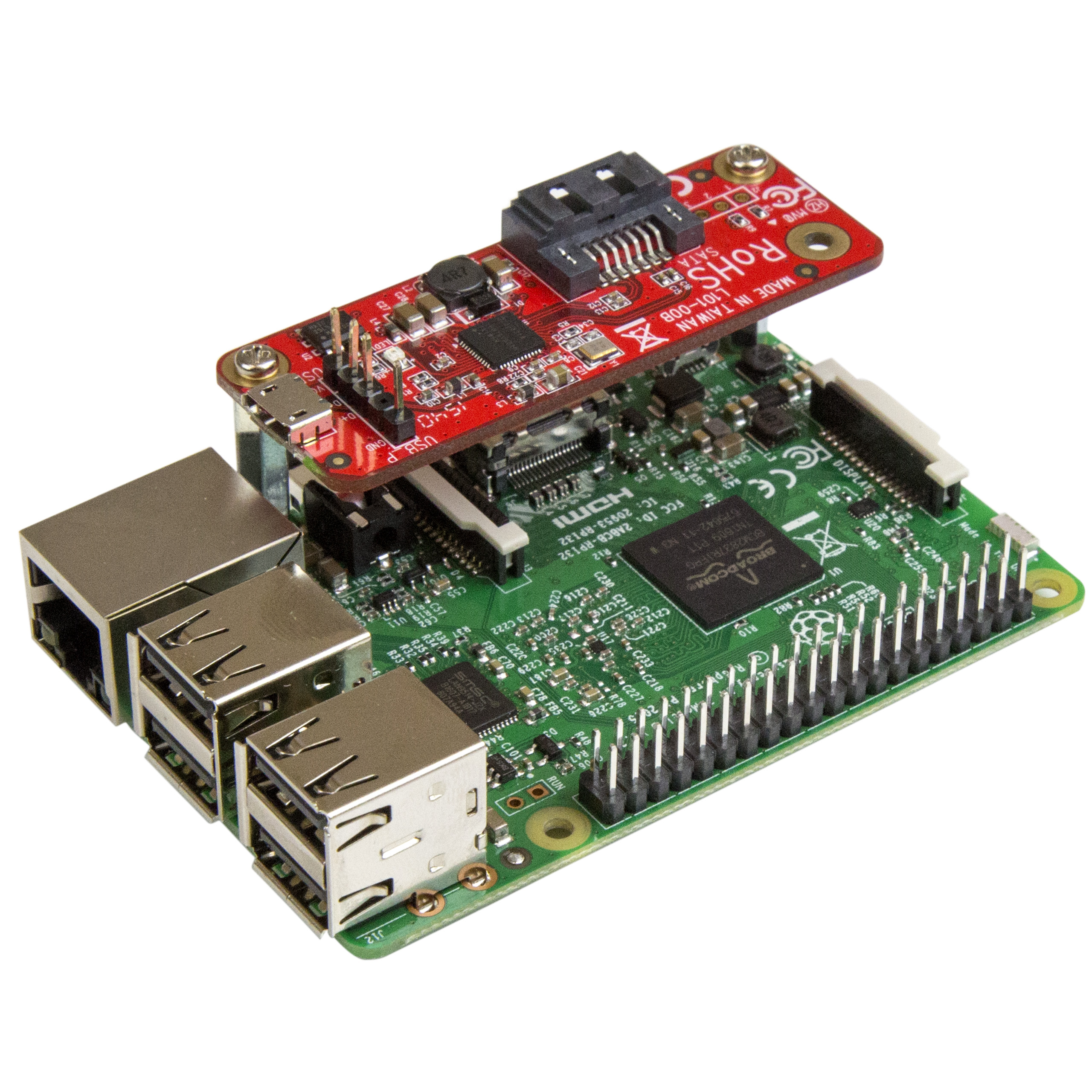

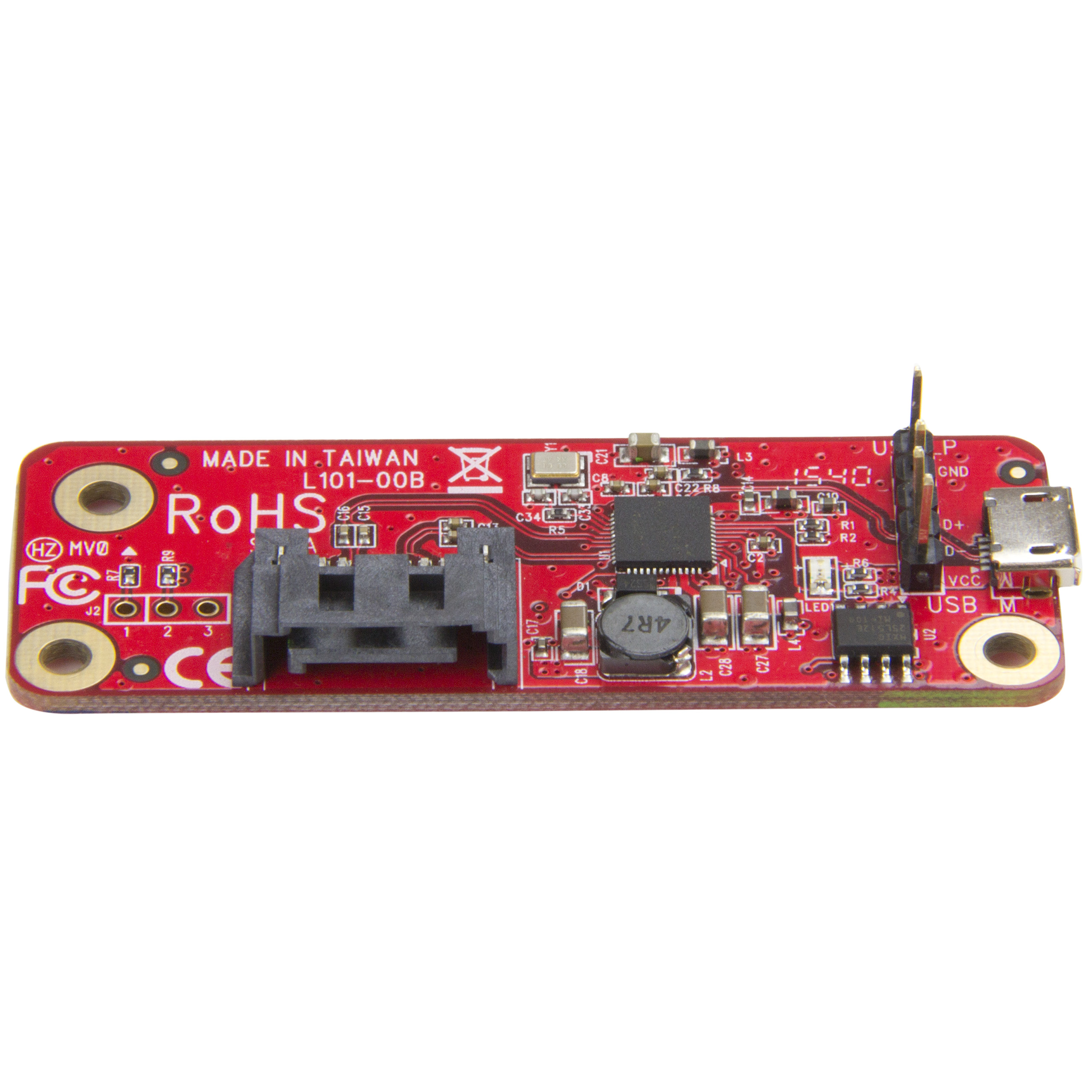

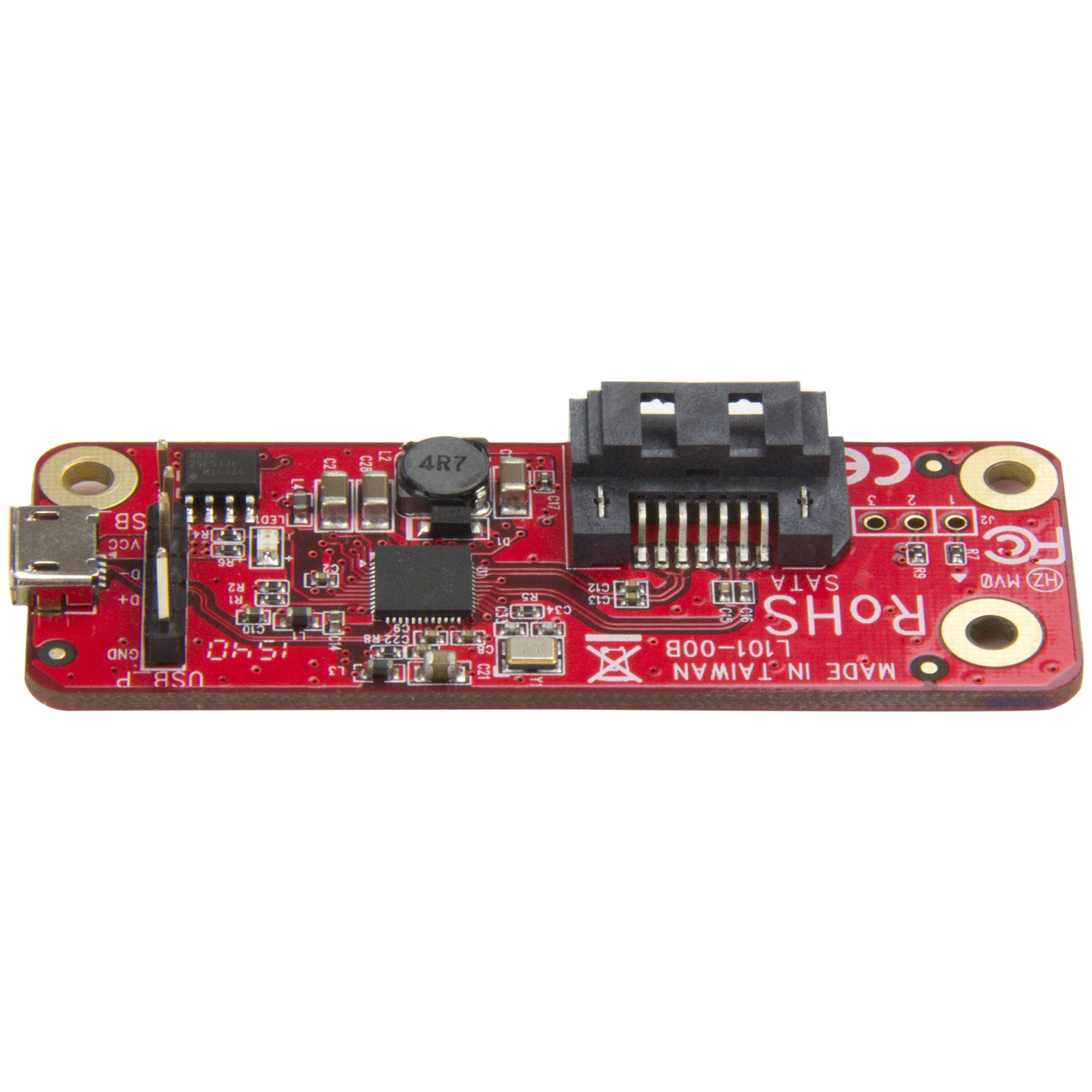

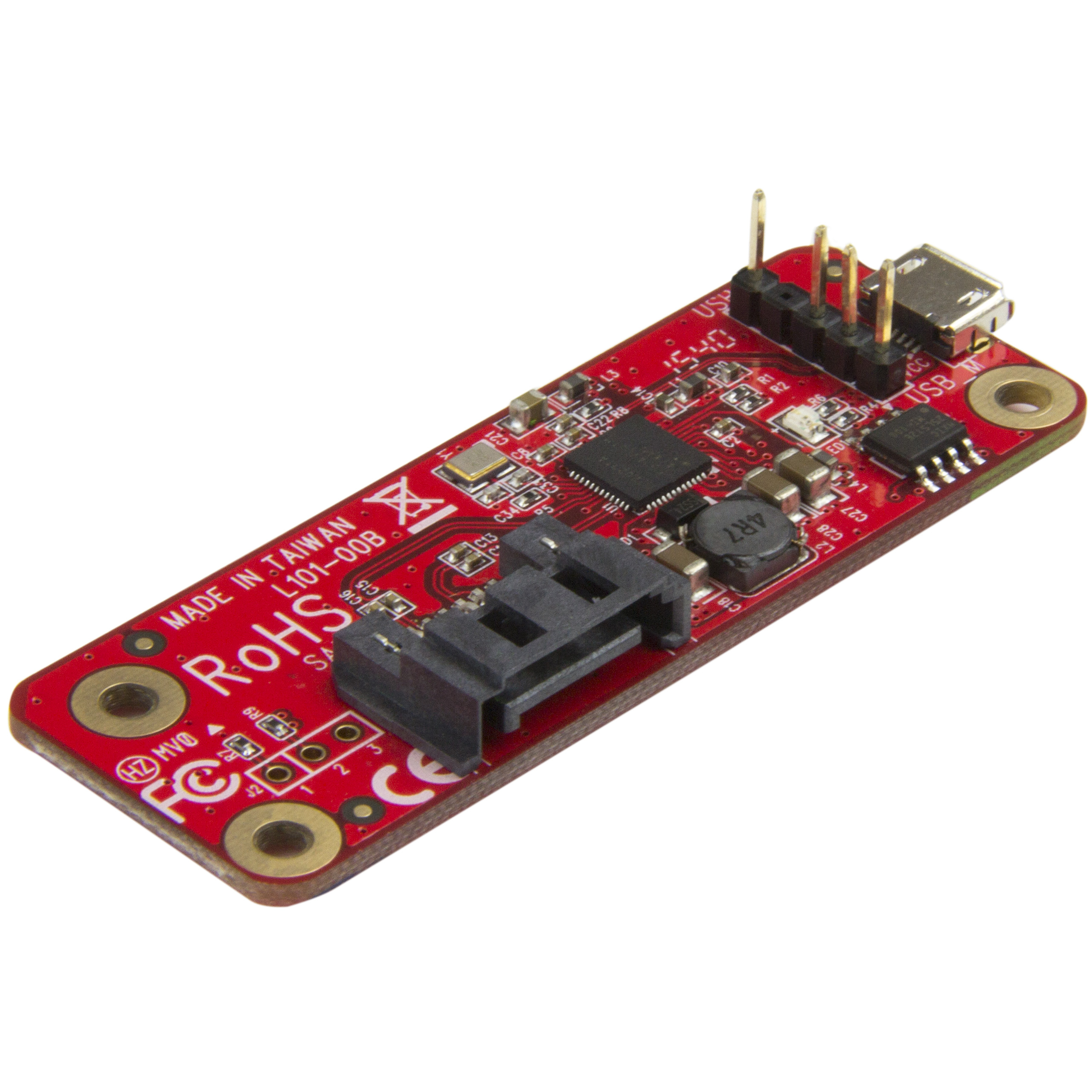

USB to SATA Converter for Raspberry Pi Board
Connect any SATA device to your development board, to increase its data storage capacity and performance
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name USB to SATA Converter for Raspberry Pi Board Product Number PIB2S31 UPC 065030866798 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) USB to SATA Adapter Product Title (Short) Converter, Raspberry Pi - USB to SATA Product Title (Medium) USB to SATA Converter for Raspberry Pi and Development Boards Product Title (Standard) USB to SATA Converter for Raspberry Pi and Development Boards - USB to SATA Adapter for Raspberry Pi Board Product Title (Long) USB to SATA Converter for Raspberry Pi and Development Boards Product Title (AMZ) USB to SATA Converter for Raspberry Pi and Development Boards - USB to SATA Adapter for Raspberry Pi Board (PIB2S31) Title Ingram (Part 1) USB to SATA Converter for Dev Title Ingram (Part 2) Boards including Raspberry Pi Website Product Headline Connect any SATA device to your development board, to increase its data storage capacity and performance Bullet 1 Connect your Raspberry Pi board to any SATA device: SSD, HDD, DVD-ROM, DVD-RW, CD-ROM, or CD-RW Bullet 2 Supports SATA I, II and III Bullet 3 USB 2.0 with data transfer speeds up to 480Mbps Bullet 4 OS independent with no device driver installation required Bullet 5 Includes USB cable and mounting accessories for Raspberry Pi Bullets (Compact) Connect any SATA device to your development board, to increase data storage capacity and performance - USB to SATA adapter for Raspberry Pi - Connect your dev board to a SATA SSD, HDD, DVD-ROM, DVD-RW, CD-ROM, CD-RW - SATA I.II, III - Incl USB cable Bullets (Consolidated) Connect any SATA device to your development board to increase its data storage capacity and performance - USB to SATA Converter for Raspberry Pi and Development Boards - Connect your dev board to any SATA device: SSD/HDD/DVD-ROM/DVD-RW/CD-ROM/CD-RW - OS independent with no device driver installation required - USB to SATA Converter Board Adapter supports SATA I/II/III - Raspberry Pi board add on - Includes USB cable and Raspberry Pi mounting accessories Marketing Copy Applications - Increase data storage capacity and capabilities for Raspberry Pi development boards to create custom applications
- Develop solutions for business applications, such as: surveillance; media applications, like news boards; simple servers to host a website or video; and IoT/automation solutions, such as lighting and temperature control
- Create custom development-board based applications for home use
Website Search Keyword - USB to SATA Converter
- USB to SATA Converter for Raspberry Pi
- USB to SATA Raspberry Pi adapter
- Raspberry Pi adapter
- Raspberry Pi converter
- Dev board adapter
- Development board adapter
- Dev board converter
- SATA adapter
- USB to SATA adapter
- SATA converter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - UUSBHAUB6IN
- UUSBHAUB1
Related Products - PIB2M21
- PIB2MS1
- SAT32MSAT257
- SMS1BMU313
- 25SAT22MSAT
- SAT32MSATPEX
- MSAT2SAT3
- SAT32MSATM
- SAT2MSAT25
- PEXM2SAT32N1
- PEXM2SAT3422
- PEX2M2
Power Source USB-Powered Color Red Humidity 15% ~ 90% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 66.000 Product Width (mm) 23.000 Product Height (mm) 11.000 Product Weight (g) 7.600 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes Maximum Data Transfer Rate 480 Mbps MTBF (hours) 6,481,043 hrs OS Compatibility OS Independent RAID No SATA Type and Rate SATA III (6 Gbps) USB Type and Rate USB 2.0 (480Mbps) Bus Type USB 2.0 Chipset ID Renesas/NEC - µPD720231A Compatible Drive Types SATA Interface/Bridge USB 2.0 Number of Drives 1 Carton Depth (mm) 380 Carton Height (mm) 320 Carton Quantity 60 Carton Weight Gross (g) 5830 Included in Package - 1 - USB to SATA converter
- 1 - USB-A to Micro-B cable
- 2 - standoffs
- 2 - nuts
- 2 - screws
- 1 - quick-start guide
Package Depth (mm) 143 Package Height (mm) 32 Package Width (mm) 178 Package Quantity 1 Package Weight (g) 70.4 Packaging Description USB to SATA Converter for Development Boards Packaging Description India USB to SATA Converter for Development Boards Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB Micro-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2016-08-12 Digital Content Due Date 2016-10-19 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-08-25 Target Production Release 2016-09-09 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
