PLATE9MHDLP

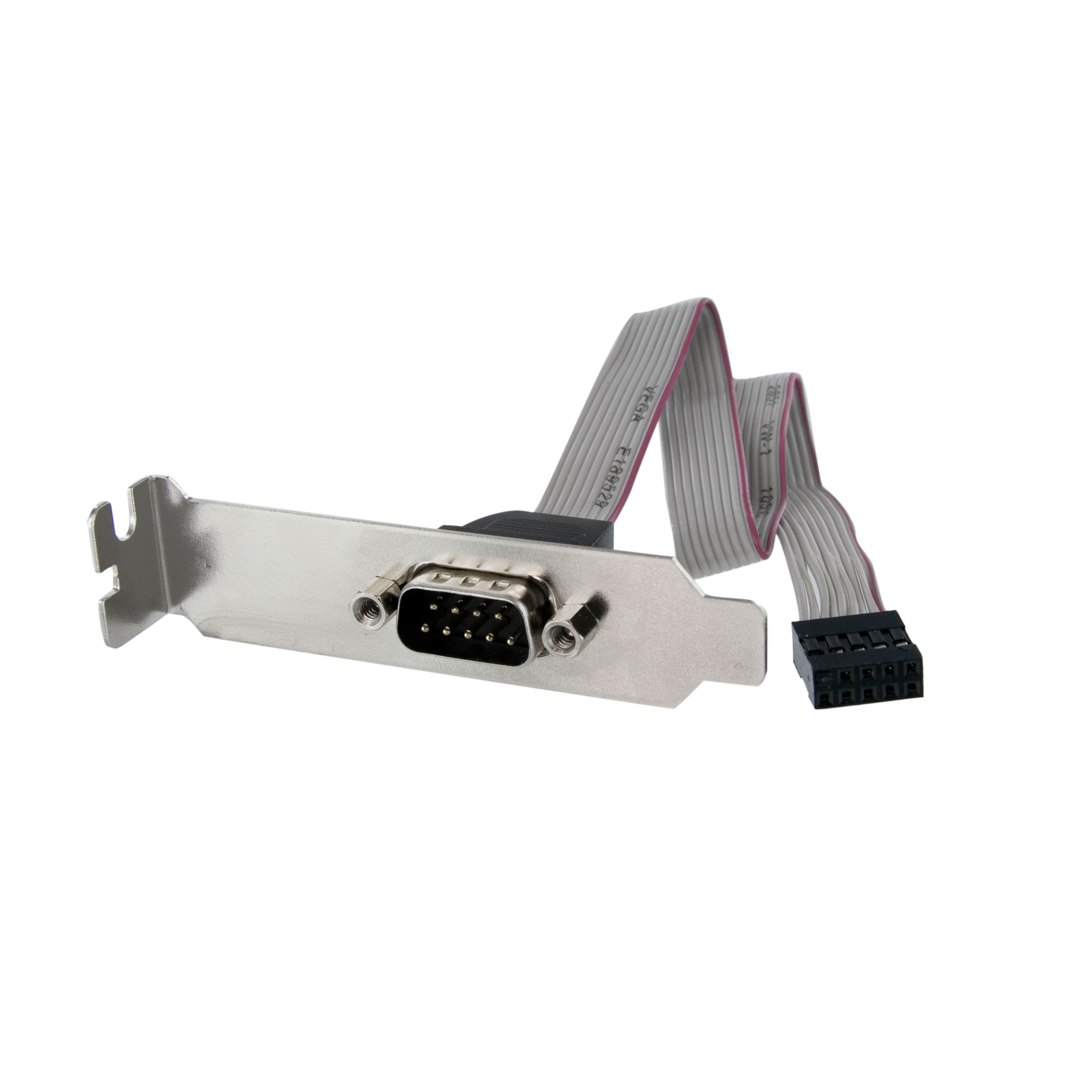

9-pin Serial to 10-pin IDC Header LP Slot Plate
Allows Serial Slot plate connections to Small Form Factor motherboards in Low Profile enclosures
Main Image
Product Images
Product Images
Product Name 9-pin Serial to 10-pin IDC Header LP Slot Plate Product Number PLATE9MHDLP UPC 065030835602 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Cables - Other Category Level 2 Serial, Parallel and PS2 Cables Category Level 3 Serial and Parallel Header Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX045X Product Title (Short) Motherboard Header LP Slot Plate Adapter Product Title (Standard) Serial to IDC Header LP Slot Plate Adapter Product Title (Long) 9 Pin Serial to 10 Pin IDC Header Low Profile Slot Plate Adapter Product Title (AMZ) 9 Pin Serial to 10 Pin IDC Header Low Profile Slot Plate Adapter (PLATE9MHDLP) Title Ingram (Part 1) Serial to 10 Pin IDC Header Low Title Ingram (Part 2) Profile Slot Plate Adapter Website Product Headline Allows Serial Slot plate connections to Small Form Factor motherboards in Low Profile enclosures Bullet 1 Conveniently add an external DB9 serial port Marketing Copy Applications Provides a mini header style connection for DB9 applications Website Search Keyword - Serial Slot Plate
- Serial Motherboard Connector
Special Notes Conforms to Apex10-Everex-Intel Specification, please refer to wiring diagram manual on the Support tab Cable Length (mm) 229 Color Gray Product Weight (g) 15 TAA Compliant No Wire Gauge 28 AWG Screw Lock Yes Serial/Parallel Cable Type Straight Through (RS232) Carton Depth (mm) 360 Carton Height (mm) 255 Carton Quantity 250 Carton Weight Gross (g) 780 Included in Package 1 - 9 Pin Serial to 10 Pin IDC Header Low Profile Slot Plate Adapter Package Depth (mm) 10 Package Height (mm) 126 Package Width (mm) 223 Package Quantity 1 Package Weight (g) 27 Packaging Description Serial to IDC Header LP Slot Plate Adapter Packaging Description India Serial to IDC Header LP Slot Plate Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 IDC (10-Pin) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
