PM1115P
1 Port Parallel 10/100 Printer Server
Convert a Parallel printer into a stand alone network printer over a 10/100 Ethernet network
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 1 Port Parallel 10/100 Printer Server Product Number PM1115P UPC 065030817684 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX022X Product Title (Short) 1 Port 10/100 Mbps Parallel Print Server Product Title (Standard) StarTech.com Parallel print server - parallel - EN, Fast EN - 10Base-T, 100Base-TX - 1 Port Product Title (Long) 1 Port 10/100 Mbps Parallel Network Print Server Title Ingram (Part 1) 1 Port 10/100 Mbps Parallel Netw Title Ingram (Part 2) ork Print Server Website Product Headline Convert a Parallel printer into a stand alone network printer over a 10/100 Ethernet network Bullet 1 Compact and light weight print server only weighs 2.4 ounces Bullet 2 Compliant with IEEE 1284, IEEE 802.3 & IEEE 802.3u standards Bullet 3 Configurable using a Web based browser or a Windows based configuration Bullet 4 Connects directly to the Centronics port of your printer Bullet 5 Easy setup and configuration Marketing Copy Applications - Connects your Ethernet network to one Parallel printer
- PM1115P offers network printing solution for home, small office, educational & government institutions and any other environments that require printer sharing
System and Cable Requirements Ethernet network cable not included Accessory Products - M45PATCH100B
- M45PATCH15BL
- RJ45PATCH10
Related Products PM1115U Input Voltage 115V AC Output Current 500mA Output Voltage (V) 7.5 DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Beige Material Plastic Product Length (mm) 55 Product Width (mm) 50 Product Height (mm) 22 Product Weight (g) 67 TAA Compliant No OS Compatibility - Windows 8
- Windows 7
- Mac OS X Yosemite (10.10)
- Mac OS X Mavericks (10.9)
- Windows Server 2012
Remote Management Ability Yes Supported Protocols - AppleTalk
- IPX/SPX
- NetBEUI
- SMNP
- TCP/IP
LED Indicators - 1 - LAN
- 1 - Status
- 1 - Activity

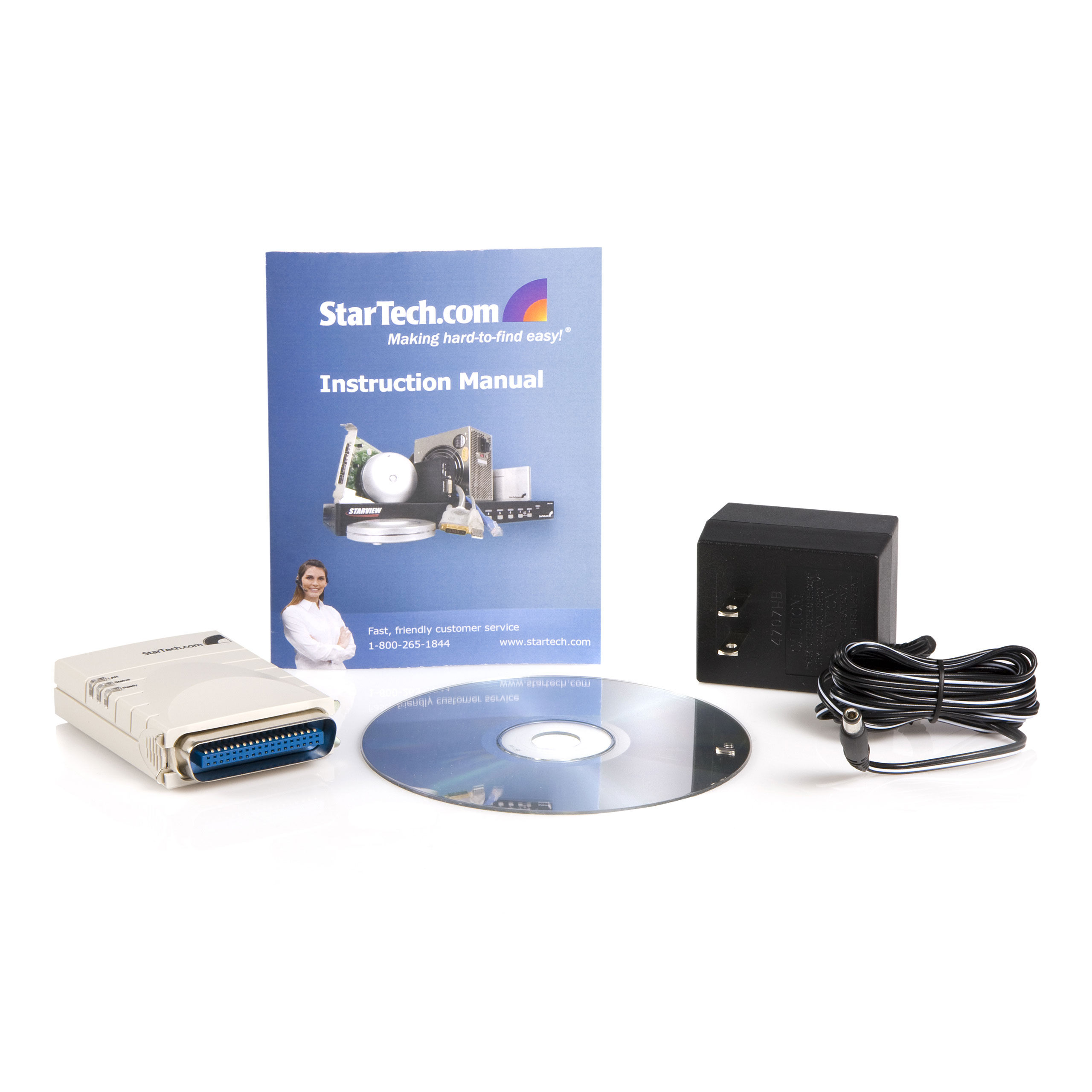

Carton Depth (mm) 505 Carton Height (mm) 355 Carton Quantity 20 Carton Weight Gross (g) 11600 Included in Package - 1 - Parallel Print Server
- 1 - Power Adapter (NA)
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 78 Package Height (mm) 158 Package Width (mm) 240 Package Weight (g) 520 Packaging Description 10/100 Mbps Parallel Print Server Packaging Description India 10/100 Mbps Parallel Print Server Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Centronics (36-Pin) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
